ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
11MR00	Silentblock Bushing	di:Ø14 do:Ø40 / 0,22 kg	A 204 352 00 27, A 221 352 01 27 (14) OEM
17MR4020 NEW	Tie Rod End Left	0,94 kg	204 330 19 03, 212 330 13 03
17MR4021 NEW	Tie Rod End Right	0,94 kg	204 330 20 03, 212 330 14 03 (1) OEM
20MR3610	Axial Joint	tp: MM16x1.5 tp: MM14x1.5 L: 245 / 0,7 kg	204 338 05 15, A 204 338 05 15 (2) OEM
20MR4010	Axial Joint	th1:MM16x1.5 RHT th2:MM14x1.5 RHT L: 237mm / 0,64 kg	212 330 28 03, A 212 330 28 03
23MR1850 IN PREPARATION	Track Control Arm Left		205 350 61 03, 204 350 15 06 (4) OEM
23MR1851 IN PREPARATION	Track Control Arm Right		205 350 62 03, 204 350 16 06 (4) OEM
23MR1852 IN PREPARATION	Track Control Arm Left		204 350 21 06, 204 350 33 06 (2) OEM
23MR1853 IN PREPARATION	Track Control Arm Right		204 350 22 06, 204 350 34 06 (2) OEM
23MR3610 IN PREPARATION	Track Control Arm Lower	0 kg	204 330 80 11, A 204 330 80 11
23MR3612 IN PREPARATION	Track Control Arm Left		204 330 81 11, A 204 330 81 11 (2) OEM
23MR3613 IN PREPARATION	Track Control Arm Right		204 330 82 11, A 204 330 82 11 (2) OEM

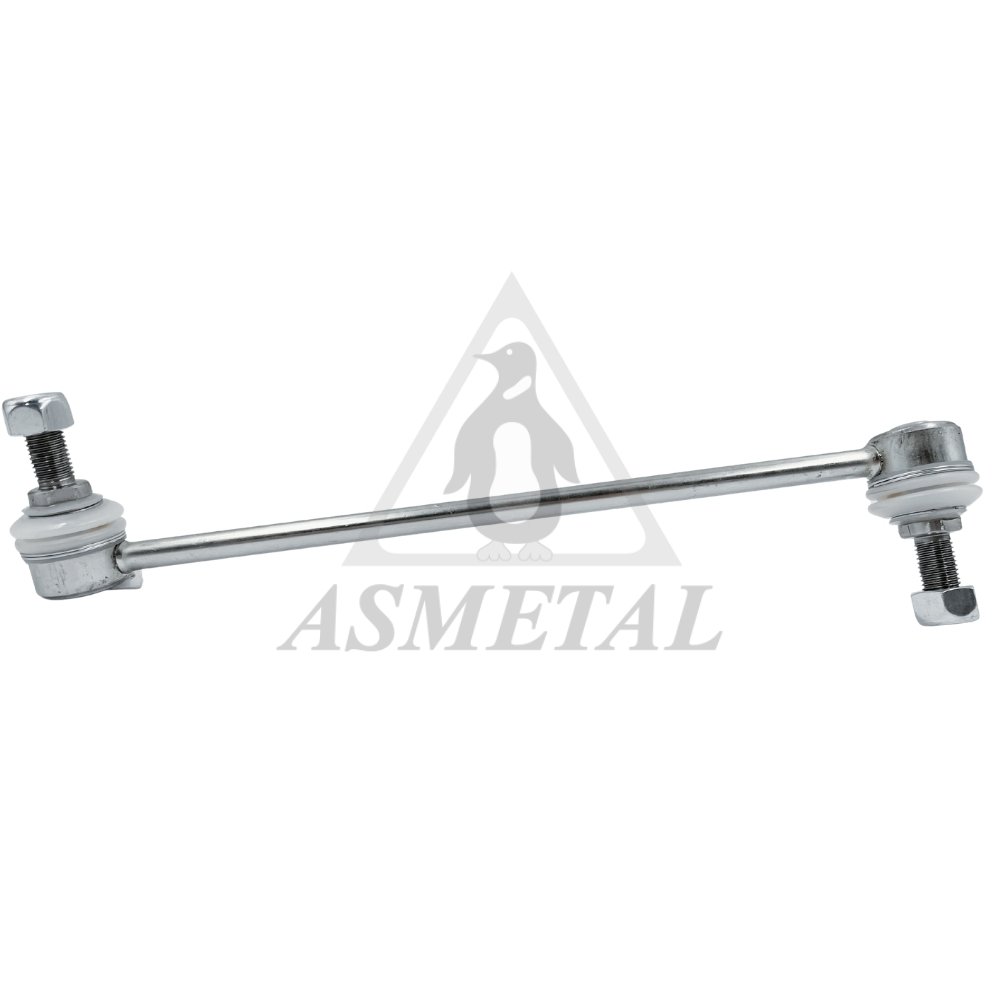

26MR3610	Stabiliser Link Left	L:290 & M12x1.5 / 0,47 kg	204 320 07 89, A 204 320 07 89

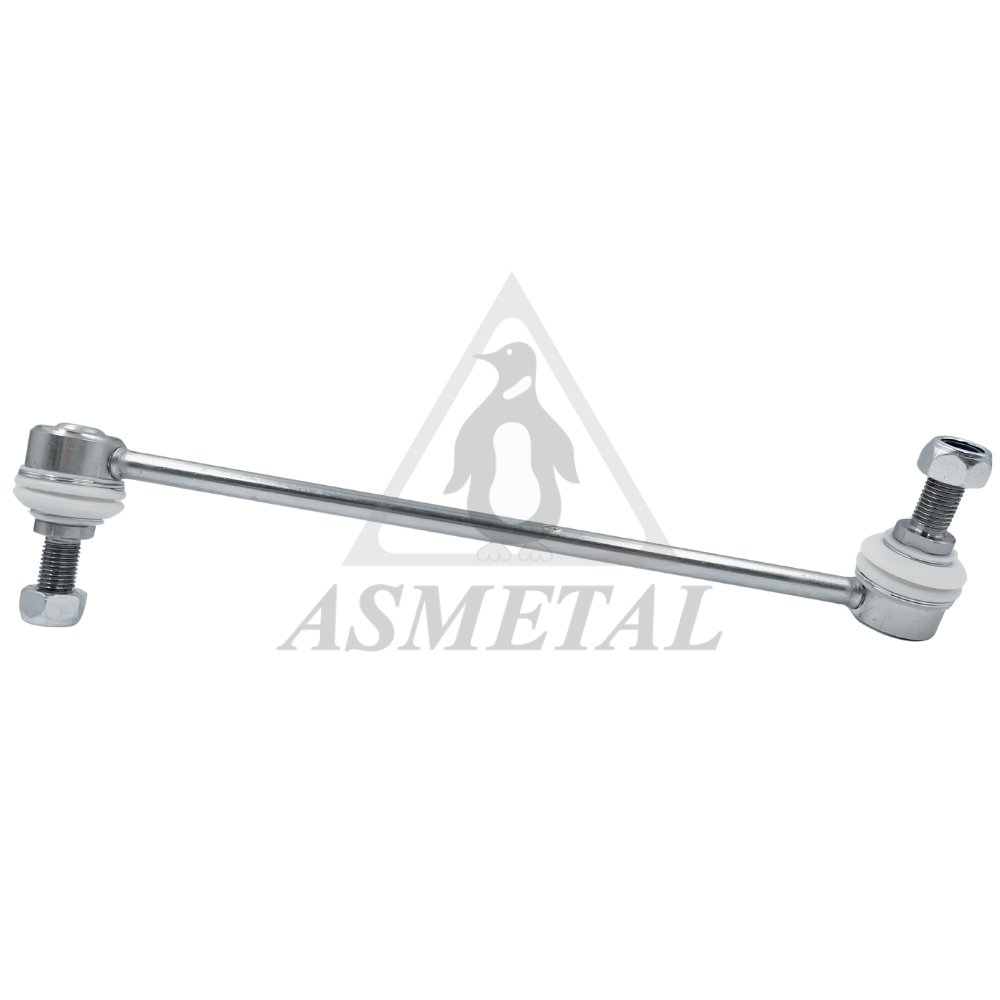

26MR3611	Stabiliser Link Right	L:290 & M12x1.5 / 0,47 kg	A 204 320 22 89, 204 320 22 89

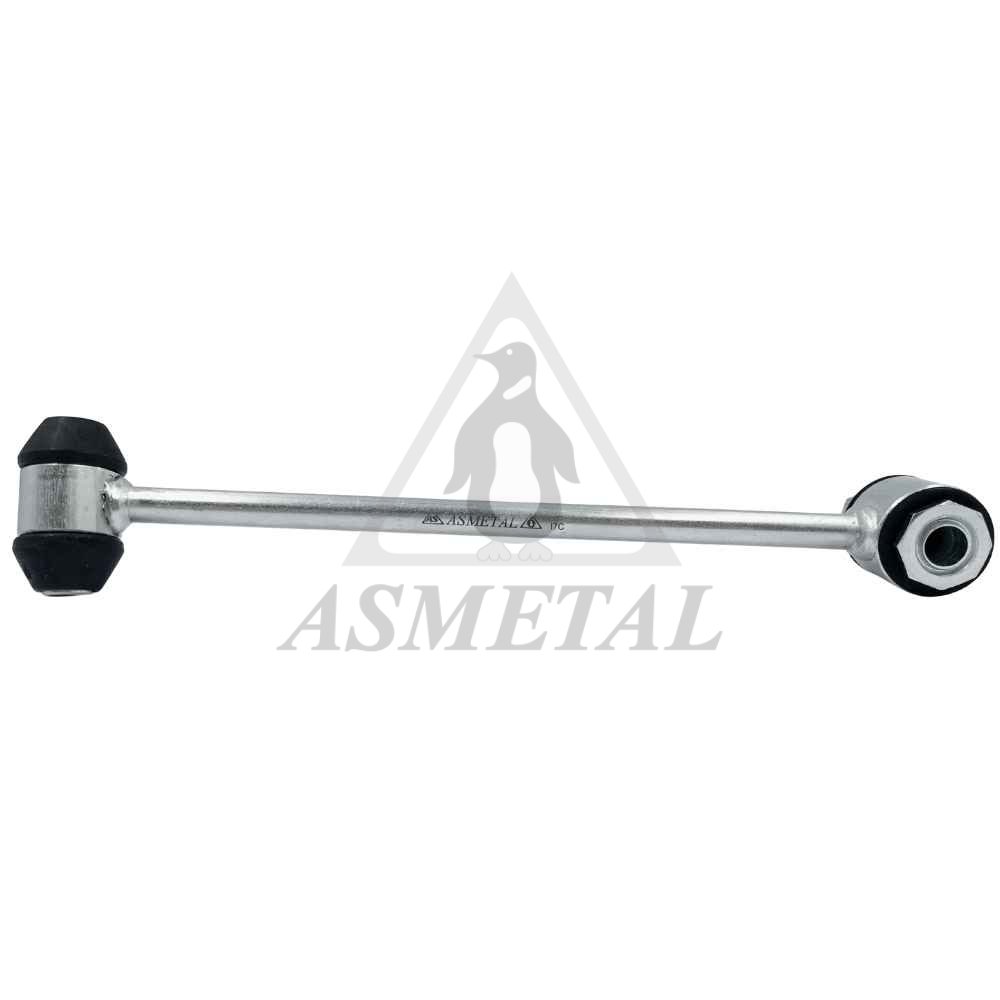

26MR3620	Stabiliser Link Rear Left	th:MM10x1.5 RHT L: 232mm / 0,31 kg	204 320 05 89, A 204 320 05 89

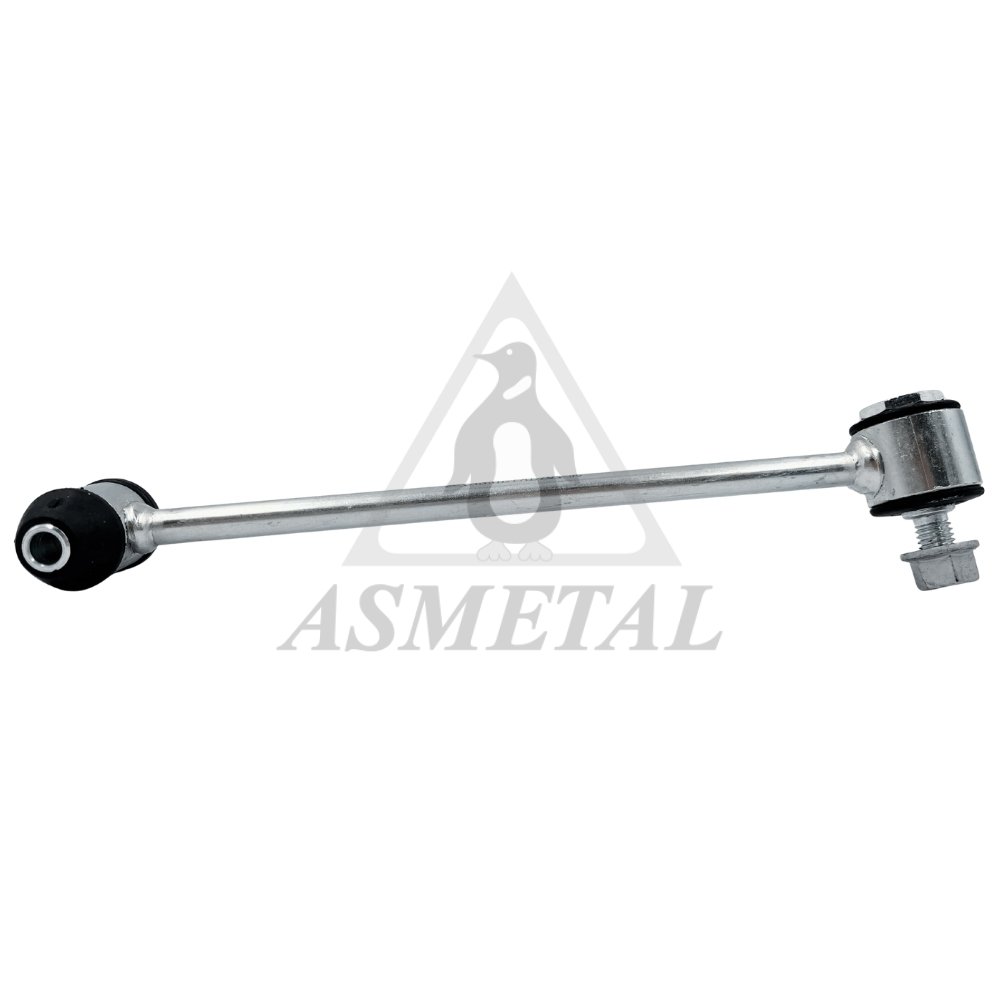

26MR3621	Stabiliser Link Rear Right	th:MM10x1.5 RHT L: 232mm / 0,31 kg	204 320 04 89, A 204 320 04 89
38MR0615	Silentblock for TCA	di:Ø12,2 do:Ø51,2 / 0,26 kg	A 220 352 13 65, A 204 352 10 65 (6) OEM
38MR0617	Silentblock for TCA	di:Ø12,2 do:Ø38,5 / 0,08 kg	A 204 353 00 43 , 204 353 00 43 (4) OEM
38MR0705	Silentblock for TCA	di:Ø24 do:Ø44,5 / 0,52 kg	203 333 02 14, 211 333 29 14 (6) OEM
38MR0706	Silentblock for TCA	di:Ø15 do:Ø70,5 / 0,56 kg	A 204 333 11 14, 204 333 11 14 (10) OEM
38MR0706K IN PREPARATION	Silentblock for TCA Set	0 kg	A 203 333 10 14, A 204 333 10 14 (4) OEM
38MR0707	Mounting Axle Body	di: Ø15 / do: Ø44 / L: 74,1 / 0,27 kg	204 351 04 42, 205 351 02 00 (2) OEM
38MR3610	Silentblock for TCA	di:Ø14.9 do: Ø55.4 L:60mm / 0,22 kg	204 330 80 11, A 204 330 80 11 (2) OEM
38MR4009	Mounting Axle Body	di: Ø18 / do: Ø77 / L: 77.5 / 0,52 kg	204 351 03 42, 204 351 08 42 (2) OEM
45MR3205	Mounting Automatic Transmission	L: 103.8 / 0,53 kg	212 240 03 18, 220 240 01 18 (4) OEM
45MR4010	Strut Mount	0,31 kg	204 320 03 73, 204 320 08 73 (18) OEM
45MR4040	Strut Mount	di: Ø15 / L: 64 / 0,96 kg	204 323 01 20, A204 323 01 20
