ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No

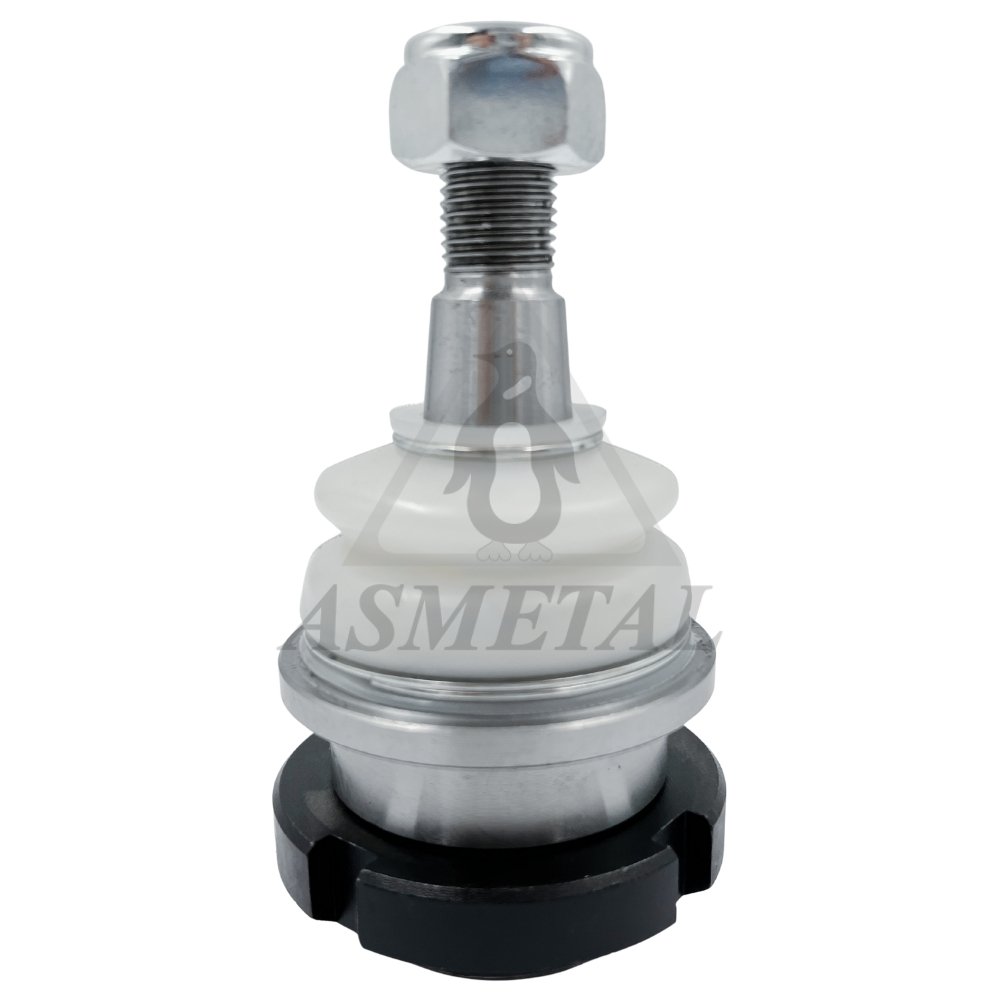

10MR4500	Ball Joint Lower	th:M14x1.5 RHT cp:1/6 cs:Ø16,2 th2:M42x1.5 RHT / 0,79 kg	A 163 330 01 35, 163 330 00 35 (2) OEM
10MR4590	Shock Absorber's Ball Joint	th:M12x1.5 / 0,54 kg	163 320 05 13, A163 320 05 13 (8) OEM
10MR4600	Ball Joint Rear	th:M14x1.5 RHT c:Ø20 th2:M42x1.5 RHT / 0,84 kg	A 163 350 00 13, 163 350 00 13 (2) OEM
10MR4700	Ball Joint	th:M16x1.5 RHT th2:M42x1.5 RHT / 0,86 kg	164 330 09 35, A 164 330 09 35
10MR4800	Ball Joint Rear	th:M16x1.5 RHT th2:M42x1.5 RHT / 0,88 kg	A 164 352 01 27, 164 352 01 27 (3) OEM
10MR4810	Ball Joint Lower	tp:1 M16x1.5 / tp2: M30x1.5 / cr : Ø16.1 / 0,88 kg	A 166 330 02 35, 166 330 02 35
17MR4500	Tie Rod End Left	c:Ø15,1 th:FM16x1,5 RHT / 0,82 kg	1633380315, 1633380015 (2) OEM
17MR4501	Tie Rod End Right	c:Ø15,1 th:FM16x1,5 RHT / 0,82 kg	1633300403, 1633300203 (2) OEM
17MR4700	Tie Rod End Left	c:Ø15 th:FM14x1,5 RHT / 0,83 kg	A 164 330 11 03, 164 330 11 03
17MR4701	Tie Rod End Right	c:Ø15 th:FM14x1,5 RHT / 0,83 kg	164 330 12 03, A 164 330 12 03
17MR4810 IN PREPARATION	Tie Rod End	0 kg	166 330 04 03, A 166 330 04 03
20MR4500	Axial Joint	th:MM16x1,5 RHT L:160mm / 0,48 kg	163 338 02 05, A 163 338 02 05 (2) OEM
20MR4700	Axial Joint	th:MM16x1,5 RHT L:208,5mm / 0,66 kg	164 460 00 05, A 164 460 00 05
20MR4810	Axial Joint	tp: MM16x1.5 tp: MM16x1.5 L: 270 / 0,75 kg	A 166 338 03 15, 166 338 03 15

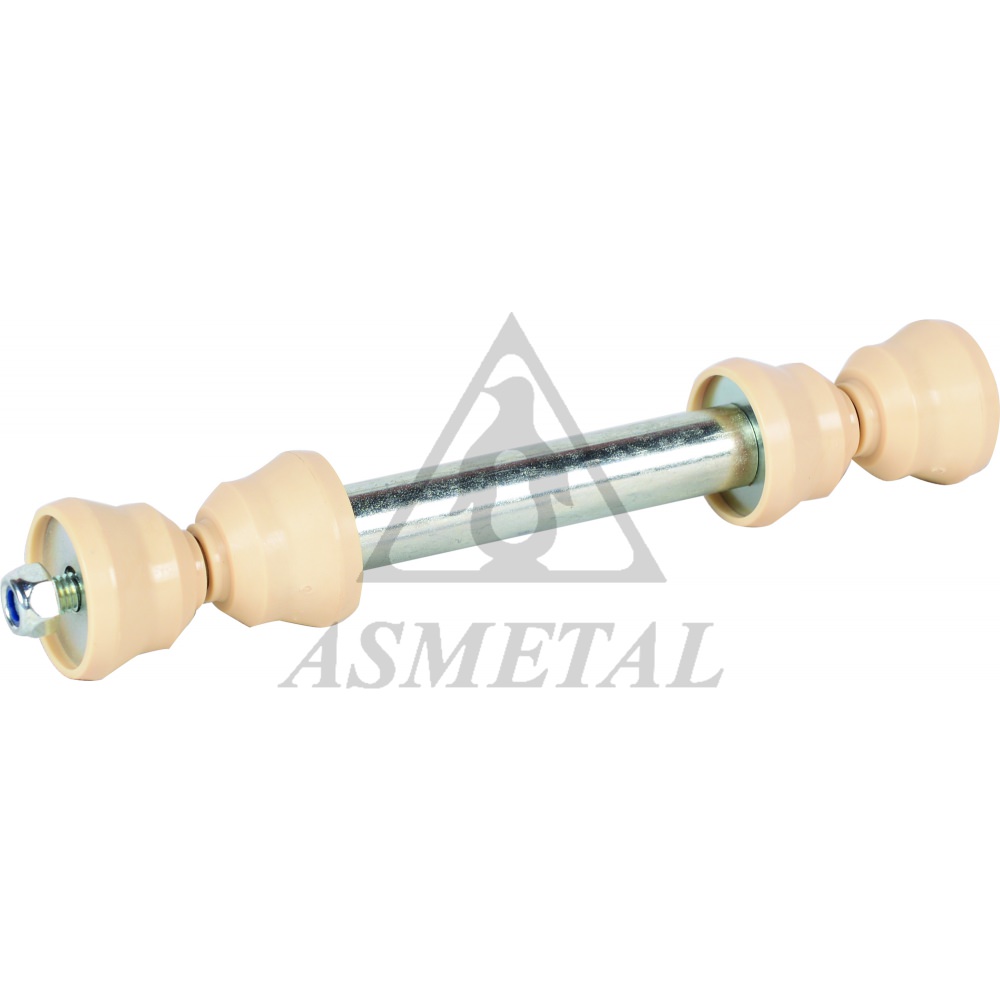

26MR2000	Stabiliser Link Rear	L:222,3mm Plastic / 0,34 kg	163 320 00 32, A 163 320 00 32
26MR4700	Stabiliser Link	L:205mm / 0,68 kg	A 251 320 12 32, 164 320 13 32 (4) OEM
26MR4800	Stabiliser Link Rear	L:117mm / 0,56 kg	164 320 12 32, A 164 320 12 32
26MR4810 NEW	Stabiliser Link Left	L: 360 / tp: MM12x1.5 / 0,78 kg	166 320 07 89, A 166 320 11 00 (1) OEM
26MR4811 NEW	Stabiliser Link Right	L: 360 / tp: MM12x1.5 / 0,78 kg	A 166 320 08 89, 166 320 08 89 (1) OEM
30MR1208 IN PREPARATION	Track Control Arm Upper Left	0 kg	163 333 00 01, A 163 333 00 01
30MR1209 IN PREPARATION	Track Control Arm Upper Right	0 kg	163 333 01 01, A 163 333 01 01
30MR4700 IN PREPARATION	Track Control Arm Left		251 330 07 07, A251 330 07 07
30MR4701 IN PREPARATION	Track Control Arm Right		251 330 08 07, A251 330 08 07
30MR4710 IN PREPARATION	Track Control Arm Left		164 330 34 07, A 164 330 34 07
30MR4711 IN PREPARATION	Track Control Arm Right		164 330 35 07, A 164 330 35 07
30MR4790 NEW	Track Control Arm Rear Left	0,76 kg	164 350 13 06, A 164 350 13 06
30MR4791 NEW	Track Control Arm Rear Right	0,76 kg	164 350 16 06, A 164 350 16 06
30MR4800 IN PREPARATION	Track Control Arm Left		166 330 17 07, A 166 330 17 07
30MR4801 IN PREPARATION	Track Control Arm Right		166 330 18 07, A 166 330 18 07
30MR4810 IN PREPARATION	Track Control Arm Left		166 330 01 07, 292 330 07 00 (2) OEM
30MR4811 IN PREPARATION	Track Control Arm Right		166 330 02 07, 292 330 08 00 (2) OEM
38MR02 NEW	Silentblock for TCA	di: Ø12.1 / do: Ø31.5 / L: 43 / 0,079 kg	124 352 43 65, A 124 352 43 65 (8) OEM
38MR0900	Silentblock for TCA	di:Ø12,2 do:Ø39,8 / 0,08 kg	164 350 13 06, 164 350 14 06 (3) OEM
38MR0901	Silentblock for TCA	di:Ø12.2 do: Ø39.6 L:41.3mm / 0,08 kg	164 350 14 06, 164 350 02 75 (3) OEM*
38MR4700	Silentblock for TCA	di:Ø16.2 do: Ø52.3 L:82mm / 0,27 kg	164 333 03 14, A 164 333 03 14
38MR4701	Silentblock for TCA	di:Ø14.1 do: Ø57.3 L:64.5mm / 0,26 kg	68022 612AB, 5168 159AB* (7) OEM
38MR4702	Silentblock for TCA Left	di:Ø30 L:55.5mm / 0,72 kg	164 330 07 43, 164 330 29 07* (5) OEM
38MR4703	Silentblock for TCA Right	di:Ø30 L:55.5mm / 0,71 kg	164 330 18 07, 164 330 26 07 (2) OEM
38MR4704 NEW	Silentblock for TCA Left	di: Ø26 / do: Ø70 / L: 55.2 / 0,73 kg	A 166 330 01 43, 166 330 01 43
38MR4705 NEW	Silentblock for TCA Right	di: Ø26 / do: Ø70 / L: 55.2 / 0,73 kg	A 166 330 02 43, 166 330 02 43
38MR4710	Silentblock for TCA	di:Ø10.2 do: Ø46.2 L:45mm / 0,13 kg	A 251 333 01 14, 166 331 02 14 (2) OEM
38MR4711	Silentblock for TCA	di:Ø16.2 do: Ø50.2 L:62mm / 0,39 kg	166 326 02 81, 164 326 06 81 (2) OEM
