ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No

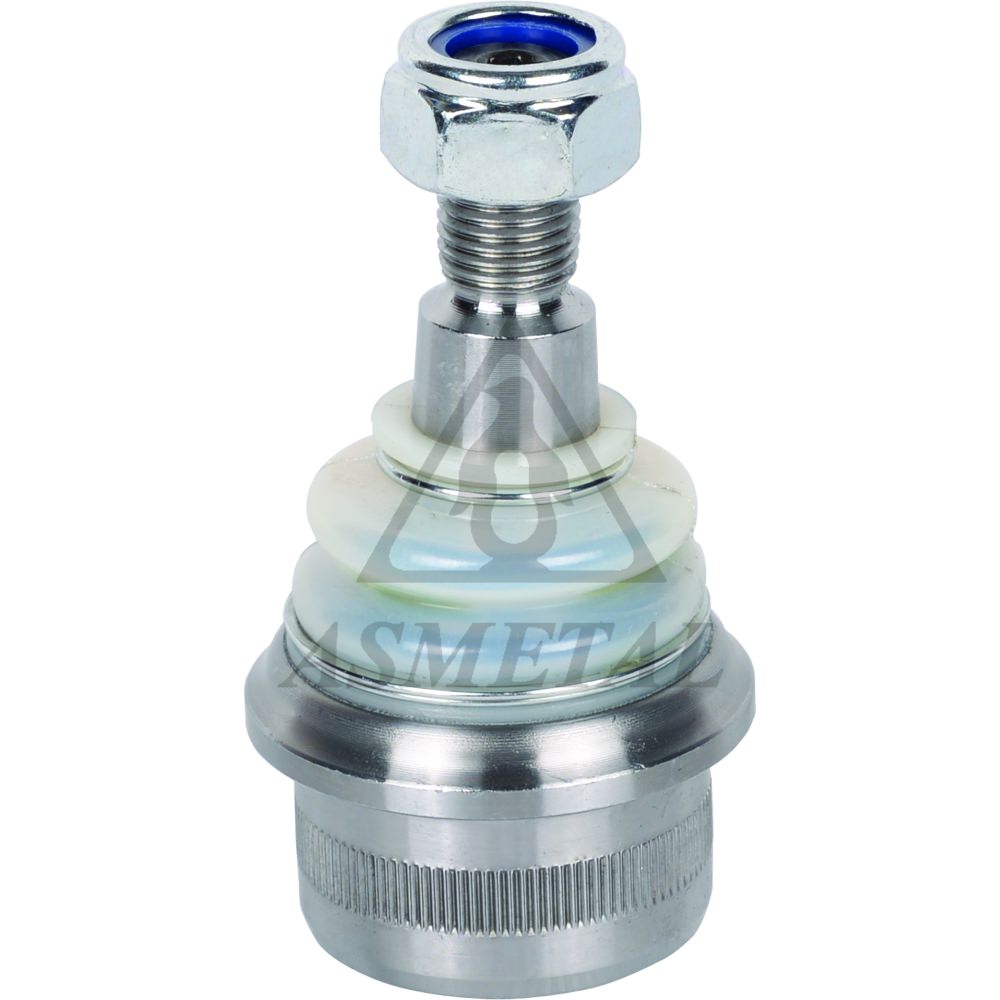

10MR1300	Ball Joint Lower	th:M14x1.5 RHT cp:1/10 cs:Ø17,1 do:Ø41,25 / 0,45 kg	220 333 01 27, 220 333 04 27 (6) OEM

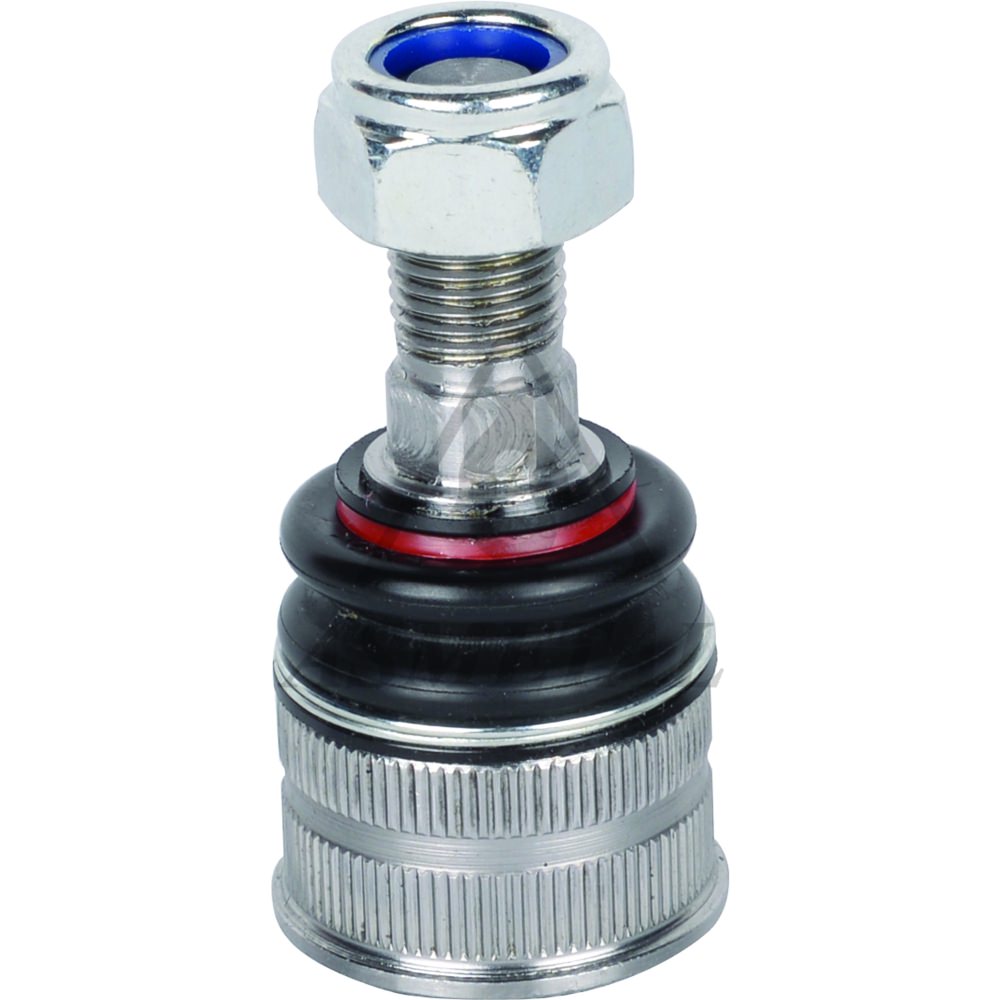

10MR1310	Ball Joint Lower	th:M14x1.5 RHT do:Ø34,3 / 0,24 kg	A 220 323 03 68, 211 323 00 68 (2) OEM
10MR1516	Ball Joint Upper	th:M12x1.25 RHT cp:1/10 cs:Ø14,35 / 0,39 kg	115 333 08 27, A 115 333 08 27
10MR1555	Ball Joint Lower	th:M14X1.5 RHT cp:1/10 cs:Ø16 do:Ø48,35 / 0,5 kg	115 333 10 27, A115 333 10 27 (2) OEM

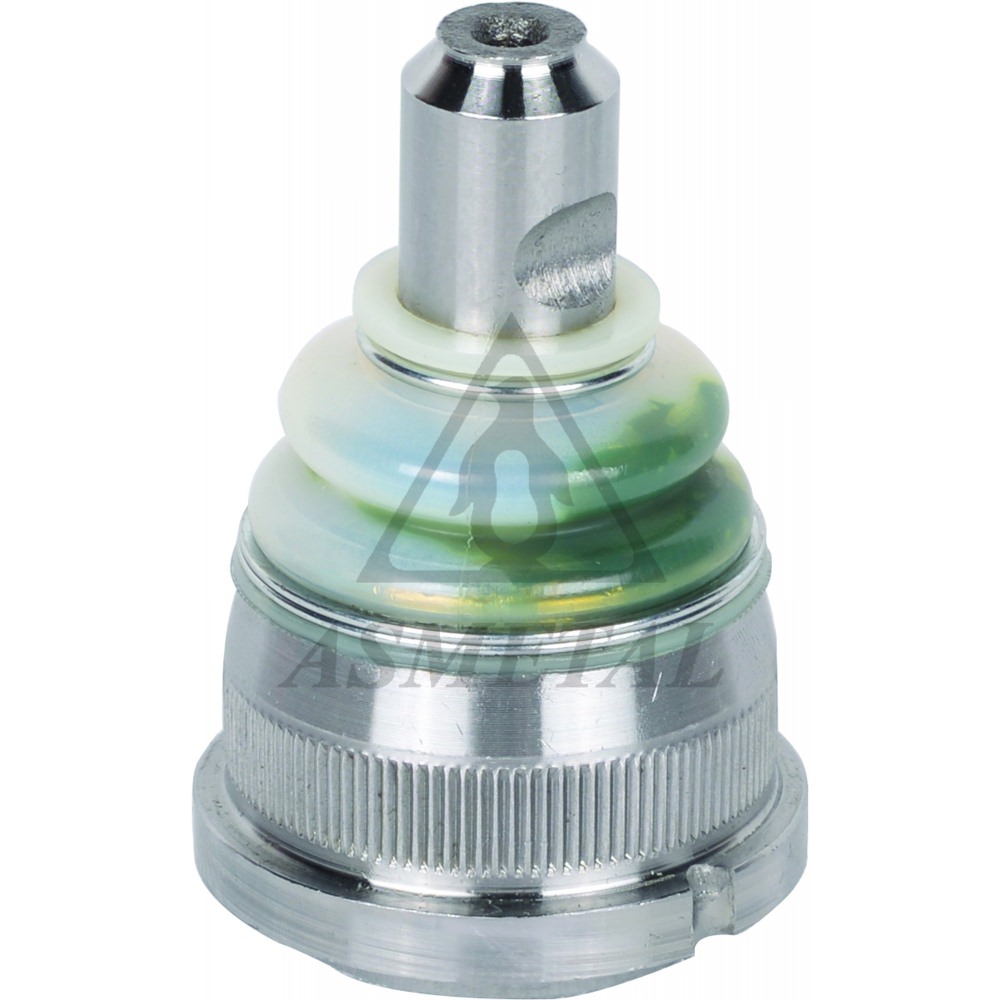

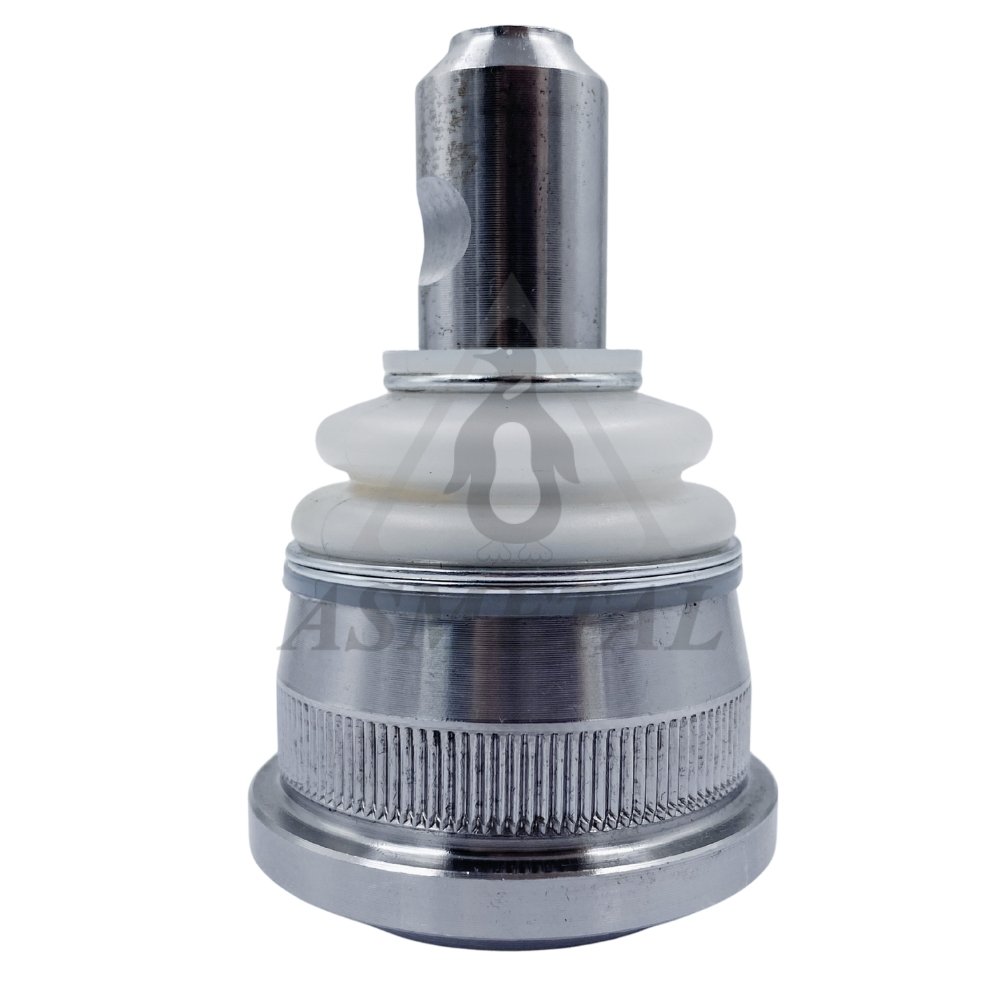

10MR3055	Ball Joint Lower	c:Ø18 do:Ø46,4 / 0,44 kg	124 333 01 27, A124 333 01 27 (2) OEM
10MR3502	Ball Joint Upper	th:M10x1.5 RHT cp:1/10 cs:Ø13 / 0,47 kg	211 333 04 27, A 211 330 99 07 (6) OEM

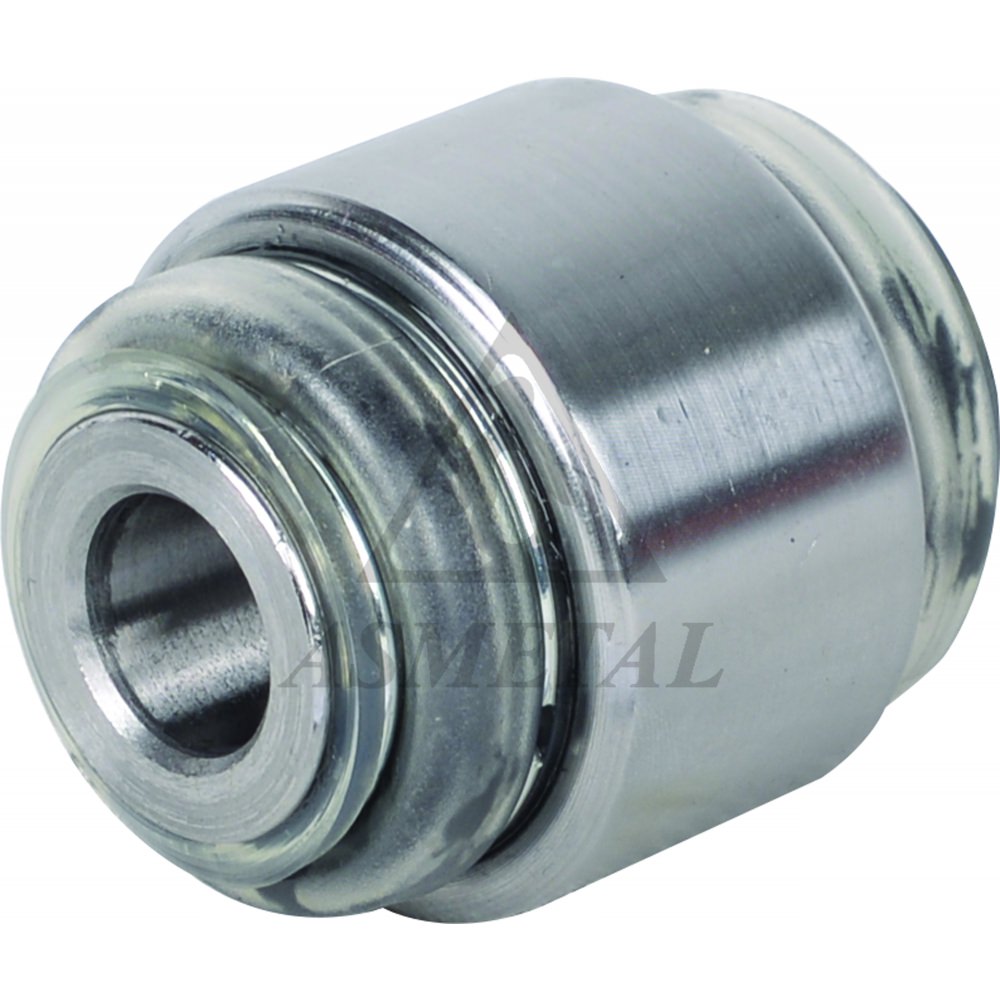

11MR00	Silentblock Bushing	di:Ø14 do:Ø40 / 0,22 kg	A 204 352 00 27, A 221 352 01 27 (14) OEM
17MR1530	Tie Rod End Inner	c:Ø12,6 th:MM14x1,5 RHT / 0,3 kg	32 21 1 114 842, 32 21 2 775 003 (4) OEM
17MR1550	Tie Rod End Outer	c:Ø12,6 th:MM14x1,5 LHT / 0,3 kg	000 338 20 10, 000 338 08 10 (2) OEM
17MR3700	Tie Rod End	c:Ø16,6 th:FM14x1,5 RHT / 0,64 kg	230 330 04 03, 220 338 05 15 (3) OEM

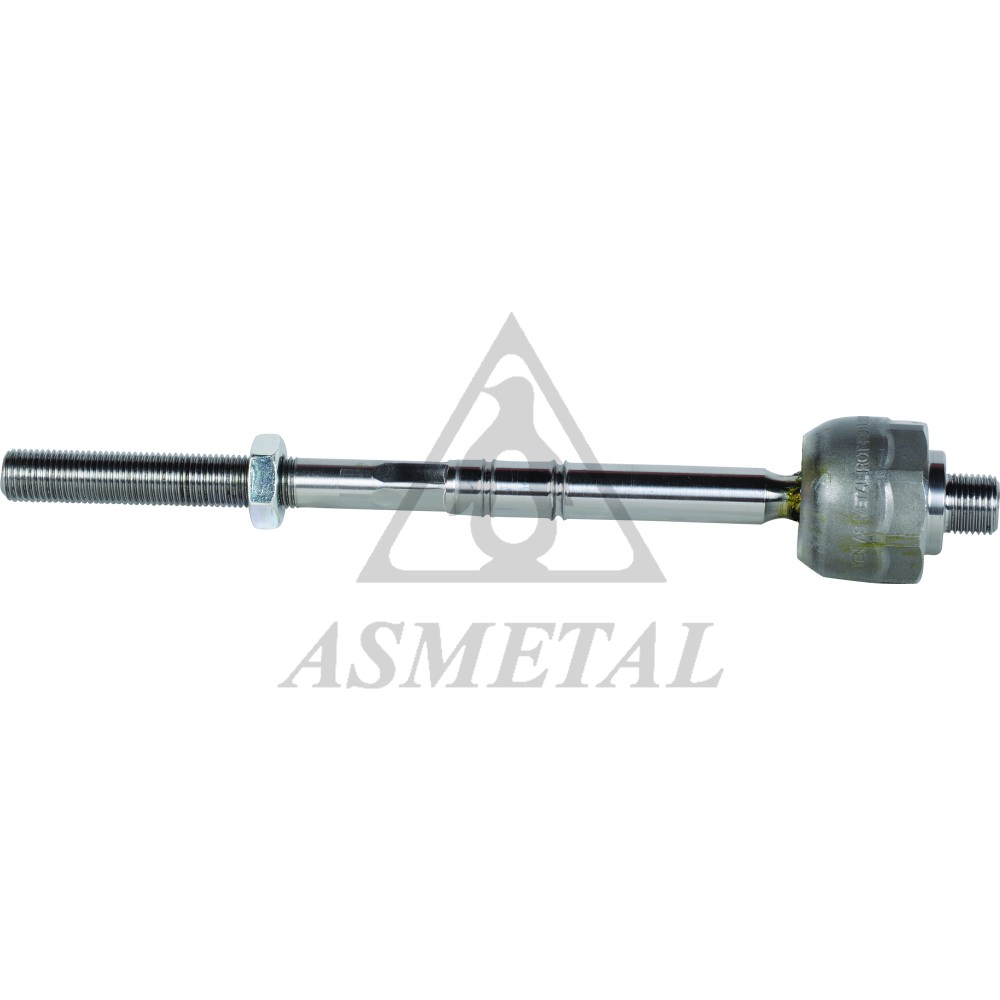

20MR3200	Axial Joint	th:MM16x1,5 RHT L:241,5mm / 0,59 kg	A 220 338 07 15, 230 338 00 15 (2) OEM
21MR1560	Tie Rod Adjustable	c:Ø12,6 th:M10x1.0 RHT / 1,13 kg	110 330 00 03, 107 330 01 03 (6) OEM

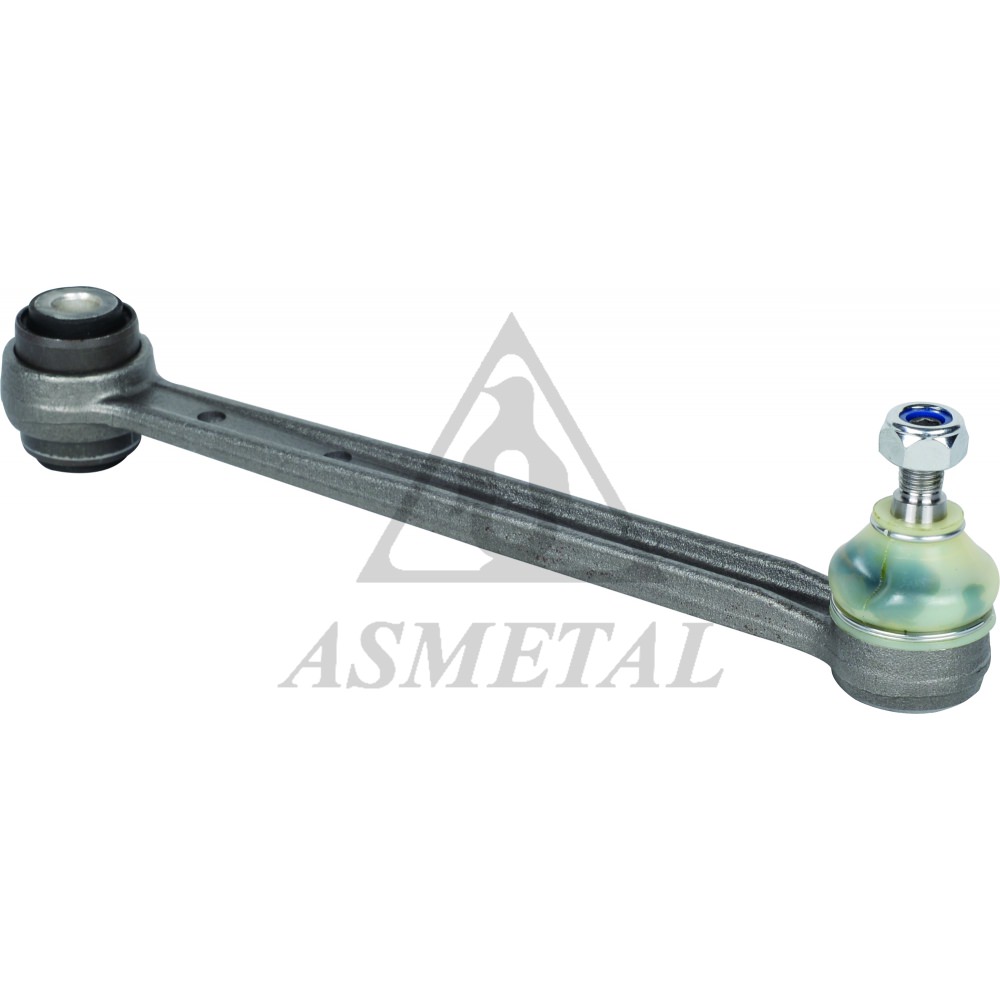

23MR02	Track Control Arm Rear	c:1:6 th:M10x1.25 RHT L:245mm / 0,62 kg	210 350 21 53, 201 350 27 53 (5) OEM

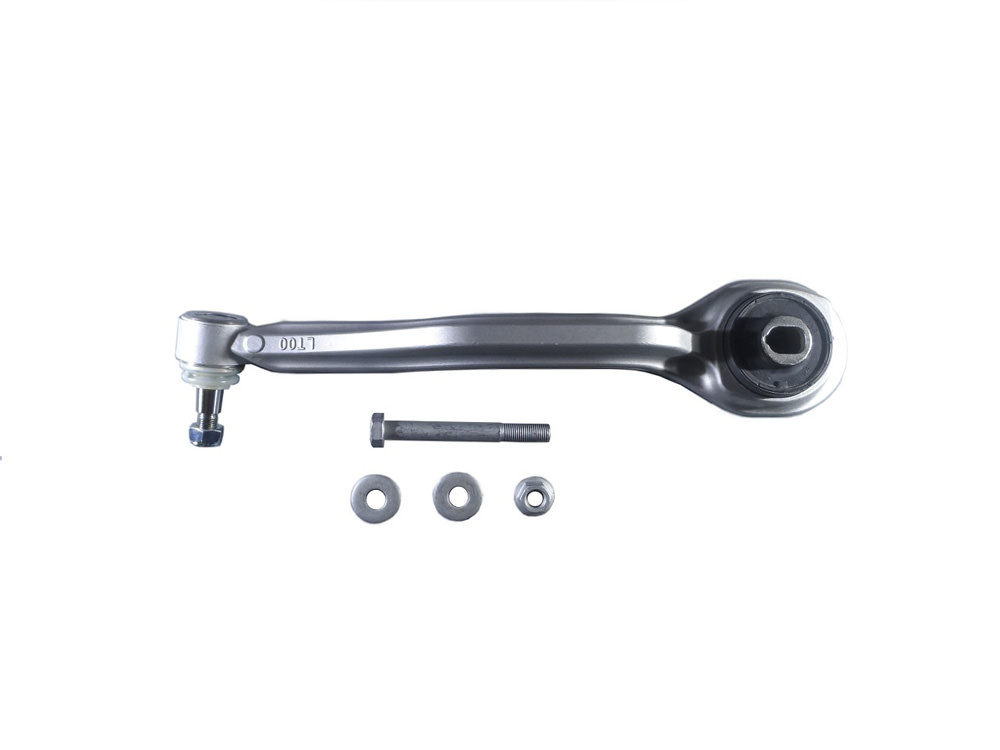

23MR3500	Track Control Arm Lower Left	tp: M14x1.5 cr: 1:10 c: Ø17 / 2,3 kg	211 330 29 11, 211 330 43 11 (8) OEM
23MR3500B	Track Control Arm Lower Left (Without Fasteners)	tp: M14x1.5 cr: 1:10 c: Ø17 / 2,2 kg	2303301711, 211 330 29 11 (8) OEM

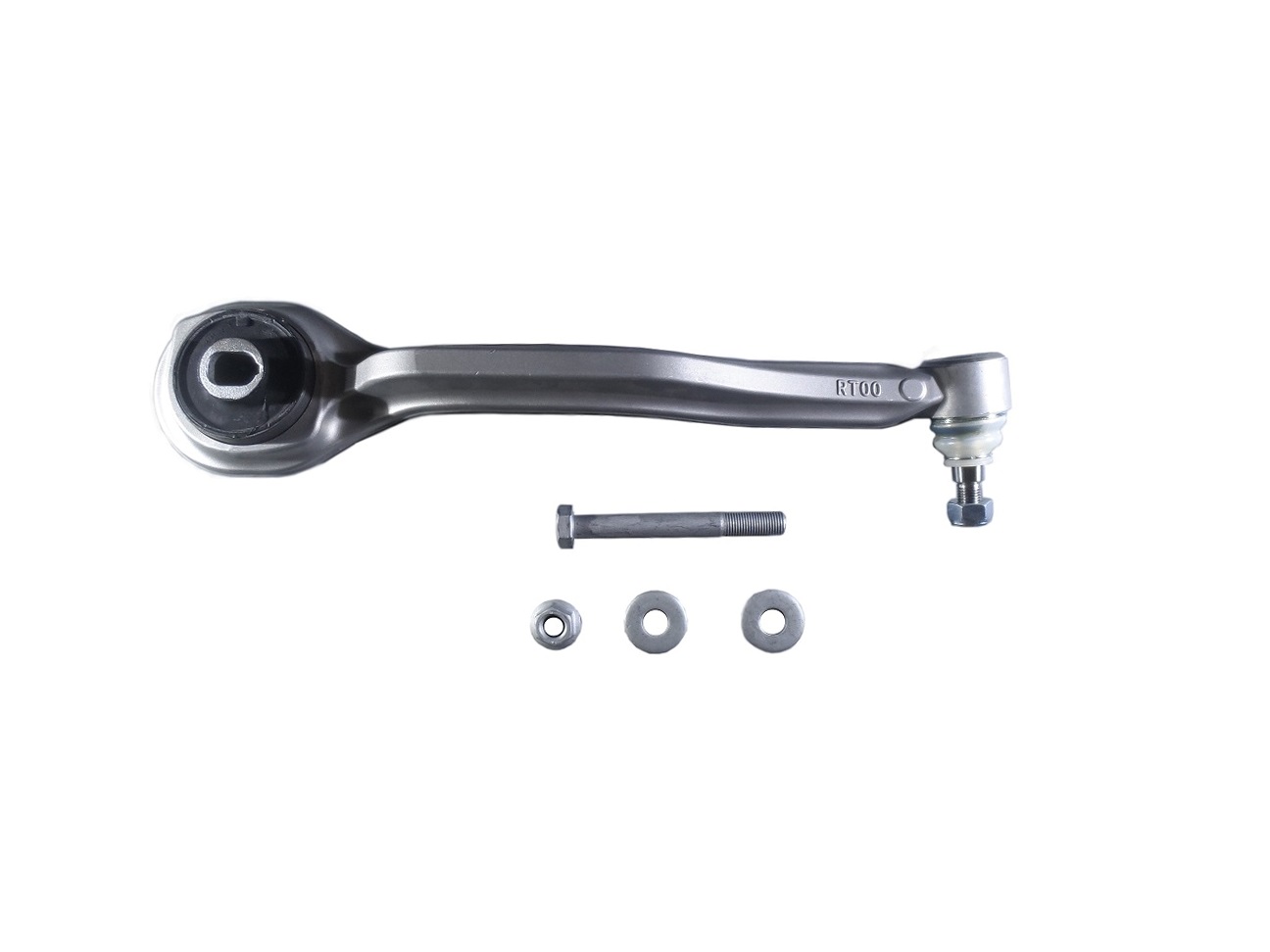

23MR3501	Track Control Arm Lower Right	tp: M14x1.5 cr: 1:10 c: Ø17 / 2,3 kg	211 330 44 11, 211 330 30 11 (6) OEM
23MR3501B	Track Control Arm Lower Right (Without Fasteners)	tp: M14x1.5 / cr: 1:10 / c: Ø17 / 2,2 kg	211 330 16 11, 211 330 12 11 (6) OEM
23MR3570 IN PREPARATION	Track Control Arm Upper Left	0 kg	230 350 35 06, 230 350 31 06 (2) OEM
23MR3571 IN PREPARATION	Track Control Arm Upper Right	0 kg	230 350 36 06, A 230 350 36 06
23MR3572 IN PREPARATION	Track Control Arm Upper Left	0 kg	230 350 27 06, A 230 350 27 06
23MR3573 IN PREPARATION	Track Control Arm Upper Right	0 kg	230 350 28 06, A 230 350 28 06
23MR3574 IN PREPARATION	Track Control Arm		230 350 20 06, A230 350 20 06
26MR1000	Stabiliser Link Rear	L:197,4mm Plastic / 0,11 kg	124 320 02 89, A 124 320 02 89
26MR1300	Stabiliser Link Rear	L:260mm / 0,38 kg	A 211 320 08 89, A 211 320 33 89 (2) OEM
29MR3700 NEW	Tie Rod	th: M14x1.5 RHT / cr: 1:10 / cs: Ø16.6 / tp: M16x1.5 / 1,23 kg	230 330 02 03, 220 338 07 15 (12) OEM
38MR0505	Silentblock for Stabiliser Link	di:Ø18,5 do:Ø39,5 / 0,06 kg	124 323 23 85, 124 323 49 85 (2) OEM

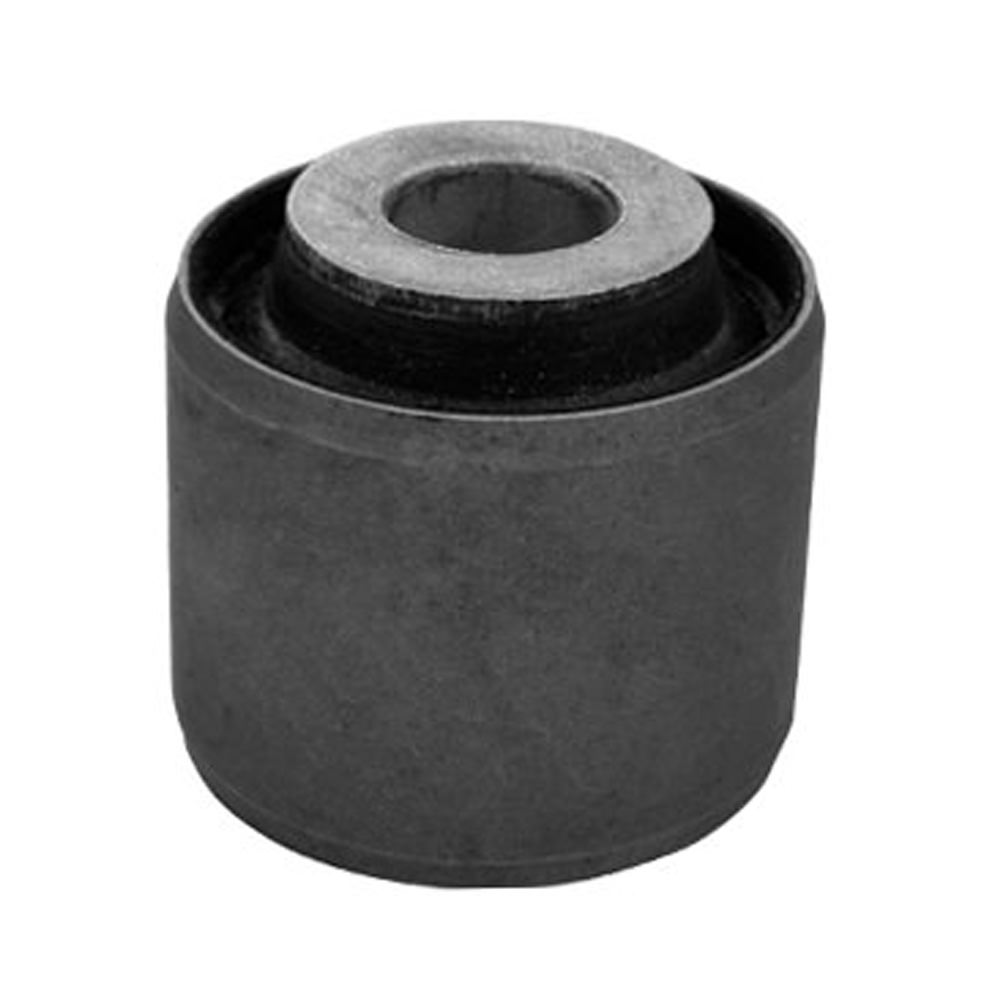

38MR0509	Silentblock for TCA	di:Ø12,2 do:Ø36 / 0,08 kg	A 124 352 34 65, 124 352 90 65 (6) OEM
38MR0511	Silentblock for TCA	do:Ø70,4 / 0,34 kg	A 211 333 28 14, 211 333 25 14 (4) OEM
38MR0512	Silentblock for TCA	do:Ø70,6 / 0,38 kg	A 211 333 11 14, 211 333 11 14
38MR0615	Silentblock for TCA	di:Ø12,2 do:Ø51,2 / 0,26 kg	A 220 352 13 65, A 204 352 10 65 (6) OEM
38MR0617	Silentblock for TCA	di:Ø12,2 do:Ø38,5 / 0,08 kg	A 230 352 15 65, A 205 352 05 08 (4) OEM
38MR0705	Silentblock for TCA	di:Ø24 do:Ø44,5 / 0,52 kg	203 333 02 14, 211 333 29 14 (6) OEM
38MR3232 NEW	Silentblock for TCA	di: Ø24 / do: Ø75.5 / L: 80 / 0,35 kg	220 333 17 14, 220 333 31 14 (10) OEM
38MR3535 NEW	Mounting Axle Body	di: Ø14.5 / do: Ø66.1 / L: 55 / 0,27 kg	211 351 11 42, A 211 351 11 42 (2) OEM
45MR3205 NEW	Mounting Automatic Transmission	L: 103.8 / 0,53 kg	212 240 03 18, 220 240 01 18 (4) OEM
