ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10MR02 IN PREPARATION	Ball Joint Upper		2023304907, 2103308807 (6) OEM

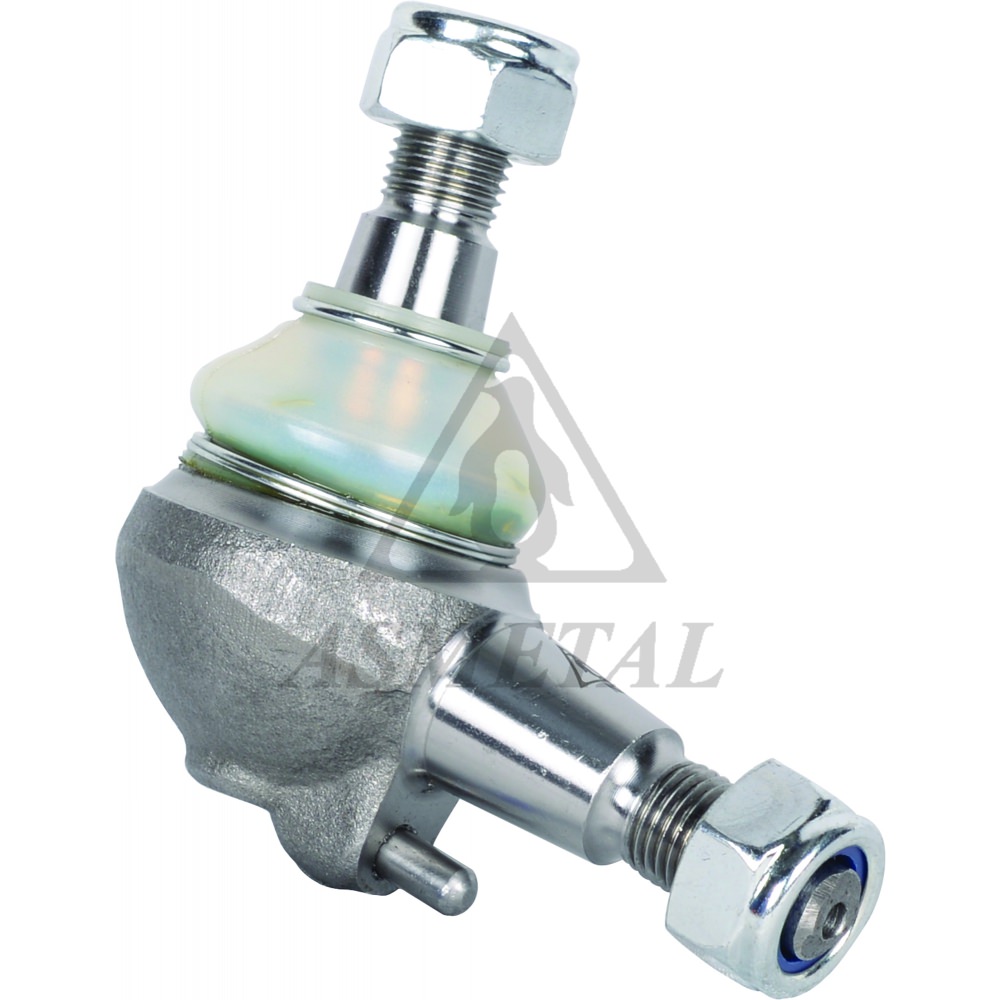

10MR40	Ball Joint Lower	th:M14x1.5 RHT cp:1/6 cs:Ø15,9 / 0,58 kg	5099237AA, K05099237AA (14) OEM
11MR00	Silentblock Bushing	di:Ø14 do:Ø40 / 0,22 kg	A 204 352 00 27, A 221 352 01 27 (14) OEM

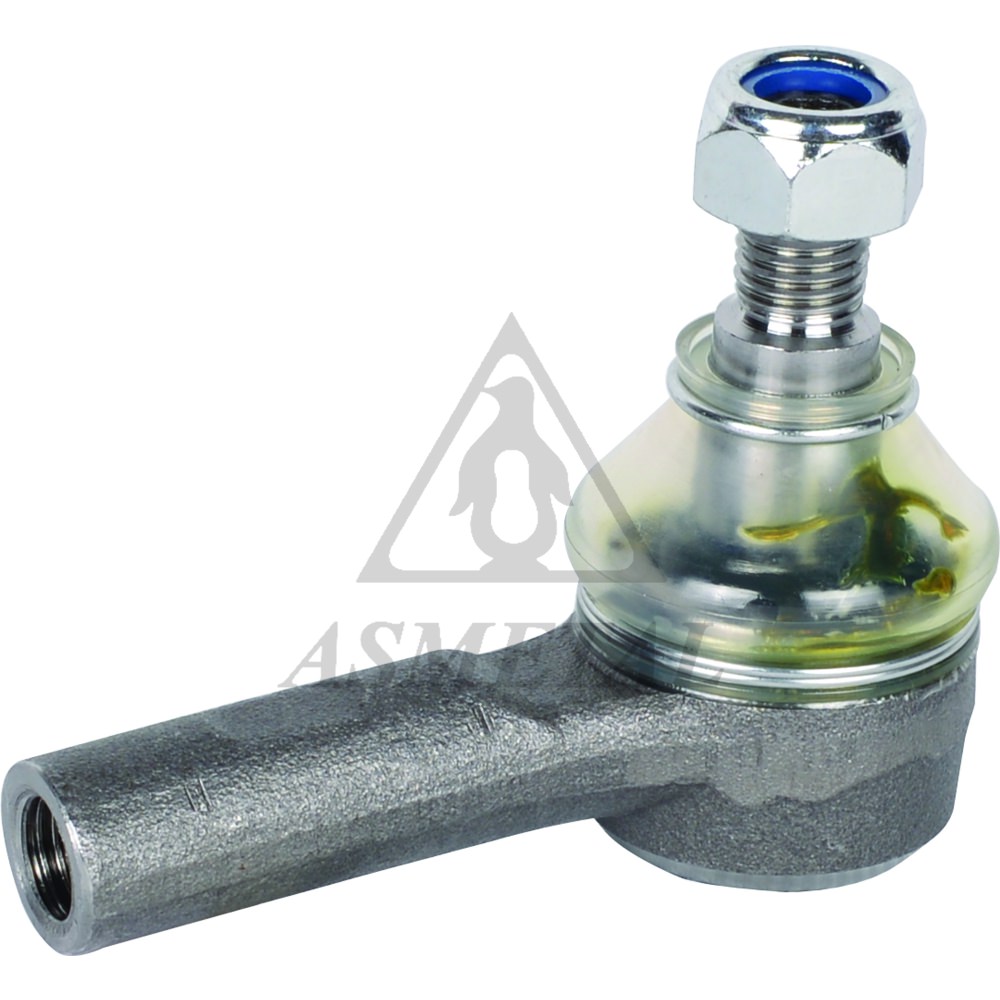

17MR1100	Tie Rod End	c:Ø14,6 th:FM12x1,5 RHT / 0,3 kg	001 330 74 35, 000 330 74 35 (1) OEM

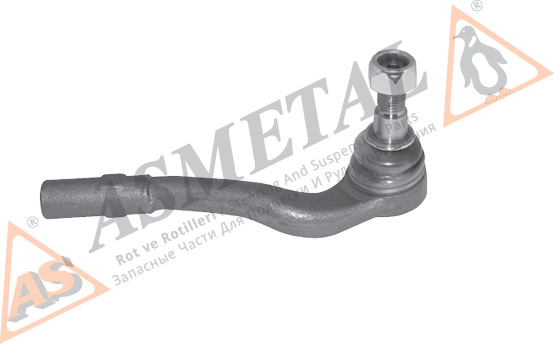

17MR3200	Tie Rod End Right	c:Ø16 th:FM14x1,5 RHT / 0,7 kg	A 203 330 24 03, 203 330 40 03 (4) OEM

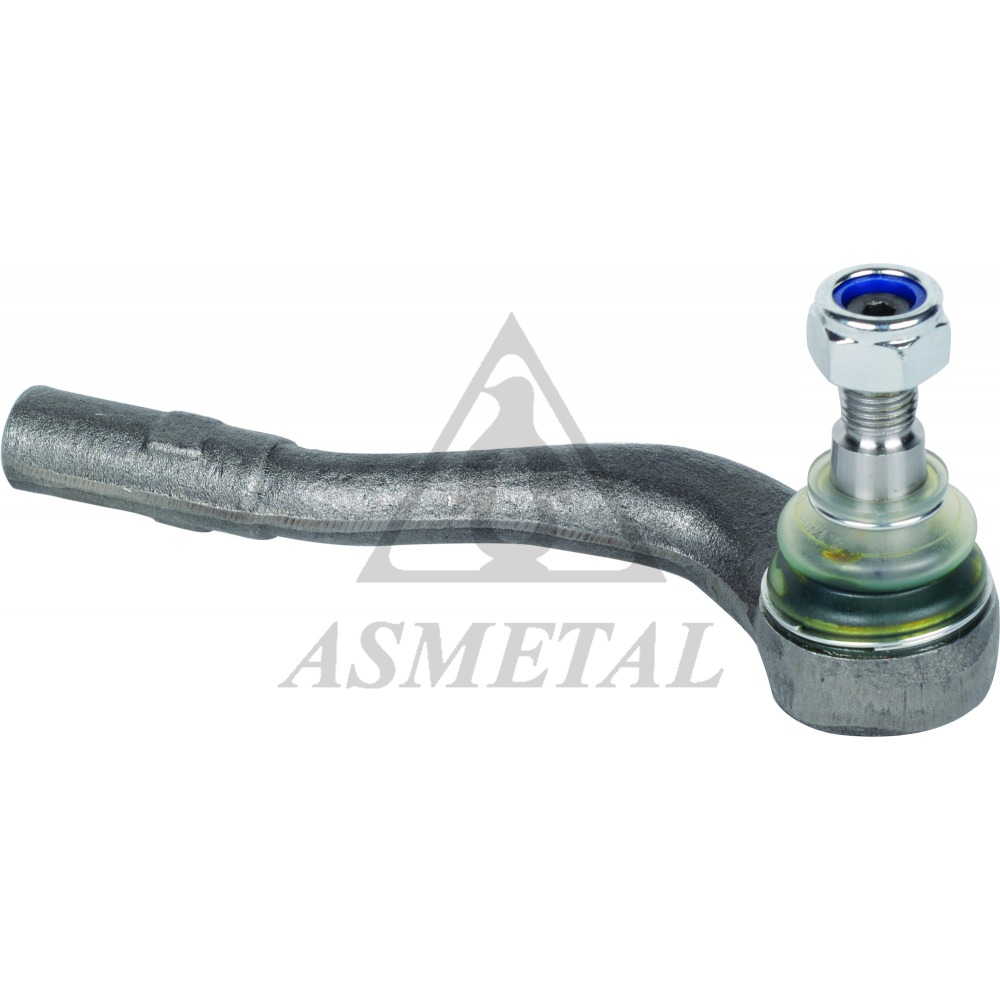

17MR3201	Tie Rod End Left	c:Ø16 th:FM14x1,5 RHT / 0,7 kg	A 203 330 23 03, 203 330 39 03 (4) OEM
17MR3600	Tie Rod End Left	c:Ø16 th:FM14x1,5 RHT / 0,7 kg / 0,72 kg	204 330 09 03, A 204 330 09 03
17MR3601	Tie Rod End Right	c:Ø16 th:FM14x1,5 RHT / 0,7 kg / 0,72 kg	204 330 10 03, A 204 330 10 03
20MR3630 IN PREPARATION	Axial Joint	0 kg	204 338 06 15, A 204 338 06 15
23MR02	Track Control Arm Rear	c:1:6 th:M10x1.25 RHT L:245mm / 0,62 kg	210 350 21 53, 201 350 27 53 (5) OEM

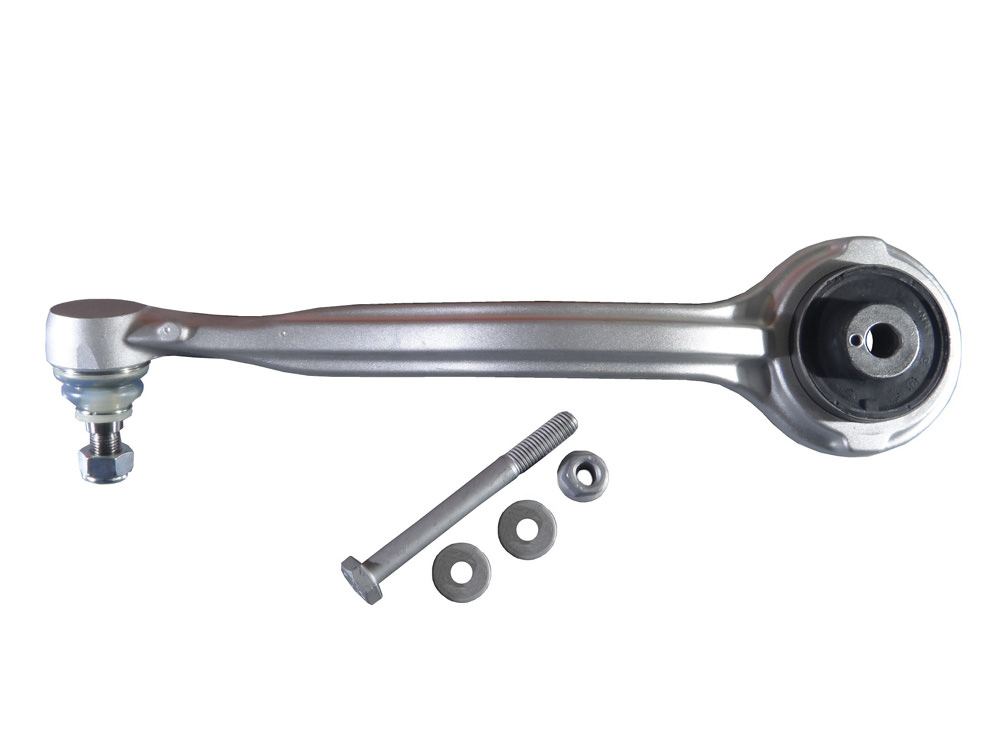

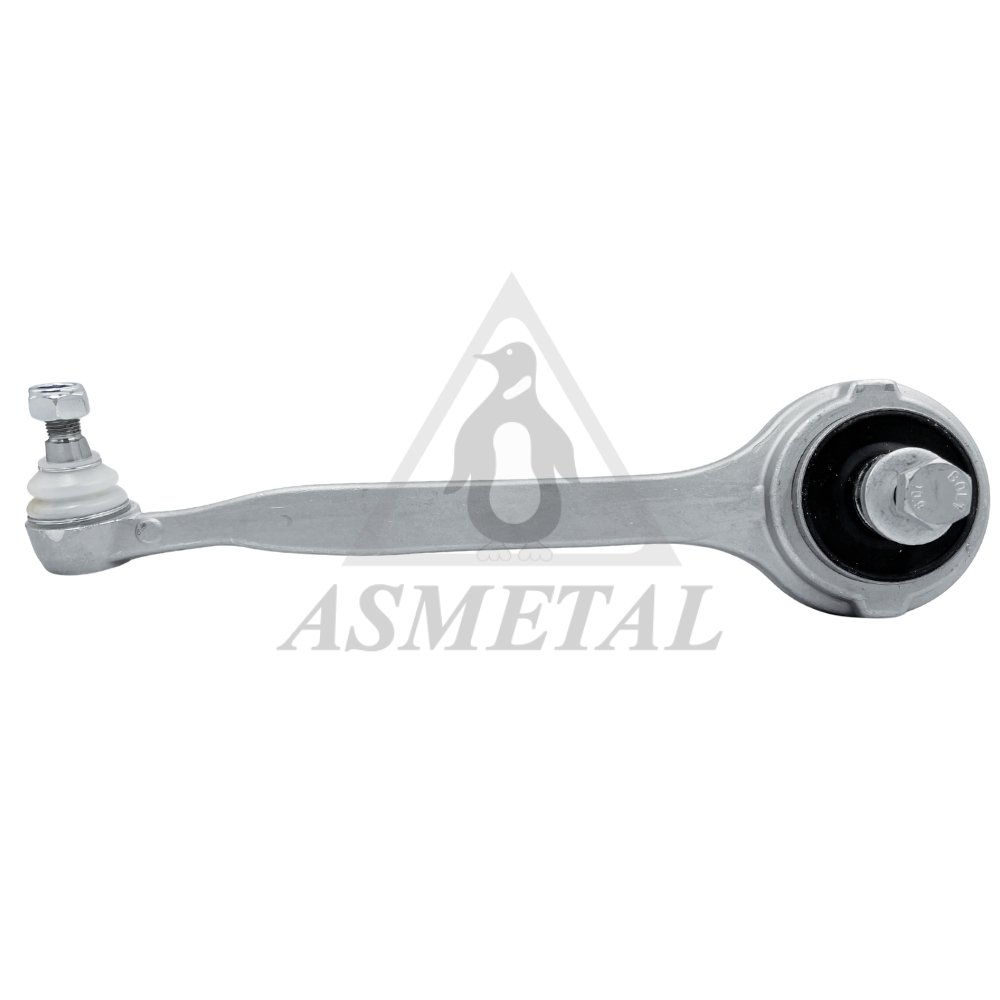

23MR3210	Track Control Arm Upper Left	tp: M14x1.5 cr: 1:5 c: Ø16.2 / 1,96 kg	203 330 01 11, 203 330 16 11 (10) OEM
23MR3210B	Track Control Arm Left (Without Fasteners)	tp: M14x1.5 cr: 1:5 c: Ø16.2 / 1,96 kg	203 330 39 11, 204 330 43 11 (10) OEM

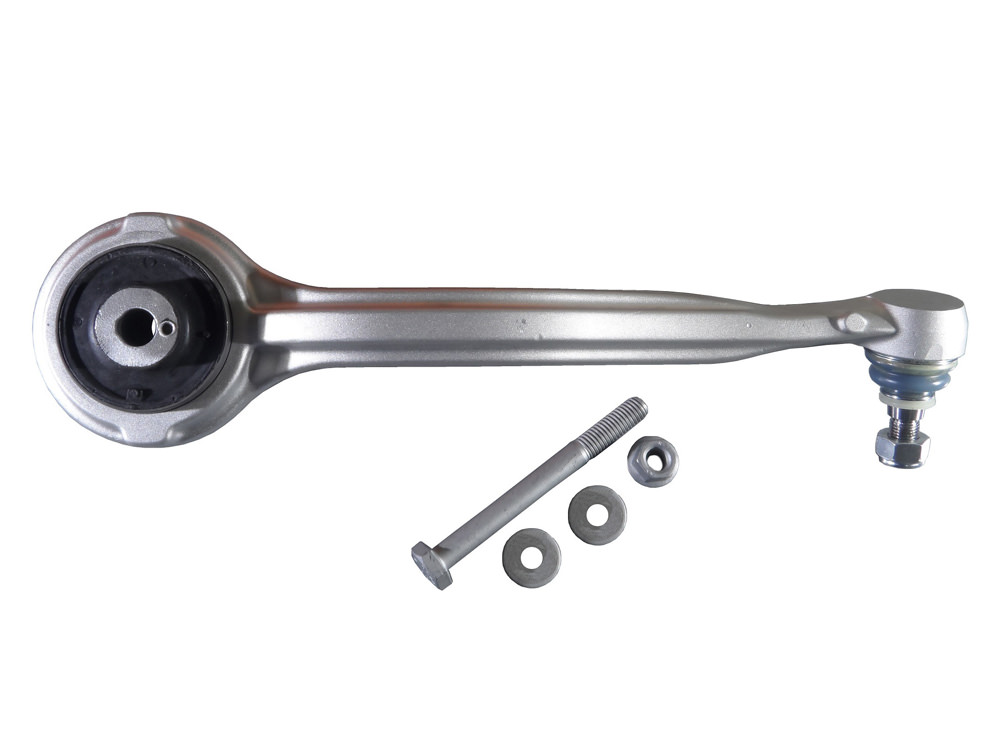

23MR3211	Track Control Arm Upper Right	tp: M14x1.5 cr: 1:5 c: Ø16.2 / 1,96 kg	203 330 36 11, 203 330 02 11 (10) OEM
23MR3211B	Track Control Arm Right (Without Fasteners)	TP: M14x1.5 cr: 1:5 c: Ø16.2 / 1,96 kg	203 330 17 11, 204 330 88 11 (10) OEM
23MR3214	Track Control Arm Lower Left	tp: M14x1.5 cr: 1:5 c: Ø16.3 / 1,6 kg	A 204 330 31 11, 204 330 67 11 (2) OEM
23MR3214B	Track Control Arm Lower Left (Without Fasteners)	tp: M14x1.5 cr: 1:5 c: Ø16.3 / 1,5 kg	A 204 330 67 11, 204 330 31 11 (2) OEM

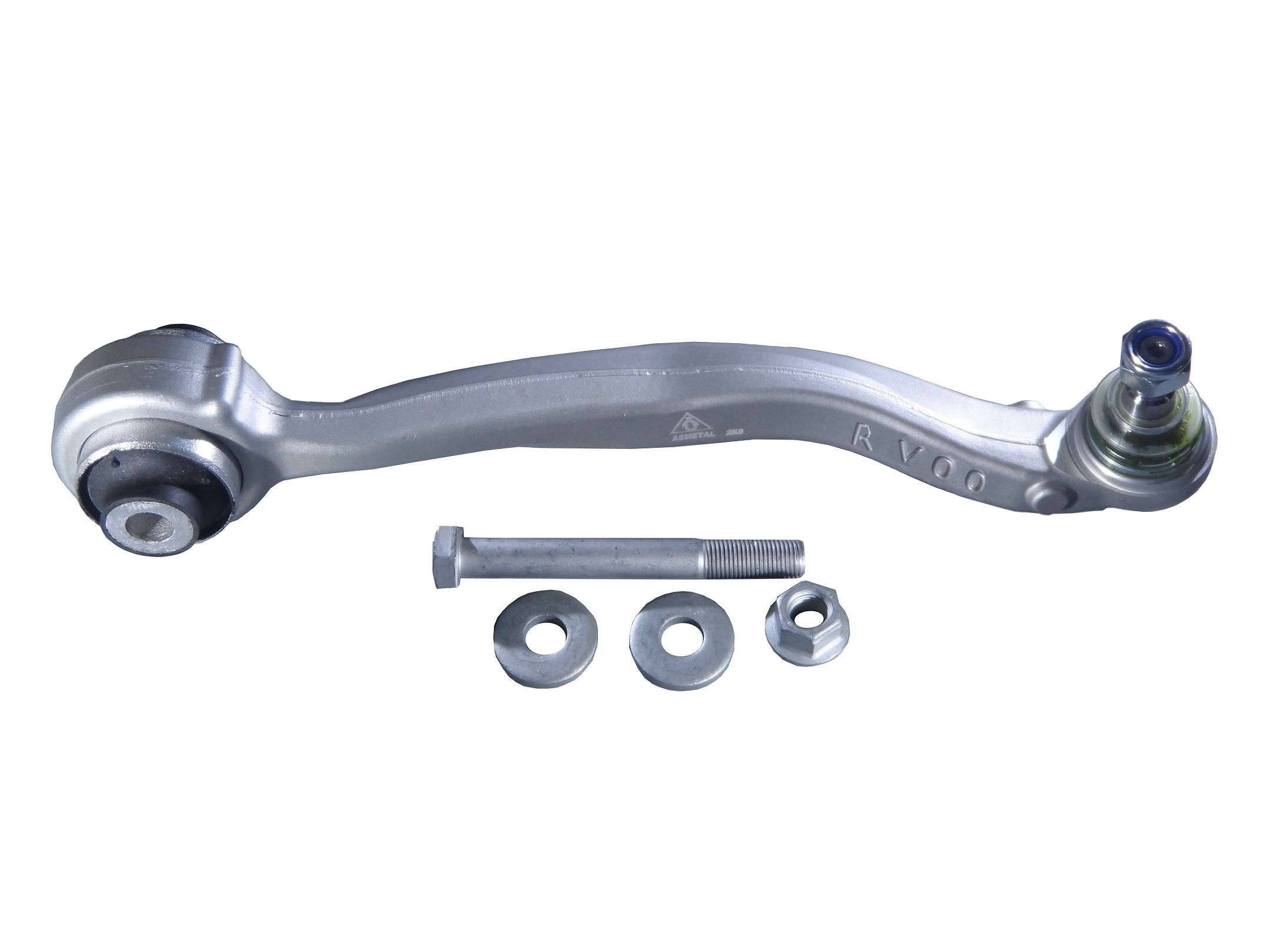

23MR3215	Track Control Arm Lower Right	tp: M14x1.5 cr: 1:5 c: Ø16.3 / 1,6 kg	A 204 330 32 11, 204 330 68 11 (2) OEM
23MR3215B	Track Control Arm Lower Right (Without Fasteners)	tp: M14x1.5 cr: 1:5 c: Ø16.3 / 1,55 kg	A 204 330 32 11, 204 330 68 11 (2) OEM
23MR3240 NEW	Track Control Arm Lower Rear	tp: M10x1.5 / c: Ø11.3 / 0,68 kg	A 203 350 07 53, 203 350 07 53 (2) OEM
26MR1000	Stabiliser Link Rear	L:197,4mm Plastic / 0,11 kg	124 320 02 89, A 124 320 02 89
30MR02 IN PREPARATION	Track Control Arm Upper Left	0 kg	A 210 330 87 07, A 210 330 50 07 (16) OEM
30MR03 IN PREPARATION	Track Control Arm Upper Right	0 kg	A 208 330 14 07, A 208 330 05 07 (15) OEM
30MR0508	Track Rod Rear	di: Ø12.2 / L: 314 / 0,7 kg	124 350 01 29, 210 350 00 29 (4) OEM
30MR0509	Track Control Arm Rear	0,67 kg	201 350 47 06, A 210 350 33 06 (11) OEM
30MR0510	Track Control Arm Rear	0,74 kg	210 350 34 06, A 210 350 24 06 (14) OEM
38MR02 NEW	Silentblock for TCA	di: Ø12.1 / do: Ø31.5 / L: 43 / 0,079 kg	124 352 43 65, A 124 352 43 65 (8) OEM
38MR03 NEW	Silentblock for TCA	di:Ø10.2 do:Ø48.2 L:99.5mm / 0,25 kg	5101057AA, 5101056AA (4) OEM
38MR0504 NEW	Silentblock for TCA	0,2680 kg	A202 460 03 19, 202 460 03 19
38MR0505	Silentblock for Stabiliser Link	di:Ø18,5 do:Ø39,5 / 0,06 kg	124 323 23 85, 124 323 49 85 (2) OEM
38MR0507	Silentblock for Stabiliser Link	di:Ø24 do:Ø44,5 / 0,06 kg	124 323 54 85, 124 323 37 85 (1) OEM
38MR0508	Silentblock for TCA	di:Ø11 do:Ø36,2 L:38 / 0,11 kg	124 352 35 65, 124 350 05 75
38MR0509	Silentblock for TCA	di:Ø12,2 do:Ø36 / 0,08 kg	A 124 352 34 65, 124 352 90 65 (6) OEM
38MR0510	Silentblock for TCA	do:Ø70,6 / 0,4 kg	A 203 333 09 14, 203 333 03 14 (2) OEM
38MR0518	Silentblock for TCA	di:Ø14,2 do:Ø60,2 / 0,27 kg	A 202 333 64 14, 170 330 00 75* (3) OEM
38MR0519	Silentblock for TCA	di:Ø20 / 0,25 kg	202 330 00 75, 202 333 67 14 (2) OEM*
38MR0522	Silentblock for TCA	di:Ø12.2 do: Ø36.2 L:38mm / 0,15 kg	210 350 33 06, 210 352 09 65 (1) OEM*
38MR0523 NEW	Mounting Axle Body	di: Ø17 / do: Ø98 / L: 67 / 0,35 kg	201 351 28 42, A 201 351 28 42 (2) OEM
38MR0524 NEW	Silentblock for TCA	di: Ø 12,5 / do: Ø33,5 / L: 57,7 / 0,12 kg	124 352 36 65, A 124 352 36 65 (10) OEM
38MR0705	Silentblock for TCA	di:Ø24 do:Ø44,5 / 0,52 kg	203 333 02 14, 211 333 29 14 (6) OEM
38MR0706	Silentblock for TCA	di:Ø15 do:Ø70,5 / 0,56 kg	A 204 333 11 14, 204 333 11 14 (10) OEM
38MR0706K IN PREPARATION	Silentblock for TCA Set	0 kg	A 203 333 10 14, A 204 333 10 14 (4) OEM
45MR0510 NEW	Engine Mounting	1,15 kg	A 210 240 08 17, 202 240 12 17 (12) OEM
45MR0511 NEW	Engine Mounting	1,123 kg	202 240 25 17, A 202 240 25 17 (12) OEM
45MR0515 NEW	Mounting Automatic Transmission	L: 110 / 0,51 kg	210 240 03 18, 210 240 01 18 (4) OEM
45MR1100	Engine Mounting	do:Ø96 L:57mm / 1,14 kg	A 202 240 01 17, A 202 240 09 17 (18) OEM
45MR3205 NEW	Mounting Automatic Transmission	L: 103.8 / 0,53 kg	212 240 03 18, 220 240 01 18 (4) OEM
526MR3120	Bracket , Stabiliser Mounting Left	0,21 kg	208 323 01 40, A208 323 01 40 (2) OEM
526MR3121	Bracket , Stabiliser Mounting Right	0,21 kg	202 323 09 40, A202 323 09 40 (2) OEM
