ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
17MR1012	Tie Rod End	L:95.5 cr:1/10 c:Ø16.2 tp:M14x1.5 th:MM22x1.5 RHT / 0,59 kg	3141 530 R91, X86 0534 9033 22 (10) OEM
17MR1013	Tie Rod End	L:245 cr:1/10 c:Ø16.2 tp:M14x1.5 th:MM22x1.5 LHT / 1,15 kg	000 460 22 48, 000 460 42 48 (2) OEM
17MR1020	Tie Rod End Right	L:194 cr:1/10 c:Ø18.05 tp:M16x1.5 th:MM24x1.5 RHT / 1,02 kg	310 330 26 35, 310 330 22 35 (2) OEM
17MR1021	Tie Rod End Left	L:160 cr:1/10 c:Ø16.3 tp:M14x1.5 th:MM24x1.5 RHT / 0,86 kg	A 000 330 27 35, A 000 330 70 35 (6) OEM
17MR1030	Tie Rod End Left	L:194 cr:1/10 c:Ø18.05 tp:M16x1.5 th:MM24x1.5 LHT / 1,02 kg	310 330 27 35, 310 330 23 35 (2) OEM
17MR1031	Tie Rod End Right	L:160 cr:1/10 c:Ø18.05 tp:M16x1.5 th:MM24x1.5 LHT / 0,86 kg	001 330 08 35, 000 330 69 35 (6) OEM
17MR6030	Tie Rod End Right	L:95.5 cr:1/10 c:Ø16.3 tp:M14x1.5 th:MM22x1.5 RHT / 0,62 kg	601 330 05 35, 601 330 07 35 (1) OEM

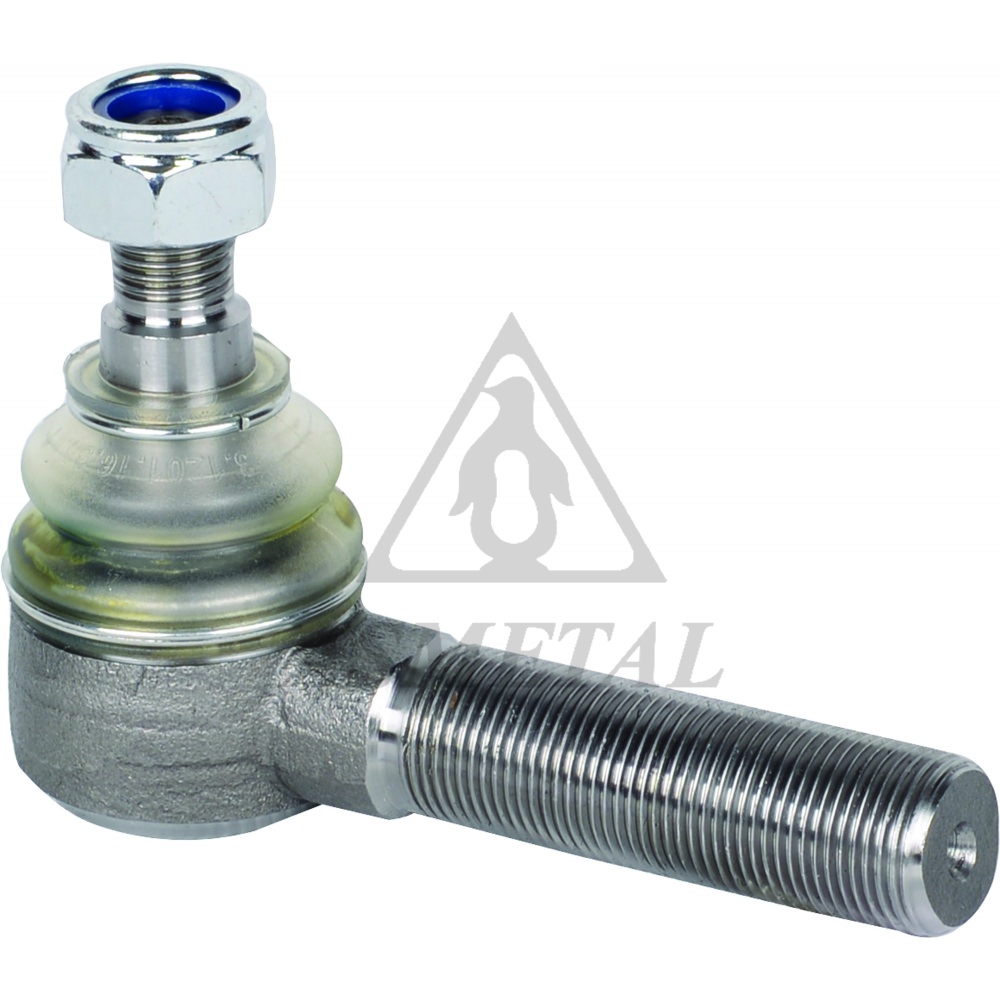

17MR6032	Tie Rod End Right	L:96 cr:1/10 c:Ø16.2 tp:M14x1.5 th:MM20x1.5 RHT / 0,5 kg	17MR6032
17MR6050	Tie Rod End Left	L:95.5 cr:1/10 c:Ø16.3 tp:M14x1.5 th:MM24x1.5 LHT / 0,61 kg	601 330 53 35, 601 330 06 35 (2) OEM
17MR6052	Tie Rod End Left	L:96 cr:1/10 c:Ø16.2 tp:M14x1.5 th:MM20x1.5 LHT / 0,5 kg	17MR6052
17MR6055	Tie Rod End Left	L:115 cr:1/10 c:Ø16.2 tp:M14x1.5 th:MM24x1.5 RHT / 0,7 kg	602 330 55 35, 602 330 01 35 (2) OEM
17MR6056	Tie Rod End Right	L:115 cr:1/10 c:Ø16.2 tp:M14x1.5 th:MM24x1.5 LHT / 0,7 kg	602 330 54 35, 602 330 00 35 (2) OEM
17MR9005	Tie Rod End Right	L:95.5 cr:1/10 c:Ø15.9 tp:M14x1.5 th:MM24x1.5 RHT / 0,65 kg	17MR9005
17MR9006	Tie Rod End Left	c:Ø15,9 th:MM24x1,5 LHT / 0,65 kg	17MR9006
17MR9010	Tie Rod End Right	L:95.5 cr:1/10 c:Ø16.25 tp:M14x1.5 th:MM24x1.5 RHT / 0,63 kg	1 330 14 35, 1 330 12 35 (2) OEM
17MR9011	Tie Rod End Left	L:95.5 cr:1/10 c:Ø16.25 tp:M14x1.5 th:MM24x1.5 LHT / 0,63 kg

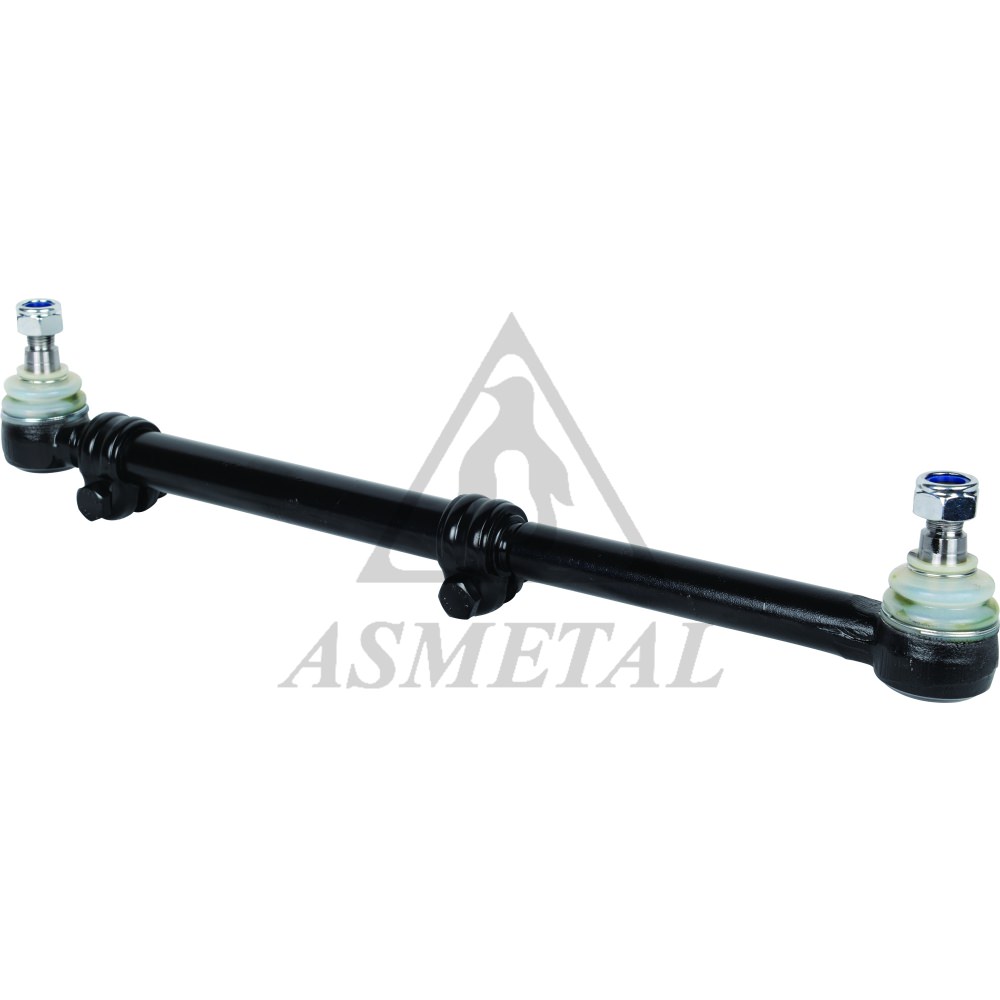

21MR1012	Tie Rod Adjustable	tp:M14x1.5 RHT cr:1/10 c:Ø16.2 / 2,45 kg	601 460 15 05, 601 460 13 05 (10) OEM
22MR6070	Center Rod	tp:M14x1.5 RHT cr:1/10 c:Ø16.3 / 2,16 kg	309 460 24 05, 309 460 23 05 (21) OEM
22MR6075	Center Rod	tp:M14x1.5 RHT cr:1/10 c:Ø16.2 / 5,6 kg	602 330 00 03, 602 330 04 03 (8) OEM
22MR9010	Rod Assembly	tp:M14x1.5 RHT cr:1/10 c:Ø16.25 / 2,05 kg	668 460 09 05, 668 460 11 05 (2) OEM

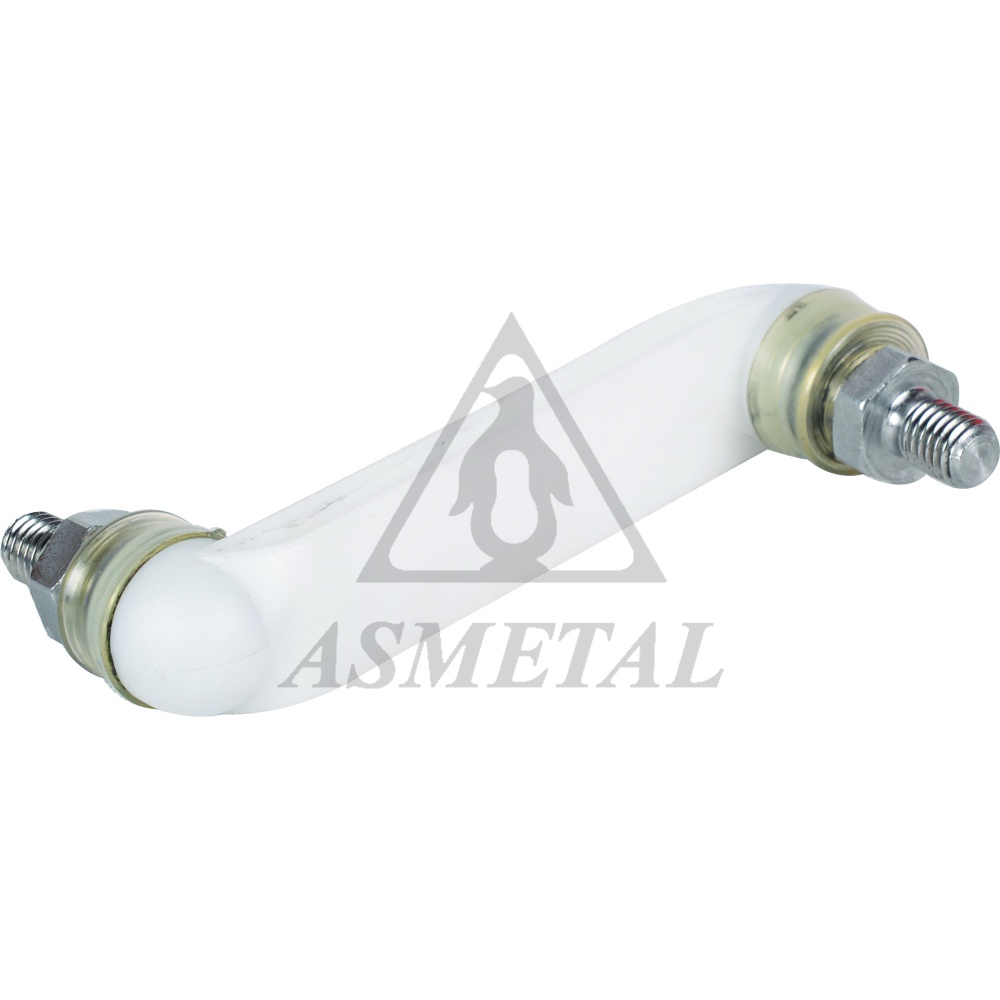

26MR2300	Stabiliser Link Rear	L:101.5 tp:M10x1.5 RHT / 0,13 kg	A 123 320 09 89, 123 320 09 89
38MR0101	Shock Absorber Bushing	L:31.5 di:Ø17.7 do:Ø32.5 / 0,03 kg	000 323 73 85, 000 323 78 85 (4) OEM
38MR0110	Silentblock for TCA	L:79.85 di:Ø14.2 do:Ø43.8 / 0,32 kg	5133 818 AA, A901 333 02 14 (3) OEM
38MR0121	Silentblock for Stabiliser Link	L:25.9 di:Ø16.5 do:Ø29 / 0,04 kg	A 602 321 04 50, A 602 321 03 50 (6) OEM
38MR0503	Silentblock for Stabiliser Link	L:36 di:Ø12.2 do:Ø31.9 / 0,1 kg	A 667 320 00 73, 667 320 00 73 (3) OEM
38MR0710	Stabiliser Mounting	L:25.75 di:Ø12.1 do:Ø25.7 / 0,04 kg	5103 955AB, A 601 321 03 50 (3) OEM
38MR1100	Stabiliser Mounting	L:38.5 di:Ø23 / 0,03 kg	A 601 326 04 82, 601 326 04 82
38MR1110	Silentblock for TCA	L:70 di:Ø12.1 do:Ø32.7 / 0,18 kg	321 00 50, 321 01 50 (4) OEM
38MR1120	Stabiliser Mounting	L:48.5 di:Ø32.5 / 0,08 kg	602 326 02 82, A 602 326 02 82
38MR1121	Stabiliser Mounting	L:48.5 di:Ø30 / 0,09 kg	602 326 08 82, A 602 326 08 82
38VW5030 OUT OF SERVICE	Axle Beam Bushing	0,36 kg	611 324 04 50, A 611 324 03 50 (3) OEM
