10HY0500
|
Ball Joint Lower |
tp:M12x1.25 RHT cr:1/8 c:Ø15 do:Ø40 / 0,35 kg |
54503 25A00, 54503 38A00 (10) OEM |
 |
10HY10
|
Ball Joint Lower |
th:M16x1.5 RHT cr:1/8 c:Ø19.5 do:Ø46.5 / 0,64 kg |
MB527 38401, MB527 38301 |
 |
10HY1500
|
Ball Joint Lower |
th:M16x1.5 RHT cr:1/8 c:Ø19.3 / 1,59 kg |
54530 4A000, 54530 4AA00 (1) OEM |
 |
10MT0101
|
Ball Joint Upper |
th:M16x1.5 RHT cr:1/8 c:Ø17.75 / 0,97 kg |
54417 43A00, 54417 43001 (16) OEM |
 |
10MT0500
|
Ball Joint Upper |
th:M14x1.5 RHT cr:1/8 c:Ø15.9 do:Ø40.05 / 0,4 kg |
54431 44000, MB34957501 (10) OEM |
 |

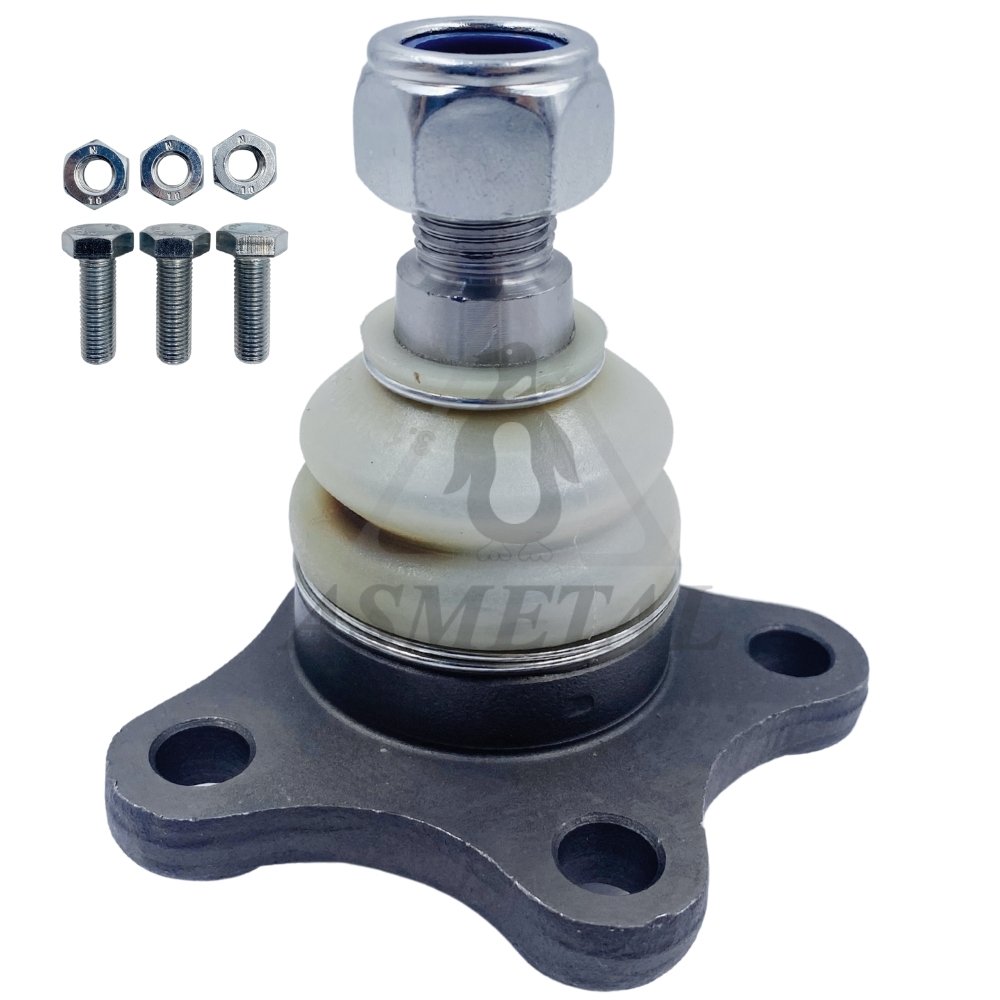

10MT0501
|
Ball Joint Lower |
th:M16x1.5 RHT cr:1/8 c:Ø19.5 / 0,91 kg |
MB241818, MR241027 (2) OEM |
 |
10MT0555
IN PREPARATION
|
Ball Joint Upper |
|
MB860829, MB860830 |
 |
10MT1000
IN PREPARATION
|
Ball Joint Rear |
|
MR508130, 4110A073 |
 |
10MT2000
IN PREPARATION
|
Ball Joint Upper |
0,91 kg |
4010A015, 4010A099 (2) OEM |
 |
10MT7500
IN PREPARATION
|
Ball Joint Lower Left |
|
MB831037, MR296269 |
 |
10MT7501
IN PREPARATION
|
Ball Joint Lower Right |
|
MB831038, MR296270 |
 |
10PE4800
|
Ball Joint |
c:Ø20 / 0,34 kg |
3521 V0*, 3521 R1* (10) OEM |
 |
10RN5800
|
Ball Joint |
th:M12x1.25 RHT cr:1/5 c:Ø17.2 / 0,72 kg |
54504 00Q0D*, 54505 00Q0D* (6) OEM |
 |
11MT0110
IN PREPARATION
|
Silentblock Bushing |
0 kg |
05105 270AA, 05105 270AB (4) OEM |
 |
17HY01
|
Tie Rod End |
L:88 cr:1/8 c:Ø13.7 tp:M12x1.5 th:FM14x1.5 RHT / 0,36 kg |
56872 43010, 56872 43000 (3) OEM |
 |
17HY1000
|
Tie Rod End |
L:69 cr:1/12 c:Ø13.45 tp:M10x1.25 th:FM14x1.5 RHT / 0,36 kg |
56820 21000, 56820 21100 (5) OEM |
 |
17HY1500
|
Tie Rod End |
L:72.5 cr:1/8 c:Ø13.65 tp:M12x1.5 th:FM16x1.5 RHT / 0,42 kg |
56820 47500, 56820 47300 (1) OEM |
 |

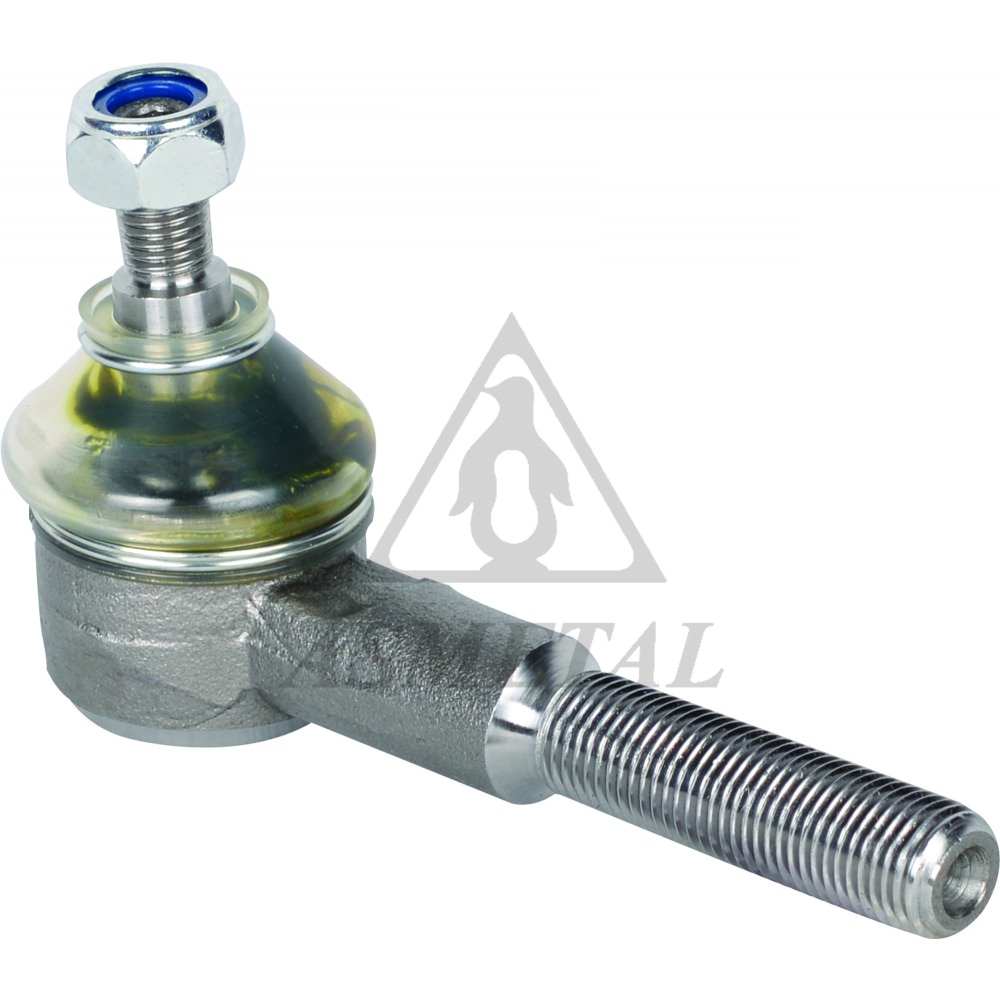

17MT0500
|
Tie Rod End |
L:104 cr:1/8 c:Ø12.05 tp:M10x1.25 th:MM14x1.5 LHT / 0,34 kg |
MB378704, MB166982 (4) OEM |
 |
17MT0505
IN PREPARATION
|
Tie Rod End Inner |
|
HB56 8110, MB241206 (2) OEM |
 |
17MT0510
IN PREPARATION
|
Tie Rod End |
0 kg |
MR296275, MB831043 |
 |
17MT1000
|
Tie Rod End Right |
L:129.7 cr:1/10 c:Ø18.4 tp:M14x1.5 th:MM20x1.5 RHT / 0,64 kg |
MC891911, MK309190 (3) OEM |
 |
17MT1001
|
Tie Rod End Left |
c:Ø18,4 th:MM20x1,5 LHT / 0,64 kg |
MC891910, MK309189 (4) OEM |
 |
17MT1005
OUT OF SERVICE
|
Tie Rod End Right |
c:Ø18,4 th:MM22x1,5 RHT / 0 kg |
MC309192, MC309712 (7) OEM |
 |
17MT1006
|
Tie Rod End Left |
c:Ø18,4 th:MM22x1,5 LHT / 0,7 kg |
ML106242, MK997628 (7) OEM |
 |
17MT1500
|
Tie Rod End |
L:78 cr:1/8 c:Ø13.4 tp:M10x1.25 th:FM12x1.25 RHT / 0,3 kg |
3817 A6, 56820 02500 (13) OEM |
 |
17MT2000
IN PREPARATION
|
Tie Rod End |
0 kg |
MR977606, 454 460 02 05 |
 |
17MT2002
IN PREPARATION
|
Tie Rod End Left |
|
6000 605 949, 4422A009 (2) OEM |
 |
17MT2003
IN PREPARATION
|
Tie Rod End Right |
|
60 006 059 50, 4422A010 (1) OEM |
 |
17MT4800
IN PREPARATION
|
Tie Rod End |
|
4422A051, 4422A139 |
 |
17PE4800
IN PREPARATION
|
Tie Rod End |
0 kg |
16 075 024 80, 3817 74 (3) OEM |
 |
17RN5800
|
Tie Rod End Left |
L:179 cr:1/5 c:Ø11.9 tp:M10x1.25 th:FM14x1.5 RHT / 0,38 kg |
48010 00Q0G*, 48 52 055 94R |
 |
17RN5800S
|
Tie Rod End Left |
L:179 cr:1/5 c:Ø11.9 tp:M10x1.25 th:FM14x1.5 RHT / 0,8 kg |
48010 00Q0G*, 48 52 055 94R |
 |
17RN5801
|
Tie Rod End Right |
L:179 cr:1/5 c:Ø11.9 tp:M10x1.25 th:FM14x1.5 RHT / 0,38 kg |
48010 00Q0G*, 48 52 089 86R |
 |
17RN5801S
|
Tie Rod End Right |
L:179 cr:1/5 c:Ø11.9 tp:M10x1.25 th:FM14x1.5 RHT / 0,8 kg |
48010 00Q0G*, 48 52 089 86R |
 |

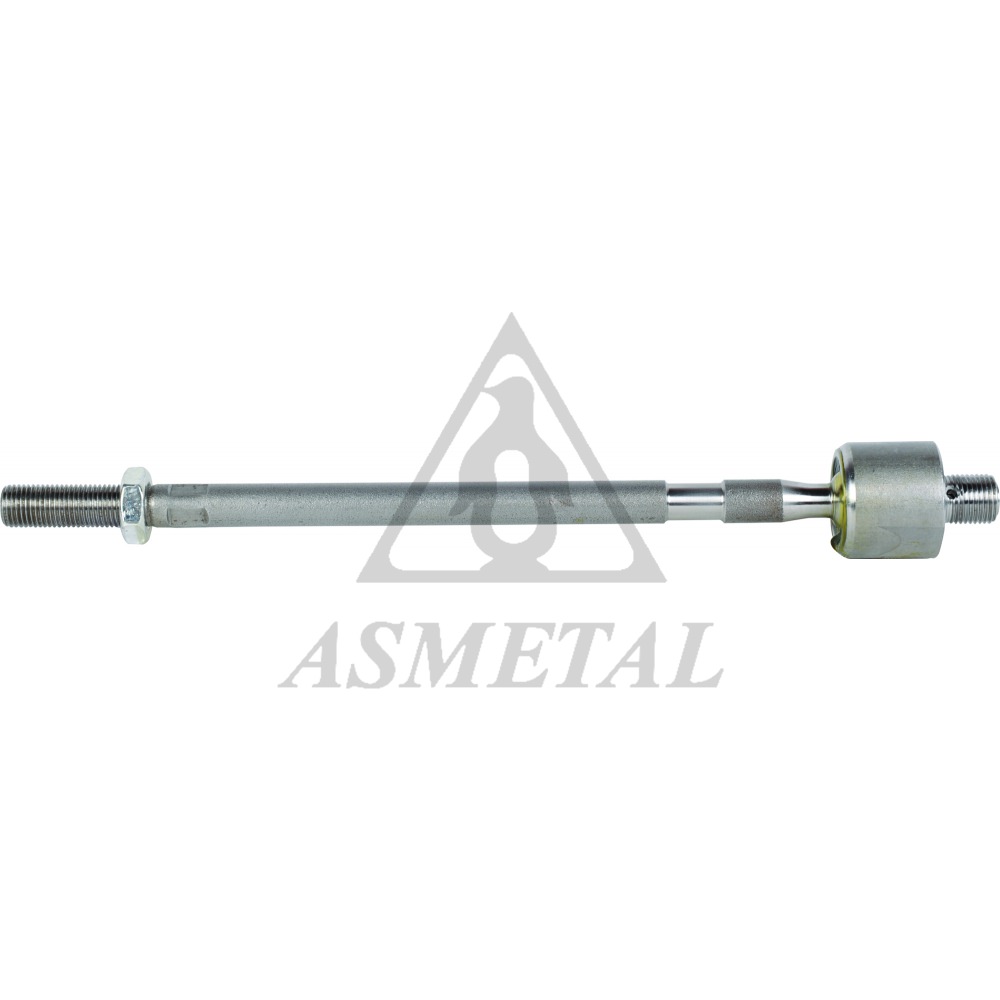

20MT0101
|
Axial Joint |
0,57 kg |
MR210221, MB532971 |
 |

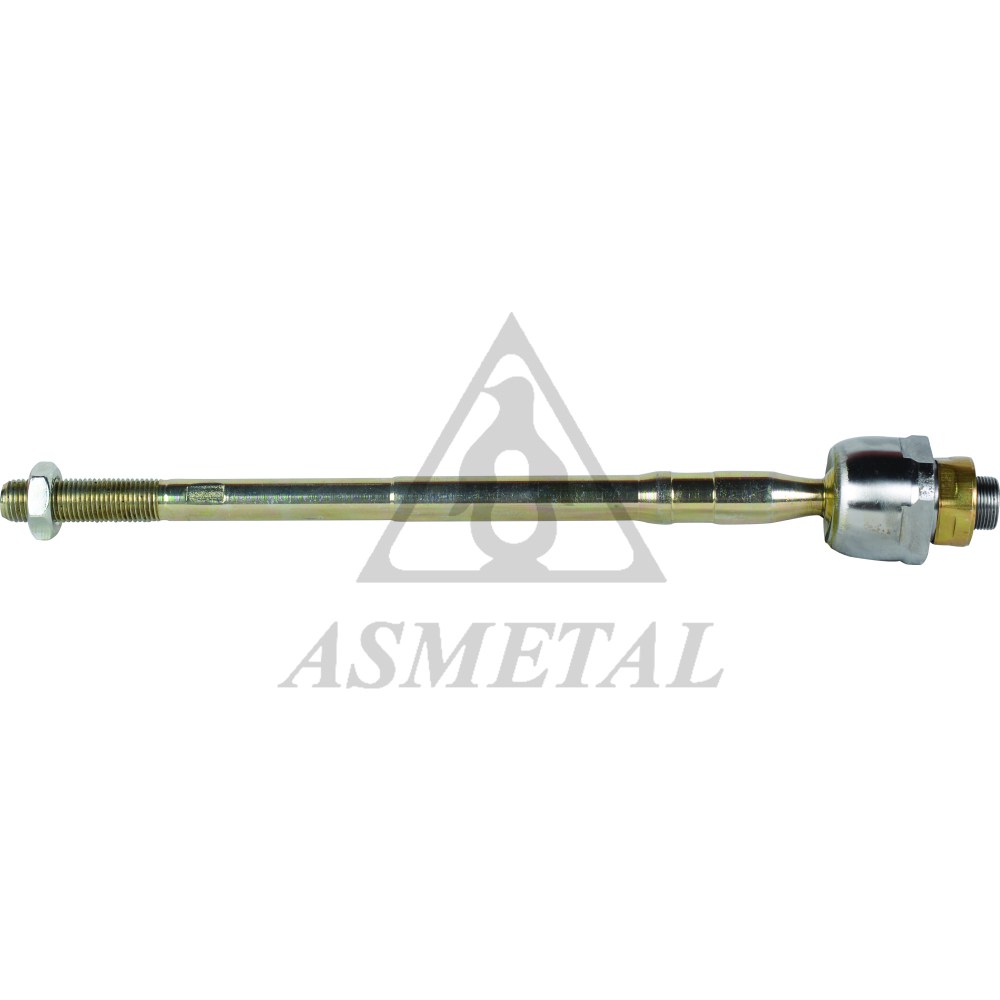

20MT0110
|
Axial Joint |
0,61 kg |
MR455425, MB266152 (3) OEM |
 |
20MT0112
IN PREPARATION
|
Axial Joint |
|
4422A056, MR491358 |
 |
20MT0540
IN PREPARATION
|
Axial Joint |
|
4410A172 |
 |
20PE4800
|
Axial Joint |
L:343.5 tp:M14x1.5 th:MM14x1.5 RHT / 0,76 kg |
3812 F1, 4422A012 |
 |
20PE4810
|
Axial Joint |
L:340 tp:M14x1.5 th:MM14x1.5 RHT / 0,76 kg |
16 075 025 80, 16 085 321 80* (3) OEM |
 |
20RN5800
|
Axial Joint |
L:229 tp:M12x1 th:MM14x1.5 RHT / 0,48 kg |
48 52 105 57R |
 |

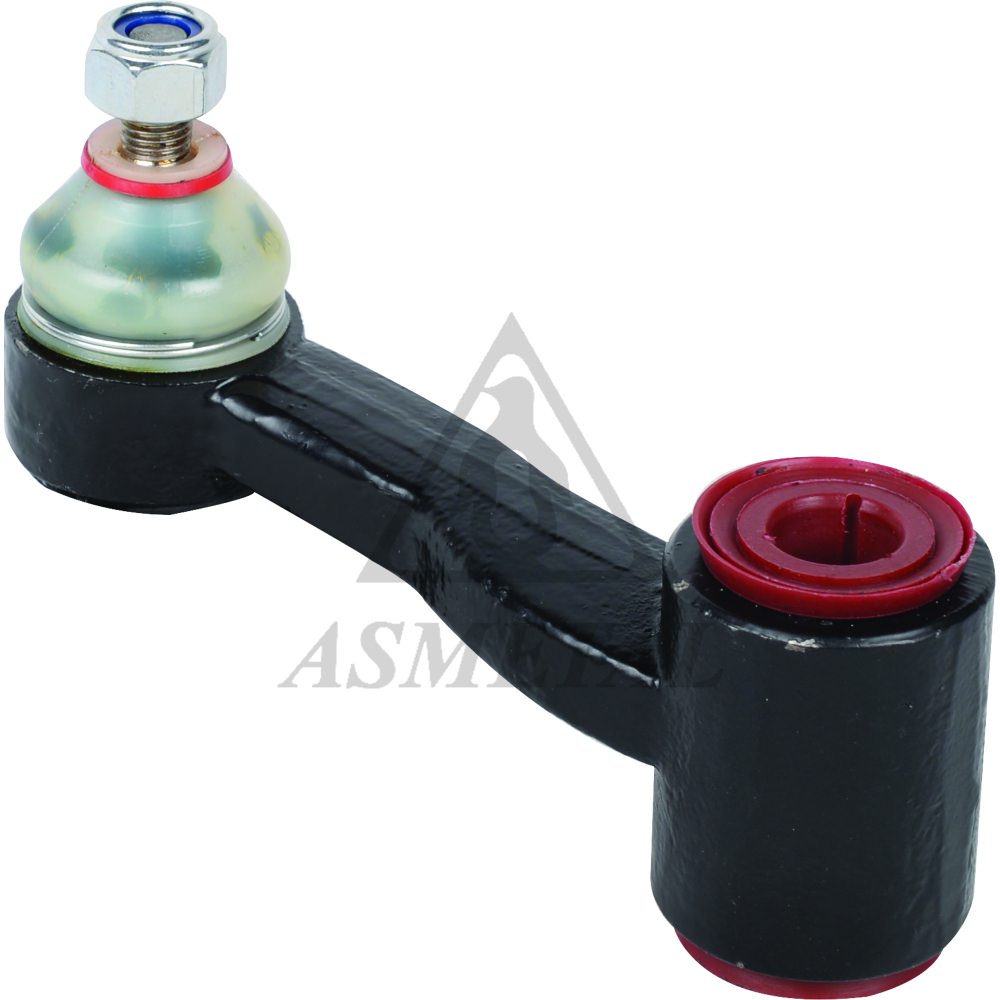

23MT20
OUT OF SERVICE
|
Track Control Arm |
c:1:8 th:M10x1.25 RHT L:110mm / 0,84 kg |
MB527228 |
 |
26HY0510
|
Stabiliser Link Left |
L:59 tp:M10x1.25 RHT / 0,28 kg |
54830 17010, 54830 25010 |
 |
26HY0511
|
Stabiliser Link Right |
L:59 tp:M10x1.25 RHT / 0,28 kg |
54830 25020, 54830 17020 (2) OEM |
 |
26HY1500
|
Stabiliser Link |
L:130 tp:M10x1.25 RHT / 0,3 kg |
548304 A003, 54830 4A600 (3) OEM |
 |
26MT0998
IN PREPARATION
|
Stabiliser Link Left |
|
4056A133, MR992191 |
 |
26MT0999
IN PREPARATION
|
Stabiliser Link Right |
|
4056A134, MR992192 |
 |
26MT1000
IN PREPARATION
|
Stabiliser Link Rear Left |
|
4056A111, MR418052 |
 |
26MT1001
IN PREPARATION
|
Stabiliser Link Rear Right |
|
4056A112, MR418053 |
 |
26MT1500
NEW
|
Stabiliser Link |
0,38 kg |
MME272116, MR272116 (6) OEM |
 |
26MT1520
IN PREPARATION
|
Stabiliser Link Rear |
0 kg |
MME272118, MR272118 (4) OEM |
 |
26MT2000
IN PREPARATION
|
Stabiliser Link Left |
|
4056A192, MR992309 |
 |
26MT2001
IN PREPARATION
|
Stabiliser Link Right |
|
4056A193, MR992310 |
 |
26MT2002
IN PREPARATION
|
Stabiliser Link Left |
|
4056A198, 60 006 058 89 |
 |
26MT2003
IN PREPARATION
|
Stabiliser Link Right |
|
60 006 058 90, 4056A199 |
 |
26PE4800
|
Stabiliser Link |
L:264 tp:M10x1.5 RHT / 0,34 kg |
5087 58, 16 109 303 80 (1) OEM |
 |
26PE4810
|
Stabiliser Link Rear Left |
L:80 tp:M10x1.5 RHT / 0,3 kg |
5178 48, 4156A014 |
 |
26PE4811
|
Stabiliser Link Rear Right |
L:80 tp:M10x1.5 RHT / 0,3 kg |
5178 49, MN184194 |
 |
26SM0454
IN PREPARATION
|
Stabiliser Link |
0 kg |
MR961477, 454 320 00 10 |
 |
30HY1001
OUT OF SERVICE
|
Track Control Arm Left |
0 kg |
54510 43150, 54510 43151 (6) OEM |
 |
30MT0101
OUT OF SERVICE
|
Track Control Arm Left |
0 kg |
54510 43152, 54510 43151 (3) OEM |
 |
30PE4801
IN PREPARATION
|
Track Control Arm Right |
|
4013A010, 3521.V0 (8) OEM |
 |
30RN5800
NEW
|
Track Control Arm Left |
3,48 kg |
MQ006789, 54 50 560 28R (1) OEM |
 |
30RN5801
NEW
|
Track Control Arm Right |
3,48 kg |
54 50 425 11R, 54 50 024 46R (1) OEM |
 |
38MT1500
|
Silentblock for TCA |
L:53.8 di:Ø14.1 do:Ø60 / 0,32 kg |
3523 CS , 16 099 106 80 (6) OEM |
 |

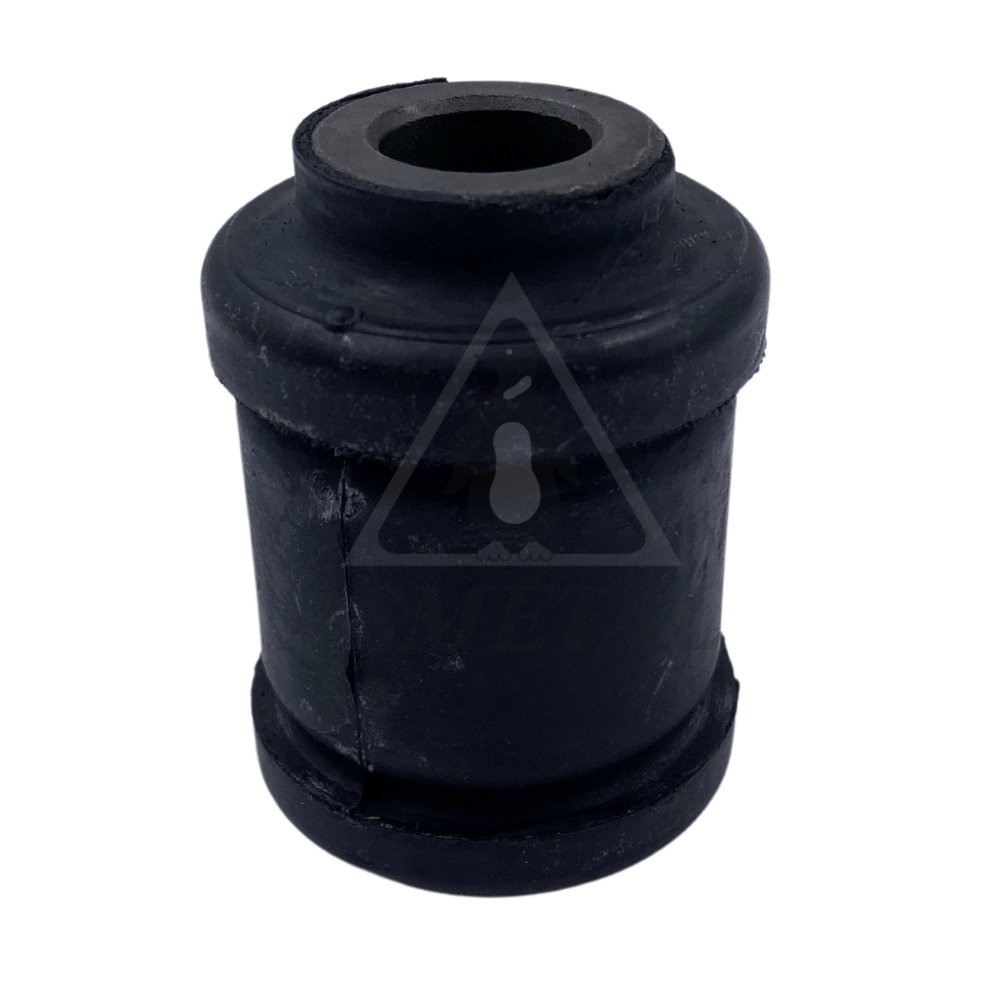

38MT1501
|
Silentblock for TCA |
L:59.5 di:Ø14.2 do:Ø37 / 0,18 kg |
4013A443*, 4013A430* (10) OEM |
 |
38MT1550
|
Axle Beam Bushing |
L:98 do:Ø70.3 / 0,53 kg |
16 099 117 80, 4120A166 |
 |
38RN5610
|
Silentblock for TCA |
L:50.8 di:Ø18.2 do:Ø55.5 / 0,31 kg |
MQ001922, MQ001923 (4) OEM |
 |
38RN5800
|
Silentblock for TCA |
L:53 di:Ø14.4 do:Ø58 / 0,16 kg |
54 50 034 37R, 54 50 100 16R (8) OEM |
 |
45RN5800
NEW
|
Strut Mount |
|
54 30 202 80R |
