NISSAN > JUKE (21 Quantity)
ASMETAL No Product Description Dimensions Oem No
10NS1200
 		Ball Joint c:Ø18 do:Ø38,35 / 0,27 kg 40160 1KA0A, 40160 1KA0B (26) OEM
10RN5800
NEW
Ball Joint C: Ø17,2 CR: 1/5 TP: M12X1,25 / 0,72 kg 54504 00Q0D*, 54505 00Q0D* (6) OEM
13RN58A
IN PREPARATION
Tie Rod End (KIT) 48 52 055 94R, 48010 00Q0G* (1) OEM
13RN58S
IN PREPARATION
Tie Rod End (KIT) 48010 00Q0G*, 48 52 055 94R (1) OEM
17NS1200
 		Tie Rod End Left c:Ø 11,8 th:FM12x1,25 RHT / 0,74 kg D8640 3SG1A, D8640 3RA1A (3) OEM
17NS1201
 		Tie Rod End Right c:Ø 11,8 th:FM12x1,25 RHT / 0,74 kg D8520 3RA1A, D8520 1KA0A (2) OEM
17RN5800
IN PREPARATION
Tie Rod End Left 0 kg 48010 00Q0G*, 48 52 055 94R
17RN5800S
IN PREPARATION
Tie Rod End Left 48010 00Q0G*, 48 52 055 94R
17RN5801
IN PREPARATION
Tie Rod End Right 0 kg 48010 00Q0G*, 48 52 089 86R
17RN5801S
IN PREPARATION
Tie Rod End Right 48010 00Q0G*, 48 52 089 86R
20NS1200
 		Axial Joint th1:MM16x1.0 RHTth2:MM12x1.25 RHT L:217 / 0,58 kg D8521-1KA0A, 48001-1KA0B (3) OEM
26NS1200
 		Stabiliser Link L:284mm / 0,5 kg 54618 3NF0A, 54618 9AM1A (6) OEM
26RN5800
NEW
Stabiliser Link L: 260 TP: M10X1,25 / 0,32 kg 54616 00Q0L, 54 61 814 27R
30NS1200

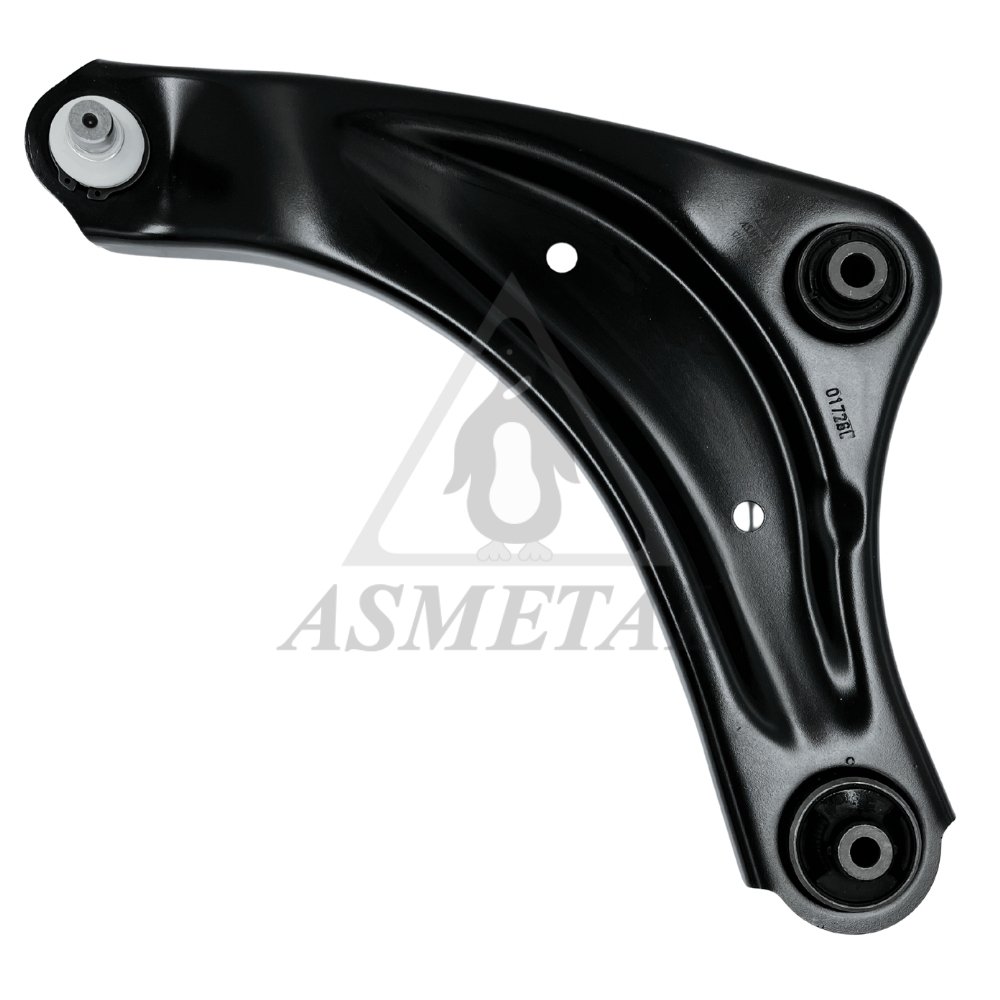

 		Track Control Arm Left c: Ø18 / 3,1 kg 54501 1KA0A, 54501 1KA0B (4) OEM
30NS1201
 		Track Control Arm Right c: Ø18 / 3,1 kg 54500-BA60A, 54500 1KA1B (4) OEM
38NS1001
 		Silentblock for TCA di:Ø12,2 do:Ø58 / 0,36 kg 54570 EN002, 54 57 0BB 00A (18) OEM
38NS1200
 		Silentblock for TCA di:Ø14.3 do: Ø50 L:49mm / 0,33 kg 54500 1KA0B*, 54500 1KK0B* (5) OEM
38RN5800
NEW
Silentblock for TCA di: Ø14.4 / do: Ø58 / L: 53 / 0,16 kg 54 56 066 79R, 54 50 034 37R (5) OEM
38RN5801
NEW
Silentblock for TCA di: Ø18.3 / do: Ø55.2 / L: 51.2 / 0,384 kg 54504 00Q0D*, 54505 00Q0D* (11) OEM
45NS1000
IN PREPARATION
Strut Mount Left 54321 1KA0B
45NS1001
IN PREPARATION
Strut Mount Right 54320 1KA0B
