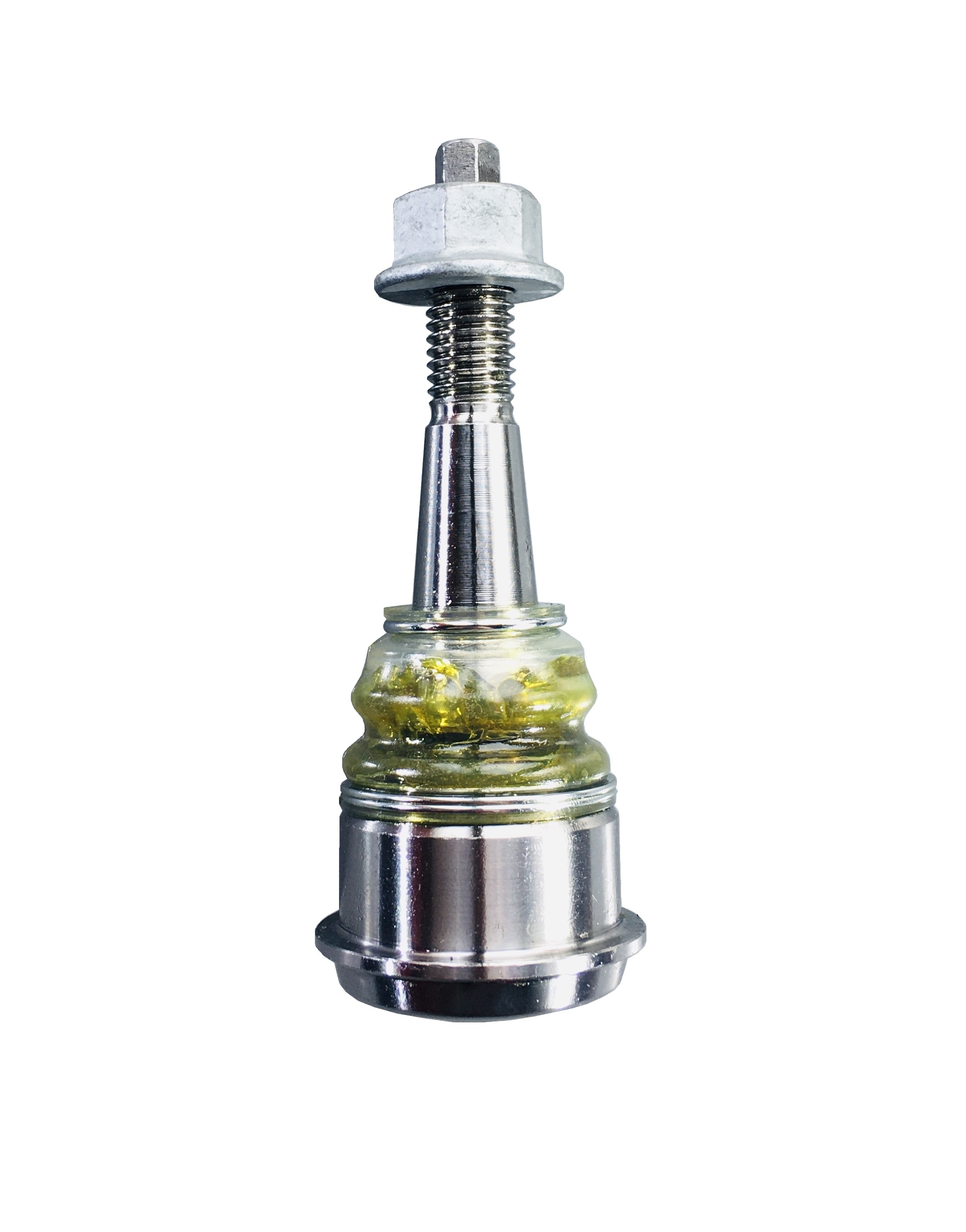

10OP1300
|
Ball Joint Lower |
th:M12x1.75 RHT cr:1/6 c:Ø12.5 do:Ø36 / 0,32 kg |
39 021 472*, 39 021 473* |
 |
10OP1400
IN PREPARATION
|
Ball Joint Upper |
0 kg |
3 24 000, 13 258 056 |
 |
10OP2000
|
Ball Joint Lower |
c:Ø18 / 0,53 kg |
3 52 800, 3 52 829 (7) OEM |
 |
10OP9167
|
Ball Joint Lower |
tp:M12x1.25 RHT cr:1/6 c:Ø13.3 / 0,54 kg |
16 03 167, 16 03 163 (4) OEM |
 |
10PE1200
|
Ball Joint Lower |
th:M14x1.5 RHT cr:1/5 c:Ø16.5 / 0,91 kg |
98 310 882 80, 96 721 924 80 |
 |
11OP1400
IN PREPARATION
|
Silentblock Bushing |
|
13 262 449, 13 332 257 (1) OEM |
 |
17OP1000
|
Tie Rod End |
L:135.5 cr:1/6 c:Ø13.35 tp:M12x1.5 th:FM14x1.5 RHT / 0,44 kg |
16 03 214, 16 03 215 (4) OEM |
 |
17OP1010
|
Tie Rod End Left |
L:137 cr:1/6 c:Ø13.35 tp:M12x1.5 th:FM14x1.5 RHT / 0,48 kg |
16 03 289, 16 09 013 (6) OEM |
 |
17OP1011
|
Tie Rod End Right |
L:137 cr:1/6 c:Ø13.35 tp:M12x1.5 th:FM14x1.5 RHT / 0,48 kg |
93 181 229, 16 03 267 (6) OEM |
 |

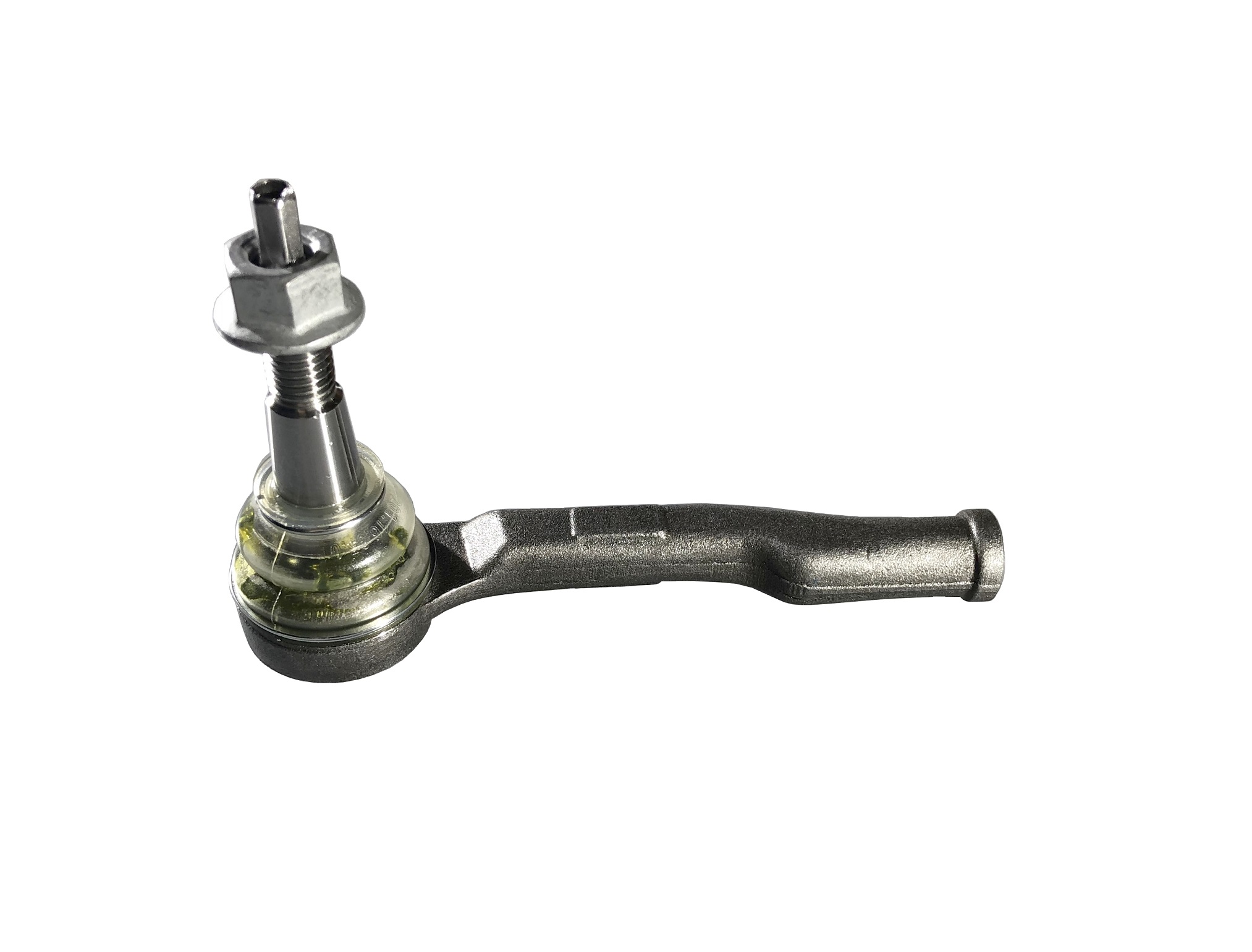

17OP1300
|
Tie Rod End Left |
L:143 cr:1/6 c:Ø13.5 tp:M12x1.75 th:FM14x1.5 RHT / 0,5 kg |
39 008 084 |
 |

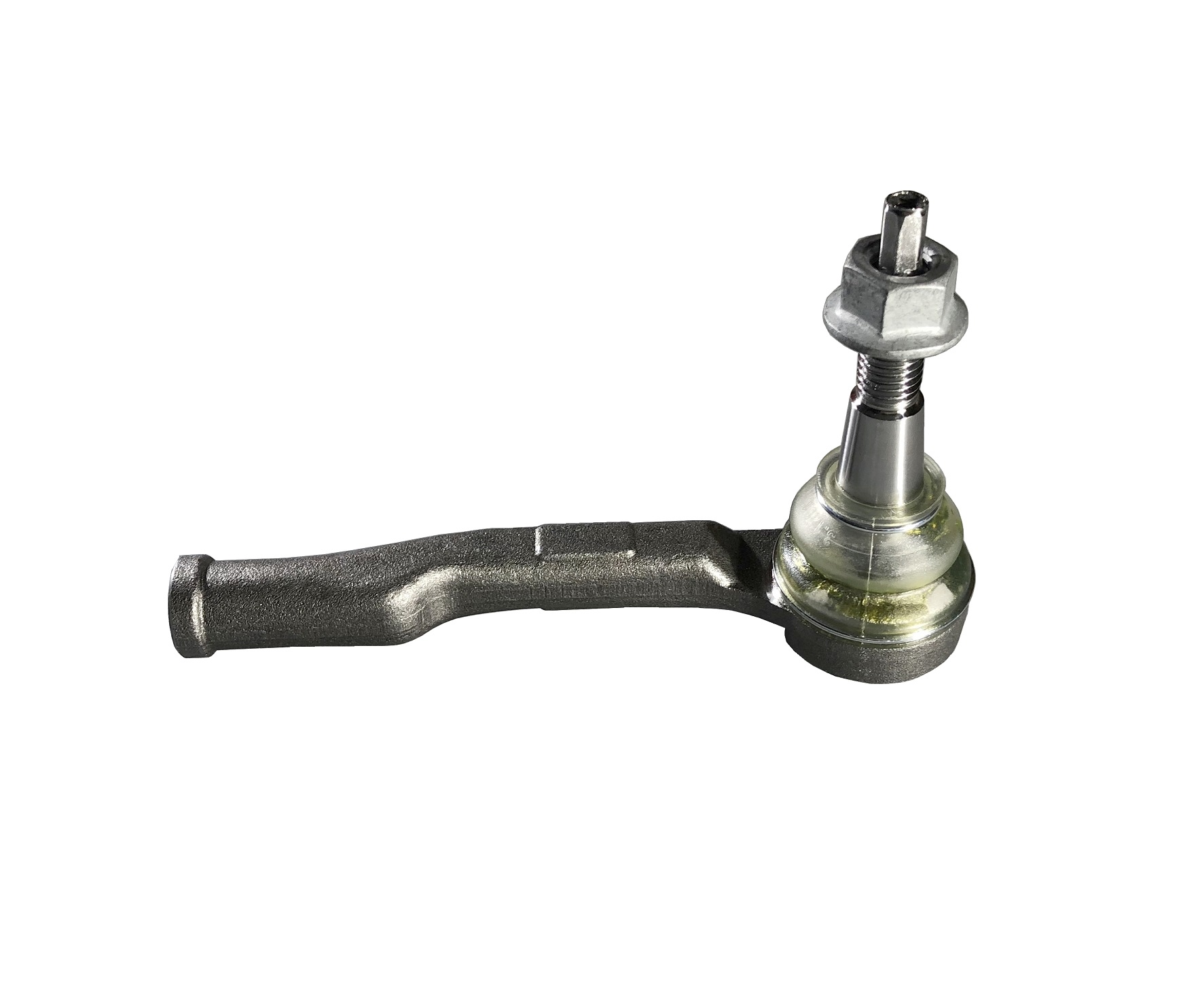

17OP1301
|
Tie Rod End Right |
L:143 cr:1/6 c:Ø13.5 tp:M12x1.75 th:FM14x1.5 RHT / 0,5 kg |
39 008 083 |
 |
17OP1400
|
Tie Rod End |
L:119.3 cr:1/6 c:Ø13.1 tp:M12x1.75 th:FM16x1.5 RHT / 0,6 kg |
13 272 000, 13 278 359 (3) OEM |
 |
17OP4055
|
Tie Rod End Left |
L:68 cr:1/8 c:Ø13 tp:M12x1.5 th:FM16x2 RHT / 0,46 kg |
3 24 053, 3 24 055 (3) OEM |
 |
17OP4056
|
Tie Rod End Right |
L:68 cr:1/8 c:Ø13 tp:M12x1.5 th:FM16x2 LHT / 0,46 kg |
3 24 054, 3 24 056 (3) OEM |
 |
17PE1200
|
Tie Rod End Left |
L:215 cr:1/5 c:Ø14.5 tp:M12x1.5 th:FM14x1.5 RHT / 0,8 kg |
16 108 177 80, 39 176 185* (2) OEM |
 |
20OP0500
|
Axial Joint |
L:283 tp:M14x1.5 th:MM18x1.5 RHT / 0,61 kg |
16 03 216, 16 03 256 (8) OEM |
 |
20OP1020
|
Axial Joint |
L:278.5 tp:M14x1.5 th:MM16x1.5 RHT / 0,55 kg |
1 603 357, 1 603 264 (2) OEM |
 |
20OP1100
|
Axial Joint |
L:293 tp:M16x1.5 th:MM16x1.5 RHT / 0,7 kg |
13 278 358, 9 20 005 (1) OEM |
 |
20OP1110
IN PREPARATION
|
Axial Joint |
0 kg |
13 286 687, 13 398 593 (1) OEM |
 |
20OP1300
IN PREPARATION
|
Axial Joint |
0 kg |
13 464 344* |
 |
20OP4055
|
Bolt, Wheel Alignment |
L:106 th1:M16x2 LHT th2:M16x2 RHT / 0,16 kg |
3 22 576, 3 22 577 (3) OEM |
 |
26OP03
|
Stabiliser Link |
L:84.5 tp:M12x1.25 RHT th:M8x1.25 RHT / 0,25 kg |
3 50 263, 45 44 599 (1) OEM |
 |
26OP0300
|
Stabiliser Link |
L:85.75 / 0,17 kg |
3 50 260, 30 540 743 (1) OEM |
 |
26OP0301
|
Stabiliser Link |
L:104.8 tp:M8x1.25 RHT / 0,15 kg |
03 50 261, 3 50 261 (1) OEM |
 |
26OP1000
|
Stabiliser Link |
L:300 tp:M12x1.5 RHT / 0,35 kg |
3 50 614, 3 50 611 (2) OEM |
 |
26OP1005
|
Stabiliser Link |
L:300 tp:M12x1.5 RHT / 0,43 kg |
3 50 614, 3 50 611 (2) OEM |
 |
26OP1010
|
Stabiliser Link |
L:300 tp:M12x1.5 RHT / 0,56 kg |
3 50 613, 24 461 353 |
 |

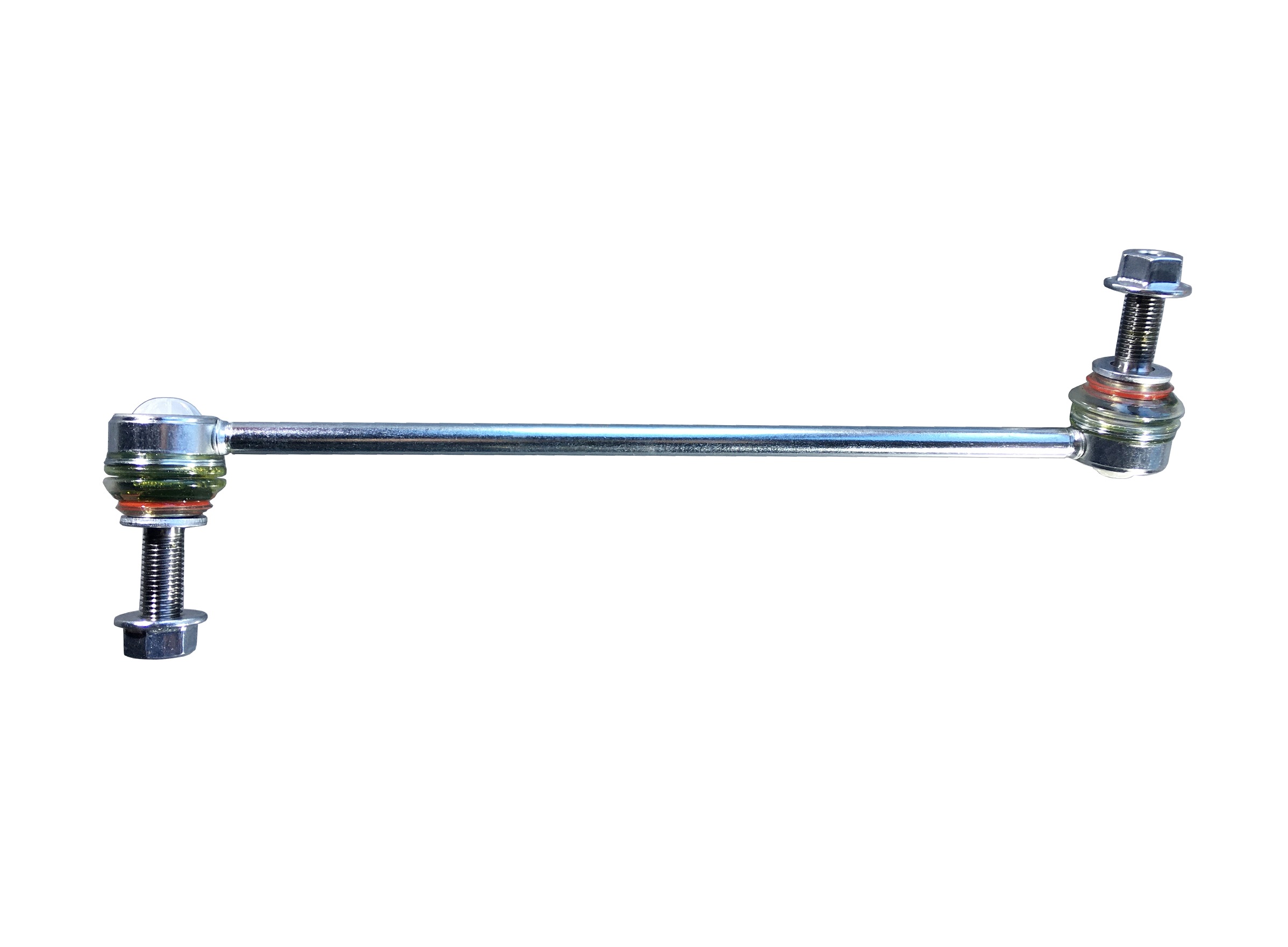

26OP1300
|
Stabiliser Link Left |
L:306 tp:M12x1.25 RHT / 0,5 kg |
39 064 480, 39 001 003 |
 |

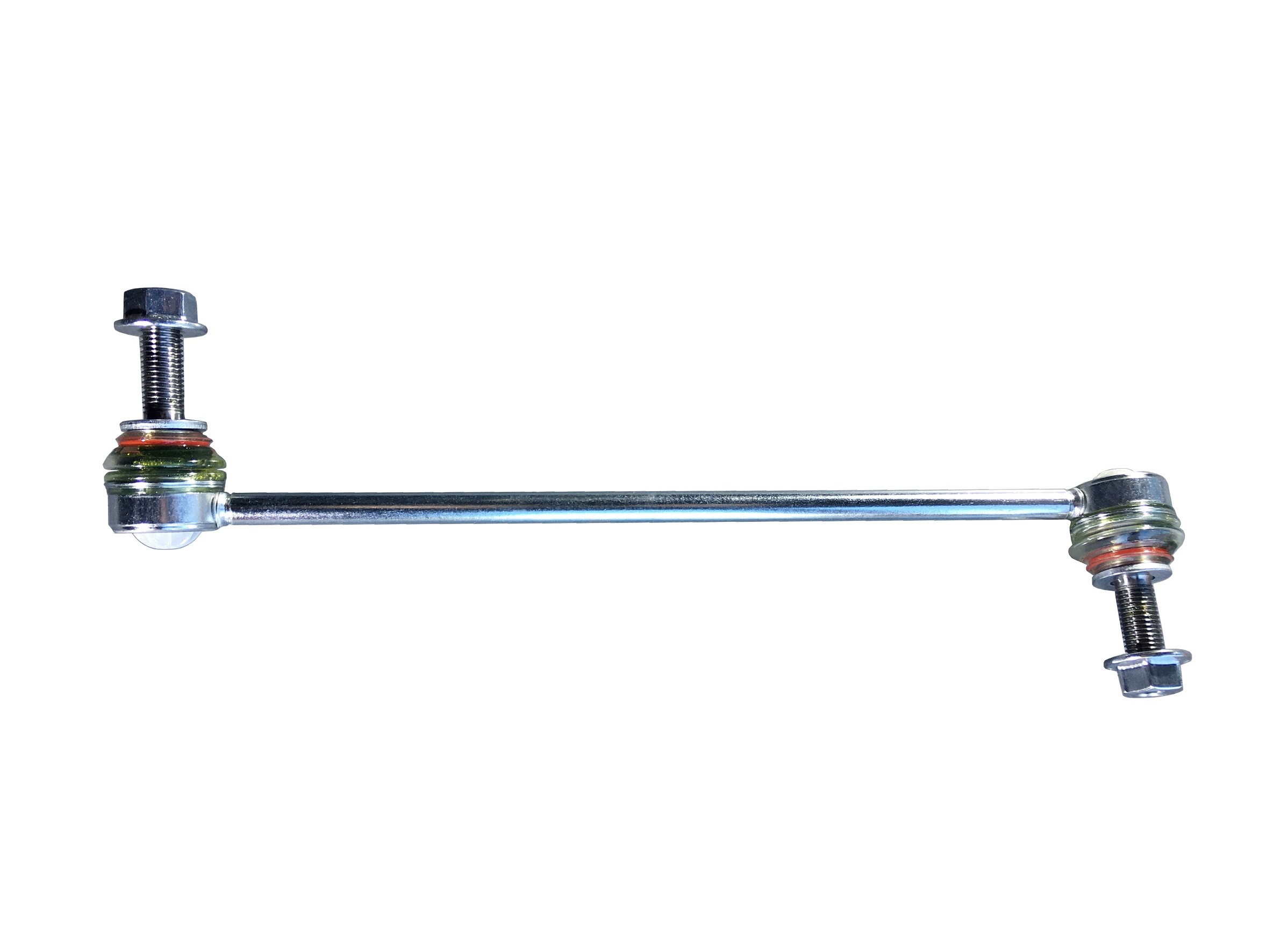

26OP1301
|
Stabiliser Link Right |
L:306 tp:M12x1.25 RHT / 0,5 kg |
39 001 004, 39 064 481 |
 |
26OP1400
|
Stabiliser Link |
L:304 tp:M12x1.5 RHT / 0,44 kg |
3 50 618, 13 258 052 |
 |
26OP1405
|
Stabiliser Link |
L:303.8 tp:M12x1.75 RHT / 0,34 kg |
3 50 611, 3 50 617 (6) OEM |
 |
26PE0800
|
Stabiliser Link |
L:335 tp:M10x1.5 RHT / 0,42 kg |
5087 64, 16 073 250 80 (16) OEM |
 |
30OP1300
NEW
|
Track Control Arm Left |
3,54 kg |
39 010 110, 39 021 472 (1) OEM |
 |
30OP1301
NEW
|
Track Control Arm Right |
3,54 kg |
39 021 473, 39 001 026 (1) OEM |
 |
30OP2020
NEW
|
Track Control Arm Left |
3,72 kg |
53 52 029, 53 52 016 (2) OEM |
 |
30OP2021
NEW
|
Track Control Arm Right |
3,72 kg |
53 52 030, 53 52 017 (2) OEM |
 |
38OP0093
|
Stabiliser Mounting |
L:39 di:Ø21 / 0,045 kg |
009 223 176, 090 581 043 (9) OEM |
 |
38OP0117
|
Stabiliser Mounting |
L:39 di:Ø20 / 0,04 kg |
3 50 117, 24 421 958 |
 |
38OP0140
|
Stabiliser Mounting |
L:39 di:Ø22 / 0,04 kg |
3 50 140, 90 581 398 |
 |
38OP1000
|
Stabiliser Mounting |
L:18.3 di:Ø8.5 do:Ø29.8 / 0,02 kg |
2 875 013, 3 50 153 (1) OEM |
 |
38OP1010
|
Axle Beam Bushing |
L:75 di:Ø12.1 do:Ø59 / 0,29 kg |
4 02 645, 90 305 431 (1) OEM |
 |
38OP2000
|
Silentblock for TCA |
L:60 di:Ø12.1 do:Ø46 / 0,26 kg |
24 439 582, 3 52 324 |
 |
38OP2010
|
Axle Beam Bushing |
L:90 di:Ø13.2 do:Ø70 / 0,48 kg |
54 02 637, 4 02 952 (2) OEM |
 |
38OP2040
|
Silentblock for TCA |
L:60 di:Ø12.2 do:Ø38.5 / 0,13 kg |
3 52 300, 90 288 232 (4) OEM |
 |
38OP2041
|
Silentblock for TCA |
L:58.2 di:Ø16.1 do:Ø60 / 0,24 kg |
3 52 347, 3 52 348 (4) OEM |
 |
38OP2044
|
Stabiliser Mounting |
L:38.5 di:Ø19 / 0,04 kg |
03 50 123, 03 50 078 (2) OEM |
 |
38OP2050
|
Silentblock for TCA |
L:60 di:Ø12.2 do:Ø35.7 / 0,15 kg |
517 48 653*, 517 48 652* (9) OEM |
 |
38OP2051
|
Silentblock for TCA |
L:60 di:Ø12.1 do:Ø47.3 / 0,13 kg |
90 498 740, 3 52 365 |
 |
38OP2052
|
Axle Beam Bushing |
L:35 di:Ø14 do:Ø38.2 / 0,15 kg |
13 107 328, 3 02 067 (3) OEM |
 |
38OP2053
|
Stabiliser Mounting |
L:39 di:Ø17 / 0,04 kg |
3 50 130, 46 86 820 (1) OEM |
 |
38OP2054
|
Stabiliser Mounting |
L:39 di:Ø17.2 / 0,04 kg |
90 538 865, 3 50 138 (1) OEM |
 |
38OP2055
|
Axle Beam Bushing |
L:90 di:Ø12.5 do:Ø70.5 / 0,4 kg |
4 02 644, 54 02 634 (4) OEM |
 |
38OP2057
|
Axle Beam Bushing |
L:35.2 di:Ø14 do:Ø38.5 / 0,12 kg |
3 02 275, 3 02 290 (2) OEM |
 |
38OP2060
|
Silentblock for TCA |
L:105.2 di:Ø22.5 do:Ø80.2 / 0,89 kg |
13 230 774, 13 334 021 (6) OEM |
 |
38OP2061
|
Silentblock for TCA |
L:40.6 di:Ø12.1 do:Ø40.6 / 0,21 kg |
13 321 342, 13 318 894* (8) OEM |
 |
38OP2062
|
Stabiliser Mounting |
L:39 di:Ø26 / 0,08 kg |
13 346 848*, 13 281 782 (4) OEM |
 |
38OP2070
|
Stabiliser Mounting |
L:31 di:Ø19.7 do:Ø44 / 0,05 kg |
3 50 390, 3 50 391 (2) OEM |
 |
38OP2071
|
Stabiliser Mounting |
L:31 di:Ø19 do:Ø44 / 0,04 kg |
13 204 071, 3 50 391 |
 |
38OP2072
NEW
|
Stabiliser Mounting KIT |
|
3 50 391, 3 50 390 (2) OEM |
 |
38OP2073
|
Stabiliser Mounting |
L:39.2 di:Ø19.5 / 0,03 kg |
03 50 161, 3 50 161 (2) OEM |
 |
38OP2644
|
Axle Beam Bushing |
L:90 di:Ø12.6 do:Ø60.5 / 0,43 kg |
4 02 644, 91 56 735 (3) OEM |
 |
38OP3188
|
Bellow Driveshaft (KIT) |
L:107 di:Ø22 / 0,172 kg |
16 03 188, 3 74 212 (2) OEM |
 |
38OP3197
|
Bellow Driveshaft (KIT) |
L:104 di:Ø27 / 0,22 kg |
16 03 197, 90 512 357 (3) OEM |
 |
38OP3238
|
Bellow Driveshaft |
L:102 di:Ø25 / 0,12 kg |
16 03 238, 93 173 675 |
 |
38OP3276
|
Bellow Driveshaft |
L:124 di:Ø23 / 0,01 kg |
16 03 005, 26 067 603 |
 |
38OP4212
|
Bellow Driveshaft |
L:113 di:Ø23 / 0,11 kg |
3 74 212, 90 446 236 (2) OEM |
 |
38OP4309
|
Bellow Driveshaft |
L:104 di:Ø30.5 / 0,14 kg |
3 74 309, 26 039 984 (2) OEM |
 |
38OP7100
|
Strut Mount |
H:41 di:Ø12.2 do:Ø112.5 / 0,44 kg |
3 44 523, 90 468 554 (2) OEM |
 |
38OP9000
|
Bellow Steering |
L:189 di:Ø13.5 / 0,1 kg |
16 09 109, 26 059 295 (1) OEM |
 |
38PE1200
|
Silentblock for TCA |
L:65 di:Ø14.1 do:Ø50.3 / 0,26 kg |
98 163 803 80, 3 644 790 (1) OEM |
 |
38PE1201
|
Silentblock for TCA |
L:59.5 di:Ø14.1 do:Ø43.2 / 0,23 kg |
96 760 321 80, 3 637 432 |
 |
45OP1420
|
Suspension Support Buffer Front |
L:51 di:Ø25 do:Ø66.5 / 0,06 kg |
13 356 026, 13 315 664 (11) OEM |
 |
45OP1440
|
Strut Mount With Bearing |
L:47 di:Ø14.2 do:Ø113.5 / 0,78 kg |
13 505 131, 95 212 727 (8) OEM |
 |

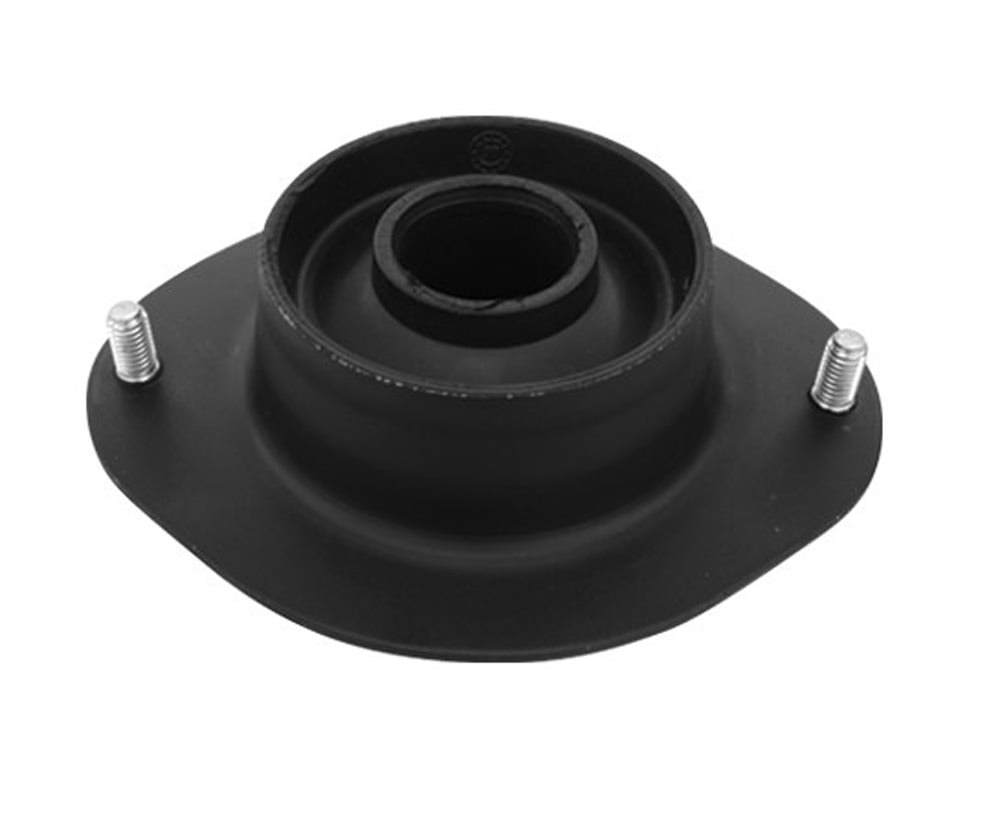

45OP2000
|
Strut Mount |
L:47 di:Ø14.5 do:Ø80.5 / 0,62 kg |
3 44 517, 90 496 637 (2) OEM |
 |
45OP2002
OUT OF SERVICE
|
Strut Mount With Bearing |
|
3 12 510, 90 468 618 |
 |
45OP2003
OUT OF SERVICE
|
Strut Mount |
|
3 12 510, 90 468 618 |
 |
45OP2004
IN PREPARATION
|
Bearing |
|
90 236 985, 90 425 479 (2) OEM |
 |

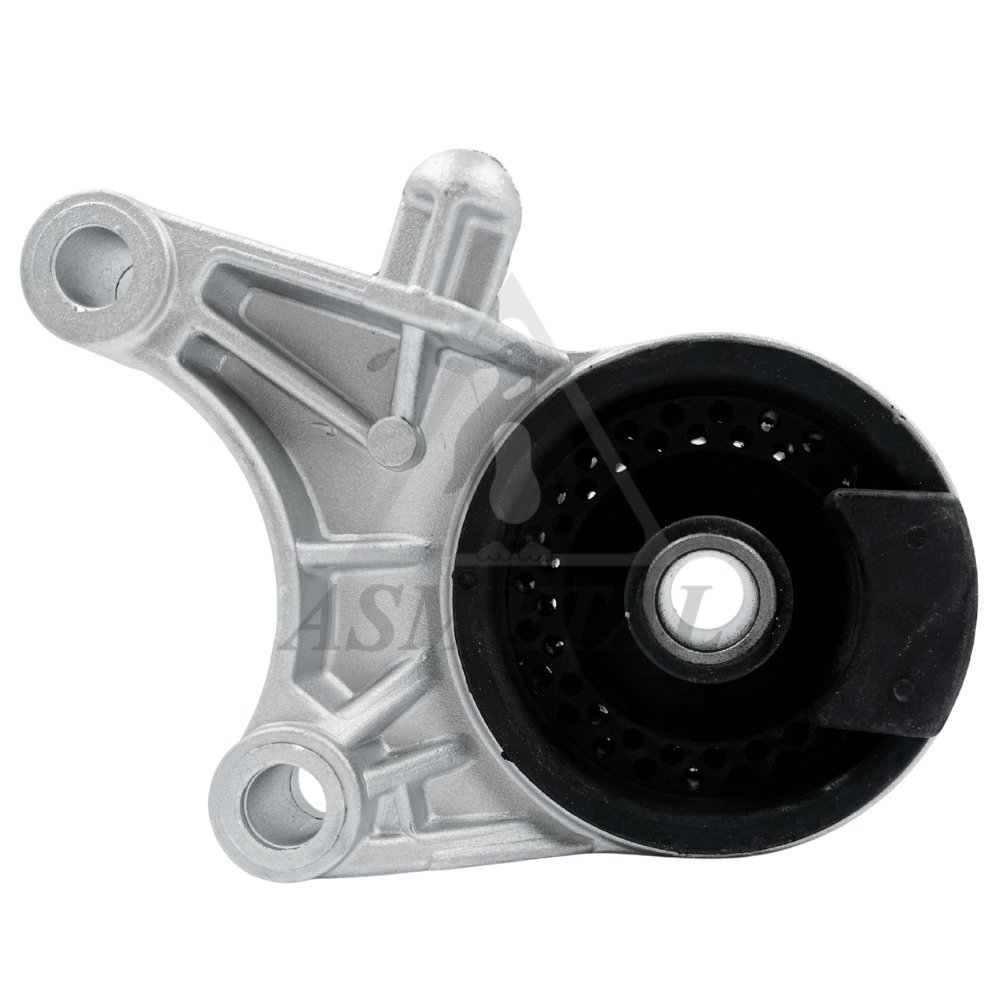

45OP2010
|
Engine Mounting |
L:75 di:Ø16 / 0,82 kg |
6 84 697, 90 576 048 |
 |
45OP2015
|
Strut Mount |
L:49.5 di:Ø15 do:Ø120.5 / 0,8 kg |
3 44 543, 13 186 959 (3) OEM |
 |
45OP2016
IN PREPARATION
|
Bearing |
|
517 55 689, 3 44 503 (4) OEM |
 |
45OP2017
IN PREPARATION
|
Strut Mount With Bearing |
|
3 44 543 S2, 3 44 544 S2 (11) OEM |
 |

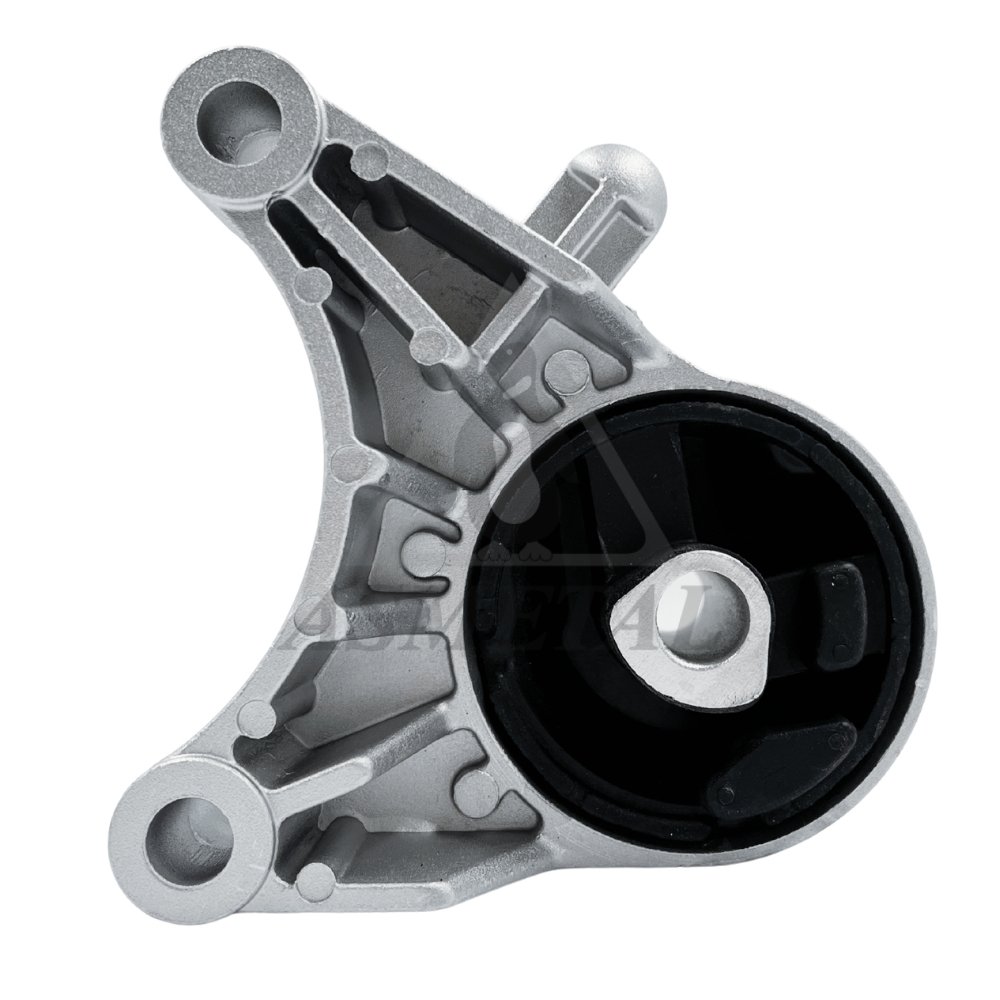

45OP2020
|
Engine Mounting |
L:50 di:Ø16.1 / 0,94 kg |
56 84 181, 24 459 772 |
 |
45OP2021
|
Suspension Support Buffer Front |
L:64.8 di:Ø18 / 0,04 kg |
3 44 417, 03 44 417 (2) OEM |
 |
45OP2022
|
Suspension Support Buffer Front |
L:69 di:Ø20 do:Ø67 / 0,08 kg |
82 420 984, 03 44 401 (3) OEM |
 |
45OP2023
|
Suspension Support Buffer Front |
L:40.4 di:Ø24 do:Ø61.8 / 0,04 kg |
03 44 956, 3 44 956 (2) OEM |
 |

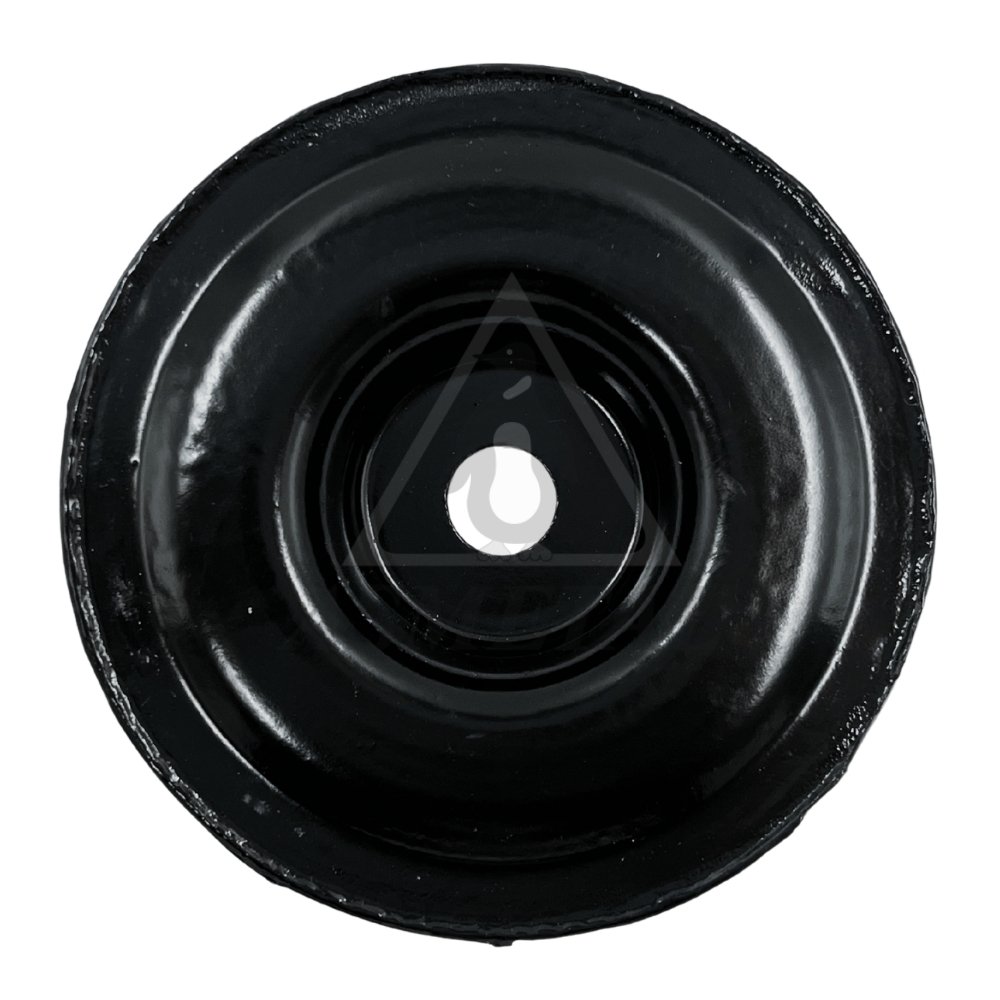

45OP2030
|
Strut Mount |
L:17.5 di:Ø12.2 do:Ø92 / 0,16 kg |
90 468 568, 03 44 591 (1) OEM |
 |

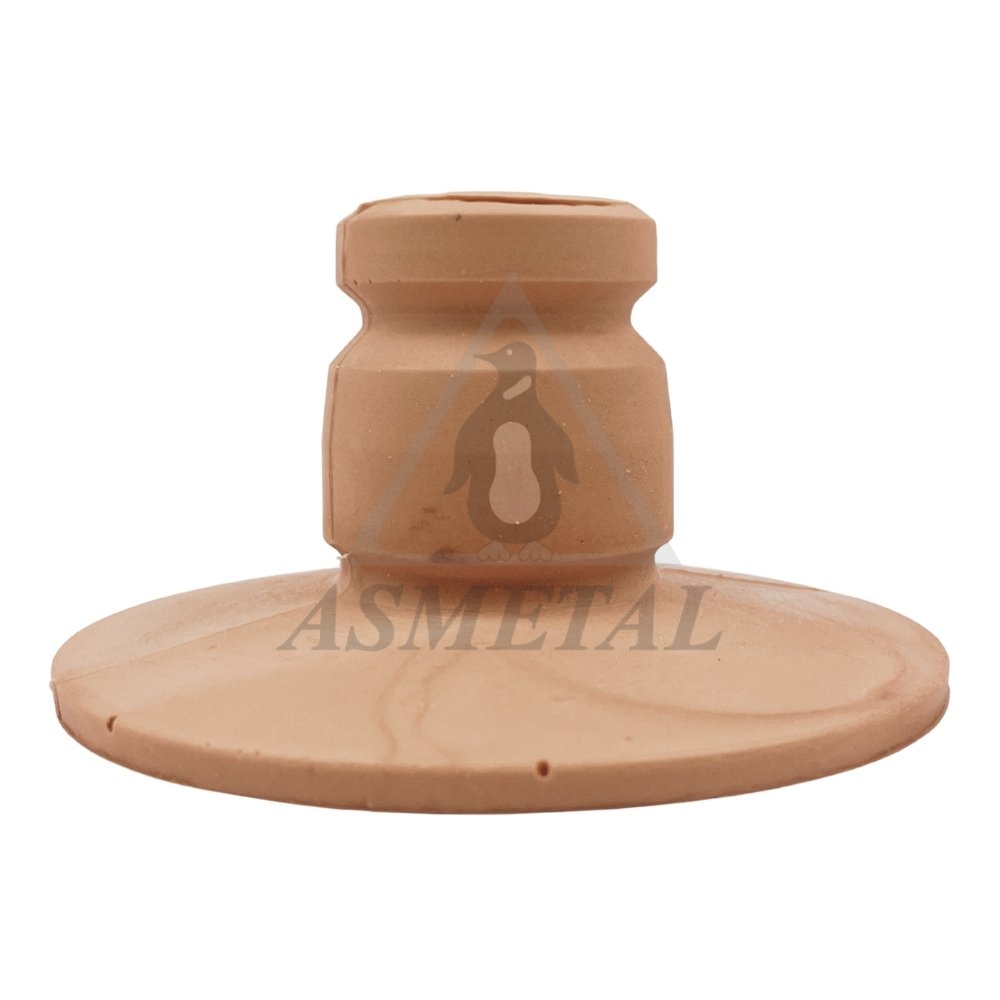

45OP2033
|
Suspension Support Buffer Rear |
L:75 di:Ø37.5 do:Ø50 / 0,12 kg |
4 24 764, 90 576 351 |
 |
45OP2520
|
Suspension Support Buffer Front |
L:50.5 di:Ø24.5 do:Ø62 / 0,05 kg |
51755690, 03 44 349 (15) OEM |
 |
45OP4226
|
Engine Mounting |
L:75 di:Ø16 do:Ø85 / 0,842 kg |
6 84 226, 6 84 694 (2) OEM |
 |
45OP4525
|
Strut Mount |
L:42.5 di:Ø12.2 do:Ø113 / 0,46 kg |
3 44 525, 90 538 936 (2) OEM |
 |
45OP4693
|
Engine Mounting |
L:75 di:Ø16 / 0,78 kg |
684 693, 90 538 576 |
