ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10FI5600	Ball Joint Lower	c:Ø18 / 0,5 kg	5122050490, 51810664 (3) OEM
10OP1500	Ball Joint Lower	c:Ø16 / 0,49 kg	3 52 803, 9 196 394
10OP9128	Ball Joint	c:Ø15 / 0,42 kg	90 442 294, 90 295 324 (5) OEM
10OP9130	Ball Joint	c:Ø15 / 0,6 kg	1 603 202, 9 0542 574 (1) OEM
10PE1300 IN PREPARATION	Ball Joint Lower	0 kg	98 310 885 80, 98 073 060 99 (3) OEM
17FI5600	Tie Rod End Left	c:Ø11,6 th:FM14x1,5 RHT / 0,52 kg	7736 5223, 16 09 193 (1) OEM
17FI5601	Tie Rod End Right	c:Ø11,6 th:FM14x1,5 RHT / 0,52 kg	7736 5224, 16 09 192 (1) OEM
17OP1500	Tie Rod End	c:Ø10,6 th:FM12x1,5 RHT / 0,28 kg	93192419, 324050 (5) OEM

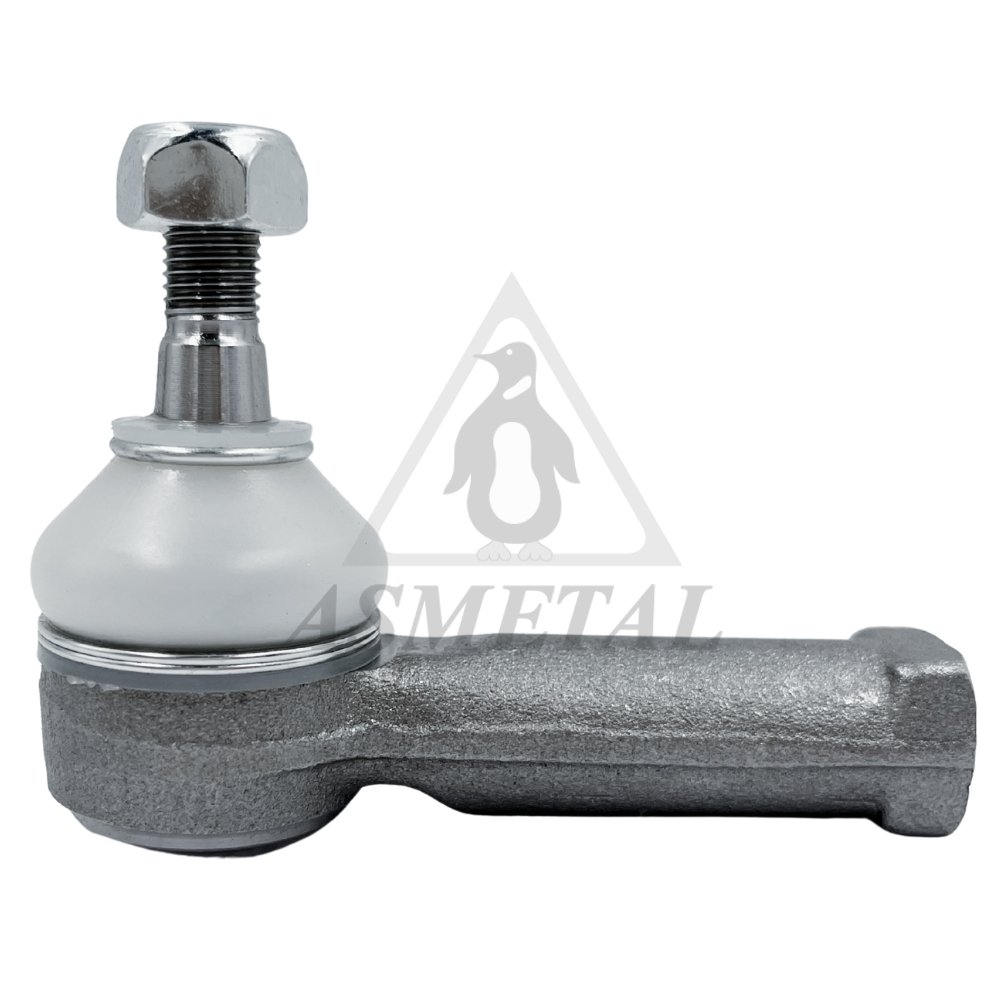

17OP4044	Tie Rod End	c:Ø10,6 th:FM12x1,5 RHT / 0,32 kg	3 24 066, 16 03 455 (2) OEM
17OP4045 OUT OF SERVICE	Tie Rod End	0 kg	324042, 1603009 (7) OEM
17PE1200	Tie Rod End Left	th1: FM14x1.5RHT th2: MM12X1.5R cs: Ø14.5 cp: 1/5 L: 215mm / 0,8 kg	16 108 177 80, 39 176 184* (2) OEM
17PE1201	Tie Rod End Right	th1: FM14X1.5R th2: MM12X1.5R cs: Ø14.5 cp:1/5 L:215 / 0,8 kg	16 108 178 80, 39 176 184* (2) OEM
20FI5600	Axial Joint	th:MM18x1.5 RHT L:297,5mm / 0,68 kg	26 144 989*
20OP1500	Axial Joint	th:FM14x1.5 RHT L:301,5mm / 0,53 kg	18 50 947, 16 03 845 (4) OEM
20OP2000	Axial Joint	th:FM14x1,5 RHT L:314,5mm / 0,61 kg	26 030 411, 16 03 453 (3) OEM
20OP2100	Axial Joint	th:MM14x1.5 RHT L:280mm / 0,42 kg	26 032 284, 3 22 158
20PE1200	Axial Joint	th1: MM14X1.5R th2: MM14X1.5R L:207mm / 0,46 kg	16 112 423 80
26FI5600	Stabiliser Link	L:296mm / 0,42 kg	518 98 527, 520 42 281 (7) OEM
26FI5610 IN PREPARATION	Stabiliser Link Rear	0 kg	518 10 124, 520 04 273 (3) OEM
26OP05	Stabiliser Link	L:243mm / 0,4 kg	3 50 610, 52 36 823 (2) OEM
30FI5600	Track Control Arm Left	c: Ø18 / 3,4 kg	518 10 665, 519 32 035 (2) OEM
30FI5601	Track Control Arm Right	c: Ø18 / 3,4 kg	518 10 664, 519 32 036 (2) OEM
38FI5506	Silentblock for TCA	di:Ø12,2 do:Ø41,3 / 0,3 kg	3520 W3, 3521 S6 (28) OEM
38FI5508	Silentblock for TCA	di:Ø12,2 do:Ø71 / 0,22 kg	520 08 283, 520 26 316 (13) OEM
38OP2055	Mounting Axle Body	di:Ø12,5 / 0,4 kg	9 156 735, 9 156 379 (4) OEM
38OP2073	Stabiliser Mounting	di:Ø19,5 / 0,03 kg	03 50 161, 3 50 161 (2) OEM
38OP2074 NEW	Stabiliser Mounting	di: Ø 20,5 / do: Ø33 / L: 40,2 / 0,034 kg	350143, 24406498
38OP2644 NEW	Mounting Axle Body	di: Ø12.6 / do: Ø60.5 / L: 90 / 0,43 kg	4 02 644, 9156735 (2) OEM
38OP3010	Silentblock for TCA	di:Ø10,1 do:Ø38 / 0,12 kg	90 445 097, 3 52 301
38OP3014	Stabiliser Mounting	di:Ø21,5 / 0,03 kg	3 50 127, 90 447 946
38OP3015	Stabiliser Mounting Right	di:Ø14,1 / 0,78 kg	3 53 280, 90 445 101
38OP3016	Stabiliser Mounting Left	di:Ø14,1 / 0,78 kg	3 53 281, 90 445 100
38OP3017	Silentblock for Stabiliser Link	di:Ø14,2 do:Ø37 / 0,1 kg	90 445 098, 3 53 561
38OP3020	Silentblock for TCA	di:Ø12,2 / 0,65 kg	24 428 980, 3 52 366 (5) OEM
38OP3021	Silentblock for TCA	di:Ø12,8 do:Ø60,2 / 0,21 kg	13 138 151, 24 430 103 (2) OEM
38OP7100	Strut Mount	di: Ø12,2 / do: Ø103 / L: 40 / 0,44 kg	3 44 523, 90 468 554 (2) OEM
38PE1200 NEW	Silentblock for TCA	di: Ø14.1 / do: Ø50.3 / L: 65 / 0,26 kg	98 163 803 80, 3 644 790 (1) OEM
38PE1201 NEW	Silentblock for TCA	di: Ø14,1 / do:Ø43,2 / L: 59,5 / 0,23 kg	96 760 321 80, 3 637 432
38PE1205 NEW	Mounting Axle Body		5131 H1, 96 810 170 80
45FI5620	Suspension Support Buffer Front	di:Ø26.5 do: Ø63.5 L:89mm / 0,07 kg	95511416, 51851802 (5) OEM
45FI5680 NEW	Mounting Automatic Transmission	L: 227 / 0,8 kg	51837816, 51897408 (4) OEM
45OP1220 NEW	Engine Mounting	1,37 kg	56 84 645, 13109202
45OP1520 NEW	Suspension Support Buffer Front	di: Ø19 / do: Ø54 / L: 64 / 0,06 kg	03 44 424, 344424 (1) OEM
45OP4525 NEW	Strut Mount	di: Ø12.2 / do: Ø113 / L: 42.5 / 0,46 kg	3 44 525, 90538936 (2) OEM
45OP9120 NEW	Suspension Support Buffer Front	di: Ø22 / do: Ø64 / L: 50 / 0,06 kg	344410, 03 44 410 (2) OEM
45OP9121 NEW	Suspension Support Buffer Front	di:Ø19.5 do:Ø57 L:54.5mm / 0,05 kg	3 44 182, 03 44 182 (8) OEM
