ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10OP1220	Ball Joint Left	c:Ø16 / 0,54 kg	3 52 085, 53 52 025 (2) OEM
10OP1221	Ball Joint Right	c:Ø16 / 0,54 kg	53 52 026, 3 52 086 (2) OEM
10OP2000	Ball Joint Lower	c:Ø18 / 0,53 kg	3 52 800, 3 52 829 (7) OEM

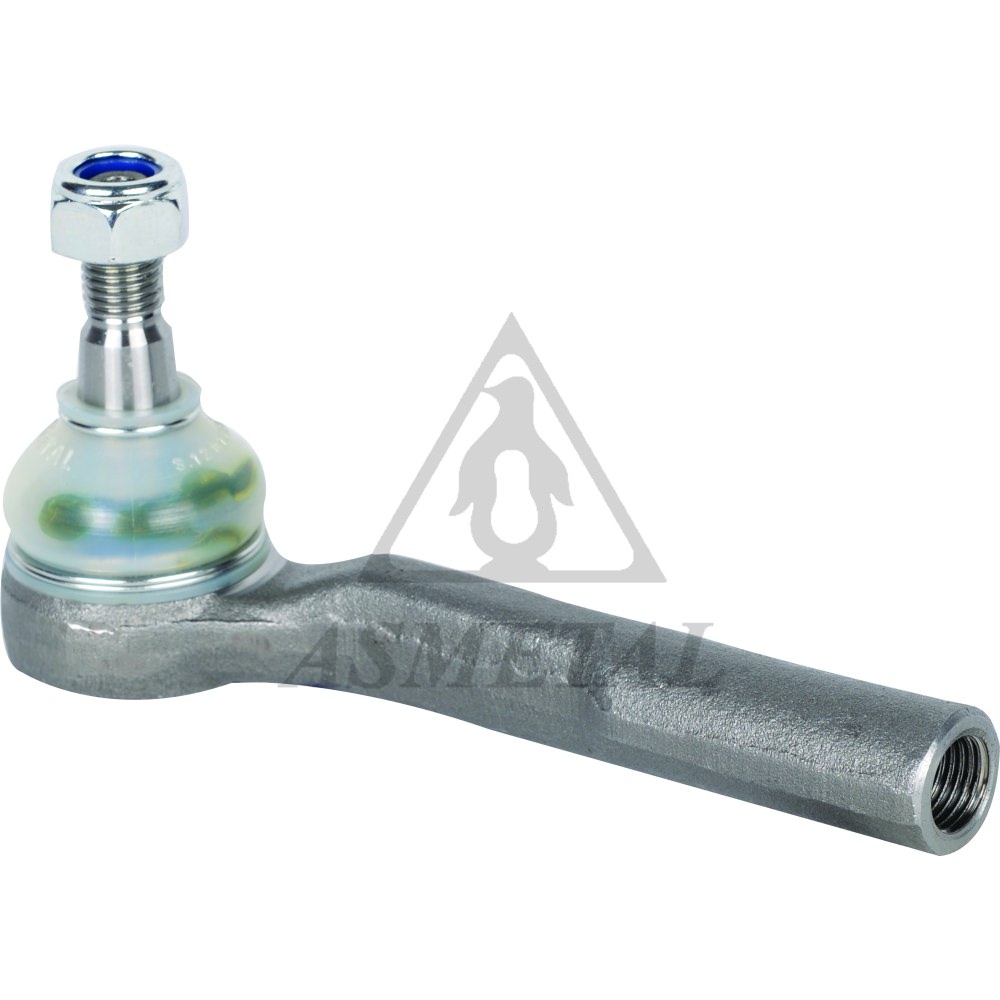

17OP1010	Tie Rod End Left	L:137 cr:1/6 c:Ø13.35 tp:M12x1.5 th:FM14x1.5 RHT / 0,48 kg	16 03 268, 16 03 359 (8) OEM

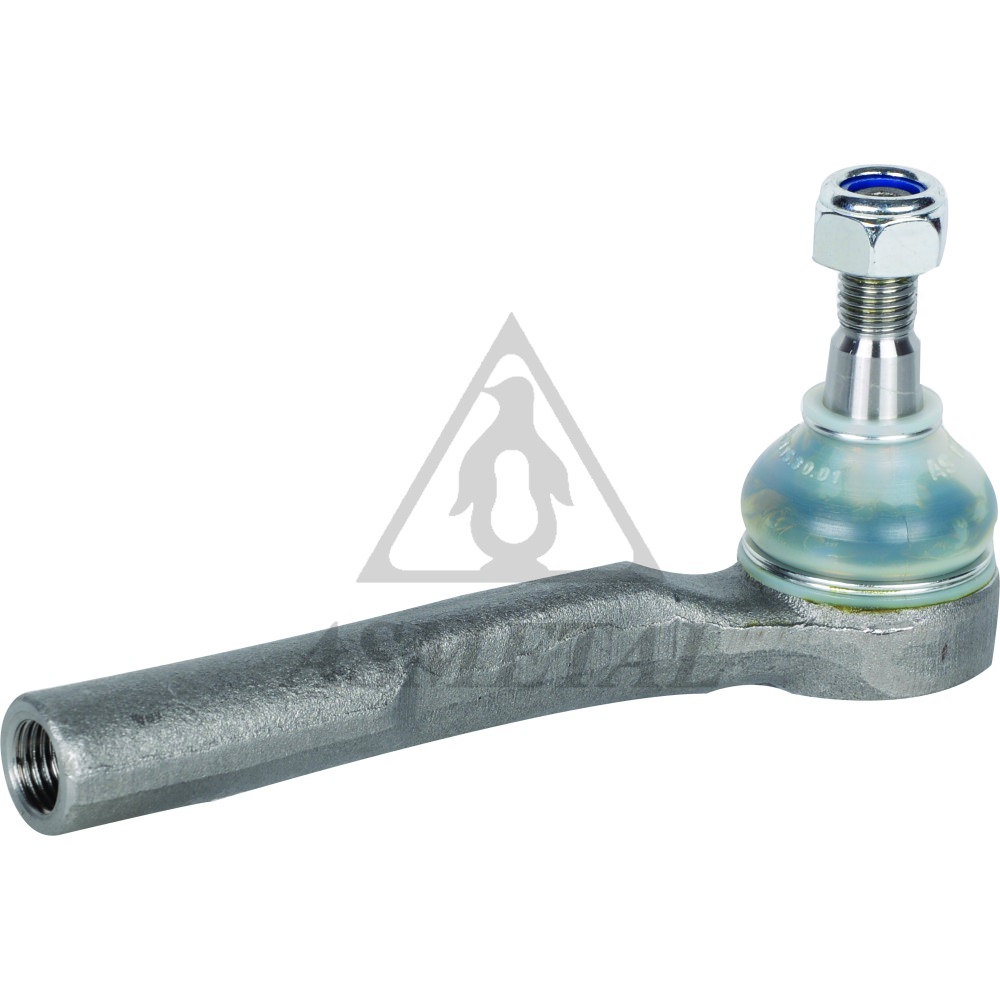

17OP1011	Tie Rod End Right	L:137 cr:1/6 c:Ø13.35 tp:M12x1.5 th:FM14x1.5 RHT / 0,48 kg	93 181 229, 16 03 267 (6) OEM

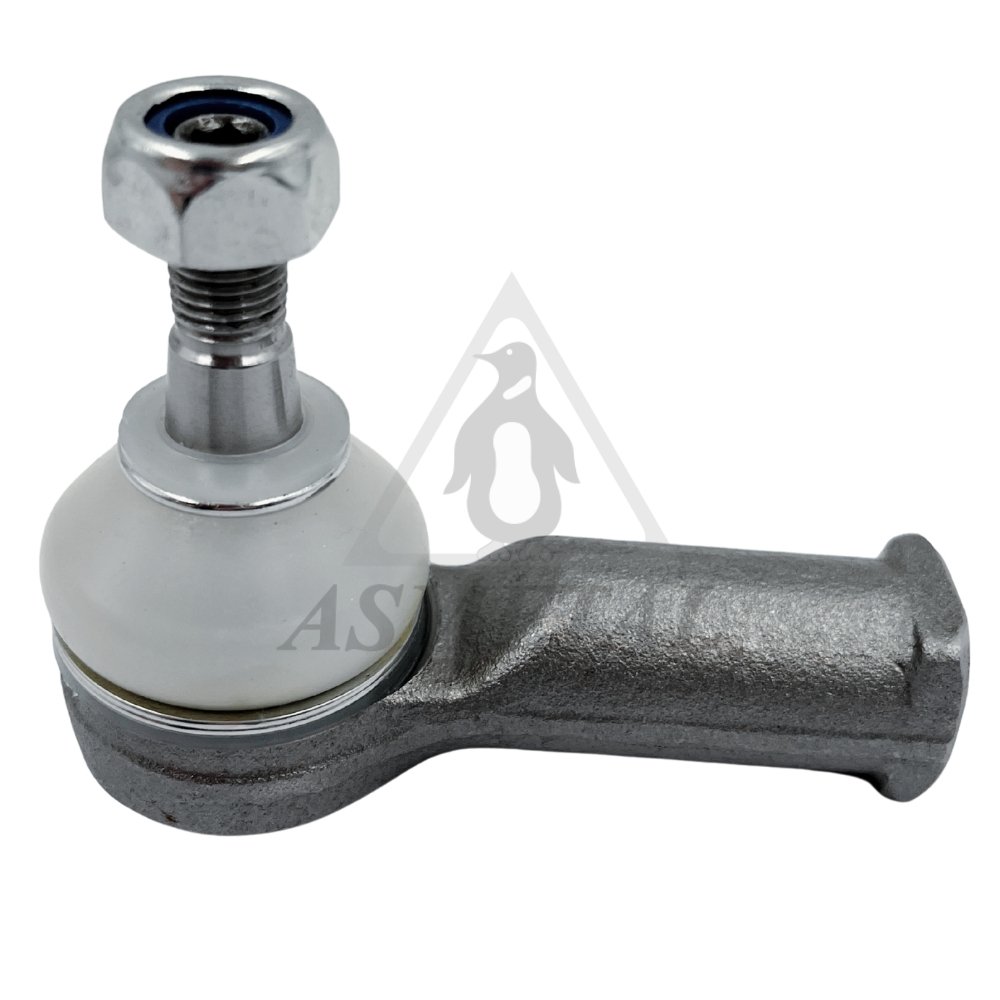

17OP1220	Tie Rod End	L:70 cr:1/8 c:Ø10.55 tp:M10x1.25 th:FM14x1.5 RHT / 0,3 kg	16 03 430, 26 102 923 (2) OEM
20OP1220	Axial Joint	L:330 tp:M14x1.5 th:MM14x1.5 RHT / 0,63 kg	16 03 429, 16 03 016 (2) OEM
20OP1224 NEW	Axial Joint	0,66 kg	16 09 000, 93 196 777
26OP05	Stabiliser Link	L:242 tp:M12x1.5 RHT / 0,4 kg	3 50 610, 52 36 823 (2) OEM
26OP1400	Stabiliser Link	L:304 tp:M12x1.5 RHT / 0,44 kg	3 50 618, 13 258 052
26OP1405	Stabiliser Link	L:303.8 tp:M12x1.75 RHT / 0,34 kg	3 50 611, 3 50 617 (6) OEM
30OP1220	Track Control Arm Left	c:Ø16 / 3,5 kg	93 388 568, 93 338 568 (1) OEM
30OP1221	Track Control Arm Right	c:Ø16 / 3,5 kg	93 338 569, 53 52 028 (1) OEM
30OP2020 NEW	Track Control Arm Left	3,72 kg	53 52 029, 53 52 016 (2) OEM
30OP2021 NEW	Track Control Arm Right	3,72 kg	53 52 030, 53 52 017 (2) OEM

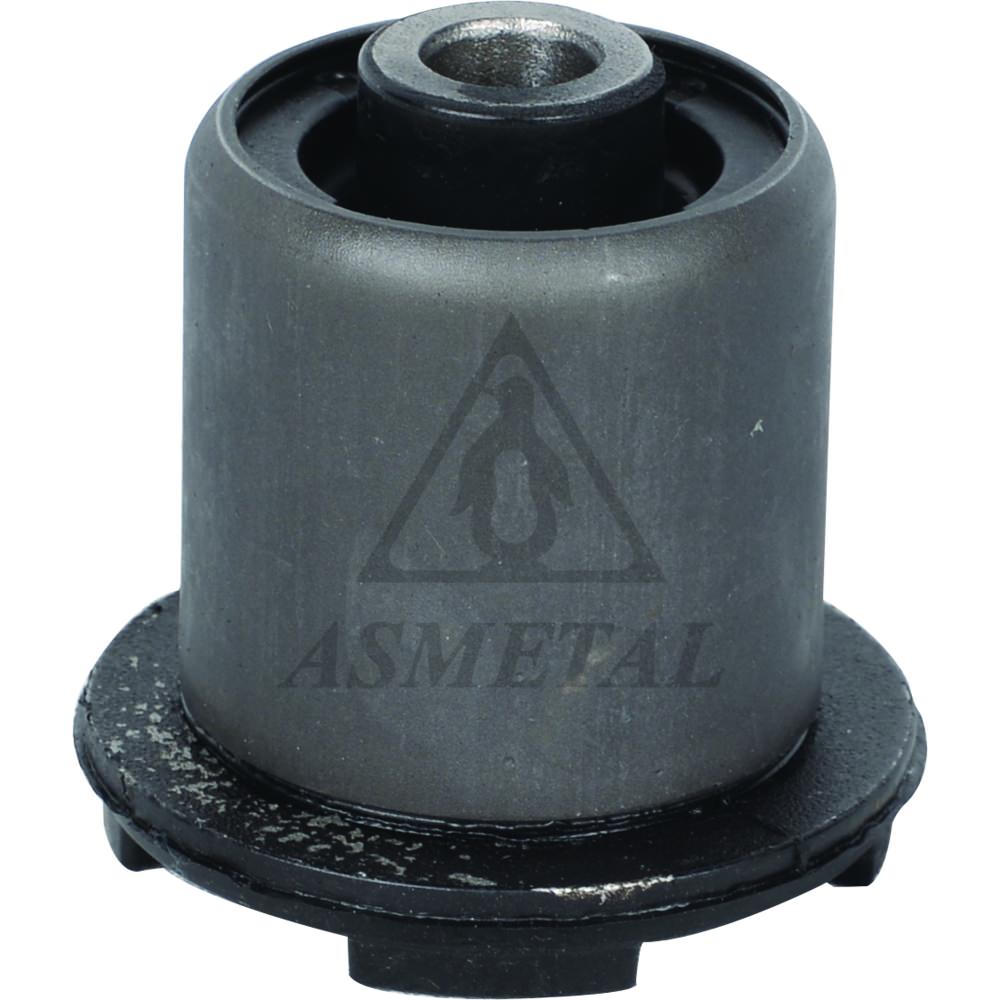

38OP2000	Silentblock for TCA	L:60 di:Ø12.1 do:Ø46 / 0,26 kg	24 439 582, 3 52 324
38OP2010	Axle Beam Bushing	L:90 di:Ø13.2 do:Ø70 / 0,48 kg	54 02 637, 4 02 952 (2) OEM
38OP2050	Silentblock for TCA	L:60 di:Ø12.2 do:Ø35.7 / 0,15 kg	517 48 653, 517 48 652 (9) OEM

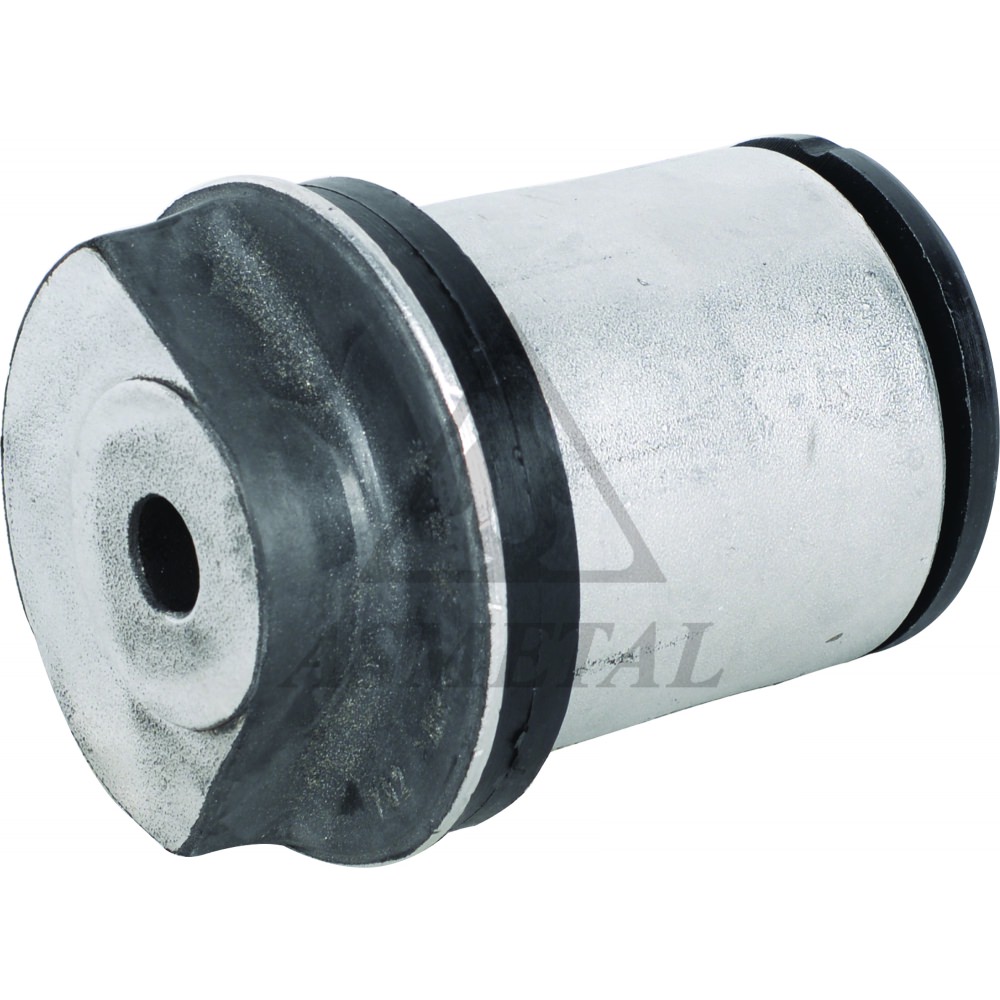

38OP2055	Axle Beam Bushing	L:90 di:Ø12.5 do:Ø70.5 / 0,4 kg	4 02 644, 54 02 634 (4) OEM
38OP2070	Stabiliser Mounting	L:31 di:Ø19.7 do:Ø44 / 0,05 kg	3 50 390, 3 50 391 (2) OEM
38OP2071	Stabiliser Mounting	L:31 di:Ø19 do:Ø44 / 0,04 kg	13 204 071, 3 50 391
38OP2072 NEW	Stabiliser Mounting KIT		3 50 391, 3 50 390 (2) OEM
38OP2073	Stabiliser Mounting	L:39.2 di:Ø19.5 / 0,03 kg	03 50 161, 3 50 161 (2) OEM
38OP2644	Axle Beam Bushing	L:90 di:Ø12.6 do:Ø60.5 / 0,43 kg	4 02 644, 91 56 735 (3) OEM
38OP3020	Silentblock for TCA	L:69.5 di:Ø12.2 do:Ø60.2 / 0,65 kg	24 428 980, 3 52 366 (5) OEM

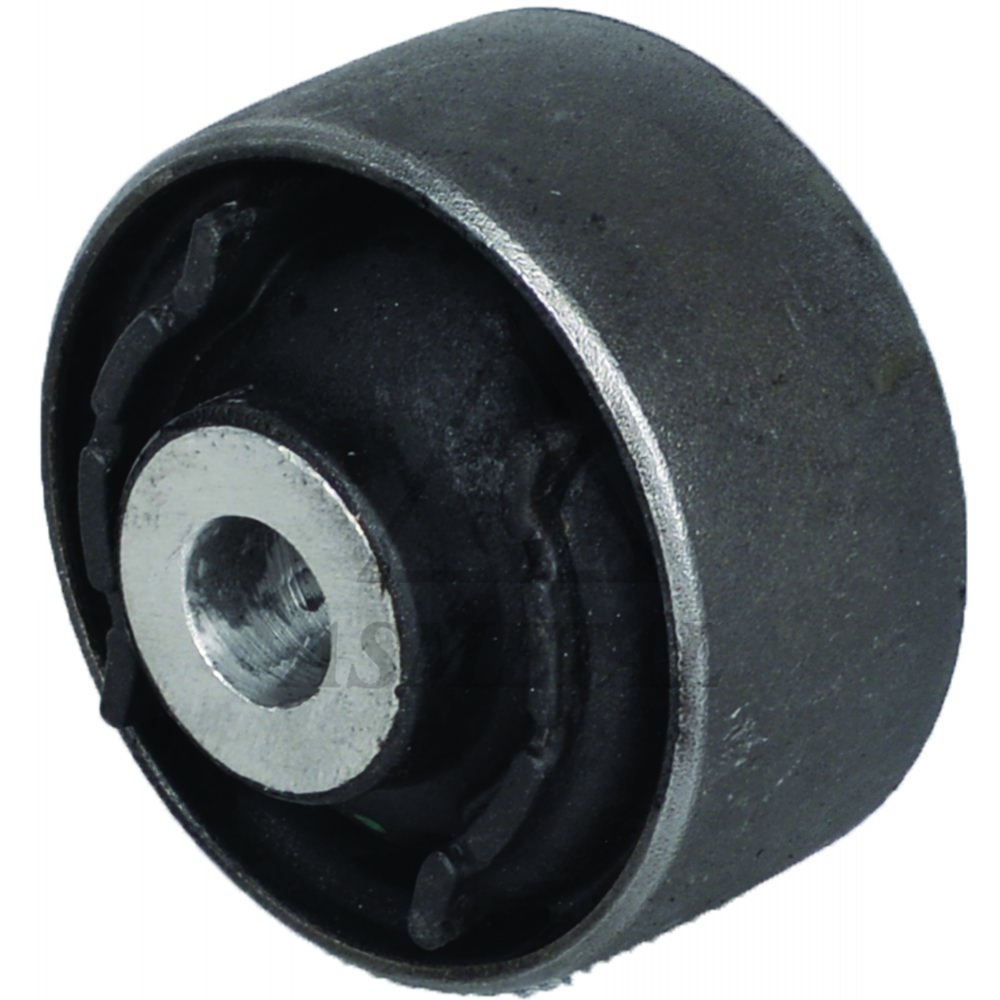

38OP3021	Silentblock for TCA	L:45.5 di:Ø12.8 do:Ø60.2 / 0,21 kg	13 138 151, 24 430 103 (2) OEM
38OP7100	Strut Mount	H:41 di:Ø12.2 do:Ø112.5 / 0,44 kg	3 44 523, 90 468 554 (2) OEM
45OP1220	Engine Mounting	L:60 do:Ø95 / 1,37 kg	56 84 645, 13 109 202
45OP1520	Suspension Support Buffer Front	L:64 di:Ø19 do:Ø54 / 0,06 kg	03 44 424, 3 44 424 (1) OEM
45OP2002 OUT OF SERVICE	Strut Mount With Bearing		3 12 510, 90 468 618
45OP2003 OUT OF SERVICE	Strut Mount		3 12 510, 90 468 618
45OP2005	Strut Mount	L:31.6 di:Ø12.5 do:Ø100.8 / 0,33 kg	3 44 570, 13 293 570
45OP2023	Suspension Support Buffer Front	L:40.4 di:Ø24 do:Ø61.8 / 0,04 kg	03 44 956, 3 44 956 (2) OEM
45OP2520	Suspension Support Buffer Front	L:50.5 di:Ø24.5 do:Ø62 / 0,05 kg	51755690, 03 44 349 (15) OEM
45OP4525	Strut Mount	L:42.5 di:Ø12.2 do:Ø113 / 0,46 kg	3 44 525, 90 538 936 (2) OEM
