ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10OP2000	Ball Joint Lower	c:Ø18 / 0.53	3 52 800, 3 52 829 (7) OEM

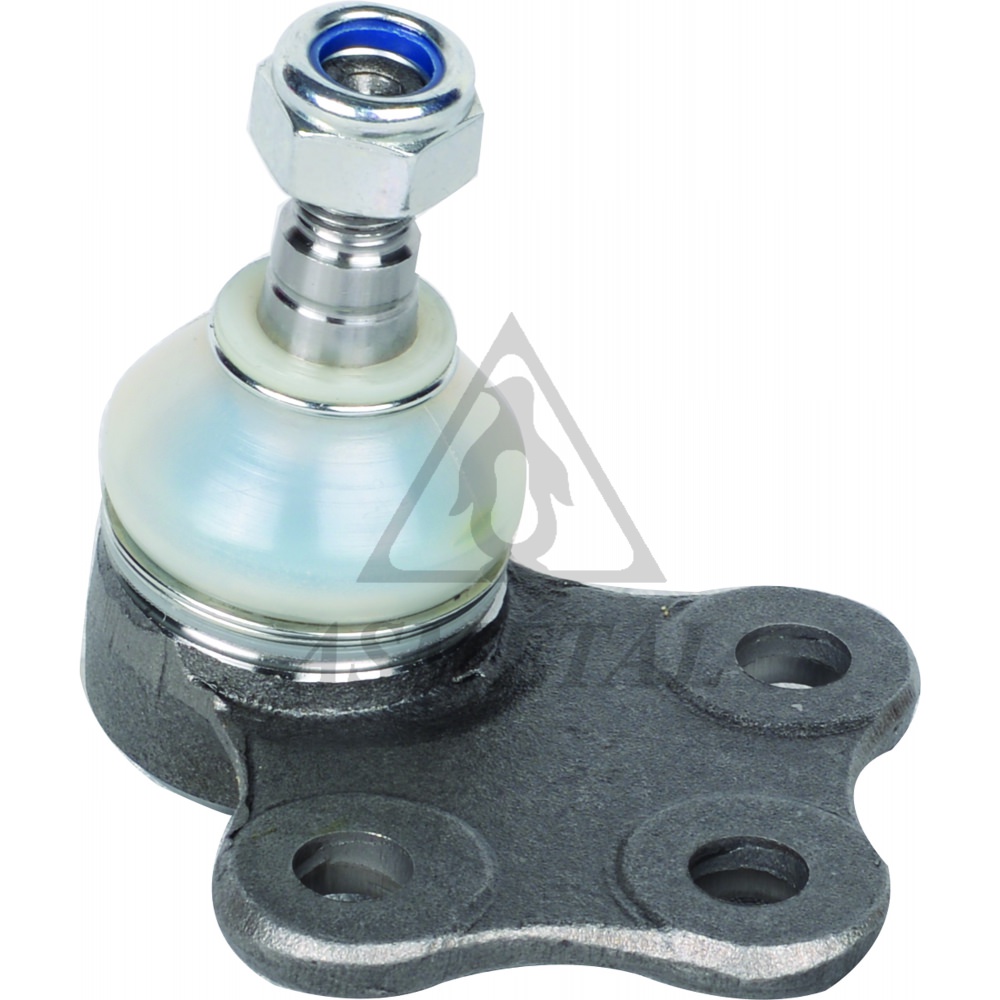

10OP9167	Ball Joint Lower	tp:M12x1.25 RHT cr:1/6 c:Ø13.3 / 0.54	16 03 167, 16 03 163 (4) OEM

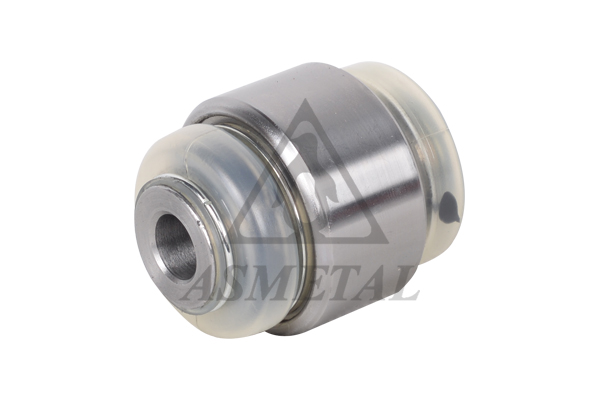

11OP00	Silentblock Bushing	di:Ø12.15 do:Ø45.2 / 0.32	4 23 121, 90 496 700 (3) OEM

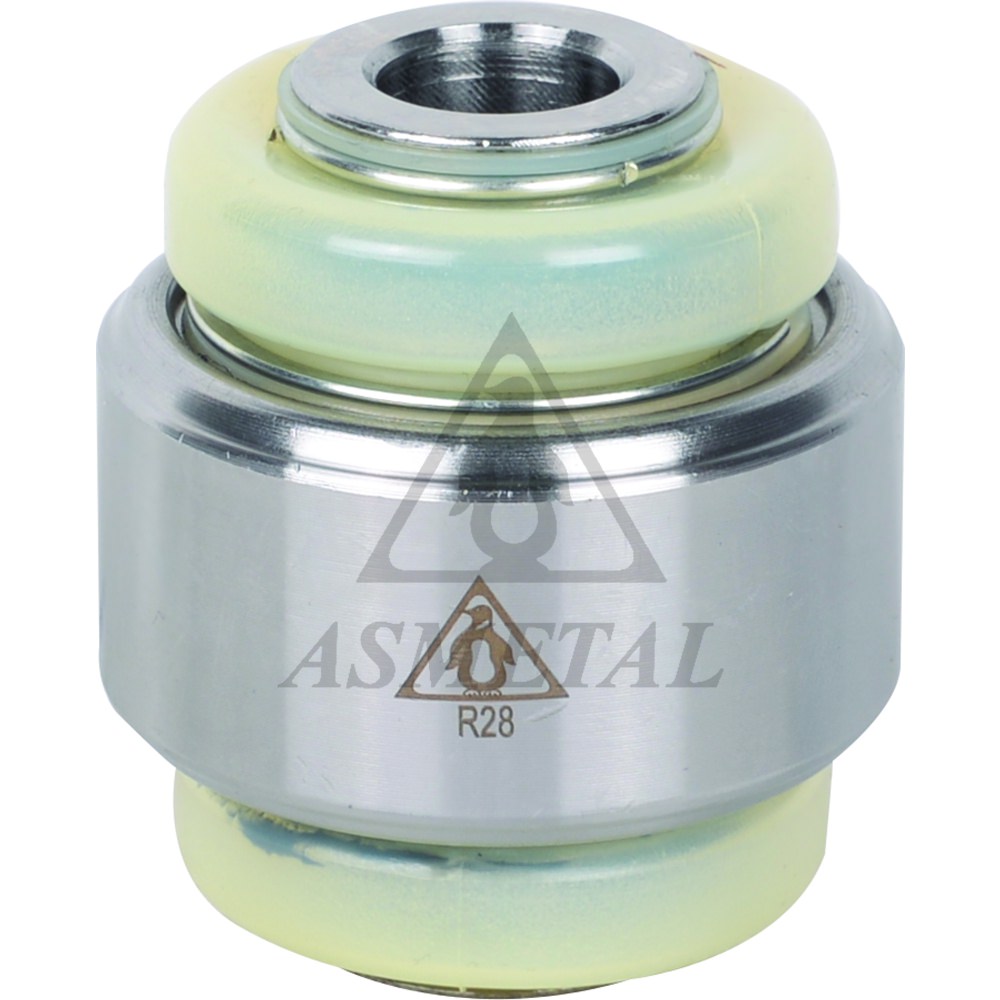

11OP2500	Silentblock Bushing	di:Ø14 do:Ø47.3 / 0.32	517 83 009, 517 48 740 (10) OEM

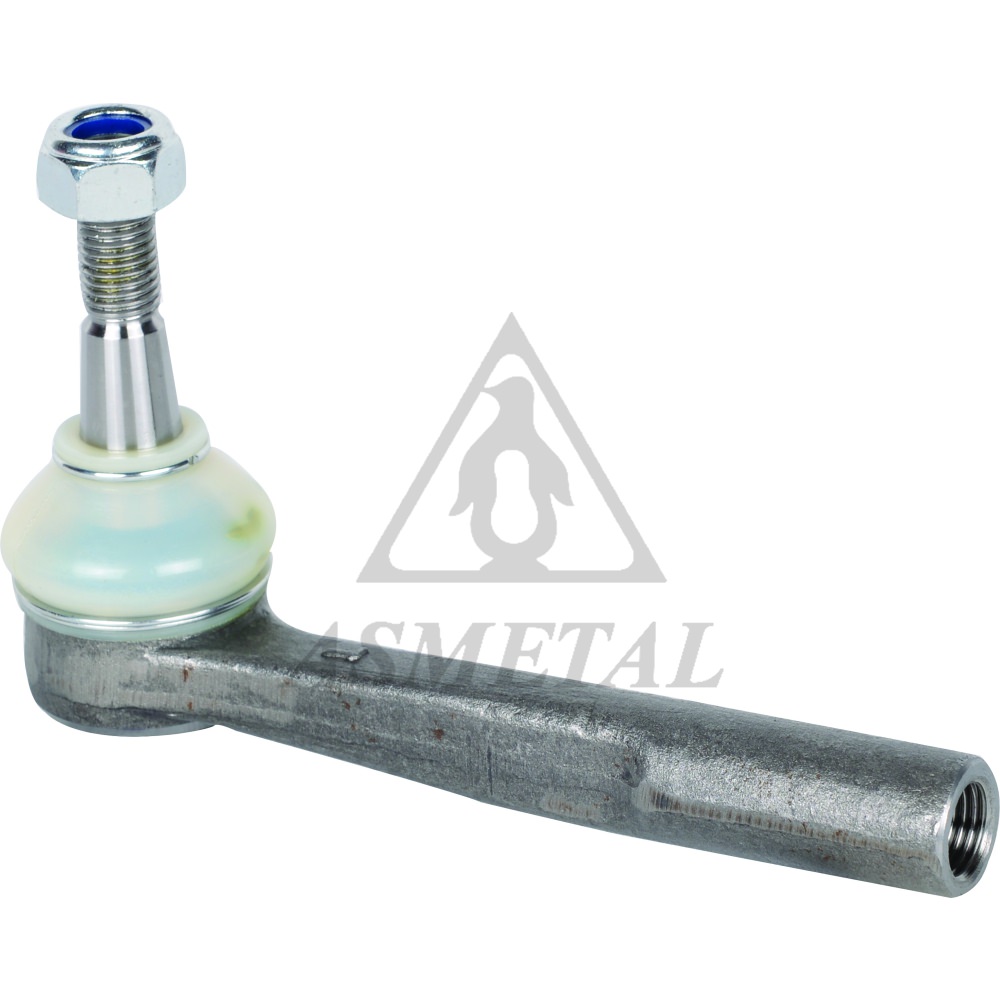

17OP2500	Tie Rod End Left	L:135.5 cr:1/6 c:Ø12.2 tp:M12x1.5 th:FM14x1.5 RHT / 0.44	77 363 713, 16 03 227 (6) OEM

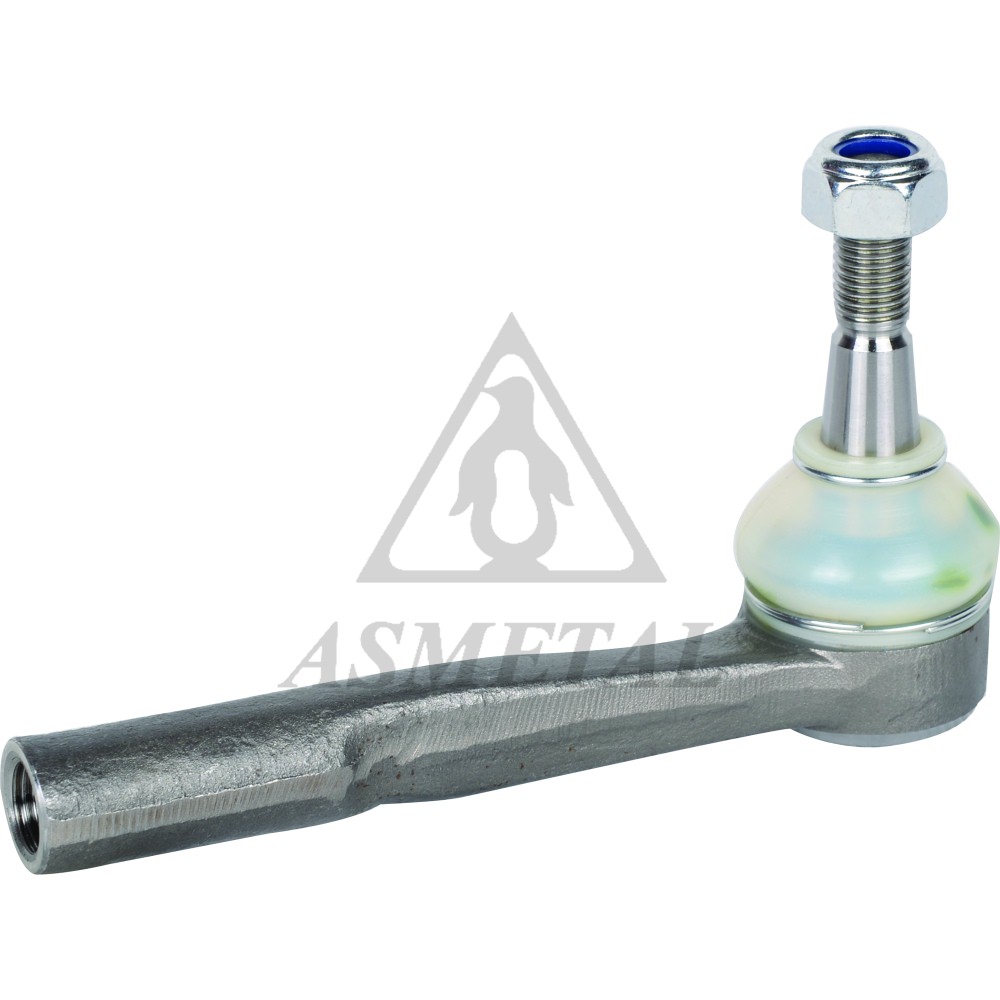

17OP2501	Tie Rod End Right	L:135.5 cr:1/6 c:Ø12.2 tp:M12x1.5 th:FM14x1.5 RHT / 0.44	77 363 712, 16 03 228 (6) OEM

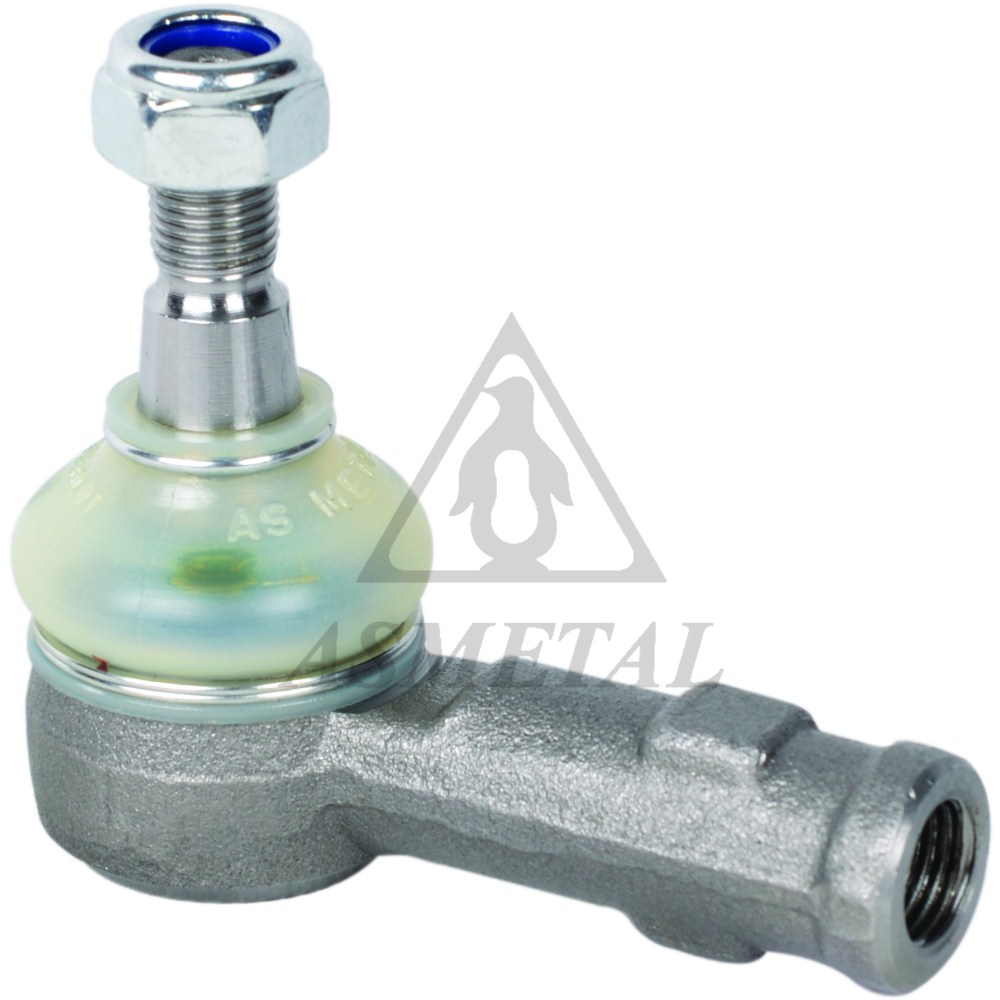

17OP4046	Tie Rod End	L:74.6 cr:1/6 c:Ø13.4 tp:M12x1.25 th:FM12x1.5 RHT / 0.33	3 24 063, 16 03 286 (4) OEM

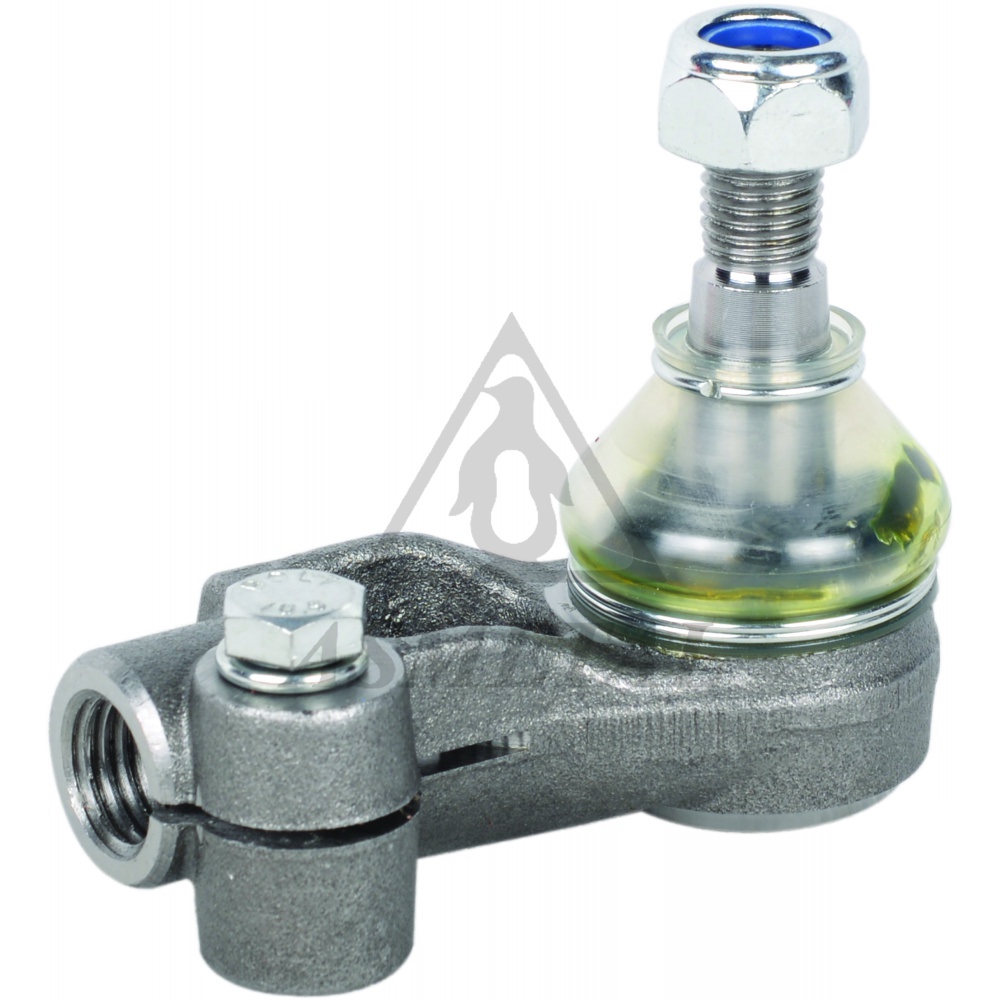

17OP4055	Tie Rod End Left	L:68 cr:1/8 c:Ø13 tp:M12x1.5 th:FM16x2 RHT / 0.46	3 24 053, 3 24 055 (3) OEM
17OP4056	Tie Rod End Right	L:68 cr:1/8 c:Ø13 tp:M12x1.5 th:FM16x2 LHT / 0.46	3 24 054, 3 24 056 (3) OEM
20OP1000	Axial Joint	L:344 tp:M16x1.5 th:MM18x1.5 RHT / 0.67	3 24 186, 16 03 206 (5) OEM
20OP1005	Axial Joint	L:344.5 tp:M16x1.5 th:MM14x1.5 RHT / 0.62	16 03 199, 26 055 219
20OP2500	Axial Joint	L:283.5 tp:M14x1.5 th:MM18x1.5 RHT / 0.59	16 09 034, 16 03 415 (6) OEM
20OP2505 IN PREPARATION	Axial Joint	0 kg	16 03 244, 93 191 672 (6) OEM
20OP2518 IN PREPARATION	Axial Joint	0 kg	16 03 252, 93 187 435 (6) OEM
20OP4055	Bolt, Wheel Alignment	L:106 th1:M16x2 LHT th2:M16x2 RHT / 0.16	3 22 576, 3 22 577 (3) OEM
26OP03	Stabiliser Link	L:84.5 tp:M12x1.25 RHT th:M8x1.25 RHT / 0.25	3 50 263, 45 44 599 (1) OEM
26OP0300	Stabiliser Link	L:85.75 / 0.17	3 50 260, 30 540 743 (1) OEM
26OP0301	Stabiliser Link	L:104.8 tp:M8x1.25 RHT / 0.15	03 50 261, 3 50 261 (1) OEM

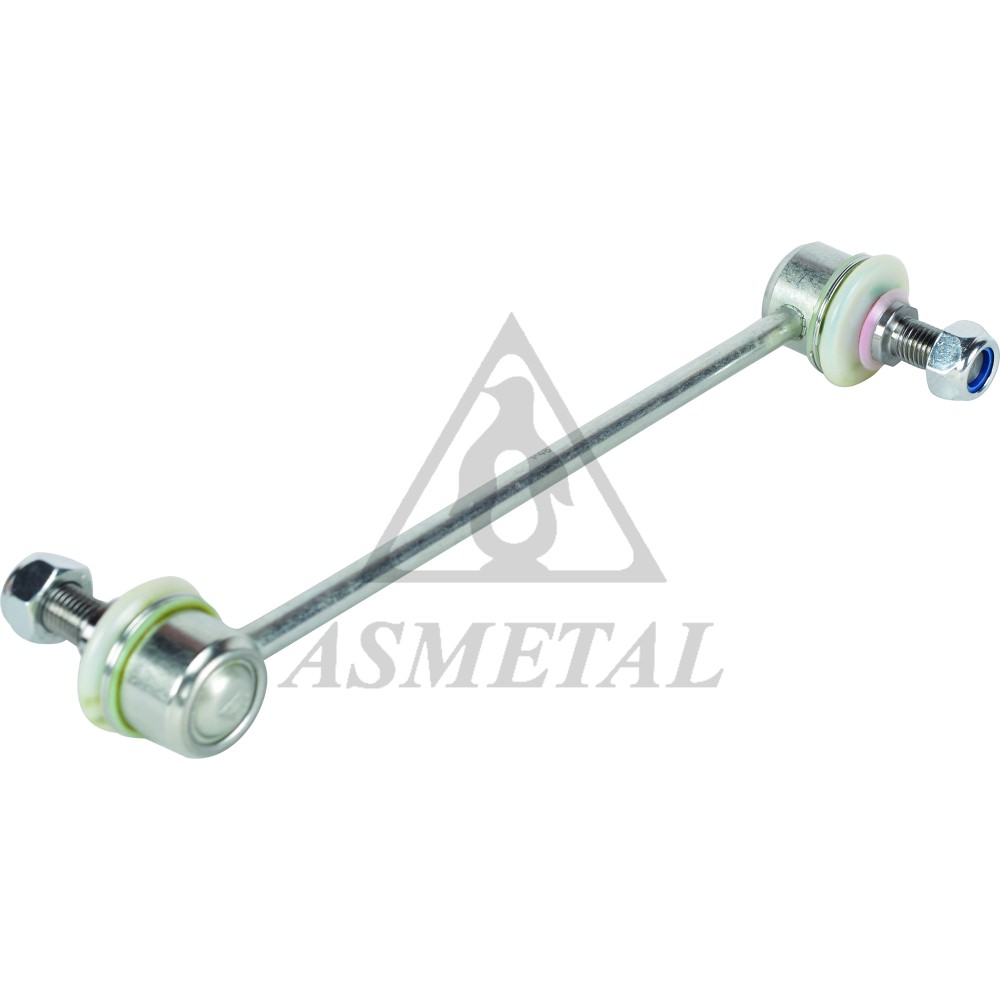

26OP05	Stabiliser Link	L:242 tp:M12x1.5 RHT / 0.4	3 50 610, 52 36 823 (2) OEM
26OP0505	Stabiliser Link Rear	L:80.2 / 0.17	4 44 291, 49 06 111 (2) OEM

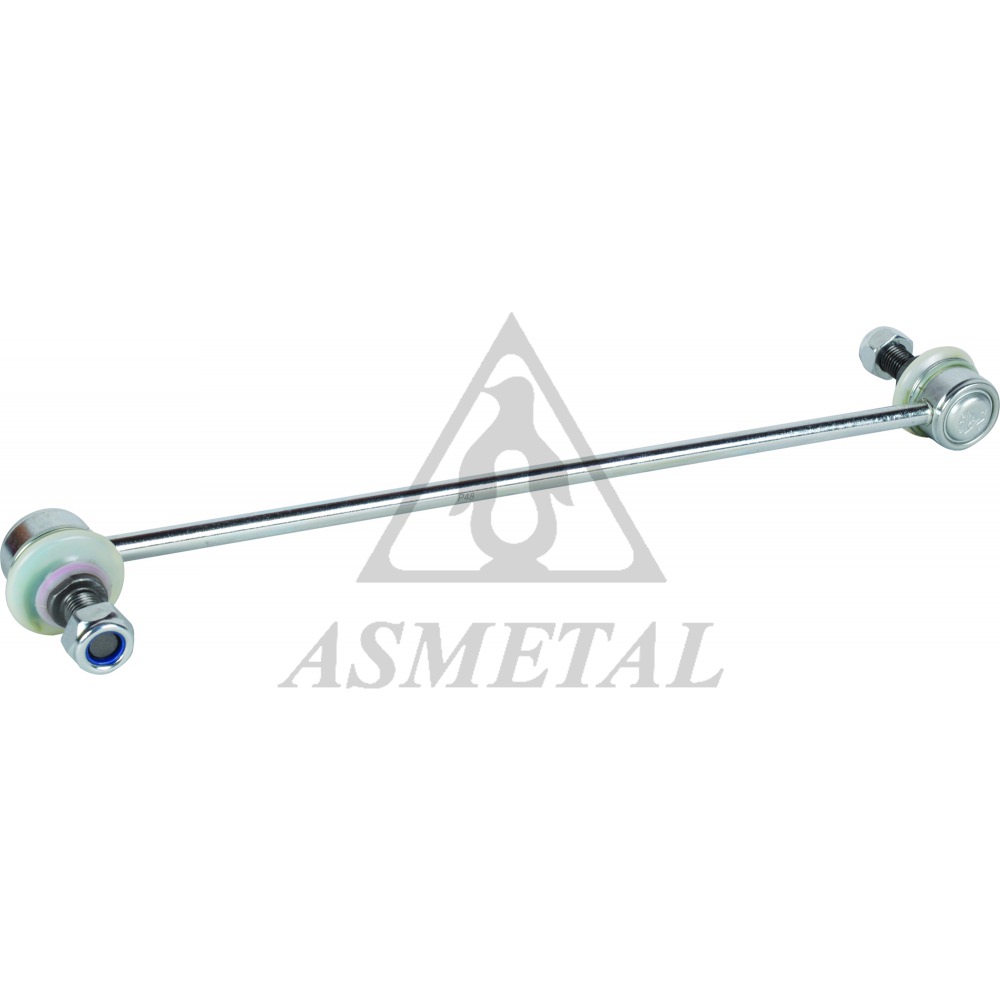

26OP2500	Stabiliser Link	L:355 tp:M12x1.5 RHT / 0.46	51 741 130, 51 803 183 (6) OEM
26OP2505	Stabiliser Link Rear	L:86.2 / 0.17	71 740 112, 4 44 275 (1) OEM
26OP2510	Stabiliser Link	L:353 tp:M12x1.5 RHT / 0.56	13 116 332, 3 50 612

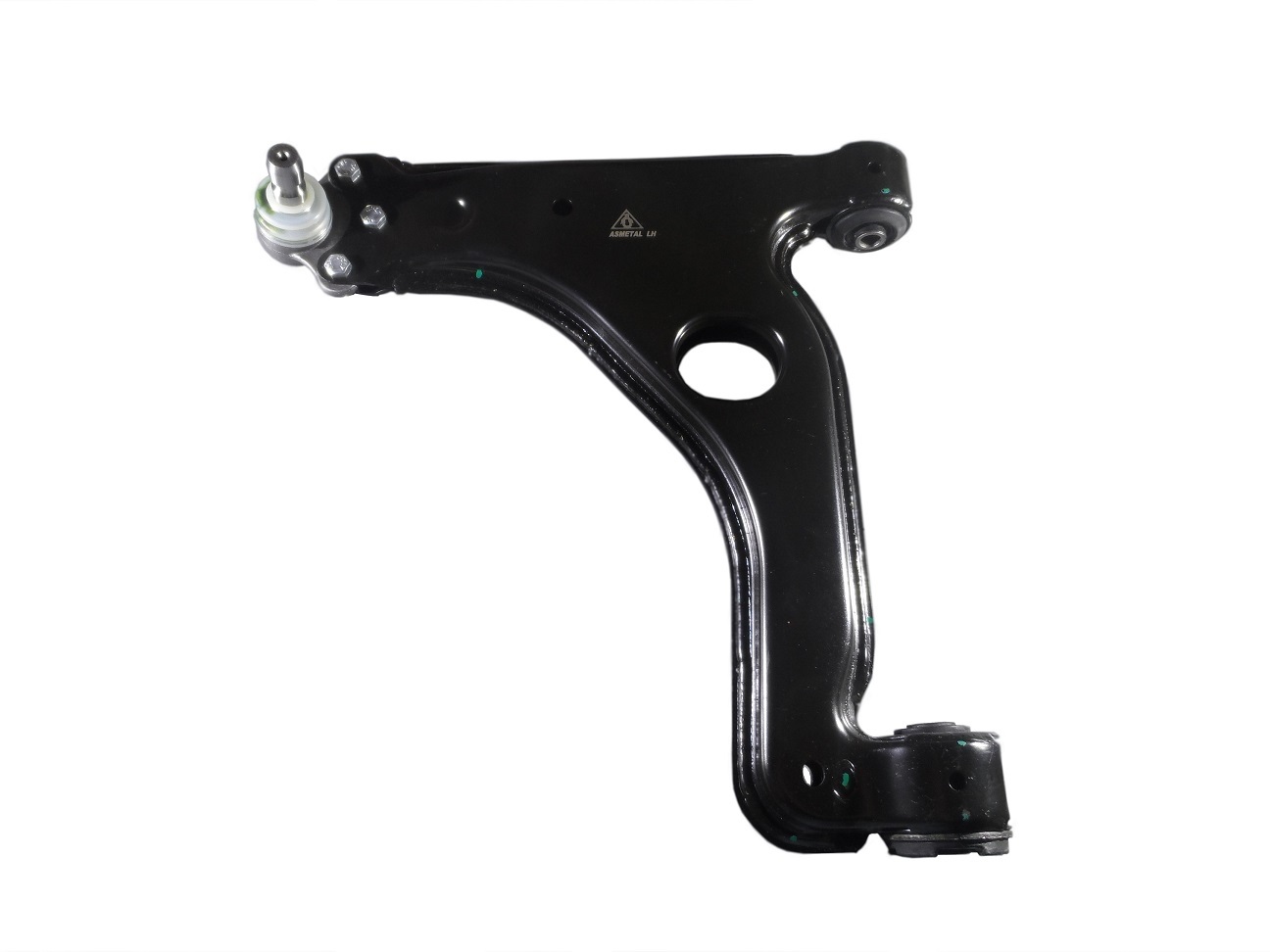

30OP2000	Track Control Arm Left	c:Ø17.95 / 3.6	090 496 039, 90 496 039 (1) OEM

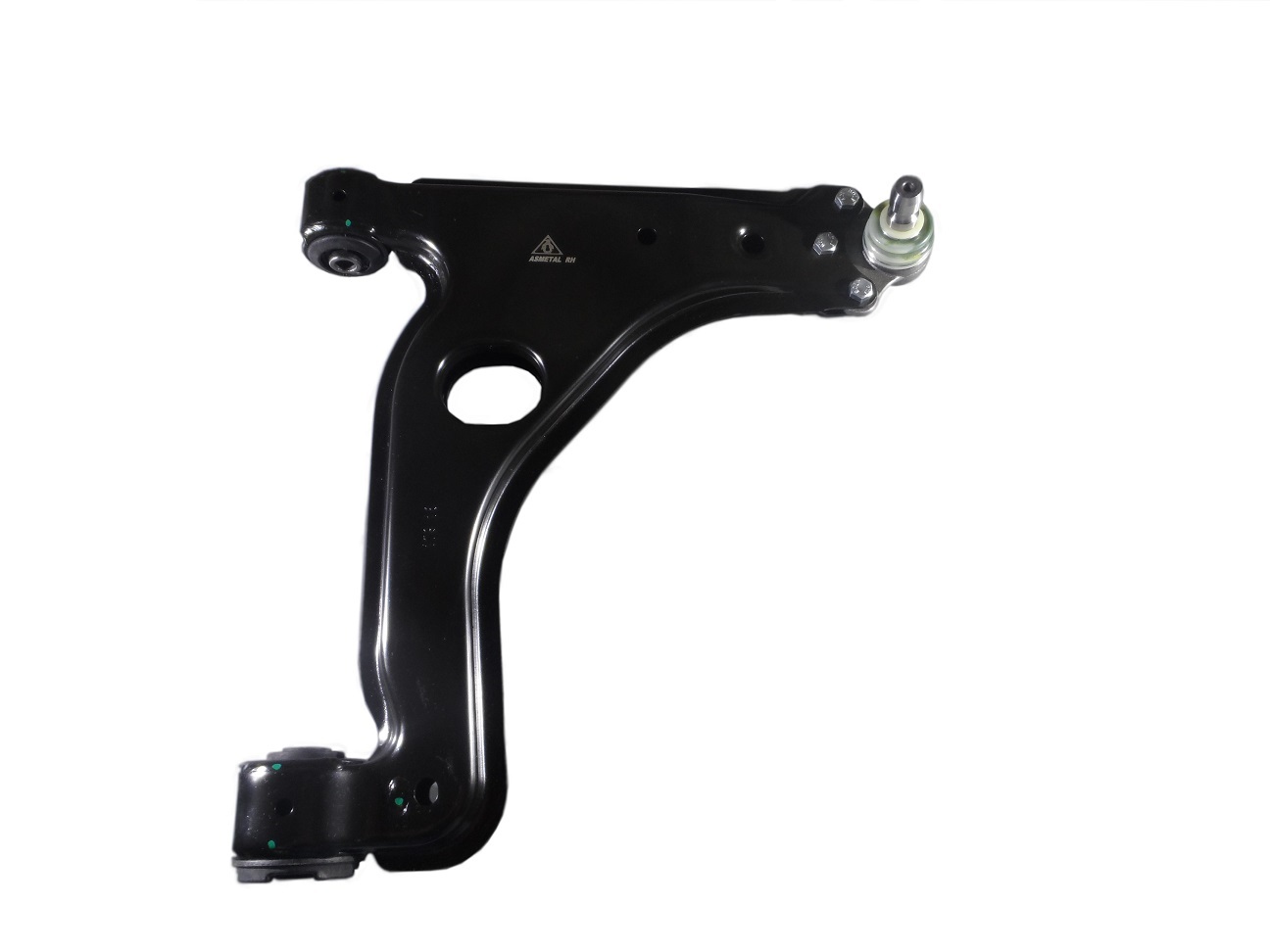

30OP2001	Track Control Arm Right	c:Ø17.95 / 3.6	09228477, 090496040 (6) OEM
30OP2500	Track Control Arm Left	c:Ø20 / 2.99	51748653, 24413015 (3) OEM
30OP2501	Track Control Arm Right	c:Ø20 / 2.99	51748652, 24413016 (3) OEM
38OP1000	Stabiliser Mounting	L:18.3 di:Ø8.5 do:Ø29.8 / 0.02	2 875 013, 3 50 153 (1) OEM
38OP1010	Axle Beam Bushing	L:75 di:Ø12.1 do:Ø59 / 0.29	4 02 645, 90 305 431 (1) OEM
38OP2040	Silentblock for TCA	L:60 di:Ø12.2 do:Ø38.5 / 0.13	3 52 300, 90 288 232 (4) OEM
38OP2041	Silentblock for TCA	L:58.2 di:Ø16.1 do:Ø60 / 0.24	3 52 347, 3 52 348 (4) OEM
38OP2042	Silentblock for TCA	L:58 di:Ø16.1 do:Ø67.5 / 0.24	90 495 046, 3 52 356
38OP2044	Stabiliser Mounting	L:38.5 di:Ø19 / 0.04	03 50 123, 03 50 078 (2) OEM

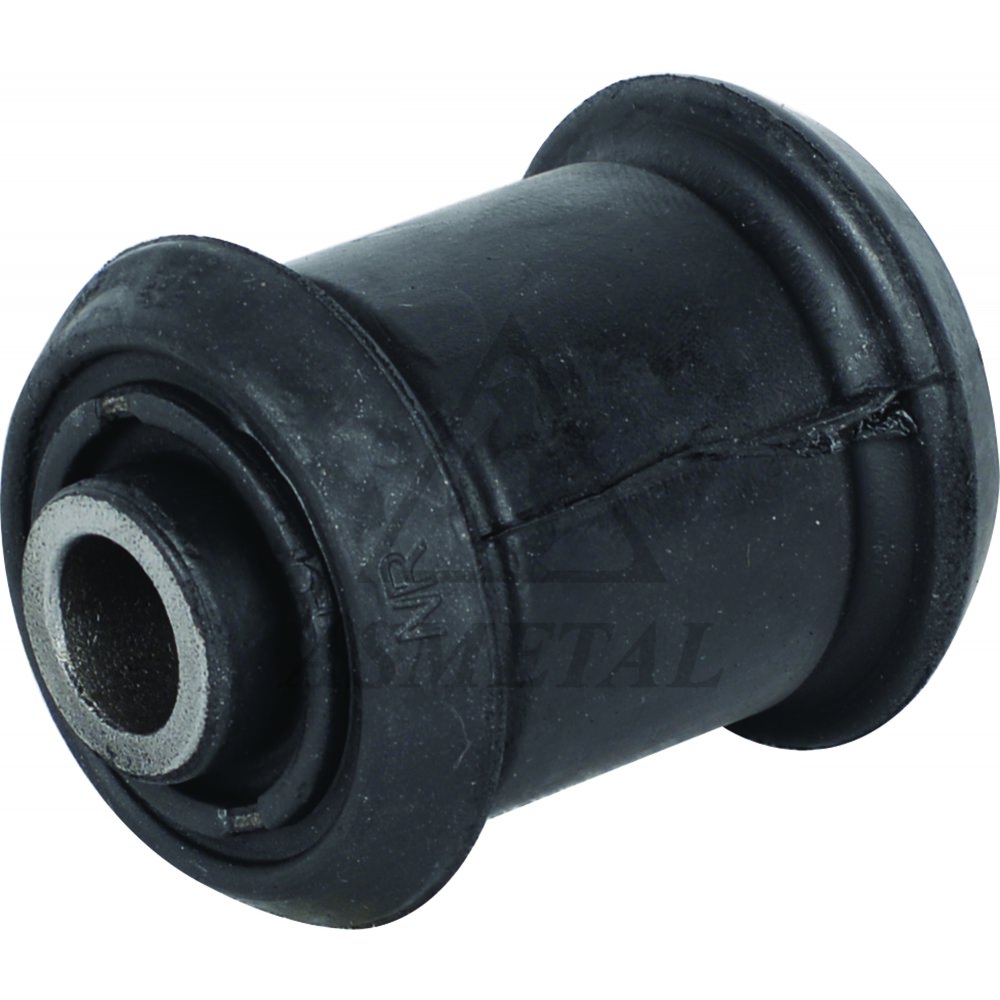

38OP2050	Silentblock for TCA	L:60 di:Ø12.2 do:Ø35.7 / 0.15	517 48 653, 517 48 652 (9) OEM
38OP2053	Stabiliser Mounting	L:39 di:Ø17 / 0.04	3 50 130, 46 86 820 (1) OEM
38OP2058	Silentblock for TCA	L:89 di:Ø12.2 do:Ø35.3 / 0.23	90 496 686, 04 23 316 (3) OEM
38OP2059	Stabiliser Mounting	L:38.5 di:Ø15 / 0.04	90 496 706, 4 44 200
38OP2070	Stabiliser Mounting	L:31 di:Ø19.7 do:Ø44 / 0.05	3 50 390, 3 50 391 (2) OEM
38OP2071	Stabiliser Mounting	L:31 di:Ø19 do:Ø44 / 0.04	13 204 071, 3 50 391
38OP2072 NEW	Stabiliser Mounting KIT	0.082	3 50 391, 3 50 390 (2) OEM
38OP2075	Silentblock for TCA	L:51.7 di:Ø12.2 / 0.13	517 56 777, 517 56 773 (3) OEM
38OP2076	Silentblock for TCA	L:65.2 di:Ø12.4 do:Ø70.5 / 0.28	51 748 737, 51 748 736 (7) OEM
38OP2500	Silentblock for TCA	L:55.5 di:Ø12 do:Ø60.5 / 0.3	4 23 302, 9 191 309 (4) OEM
38OP3188	Bellow Driveshaft (KIT)	L:107 di:Ø22 / 0.172	16 03 188, 3 74 212 (2) OEM
38OP3197	Bellow Driveshaft (KIT)	L:104 di:Ø27 / 0.22	16 03 197, 90 512 357 (3) OEM
38OP3238	Bellow Driveshaft	L:102 di:Ø25 / 0.12	16 03 238, 93 173 675
38OP4010	Silentblock for TCA	L:60 di:Ø12.2 do:Ø47.3 / 0.18	90 468 638, 3 52 358
38OP4030	Silentblock for TCA	L:65.5 di:Ø19.4 do:Ø78 / 0.98	717 40 107, 3 52 319 (3) OEM
38OP4032	Stabiliser Mounting	L:40 di:Ø24 / 0.05	717 40 109, 717 46 346 (4) OEM
38OP4033	Stabiliser Mounting	L:40 di:Ø23 / 0.05	3 50 159, 3 50 148 (5) OEM
38OP4034	Stabiliser Mounting	L:37.8 di:Ø17 / 0.04	4 44 160, 04 44 160 (1) OEM
38OP4035	Stabiliser Mounting	L:37 di:Ø19 / 0.038	4 44 162, 24 457 843
38OP4212	Bellow Driveshaft	L:113 di:Ø23 / 0.11	3 74 212, 90 446 236 (2) OEM
38OP7100	Strut Mount	H:41 di:Ø12.2 do:Ø112.5 / 0.44	3 44 523, 3 44 525 (2) OEM
38OP9010	Bellow Steering	L:156 di:Ø12 / 0.083	16 09 095, 90 512 778 (1) OEM
45OP1421	Suspension Support Buffer Front	L:53.5 di:Ø20.8 do:Ø50 / 0.047	90 497 363, 3 44 418
45OP2002 SERVIS DIŞI*	Strut Mount With Bearing		3 12 510, 90 468 618
45OP2003 SERVIS DIŞI*	Strut Mount		3 12 510, 90 468 618
45OP2004 IN PREPARATION	Bearing		90 236 985, 90 425 479 (2) OEM
45OP2016 NEW	Bearing	0.1695	517 55 689, 3 44 503 (4) OEM
45OP2020	Engine Mounting	L:50 di:Ø16.1 / 0.94	56 84 181, 24 459 772
45OP2021	Suspension Support Buffer Front	L:64.8 di:Ø18 / 0.04	3 44 417, 03 44 417 (2) OEM
45OP2030	Strut Mount	L:17.5 di:Ø12.2 do:Ø92 / 0.16	90 468 568, 03 44 591 (1) OEM
45OP2500	Strut Mount	L:38.5 di:Ø15 do:Ø86.5 / 0.99	517 55 688, 3 44 529 (8) OEM
45OP2520	Suspension Support Buffer Front	L:50.5 di:Ø24.5 do:Ø62 / 0.05	51755690, 03 44 349 (15) OEM
45OP4018	Strut Mount	L:44.5 di:Ø16 do:Ø113.5 / 0.56	3 44 514, 3 44 513 (4) OEM
45OP4030	Suspension Support Buffer Rear	L:113 di:Ø14.5 do:Ø51.5 / 0.08	4 36 955, 04 36 955 (2) OEM
45OP4513	Strut Mount	L:44.5 di:Ø16 do:Ø113.5 / 0.56	3 44 513, 90 268 464 (5) OEM
45OP4525	Strut Mount	L:42.5 di:Ø12.2 do:Ø113 / 0.46	3 44 525, 90 538 936 (2) OEM
