ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10OP2000	Ball Joint Lower	c:Ø18 / 0,53 kg	3 52 800, 3 52 829 (7) OEM
11OP1400 IN PREPARATION	Silentblock Bushing		13 262 449, 13 332 257 (1) OEM

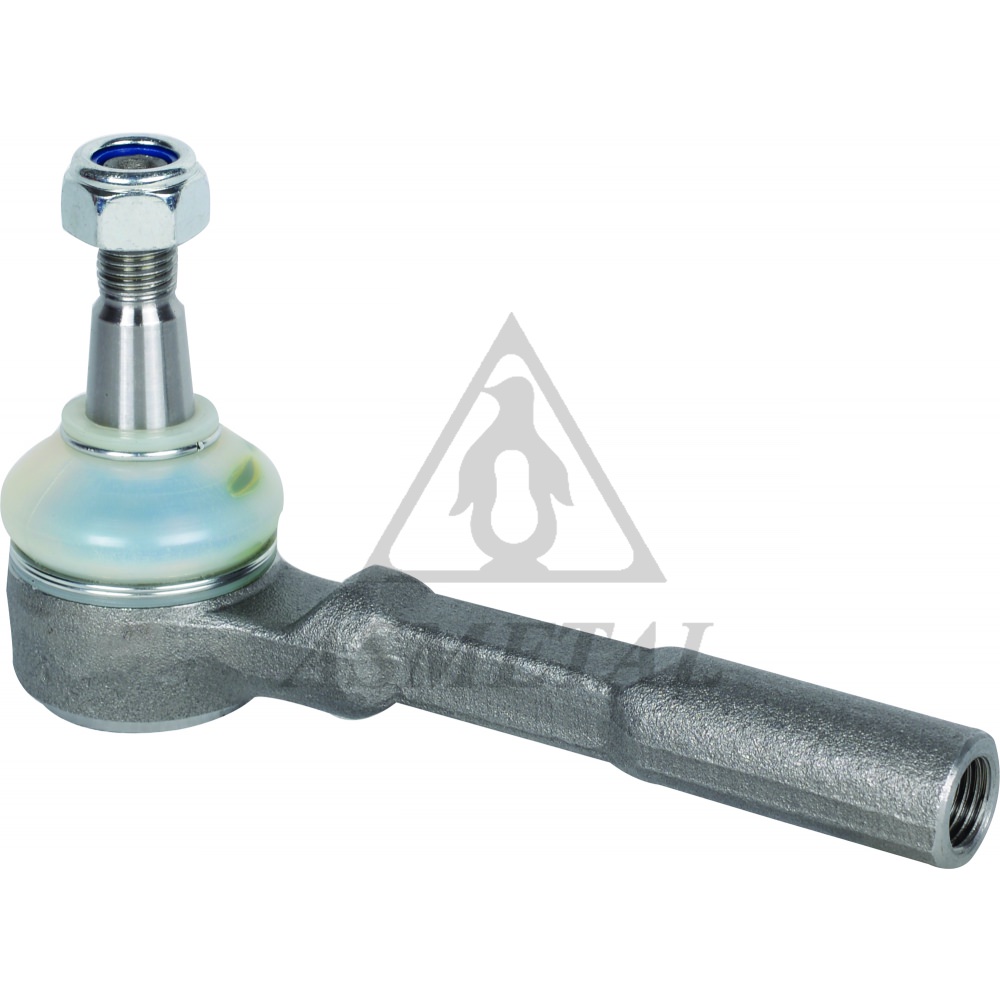

17OP1000	Tie Rod End	L: 135.5 cr: 1:6 c: Ø13.4 tp: M12x1.5 th: FM14x1.5 / 0,44 kg	16 03 214, 16 03 542 (4) OEM
17OP1010	Tie Rod End Left	c:Ø13,35 th:FM14x1,5 RHT / 0,48 kg	16 03 268, 16 03 359 (8) OEM
17OP1011	Tie Rod End Right	c:Ø13,35 th:FM14x1,5 RHT / 0,48 kg	93 181 229, 16 03 267 (6) OEM
17OP1400	Tie Rod End	c:Ø13,1 th:FM16x1,5 RHT / 0,6 kg	13 272 000, 13 278 359 (3) OEM
20OP0500	Axial Joint	th:MM18x1.5 RHT L:282,5mm / 0,61 kg	16 03 216, 9 118 128 (12) OEM

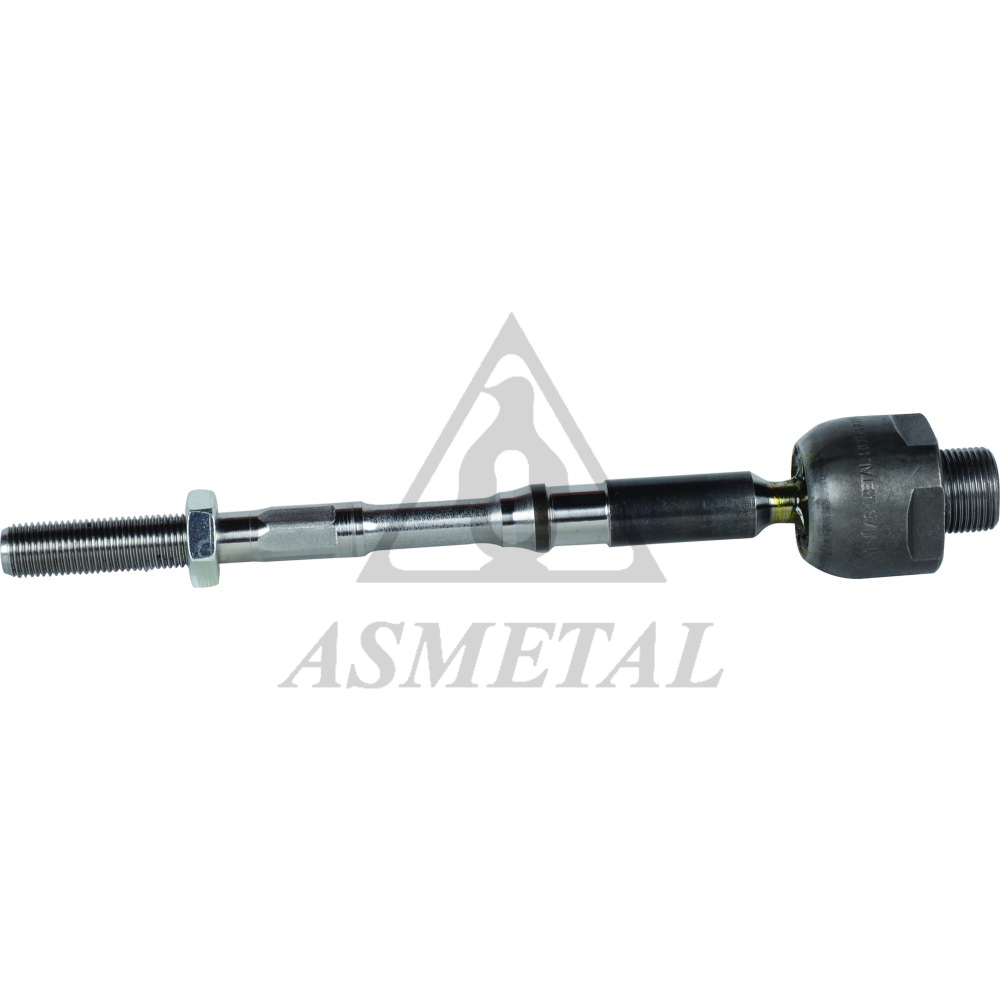

20OP1020	Axial Joint	th:MM16x1,5 RHT L:278mm / 0,55 kg	1 603 357, 1 603 264 (2) OEM

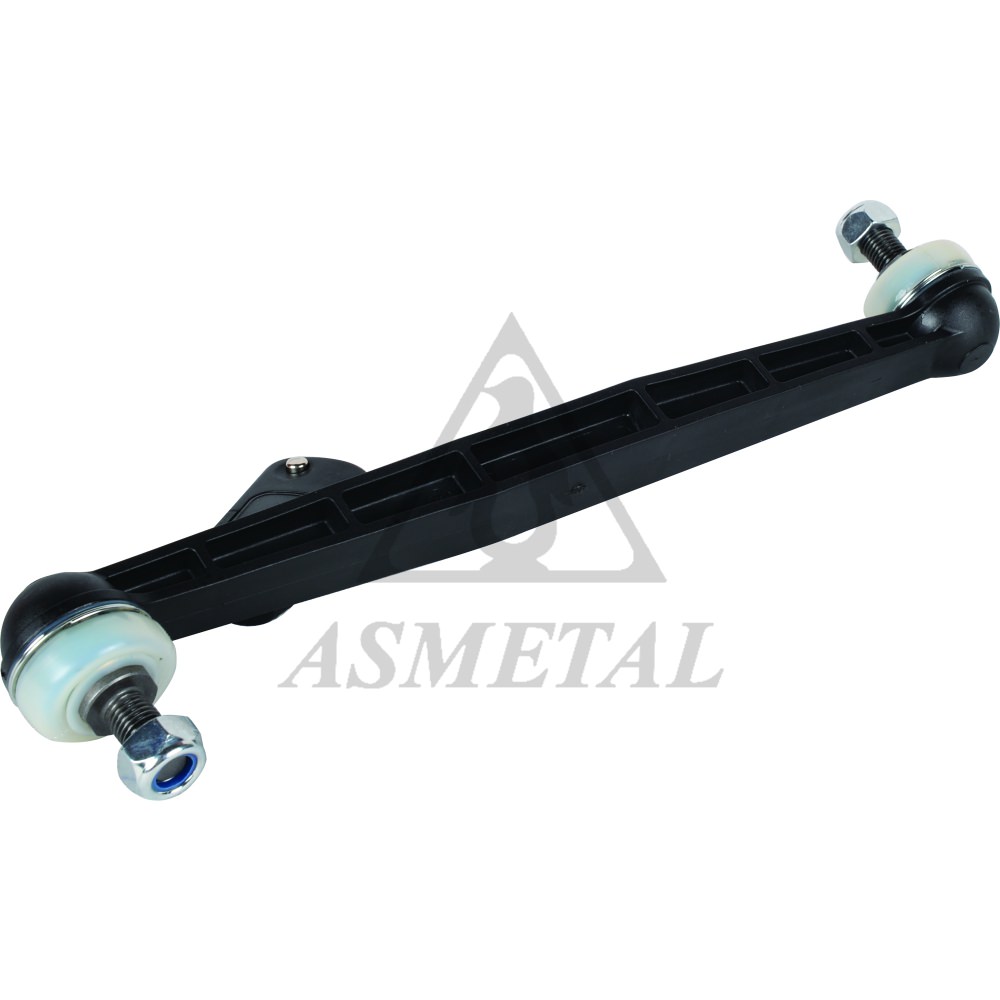

26OP1000	Stabiliser Link	L:300mm Plastic / 0,35 kg	3 50 614, 3 50 611 (2) OEM

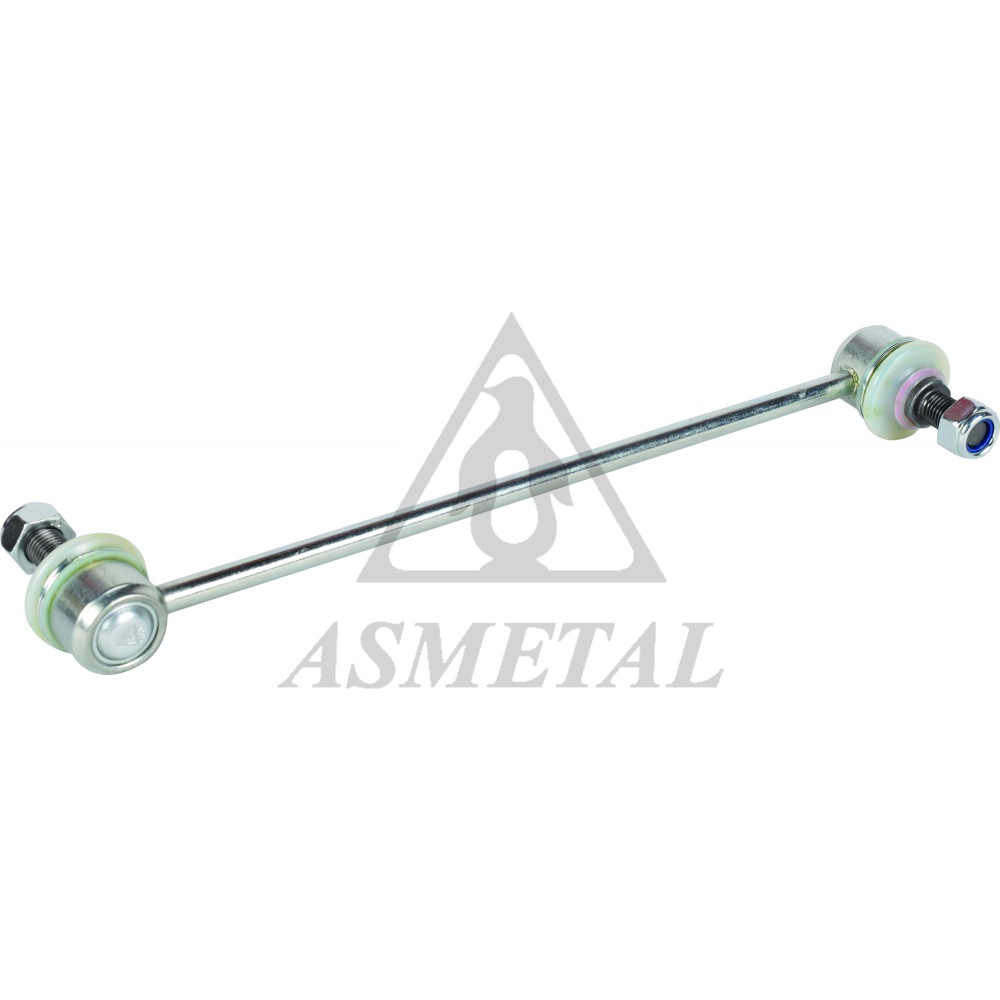

26OP1005	Stabiliser Link	L:300mm / 0,43 kg	3 50 614, 3 50 611 (2) OEM
26OP1010	Stabiliser Link	L: 300 / tp: MM12x1.5 / 0,56 kg	3 50 613, 24 461 353
26OP1400	Stabiliser Link	L:303mm / 0,44 kg	3 50 618, 13 258 052
26OP1405	Stabiliser Link	L:304,5mm Plastic / 0,34 kg	3 50 617, 13 219 141
30OP1450 IN PREPARATION	Track Control Arm Left	0 kg	13 461 920, 3 52 549 (3) OEM
30OP1451 IN PREPARATION	Track Control Arm Right	0 kg	13 461 921, 13 359 601 (3) OEM
30OP2020 IN PREPARATION	Track Control Arm Left		53 52 029, 53 52 016 (2) OEM
30OP2021 IN PREPARATION	Track Control Arm Right		53 52 030, 53 52 017 (2) OEM
38OP0093	Stabiliser Mounting	di: Ø 21 / do: Ø40 / L: 39 / 0,045 kg	009 223 176, 090 581 043 (9) OEM
38OP0117	Stabiliser Mounting	di: Ø20 / L: 39 / 0,04 kg	3 50 117, 24 421 958
38OP0140	Stabiliser Mounting	di: Ø22 / L: 39 / 0,04 kg	3 50 140, 90 581 398
38OP2000	Silentblock for TCA	di:Ø12,1 do:Ø46 / 0,26 kg	24 439 582, 3 52 324
38OP2010	Mounting Axle Body	di:Ø70 do:Ø13,2 L:90mm / 0,48 kg	54 02 637, 4 02 952 (2) OEM
38OP2050	Silentblock for TCA	di:Ø12,2 do:Ø35,7 / 0,15 kg	517 48 653, 517 48 652 (9) OEM
38OP2051	Silentblock for TCA	di:Ø12,1 do:Ø47,3 / 0,13 kg	90 498 740, 3 52 365
38OP2052	Mounting Axle Body	di:Ø14 do:Ø38.2 L:35mm / 0,15 kg	13 107 328, 3 02 067 (3) OEM
38OP2053	Stabiliser Mounting	di:Ø17 / 0,04 kg	3 50 130, 46 86 820 (1) OEM
38OP2054	Stabiliser Mounting	di:Ø17.2 L:39mm / 0,04 kg	90 538 865, 3 50 138 (1) OEM
38OP2055	Mounting Axle Body	di:Ø12,5 / 0,4 kg	9 156 735, 9 156 379 (4) OEM

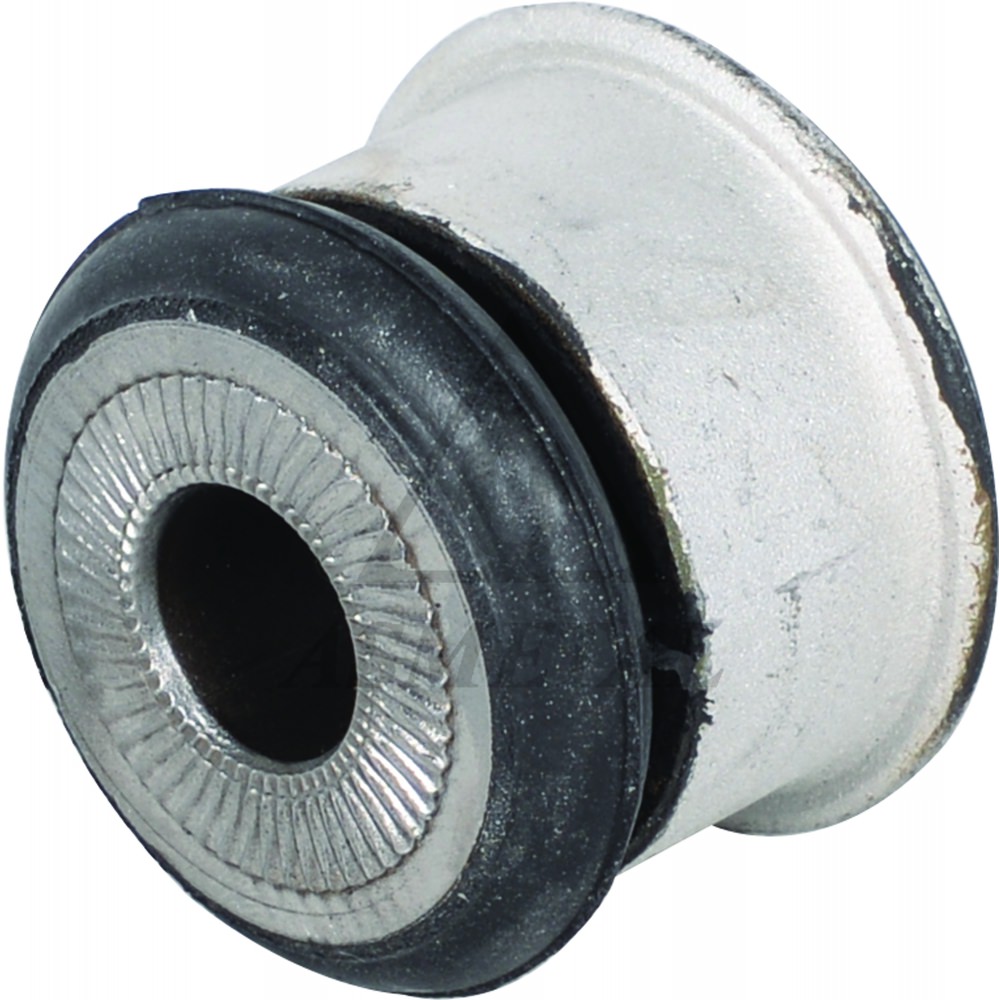

38OP2057	Mounting Axle Body	di:Ø14 do:Ø38,5 / 0,12 kg	3 02 275, 3 02 290 (2) OEM
38OP2060	Silentblock for TCA	di:Ø22,5 do:Ø80,2 / 0,89 kg	13 230 774, 13 334 021 (6) OEM
38OP2061	Silentblock for TCA	di:Ø12,1 do:Ø40,6 / 0,21 kg	13 321 342, 13 318 894* (8) OEM
38OP2070	Stabiliser Mounting	di:Ø19,7 do:Ø44 / 0,05 kg	3 50 390, 3 50 391 (2) OEM
38OP2071	Stabiliser Mounting	di:Ø19 / 0,04 kg	13 204 071, 3 50 391
38OP2644	Mounting Axle Body	di: Ø12.6 / do: Ø60.5 / L: 90 / 0,43 kg	4 02 644, 91 56 735 (3) OEM
38OP3188	Bellow Driveshaft	di: Ø 22 / do: Ø83 / L: 107 / 0,172 kg	16 03 188, 3 74 212 (2) OEM
38OP3197	Bellow Driveshaft	di: Ø 27 / do: Ø91 / L: 104 / 0,22 kg	16 03 197, 90 512 357 (3) OEM
38OP3238	Bellow Driveshaft	di: Ø 25 / do: Ø70 / L: 102 / 0,12 kg	16 03 238, 93 173 675
38OP3276	Bellow Driveshaft	di:Ø23 / 0,01 kg	16 03 005, 26 067 603
38OP4212	Bellow Driveshaft	di: Ø 23 / do: Ø84 / L: 113 / 0,11 kg	3 74 212, 90 446 236 (2) OEM
38OP7100	Strut Mount	di: Ø12,2 / do: Ø103 / L: 40 / 0,44 kg	3 44 523, 90 468 554 (2) OEM
38OP9000	Bellow Steering	di:Ø13,5 do:Ø52,5 L:189mm / 0,1 kg	16 09 109, 26 059 295 (1) OEM
45OP1420	Suspension Support Buffer Front	di:Ø25 do:Ø66.5 L:51mm / 0,06 kg	13 356 026, 13 315 664 (11) OEM
45OP1440	Strut Mount	di: Ø14.2 / do: Ø113.5 / L: 47 / 0,78 kg	13 505 131, 95 212 727 (8) OEM
45OP2003 OUT OF SERVICE	Strut Mount		3 12 510, 90 468 618
45OP2010	Engine Mounting	di:Ø16 / 0,82 kg	6 84 697, 90 576 048
45OP2015	Strut Mount	di: Ø15 / do: Ø120 / L: 49.5 / 0,8 kg	3 44 543, 13 186 959 (3) OEM
45OP2020	Engine Mounting	di:Ø16.1 / 0,94 kg	56 84 181, 24 459 772
45OP2021	Suspension Support Buffer Front	di:Ø18 L:64.8mm / 0,04 kg	3 44 417, 03 44 417 (2) OEM
45OP2023	Suspension Support Buffer Front	di:Ø24 do: Ø61.8 L:40.40mm / 0,04 kg	03 44 956, 3 44 956 (2) OEM
45OP2030	Strut Mount	di:Ø12 do: Ø92 L:18.5mm / 0,16 kg	90 468 568, 03 44 591 (1) OEM
45OP2045	Engine Mounting	di: Ø12.7 / do: Ø100 / L: 65 / 0,92 kg	56 84 657, 13 159 998
45OP2520	Suspension Support Buffer Front	di:Ø24.5 do:Ø62 L:50.5mm / 0,05 kg	51755690, 03 44 349 (15) OEM
45OP4226	Engine Mounting	di: Ø16 / 0,842 kg	6 84 226, 6 84 694 (2) OEM
45OP4525	Strut Mount	di: Ø12.2 / do: Ø113 / L: 42.5 / 0,46 kg	3 44 525, 90 538 936 (2) OEM
45OP4693	Engine Mounting	di: Ø16 / 0,78 kg	684 693, 90 538 576
