ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
17PE0500	Tie Rod End Left	L:111.5 cr:1/5 c:Ø12.12 tp:M10x1.25 th:MM14x1.5 RHT / 0,41 kg	3871 30, 94 71 007 465 (5) OEM
17PE0501	Tie Rod End Right	L:111.5 cr:1/5 c:Ø12.12 tp:M10x1.25 th:MM14x1.5 RHT / 0,41 kg	3817 42, 16 073 163 80 (5) OEM
20PE0600	Axial Joint	L:301.5 tp:M14x1.5 th:MM14x1.5 RHT / 0,55 kg	3812 C5
23PE0600	Track Control Arm Left	c:Ø17.95 / 4,7 kg	3520 W0, 3520 S4 (2) OEM
23PE0601	Track Control Arm Right	c:Ø17.95 / 4,7 kg	3521 S1, 3521 P5 (2) OEM
23PE0610	Track Control Arm Left	c:Ø17.95 / 4,8 kg	3520 V6, 3520 L8 (3) OEM
23PE0611	Track Control Arm Right	c:Ø17.95 / 4,8 kg	3521 R7, 3521 R9 (3) OEM
26PE0600	Stabiliser Link	L:335 tp:M10x1.5 RHT / 0,42 kg	16 466 219 80, 98 088 682 80 (7) OEM
38PE0600	Silentblock for TCA	L:50.3 di:Ø14 do:Ø55.2 / 0,4 kg	96 239 15, 3523 80 (1) OEM

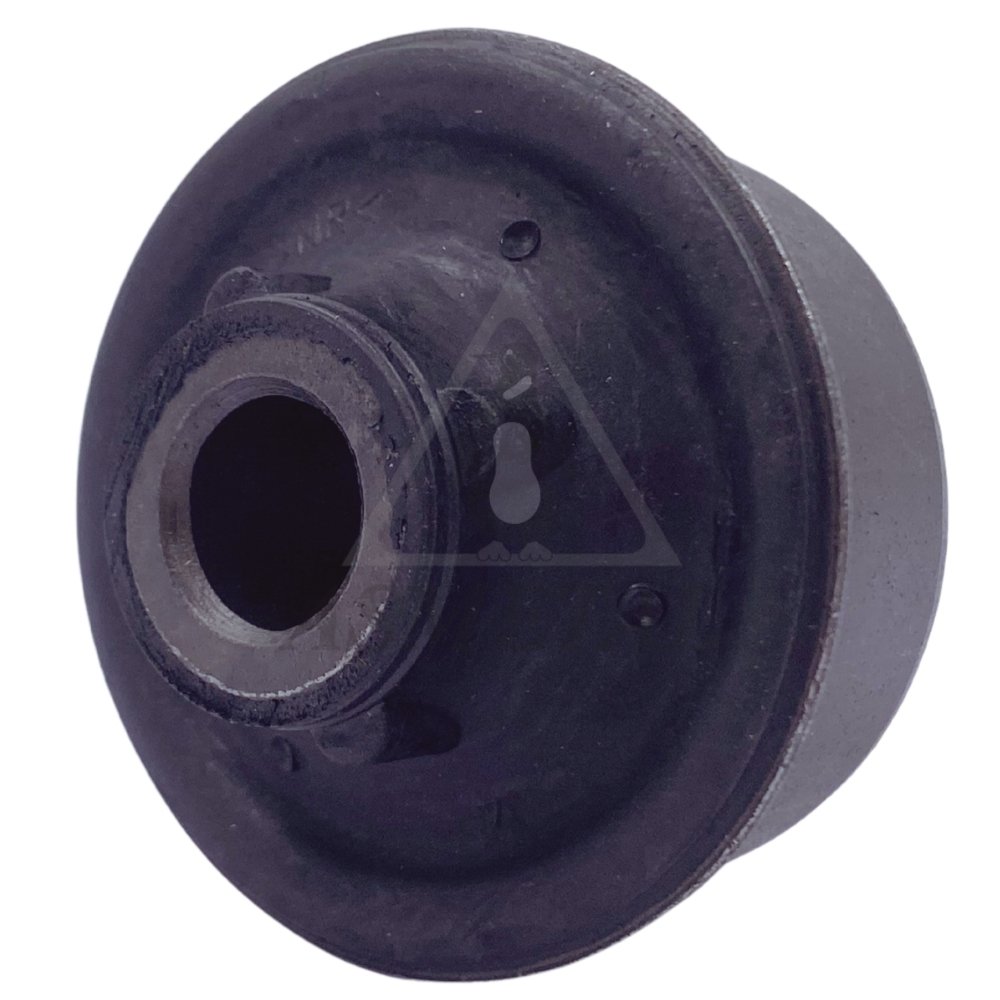

38PE0605	Silentblock for TCA	L:48.8 di:Ø14.1 do:Ø55.3 / 0,37 kg	3523 92, 3523 77
38PE0610	Silentblock for TCA	L:50.2 di:Ø14.1 do:Ø55.3 / 0,25 kg	3523 79, 3523 AS
38PE0620	Axle Beam Bushing	L:50.2 di:Ø14.1 do:Ø55.3 / 0,35 kg	5131 94
38PE0625	Axle Beam Bushing	L:69.5 di:Ø17 do:Ø48.7 / 0,33 kg	5131 F8, 5131 93 (1) OEM
45PE0600	Strut Mount Left	L:54 di:Ø14 do:Ø89 / 1,02 kg	5038 97, 5038 34 (7) OEM
45PE0601	Strut Mount Right	L:54 di:Ø14 do:Ø89 / 1,02 kg	5038 99, 5038 60 (7) OEM
45PE0605	Strut Mount Left With Bearing	L:54 di:Ø14 do:Ø89 / 1,19 kg	5038 56, 5038 95 (5) OEM
45PE0606	Strut Mount Right With Bearing	L:54 di:Ø14 do:Ø89 / 1,21 kg	5038 60, 5038 99 (6) OEM
45PE0620	Suspension Support Buffer Front	di:Ø22.5 do: Ø54.5 L:81.5mm / 0,07 kg	96 485 283 80, 5033 74
45PE0621	Suspension Support Buffer Front	di:Ø22 do:Ø53.5 L:79mm / 0,06 kg	96 333 243 80, 5033 60
45PE0650	Engine Mounting	L:52.7 di:Ø10.1 do:Ø70.25 / 0,26 kg	1809 21, 1809 29 (2) OEM
45PE1105	Engine Mounting	L:53 di:Ø10.2 do:Ø70.2 / 0,31 kg	1809 30, 1809 33 (4) OEM
45PE4500	Engine Mounting	th:MM10X1.5 RHT do:Ø83 / 0,73 kg	1844 77
45PE4545 NEW	Engine Mounting	0,50 kg	1844.38, 1844.72 (2) OEM
45PE9999 NEW	Bearing	0,17 kg	5035 19, 5035 27 (7) OEM
