ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10PE1003	Ball Joint Lower	th:M14x1.5 RHT cp:1/8 cs:Ø15,6 th2:M38x1.5 RHT / 0,31 kg	3640 73, 3640 60 (6) OEM
17PE0500	Tie Rod End Left	c:Ø12,12 th:MM14x1,5 RHT / 0,41 kg	3871 30, 94 71 007 465 (5) OEM
17PE0501	Tie Rod End Right	c:Ø12,12 th:MM14x1,5 RHT / 0,41 kg	3817 42, 16 073 163 80 (5) OEM
17PE1502	Tie Rod End	c:Ø11,95 th:MM14x1,5 RHT / 0,32 kg	3817 50, 94 71 003 465 (6) OEM
20PE0800	Axial Joint	th:MM14x1.5 RHT L:321,5mm / 0,59 kg	3812 E0, 3812.00 (1) OEM
20PE0805	Axial Joint	th:MM14x1,5 RHT L:342,5mm / 0,62 kg	16 072 917 80, 3812 E5
23PE0800 OUT OF SERVICE	Track Control Arm Left	0 kg	3520S2, 16 431 885 80 (8) OEM
23PE0801 OUT OF SERVICE	Track Control Arm Right	0 kg	3521P3, 3521G8 (9) OEM
26PE0800	Stabiliser Link	L:335mm / 0,42 kg	98 049 474 80, 96 347 856 (20) OEM
38CT0800	Stabiliser Mounting	di:Ø22 L:50mm / 0,12 kg	5094 88, 5094.E0 (2) OEM
38PE0605	Silentblock for TCA	di:Ø14,1 do:Ø55,3 / 0,37 kg	3523 92, 3523 77
38PE0800	Silentblock for TCA	di:Ø14,2 do:Ø55 / 0,35 kg	3523 91, 3523 AJ (1) OEM
38PE0805	Mounting Axle Body	di:Ø12.2 do:Ø71 L:82.3mm / 0,36 kg	5131 A5, 5131.A4 (2) OEM
38PE1110 NEW	Stabiliser Mounting	0,1155 kg	5094 89, 5094 E3
45PE0650 NEW	Engine Mounting	di: Ø10 / do: Ø70.25 / L: 52.7 / 0,2605 kg	1809 21, 1809 29 (2) OEM
45PE0805 IN PREPARATION	Strut Mount		5142.45

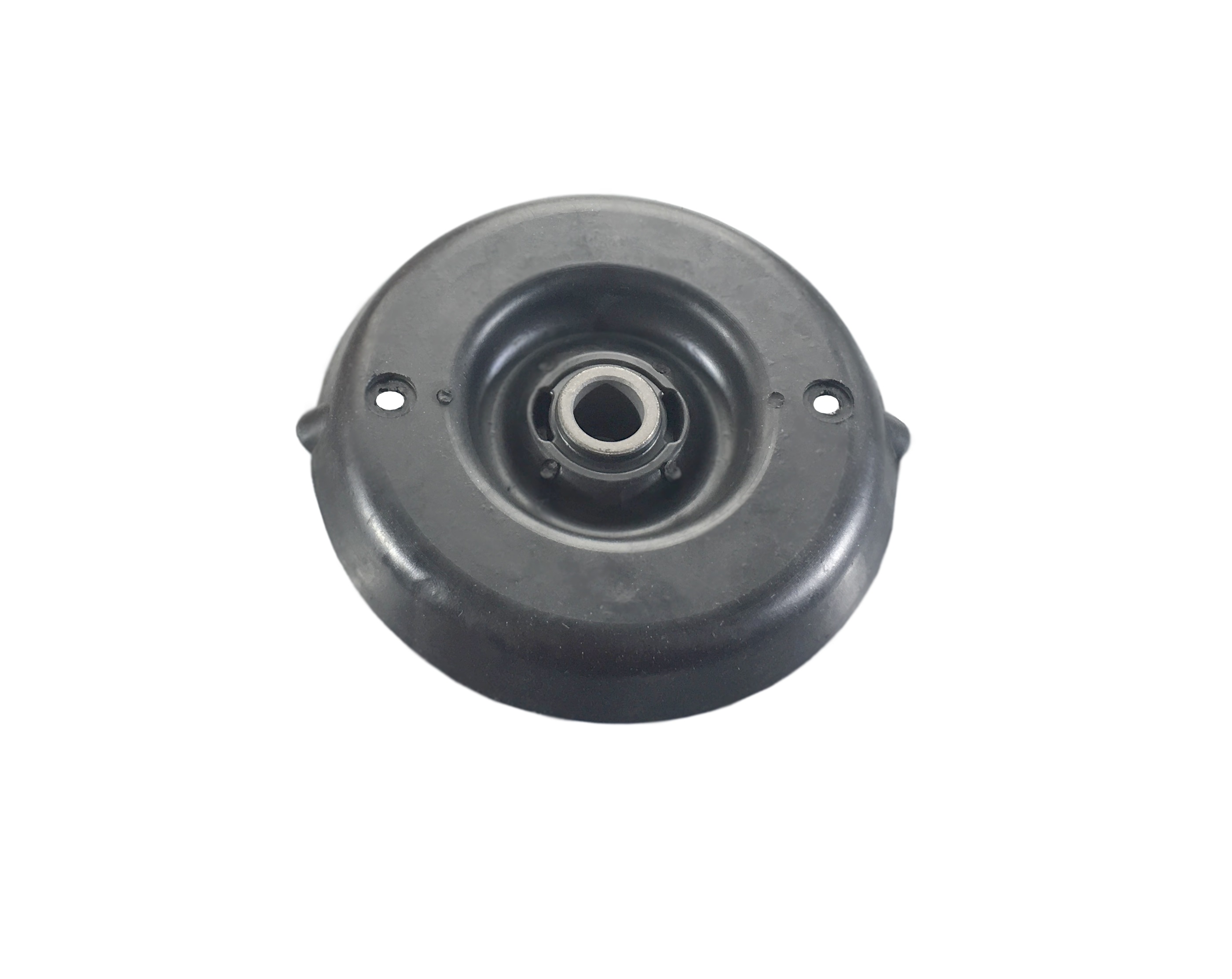

45PE1100	Strut Mount	Ø119 mm / 0,33 kg	5038.G0, 5038.46 (3) OEM
45PE1105	Engine Mounting	di:Ø10 do:Ø70 L:54mm / 0,31 kg	1809.30, 1809.33 (4) OEM
45PE1110	Strut Mount	di:Ø14.2 do:Ø121 L:31.5mm / 0,36 kg	5031 77, 5038 85 (4) OEM
45PE1111	Strut Mount Kit	di:Ø14.2 do: Ø121 L:31.5mm / 0,53 kg	5038 F7, 5038 46 (4) OEM
45PE1112	Strut Mount Kit	di:Ø14.2 do:Ø121 L:31.5mm / 0,58 kg	5031 77, 5038 85 (4) OEM
45PE1113 NEW	Spring Seat	di: Ø14.8 / do: Ø64 / L: 12 / 0,07 kg	5033.75, 5033.C9 (1) OEM
45PE1120 NEW	Strut Mount	di: Ø10.2 / do: Ø64 / L: 49.6 / 0,29 kg	5142 34, 5142 32 (3) OEM
45PE1122 NEW	Suspension Support Buffer Front	di:Ø21 do:Ø47 L:87mm / 0,06 kg	9644207980, 9683421580 (4) OEM
45PE1123	Suspension Support Buffer Front	di:Ø20 do: Ø48 L:97.5mm / 0,06 kg	96 433 870 80, 5033.70
45PE9999 IN PREPARATION	Bearing	0 kg	5035 27, 5035 23 (7) OEM
