ASMETAL Catalogue

PEUGEOT > 407 (18 Quantity)

	ASMETAL No	Product Description	Dimensions	Oem No
	10PE4700	Ball Joint Upper	th:M14x1.5 RHT cr:1/6 c:Ø18 th2:M42x1.5 RHT / 0,5 kg	3640 74, 3640 57 (1) OEM
	17PE4700	Tie Rod End Left	L:240 cr:1/5 c:Ø12.1 tp:M10x1.25 th:MM14x1.5 RHT / 0,76 kg	3817 58
	17PE4701	Tie Rod End Right	L:240 cr:1/5 c:Ø12.1 tp:M10x1.25 th:MM14x1.5 RHT / 0,76 kg	3817 57
	17PE4702 IN PREPARATION	Tie Rod End Left	0,84 kg	3817 65

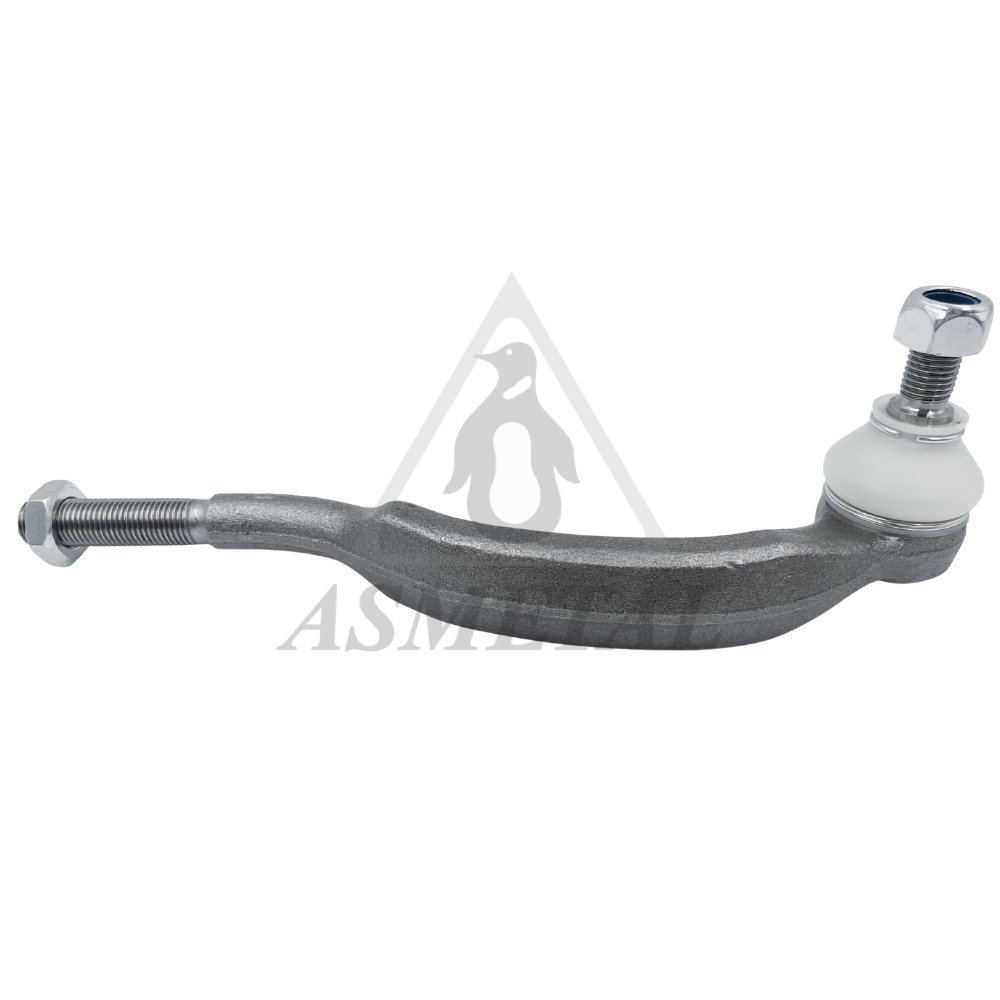

	17PE4703 IN PREPARATION	Tie Rod End Right	0,84 kg	3817 66
	20PE4700	Axial Joint	0,47 kg	3812 E7, 3812 E3 (1) OEM
	26PE4700	Stabiliser Link Left	L:200 tp:M16x1.5 RHT tp:M12x1.75 RHT / 0,66 kg	5087 52
	26PE4701	Stabiliser Link Right	L:200 tp:M16x1.5 RHT tp:M12x1.75 RHT / 0,66 kg	5087 53
	26PE4703	Stabiliser Link Rear	L:141 tp:M10x1.5 RHT / 0,29 kg	16 073 260 80, 5178 52 (4) OEM
	38PE4700	Silentblock for TCA	L:38 di:Ø12.2 do:Ø44.5 / 0,2 kg	3657 04, 3656 04

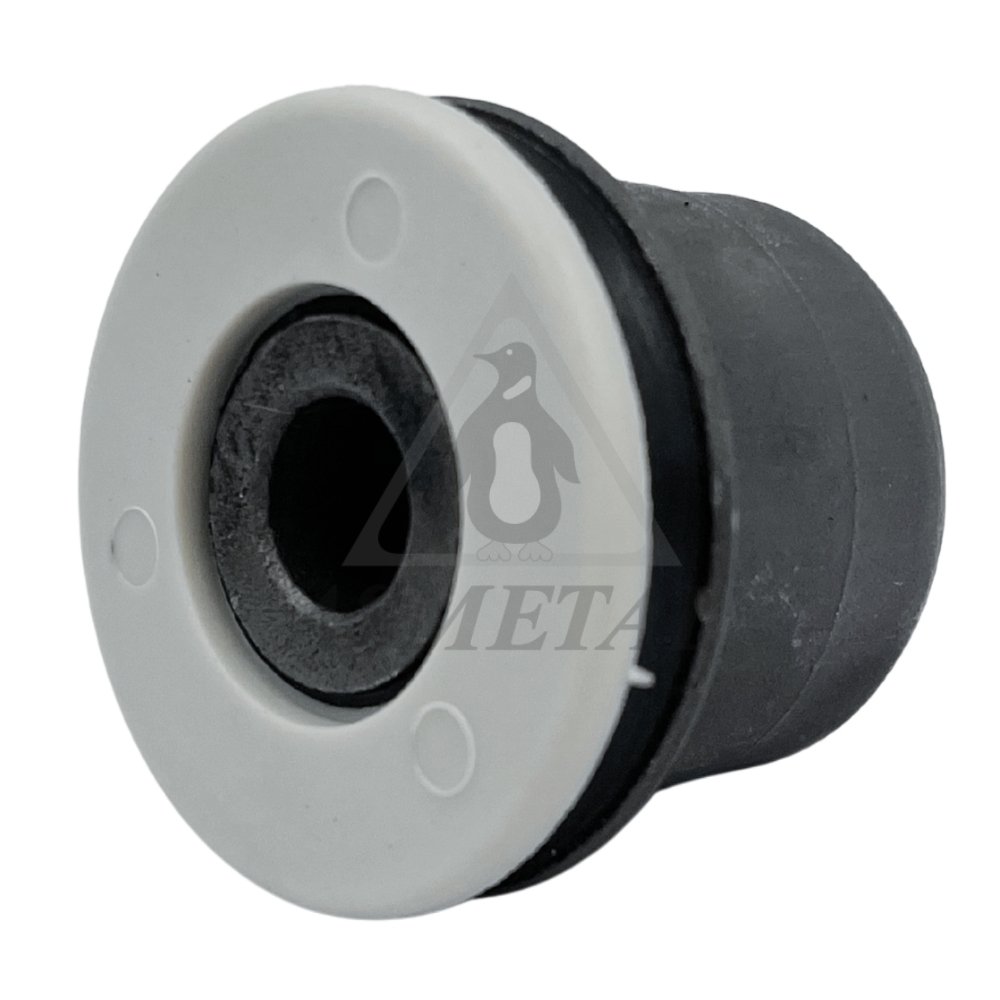

	38PE4720	Silentblock for TCA	L:34 di:Ø10.2 do:Ø32.3 / 0,1 kg	3523 AN, 3523 CA (2) OEM

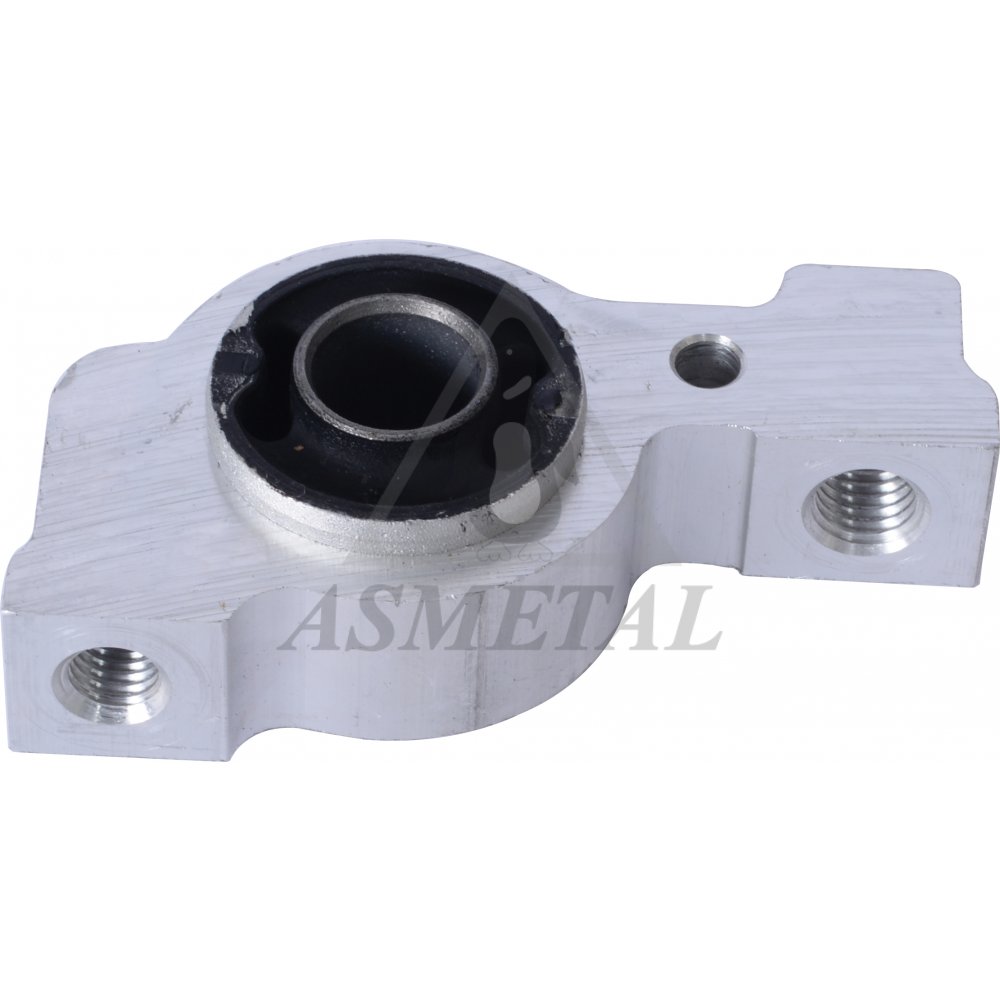

	38PE4740	Silentblock for TCA	L:42.5 di:Ø20 / 0,28 kg	3521 S5, 3521 Q0 (7) OEM
	38PE4750	Silentblock for TCA	L:50.3 di:Ø14 do:Ø56.1 / 0,37 kg	3523 AQ

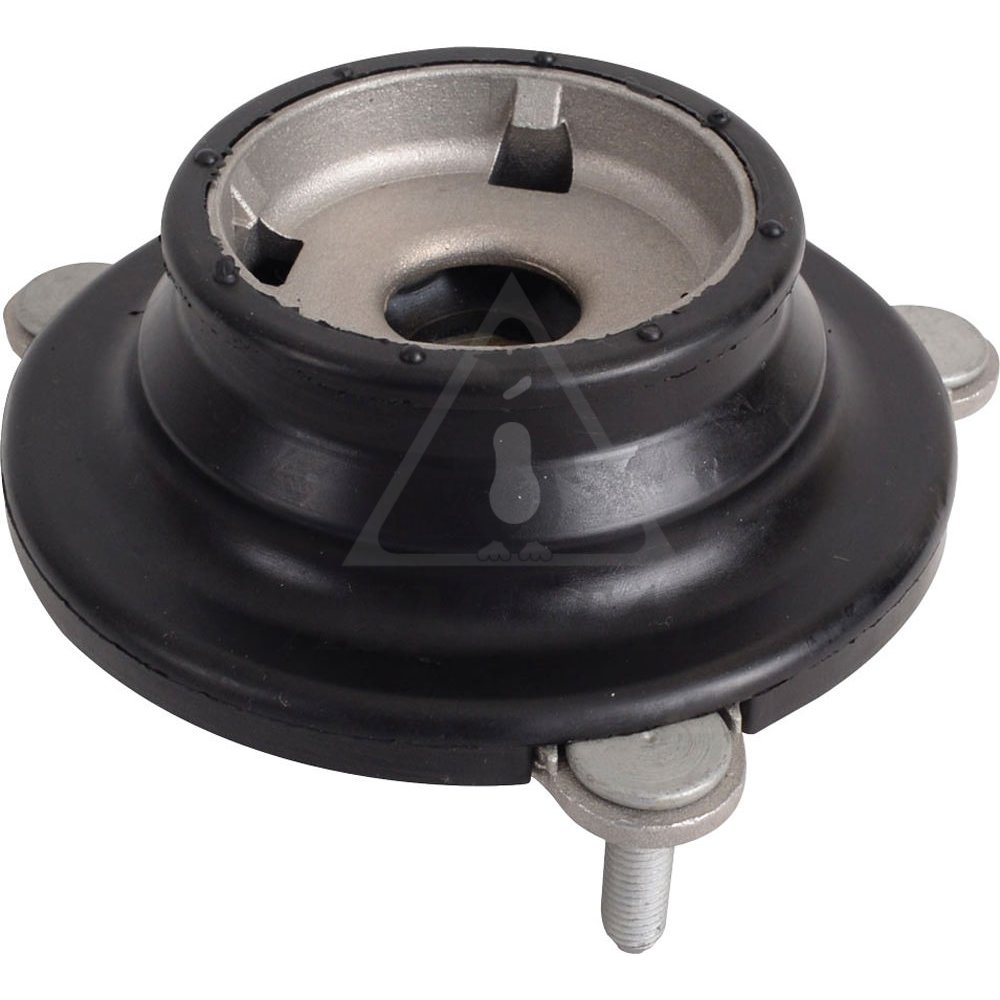

	45PE4700	Strut Mount	L:68 di:Ø10.4 do:Ø118 / 0,5 kg	5038 E5, 5038 A5 (1) OEM
	45PE4705	Strut Mount	L:68 di:Ø10.4 do:Ø119 / 0,51 kg	5038 E6, 5038 G1 (4) OEM

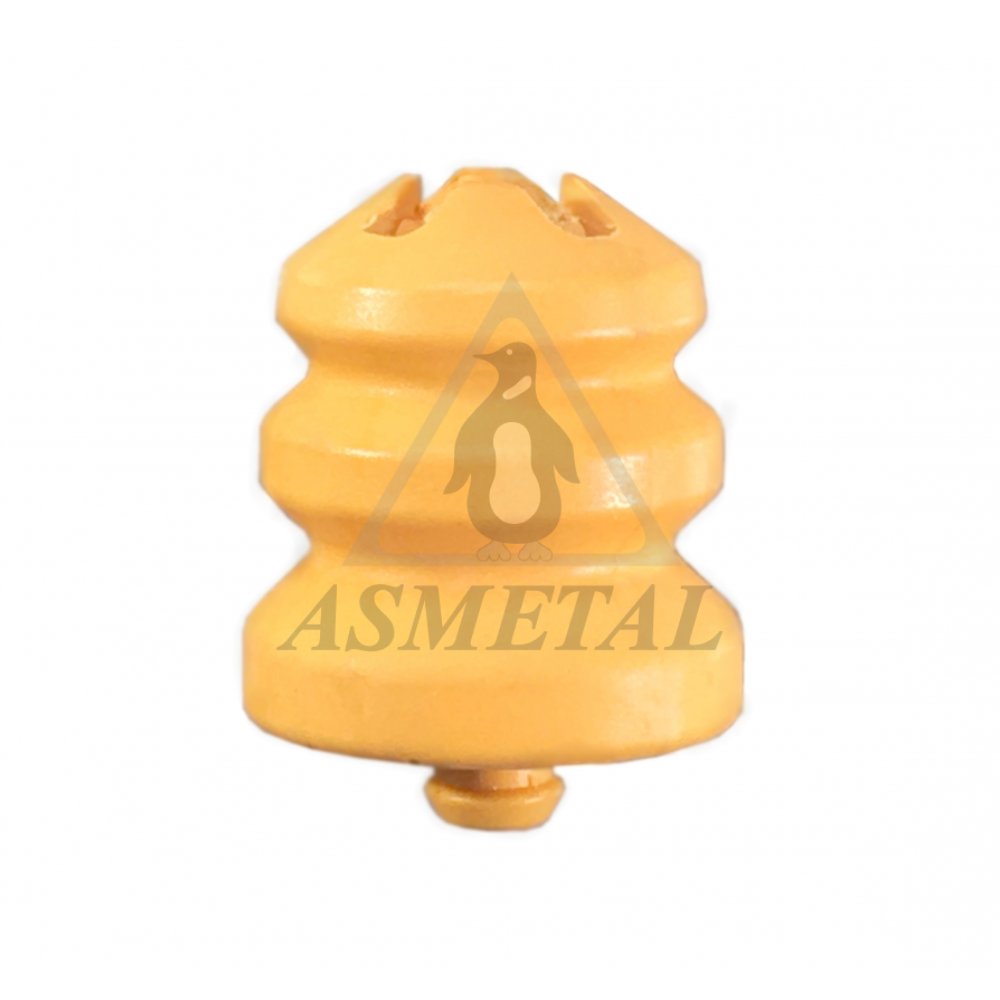

	45PE4720	Suspension Support Buffer Rear	L:76 di:Ø8.5 do:Ø53.5 / 0,05 kg	96 521 819 80, 5166 70

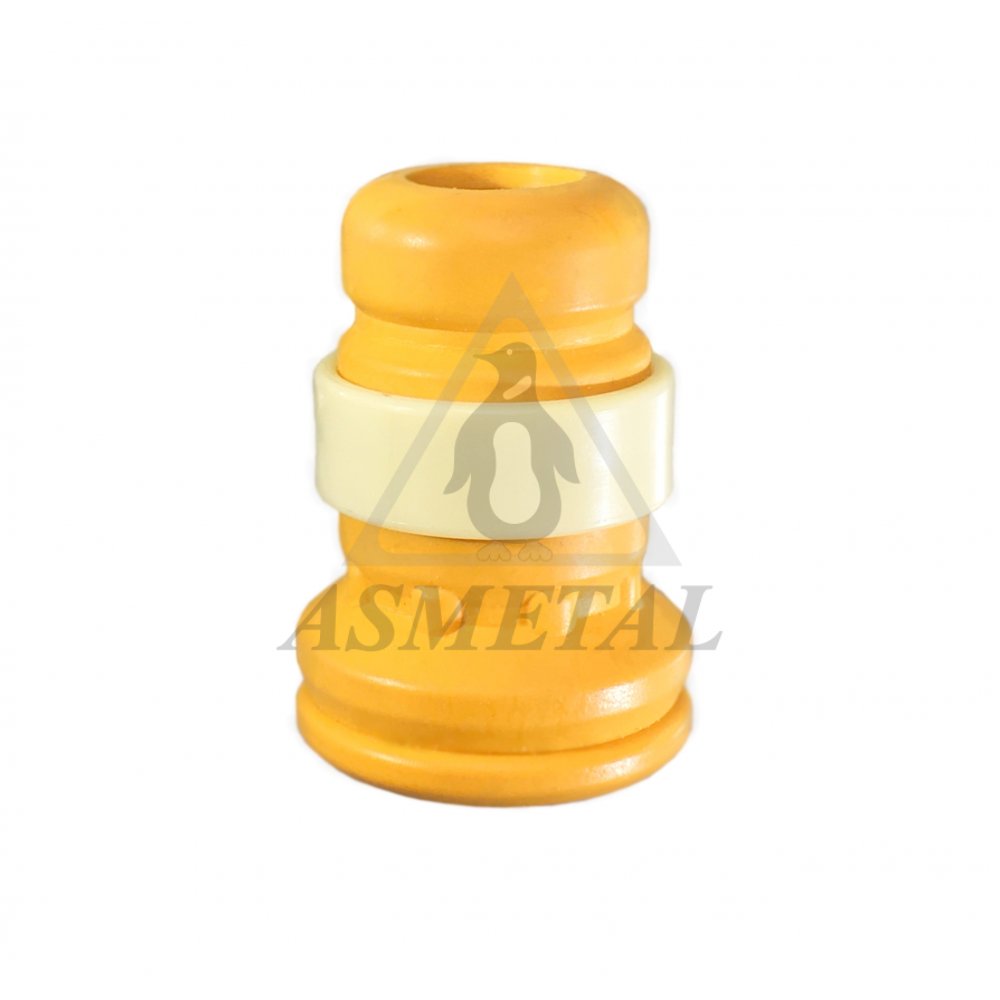

	45PE4730	Suspension Support Buffer Front	L:87 di:Ø19 do:Ø60.5 / 0,08 kg	5033 86, 5033 98 (1) OEM

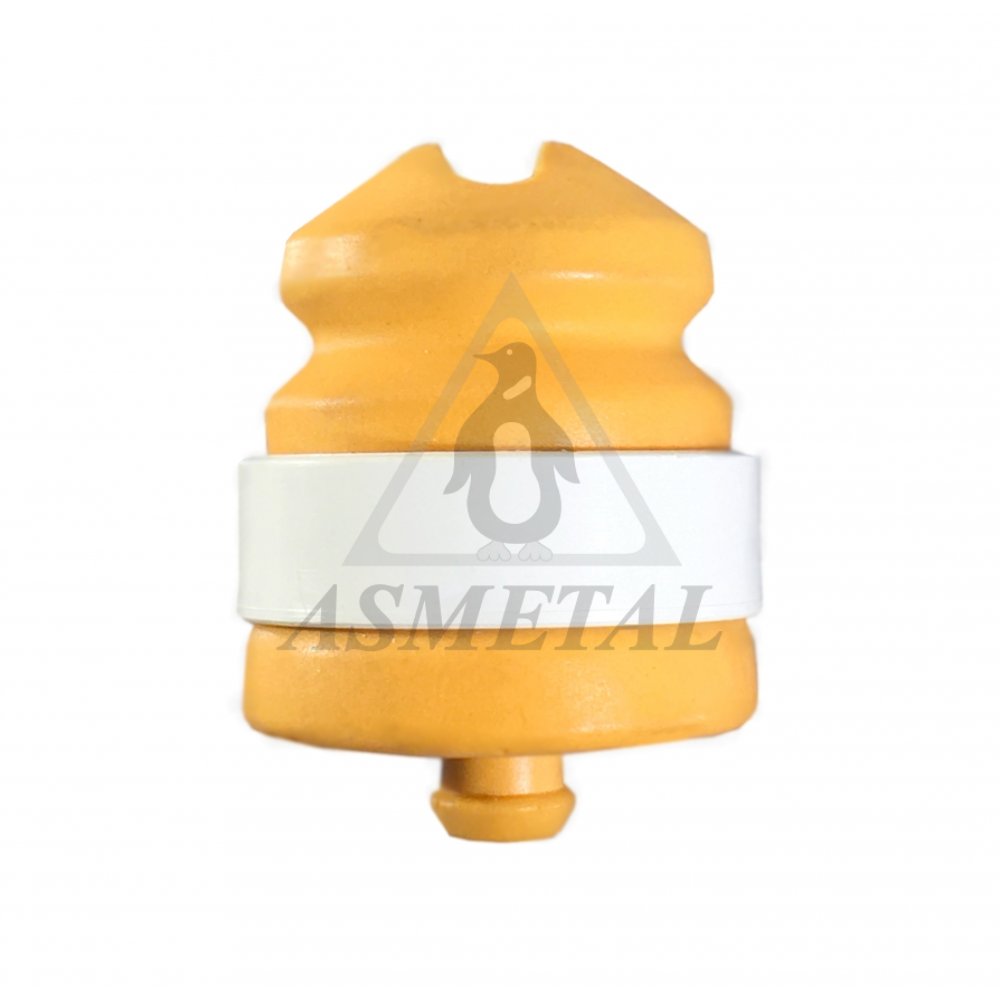

	45PE4731	Suspension Support Buffer Rear	L:76 di:Ø4.5 do:Ø58 / 0,08 kg	96 521 819 80, 5166 70
