ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10PE1003	Ball Joint Lower	tp:M14x1.5 RHT cr:1/8 c:Ø15.6 tp2:M38x1.5 RHT / 0,31 kg	3640 73, 3640 60 (6) OEM
10PE1110	Ball Joint Lower	th:M14x1.5 RHT cr:1/5 c:Ø16.5 / 0,97 kg	98 034 340 80, 36 37 430
17PE1105	Tie Rod End Left	L:165.5 cr:1/5 c:Ø12 tp:M10x1.25 th:FM14x1.5 RHT / 0,5 kg	16 109 368 80, 3817 76 (1) OEM
17PE1106	Tie Rod End Right	L:165.5 cr:1/5 c:Ø12 tp:M10x1.25 th:FM14x1.5 RHT / 0,5 kg	3817 88, 3817 75 (1) OEM
17PE1200	Tie Rod End Left	L:215 cr:1/5 c:Ø14.5 tp:M12x1.5 th:FM14x1.5 RHT / 0,8 kg	16 108 177 80, 39 176 185* (2) OEM
17PE1201	Tie Rod End Right	L:215 cr:1/5 c:Ø14.5 tp:M12x1.5 th:FM14x1.5 RHT / 0,8 kg	16 108 178 80, 39 176 184* (2) OEM
20PE1107	Axial Joint	L:277 tp:M14x1.5 th:MM14x1.5 RHT / 0,64 kg	3812 F2, 16 109 369 80
20PE1110	Axial Joint	L:225 tp:M14x1.5 th:MM14x1.5 RHT / 0,48 kg	16 108 176 80, 39 176 184* (2) OEM
23PE1104 NEW	Track Control Arm Left (Without Ball Joint)	4,92 kg	3520 V2, 16 109 380 80
23PE1105 NEW	Track Control Arm Right (Without Ball Joint)	5,50 kg	3521 R3, 16 109 381 80
23PE1106 NEW	Track Control Arm Left (Without Ball Joint)	5,4 kg	98 056 074 80
23PE1107 NEW	Track Control Arm Right (Without Ball Joint)	5,4 kg	98 056 073 80
26PE0800	Stabiliser Link	L:335 tp:M10x1.5 RHT / 0,42 kg	5087 64, 16 073 250 80 (16) OEM
26PE5000	Stabiliser Link	L:355 tp:M12x1.5 RHT / 0,55 kg	98 090 901 80, 980 90 90 180 (2) OEM
30PE1150	Track Control Arm Lower Left	cr:1/5 c:Ø16.5 th:M14x1.5 RHT / 4,5 kg	98 168 655 80, 98 463 295 80 (1) OEM
30PE1151	Track Control Arm Lower Right	cr:1/5 c:Ø16.5 th:M14x1.5 RHT / 4,5 kg	98 168 654 80, 98 463 290 80 (1) OEM
38PE0600	Silentblock for TCA	L:50.3 di:Ø14 do:Ø55.2 / 0,4 kg	96 239 15, 3523 80 (1) OEM
38PE0605	Silentblock for TCA	L:48.8 di:Ø14.1 do:Ø55.3 / 0,37 kg	3523 92, 3523 77
38PE0800	Silentblock for TCA	L:56 di:Ø14.2 do:Ø55 / 0,35 kg	3523 91, 3523 AJ (1) OEM
38PE1110	Stabiliser Mounting	L:50 di:Ø23 / 0,12 kg	5094 89, 5094 E3
38PE1200	Silentblock for TCA	L:65 di:Ø14.1 do:Ø50.3 / 0,26 kg	98 163 803 80, 3 644 790 (1) OEM
38PE1201	Silentblock for TCA	L:59.5 di:Ø14.1 do:Ø43.2 / 0,23 kg	96 760 321 80, 3 637 432
45PE1124	Suspension Support Buffer Front	L:96 di:Ø21 do:Ø54.5 / 0,07 kg	96 847 915 80, 5033 E4

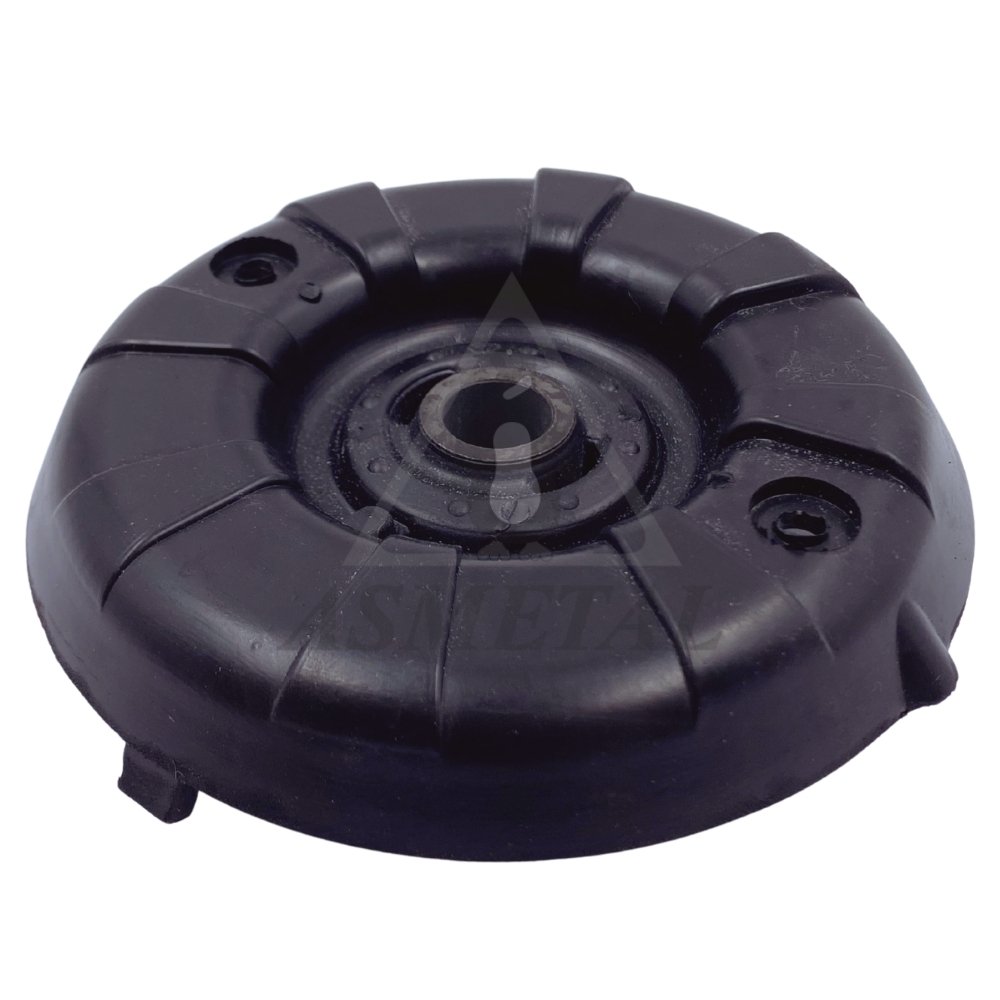

45PE1170	Strut Mount	di:Ø20 do:Ø121 / 0,36 kg	5038 H3, 96 721 160 80 (1) OEM
45PE1171	Strut Mount KIT	di:Ø20 do:Ø121 / 0,59 kg	5038 H3, 96 721 160 80
45PE9999 NEW	Bearing	0,17 kg	5035 19, 5035 27 (7) OEM
