ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10FI3505	Ball Joint Lower	c:Ø16 / 0.52	518 95 367, 518 95 366 (16) OEM
17FI3505	Tie Rod End Left	L:110 cr:1/6 c:Ø11.7 tp:M10x1.5 th:FM14x1.5 RHT / 0.39	773 63 829, 3817 86 (5) OEM
17FI3506	Tie Rod End Right	L:110 cr:1/6 c:Ø11.7 tp:M10x1.5 th:FM14x1.5 RHT / 0.39	773 63 830, 3817 87 (5) OEM
20FI3505	Axial Joint	L:274 tp:M14x1.5 th:MM14x1.5 RHT / 0.55	4001 77, 4001 CW (5) OEM
26FI3505	Stabiliser Link	L:290 tp:M10x1.25 RHT / 0.4	5087 70, 5087 79 (4) OEM
30FI3505	Track Control Arm Left	c:Ø16 / 2.75	520 49 871, 557 03 629 (7) OEM
30FI3505P NEW	Track Control Arm (Without Ball Joint)	2.46	517 83 056, 520 49 871 (16) OEM
30FI3506	Track Control Arm Right	c:Ø16 / 2.75	557 03 627, 520 49 873 (7) OEM
38FI5506	Silentblock for TCA	L:67.5 di:Ø12.2 do:Ø41.3 / 0.3	3520 W3, 3521 S6 (28) OEM
38FI5507	Silentblock for TCA	L:66 di:Ø12.3 do:Ø71.5 / 0.2	517 83 056, 517 83 057 (10) OEM
45FI3500	Strut Mount Left	di:Ø13 do:Ø52.5 / 0.5	16 092 747 80, 5038 J7 (9) OEM
45FI3501	Strut Mount Right	di:Ø13 do:Ø52.5 / 0.5	5038 J8, 16 092 746 80 (8) OEM
45FI3505	Strut Mount Left With Bearing	L:64 di:Ø13 do:Ø80 th:MM8 RHT / 0.68	16 092 747 80, 16 113 139 80 (9) OEM
45FI3506	Strut Mount Right With Bearing	L:64 di:Ø13 do:Ø80 th:MM8 RHT / 0.68	5038 J8, 5038 G3 (8) OEM
45FI3510	Strut Mount Left ( New Type Bearing )	di:Ø13 do:Ø52.5 / 0.7	16 092 747 80, 5038 J7 (9) OEM

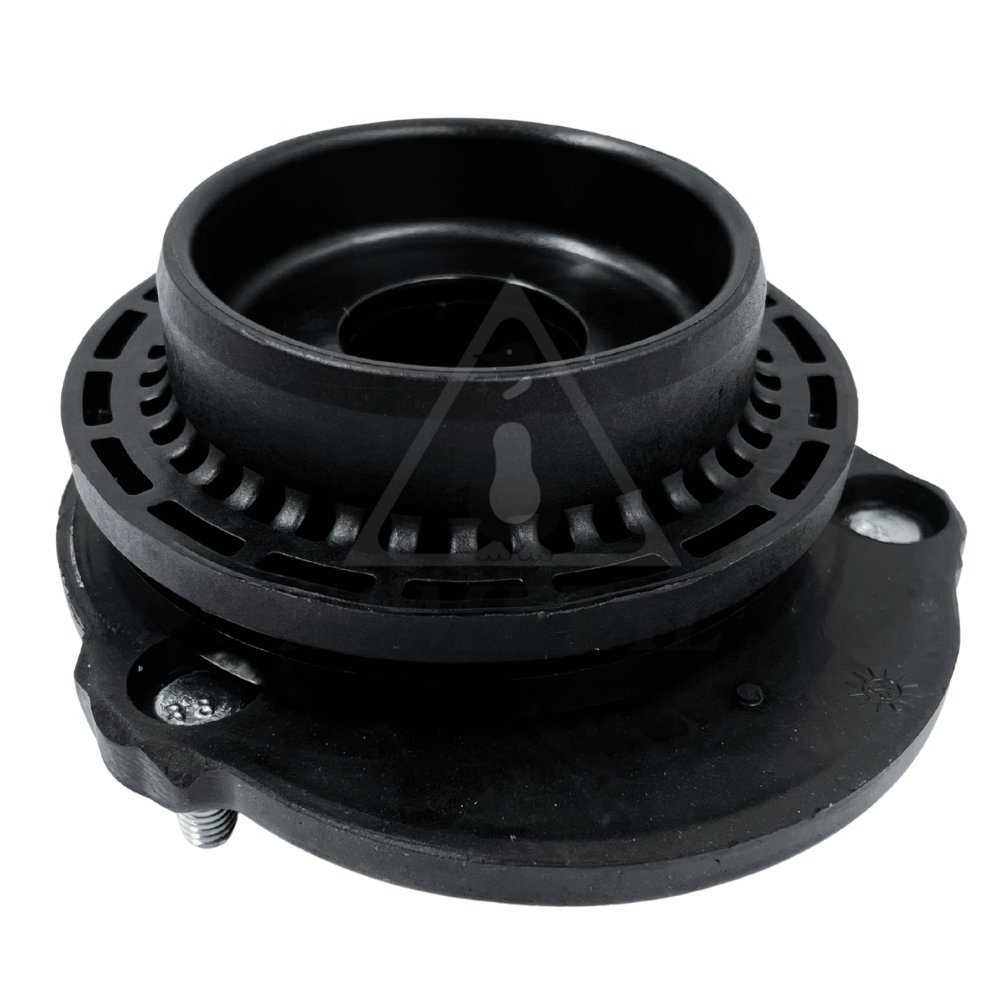

45FI3511	Strut Mount Right ( New Type Bearing )	di:Ø13 do:Ø52.5 / 0.7	16 113 137 80, 16 092 746 80 (9) OEM
45FI3520	Suspension Support Buffer Front	L:64.5 di:Ø23 do:Ø63 / 0.06	518 66 009, 517 75 545 (5) OEM
45FI3531	Suspension Support Buffer Rear	L:180 di:Ø12 do:Ø117 / 0.45	5166 A8, 518 04 746
45FI3532	Suspension Support Buffer Rear	L:220 di:Ø12 do:Ø117 / 0.5	5166 A4, 518 05 787
45FI3570 NEW	Engine Mounting	0,89 kg	1807.KA, 51855676
45FI3582 NEW	Engine Mounting	1.53	1807 GL, 1807 GR (3) OEM
