ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10PE5000	Ball Joint Lower	th:M14x1.5 RHT cr:1/8 c:Ø18.6 th:M40X1.5 RHT / 0,38 kg	98 186 575 80, 98 345 990 80 (5) OEM
17CT1000	Tie Rod End	L:80 cr:1/5 c:Ø14.4 tp:M12x1.5 th:FM14x1.5 RHT / 0,38 kg	3817 A5, 3817 73 (3) OEM
17FI5100	Tie Rod End	L:75 cr:1/10 c:Ø12.6 tp:M10x1.25 th:FM14x1.5 RHT / 0,35 kg	4059 09, 13 060 030 80 (2) OEM
17PE2100 IN PREPARATION	Tie Rod End	0 kg	4059 12, 16 073 152 80 (1) OEM
17PE5000 NEW	Tie Rod End Left	0,79 kg	98 203 400 80, 982 03 40 080 (2) OEM
17PE5001 NEW	Tie Rod End Right	0,79 kg	98 203 401 80, 982 03 40 180 (2) OEM
20CT1000	Axial Joint	L:306 tp:M16x1.5 th:MM14x1.5 RHT / 0,65 kg	3812 F0, 16 10 942 380 (7) OEM
20FI5100	Axial Joint	L:306 tp:M14x1.5 th:MM14x1.5 RHT / 0,59 kg	3812 A4, 9 947 713 (1) OEM
20PE5000	Axial Joint	L:265 tp:M16x1.5 th:MM14x1.5 RHT / 0,65 kg	98 203 402 80, SU001 A7257

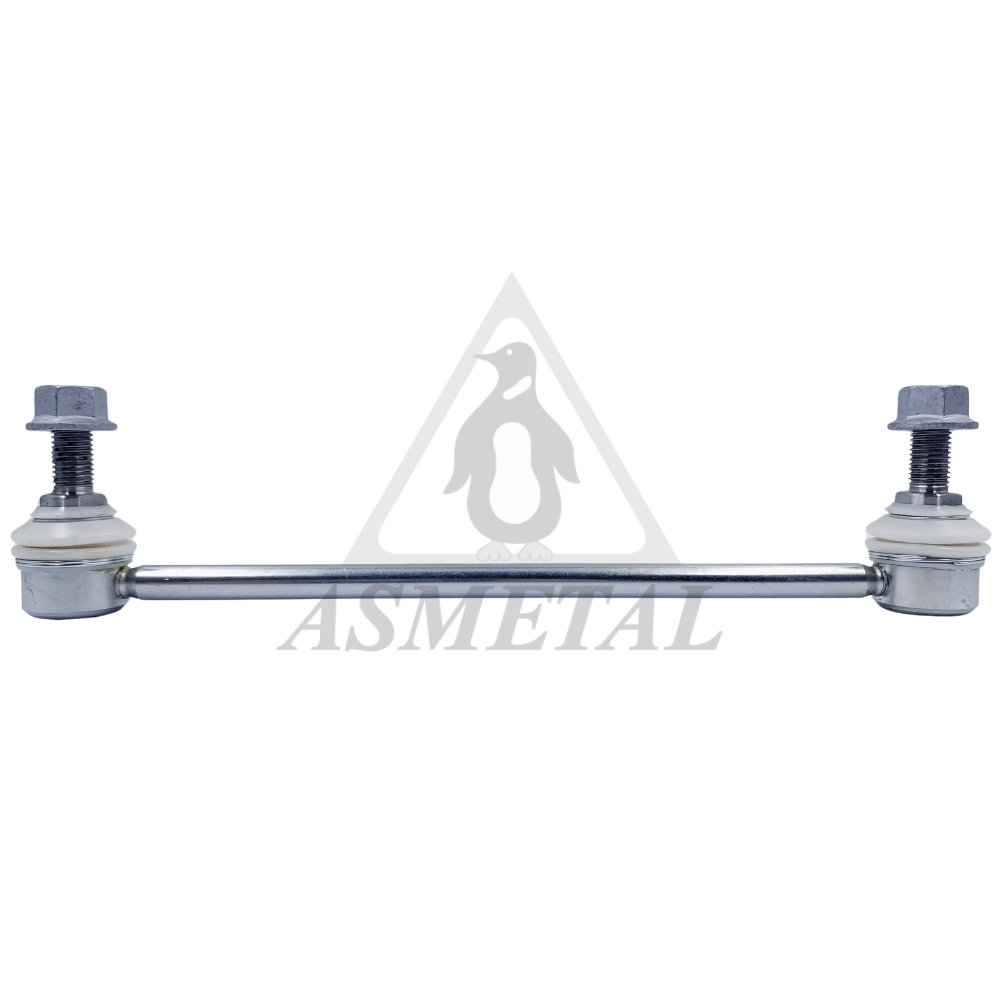

26CT1000	Stabiliser Link	L:263 tp:M12x1.5 RHT / 0,48 kg	5087 56, 14 000 996 80 (1) OEM
26FI5100	Stabiliser Link	0,49 kg	5087 35, 13 174 250 80 (1) OEM
26PE5000	Stabiliser Link	L:355 tp:M12x1.5 RHT / 0,55 kg	98 090 901 80, 980 90 90 180 (2) OEM
26PE5010 NEW	Stabiliser Link Rear	0,17 kg	98 056 213 80, 980 56 21 380 (1) OEM
30CT1000	Track Control Arm Left	c:Ø19 / 4,7 kg	3520 R8, 16 109 406 80 (3) OEM
30CT1001	Track Control Arm Right	c:Ø19 / 4,7 kg	16 109 405 80, 3521 N9 (3) OEM
30CT1010	Track Control Arm Left	c:Ø17 / 4,6 kg	3520 P8, 3521 85 (6) OEM
30CT1011	Track Control Arm Right	c:Ø17 / 4,6 kg	3521 C9, 3521 K4 (6) OEM
38CT1002	Silentblock for TCA Left	L:72 di:Ø22.8 do:Ø68 / 1,26 kg	134 63 84 080, 3521 H0 (4) OEM
38CT1003	Silentblock for TCA Right	L:72 di:Ø22.8 do:Ø68 / 1,24 kg	3521 K6, 149 74 07 080 (3) OEM
38CT1004	Silentblock for TCA	L:85 di:Ø22.8 / 0,83 kg	3521 P7, 3521 N9 (10) OEM
38CT1010	Silentblock for TCA Left	L:72 di:Ø22.8 / 1,24 kg	3520 C3, 3520 S6 (6) OEM
38CT1011	Silentblock for TCA Right	L:72 di:Ø22.8 / 1,21 kg	3521 C9, 3520 S6 (5) OEM
38CT1012	Silentblock for TCA	L:82.5 di:Ø22.8 / 0,77 kg	3521 C9, 3521 83 (9) OEM
38FI5100	Axle Beam Bushing	L:60 di:Ø12 do:Ø46.1 / 0,25 kg	5152 61, 147 97 59 080
38PE5001 NEW	Silentblock for TCA	0,35 kg	98 090 826 80, 98 168 635 80* (2) OEM
45PE2120	Suspension Support Buffer Front	L:106.25 di:Ø25.7 / 0,09 kg	5033 39, 13 07 021 080
