ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No

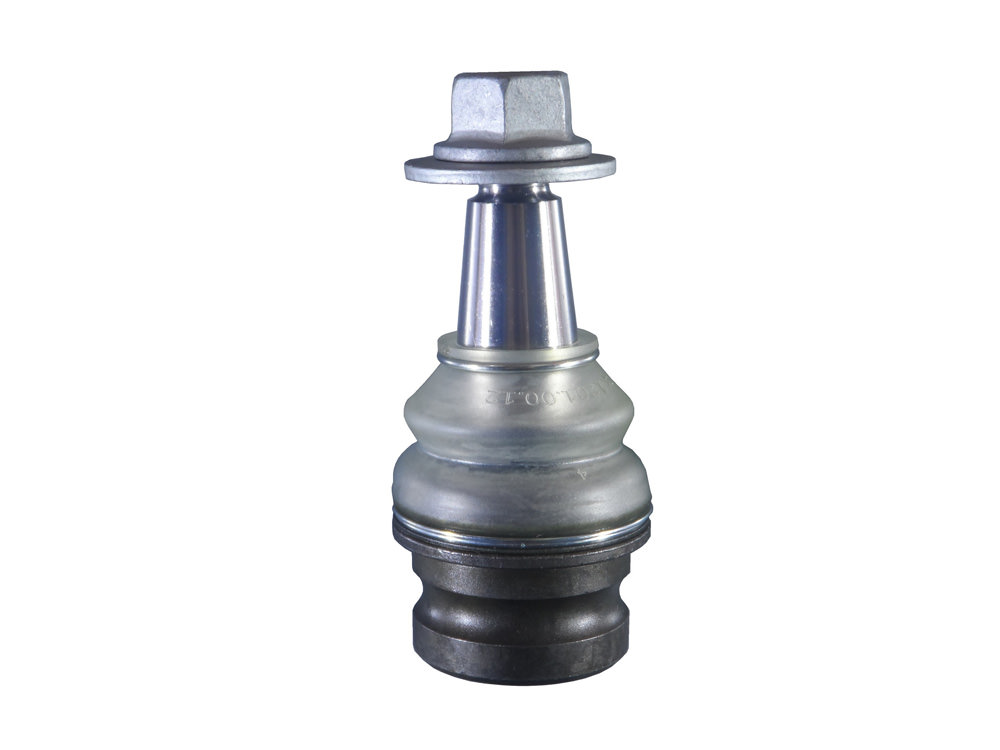

10AU2501	Ball Joint Lower	th:M14x1.5 RHT cr:1/5 c:Ø17.4 do:Ø42 / 0,61 kg	4G0 407 689 A, 8W0 407 689 A (2) OEM
17AU2500	Tie Rod End Left	L:207 cr:1/5 c:Ø14.7 tp:M12x1.5 th:FM16x1.5 RHT / 0,84 kg	8K0 422 817 A, 8K0 422 817 B (1) OEM
17AU2501	Tie Rod End Right	L:207 cr:1/5 c:Ø14.7 tp:M12x1.5 th:FM16x1.5 RHT / 0,84 kg	8K0 422 818 A, 8K0 422 818 B (1) OEM

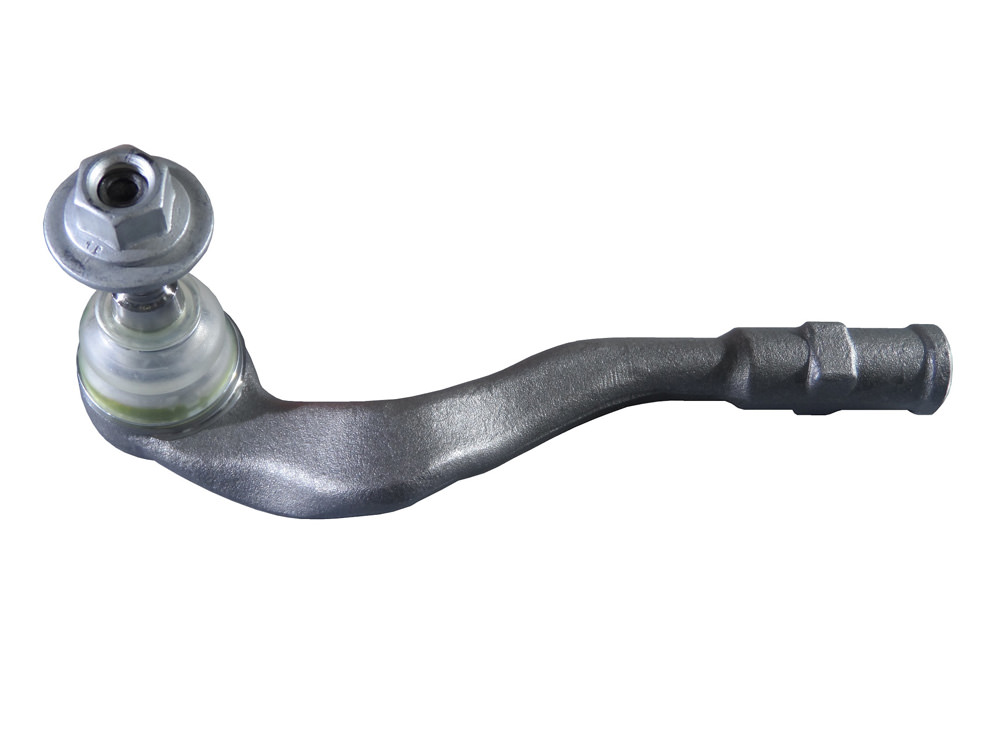

17AU2502	Tie Rod End Left	L:207 cr:1/5 c:Ø14.7 tp:M12x1.5 th:FM16x1.5 RHT / 0,9 kg	4G0 423 811 A, PAB 423 811

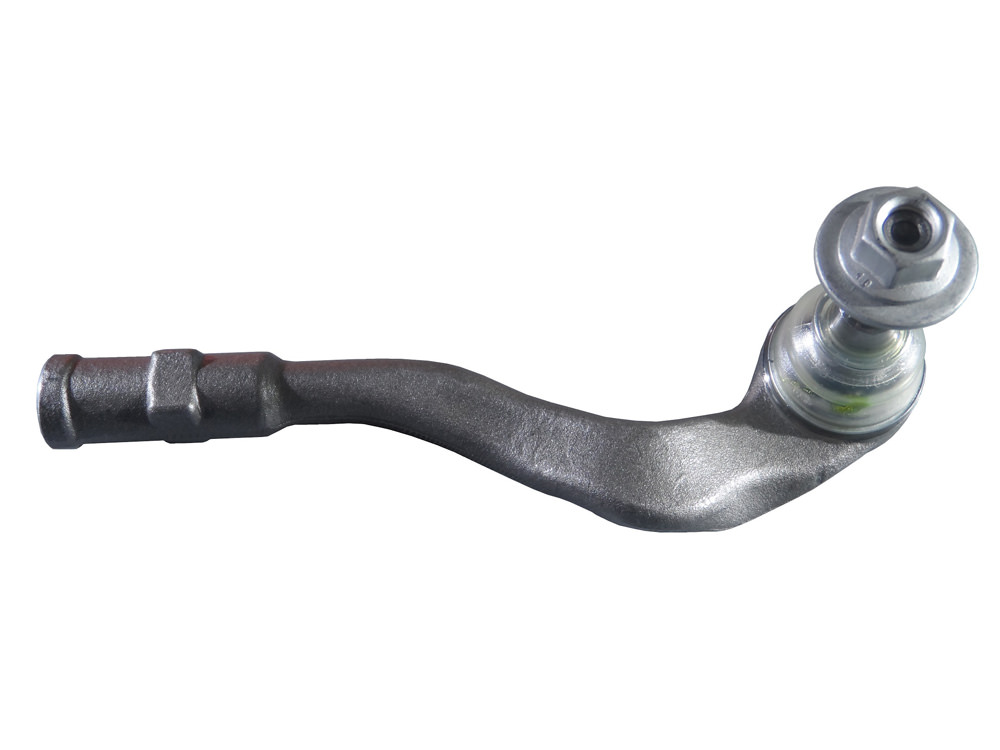

17AU2503	Tie Rod End Right	L:207 cr:1/5 c:Ø14.7 tp:M12x1.5 th:FM16x1.5 RHT / 0,9 kg	4G0 423 812 A, PAB 423 812
20AU2510	Axial Joint	L:236 tp:M16x1.5 th:MM16x1.5 RHT / 0,64 kg	4G0 423 810 A, 4G0 423 810
23AU0104	Track Control Arm Left	c:Ø16 / 0,64 kg	8K0 407 505 A, 8K0 407 505 N (8) OEM
23AU0104B	Track Control Arm Upper Left (Without Fasteners)	c:Ø16 / 0,53 kg	8K0 407 505 A, 8K0 407 505 N (8) OEM
23AU0105	Track Control Arm Upper Right	c:Ø16 / 0,64 kg	8K0 407 506 M, 8K0 407 506 B (8) OEM
23AU0105B	Track Control Arm Upper Right (Without Fasteners)	c:Ø16 / 0,55 kg	8K0 407 506 A, 8K0 407 506 N (8) OEM
23AU0106	Track Control Arm Upper Left	c:Ø16 / 0,64 kg	8K0 407 509 B, 8K0 407 509 J (7) OEM
23AU0106B	Track Control Arm Upper Left (Without Fasteners)	c:Ø16 / 0,55 kg	8K0 407 509 B, 8K0 407 509 J (7) OEM
23AU0107	Track Control Arm Upper Right	c:Ø16 / 0,62 kg	8K0 407 510 N, 8K0 407 510 M (9) OEM
23AU0107B	Track Control Arm Upper Right (Without Fasteners)	c:Ø16 / 0,52 kg	8K0 407 510 N, 8K0 407 510 M (9) OEM
23AU0120	Track Control Arm Lower Left	tp:M14x1.5 RHT cr:1/5 c:Ø16.8 / 2,56 kg	8KD 407 693 H, 8K0 407 693 AD (12) OEM
23AU0120B	Track Control Arm Lower Left (Without Fasteners)	tp:M14x1.5 RHT cr:1/5 c:Ø16.8 / 2,36 kg	8K0 407 693 Q, 8K0 407 693 S (12) OEM
23AU0121	Track Control Arm Lower Right	tp:M14x1.5 RHT cr:1/5 c:Ø16.8 / 2,56 kg	8R0 407 694, 8K0 407 694 AF (12) OEM
23AU0121B	Track Control Arm Lower Right (Without Fasteners)	tp:M14x1.5 RHT cr:1/5 c:Ø16.8 / 2,36 kg	8R0 407 694 D, 8K0 407 694 S (12) OEM

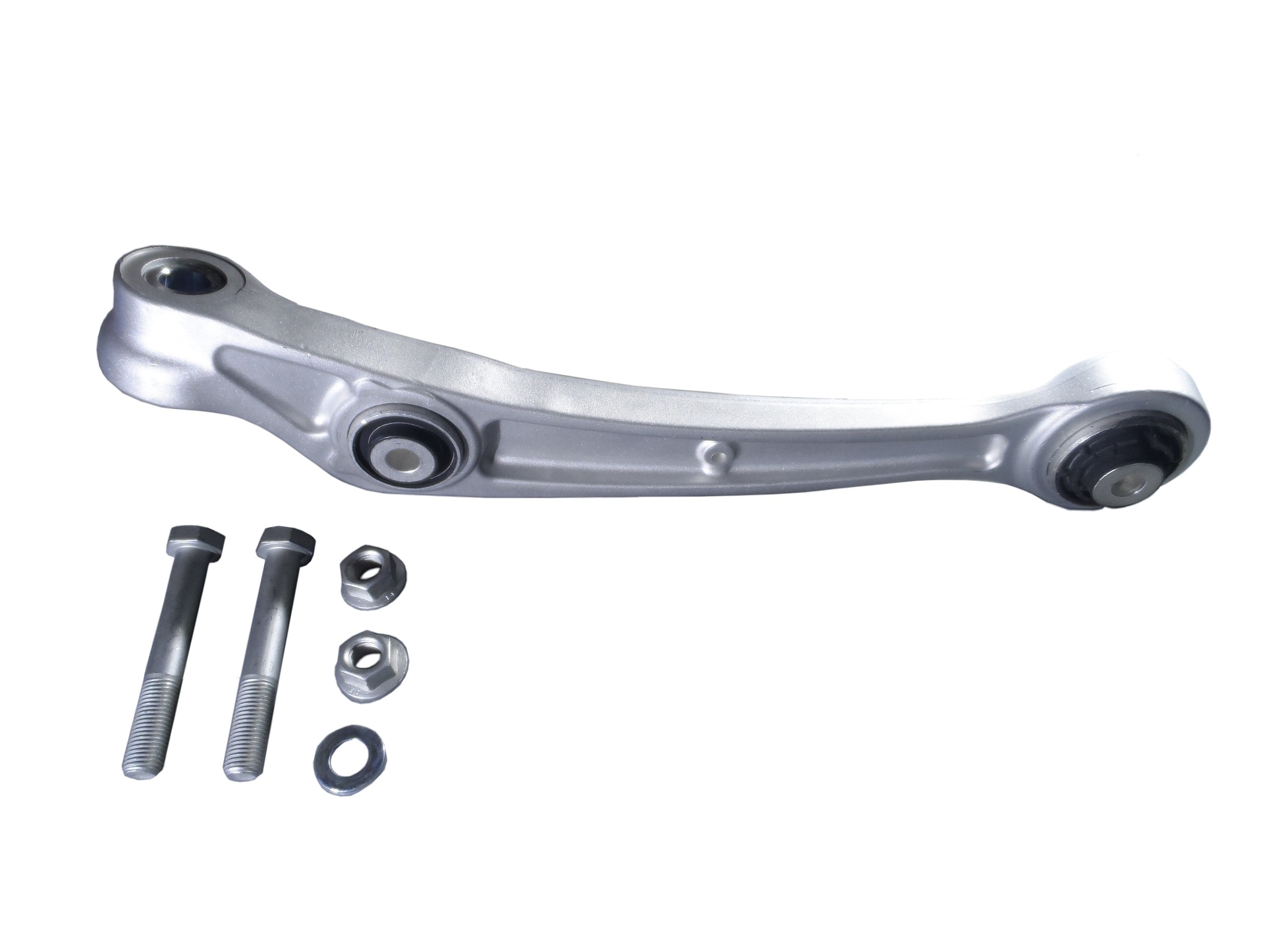

23AU2502	Track Control Arm Lower Left	cr:1/5 c:Ø17.1 / 1,5 kg	8KD 407 151 B, 8K0 407 151 F (1) OEM
23AU2502B	Track Control Arm Lower Left (Without Fasteners)	cr:1/5 c:Ø17.1 / 1,28 kg	8KD 407 151 B, 8K0 407 151 F (1) OEM

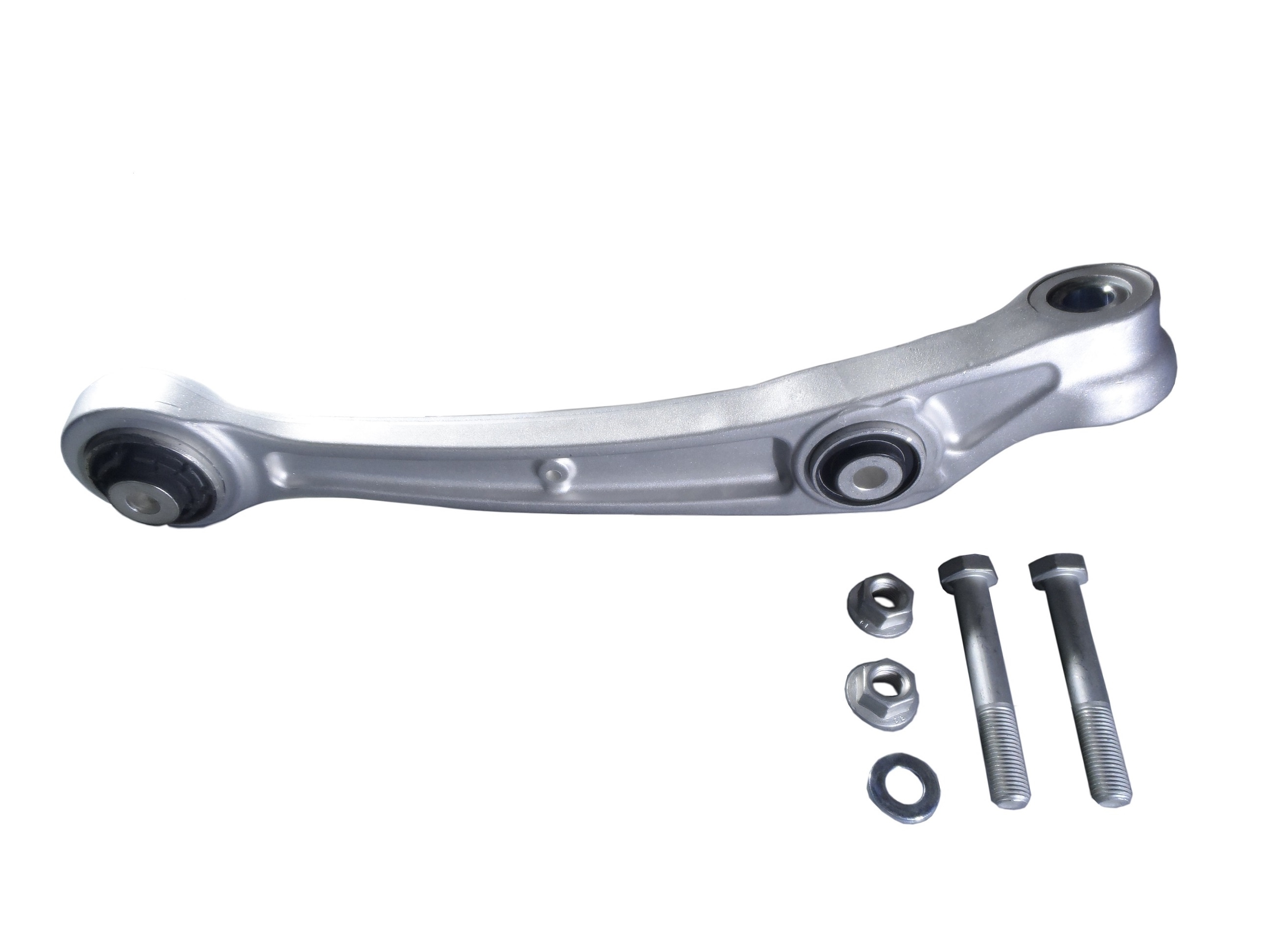

23AU2503	Track Control Arm Lower Right	cr:1/5 c:Ø17.1 / 1,5 kg	8KD 407 152 B, 8K0 407 152 F (1) OEM
23AU2503B	Track Control Arm Lower Right (Without Fasteners)	cr:1/5 c:Ø17.1 / 1,28 kg	8KD 407 152 B, 8K0 407 152 F (1) OEM
23AU2520B NEW	Track Rod Rear Left	1,75 kg	8K0 505 323 D, 8K0 505 323 H (1) OEM
23AU2521B NEW	Track Rod Rear Right	1,75 kg	8K0 505 324 H, 8K0 505 324 F (1) OEM
26AU2500	Stabiliser Link Rear	L:60.5 / 0,11 kg	8K0 505 465 E, 8K0 505 465 G
38AU0104	Silentblock for TCA	L:40 di:Ø10.1 do:Ø46.4 / 0,1 kg	4H0 407 515, 4H0 407 515 A (2) OEM
38AU0120	Silentblock for TCA	L:80 di:Ø13 do:Ø75 / 0,49 kg	8K0 407 183 G, 8K0 407 183 F (1) OEM
38AU0130	Silentblock for TCA	L:46 di:Ø12.2 do:Ø43.5 / 0,1 kg	8K0 501 541, 8K0 505 324 H* (26) OEM
38AU0229 NEW	Stabiliser Mounting	di:Ø29 / 0,06 kg	4D0 411 327 J

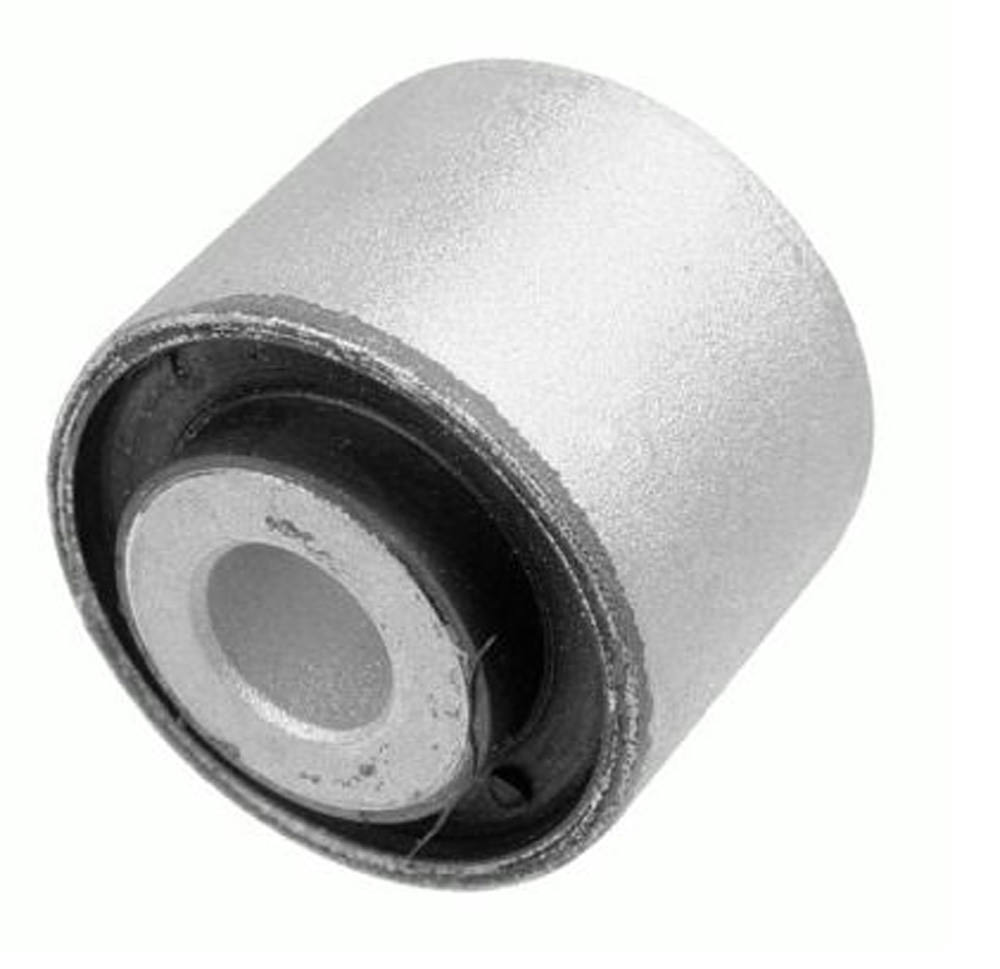

38AU2500	Silentblock for TCA	L:45 di:Ø12.1 do:Ø43.7 / 0,11 kg	80A 407 181, 4E0 407 181 B (9) OEM

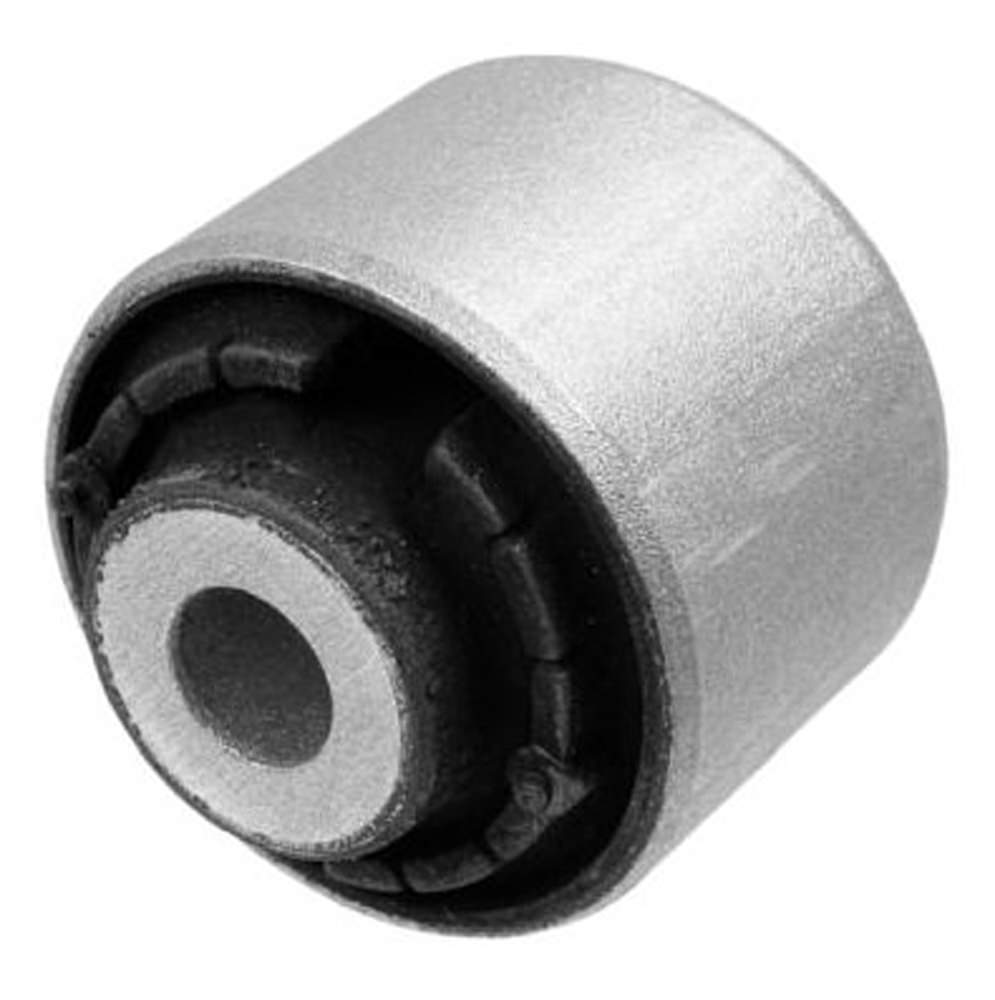

38AU2501	Silentblock for TCA	L:55 di:Ø12.1 do:Ø50.4 / 0,17 kg	8K0 407 182 B, 8K0 407 182 A (1) OEM
38AU2511	Silentblock for TCA	L:38 di:Ø12 do:Ø44.5 / 0,088 kg	8K0 501 530 K, 8K0 501 529 L (4) OEM
45AU2500	Strut Mount	L:54 di:Ø12 do:Ø112 / 0,35 kg	8K0 412 377 A, 8K0 412 377 C
45AU2510 NEW	Strut Mount	0,46 kg	8K0 513 353 D, 8K0 513 353 E (2) OEM
