10FR1705

- Ball Joint Lower

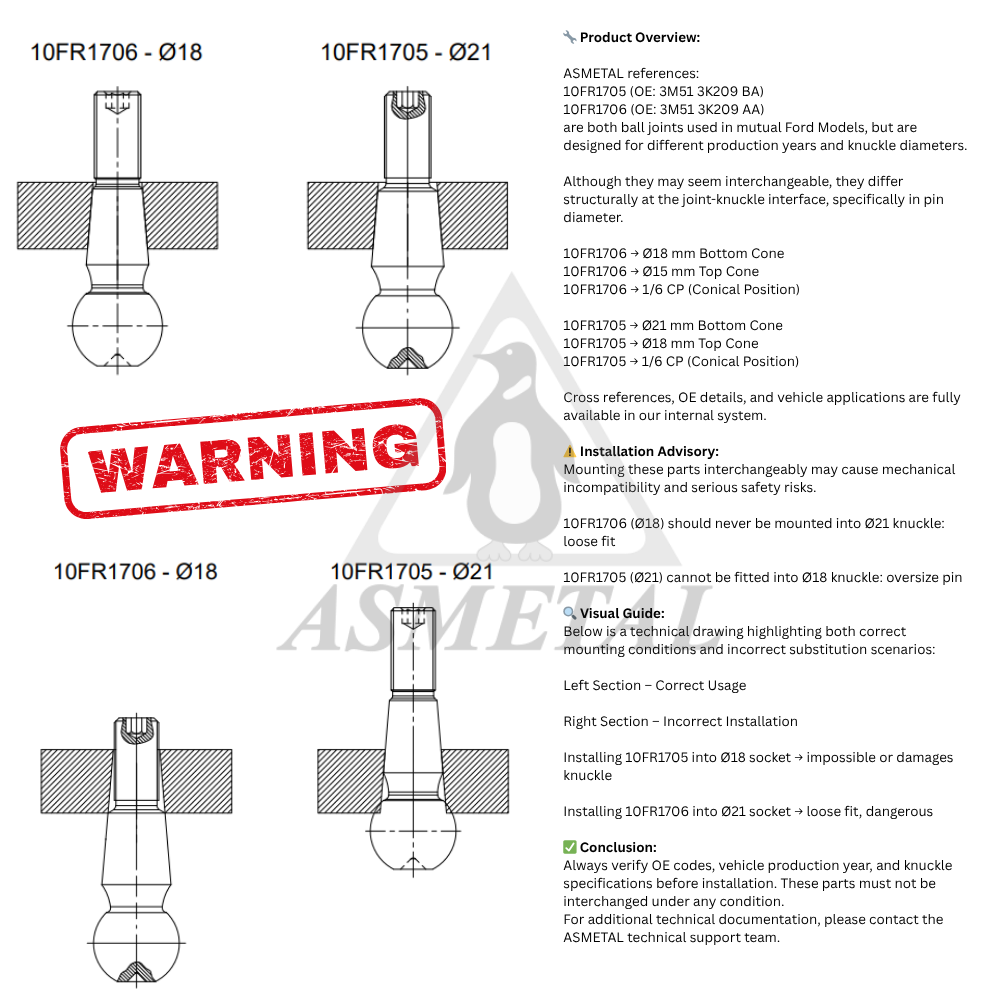

Material : Product Overview: ASMETAL references: 10FR1705 (OE: 3M51 3K209 BA) 10FR1706 (OE: 3M51 3K209 AA) are both ball joints used in mutual Ford models, but are designed for different production years and knuckle diameters. Although they may seem interchangeable, they differ structurally at the joint-knuckle interface, specifically in pin diameter. 10FR1706 → Ø18 mm Bottom Cone 10FR1706 → Ø15 mm Top Cone 10FR1706 → 1/6 CP (Conical Position) 10FR1705 → Ø21 mm Bottom Cone 10FR1705 → Ø18 mm Top Cone 10FR1705 → 1/6 CP (Conical Position) Cross references, OE details, and vehicle applications are fully available in our internal system. Installation Advisory: Mounting these parts interchangeably may cause mechanical incompatibility and serious safety risks. 10FR1706 (Ø18) should never be mounted into Ø21 knuckle: loose fit 10FR1705 (Ø21) cannot be fitted into Ø18 knuckle: oversize pin Visual Guide: Below is a technical drawing highlighting both correct mounting conditions and incorrect substitution scenarios: Left Section – Correct Usage Right Section – Incorrect Installation Installing 10FR1705 into Ø18 socket → impossible or damages knuckle Installing 10FR1706 into Ø21 socket → loose fit, dangerous Conclusion: Always verify OE codes, vehicle production year, and knuckle specifications before installation. These parts must not be interchanged under any condition. For additional technical documentation, please contact the ASMETAL technical support team.

Units Per Package : 24

Quantity Per Box / Bag : 1

Send E-Mail

Oem No	Brand
1 679 388	FORD
3M51 3K209 BA	FORD
1 470 387	FORD
1 679 388	FORD
ME4M 5J3395 AA	FORD USA
3M51 3K209 BA	FORD USA
312 01 180	VOLVO
307 60 280	VOLVO
307 60 279	VOLVO
312 62 039	VOLVO
312 77 463	VOLVO
312 62 037	VOLVO
312 01 181	VOLVO
312 01 180	VOLVO
312 77 462	VOLVO
312 01 181	VOLVO

Ref No	Brand
220465	A.****
92-05947	AY*
043275B	BE****
BBJ5536	BO*********
CBF-32	CT*
CB0033	CT*
TC1971	DE****
D110060	DE*********
27-20491	DY*
825 0279 10	FA*
30380	FE***********
FBJ5536	FI********
1504022	FO******
8500 10575	KA**
31350 01	LE********
52606	MA***
57012818	ME*****
716 010 0017	ME***
VV-BJ-4873	MO**
VSJ950	MO******
5042526	NK
0403135	OC**
G3-1005	OP*****
02075	OR***************
QSJ3332S	QU************
93-90618-056	RT*
916552	RU*****
7576041	SA***
67082	SI***
50334	SP******************
50 93 0380	SW**
FO-464	TE******
JBJ740	TR*

Dimensions
th:M14x1.5 RHT cp:1/6 cs:Ø18

EAN Weight
8680617000635 0,75 kg

Paired ASMETAL Reference
10FR1705

General Product Type
Suspension Parts

Axle Position
Front Axle

Brand	Type	Model	Fit To
FORD	C-MAX	C-MAX I (CB3,DM2) [02/2007 - 09/2010]	All Types
FORD	FOCUS	FOCUS II (DA_,HCP,DP) [07/2004 - 09/2012]	03/2006 -> Bottom Cone Ø21
FORD	FOCUS	FOCUS C-MAX (CAP) [10/2003 - 03/2007]	03/2006 -> Bottom Cone Ø21
VOLVO	C30	C30 (533) [10/2006 - 12/2012]	-> Chass. 260 Exc. Sport
VOLVO	C70	C70 II Convertible (542) [03/2006 - 06/2013]	-> Chass. 2026
VOLVO	S40	S40 II MS (544) [01/2004 - 05/2012]	-> Chass. 209290
VOLVO	V50	V50 MW (545) [04/2004 - 05/2012]	-> Chass. 214682
