10DC1005
|
Ball Joint Lower |
tp:M12x1.25 RHT cr:1/5 c:Ø17.08 / 0,66 kg |
54 50 116 97R*, 40 16 023 08R (10) OEM |
 |
10DC1010
|
Ball Joint Lower |
th:M12x1.5 RHT cr:1/5 c:Ø17.1 / 0,82 kg |
40 16 098 14R, 54 50 402 80R (1) OEM |
 |
10NS1000
|
Ball Joint Lower |
c:Ø20 do:Ø41.3 / 0,38 kg |
54501 9W20C*, 54500 BB00A (26) OEM |
 |
10NS2310
IN PREPARATION
|
Ball Joint Upper |
|
470 330 13 00, 470 330 15 00 (6) OEM |
 |
10RN0500
|
Ball Joint |
th:M12x1.25 RHT cr:1/5 c:Ø14.6 do:Ø38.35 / 0,31 kg |
77 00 829 322, 77 00 807 194 (2) OEM |
 |
10RN0510
|
Ball Joint |
tp:M16x1.5 cr:1/5 c:Ø17.9 / 0,68 kg |
54503 00QAA, 54502 00QAA (20) OEM |
 |
10RN0515
|
Ball Joint |
th:M12x1.25 RHT cr:1/5 c:Ø15.7 / 0,64 kg |
40 16 000 04R, 54 50 000 02R* (1) OEM |
 |
10RN0520
|
Ball Joint Lower |
th:M16x1.5 RHT cr:1/5 c:Ø17.2 / 0,76 kg |
60 00 618 836*, 60 00 618 835* (6) OEM |
 |
10RN0530
|
Ball Joint Lower |
th:M12x1.25 RHT cr:1/5 c:Ø15.7 / 0,6 kg |
54 50 092 46R*, 54 50 119 52R* |
 |
10RN1000
|
Ball Joint Upper |
th:M16x1.5 RHT cp:1/8 cs:Ø21,3 / 0,73 kg |
5000384809, 5000387654 (1) OEM |
 |
10RN1005
|
Ball Joint Lower |
th:M16x1.5 RHT cr:1/8 c:Ø21.25 / 0,7 kg |
77 01 462 693, 50 00 387 653 (1) OEM |
 |

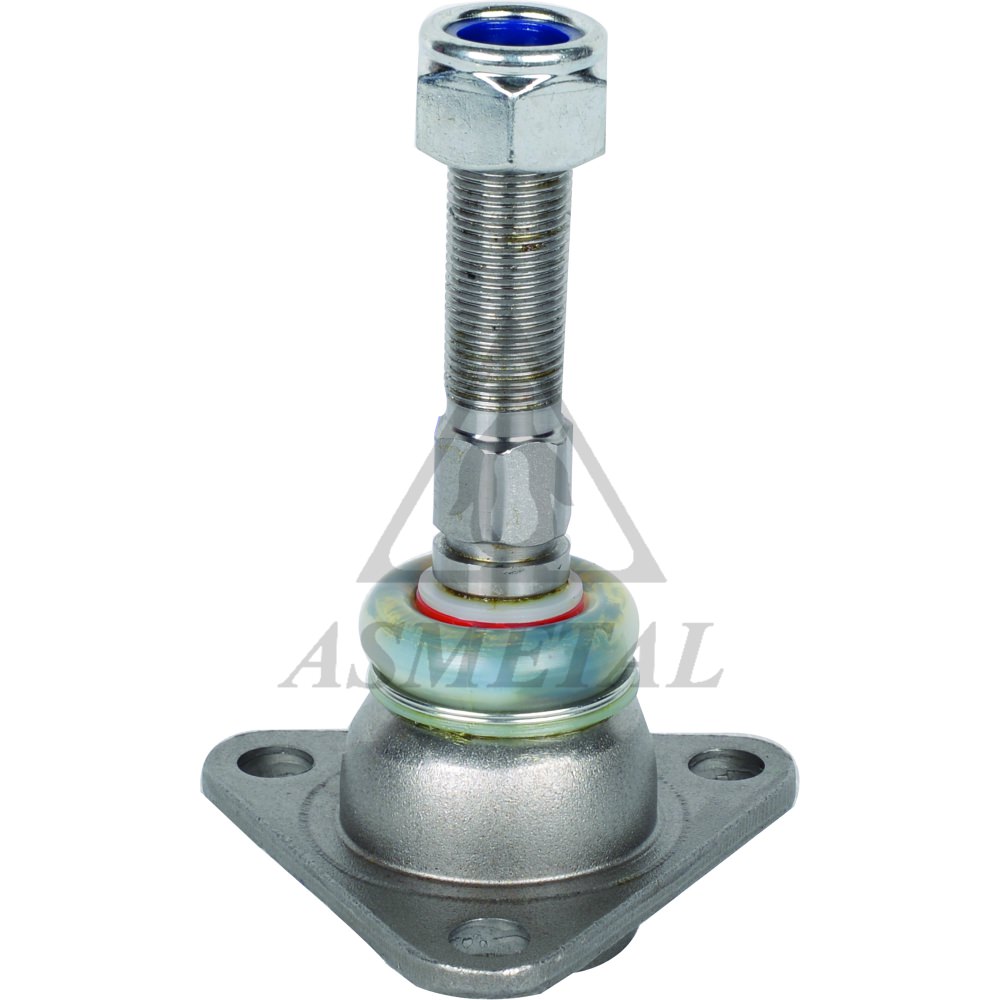

10RN1010
|
Ball Joint (Chassis) |
th:M18x1.5 RHT / 0,98 kg |
|
 |
10RN1100
|
Ball Joint Upper |
tp:M14x1.5 RHT cr:1/5 c:Ø16.1 do:Ø45.5 / 0,52 kg |
40160 00QAB, 45 00 254 (2) OEM |
 |
10RN1105
|
Ball Joint Lower |
c:Ø22 / 0,42 kg |
40160 00QAD*, 40160 00QAC* (6) OEM |
 |
10RN1110
|
Ball Joint Upper |
c:Ø16.4 cr:1/10 / 0,83 kg |
40110 00QAA, 40110 00QAB (6) OEM |
 |
10RN1112
|
Ball Joint Lower |
c:Ø24 do:Ø43.5 / 0,46 kg |
40160 00Q0B, 44 18 631 (2) OEM |
 |
10RN1120
|
Ball Joint Lower |
tp:M16x1.5 RHT cr:1/5 c:Ø18.1 tp2:M45x1.5 RHT / 0,54 kg |
40160 00Q0E, 40160 00Q0K (9) OEM |
 |

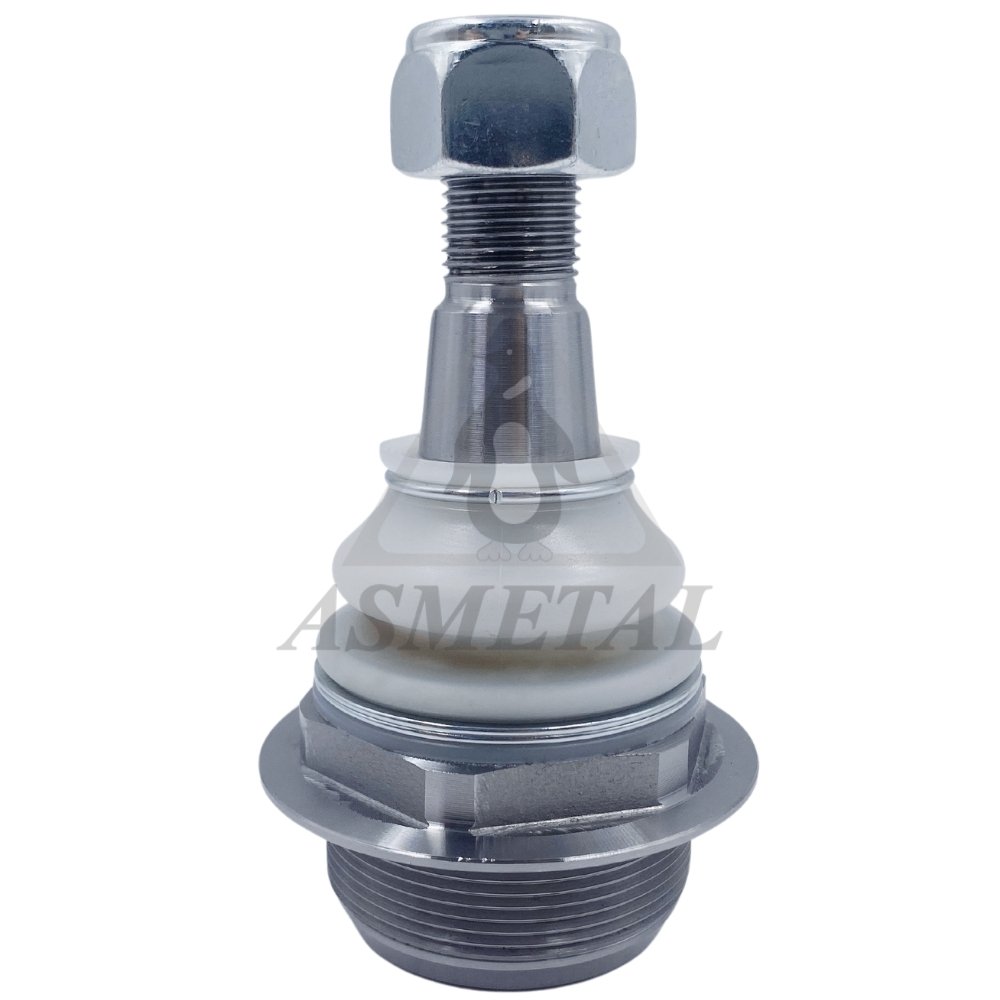

10RN1121
|
Ball Joint Right |
tp:M16x1.5 RHT cr:1/5 c:Ø18.1 tp2:M45x1.5 LHT / 0,54 kg |
40160 00Q0F, 44 08 252 (6) OEM |
 |

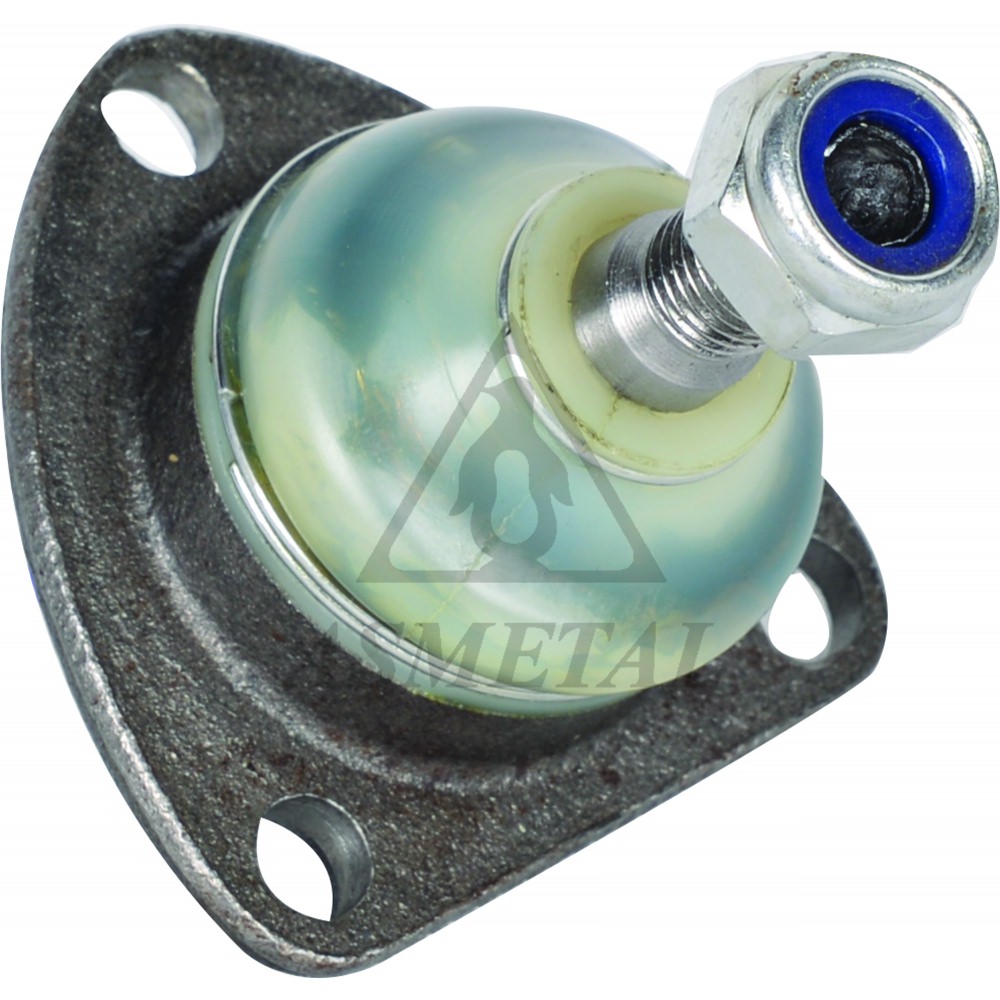

10RN1515
|
Ball Joint Upper |
th:M10x1.25 RHT cp:1/10 cs:Ø11,4 / 0,32 kg |
77 01 451 904 |
 |
10RN1575
|
Ball Joint Lower Right |
th:M12x1.25 RHT cr:1/10 c:Ø12.6 / 0,38 kg |
77 01 463 687, 77 01 462 283 (3) OEM |
 |
10RN1585
|
Ball Joint Lower Left |
th:M12x1.25 RHT cr:1/10 c:Ø12.6 / 0,34 kg |
77 01 461 161, 77 01 450 636 (3) OEM |
 |
10RN2000
|
Ball Joint |
c:Ø15.95 & 2xM10 / 0,52 kg |
77 01 472 038, 54501 00QAH* (3) OEM |
 |
10RN2001
|
Ball Joint |
c:Ø15.95 & 2xM12 / 0,56 kg |
82 00 254 109, 60 40 002 292 (30) OEM |
 |
10RN2020
IN PREPARATION
|
Ball Joint |
|
82 00 763 296, 82 00 942 396 (2) OEM |
 |

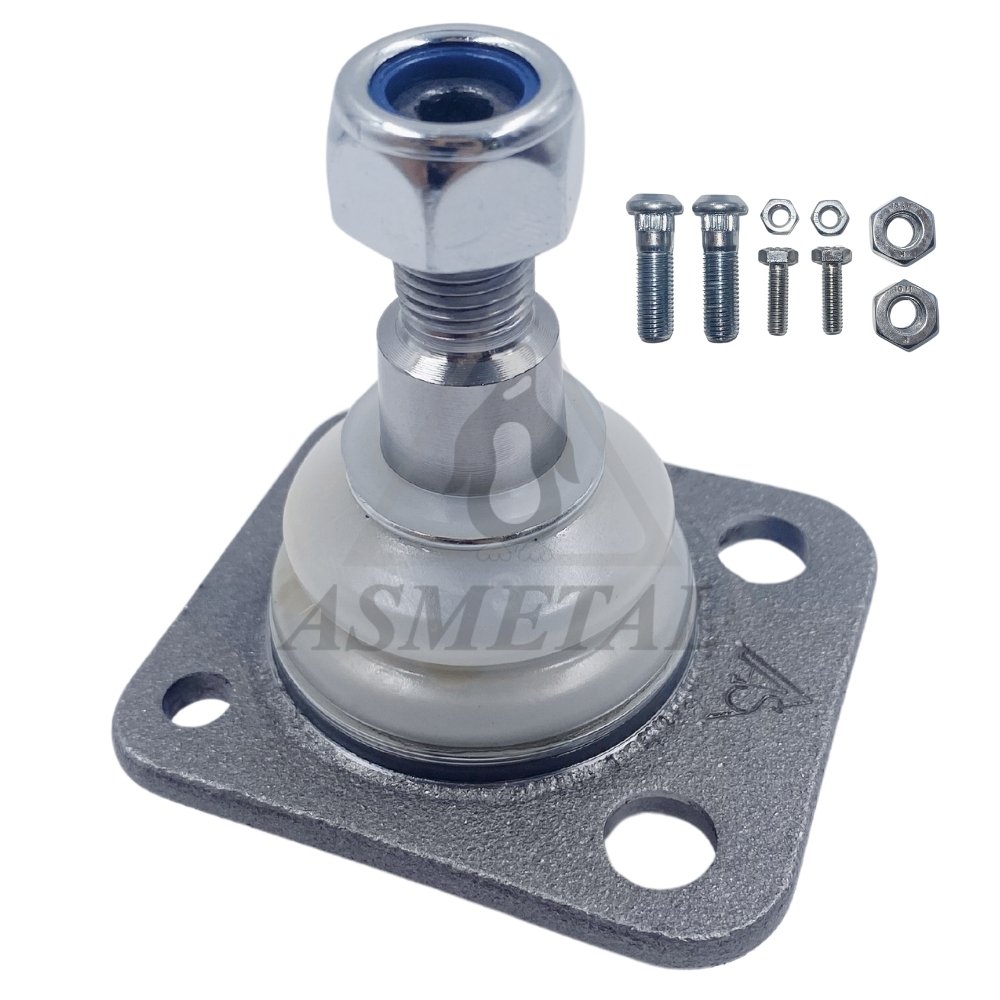

10RN4015
|
Ball Joint Upper |
tp:M12x1.25 RHT cr:1/10 c:Ø15.8 / 0,43 kg |
77 01 468 820, 77 01 460 885 (1) OEM |
 |
10RN4055
|
Ball Joint Lower |
tp:M12x1.25 RHT cr:1/10 c:Ø15.8 / 0,42 kg |
77 01 468 821, 77 01 460 886 (2) OEM |
 |
10RN5000
|
Ball Joint Lower |
th:M12x1.25 RHT cr:1/5 c:Ø14.45 / 0,54 kg |
77 00 649 400, 77 01 461 331 |
 |
10RN5001
|
Ball Joint Upper |
th:M12x1.25 RHT cr:1/5 c:Ø14.45 / 0,46 kg |
77 01 461 332 |
 |
10RN5100
|
Ball Joint |
c:Ø17.95 / 0,72 kg |
77 01 464 037 |
 |

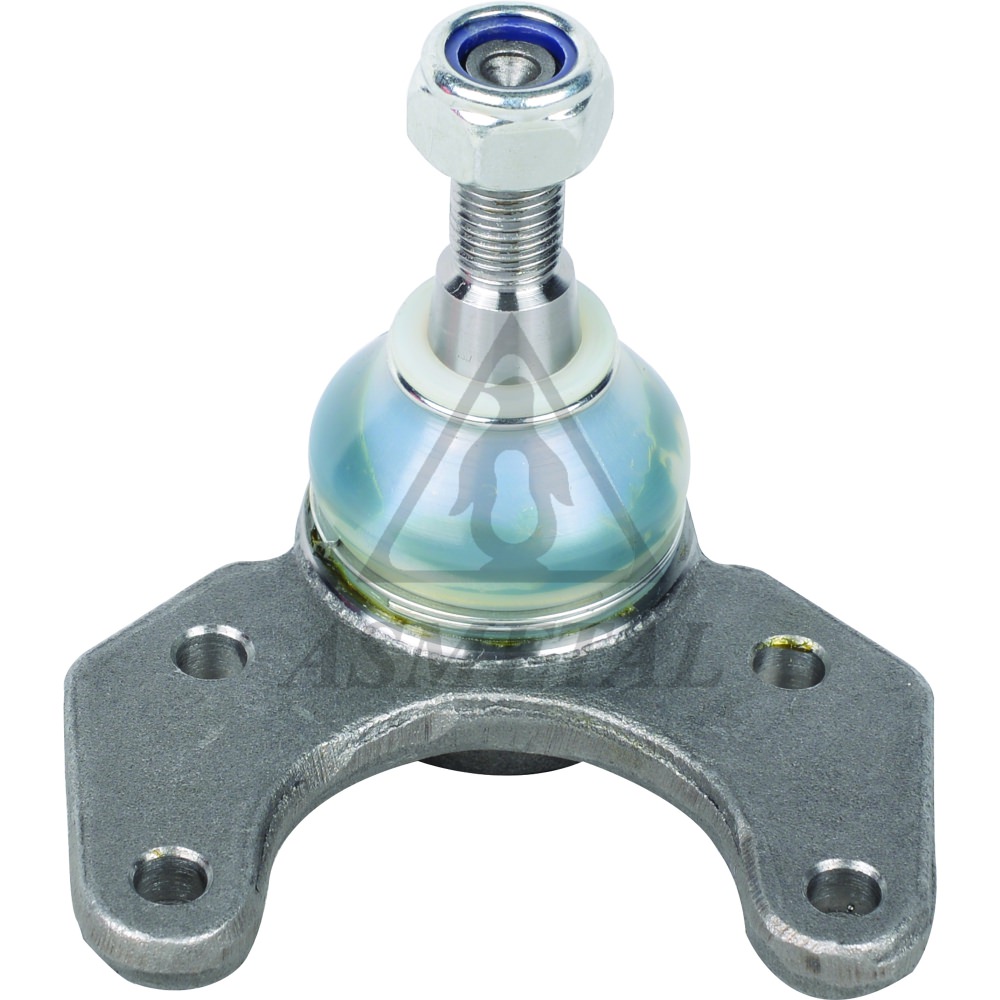

10RN5200
|
Ball Joint Lower |
th:M12x1.25 RHT cr:1/5 c:Ø14.45 / 0,55 kg |
77 01 463 230, 77 01 465 689 |
 |

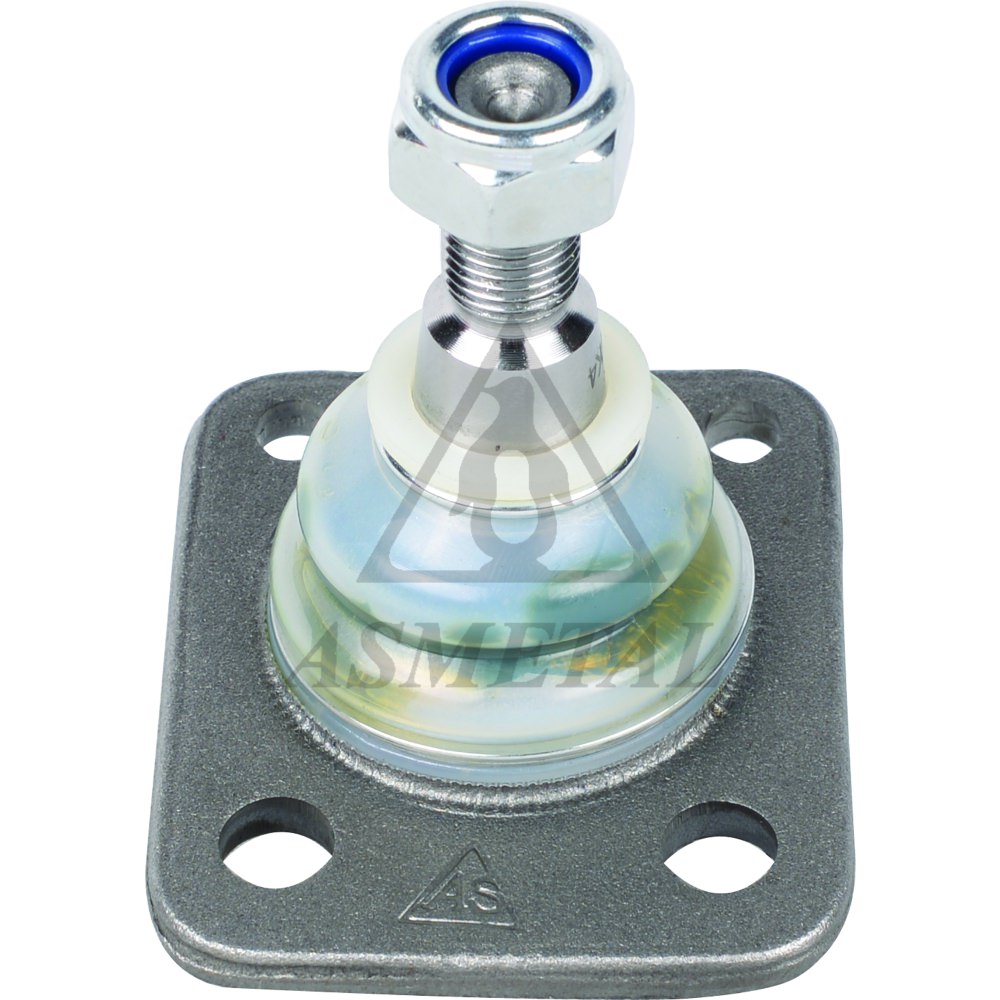

10RN5201
|
Ball Joint Upper |
th:M12x1.25 RHT cr:1/6 c:Ø14.9 / 0,48 kg |
77 01 469 228, 77 01 463 229 |
 |
10RN5205
|
Ball Joint Lower |
th:M12x1.25 RHT cr:1/5 c:Ø15.7 do:Ø38.5 / 0,3 kg |
60 25 305 571, 60 25 308 155 |
 |
10RN53
|
Ball Joint |
th:M16x1.5 RHT cr:1/10 c:Ø17.6 / 0,7 kg |
44 03 641, 77 01 461 667 (1) OEM |
 |

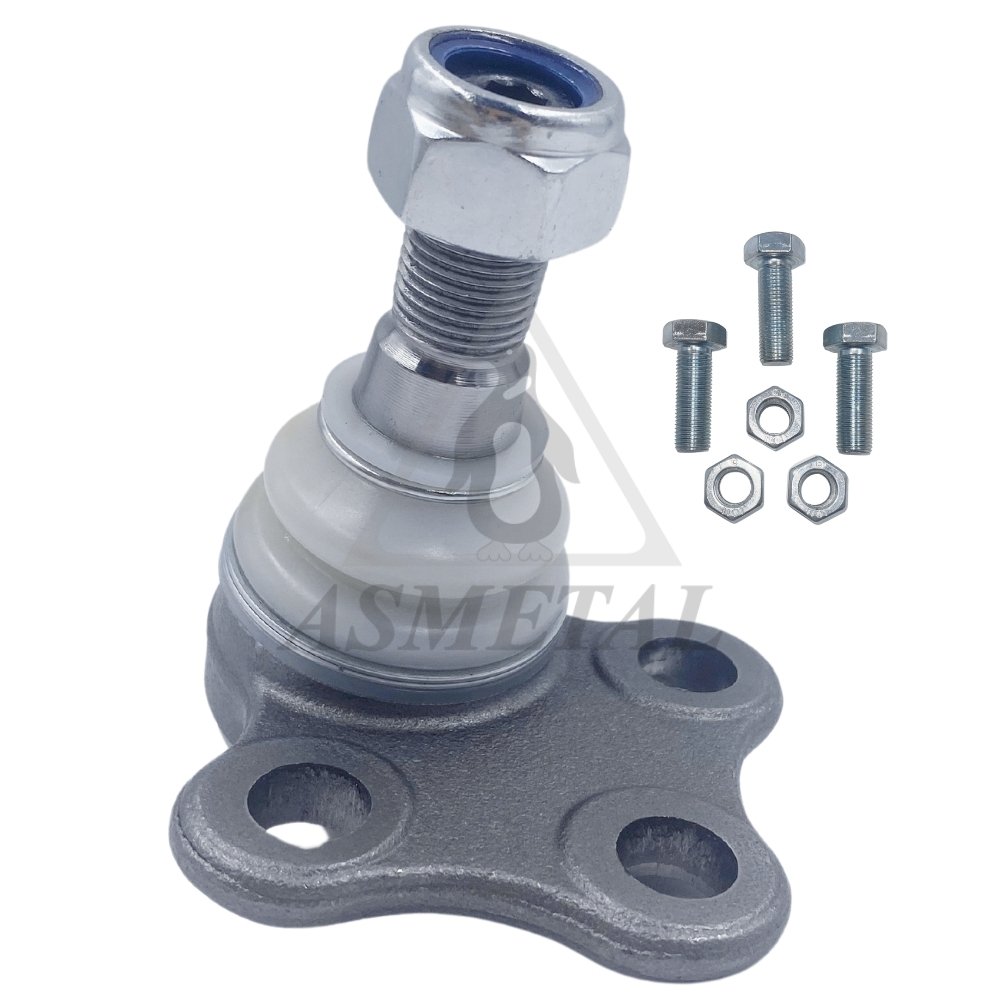

10RN5310
|
Ball Joint |
tp:M16x1.5 RHT cr:1/5 c:Ø17.9 / 0,71 kg |
40160 00Q0A, 40160 00Q0C (4) OEM |
 |

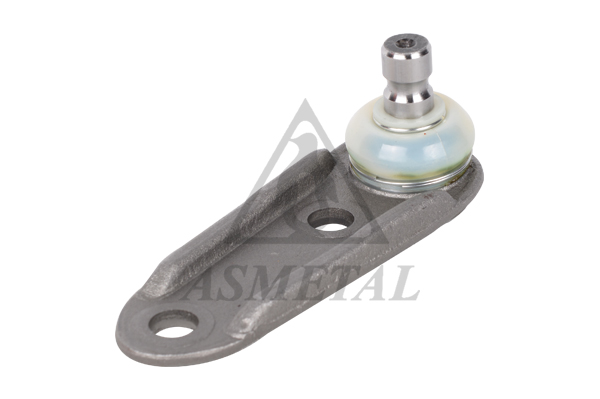

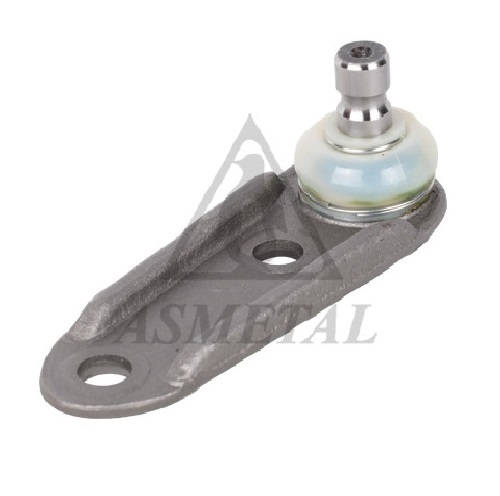

10RN5500
|
Ball Joint Lower |
c:Ø15.95 / 0,66 kg |
77 01 469 464, 77 00 834 918 |
 |
10RN5540
|
Ball Joint Lower |
c:Ø15.95 do:Ø38.35 / 0,25 kg |
82 00 739 484, 82 00 739 482 (6) OEM |
 |
10RN5541
|
Ball Joint Lower |
c:Ø18 do:Ø38.35 / 0,27 kg |
54 50 042 69R, 60 01 549 181 (25) OEM |
 |
10RN5560
|
Ball Joint Lower |
c:Ø18 do:Ø38.35 / 0,28 kg |
82 01 093 259, 40 16 040 02R (6) OEM |
 |

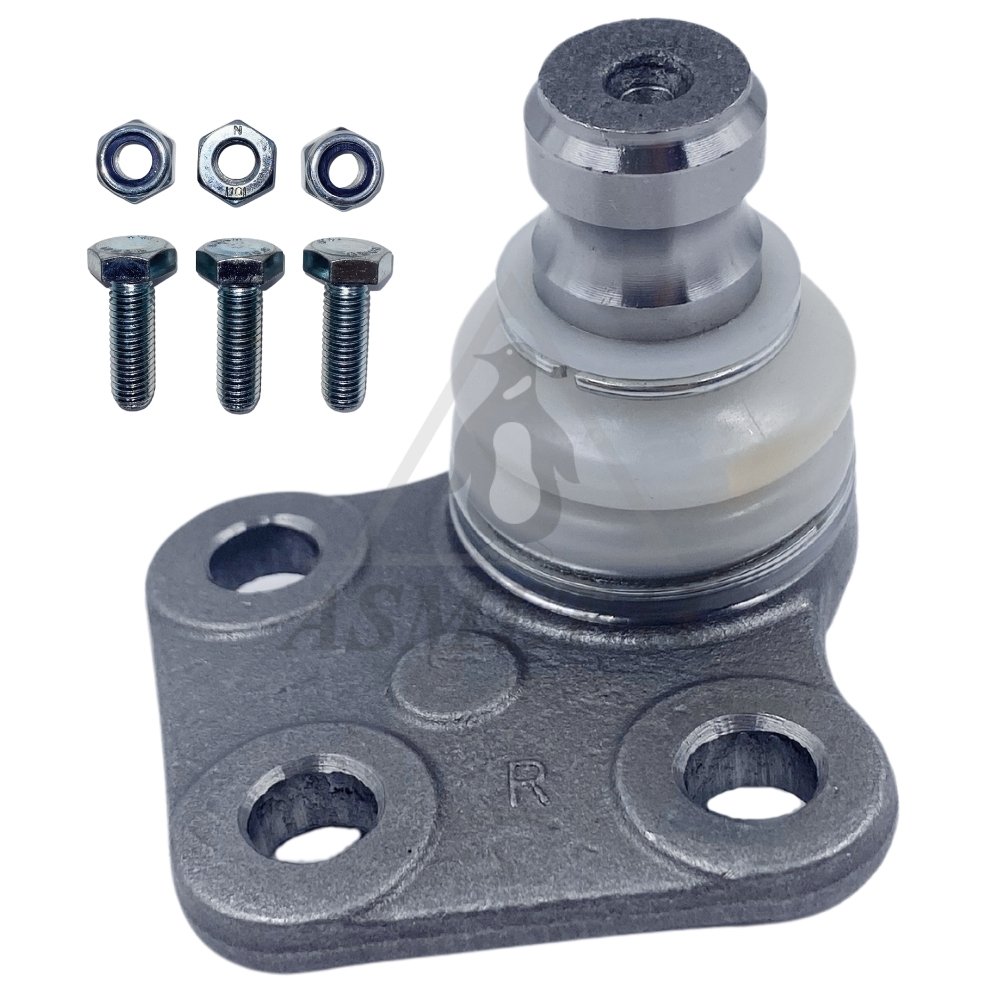

10RN5605
|
Ball Joint Lower Right |
c:Ø20 / 0,56 kg |
A 415 330 02 00, 415 330 02 00 (1) OEM |
 |
10RN5606
|
Ball Joint Lower Left |
c:Ø20 / 0,56 kg |
415 330 03 00, A 415 330 03 00 (1) OEM |
 |
10RN5610
|
Ball Joint |
tp:M12x1.25 RHT cr:1/5 c:Ø17.08 / 0,64 kg |
40 16 000 05R, 40 16 090 60R (1) OEM |
 |
10RN5700
|
Ball Joint Lower |
tp:M12x1.5 cr:1/5 c:Ø15.85 / 0,76 kg |
54 50 472 75R*, 54 50 496 71R* (2) OEM |
 |
10RN5710
|
Ball Joint Lower |
c:Ø22 / 0,72 kg |
54 50 574 49R*, 54 50 547 33R* (2) OEM |
 |
10RN5800
|
Ball Joint |
th:M12x1.25 RHT cr:1/5 c:Ø17.2 / 0,72 kg |
54504 00Q0D*, 54505 00Q0D* (6) OEM |
 |
13DC1000
|
Suspension KIT (TCA KIT) |
7,4 kg |
60 01 550 446, 60 01 547 606* |
 |
13DC2000
|
Suspension KIT (TCA KIT) |
7,3 kg |
48 52 028 67R*, 60 01 550 442* (5) OEM |
 |
17DC1000
|
Tie Rod End Left |
L:213 cr:1/5 c:Ø12.1 tp:M10x1.25 th:FM14x1.5 RHT / 0,65 kg |
48 52 028 67R, 60 01 550 442 (2) OEM |
 |
17DC1001
|
Tie Rod End Right |
L:213 cr:1/5 c:Ø12.1 tp:M10x1.25 th:FM14x1.5 RHT / 0,65 kg |
60 01 547 611, 48 52 004 10R (2) OEM |
 |
17DC1005
|
Tie Rod End Left |
L:221 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,7 kg |
82 01 108 339, 86 60 003 544 |
 |
17DC1006
|
Tie Rod End Right |
L:221 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,7 kg |
82 01 108 332, 86 60 003 545 |
 |
17DC1100
|
Tie Rod End Left |
L:209 cr:1/5 c:Ø11.9 tp:M10x1.25 th:FM14x1.5 RHT / 0,70 kg |
48 64 019 37R |
 |

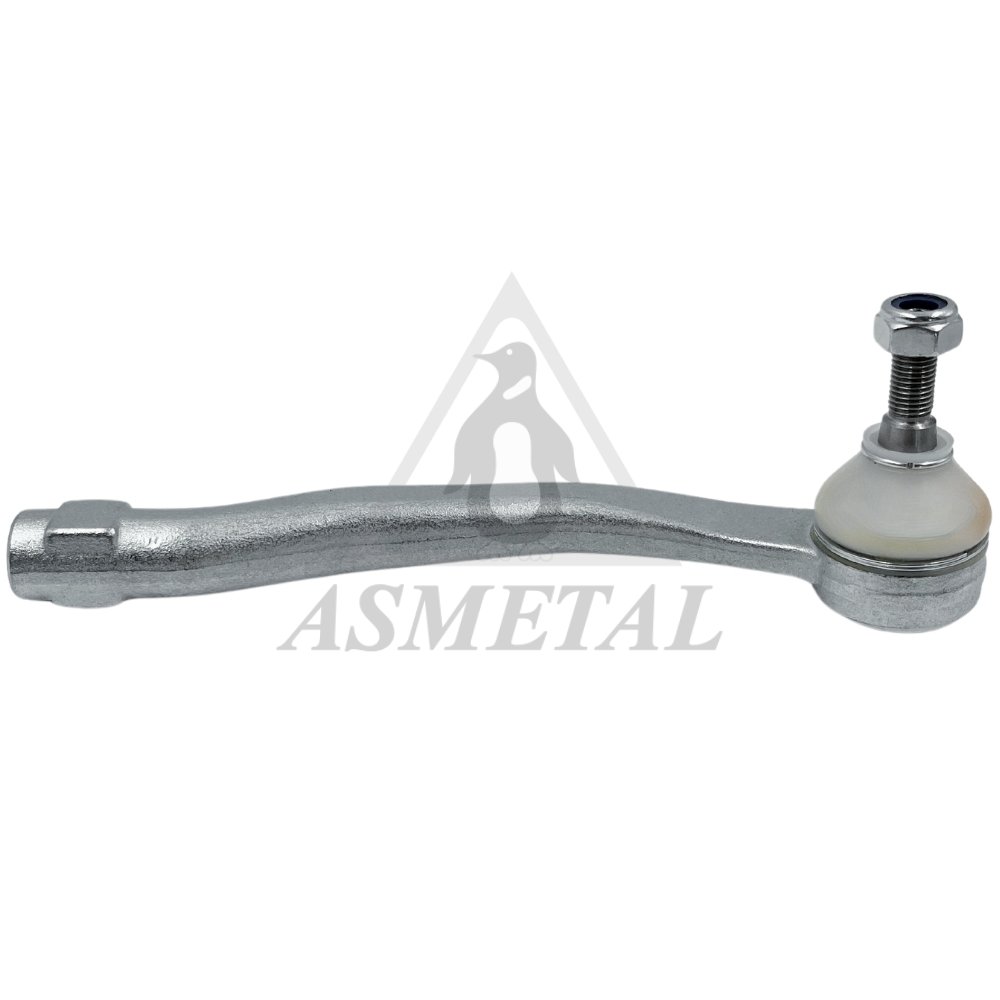

17DC1101
|
Tie Rod End Right |
L:209 cr:1/5 c:Ø11.9 tp:M10x1.25 th:FM14x1.5 RHT / 0,70 kg |
48 52 049 98R |
 |
17NS1000
|
Tie Rod End Left |
L:181 cr:1/5 c:Ø11.7 tp:M10x1.25 th:FM14x1.5 RHT / 0,58 kg |
48647 JD01A, D8640 JG00A (1) OEM |
 |
17NS1001
|
Tie Rod End Right |
L:181 cr:1/5 c:Ø11.7 tp:M10x1.25 th:FM14x1.5 RHT / 0,58 kg |
48527 JD01A, D8520 JG00A (1) OEM |
 |
17NS1004
NEW
|
Tie Rod End Left |
0,74 kg |
D8640 4BA0A, 48 52 022 60R |
 |
17NS1005
NEW
|
Tie Rod End Right |
0,74 kg |
D8520 4BA0A, 48 52 050 41R |
 |

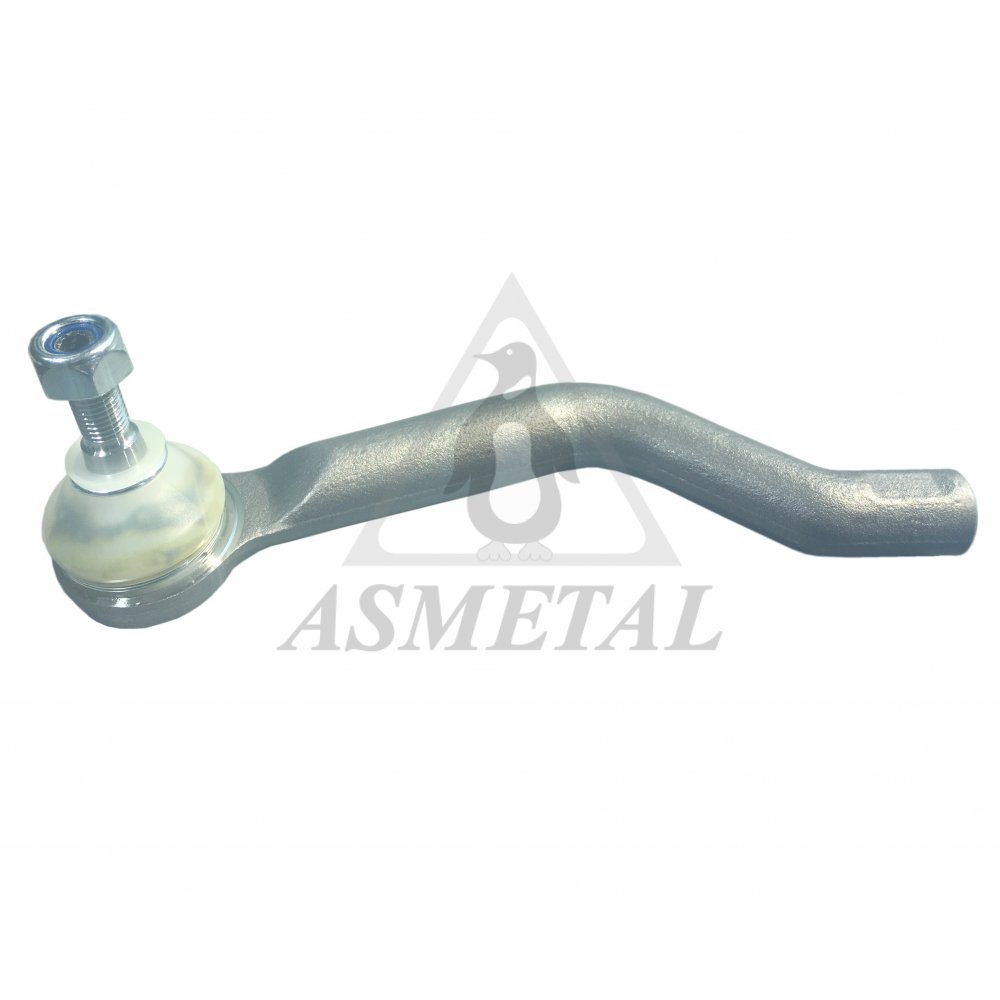

17NS1010
|
Tie Rod End Left |
L:193 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,69 kg |
D8640 4EA0A, 48 64 04E A0A |
 |
17NS1011
|
Tie Rod End Right |
L:193 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,69 kg |
D8520 4EA0A, 48 52 04E A0A |
 |
17NS1030
IN PREPARATION
|
Tie Rod End Left |
|
49001 6US1D*, 49001 6US1E* (1) OEM |
 |
17NS1031
IN PREPARATION
|
Tie Rod End Right |
|
49001 6US1D*, 49001 6US1E* (1) OEM |
 |
17RN0500
|
Tie Rod End Left |
L:176 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,63 kg |
60 00 022 737, 60 20 022 737 |
 |
17RN0501
|
Tie Rod End Right |
L:176 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,63 kg |
60 20 022 736, 60 00 022 736 |
 |
17RN0510
|
Tie Rod End Left |
L:210 cr:1/5 c:Ø11.9 tp:M10x1.25 th:FM14x1.5 RHT / 0,64 kg |
6000 617 476, 48520 00QAK (9) OEM |
 |
17RN0511
|
Tie Rod End Right |
L:210 cr:1/5 c:Ø11.9 tp:M10x1.25 th:FM14x1.5 RHT / 0,64 kg |
60 006 174 75, 48520 00Q0K (8) OEM |
 |

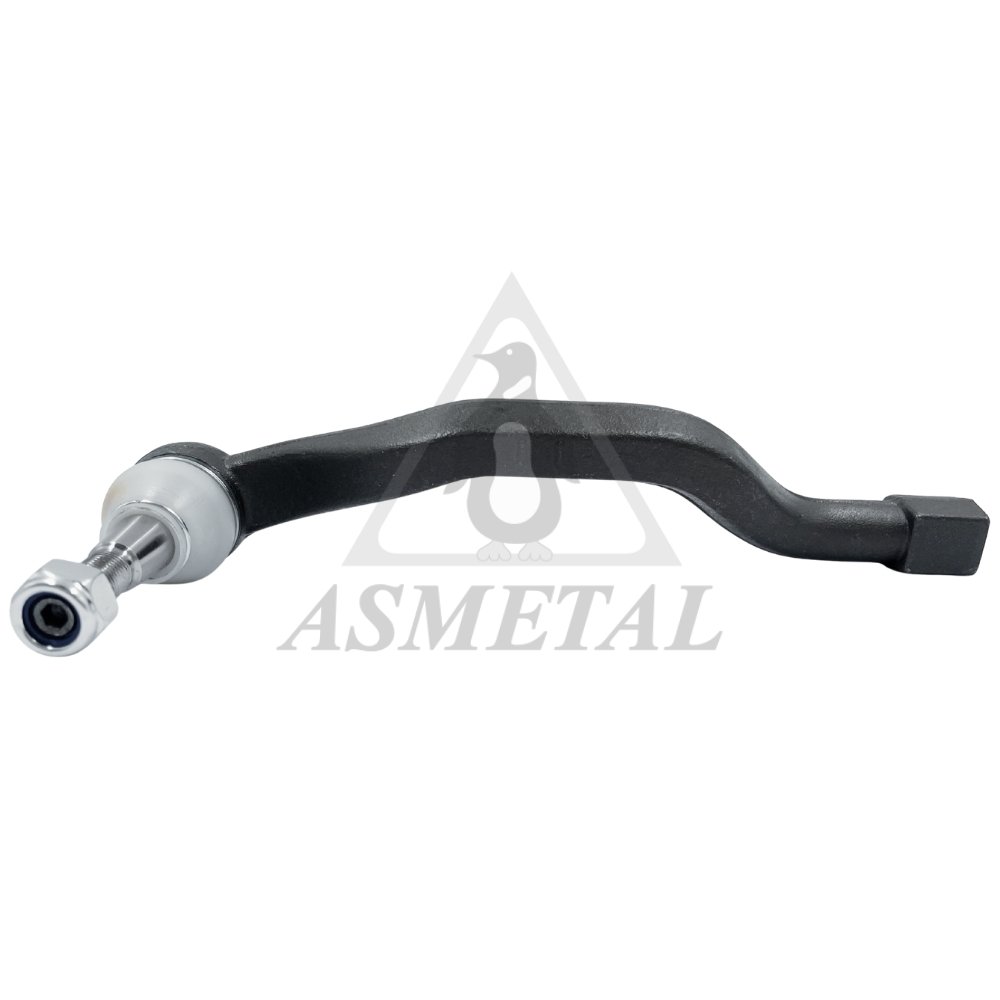

17RN0515
|
Tie Rod End Left |
L:240 cr:1/6 c:Ø13.85 tp:M12x1.25 th:FM14x1.5 RHT / 0,92 kg |
48 52 015 02R, 48 52 000 01R |
 |

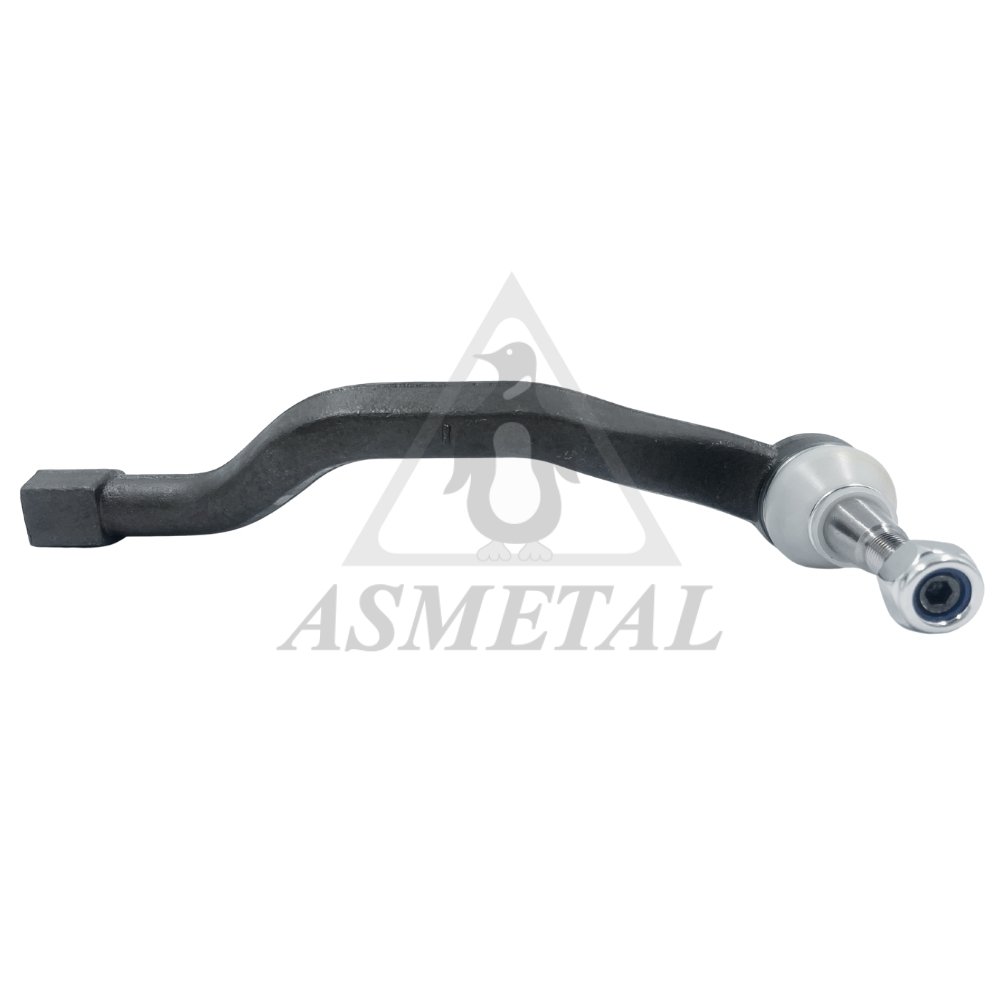

17RN0516
|
Tie Rod End Right |
L:240 cr:1/6 c:Ø13.85 tp:M12x1.25 th:FM14x1.5 RHT / 0,92 kg |
48 52 000 02R, 48 52 027 33R |
 |
17RN1000
|
Tie Rod End |
c:Ø11,6 th:MM14x1,5 RHT / 0,33 kg |
77 01 460 955 |
 |
17RN1005
OUT OF SERVICE
|
Tie Rod End |
c:Ø16,8 th:FM16x1,5 RHT / 0,59 kg |
77 01 462 427 |
 |
17RN1015
|
Tie Rod End Left |
L:180 cr:1/5 c:Ø11.7 tp:M10x1.25 th:FM14x1.5 RHT / 0,64 kg |
D8640 JY00A |
 |

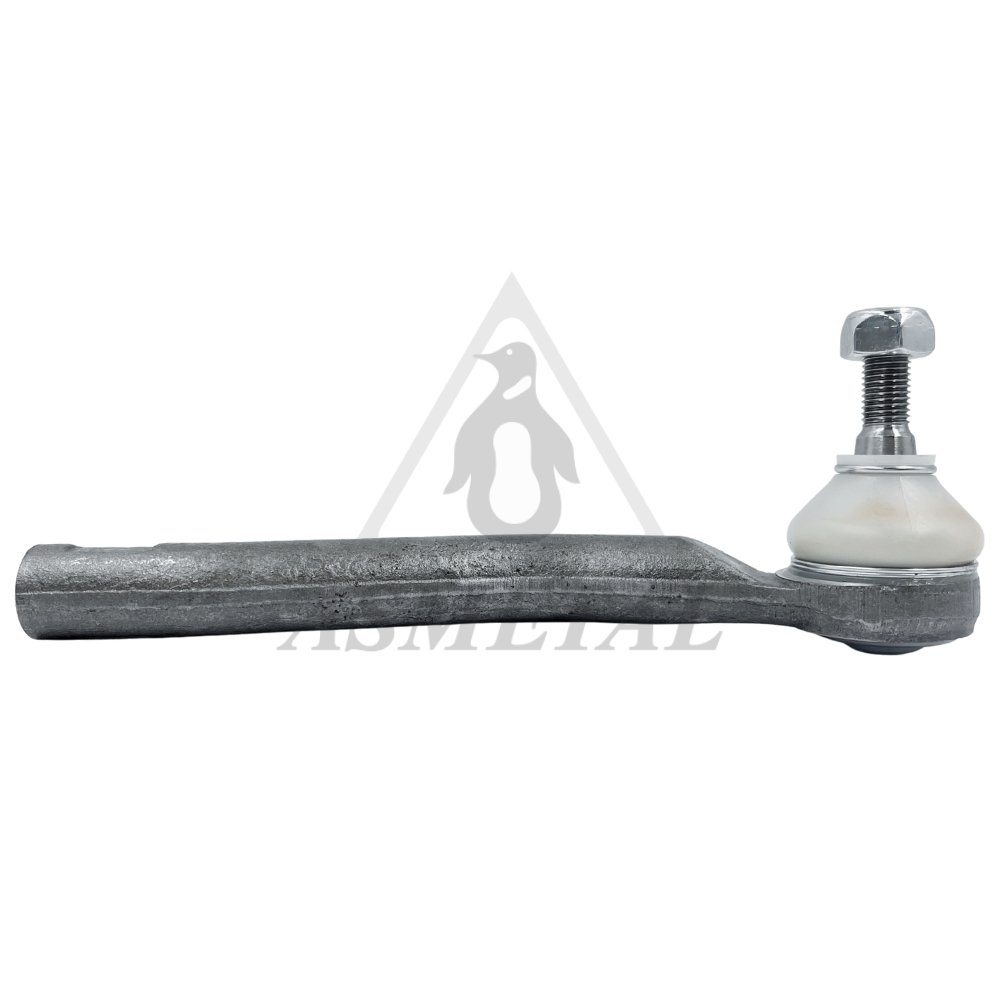

17RN1016
|
Tie Rod End Right |
L:180 cr:1/5 c:Ø11.7 tp:M10x1.25 th:FM14x1.5 RHT / 0,64 kg |
D8 52 0JY 00A, 48 52 006 04R |
 |
17RN1100
|
Tie Rod End Left |
L:222 cr:1/5 c:Ø16.4 tp:M14x1.5 th:FM16x1.5 RHT / 0,9 kg |
48520 00QAH, 45 01 262 (2) OEM |
 |
17RN1101
|
Tie Rod End Right |
L:222 cr:1/5 c:Ø16.4 tp:M14x1.5 th:FM16x1.5 RHT / 0,9 kg |
48520 00QAJ, 45 01 263 (2) OEM |
 |
17RN1120
|
Tie Rod End Left |
L:235 cr:1/5 c:Ø16.46 tp:M14x1.5 th:FM18x1.5 RHT / 1,1 kg |
48520 00Q0F, 44 20 097 (2) OEM |
 |
17RN1121
|
Tie Rod End Right |
L:235 cr:1/5 c:Ø16.46 tp:M14x1.5 th:FM18x1.5 RHT / 1,1 kg |
48520 00Q0E, 44 20 098 (2) OEM |
 |
17RN1130
IN PREPARATION
|
Tie Rod End Left |
|
48 64 072 02R, 49 00 429 56R (1) OEM |
 |
17RN1131
IN PREPARATION
|
Tie Rod End Right |
|
48 52 005 33R, 49 00 429 56R (1) OEM |
 |
17RN2000
|
Tie Rod End |
L:99 cr:1/5 c:Ø12 tp:M10x1.25 th:MM14x1.5 RHT / 0,33 kg |
77 01 469 231, 77 01 464 151 (1) OEM |
 |

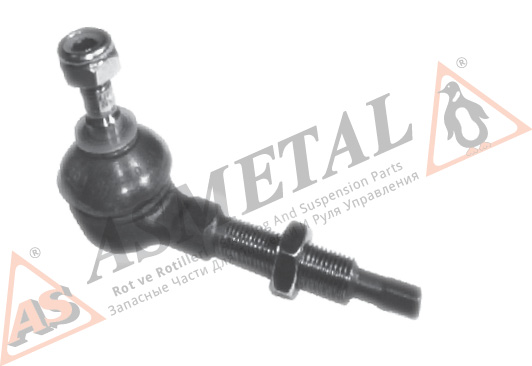

17RN2005
OUT OF SERVICE
|
Tie Rod End |
c:Ø12 / 0,35 kg |
77 01 469 230, 77 01 464 441 (1) OEM |
 |
17RN3500
|
Tie Rod End Left |
c:Ø11,9 th:FM14x1,5 RHT / 0,42 kg |
77 01 467 273, 77 01 466 159 (2) OEM |
 |
17RN3550
|
Tie Rod End Left |
L:115 cr:1/5 c:Ø11.95 tp:M10x1.25 th:FM14x1.5 RHT / 0,47 kg |
60 00 022 730 |
 |
17RN3551
|
Tie Rod End Right |
L:115 cr:1/5 c:Ø11.95 tp:M10x1.25 th:FM14x1.5 RHT / 0,47 kg |
60 00 022 731 |
 |
17RN3600
|
Tie Rod End Right |
c:Ø11,9 th:MM14x1,5 RHT / 0,42 kg |
77 01 467 274, 77 01 466 159 (2) OEM |
 |
17RN3800
|
Tie Rod End Left |
L:156 cr:1/5 c:Ø12 tp:M10x1.25 th:FM14x1.5 RHT / 0,54 kg |
77 01 476 762, 77 01 471 145 (1) OEM |
 |
17RN3801
|
Tie Rod End Right |
L:156 cr:1/5 c:Ø12 tp:M10x1.25 th:FM14x1.5 RHT / 0,54 kg |
77 01 476 763, 77 01 471 146 (1) OEM |
 |
17RN4000
|
Tie Rod End |
L:61.5 tp:M10x1.25 th:MM12x1 RHT / 0,18 kg |
77 00 504 987 |
 |
17RN5000
|
Tie Rod End Left |
L:113 cr:1/5 c:Ø11.9 tp:M10x1.25 th:MM14x1.5 RHT / 0,4 kg |
60 00 030 047 |
 |
17RN5001
|
Tie Rod End Right |
L:113 cr:1/5 c:Ø11.9 tp:M10x1.25 th:MM14x1.5 RHT / 0,4 kg |
60 00 030 048 |
 |
17RN5200
|
Tie Rod End Left |
L:204 cr:1/6 c:Ø12.18 tp:M10x1.25 th:FM14x1.5 RHT / 0,8 kg |
60 25 370 229, 60 00 022 762 |
 |
17RN5201
|
Tie Rod End Right |
L:204 cr:1/6 c:Ø12.18 tp:M10x1.25 th:FM14x1.5 RHT / 0,8 kg |
60 25 370 230, 60 00 022 761 |
 |
17RN5500
|
Tie Rod End Right |
L:131 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,49 kg |
77 01 470 766, 60 00 022 721 (4) OEM |
 |
17RN5501
|
Tie Rod End Left |
L:131 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,49 kg |
77 01 834 570, 77 01 476 760 (4) OEM |
 |
17RN5520
|
Tie Rod End Left |
L:90 cr:1/5 c:Ø12 tp:M10x1.25 th:FM14x1.5 RHT / 0,34 kg |
48640 AX602, 48520 00QAN (8) OEM |
 |
17RN5521
|
Tie Rod End Right |
L:90 cr:1/5 c:Ø12 tp:M10x1.25 th:FM14x1.5 RHT / 0,34 kg |
48520 AX602, 48520 00QAP (7) OEM |
 |
17RN5540
|
Tie Rod End Left |
L:197 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,67 kg |
77 01 474 795, 77 01 054 583 (1) OEM |
 |
17RN5541
|
Tie Rod End Right |
L:197 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,67 kg |
77 01 474 796, 77 01 054 584 (1) OEM |
 |
17RN5560
|
Tie Rod End Left |
L:188 cr:1/5 c:Ø12 tp:M10x1.25 th:FM14x1.5 RHT / 0,62 kg |
48520 0368R |
 |
17RN5561
|
Tie Rod End Right |
L:188 cr:1/5 c:Ø12 tp:M10x1.25 th:FM14x1.5 RHT / 0,62 kg |
48520 8355R |
 |
17RN5605
|
Tie Rod End Right |
L:199 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,64 kg |
415 460 01 05, 77 01 478 408 |
 |

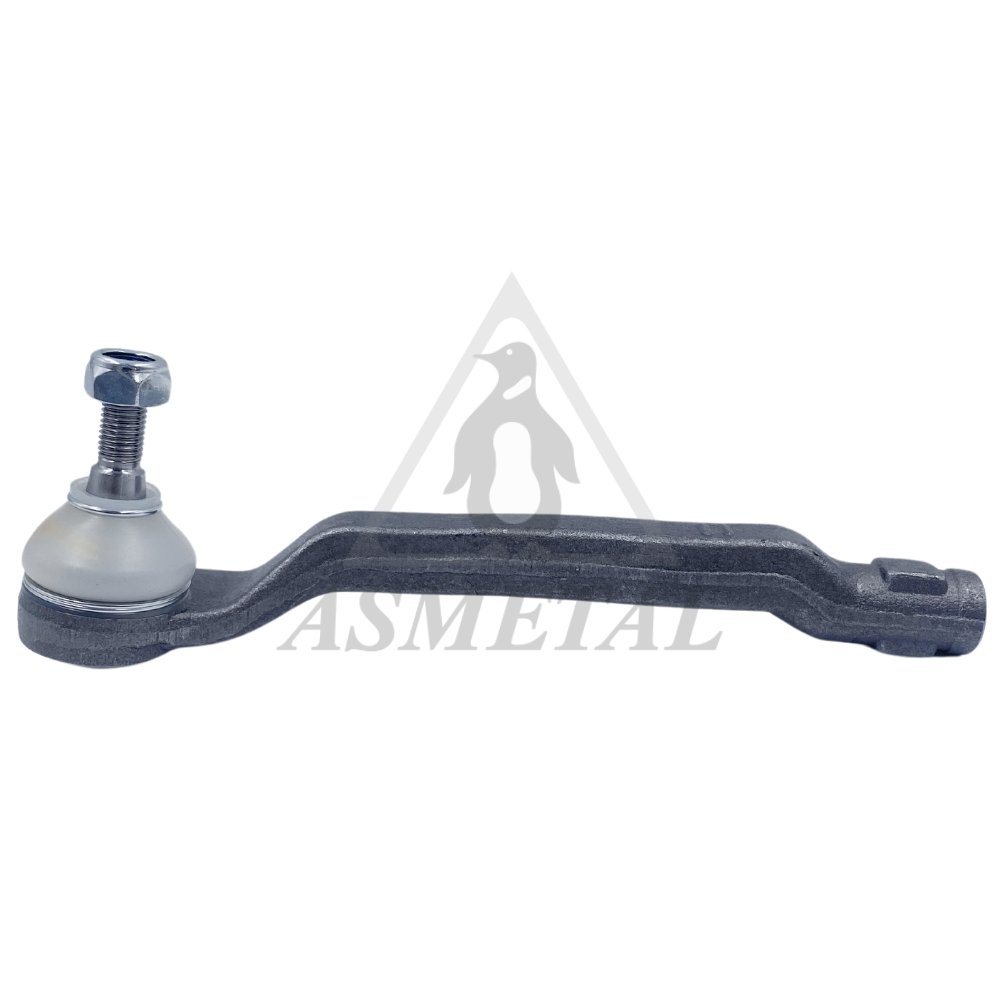

17RN5606
|
Tie Rod End Left |
L:199 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,64 kg |
415 460 00 05, 77 01 478 407 |
 |
17RN5610
|
Tie Rod End Left |
L:211 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,69 kg |
48 52 027 10R, 86 60 003 555 (1) OEM |
 |
17RN5611
|
Tie Rod End Right |
L:211 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,69 kg |
86 60 003 554, 48 52 046 80R (2) OEM |
 |
17RN5700
|
Tie Rod End Left |
L:210 cr:1/5 c:Ø11.9 tp:M10x1.5 th:FM14x1.5 RHT / 0,4 kg |
420 460 19 00, 420 460 17 00 (4) OEM |
 |
17RN5700S
|
Tie Rod End Left |
L:210 cr:1/5 c:Ø11.9 tp:M10x1.5 th:FM14x1.5 RHT / 0,86 kg |
420 460 19 00, 420 460 17 00 (4) OEM |
 |
17RN5701
|
Tie Rod End Right |
L:210 cr:1/5 c:Ø11.9 tp:M10x1.5 th:FM14x1.5 RHT / 0,4 kg |
420 460 18 00, 420 460 20 00 (4) OEM |
 |
17RN5701S
|
Tie Rod End Right |
L:210 cr:1/5 c:Ø11.9 tp:M10x1.5 th:FM14x1.5 RHT / 0,86 kg |
420 460 18 00, 420 460 20 00 (4) OEM |
 |

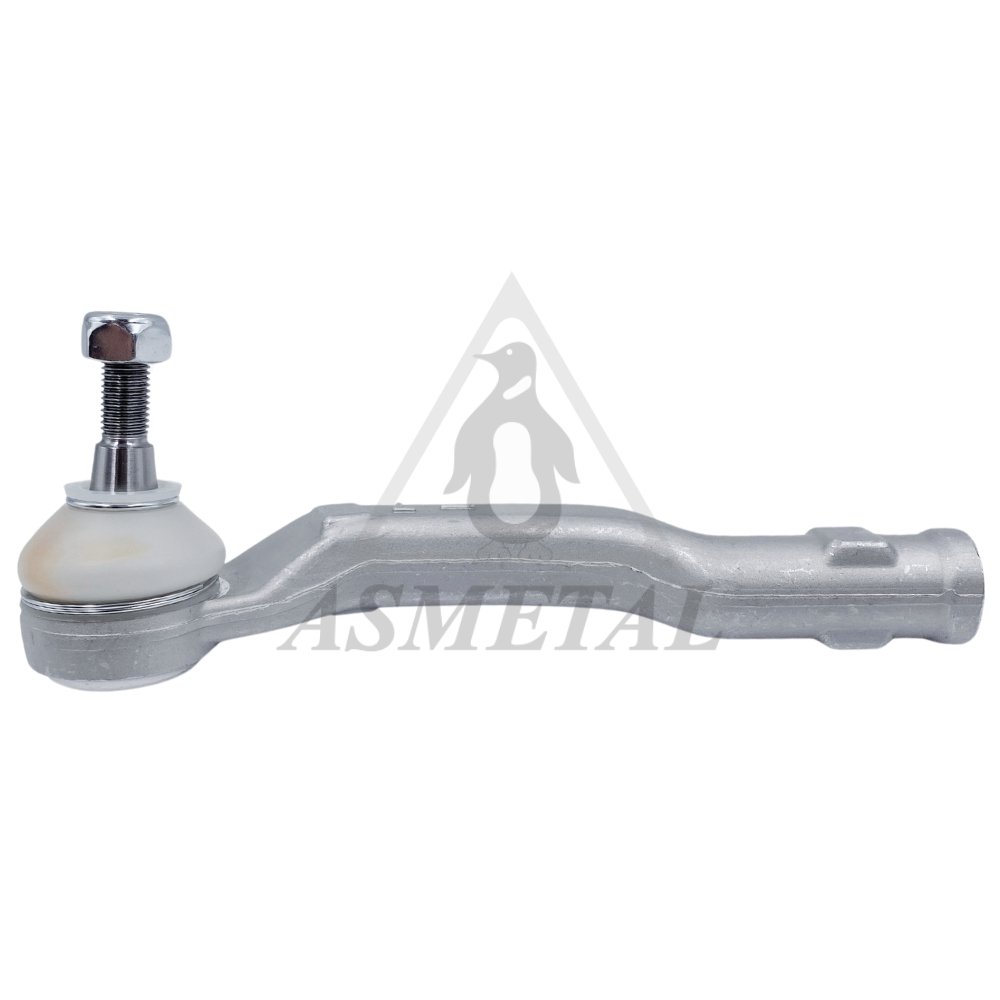

17RN5800
|
Tie Rod End Left |
L:179 cr:1/5 c:Ø11.9 tp:M10x1.25 th:FM14x1.5 RHT / 0,38 kg |
48010 00Q0G*, 48 52 055 94R |
 |
17RN5800S
|
Tie Rod End Left |
L:179 cr:1/5 c:Ø11.9 tp:M10x1.25 th:FM14x1.5 RHT / 0,8 kg |
48010 00Q0G*, 48 52 055 94R |
 |
17RN5801
|
Tie Rod End Right |
L:179 cr:1/5 c:Ø11.9 tp:M10x1.25 th:FM14x1.5 RHT / 0,38 kg |
48010 00Q0G*, 48 52 089 86R |
 |
17RN5801S
|
Tie Rod End Right |
L:179 cr:1/5 c:Ø11.9 tp:M10x1.25 th:FM14x1.5 RHT / 0,8 kg |
48010 00Q0G*, 48 52 089 86R |
 |
17RN6000
|
Tie Rod End |
L:95 cr:1/5 c:Ø12.4 tp:M10x1.25 th:MM14x1.5 RHT / 0,36 kg |
44 03 661, 77 04 002 248 (2) OEM |
 |
20DC1000
|
Axial Joint |
L:194 tp:M14x1.5 th:MM12x1 RHT / 0,42 kg |
60 01 547 606, 60 01 550 441 |
 |
20DC1005
|
Axial Joint |
L:204.5 tp:M14x1.5 th:MM16x1.5 RHT / 0,58 kg |
86 60 003 582, 82 01 108 350 |
 |

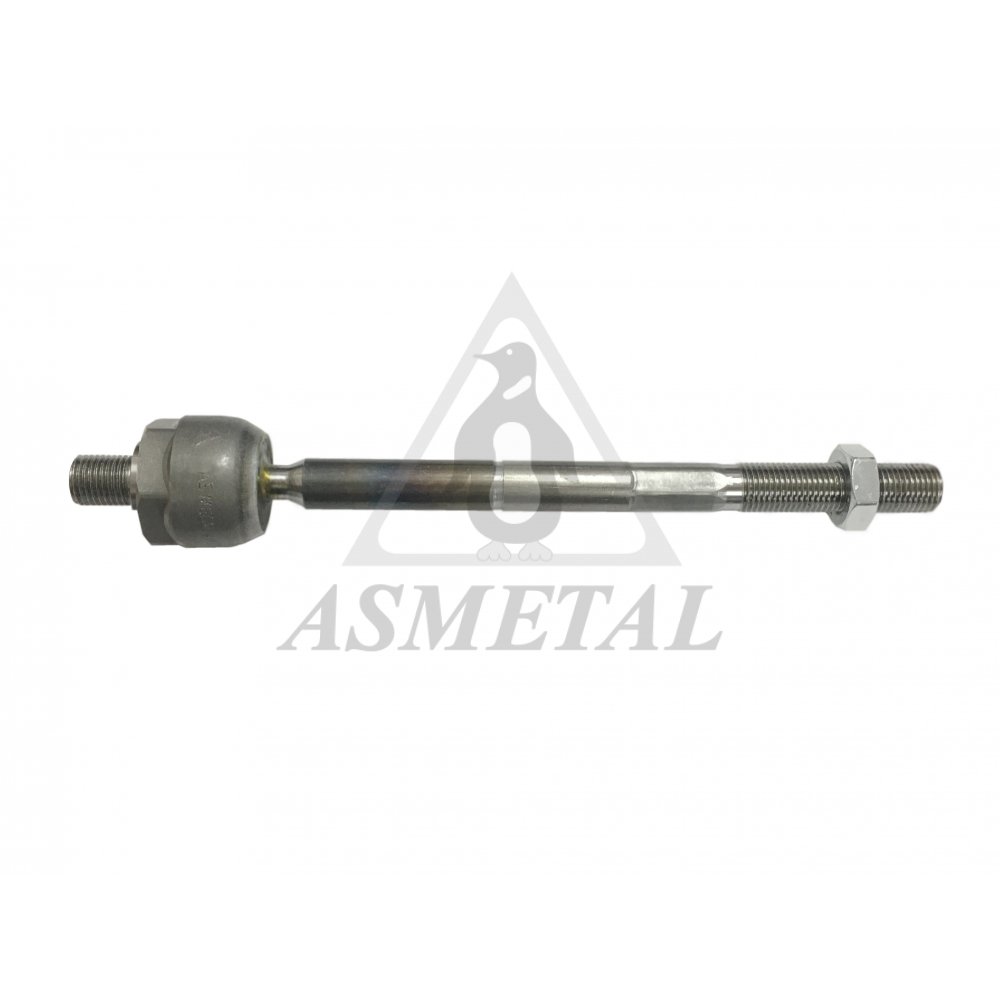

20DC1010
|
Axial Joint |
L:218 tp:M14x1.5 th:MM14x1.5 RHT / 0,47 kg |
48 52 132 85R* |
 |
20DC1100
|
Axial Joint |
L:212.5 tp:M14x1.5 th:MM14x1.5 RHT / 0,46 kg |
48 52 194 53R |
 |

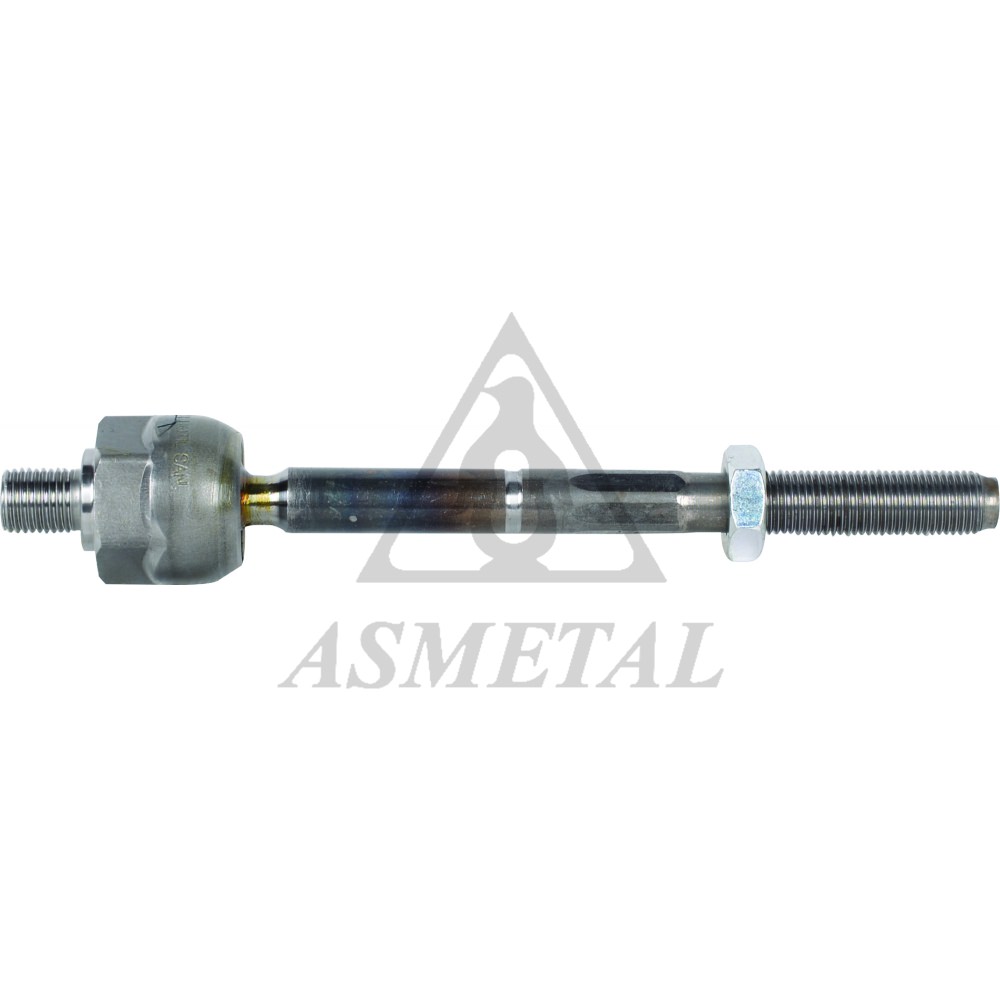

20DC2000
|
Axial Joint |
L:193 tp:M14x1.5 th:MM14x1.5 RHT / 0,4 kg |
48 52 111 05R, 48 52 111 05R* (2) OEM |
 |
20NS1000
|
Axial Joint |
L:233 tp:M14x1.5 th:MM22x1.5 RHT / 0,6 kg |
4800 1JD900, D852 1JD00B (2) OEM |
 |

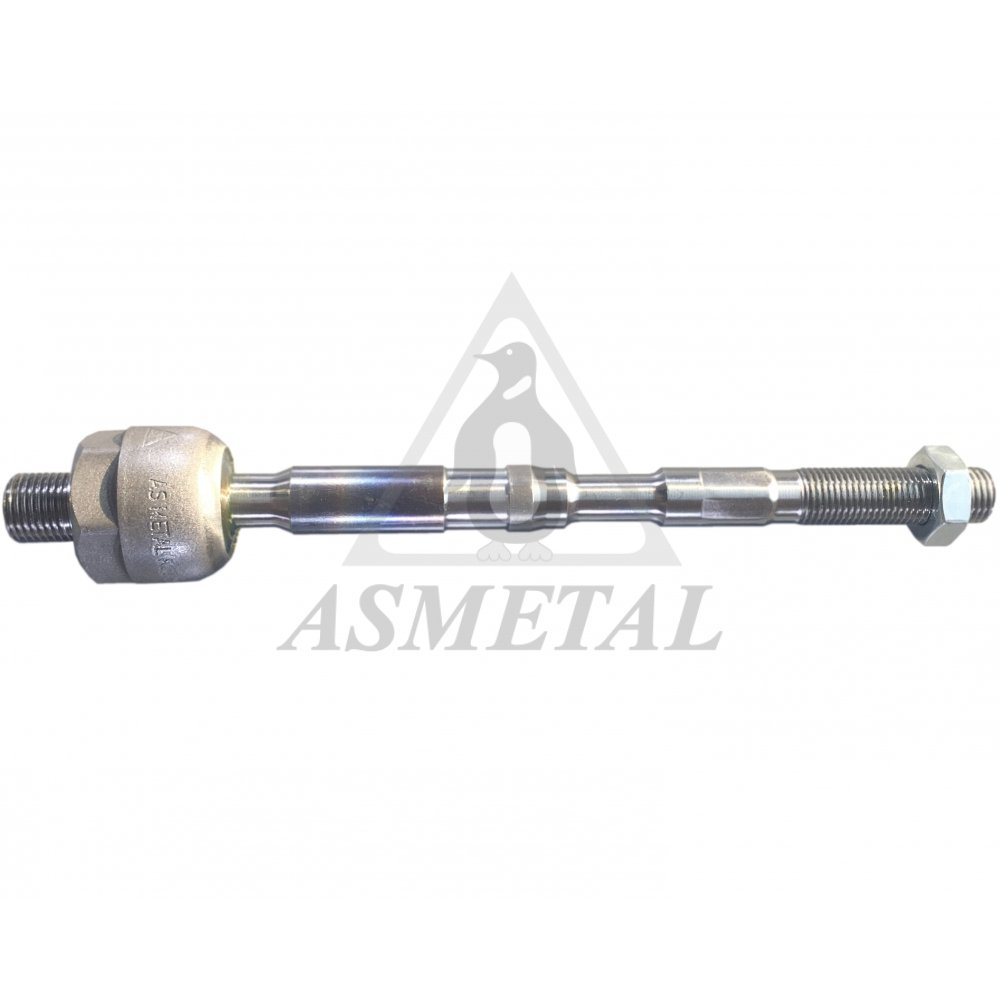

20NS1010
|
Axial Joint |
L:213.5 tp:M16x1.5 th:MM14x1.5 RHT / 0,48 kg |
48001 4EH0A*, 48001 4EH0B* (3) OEM |
 |
20NS2300
IN PREPARATION
|
Axial Joint |
|
49001 4JD1B*, 49 00 14J D1B* |
 |
20RN0500
|
Axial Joint |
L:266.5 tp:M12x1 th:MM14x1.5 RHT / 0,52 kg |
77 01 469 251, 60 00 022 819 (1) OEM |
 |
20RN0505
NEW
|
Axial Joint |
0,53 kg |
48 52 187 99R |
 |
20RN0510
|
Axial Joint |
L:214 tp:M14x1.5 th:MM12x1 RHT / 0,44 kg |
77 01 478 551, 77 01 472 766 |
 |
20RN0515
|
Axial Joint |
L:186.5 tp:M14x1.5 th:MM14x1.5 RHT / 0,5 kg |
48 52 100 01R |
 |
20RN0520
|
Axial Joint |
L:263 tp:M14x1.5 th:MM12x1 RHT / 0,49 kg |
60 00 617 147, 48520 00QAM (3) OEM |
 |

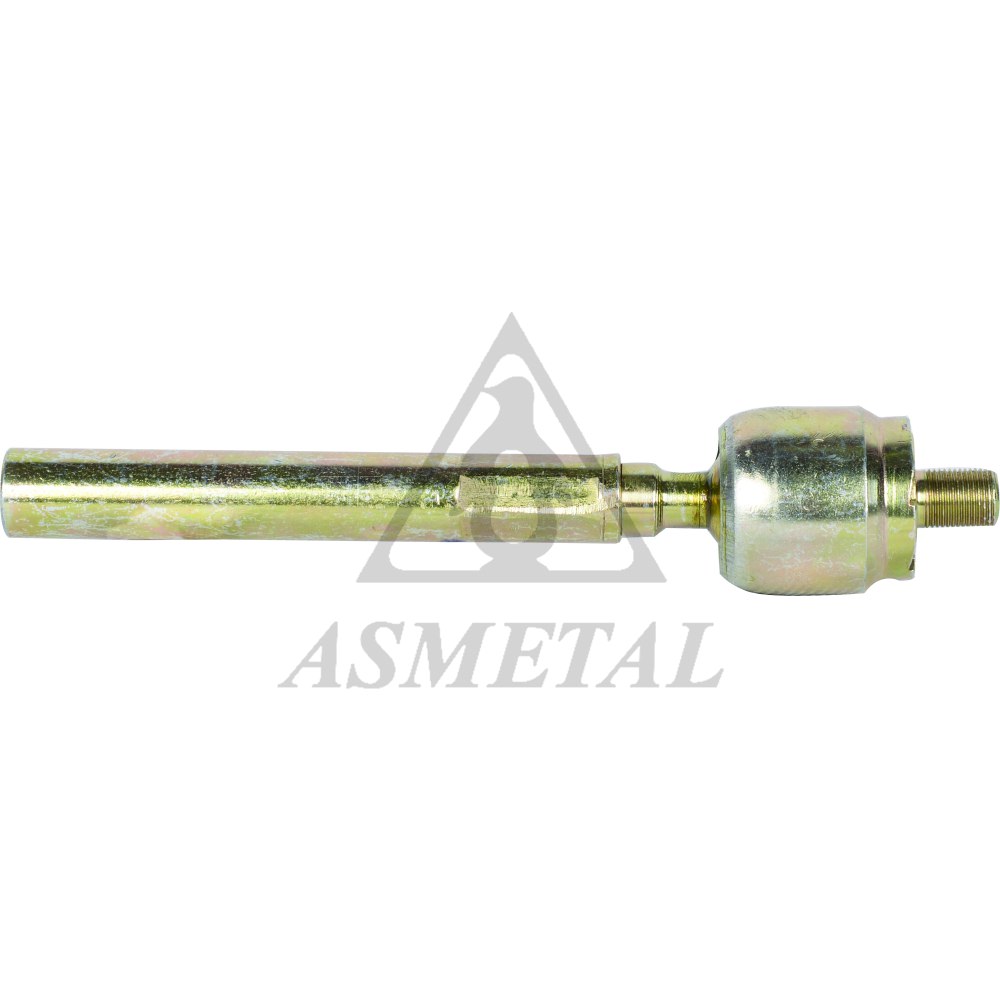

20RN1010
OUT OF SERVICE
|
Axial Joint |
th:MM12x1.0 RHT L:179mm / 0,45 kg |
77 04 002 251, 77 02 103 636 (4) OEM |
 |
20RN1015
NEW
|
Axial Joint |
0,58 kg |
48 52 130 26R |
 |
20RN1100
|
Axial Joint |
L:175 tp:M16x1.5 th:MM14x1.5 RHT / 0,5 kg |
48521 00Q0B, 48521 00QAF (6) OEM |
 |
20RN1120
|
Axial Joint |
L:252.5 tp:M18x1.5 th:MM16x1.5 RHT / 0,78 kg |
93 167 687, 48521 00Q0E (2) OEM |
 |
20RN2010
|
Axial Joint |
L:287 tp:M14x1.5 th:MM12x1 RHT / 0,57 kg |
77 01 462 540, 77 01 462 170 |
 |
20RN2020
|
Axial Joint |
L:264 tp:M12x1 th:MM14x1.5 RHT / 0,63 kg |
77 01 466 235, 77 01 465 915 (2) OEM |
 |
20RN3010
|
Axial Joint |
0,52 kg |
77 01 467 238, 77 01 465 917 (1) OEM |
 |
20RN3400
|
Axial Joint |
0,59 kg |
77 01 467 272, 77 01 467 271* (2) OEM |
 |
20RN3405
|
Axial Joint |
L:245 tp:M12x1 th:MM14x1.5 RHT / 0,56 kg |
77 01 469 777, 77 01 469 778 (3) OEM |
 |

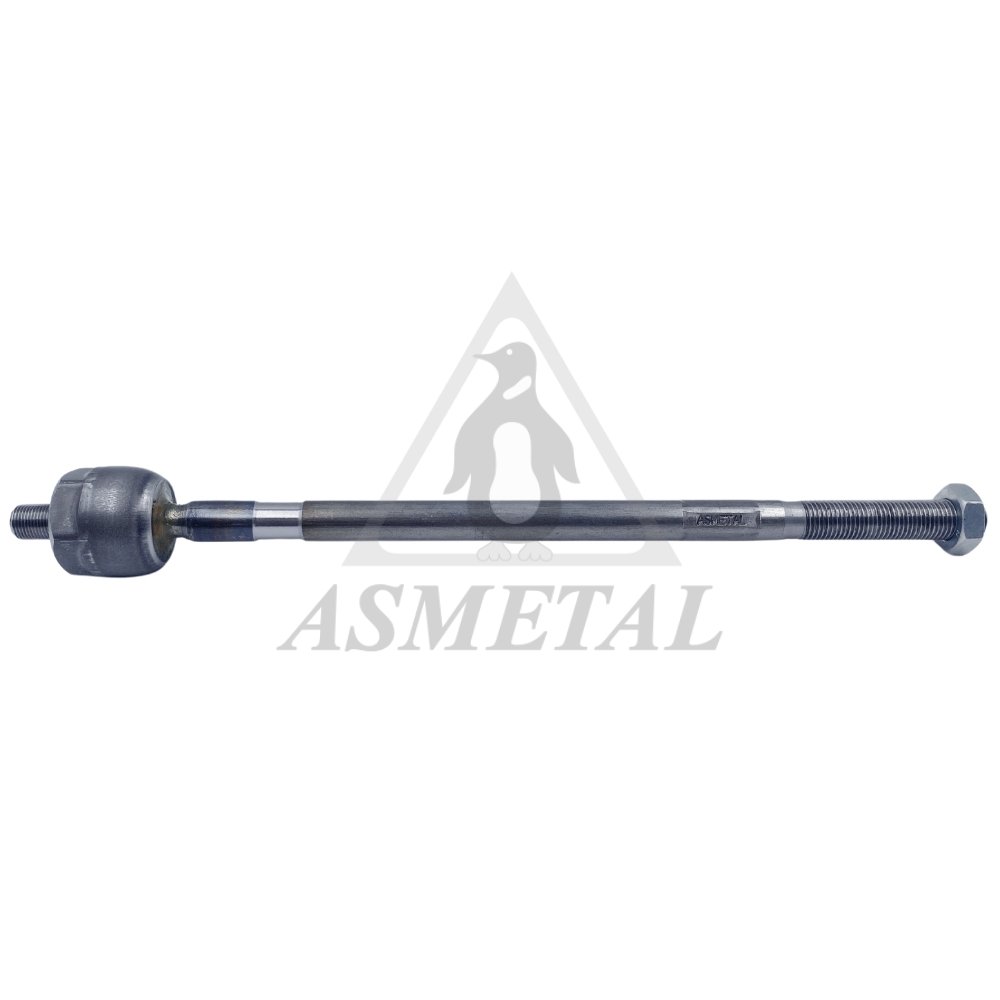

20RN3410
|
Axial Joint |
L:303.5 tp:M14x1.5 th:MM12x1 RHT / 0,52 kg |
48521 00QAG, 77 01 473 655 (1) OEM |
 |
20RN3415
|
Axial Joint |
L:297 tp:M14x1.5 th:MM14x1.5 RHT / 0,54 kg |
77 01 472 735, 77 01 472 734 |
 |
20RN3420
|
Axial Joint |
0,52 kg |
77 01 471 144, 77 01 471 143 |
 |
20RN3430
IN PREPARATION
|
Axial Joint |
0 kg |
77 01 471 125 |
 |
20RN3500
|
Axial Joint |
L:254.5 tp:M14x1.5 th:MM14x1.5 RHT / 0,52 kg |
77 01 469 280 |
 |
20RN3505
|
Axial Joint |
L:257.5 tp:M12x1 th:MM14x1.5 RHT / 0,54 kg |
77 01 469 502 |
 |
20RN3550
|
Axial Joint |
0,56 kg |
77 01 469 517 |
 |
20RN3600
|
Axial Joint |
L:261 tp:M12x1 th:MM14x1.5 RHT / 0,52 kg |
77 01 470 764, 77 01 471 425 |
 |
20RN3601
|
Axial Joint |
th:MM12x1 RHT L:266,5mm / 0,55 kg |
77 01 470 763 |
 |
20RN3605
|
Axial Joint |
0,62 kg |
48521 00QAA, 77 01 472 113 |
 |
20RN4100
IN PREPARATION
|
Axial Joint |
|
48 52 156 53R, 453 463 00 00 (1) OEM |
 |

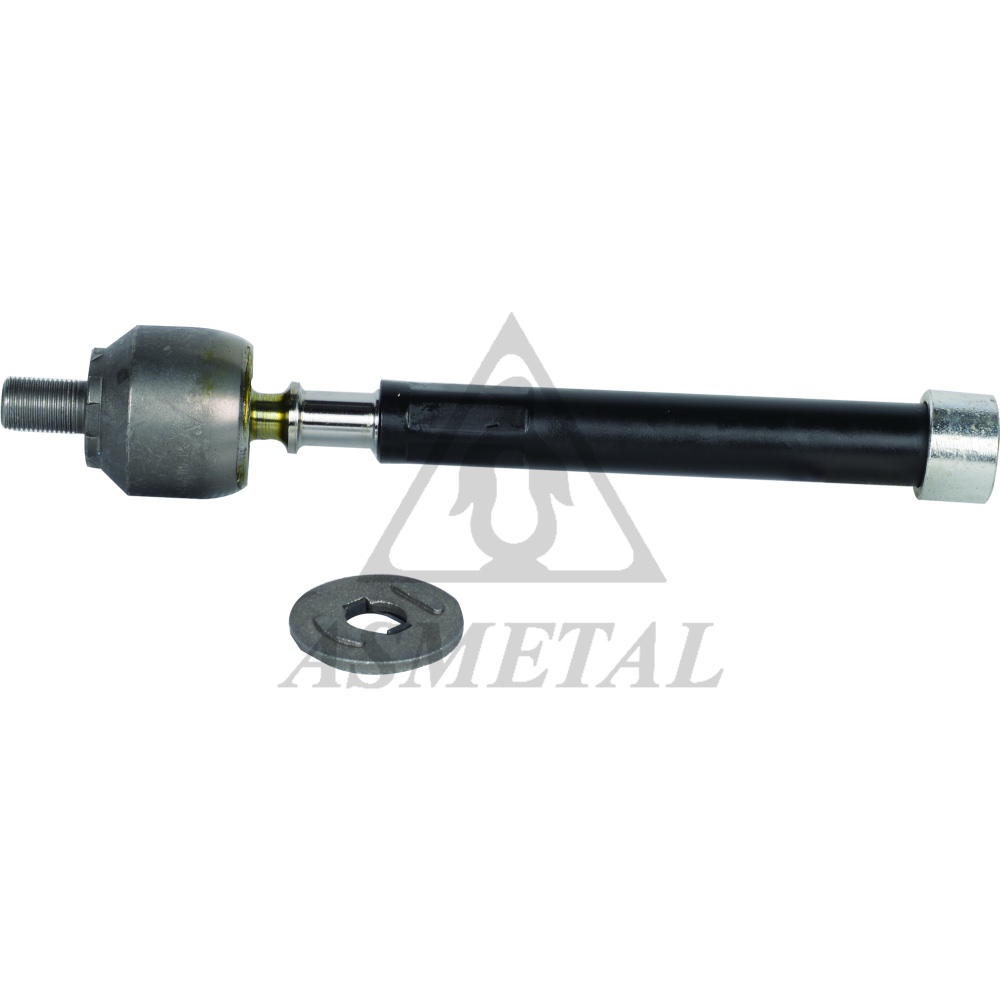

20RN5200
OUT OF SERVICE
|
Axial Joint |
th:MM12x1.0 RHT L:191mm / 0 kg |
77 01 464 313, 77 01 469 229 (1) OEM |
 |
20RN5205
|
Axial Joint |
L:220 tp:M12x1 th:MM14x1.5 RHT / 0,47 kg |
77 01 463 025 |
 |
20RN5210
|
Axial Joint |
L:254.5 tp:M12x1 th:MM14x1.5 RHT / 0,57 kg |
60 25 370 494, 60 25 370 493 |
 |
20RN5520
|
Axial Joint |
L:286 tp:M14x1.5 th:MM14x1.5 RHT / 0,54 kg |
77 01 472 089, 77 01 472 088 (2) OEM |
 |
20RN5525
|
Axial Joint |
L:293.5 tp:M12x1 th:MM14x1.5 RHT / 0,56 kg |
77 01 471 844 |
 |
20RN5528
IN PREPARATION
|
Axial Joint |
|
77 01 477 878 |
 |
20RN5540
|
Axial Joint |
L:216 tp:M14x1.5 th:MM14x1.5 RHT / 0,46 kg |
77 01 474 448 |
 |
20RN5550
|
Axial Joint |
L:308.5 tp:M14x1.5 th:MM14x1.5 RHT / 0,6 kg |
77 01 475 841 |
 |
20RN5560
|
Axial Joint |
L:230 tp:M16x1.5 th:MM14x1.5 RHT / 0,54 kg |
48 52 110 71R, 48 52 113 75R (1) OEM |
 |
20RN5600
|
Axial Joint |
L:327 tp:M12x1 th:MM14x1.5 RHT / 0,58 kg |
77 01 473 443 |
 |
20RN5605
|
Axial Joint |
L:213.5 tp:M14x1.5 th:MM14x1.5 RHT / 0,49 kg |
415 320 00 89, 48 52 156 12R (1) OEM |
 |
20RN5700
|
Axial Joint |
L:215 tp:M14x1.5 th:MM14x1.5 RHT / 0,58 kg |
49 00 174 41R*, 48 52 165 64R* |
 |
20RN5710
NEW
|
Axial Joint |
0,7 kg |
48 52 123 09R |
 |
20RN5800
|
Axial Joint |
L:229 tp:M12x1 th:MM14x1.5 RHT / 0,48 kg |
48 52 105 57R |
 |

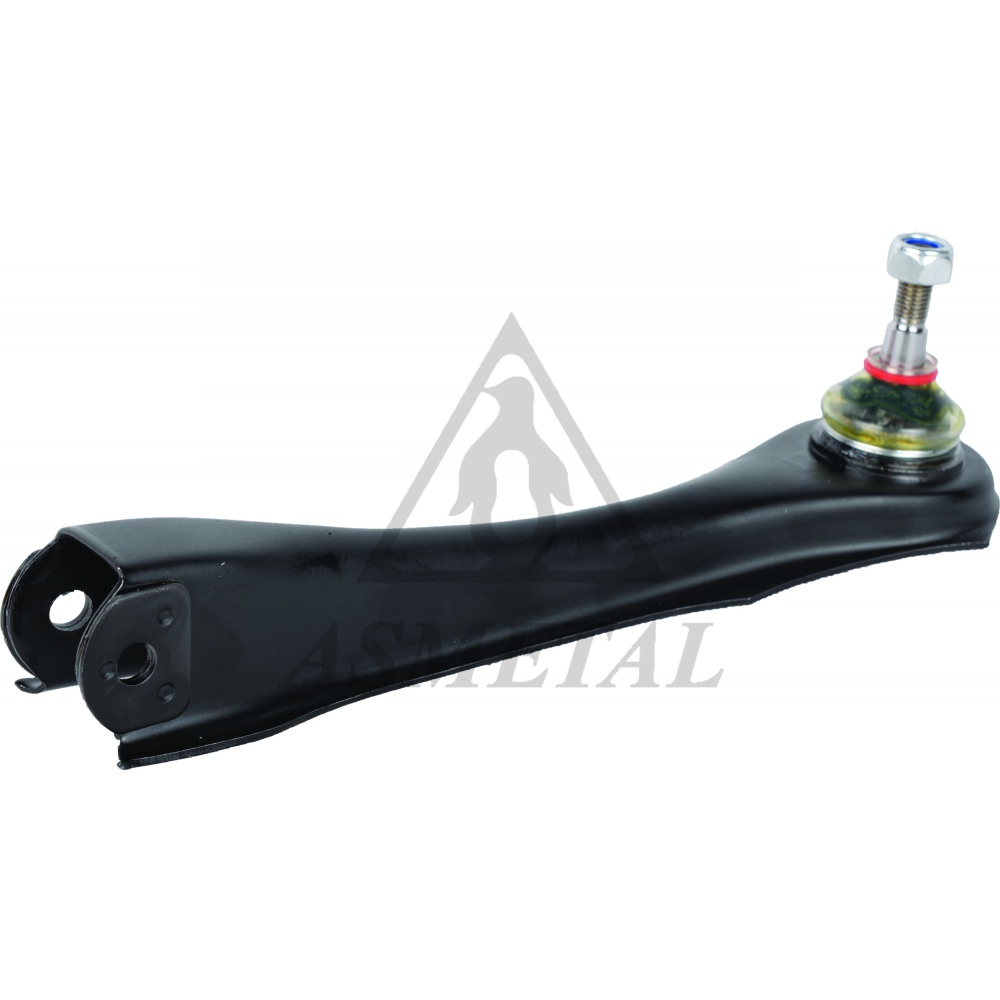

23RN4080
|
Track Control Arm Right |
cr:1/9 c:Ø11.3 tp:M10x1.25 / 1,22 kg |
77 00 571 173 |
 |
23RN4081
|
Track Control Arm Left |
cr:1/9 c:Ø11.3 tp:M10x1.25 / 1,22 kg |
77 00 571 172 |
 |
26DC1000
|
Stabiliser Link |
L:74 tp:M8x1.25 RHT / 0,11 kg |
82 00 277 960, 60 01 547 138 |
 |
26DC1020
|
Track Rod Rear |
L:465 / 0,87 kg |
82 00 839 119 |
 |
26DC1022
|
Track Rod Rear Left |
L:421 / 1,13 kg |
82 00 841 004, 55 11 193 05R |
 |
26DC1023
|
Track Rod Rear Right |
L:421 / 1,13 kg |
82 00 839 107, 55 11 078 94R |
 |
26DC1100
|
Stabiliser Link |
L:245 tp:M10x1.25 RHT / 0,32 kg |
55 11 007 10R |
 |
26DC9930
|
Stabiliser Link |
L:74 / 3,3 kg |
82 00 277 960, 60 01 547 138 |
 |
26NS1000
|
Stabiliser Link Left |
L:299 tp:M12x1.25 RHT / 0,5 kg |
54668 4CB0A, 54668 1AA0E (3) OEM |
 |
26NS1001
|
Stabiliser Link Right |
L:299 tp:M12x1.25 RHT / 0,5 kg |
54618 4CB0A, 54618 1AA0E (4) OEM |
 |
26NS1010
|
Stabiliser Link Rear Left |
L:145 / 0,54 kg |
55619 JD01A, 55619 JE20A (4) OEM |
 |
26NS1011
|
Stabiliser Link Rear Right |
L:145 / 0,54 kg |
55618 JD00A, 55618 JD01A (3) OEM |
 |
26NS1030
NEW
|
Stabiliser Link Left |
0,5 kg |
54668 6UA0A, 54 66 834 83R |
 |

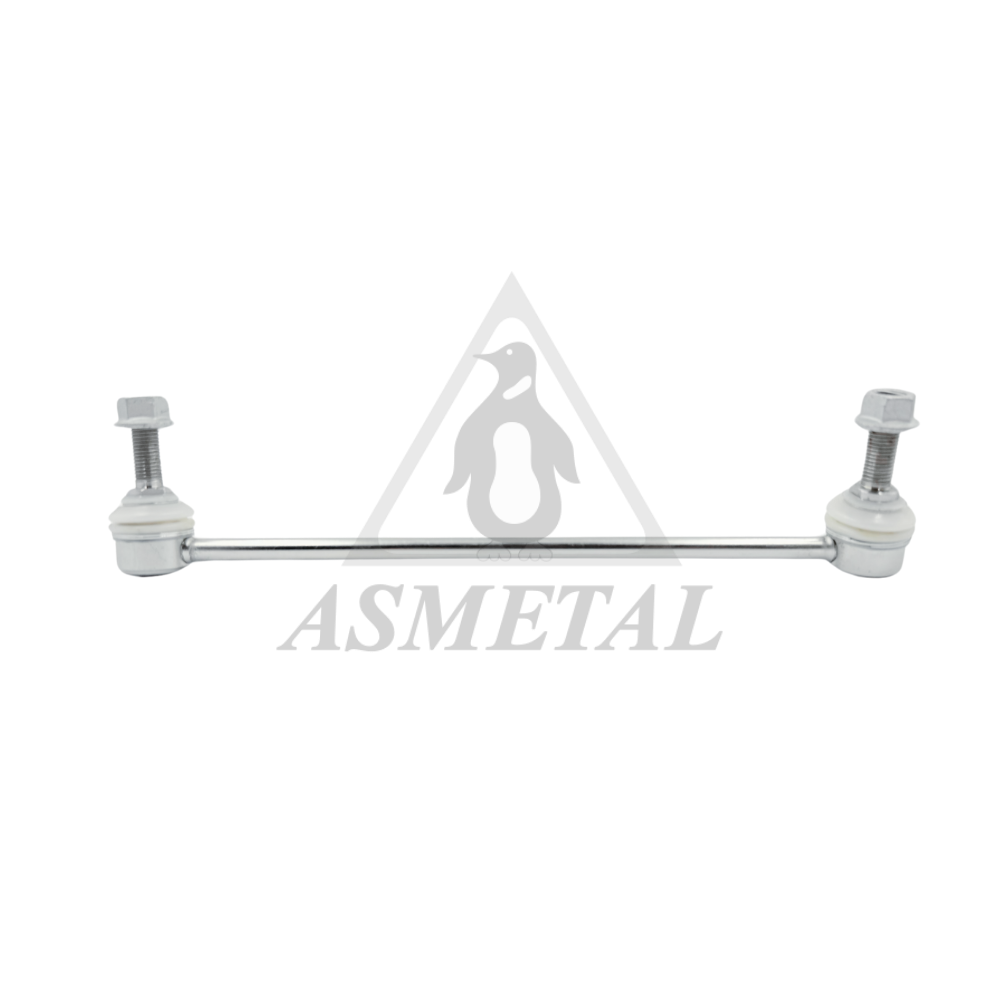

26NS1031
NEW
|
Stabiliser Link Right |
0,5 kg |
54618 6UA0A, 54 61 842 46R |
 |
26NS1090
NEW
|
Track Rod Rear |
1,01 kg |
55110 6UA0A |
 |

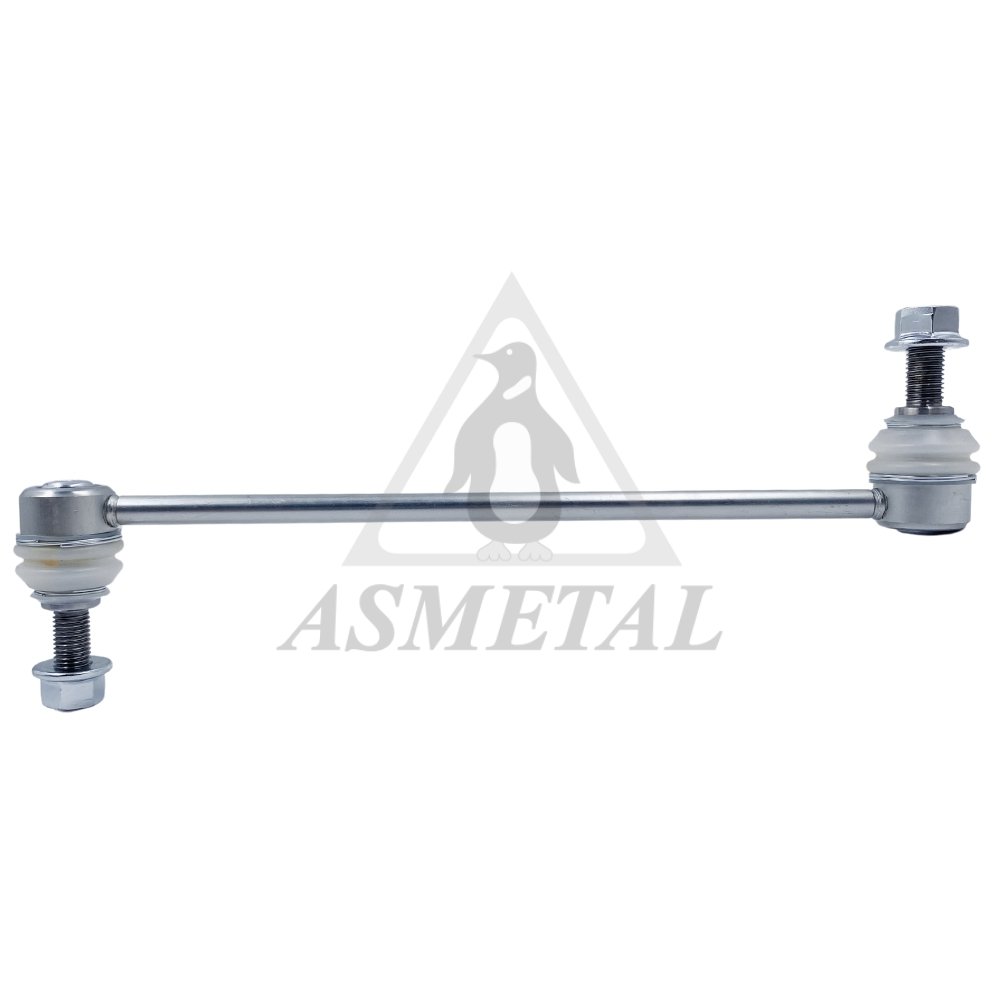

26NS1200
|
Stabiliser Link |
L:285 tp:M12x1.5 RHT / 0,5 kg |
54618 3NF0A, 54618 9AM1A (6) OEM |
 |
26NS2300
IN PREPARATION
|
Stabiliser Link Left |
|
470 320 22 00, A 470 320 22 00 (4) OEM |
 |
26NS2301
IN PREPARATION
|
Stabiliser Link Right |
|
470 320 23 00, A 470 320 23 00 (4) OEM |
 |
26RN0100
|
Stabiliser Link |
L:364.5 tp:M10x1.5 RHT tp:M10x1.5 RHT / 0,53 kg |
77 00 805 494 |
 |

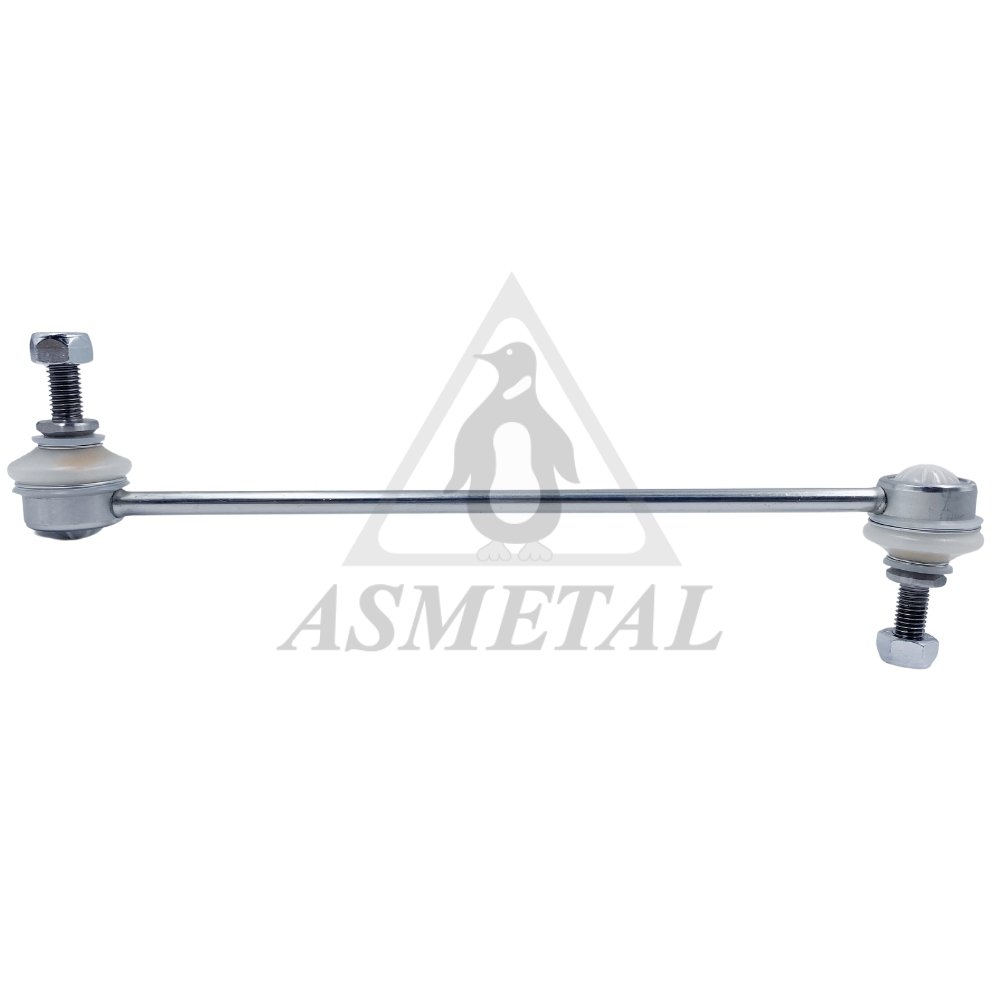

26RN0510
|
Stabiliser Link |
L:280 tp:M10x1.5 RHT / 0,34 kg |
6000 618 859, 54616 00QAC (12) OEM |
 |

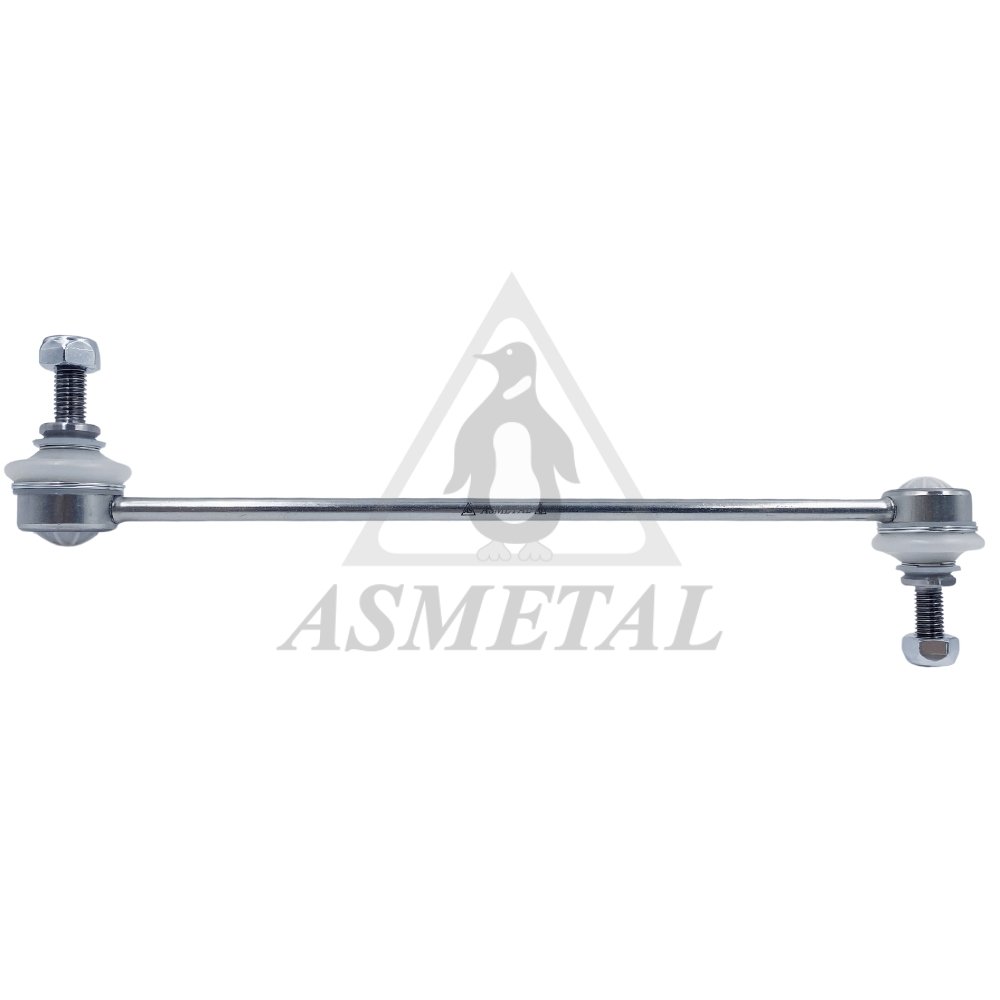

26RN0515
|
Stabiliser Link |
L:295 tp:M10x1.5 RHT / 0,36 kg |
55 11 030 22R, 55 11 034 28R (4) OEM |
 |
26RN0590
IN PREPARATION
|
Stabiliser Link Rear |
0 kg |
82 00 619 922, 82 00 001 857 |
 |
26RN1100
|
Stabiliser Link Left |
L:127.5 tp:M10x1.5 RHT / 0,31 kg |
54616 00Q0C, 54616 00QAB (7) OEM |
 |
26RN1101
|
Stabiliser Link Right |
L:127.5 tp:M10x1.5 RHT / 0,31 kg |
54618 00Q0A, 54618 00Q0C (8) OEM |
 |
26RN1120
|
Stabiliser Link |
L:330 tp:M10x1.5 RHT / 0,44 kg |
54616 00Q0E, 44 19 291 (2) OEM |
 |
26RN1130
|
Stabiliser Link Rear |
L:166 tp:M10x1.5 RHT / 0,35 kg |
56261 00Q0B, 44 20 954 (2) OEM |
 |
26RN1140
|
Stabiliser Link Rear |
L:166 tp:M10x1.5 RHT / 0,34 kg |
93 197 332, 093 197 332 (7) OEM |
 |
26RN1150
IN PREPARATION
|
Stabiliser Link |
|
54 61 881 15R |
 |
26RN3100
NEW
|
Stabiliser Link |
4,00 kg |
54 61 829 36R |
 |
26RN3400
NEW
|
Stabiliser Link |
0,12 kg |
82 00 603 492, 82 00 891 497 |
 |
26RN3410
|
Stabiliser Link |
L:70 tp:M18x1.25 RHT / 0,11 kg |
54616 00QAA, 77 00 799 404 |
 |
26RN3550
|
Stabiliser Link Left |
L:257 tp:M10x1.5 RHT / 0,32 kg |
82 00 040 618, 82 00 714 446 |
 |
26RN3551
|
Stabiliser Link Right |
L:257 tp:M10x1.5 RHT / 0,32 kg |
82 00 714 448, 82 00 050 191 |
 |

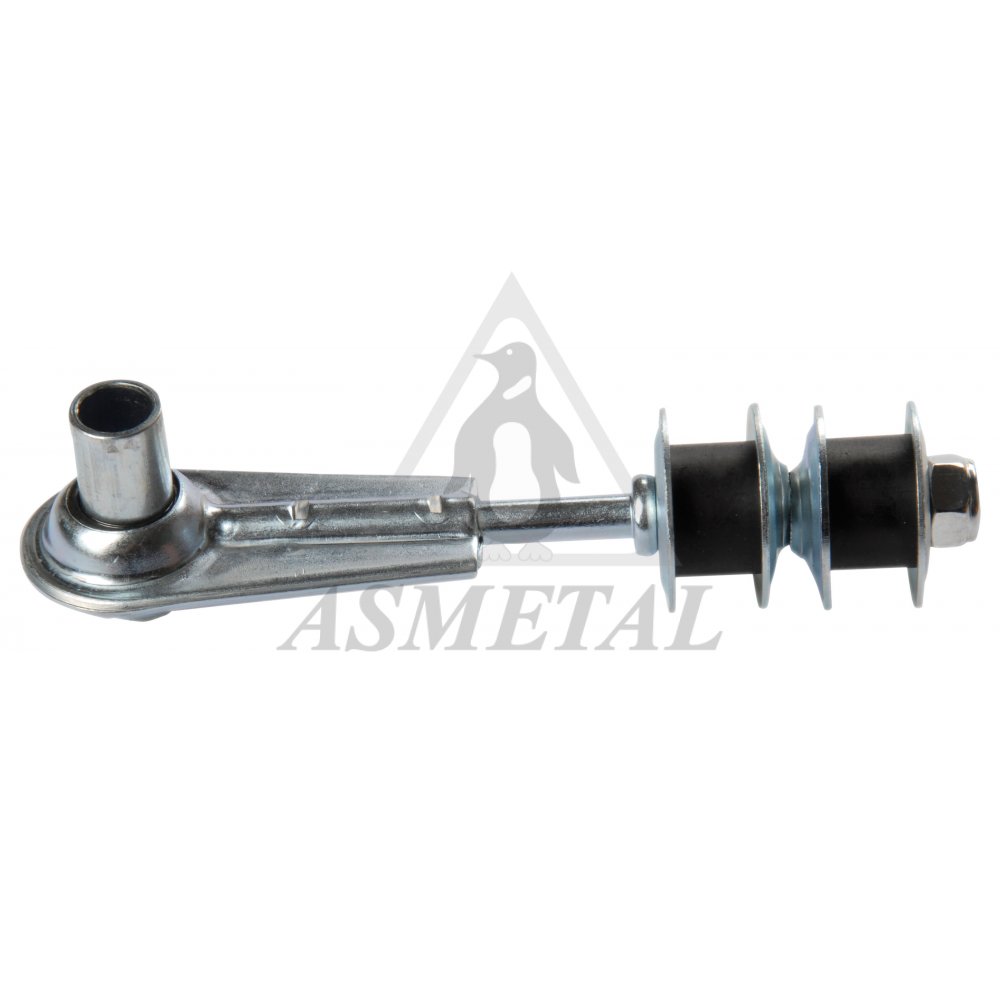

26RN4000
OUT OF SERVICE
|
Stabiliser Link |
0,6 kg |
7701 453 465, 7700 504 548 |
 |
26RN5550
|
Stabiliser Link |
0,3 kg |
54618 AX600, 54611 BH01A (7) OEM |
 |

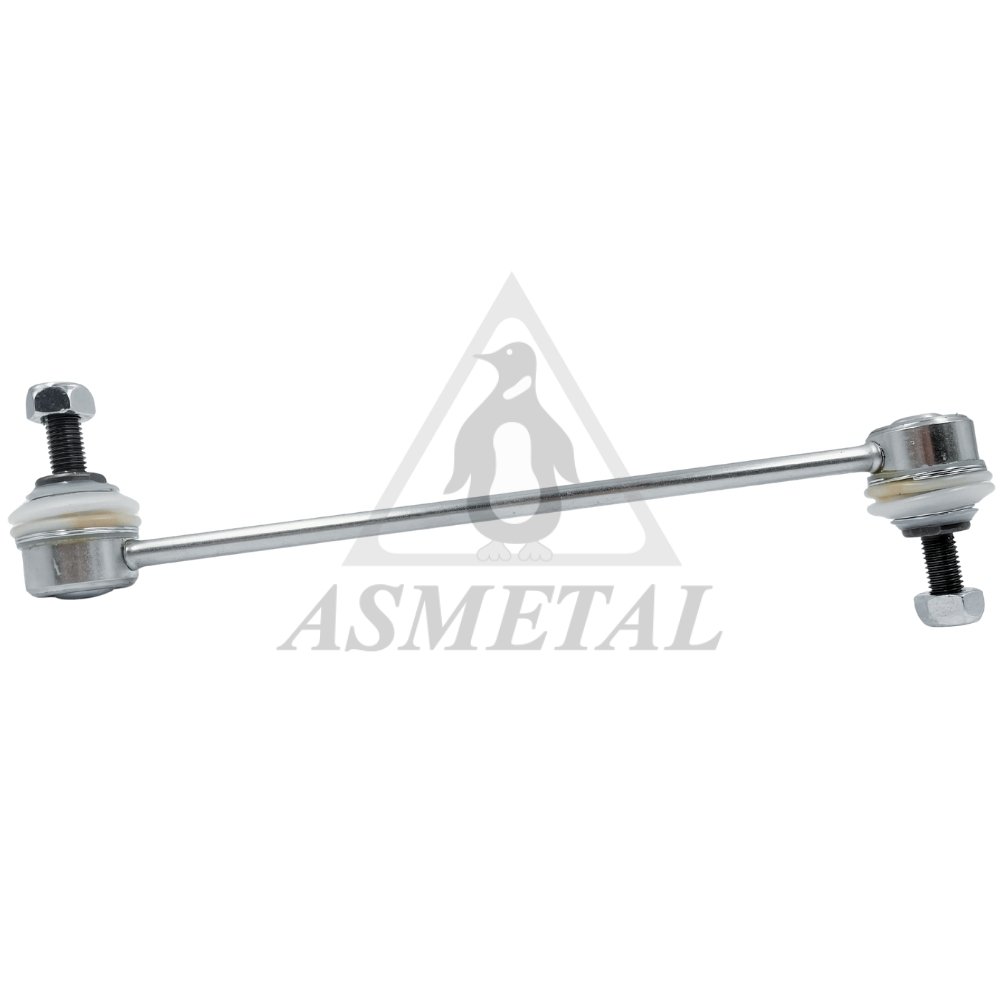

26RN5600
|
Stabiliser Link |
L:257 tp:M10x1.5 RHT / 0,33 kg |
77 00 437 136 |
 |
26RN5605
|
Stabiliser Link |
L:282 tp:M10x1.5 RHT / 0,36 kg |
A 415 320 00 00, 415 320 00 00 (5) OEM |
 |
26RN5610
|
Stabiliser Link |
L:264 tp:M10x1.5 RHT / 0,42 kg |
54 61 821 98R, 54 61 800 09R |
 |
26RN5615
|
Stabiliser Link |
L:274 tp:M10x1.5 RHT / 0,36 kg |
54 61 888 79R, 54 61 800 02R (1) OEM |
 |

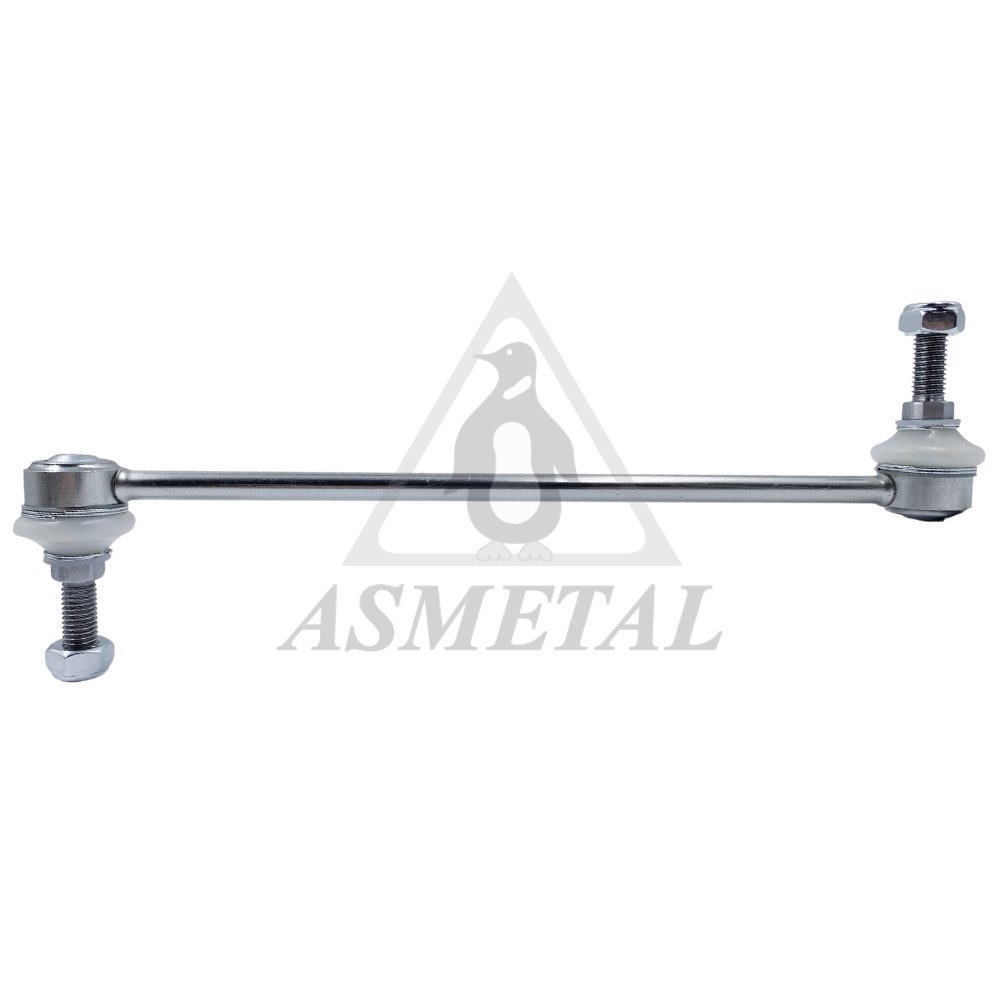

26RN5630
NEW
|
Stabiliser Link |
0,36 kg |
54 61 800 07R |
 |
26RN5640
NEW
|
Stabiliser Link |
0,36 kg |
82 00 669 066, 82 00 166 160 (2) OEM |
 |
26RN5700
|
Stabiliser Link |
L:275 tp:M10x1.5 RHT / 0,41 kg |
54 61 888 97R, 54 61 870 05R (1) OEM |
 |
26RN5800
|
Stabiliser Link |
L:260 tp:M10x1.25 RHT / 0,32 kg |
54616 00Q0L, 54 61 814 27R |
 |
26SM0453
IN PREPARATION
|
Stabiliser Link |
|
54 61 811 79R, 453 320 00 89 |
 |
29RN1001
OUT OF SERVICE
|
Tie Rod |
0,74 kg |
7701461010 |
 |
29RN2001
|
Tie Rod |
cr:1/5 c:Ø12 tp:M10x1.25 RHT / 0,88 kg |
77 01 462 540 |
 |
29RN3001
|
Tie Rod |
0,94 kg |
77 01 464 015 |
 |
29RN3500
|
Tie Rod Left |
0,9 kg |
77 01 467 271, 77 01 466 158 |
 |
29RN3501
|
Tie Rod Right |
tp:M10x1.25 RHT / 0,95 kg |
77 01 469 502, 77 01 468 953 |
 |
29RN3502
|
Tie Rod Left |
tp:M10x1.25 RHT / 0,95 kg |
77 01 468 952, 77 01 469 502 |
 |
29RN3550
|
Tie Rod Left |
cr:1/5 c:Ø11.95 tp:M10x1.25 RHT / 0,96 kg |
77 01 467 218 |
 |
29RN3551
|
Tie Rod Right |
cr:1/5 c:Ø11.95 tp:M10x1.25 RHT / 0,96 kg |
77 01 467 219 |
 |
29RN3600
|
Tie Rod Right |
0,9 kg |
77 01 466 158, 77 01 467 272 |
 |

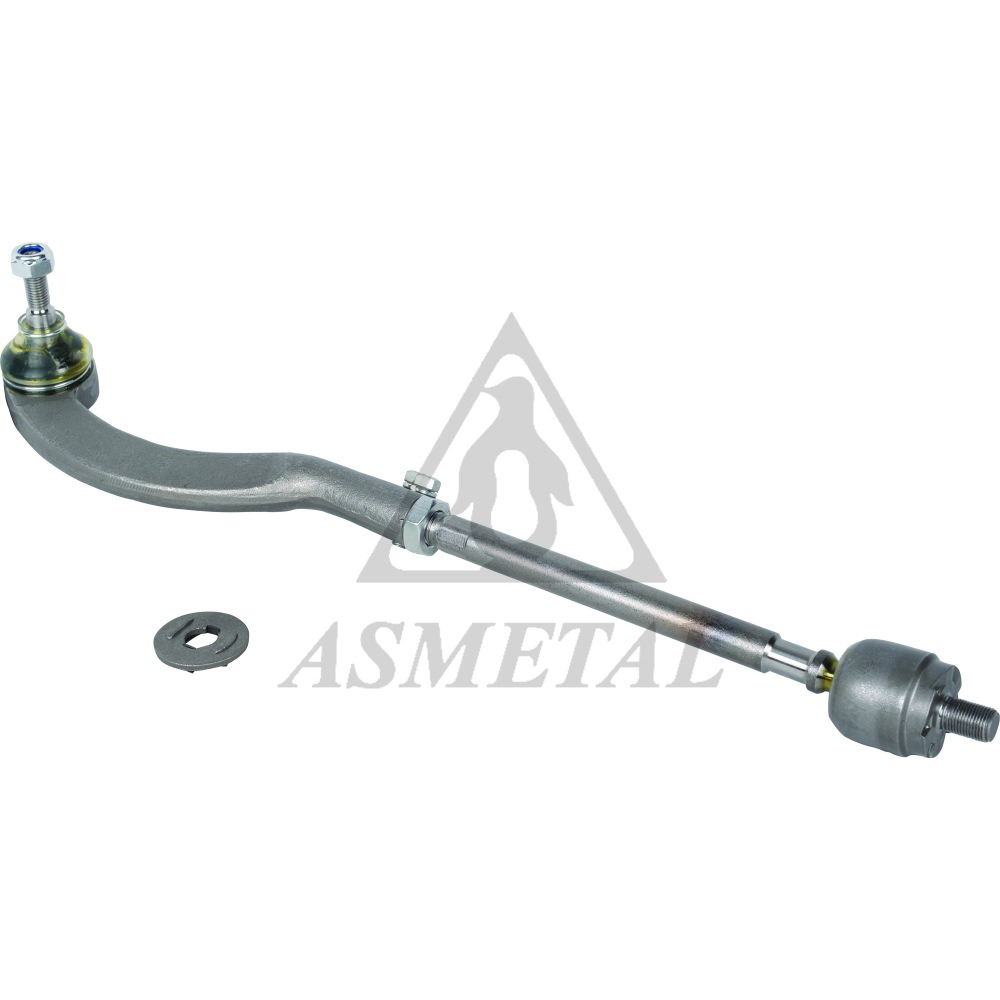

29RN5200
|
Tie Rod Left |
cr:1/6 c:Ø12.18 tp:M10x1.25 RHT / 1,1 kg |
60 25 370 493 |
 |
29RN5201
|
Tie Rod Right |
cr:1/6 c:Ø12.18 tp:M10x1.25 RHT / 1,4 kg |
60 25 370 494 |
 |

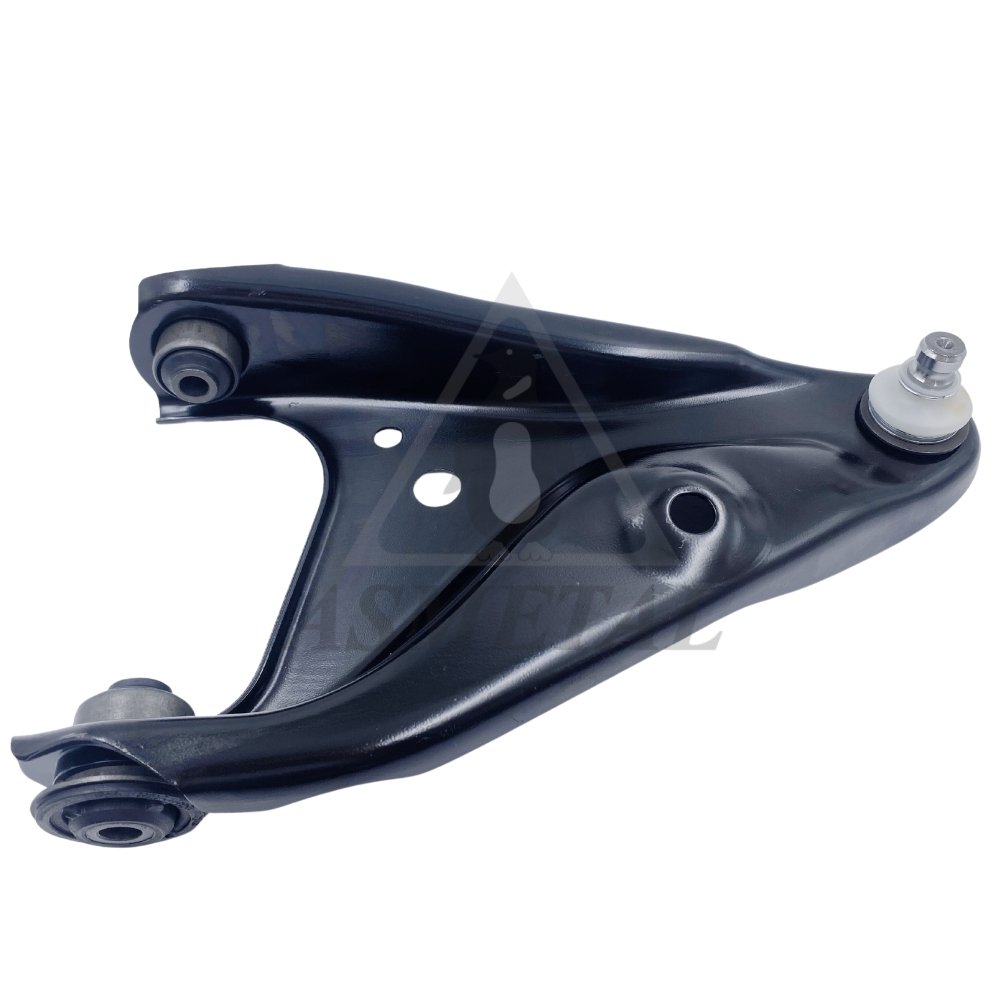

30DC1000
|
Track Control Arm Right |
c:Ø18 / 2 kg |
82 00 820 918, 54 50 007 94R (6) OEM |
 |
30DC1001
|
Track Control Arm Left |
c:Ø18 / 2 kg |
60 01 550 911, 60 01 550 909 (5) OEM |
 |

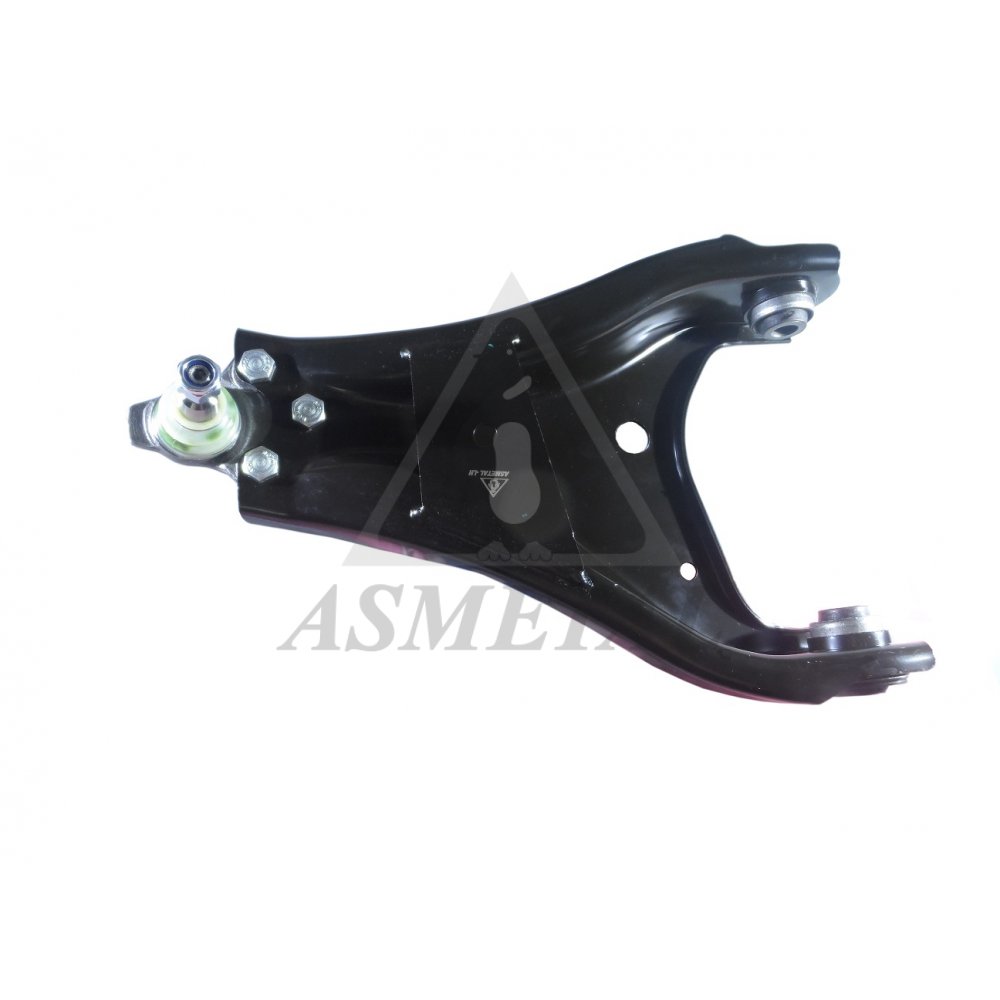

30DC1004
|
Track Control Arm Left |
cr:1/5 c:Ø17.08 tp:M12x1.25 / 3 kg |
54 50 116 97R, 54 50 199 69R (2) OEM |
 |
30DC1005
|
Track Control Arm Right |
cr:1/5 c:Ø17.08 tp:M12x1.25 / 3 kg |
54 50 001 38R, 54 50 065 42R (2) OEM |
 |
30DC1010
|
Track Control Arm Left |
th:M12x1.5 RHT cr:1/5 c:Ø17.1 / 3,18 kg |
54 50 554 13R |
 |

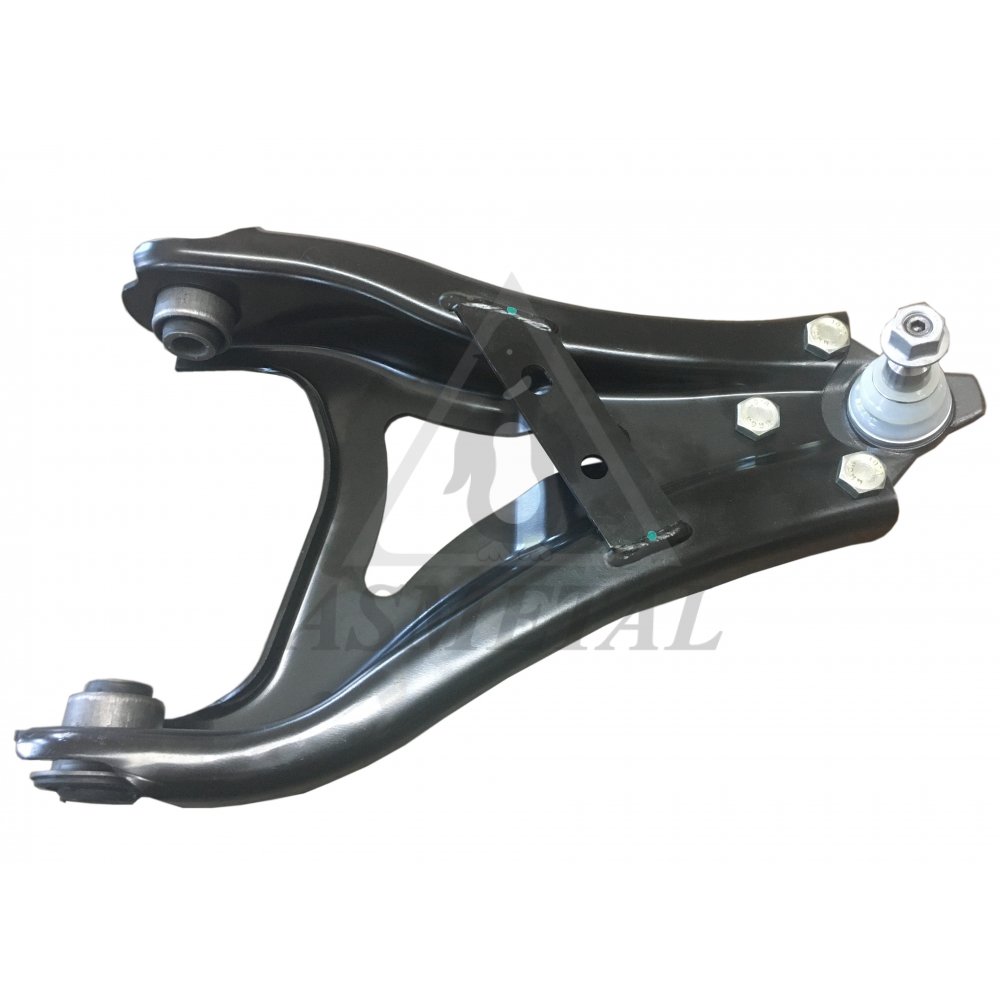

30DC1011
|
Track Control Arm Right |
th:M12x1.5 RHT cr:1/5 c:Ø17.1 / 3,18 kg |
54 50 402 80R |
 |
30DC1100
NEW
|
Track Control Arm Left |
2 kg |
54 50 102 78R, 54 50 547 87R (1) OEM |
 |
30DC1101
NEW
|
Track Control Arm Right |
2 kg |
54 50 415 84R, 54 50 086 53R (1) OEM |
 |
30NS1000
|
Track Control Arm Left |
c:Ø20 / 4 kg |
54 50 14E A0A, 54 50 14E A0B |
 |
30NS1001
|
Track Control Arm Right |
c:Ø20 / 4 kg |
54 50 04E A0B, 54 50 04E A0A |
 |
30NS1004
NEW
|
Track Control Arm Lower Left |
4 kg |
54501-4CA0A, 545015HA0A (4) OEM |
 |
30NS1005
NEW
|
Track Control Arm Lower Right |
4 kg |
54500-4CA0A, 545005HA0A (4) OEM |
 |

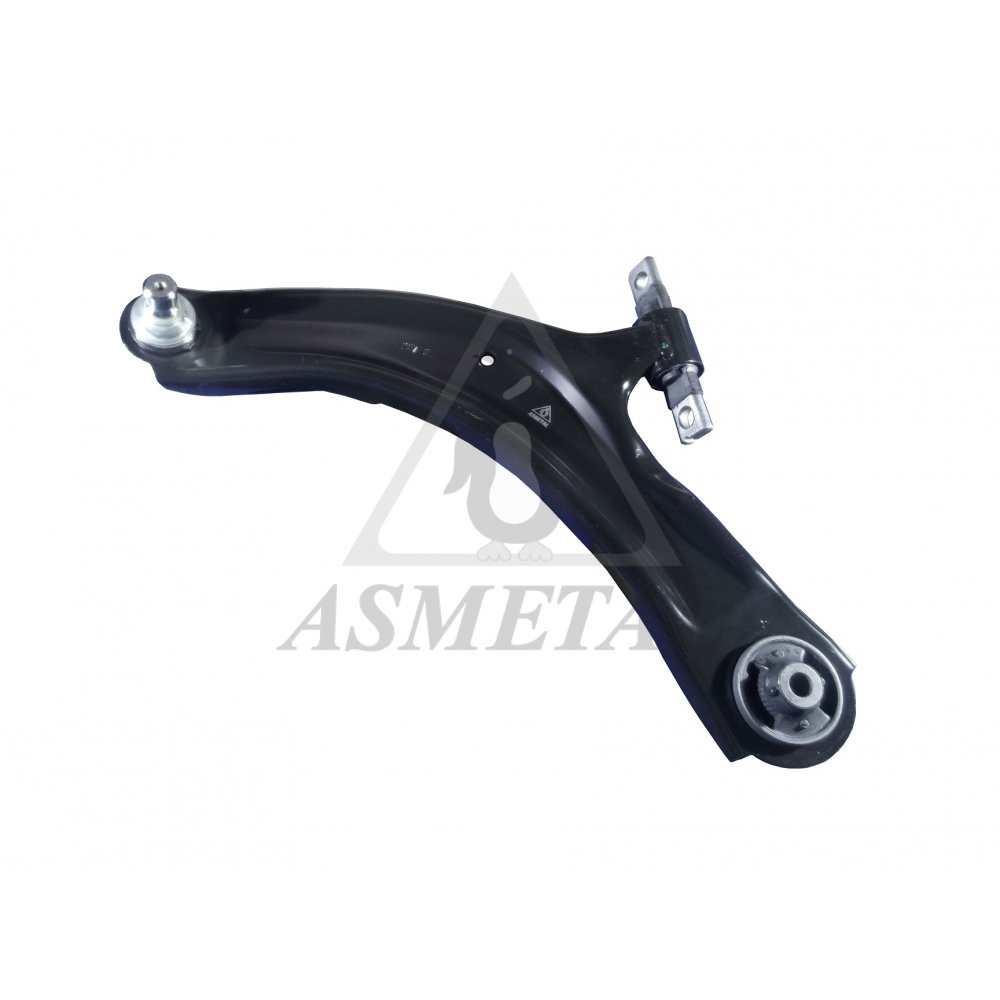

30NS1010
|
Track Control Arm Left |
c:Ø20 / 3,2 kg |
54500 JG00A, 54501 JG000 (5) OEM |
 |
30NS1011
|
Track Control Arm Right |
c:Ø20 / 3,2 kg |
54500 BB00A, 54500 BR30A (5) OEM |
 |
30NS1030
NEW
|
Track Control Arm Left |
3,2 kg |
54501 6UA0A |
 |
30NS1031
NEW
|
Track Control Arm Right |
3,2 kg |
54500 6UA0A |
 |
30RN0510
|
Track Control Arm Left |
cr:1/5 c:Ø17.9 th:M16x1.5 RHT / 3,8 kg |
82 00 232 030, 82 00 602 612 (6) OEM |
 |
30RN0511
|
Track Control Arm Right |
cr:1/5 c:Ø17.9 th:M16x1.5 RHT / 3,8 kg |
82 00 232 032, 82 00 602 613 (5) OEM |
 |
30RN0514
|
Track Control Arm Left |
cr:1/5 c:Ø15.7 th:M12x1.25 RHT / 3,8 kg |
54 50 100 08R |
 |
30RN0515
|
Track Control Arm Right |
cr:1/5 c:Ø15.7 th:M12x1.25 RHT / 3,8 kg |
54 50 000 01R |
 |
30RN0516
|
Track Control Arm Left |
cr:1/5 c:Ø17.9 th:M16x1.5 RHT / 5,1 kg |
54503 00Q0F, 54503 00Q0G (13) OEM |
 |
30RN0517
|
Track Control Arm Right |
cr:1/5 c:Ø17.9 th:M16x1.5 RHT / 5,1 kg |
54502 00Q0A, 55502 00QAA (15) OEM |
 |
30RN0518
|
Track Control Arm Left |
cr:1/5 c:Ø17.9 th:M16x1.5 RHT / 3,8 kg |
54 50 184 33R, 82 00 602 619 (6) OEM |
 |
30RN0519
|
Track Control Arm Right |
cr:1/5 c:Ø17.9 th:M16x1.5 RHT / 3,8 kg |
82 00 602 620, 82 00 602 617 (5) OEM |
 |
30RN0520
|
Track Control Arm Left |
cr:1/5 c:Ø17.2 th:M16x1.5 RHT / 7,38 kg |
6000 618 836, 54501 00Q1M (4) OEM |
 |
30RN0521
|
Track Control Arm Right |
cr:1/5 c:Ø17.2 th:M16x1.5 RHT / 7,38 kg |
6000 618 835, 54500 00Q2B (4) OEM |
 |
30RN0522
|
Track Control Arm Left (Without Ball Joint) |
6,7 kg |
6000 618 836, 54501 00Q1M (4) OEM |
 |
30RN0523
|
Track Control Arm Right (Without Ball Joint) |
6,7 kg |
6000 618 835, 54500 00Q2B (4) OEM |
 |
30RN1100
IN PREPARATION
|
Track Control Arm Left |
0 kg |
54501-00QAC, 54501-00QAE (15) OEM |
 |
30RN1101
IN PREPARATION
|
Track Control Arm Right |
0 kg |
54500-00QAC, 54500-00Q0C (15) OEM |
 |

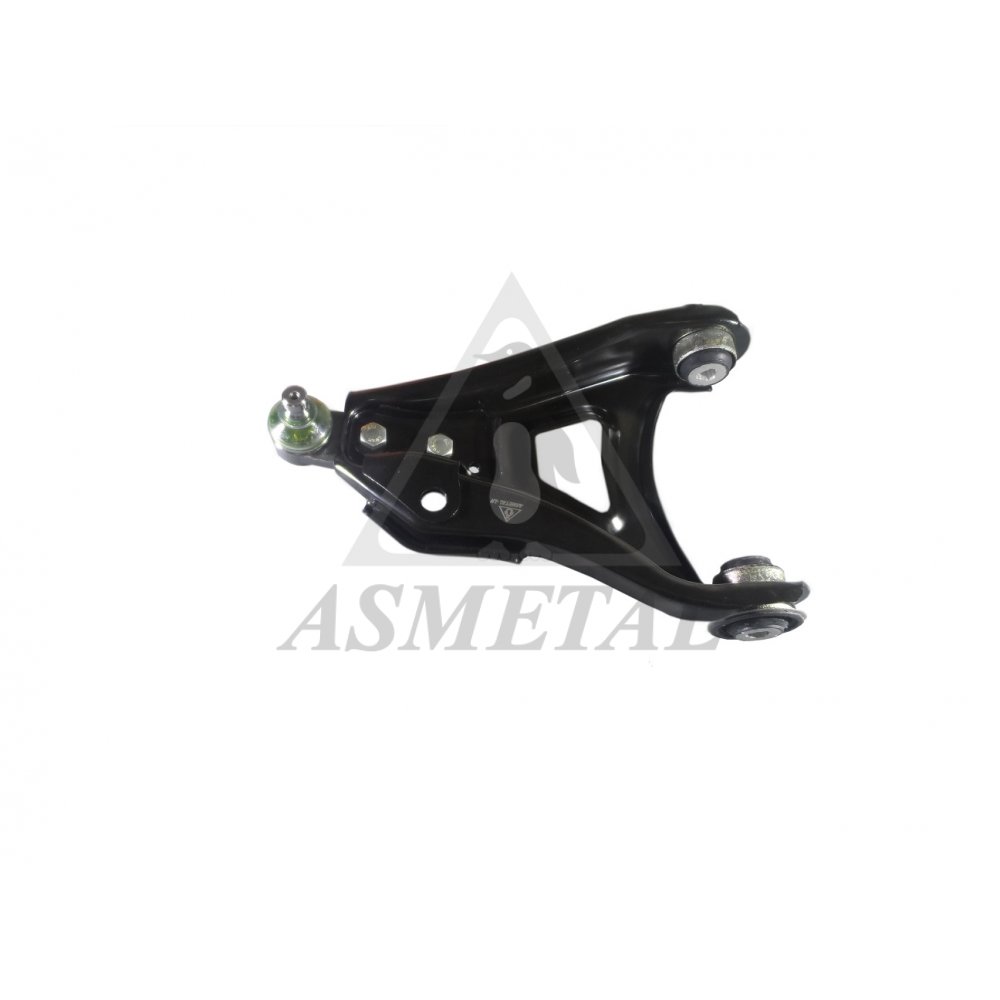

30RN2000
|
Track Control Arm Left |
c:Ø15.95 / 2,1 kg |
54501 00QAH, 54501 00Q0D (9) OEM |
 |
30RN2001
|
Track Control Arm Right |
c:Ø15.95 / 2,1 kg |
54500 00QAH, 54500 00Q0D (11) OEM |
 |
30RN2002
|
Track Control Arm Left |
c:Ø15.95 / 2,2 kg |
54501 00Q0D, 54501 00Q0G (8) OEM |
 |
30RN2003
|
Track Control Arm Right |
c:Ø15.95 / 2,2 kg |
54500 00Q0D, 54500 00Q0J (7) OEM |
 |
30RN2005
|
Track Control Arm Right |
c:Ø15.95 / 2,3 kg |
82 00 942 408 |
 |
30RN2006
|
Track Control Arm Left |
c:Ø15.95 / 2,3 kg |
82 00 942 407 |
 |
30RN2010
|
Track Control Arm Left |
c:Ø15.95 / 2,35 kg |
77 00 831 368, 77 00 818 051 (3) OEM |
 |
30RN2011
|
Track Control Arm Right |
c:Ø15.95 / 2,35 kg |
82 00 737 135, 77 00 781 035 (3) OEM |
 |
30RN2012
|
Track Control Arm Left |
c:Ø15.95 / 2,3 kg |
77 00 834 916, 77 00 430 765 (2) OEM |
 |
30RN2013
|
Track Control Arm Right |
c:Ø15.95 / 2,3 kg |
77 00 834 917, 77 00 430 766 (2) OEM |
 |
30RN5540
NEW
|
Track Control Arm Lower Left |
2,94 kg |
54 50 527 37R, 54 50 552 08R (1) OEM |
 |

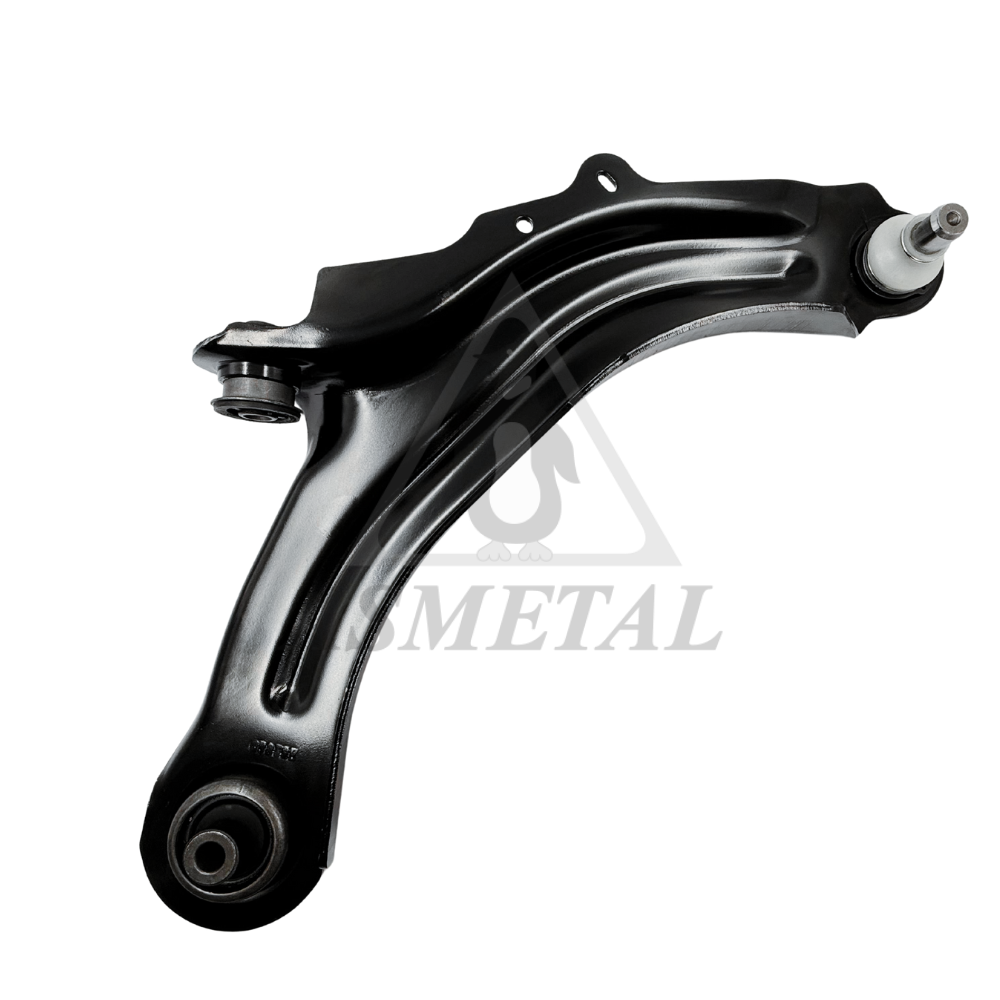

30RN5541
NEW
|
Track Control Arm Lower Right |
2,94 kg |
54 50 413 27R, 54 50 454 76R (1) OEM |
 |
30RN5542
|
Track Control Arm Right |
c:Ø18 / 2,86 kg |
82 00 457 209, 54 50 457 43R (4) OEM |
 |
30RN5543
|
Track Control Arm Left |
c:Ø18 / 2,86 kg |
54 50 531 70R, 54 50 593 35R (4) OEM |
 |

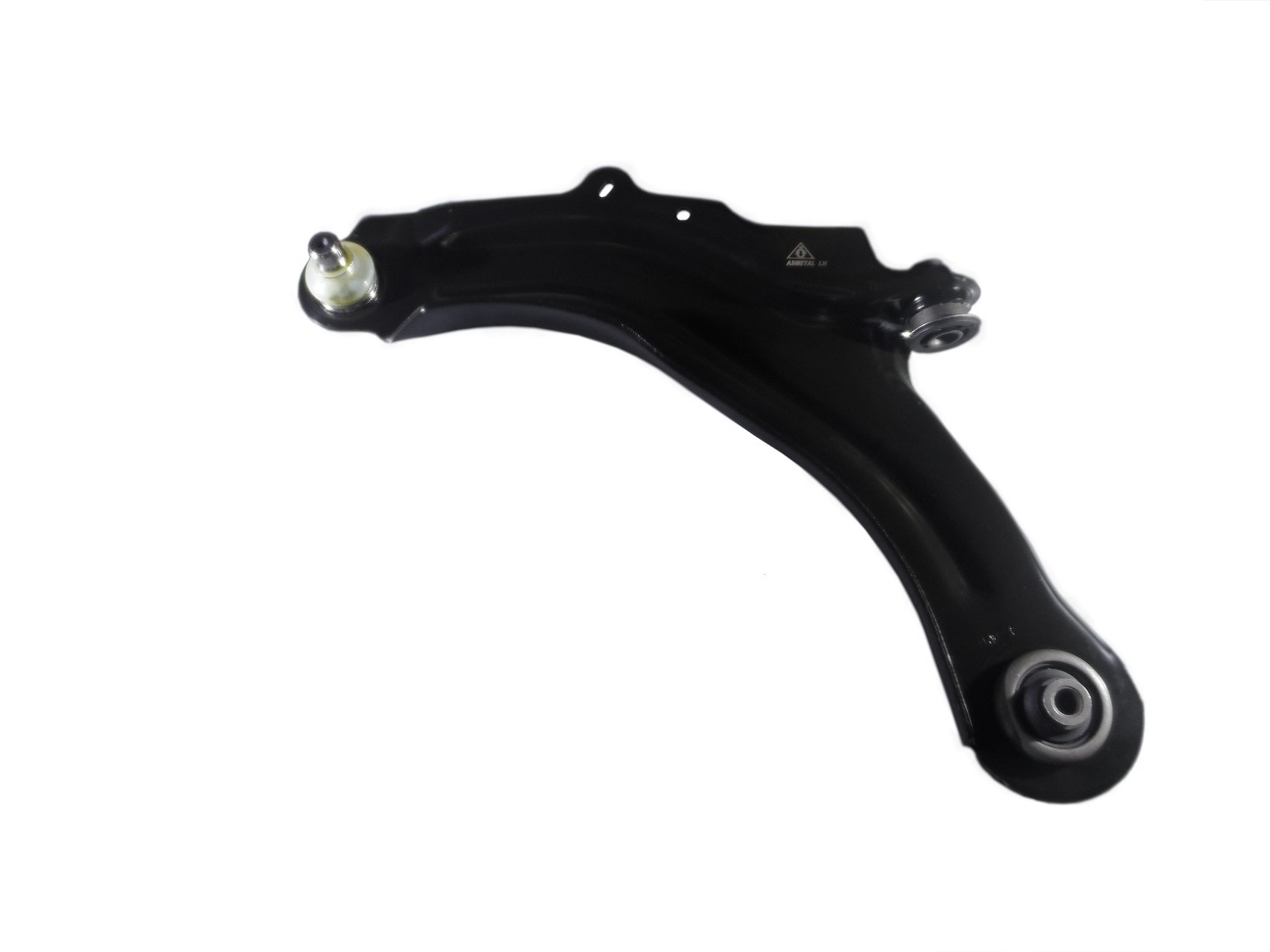

30RN5544
|
Track Control Arm Left |
c:Ø17.95 / 2,5 kg |
82 00 744 091, 82 00 346 941 (1) OEM |
 |

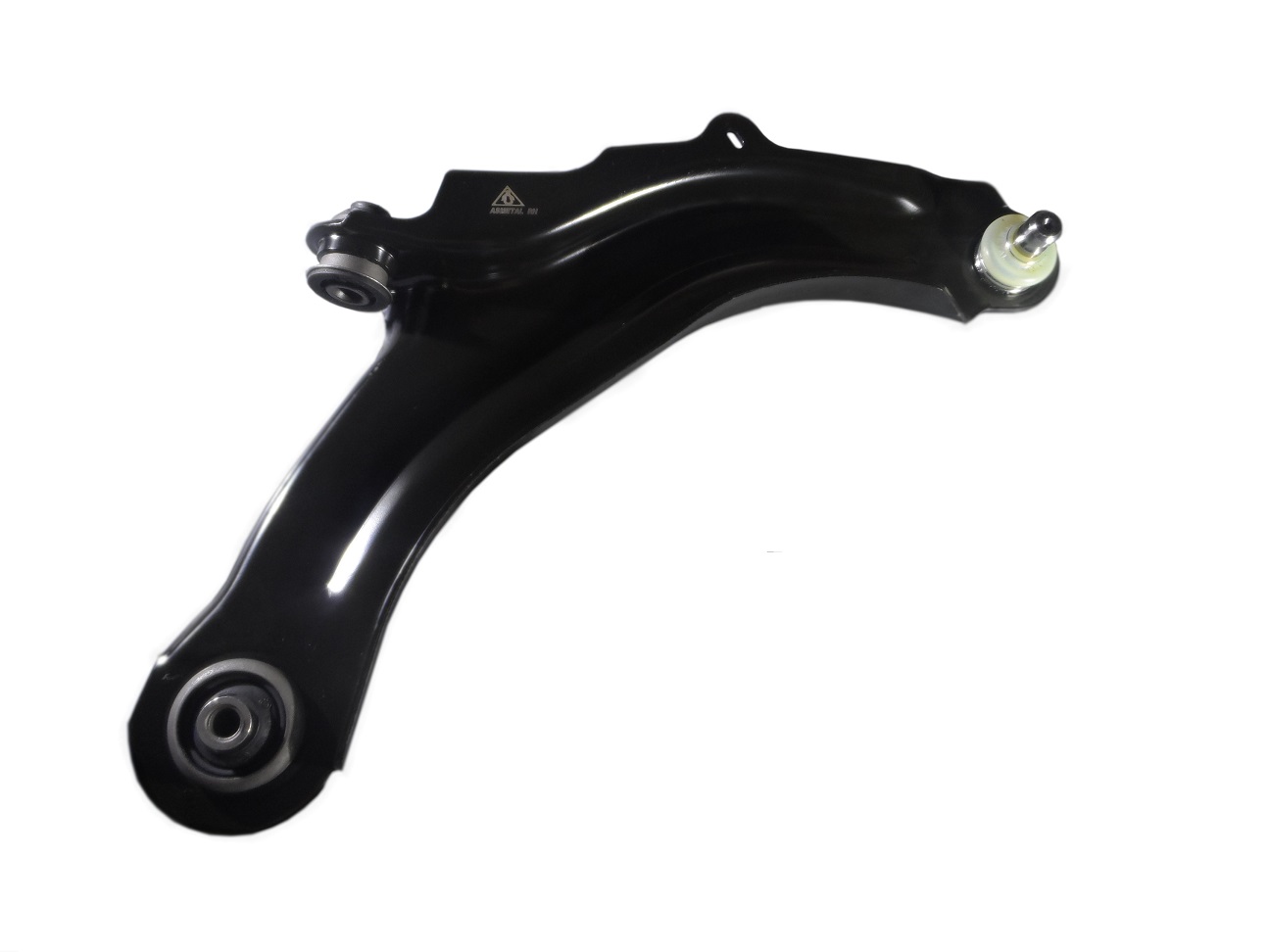

30RN5545
|
Track Control Arm Right |
c:Ø17.95 / 2,5 kg |
82 00 744 092, 82 00 346 942 (1) OEM |
 |
30RN5546
|
Track Control Arm Left |
c:Ø17.95 / 3 kg |
54 50 523 54R, 54 50 503 99R (2) OEM |
 |
30RN5547
|
Track Control Arm Right |
c:Ø17.95 / 3 kg |
54 50 499 68R, 54 50 485 06R (2) OEM |
 |
30RN5548
IN PREPARATION
|
Track Control Arm Left |
3,1 kg |
54 50 141 20R, 54 50 551 65R |
 |
30RN5549
IN PREPARATION
|
Track Control Arm Right |
3,1 kg |
54 50 426 44R, 54 504786 58R |
 |
30RN5560
|
Track Control Arm Left |
c:Ø18 / 2 kg |
54 50 102 94R, 54 50 170 81R (2) OEM |
 |

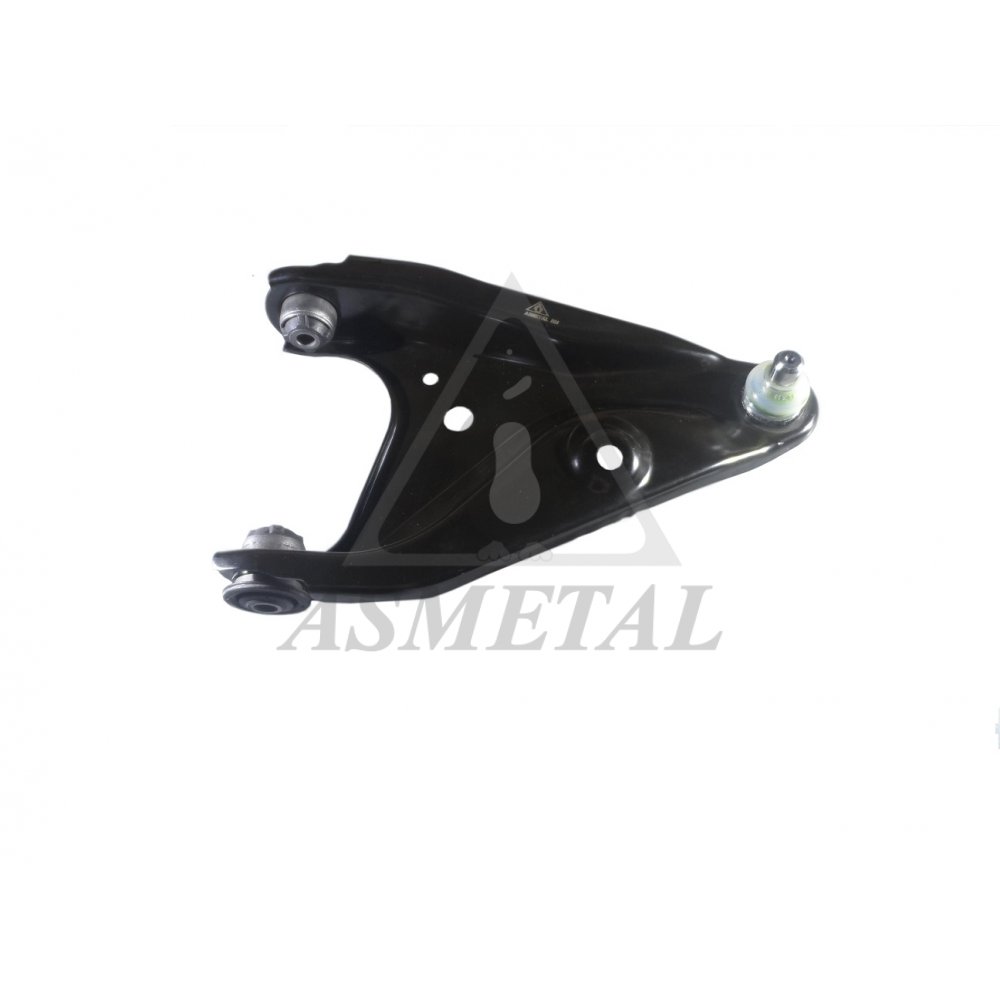

30RN5561
|
Track Control Arm Right |
c:Ø18 / 2 kg |
54 50 010 64R, 54 50 045 29R (2) OEM |
 |

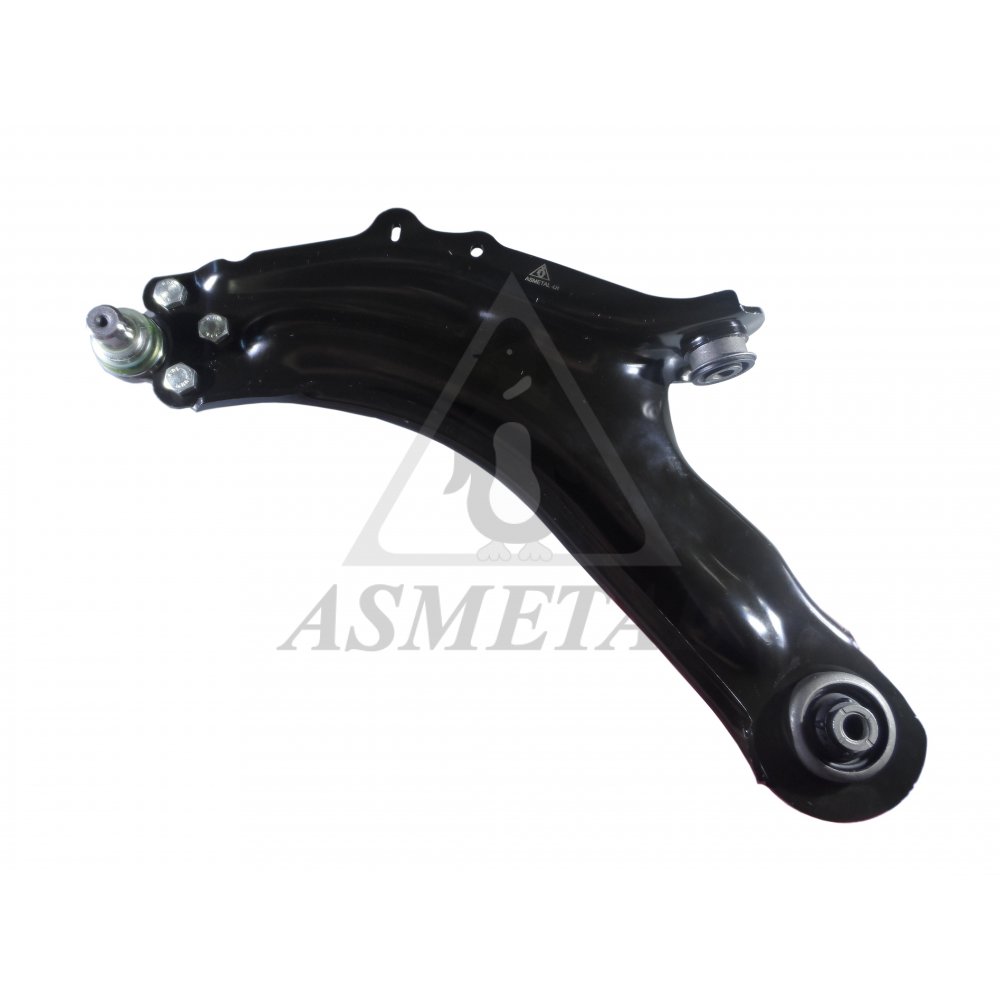

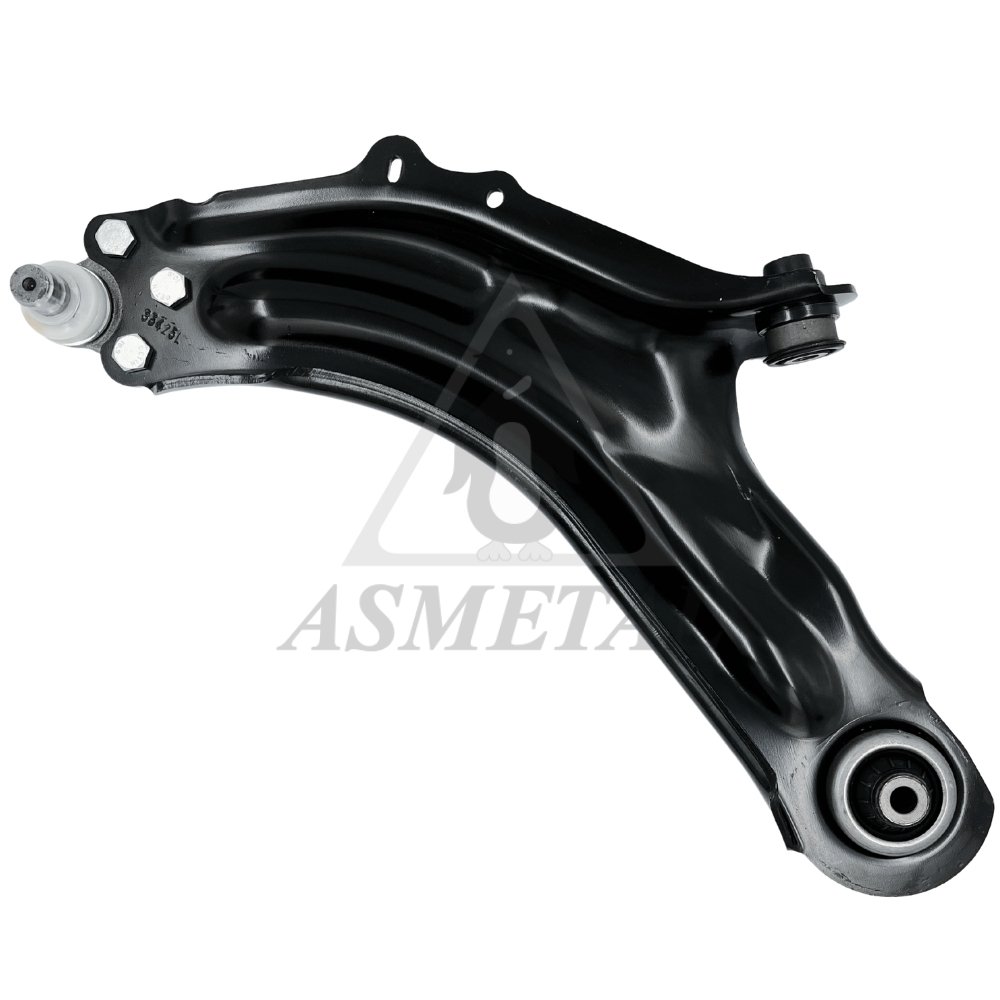

30RN5606
|
Track Control Arm Left |
c:Ø20 / 3,4 kg |
A 415 330 03 00, 415 330 03 00 (1) OEM |
 |

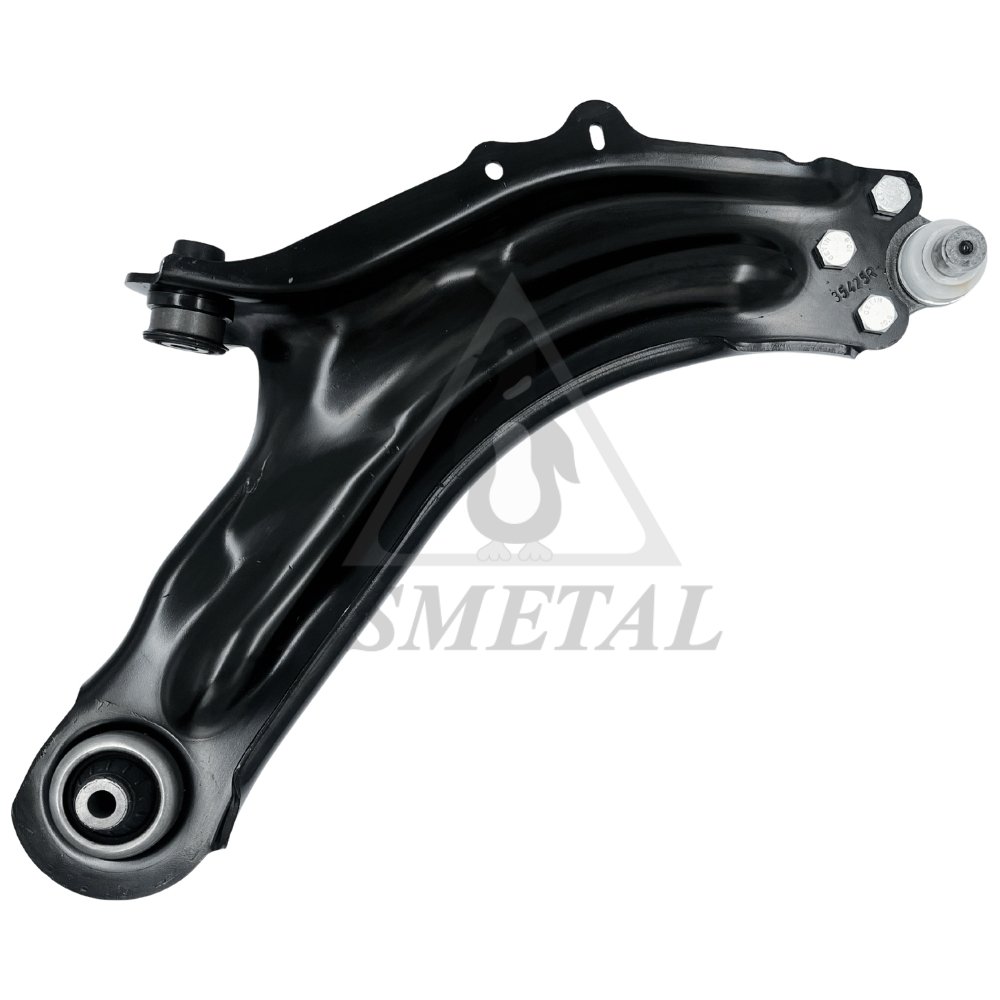

30RN5607
|
Track Control Arm Right |
c:Ø20 / 3,4 kg |
415 330 02 00, A 415 330 02 00 (1) OEM |
 |
30RN5610
|
Track Control Arm Left |
tp:M12x1.25 RHT cr:1/5 c:Ø17.08 / 3,6 kg |
54 50 181 94R, 5450 140 55R (2) OEM |
 |
30RN5611
|
Track Control Arm Right |
tp:M12x1.25 RHT cr:1/5 c:Ø17.08 / 3,6 kg |
5450 092 07R, 54 50 086 82R (2) OEM |
 |
30RN5612
|
Track Control Arm Left |
cr:1/5 c:Ø17.08 th:M12x1.25 RHT / 3,8 kg |
54 50 161 01R, 54 50 168 38R |
 |
30RN5613
|
Track Control Arm Right |
cr:1/5 c:Ø17.08 th:M12x1.25 RHT / 3,8 kg |
54 50 003 99R, 54 50 065 60R |
 |
30RN5614
|
Track Control Arm Left |
cr:1/5 c:Ø15.7 th:M12x1.25 RHT / 4,2 kg |
54 50 100 09R, 54 50 100 12R |
 |
30RN5615
|
Track Control Arm Right |
cr:1/5 c:Ø15.7 th:M12x1.25 RHT / 4,2 kg |
54 50 000 02R, 54 50 000 11R |
 |
30RN5702
NEW
|
Track Control Arm Left |
3,9 kg |
420 330 01 00, A 420 330 01 00 (1) OEM |
 |
30RN5703
NEW
|
Track Control Arm Right |
3,9 kg |
420 330 00 00, A 420 330 00 00 (1) OEM |
 |

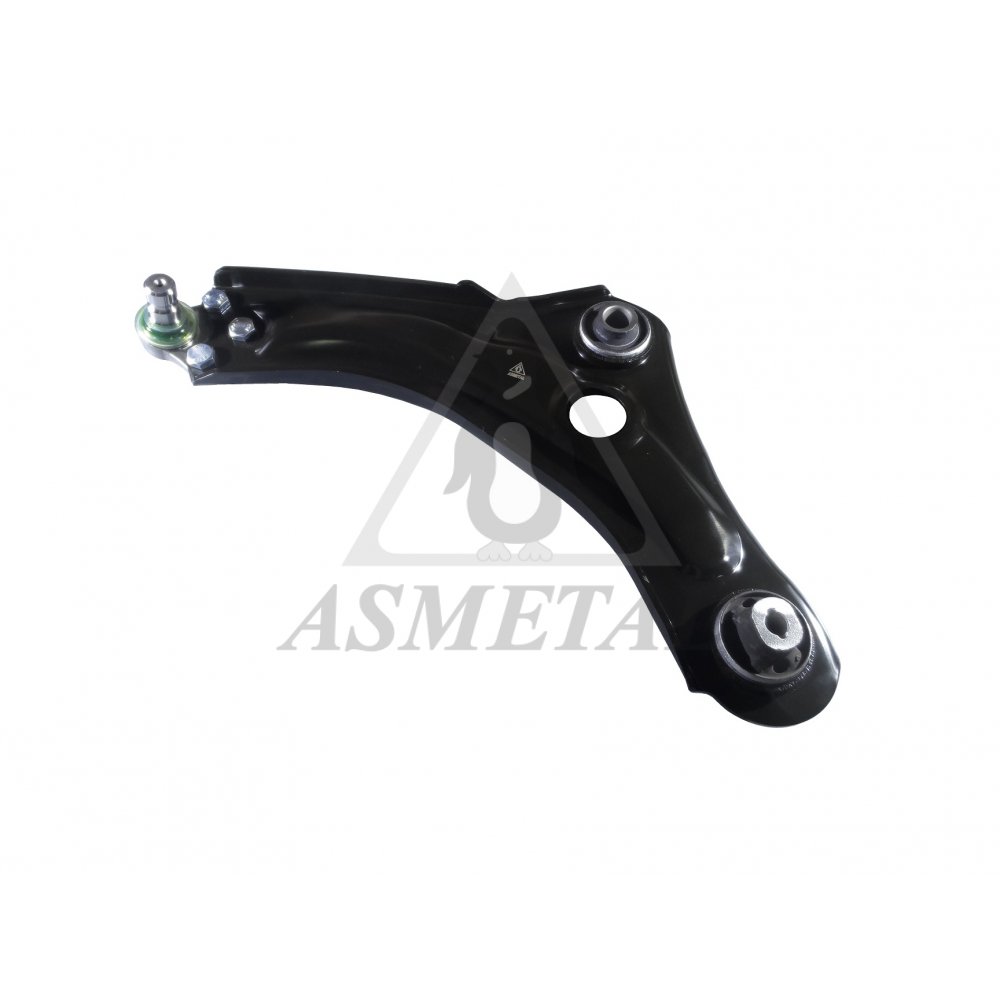

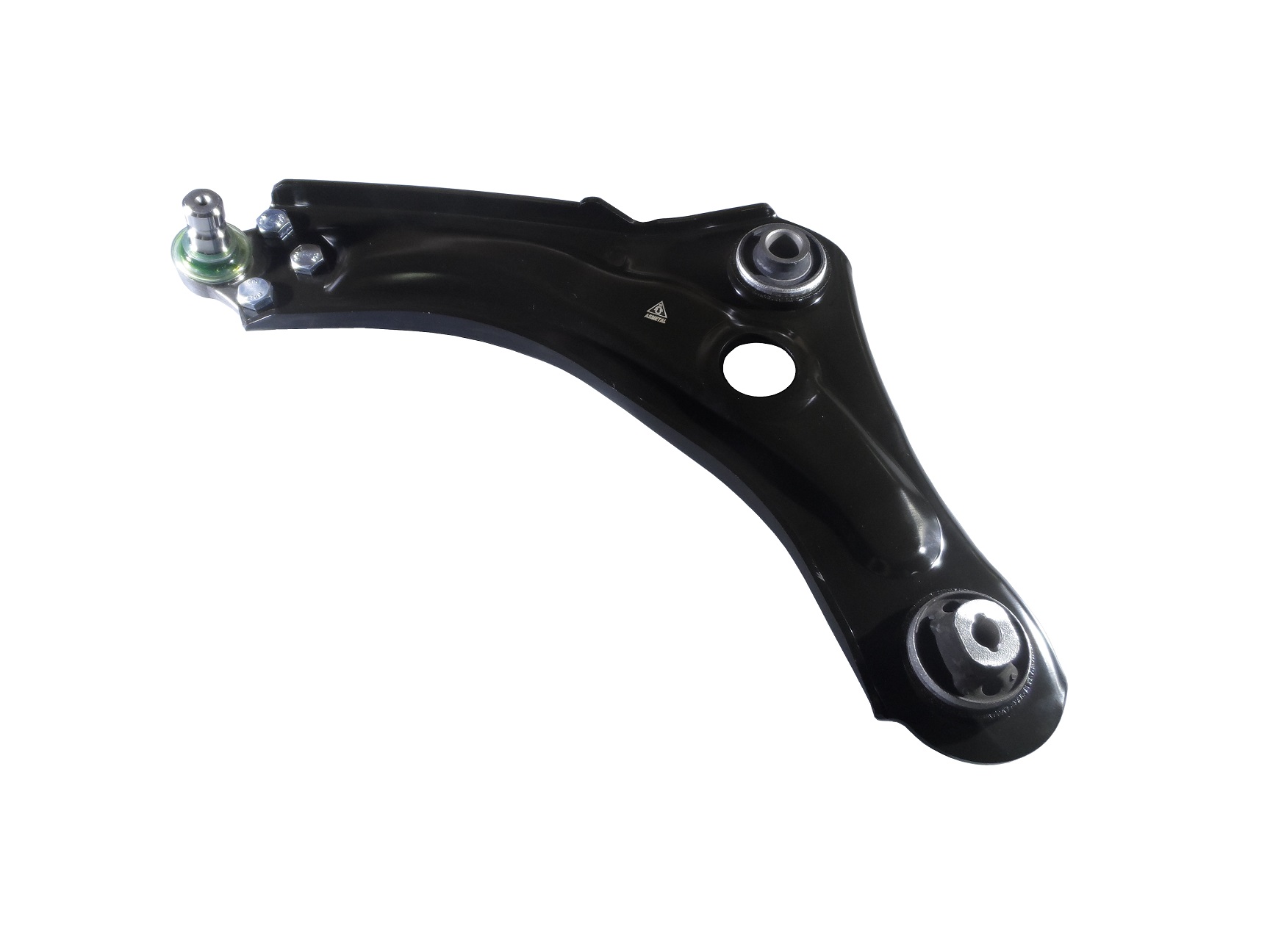

30RN5710
|
Track Control Arm Left |
c:Ø21.95 / 3,8 kg |
54 50 574 49R, 54 50 583 97R (1) OEM |
 |

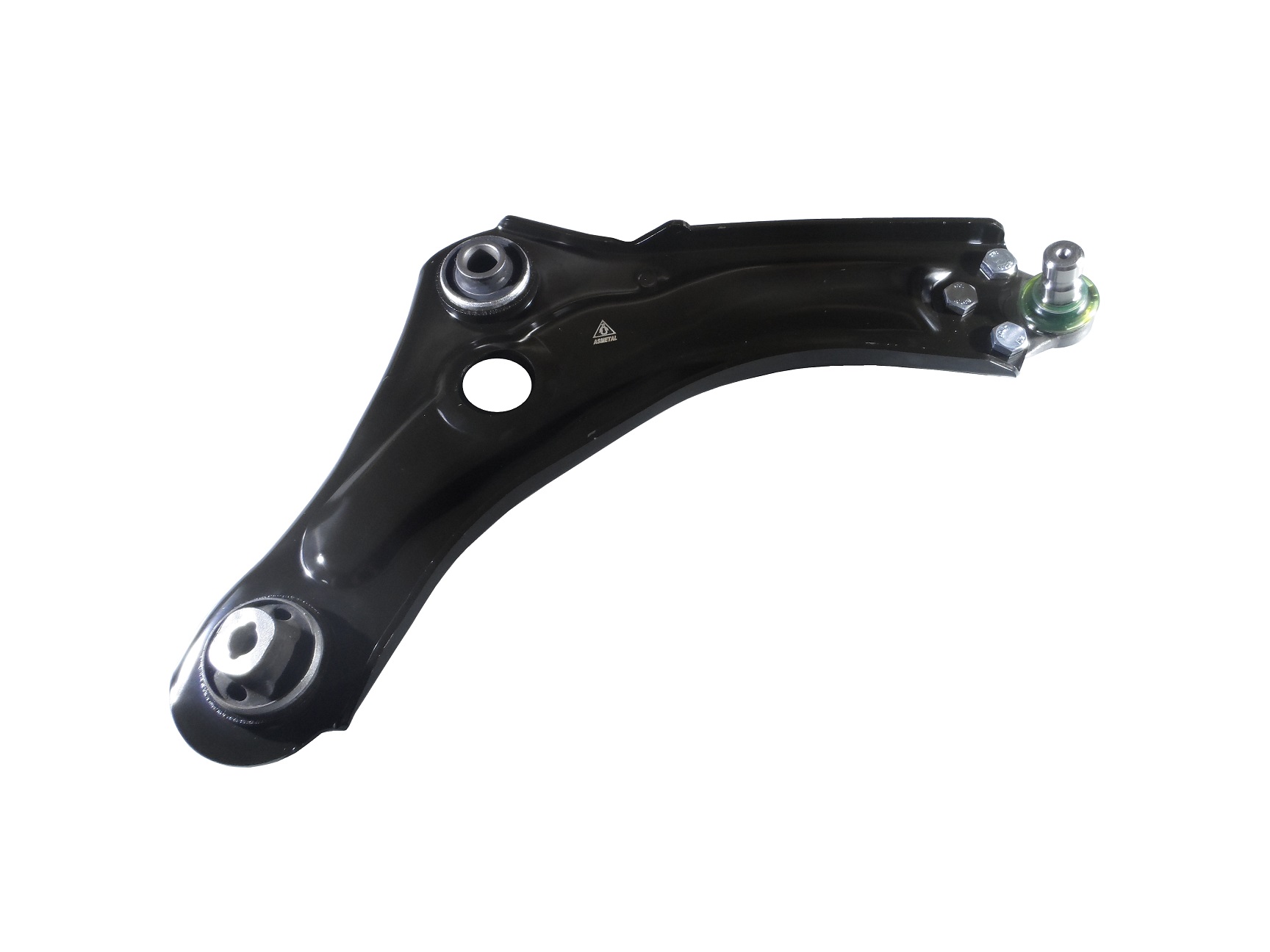

30RN5711
|
Track Control Arm Right |
c:Ø21.95 / 3,8 kg |
54 50 452 97R, 54 50 420 21R (1) OEM |
 |
30RN5800
NEW
|
Track Control Arm Left |
3,48 kg |
MQ006789, 54 50 560 28R (1) OEM |
 |
30RN5801
NEW
|
Track Control Arm Right |
3,48 kg |
54 50 425 11R, 54 50 024 46R (1) OEM |
 |
30RN5802
NEW
|
Track Control Arm Left |
3,50 kg |
54505 00Q0D, 54 50 550 50R |
 |
30RN5803
NEW
|
Track Control Arm Right |
3,50 kg |
54504 00Q0D, 54 50 420 80R |
 |
38DC1000
|
Stabiliser Mounting |
L:35.4 di:Ø24 do:Ø34 / 0,03 kg |
60 01 549 311, 82 00 262 344 (4) OEM |
 |
38DC1002
|
Silentblock for TCA |
L:46 di:Ø12.1 do:Ø37.2 / 0,17 kg |
60 40 002 245, 60 01 547 519* (4) OEM |
 |
38DC1005
|
Axle Beam Bushing |
L:90 di:Ø12.2 do:Ø66.5 / 0,42 kg |
60 01 549 988, 60 01 549 989 (2) OEM |
 |
38DC1015
|
Silentblock for TCA |
L:45 di:Ø14 do:Ø37.3 / 0,16 kg |
54 56 027 88R, 54 50 199 69R* (5) OEM |
 |

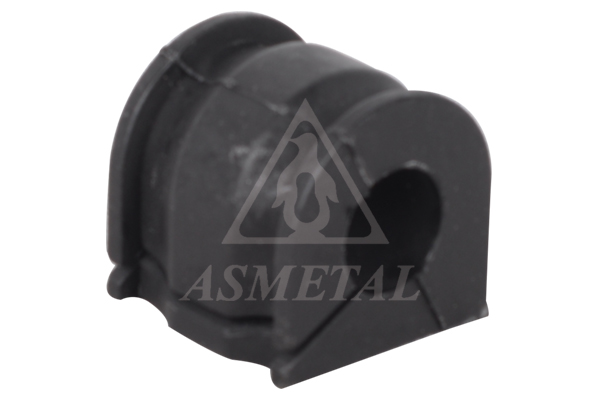

38DC1018
|
Stabiliser Mounting |
L:36 di:Ø18 / 0,04 kg |
82 00 852 550, 54 61 142 37R |
 |
38DC1020
|
Stabiliser Mounting |
L:32 di:Ø19 / 0,04 kg |
56 23 001 11R |
 |
38DC1024
|
Silentblock for TCA |
L:55.8 di:Ø14.2 do:Ø54.1 / 0,238 kg |
55 11 078 94R*, 55 11 193 05R* (2) OEM |
 |

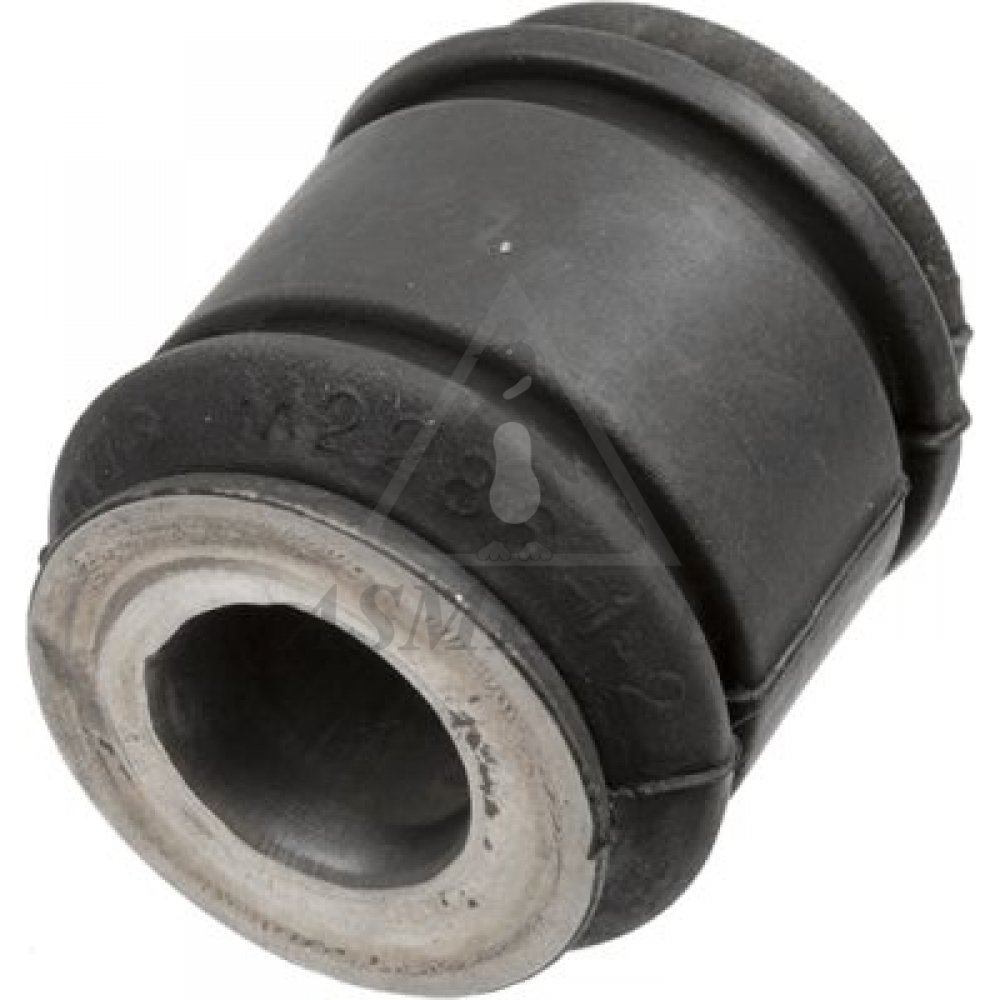

38DC1025
|
Silentblock for TCA |
di:Ø18 / 0,1 kg |
82 00 839 121 |
 |
38DC3000
|
Silentblock for TCA |
di: Ø18.5 / do: Ø55 / L: 43.5 / 0,28 kg |
54 56 059 25R, 54 50 547 87R* (1) OEM |
 |
38DC3001
|
Silentblock for TCA |
di: Ø14.2 / do: Ø58 / L: 53 / 0,16 kg |
54 56 048 08R, 54 50 547 87R* (1) OEM |
 |
38DC3100
NEW
|
Silentblock for TCA |
0,342 kg |
54 501 521 6R*, 54 500 204 6R* |
 |
38DC3101
NEW
|
Silentblock for TCA |
0,167 kg |
54 501 521 6R*, 54 500 204 6R* |
 |
38NS1000
|
Silentblock for TCA |
L:115 do:Ø32.5 / 0,35 kg |
54500 JG000, 54501 JG000 (7) OEM |
 |
38NS1001
|
Silentblock for TCA |
L:53 di:Ø12.2 do:Ø58 / 0,36 kg |
54570 EN002, 54570 BB00A (18) OEM |
 |
38NS1010
|
Silentblock for TCA |
L:50.4 di:Ø14.2 do:Ø55 / 0,39 kg |
54501 4EA0B*, 54501 4EA0A* (2) OEM |
 |
38NS1011
|
Silentblock for TCA |
L:65 di:Ø12.2 do:Ø58 / 0,48 kg |
54500 4EA0B*, 54501 4EA0B* |
 |
38NS1030
NEW
|
Silentblock for TCA |
0,64 kg |
54570 6RA0A, 54500 6UA0A* (3) OEM |
 |
38NS1031
NEW
|
Silentblock for TCA |
0,18 kg |
54560 6RA0A, 54500 6UA0A* (1) OEM |
 |
38OP7000
|
Stabiliser Mounting |
L:38.5 di:Ø23 / 0,07 kg |
6000 620 074*, 93 456 353 (13) OEM |
 |

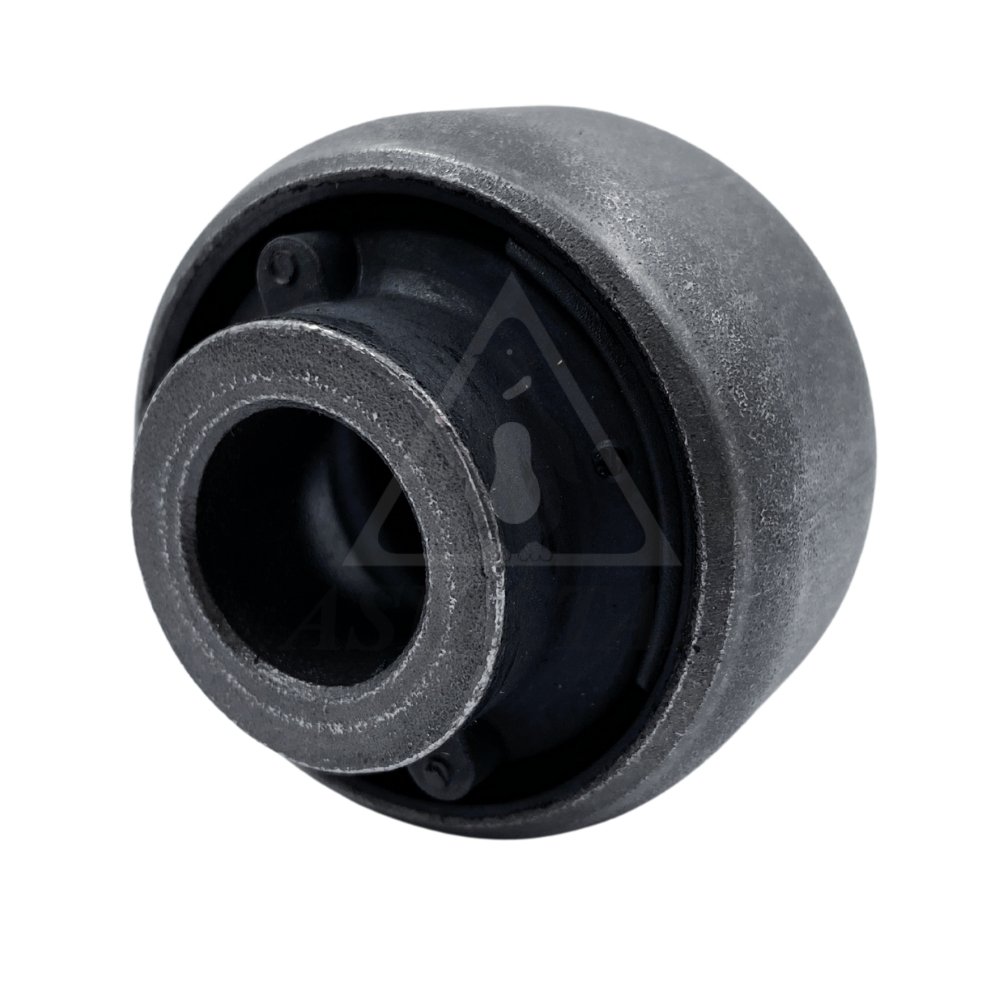

38RN0510
|
Silentblock for TCA |
L:50 di:Ø18 do:Ø55 / 0,3 kg |
82 00 452 715*, 82 00 002 868 (13) OEM |
 |
38RN0511
|
Silentblock for TCA |
L:54 di:Ø15.2 do:Ø58 / 0,31 kg |
6000 618 836*, 6000 618 835* (42) OEM |
 |

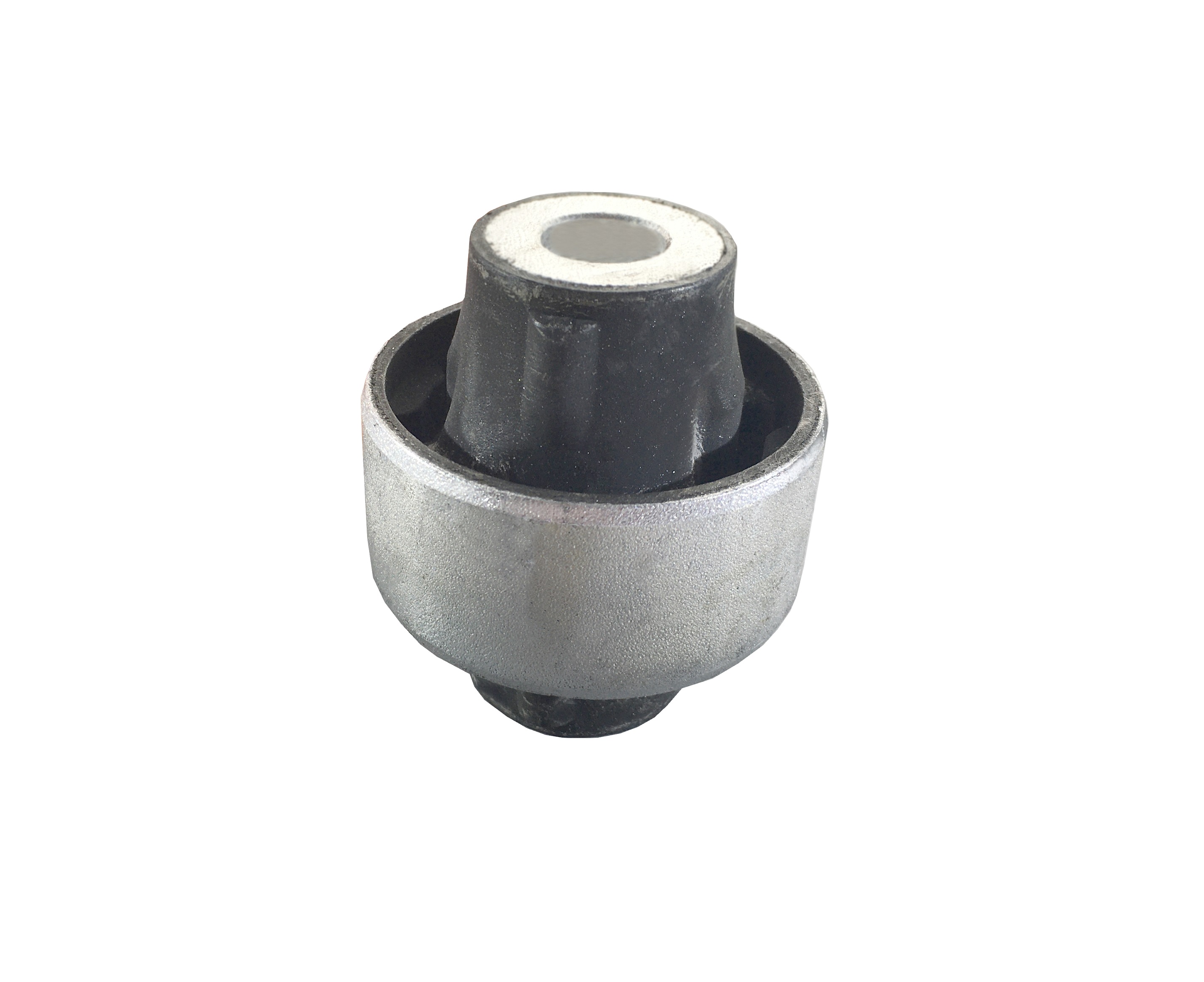

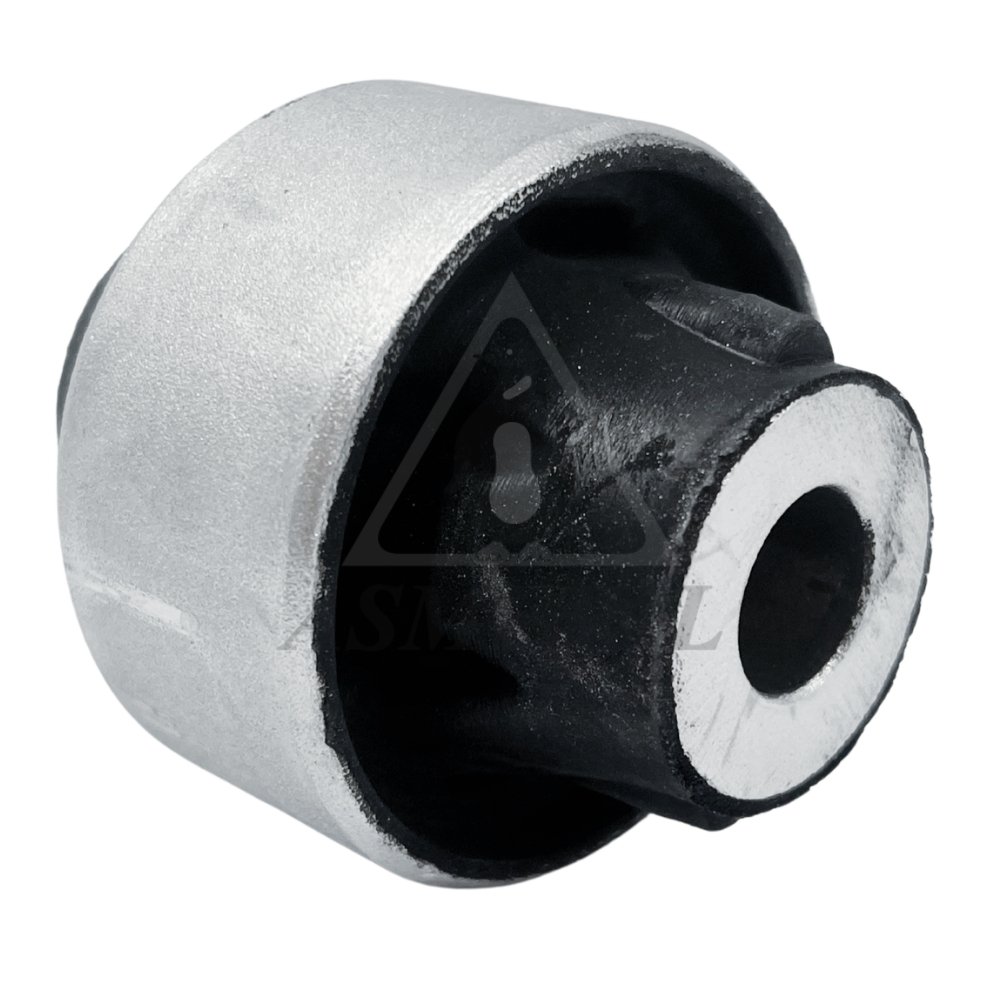

38RN0514
|
Silentblock for TCA |
L:65 di:Ø14.5 do:Ø58 / 0,2 kg |
54 56 000 02R, 54 50 100 08R* (1) OEM |
 |

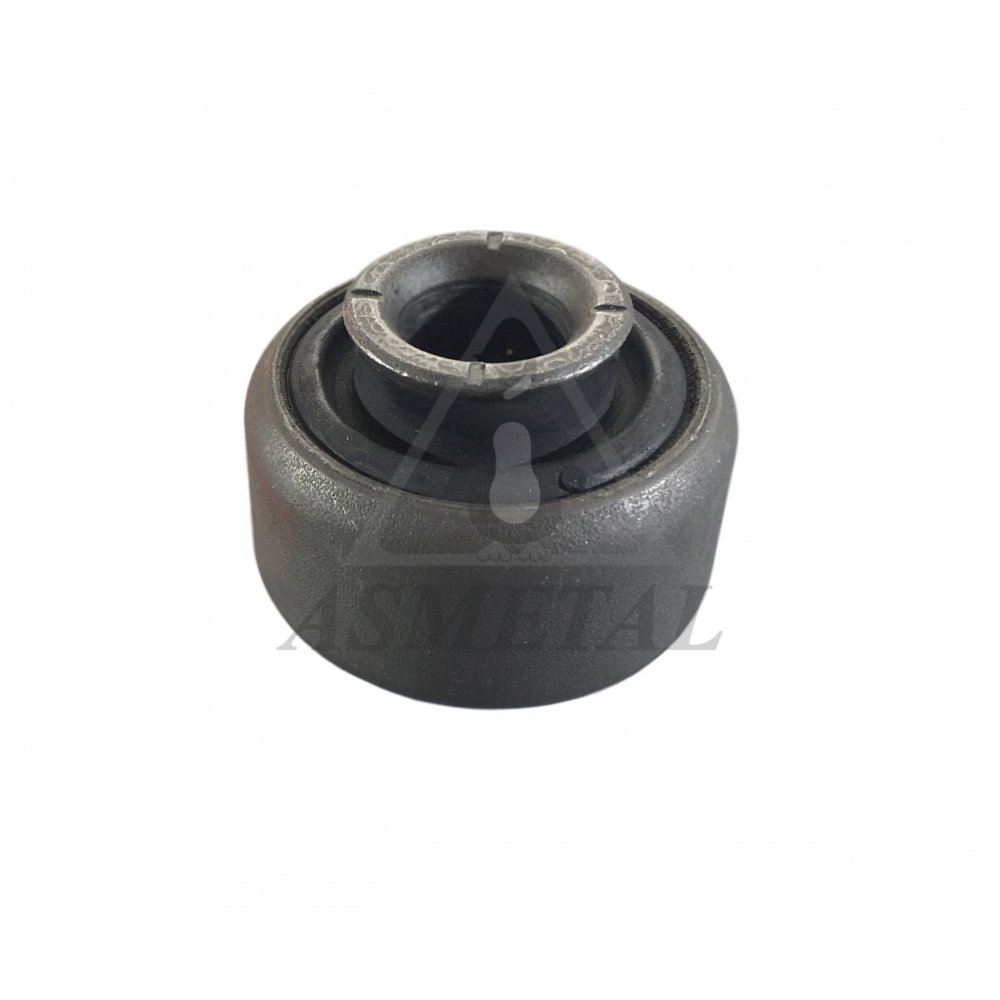

38RN0516
|
Silentblock for TCA |
L:50 di:Ø18.5 do:Ø55 / 0,27 kg |
6000 618 835*, 6000 618 836* (7) OEM |
 |
38RN0517
|
Axle Beam Bushing |
L:70 di:Ø12.2 do:Ø70.2 / 0,47 kg |
91 165 701, 93 856 473 (6) OEM |
 |
38RN0518
NEW
|
Stabiliser Mounting |
di:Ø23,5 / 0,07 kg |
82 00 272 592 |
 |
38RN0521
NEW
|
Stabiliser Mounting |
di:Ø21 / 0,08 kg |
82 00 455 604 |
 |
38RN1020
|
Silentblock for TCA |
L:77 di:Ø16.2 do:Ø70 / 0,58 kg |
54501 00Q1C*, 54500 00Q1E* (9) OEM |
 |
38RN1030
|
Silentblock for TCA |
L:49 di:Ø16.2 do:Ø49 / 0,26 kg |
54501 00Q1C*, 54500 00Q1E* (9) OEM |
 |
38RN1100
|
Silentblock for TCA |
L:74 di:Ø28 do:Ø55.4 / 0,5 kg |
91 60 394, 091 60 394 (5) OEM |
 |
38RN1101
|
Silentblock for TCA |
L:79 di:Ø28 do:Ø55.5 / 0,64 kg |
54423 00QAA, 45 00 095 (2) OEM |
 |
38RN1142
NEW
|
Stabiliser Mounting |
di:Ø22 / 0,05 kg |
56315 00Q0B, 44 19 308 (2) OEM |
 |
38RN2000
|
Silentblock for TCA |
L:46 di:Ø12 do:Ø45.5 / 0,18 kg |
54560 00QAB, 77 00 419 249 (8) OEM |
 |
38RN3490
NEW
|
Bellow Steering |
0,11 kg |
77 01 469 486 |
 |

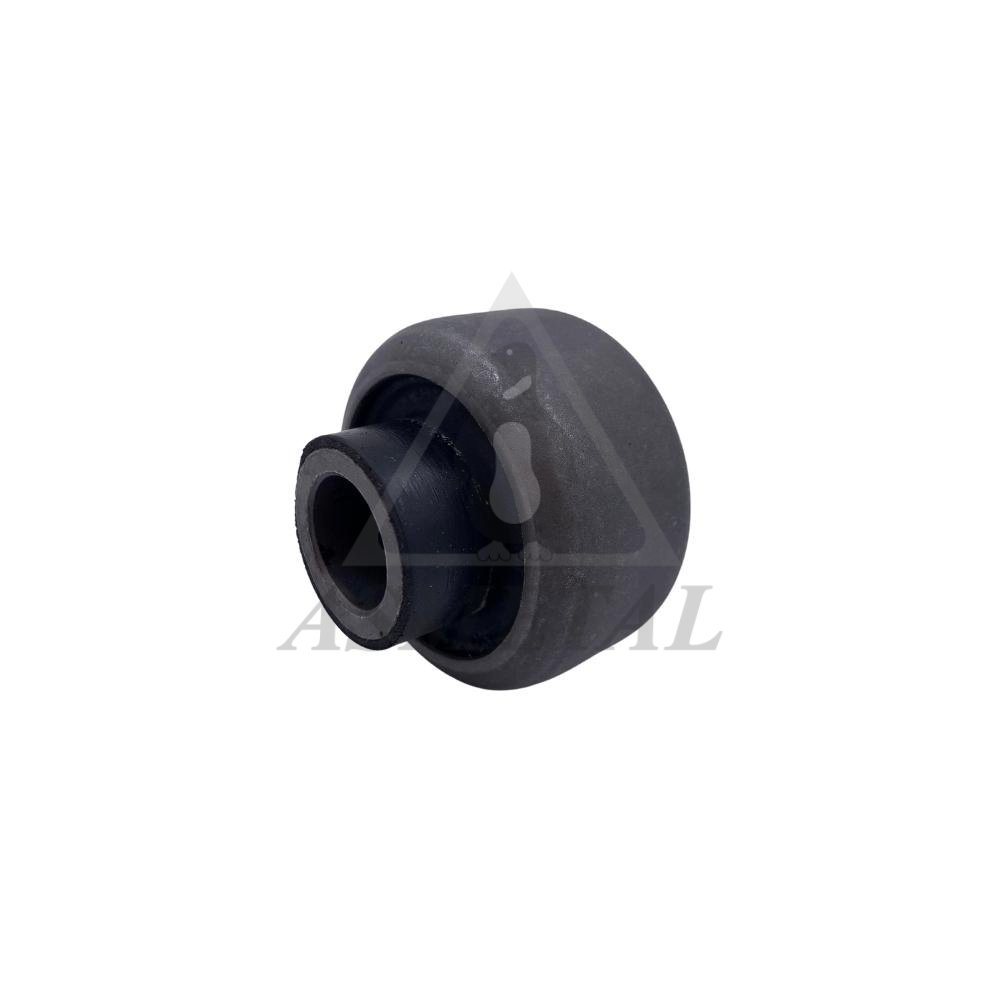

38RN5200
|
Silentblock for TCA |
L:55 di:Ø18.1 do:Ø55.3 / 0,31 kg |
60 25 307 746, 77 00 822 503 |
 |
38RN5523
NEW
|
Stabiliser Mounting |
di:Ø21 / 0,06 kg |
54613 00QAD, 77 00 436 014 (2) OEM |
 |
38RN5540
|
Axle Beam Bushing |
L:80 di:Ø17.1 do:Ø41.1 / 0,34 kg |
8200 742 906 |
 |
38RN5541
|
Silentblock for TCA |
L:48 di:Ø12.1 do:Ø33.1 / 0,16 kg |
54 50 401 31R*, 54 50 593 35R* (12) OEM |
 |

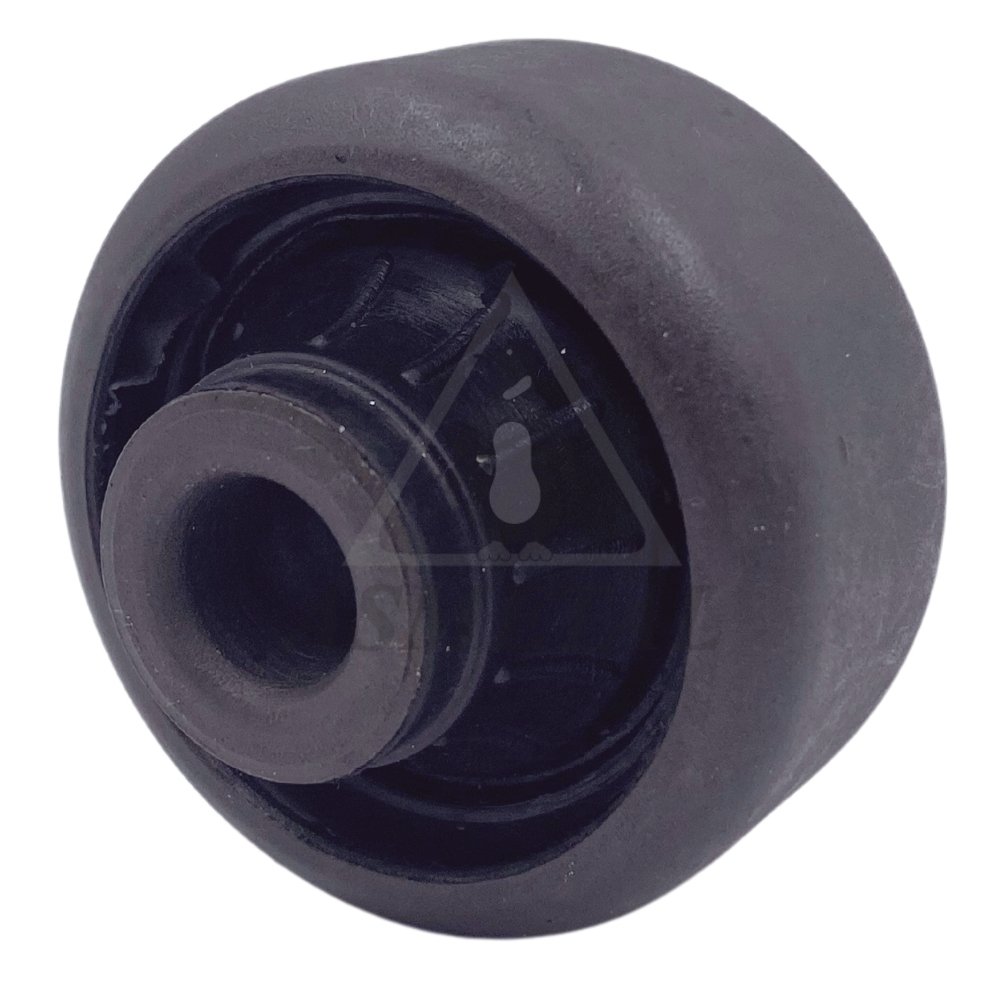

38RN5542
|
Silentblock for TCA |
L:53 di:Ø12.2 do:Ø58 / 0,26 kg |
54 50 141 20R*, 82 00 298 455* (14) OEM |
 |
38RN5543
|
Silentblock for TCA |
L:46 di:Ø12.1 do:Ø45.3 / 0,2 kg |
82 00 651 169, 77 00 789 478 (4) OEM |
 |
38RN5544
|
Silentblock for TCA |
L:55 di:Ø12.1 do:Ø35.8 / 0,12 kg |
54560 AX600, 54560 AX000 (1) OEM |
 |

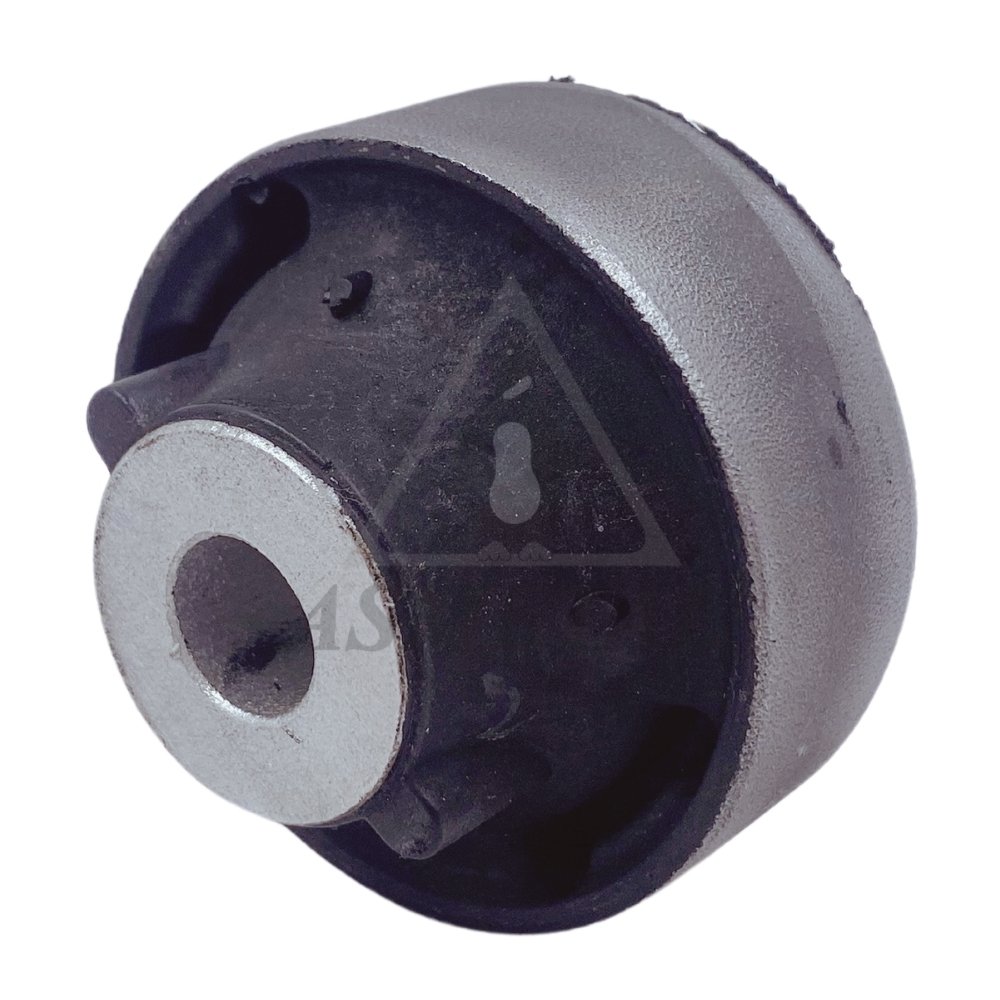

38RN5545
|
Silentblock for TCA |
L:53 di:Ø12 do:Ø58.2 / 0,16 kg |
82 00 346 941*, 82 00 346 942* (7) OEM |
 |
38RN5546
|
Stabiliser Mounting |
L:66 di:Ø18.5 / 0,08 kg |
77 01 056 096, 77 01 056 678 |
 |
38RN5560
|
Silentblock for TCA |
L:51 di:Ø12.1 do:Ø37.2 / 0,16 kg |
66 40 096 299, 54 50 117 27R* (3) OEM |
 |
38RN5610
|
Silentblock for TCA |
L:50.8 di:Ø18.2 do:Ø55.5 / 0,31 kg |
MQ001922, MQ001923 (4) OEM |
 |

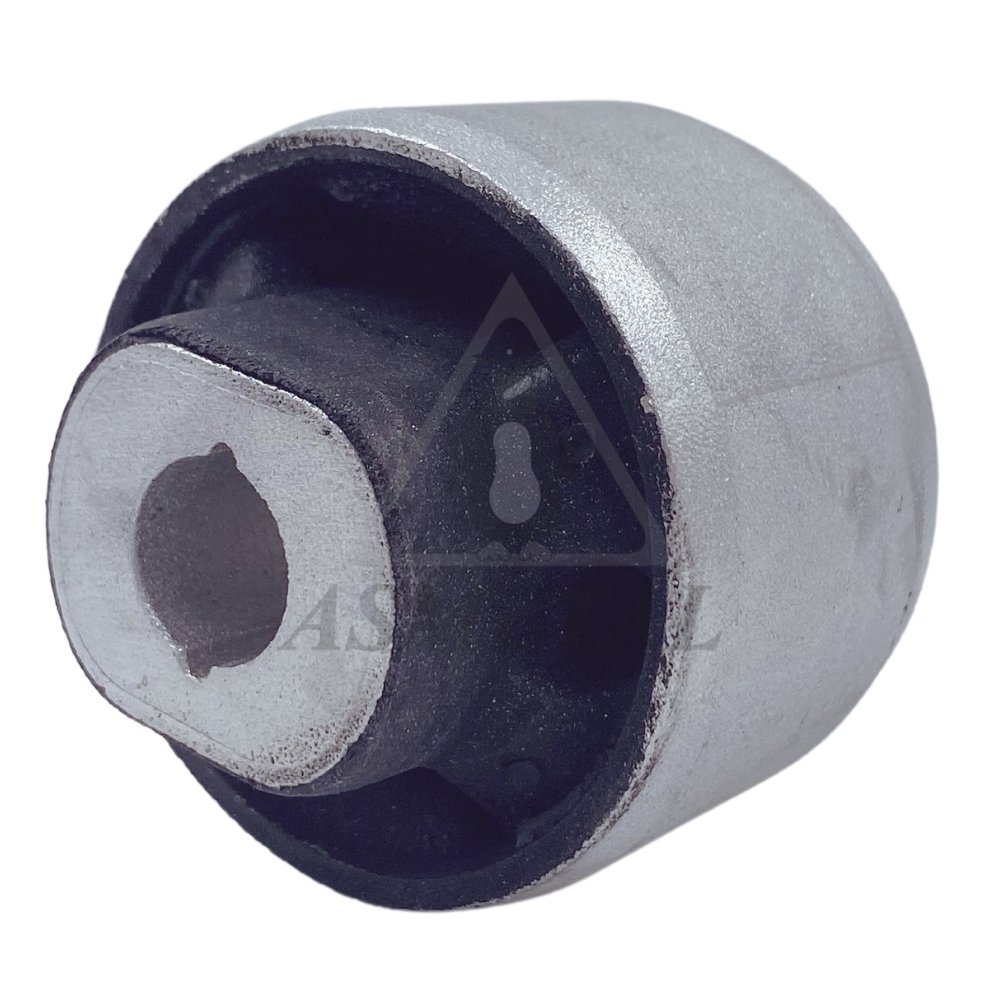

38RN5611
|
Silentblock for TCA |
L:65 di:Ø14 do:Ø58 / 0,19 kg |
54 50 140 55R*, 54 50 161 01R (8) OEM |
 |

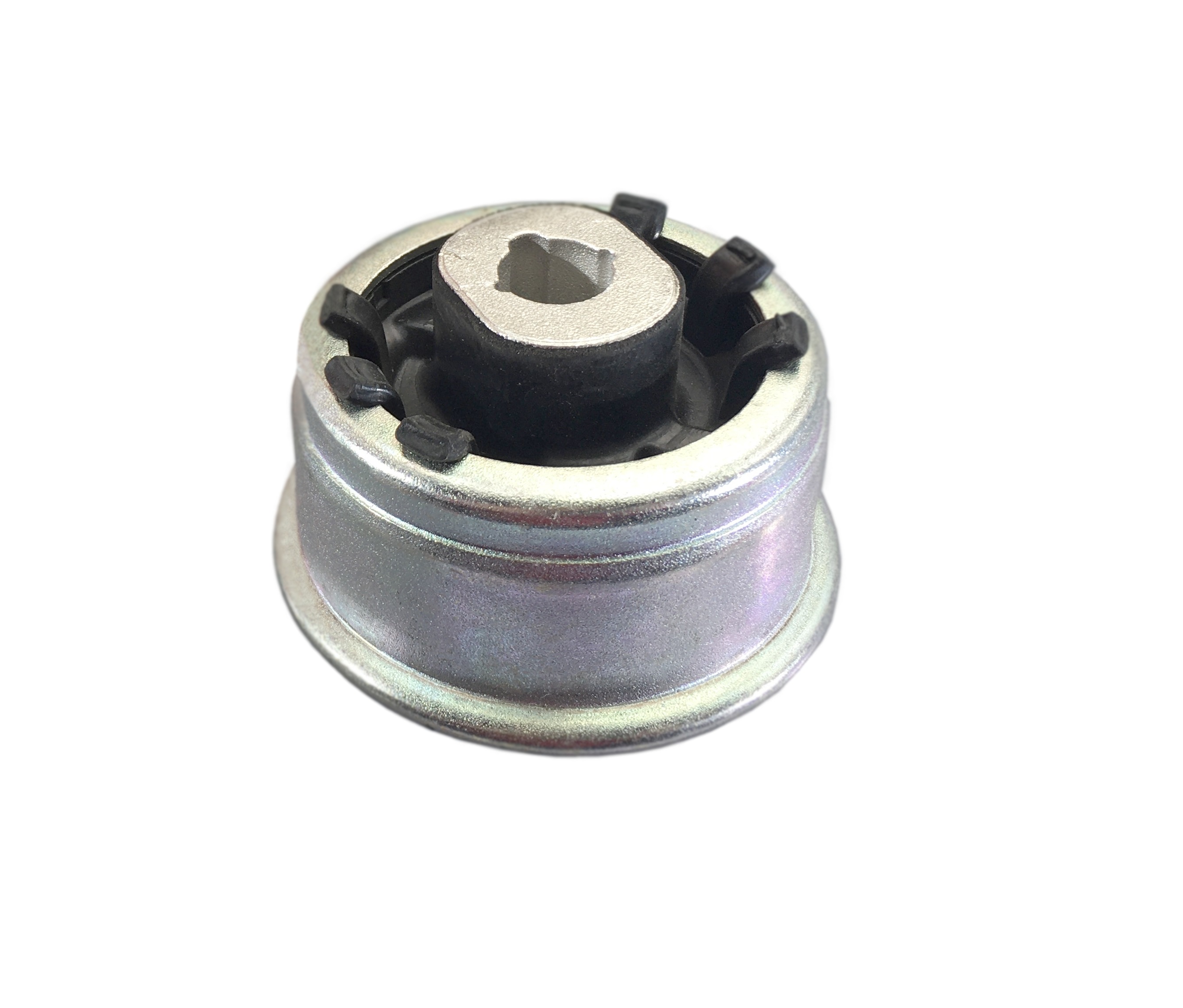

38RN5612
|
Silentblock for TCA |
L:65 di:Ø14.5 do:Ø70.5 / 0,41 kg |
60 40 205 623*, 54 56 016 84R* (2) OEM |
 |
38RN5613
|
Axle Beam Bushing |
L:89 di:Ø12.2 do:Ø69.7 / 0,31 kg |
48 08 000 03R, 55 04 453 44R* (2) OEM |
 |

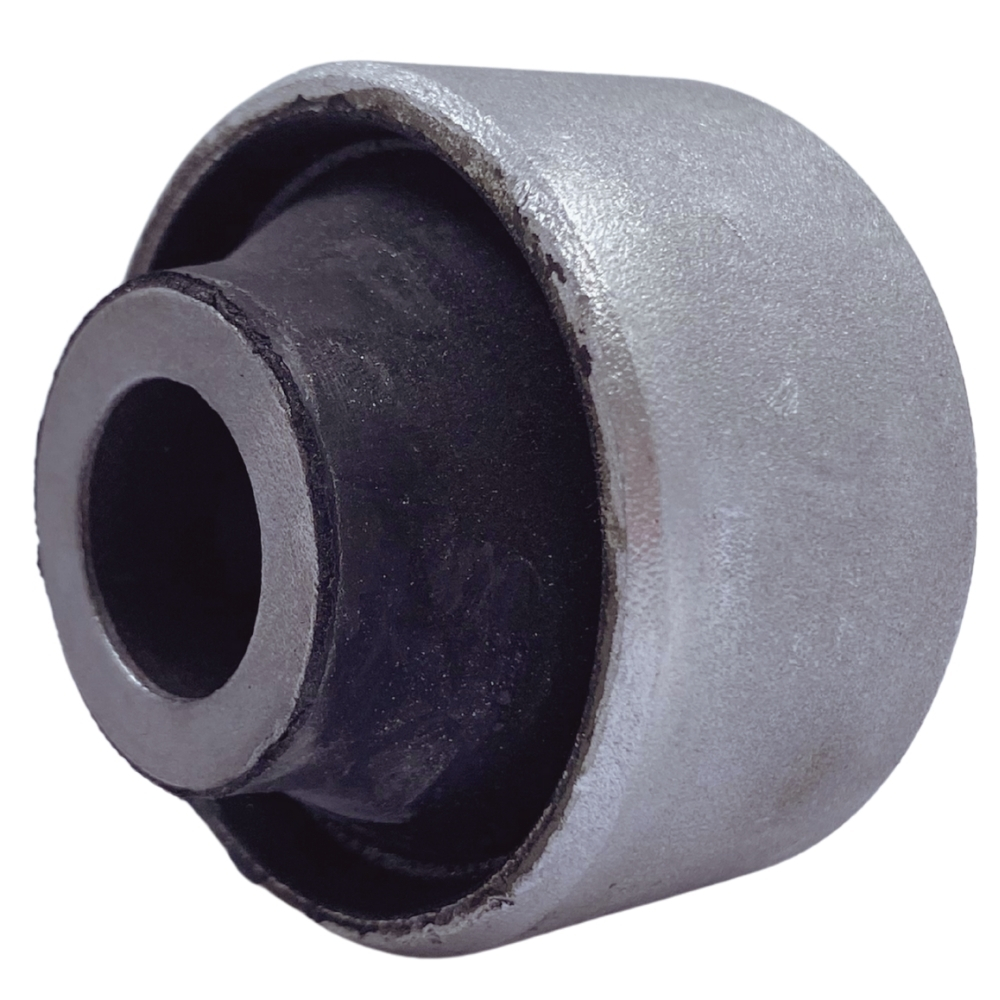

38RN5614
|
Silentblock for TCA |
L:53.5 di:Ø18.2 do:Ø55 / 0,29 kg |
54 50 000 01R*, 54 50 000 02R* (5) OEM |
 |

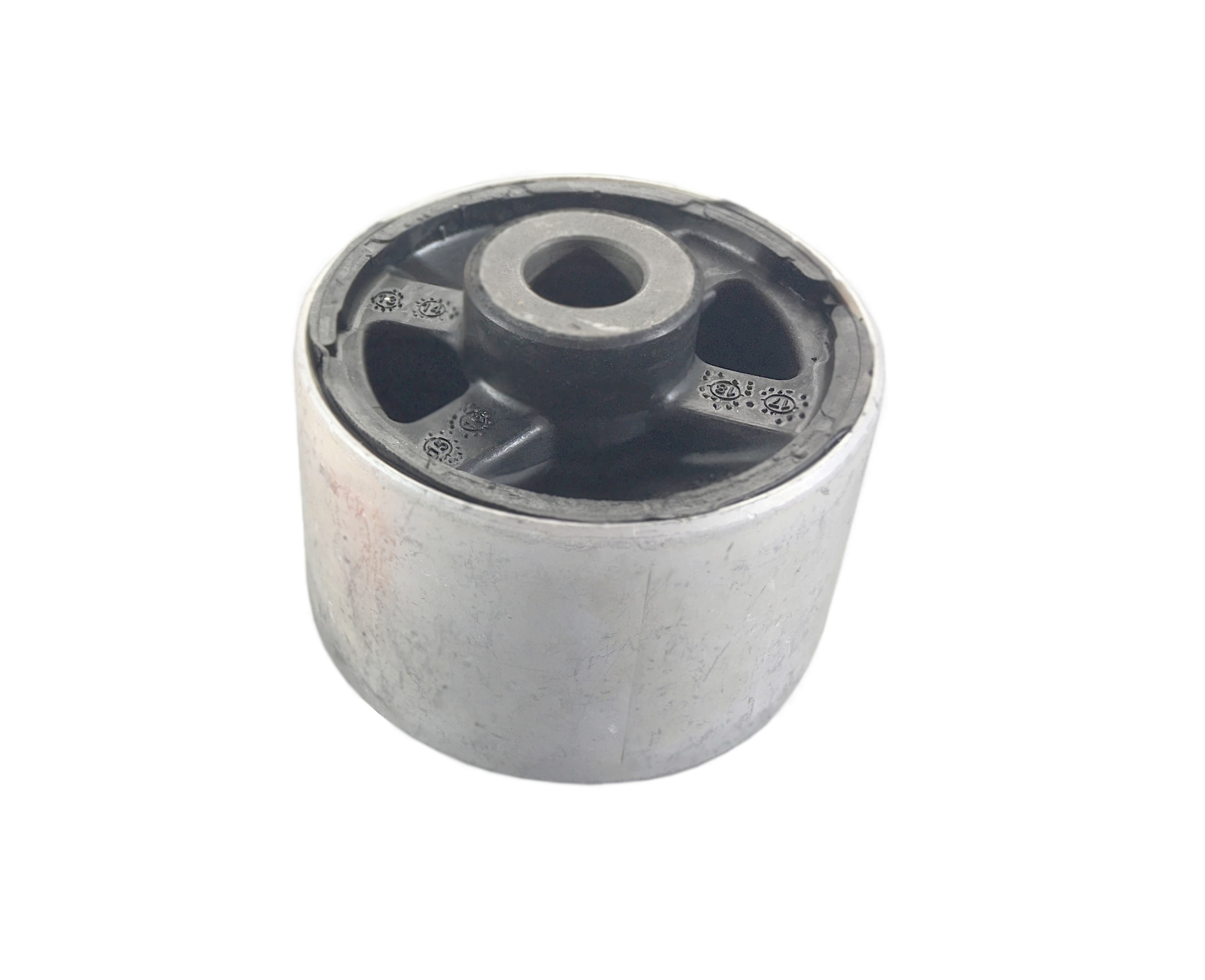

38RN5615
|
Silentblock for TCA |
L:65 di:Ø14.2 do:Ø72.6 / 0,49 kg |
54 56 000 01R, 54 50 100 12R* (3) OEM |
 |
38RN5620
NEW
|
Stabiliser Mounting |
di:Ø18,2-20 / 0,08 kg |
A 415 326 01 81, 415 326 01 81 (1) OEM |
 |
38RN5623
NEW
|
Stabiliser Mounting |
di:Ø21,5 / 0,08 kg |
A 415 326 00 81, 415 326 00 81 (1) OEM |
 |

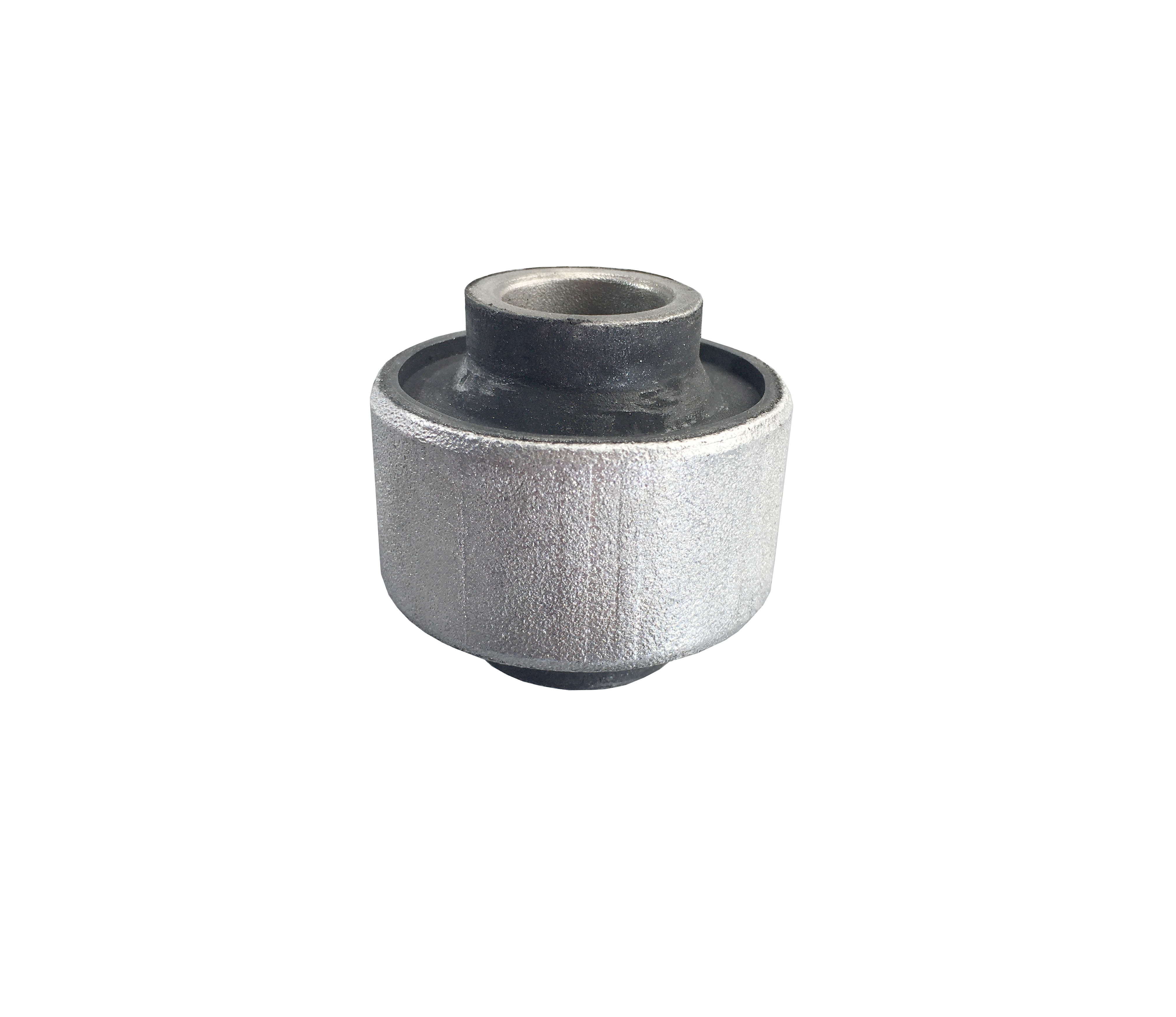

38RN5710
|
Silentblock for TCA |
L:50.5 di:Ø18.5 do:Ø55 / 0,24 kg |
54 50 567 11R*, 54 50 547 33R* (5) OEM |
 |

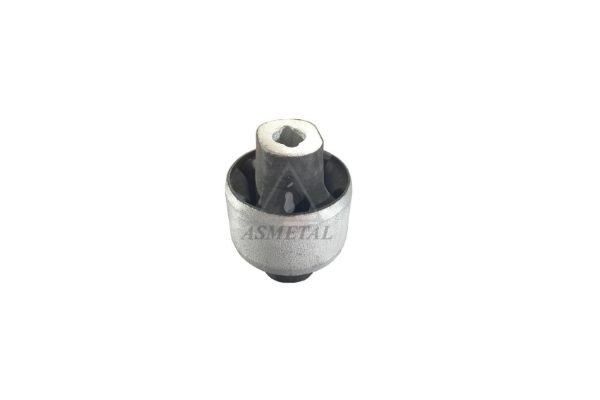

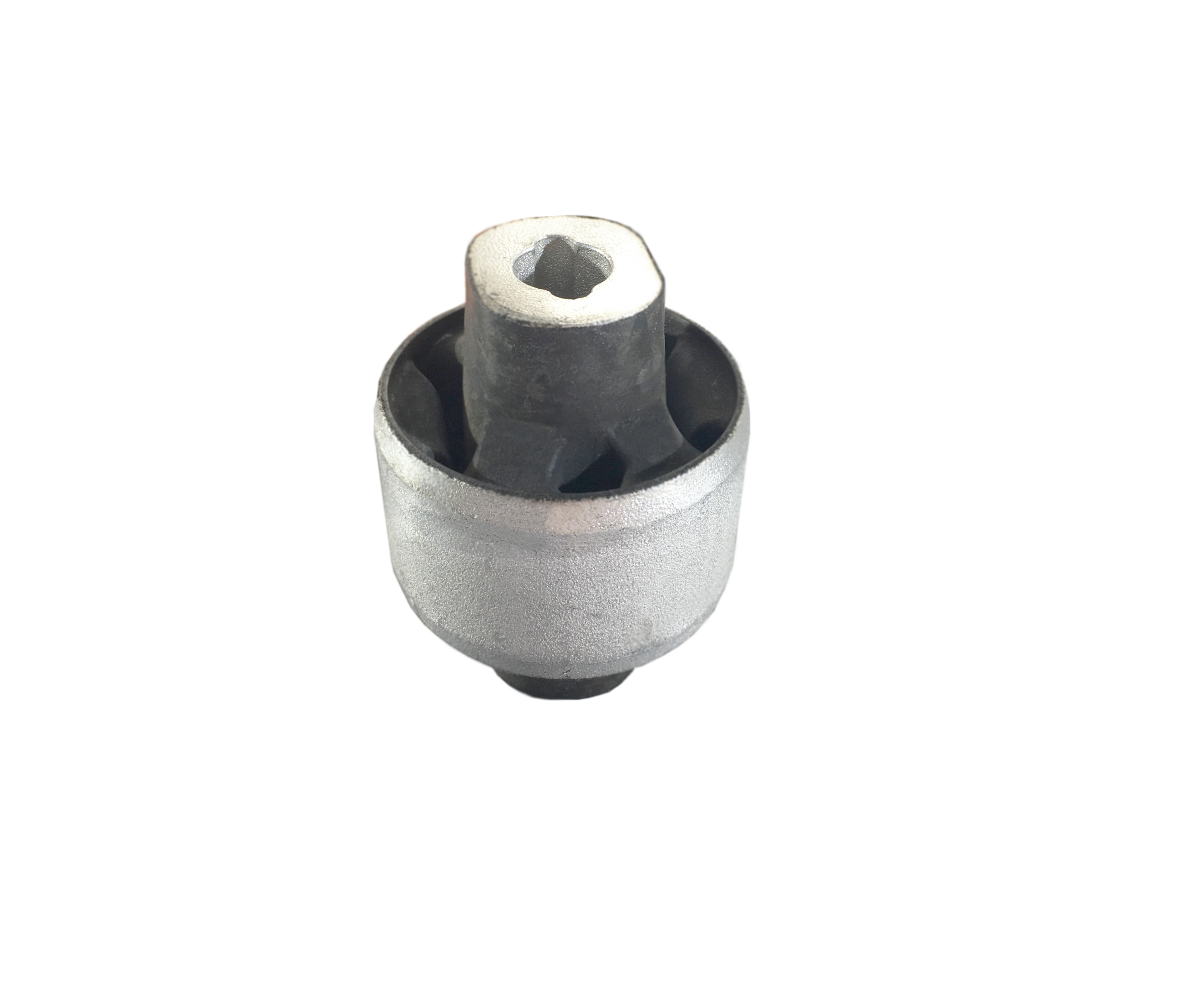

38RN5711
|
Silentblock for TCA |
L:75 di:Ø14.5 do:Ø58 / 0,2 kg |
54 50 452 97R*, 54 50 574 49R* (1) OEM |
 |
38RN5800
|
Silentblock for TCA |
L:53 di:Ø14.4 do:Ø58 / 0,16 kg |
54 50 034 37R, 54 50 100 16R (8) OEM |
 |
38RN5801
|
Silentblock for TCA |
L:51.2 di:Ø18.3 do:Ø55.2 / 0,384 kg |
MQ001922, MQ001923 (8) OEM |
 |
40RN1120
NEW
|
Drive Shaft Center Bearing (FAG) |
1,286 kg |
37520 00Q0A, 44 21 159 (2) OEM |
 |

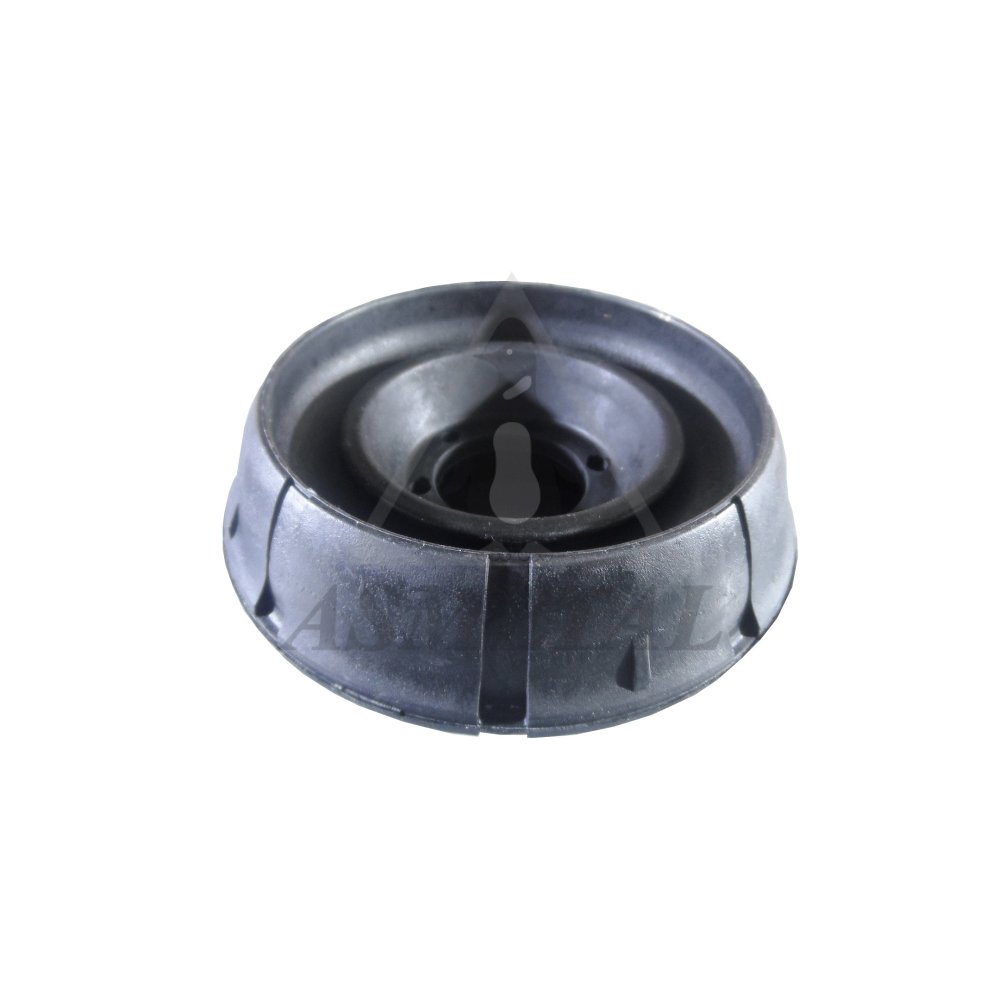

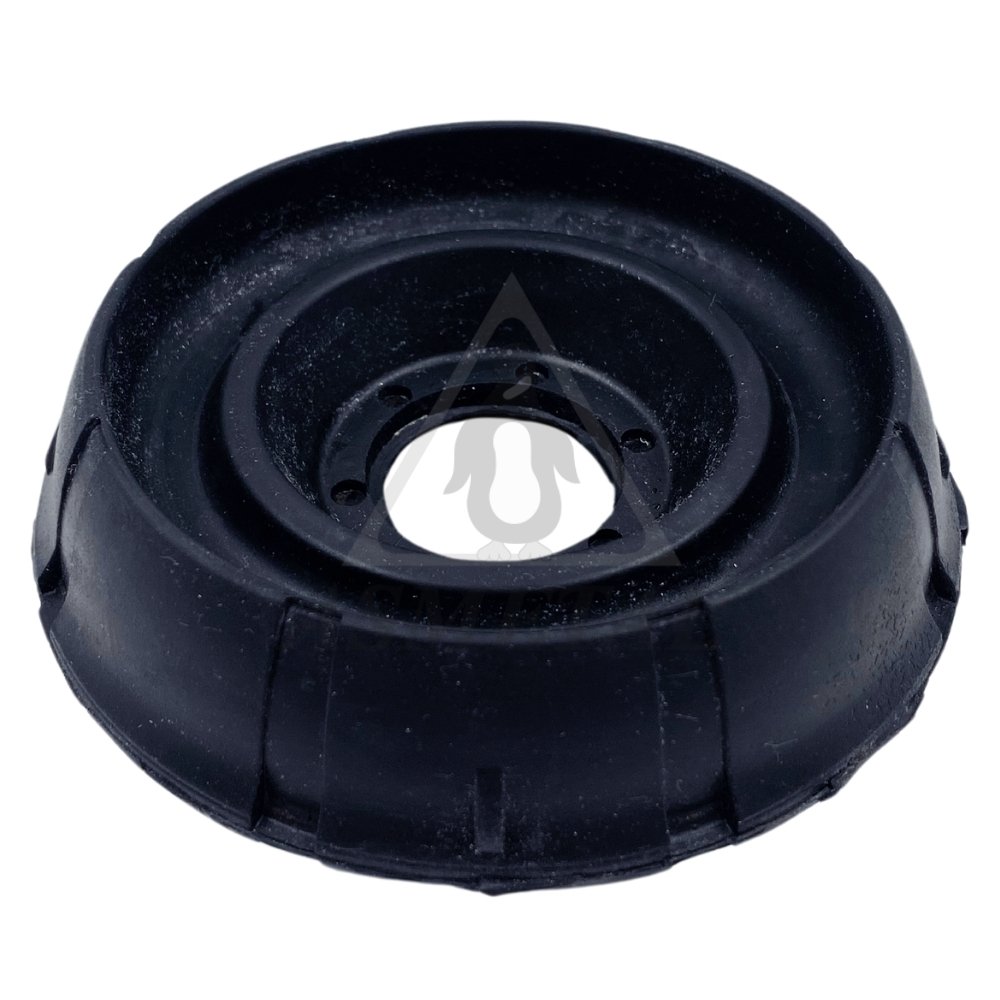

45DC1000
|
Strut Mount |
L:47 di:Ø28 do:Ø103 / 0,32 kg |
60 01 547 499, 60 01 548 403 (7) OEM |
 |

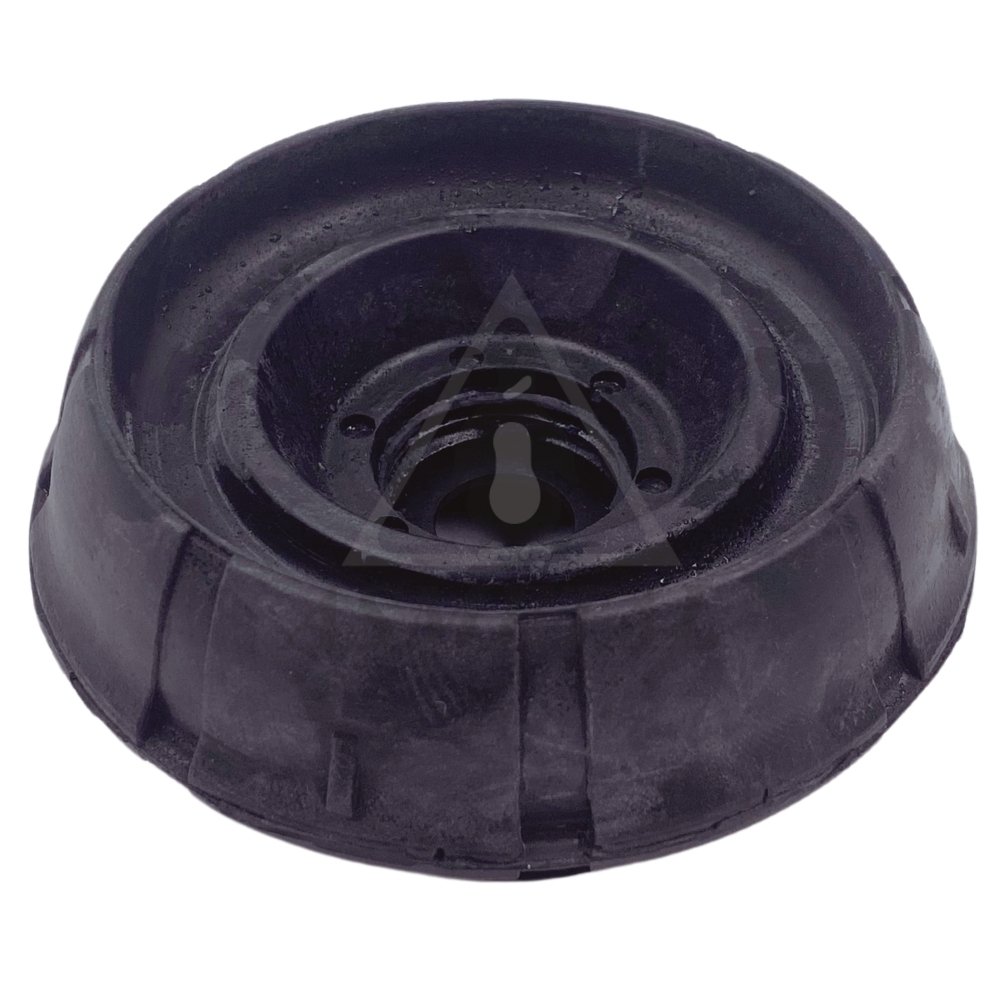

45DC1010
|
Strut Mount With Bearing |
L:47 di:Ø16.2 do:Ø103 / 0,38 kg |
60 01 025 850, 82 00 307 941 (5) OEM |
 |
45DC1032
|
Suspension Support Buffer Rear |
L:144.5 di:Ø9 do:Ø72 / 0,3 kg |
55 24 019 99R |
 |
45DC1111
|
Bearing |
L:10 di:Ø16 do:Ø56 / 0,06 kg |
86 60 004 283, 77 00 800 107 (3) OEM |
 |
45DC1292
IN PREPARATION
|
Engine Mounting |
|
11 21 012 92R, 11 37 519 34R (3) OEM |
 |

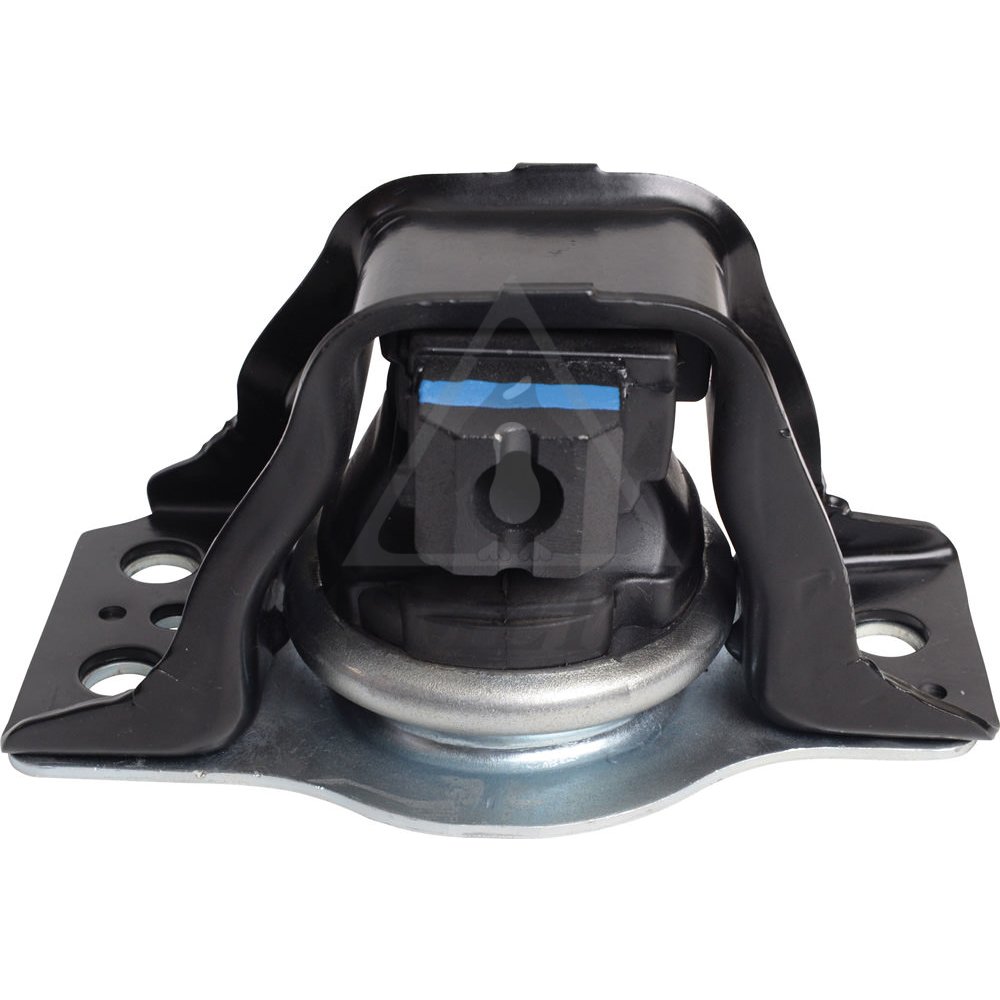

45DC4500
|
Engine Mounting |
L:104.5 di:Ø14 / 1,93 kg |
82 00 042 456, 82 00 592 642 (1) OEM |
 |
45DC4550
NEW
|
Engine Mounting |
0.81 kg |
82 00 575 641, 112387053R (7) OEM |
 |

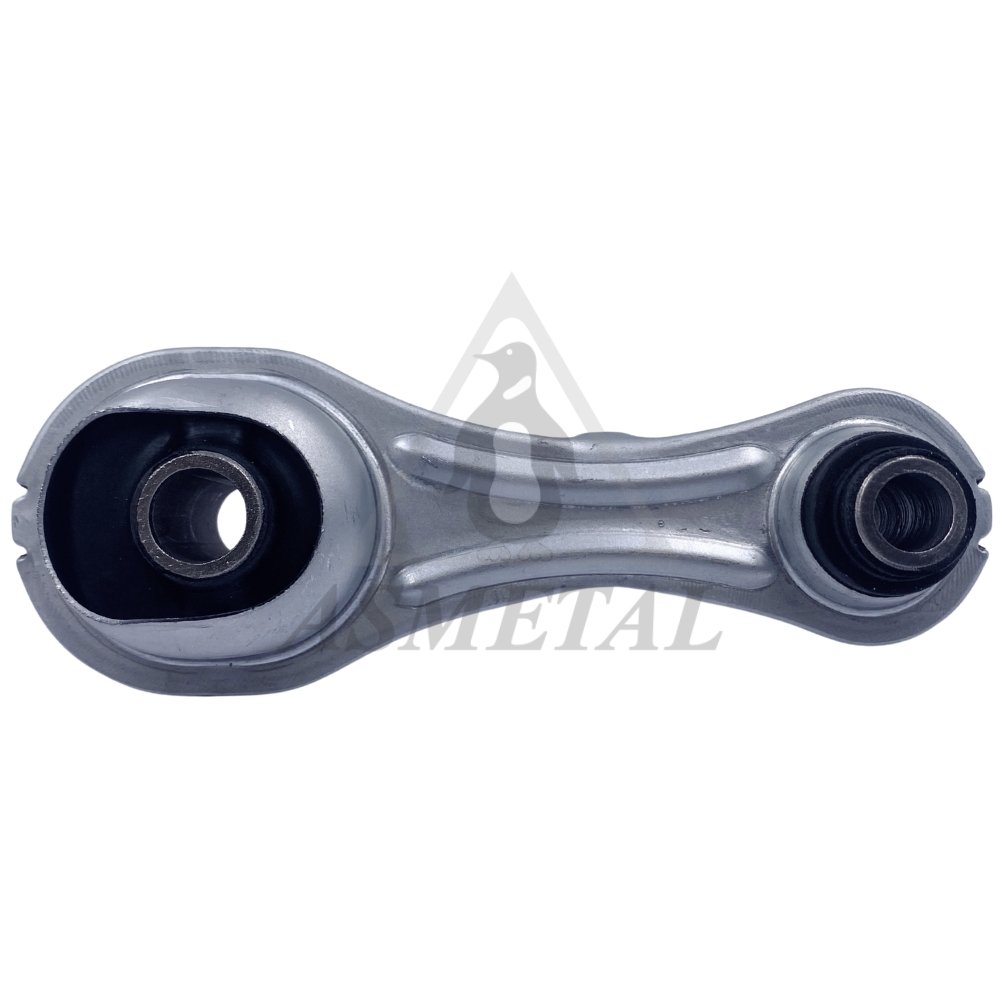

45DC4560
IN PREPARATION
|
Engine Mounting |
|
11 23 810 35R, 11 23 839 05R (1) OEM |
 |

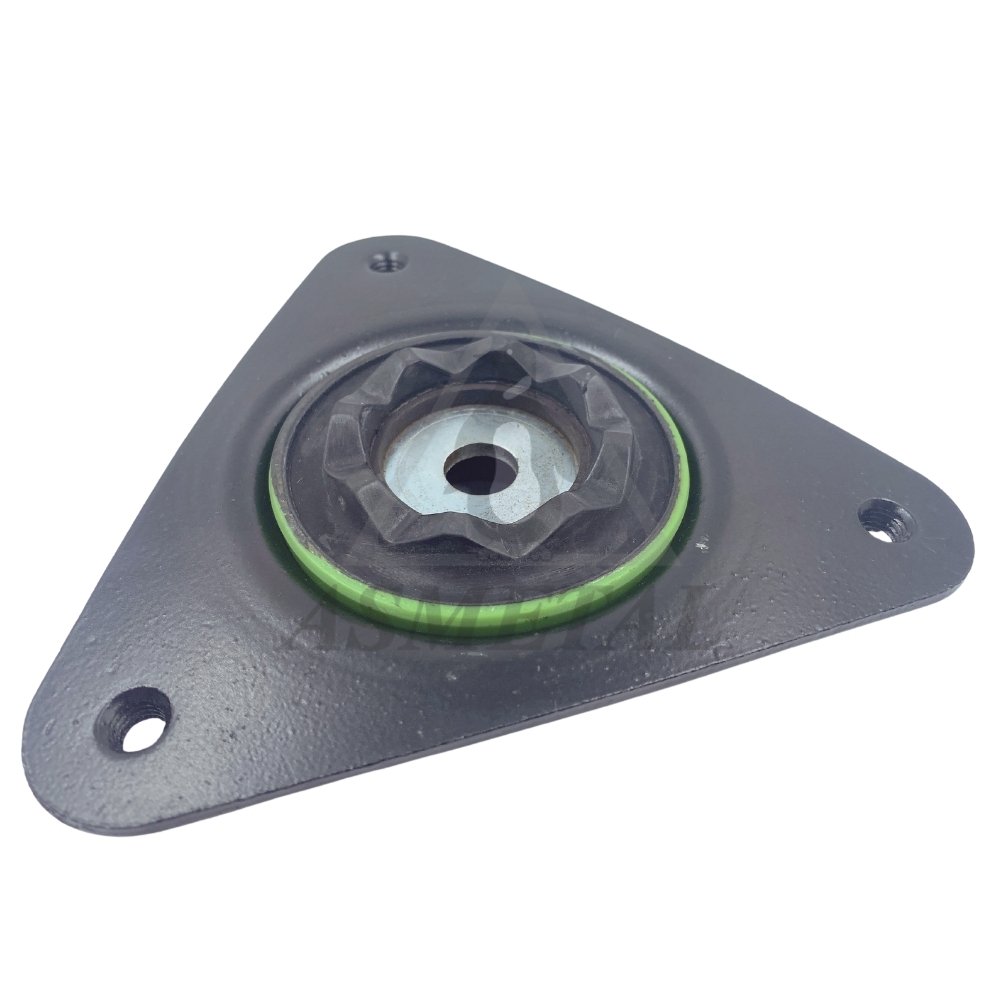

45NS1010
NEW
|
Strut Mount |
0,458 kg |
54 32 069 68R, 54320 6968R (2) OEM |
 |
45NS1011
NEW
|
Bearing |
0,21 kg |
54325-00Q0B, 54325-8271R (1) OEM |
 |
45NS1012
NEW
|
Strut Mount With Bearing |
0,64 kg |
54325 00Q0B, 54320 6968R (1) OEM |
 |
45NS1022
|
Suspension Support Buffer Front |
L:101.5 di:Ø26 do:Ø58 / 0,09 kg |
54050 HV10A, 54050 6FR0A (2) OEM |
 |
45NS1200
|
Strut Mount Left |
L:59.5 di:Ø12.1 do:Ø91 / 1,01 kg |
54321 JD00B, 54321 JG00B (5) OEM |
 |
45NS1201
|
Strut Mount Right |
L:59.5 di:Ø12.1 do:Ø91 / 1,02 kg |
54320 JG00B, 54320 JG01B (5) OEM |
 |
45PE9999
NEW
|
Bearing |
0,17 kg |
5035 19, 5035 27 (7) OEM |
 |
45RN0510
|
Strut Mount |
L:60.1 di:Ø16 / 0,6 kg |
82 00 002 876, 82 00 201 714 (1) OEM |
 |
45RN1120
|
Shock Absorber Bellow |
L:216 di:Ø78 / 0,11 kg |
55248 00Q0D, 55248 00Q0C (6) OEM |
 |
45RN1121
|
Suspension Support Buffer Front |
L:146 di:Ø31.5 / 0,23 kg |
54050 00Q0C, 44 19 286 (2) OEM |
 |
45RN1122
|
Suspension Support Buffer Kit Front |
L:319 di:Ø30 / 0,33 kg |
44 19 289, 93 197 323 (6) OEM |
 |
45RN1130
|
Suspension Support Buffer Front |
L:319 di:Ø30 / 0,26 kg |
91 09 939, 44 01 939 (1) OEM |
 |
45RN1131
|
Suspension Support Buffer Rear |
L:106.5 di:Ø17.5 / 0,58 kg |
93 168 278, 4 420 574 (4) OEM |
 |
45RN1132
|
Suspension Support Buffer Rear |
L:124.5 di:Ø26.5 / 0,51 kg |
55464 00Q0C, 95 525 662 (8) OEM |
 |

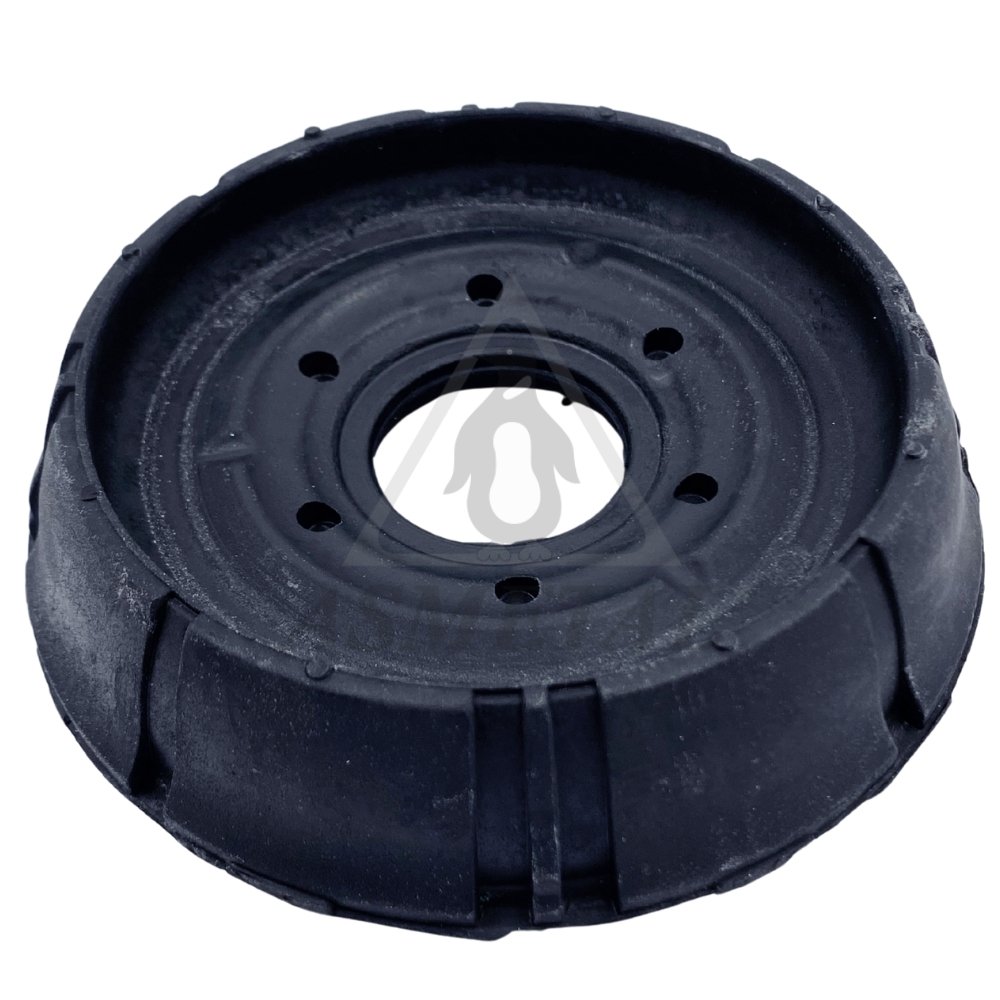

45RN2000
|
Strut Mount |
L:43.2 di:Ø28 do:Ø103 / 0,3 kg |
54348 00QAA, 82 00 053 795 (1) OEM |
 |
45RN2001
NEW
|
Spring Seat |
|
54330-00Q0B, 54330-00QAA (4) OEM |
 |
45RN2002
IN PREPARATION
|
Strut Mount With Bearing |
|
54348 00QAA, 54325 00Q0A (3) OEM |
 |
45RN2003
IN PREPARATION
|
Strut Mount KIT |
|
543A0-0300R, 54310-00QAA (10) OEM |
 |
45RN2020
|
Strut Mount |
L:43 di:Ø100 do:Ø170 / 0,3 kg |
77 00 419 475 |
 |
45RN5207
IN PREPARATION
|
Engine Mounting |
|
11320 00QAF, 82 00 038 808 (2) OEM |
 |

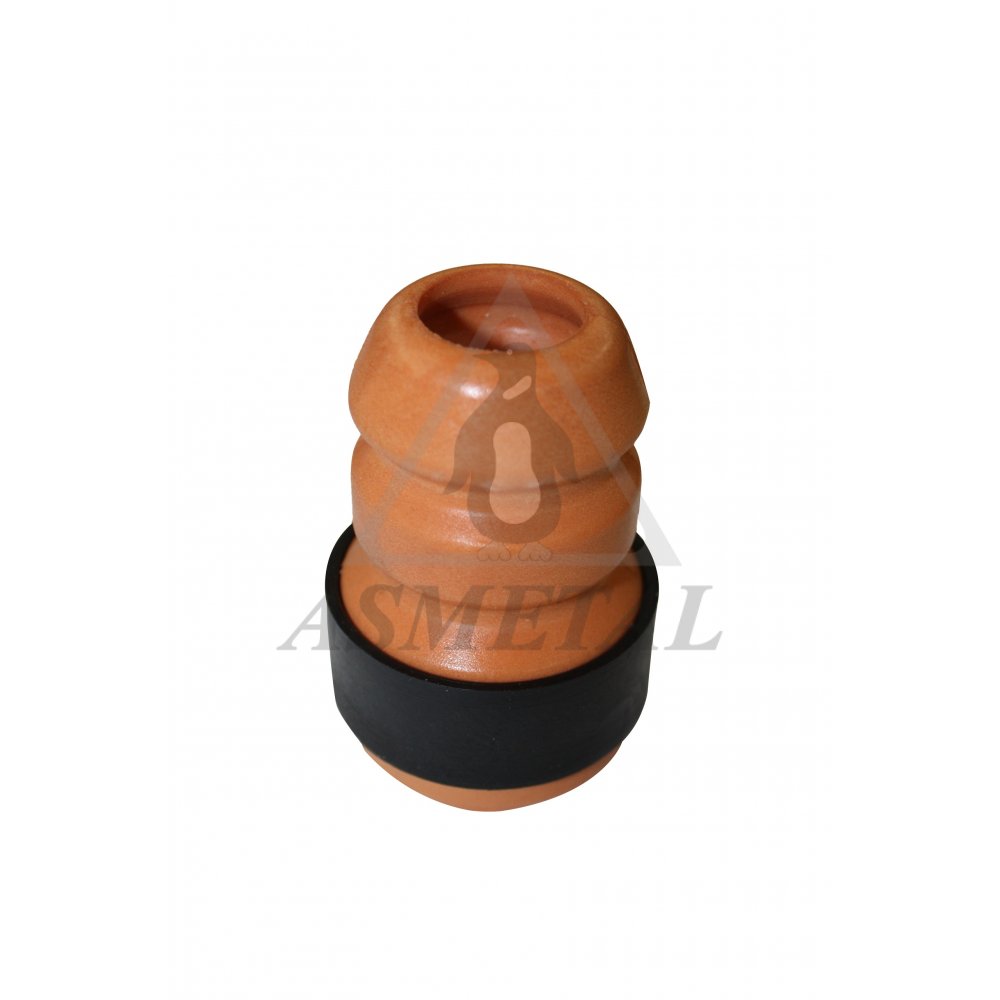

45RN5520
|
Suspension Support Buffer Front |
L:80 di:Ø19.5 do:Ø55 / 0,07 kg |
54 05 037 01R |
 |
45RN5521
|
Suspension Support Buffer Front |
do: Ø54.5 L:73mm / 0,06 kg |
54 05 005 58R |
 |
45RN5530
IN PREPARATION
|
Suspension Support Buffer Rear |
0 kg |
55 24 055 69R |
 |
45RN5540
|
Strut Mount |
L:57 di:Ø14 / 0,75 kg |
82 00 222 463 |
 |

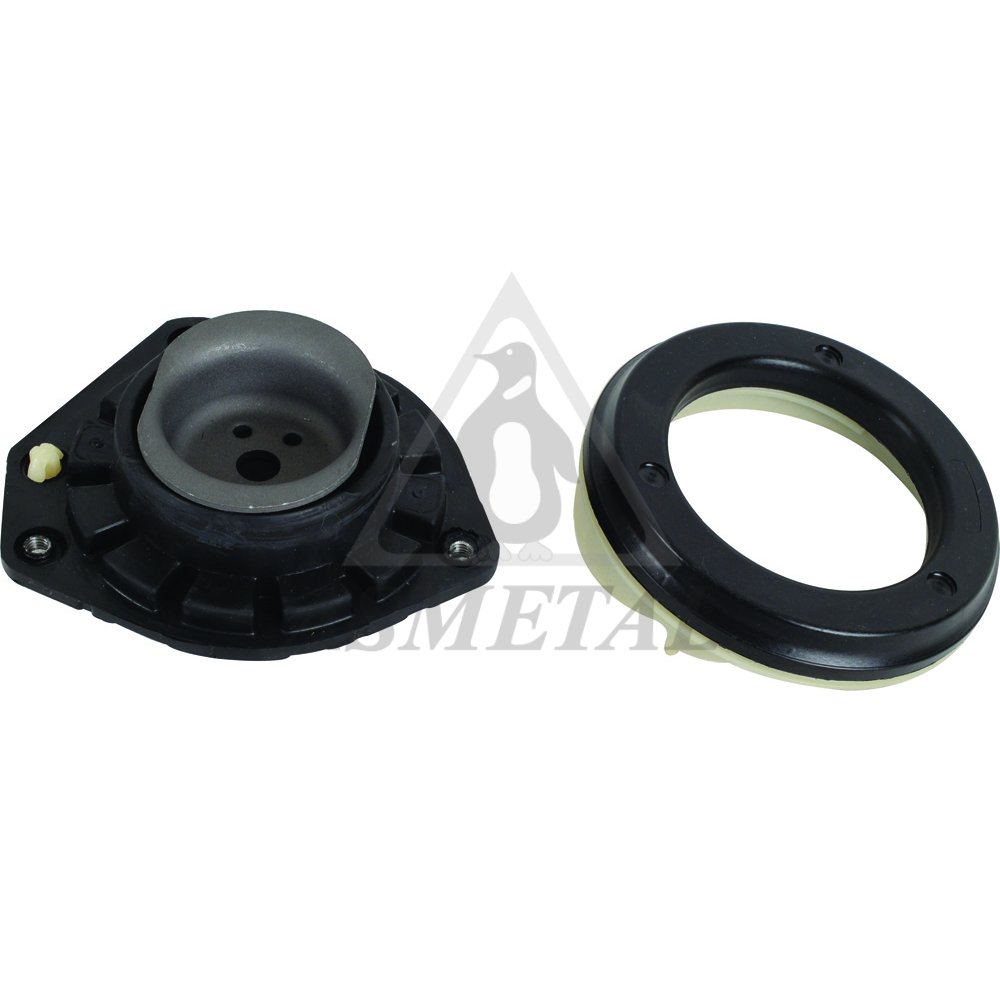

45RN5541
|
Strut Mount With Bearing |
L:57 di:Ø14 / 1,04 kg |
82 00 222 463 |
 |
45RN5542
NEW
|
Bearing |
0,35 kg |
82 00 106 131, 82 00 485 734 (2) OEM |
 |
45RN5550
|
Strut Mount Left |
L:58.5 di:Ø13 / 0,91 kg |
54321-AX600, 54321-BC40A (2) OEM |
 |
45RN5551
|
Strut Mount Right |
L:58.5 di:Ø13 / 0,91 kg |
54320 BC40A, 54320 AX600 (3) OEM |
 |
45RN5552
NEW
|
Strut Mount Left With Bearing |
|
54321-AX600, 54321-BC40A S1 (2) OEM |
 |
45RN5553
NEW
|
Strut Mount Right With Bearing |
|
54320-AX600, 54320-BC40A-S1 (2) OEM |
 |
45RN5555
NEW
|
Bearing |
|
415 322 01 84, A 415 322 01 84 (17) OEM |
 |
45RN5560
|
Strut Mount |
L:29.5 di:Ø13.4 do:Ø78 / 0,42 kg |
54 30 246 44R |
 |
45RN5561
NEW
|
Strut Mount With Bearing |
0,6 kg |
54 3A 023 10R, 54 32 595 39R |
 |
45RN5562
NEW
|
Bearing |
0,18 kg |
54 32 595 39R, 54 3A 023 10R |
 |
45RN5605
IN PREPARATION
|
Strut Mount |
0 kg |
415 323 00 20, 82 00 591 283 |
 |
45RN5610
|
Strut Mount |
L:35 di:Ø13.3 / 0,6 kg |
54 32 000 01R, 54 3A 036 61R* |
 |
45RN5620
|
Suspension Support Buffer Front |
di:Ø23 do: Ø57 L:135mm / 0,09 kg |
82 00 591 288, 82 00 591 288 SK (2) OEM |
 |
45RN5621
|
Suspension Support Buffer Kit Front |
L:129.5 di:Ø21 / 0,19 kg |
82 00 839 707, 82 00 591 288 |
 |
45RN5720
|
Suspension Support Buffer Front |
L:85 di:Ø25.5 do:Ø58 / 0,08 kg |
54 05 051 77R |
 |
45RN5800
NEW
|
Strut Mount |
0,16 kg |
54 30 202 80R |
