ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10DC1010	Ball Joint Lower	th:M12x1.5 RHT cr:1/5 c:Ø17.1 / 0,82 kg	40 16 098 14R, 54 50 402 80R (1) OEM
10RN5800	Ball Joint	th:M12x1.25 RHT cr:1/5 c:Ø17.2 / 0,72 kg	54504 00Q0D, 54505 00Q0D (6) OEM
17RN0510	Tie Rod End Left	L:210 cr:1/5 c:Ø11.9 tp:M10x1.25 th:FM14x1.5 RHT / 0,64 kg	6000 617 476, 48520 00QAK (9) OEM
17RN0511	Tie Rod End Right	L:210 cr:1/5 c:Ø11.9 tp:M10x1.25 th:FM14x1.5 RHT / 0,64 kg	60 006 174 75, 48520 00Q0K (8) OEM
17RN5800	Tie Rod End Left	L:179 cr:1/5 c:Ø11.9 tp:M10x1.25 th:FM14x1.5 RHT / 0,38 kg	48010 00Q0G*, 48 52 055 94R
17RN5800S	Tie Rod End Left	L:179 cr:1/5 c:Ø11.9 tp:M10x1.25 th:FM14x1.5 RHT / 0,8 kg	48010 00Q0G*, 48 52 055 94R
17RN5801	Tie Rod End Right	L:179 cr:1/5 c:Ø11.9 tp:M10x1.25 th:FM14x1.5 RHT / 0,38 kg	48010 00Q0G*, 48 52 089 86R
17RN5801S	Tie Rod End Right	L:179 cr:1/5 c:Ø11.9 tp:M10x1.25 th:FM14x1.5 RHT / 0,8 kg	48010 00Q0G*, 48 52 089 86R
20DC1010	Axial Joint	L:218 tp:M14x1.5 th:MM14x1.5 RHT / 0,47 kg	48 52 132 85R*
26DC1020	Track Rod Rear	L:465 / 0,87 kg	82 00 839 119
26DC1023	Track Rod Rear Right	L:421 / 1,13 kg	82 00 839 107, 55 11 078 94R
26RN0515	Stabiliser Link	L:295 tp:M10x1.5 RHT / 0,36 kg	55 11 030 22R, 55 11 034 28R (4) OEM
30DC1010	Track Control Arm Left	th:M12x1.5 RHT cr:1/5 c:Ø17.1 / 3,18 kg	54 50 554 13R
30DC1011	Track Control Arm Right	th:M12x1.5 RHT cr:1/5 c:Ø17.1 / 3,18 kg	54 50 402 80R
38DC1005	Axle Beam Bushing	L:90 di:Ø12.2 do:Ø66.5 / 0,42 kg	60 01 549 988, 60 01 549 989 (2) OEM
38DC1015	Silentblock for TCA	L:45 di:Ø14 do:Ø37.3 / 0,16 kg	54 56 027 88R, 54 50 199 69R* (5) OEM

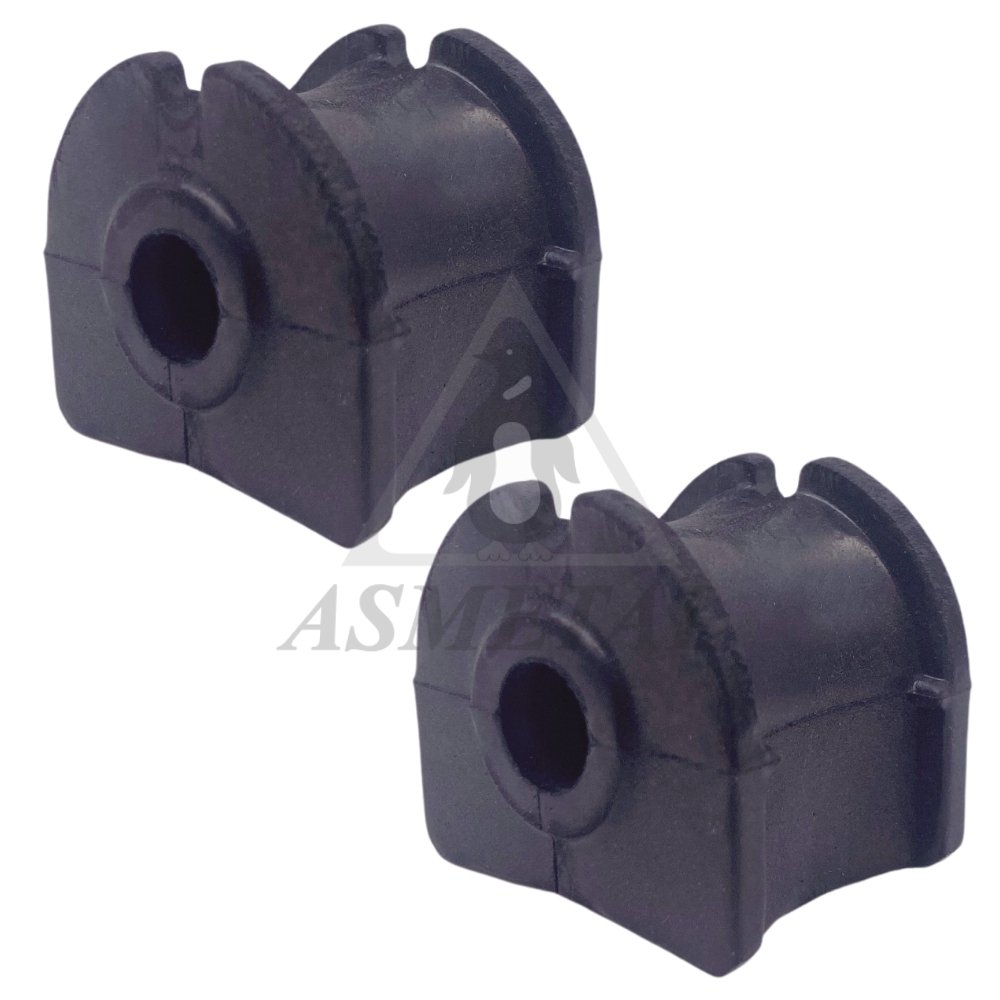

38DC1020	Stabiliser Mounting	L:32 di:Ø19 / 0,04 kg	56 23 001 11R
38DC1024	Silentblock for TCA	L:55.8 di:Ø14.2 do:Ø54.1 / 0,238 kg	55 11 078 94R, 55 11 193 05R (2) OEM
38DC1025	Silentblock for TCA	di:Ø18 / 0,1 kg	82 00 839 121
38RN5801	Silentblock for TCA	L:51.2 di:Ø18.3 do:Ø55.2 / 0,384 kg	MQ001922, MQ001923 (8) OEM
45DC1000	Strut Mount	L:47 di:Ø28 do:Ø103 / 0,32 kg	60 01 547 499, 60 01 548 403 (7) OEM
45DC1010	Strut Mount With Bearing	L:47 di:Ø16.2 do:Ø103 / 0,38 kg	60 01 025 850, 82 00 307 941 (5) OEM
45DC1111	Bearing	L:10 di:Ø16 do:Ø56 / 0,06 kg	86 60 004 283, 77 00 800 107 (3) OEM
