10RN2000
|
Ball Joint |
c:Ø16 & 2xM10 / 0,52 kg |
77 01 472 038, 54501 00QAH* (3) OEM |
 |

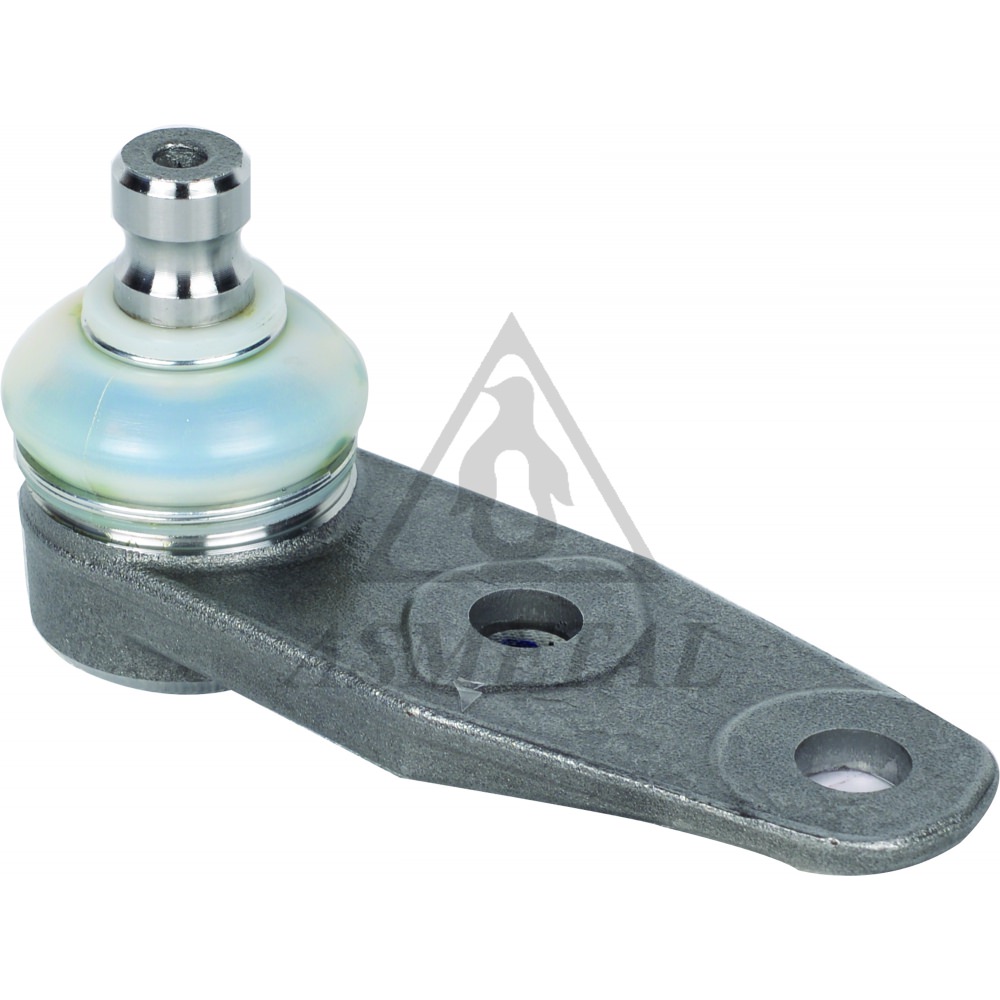

10RN2001
|
Ball Joint |
c:Ø16 & 2xM12 / 0,56 kg |
82 00 254 109, 60 40 002 292 (30) OEM |
 |
10RN5541
|
Ball Joint Lower |
c:Ø18 do:Ø38,35 / 0,27 kg |
54 50 042 69R, 60 01 549 181 (25) OEM |
 |
10RN5800
|
Ball Joint |
C: Ø17,2 CR: 1/5 TP: M12X1,25 / 0,72 kg |
54504 00Q0D*, 54505 00Q0D* (6) OEM |
 |
17RN3500
OUT OF SERVICE
|
Tie Rod End Left |
c:Ø11,9 th:FM14x1,5 RHT / 0,42 kg |
77 01 467 273, 77 01 466 159 (2) OEM |
 |
17RN3600
OUT OF SERVICE
|
Tie Rod End Right |
c:Ø11,9 th:MM14x1,5 RHT / 0,42 kg |
77 01 467 274, 77 01 466 159 (2) OEM |
 |
17RN3800
|
Tie Rod End Left |
c:Ø12 th:FM14x1,5 RHT / 0,54 kg |
77 01 476 762, 77 01 471 145 (1) OEM |
 |
17RN3801
|
Tie Rod End Right |
c:Ø12 th:FM14x1,5 RHT / 0,54 kg |
77 01 476 763, 77 01 471 146 (1) OEM |
 |
17RN5500
|
Tie Rod End Right |
c:Ø11,8 th:FM14x1,5 RHT / 0,49 kg |
77 01 470 766, 60 00 022 721 (4) OEM |
 |
17RN5501
|
Tie Rod End Left |
c:Ø11,8 th:FM14x1,5 RHT / 0,49 kg |
77 01 834 570, 77 01 476 760 (4) OEM |
 |
17RN5520
|
Tie Rod End Left |
c:Ø12 th:FM14x1,5 RHT / 0,34 kg |
48640 AX602, 48520 00QAN (8) OEM |
 |
17RN5521
|
Tie Rod End Right |
c:Ø12 th:FM14x1,5 RHT / 0,34 kg |
48520 AX602, 48520 00QAP (7) OEM |
 |

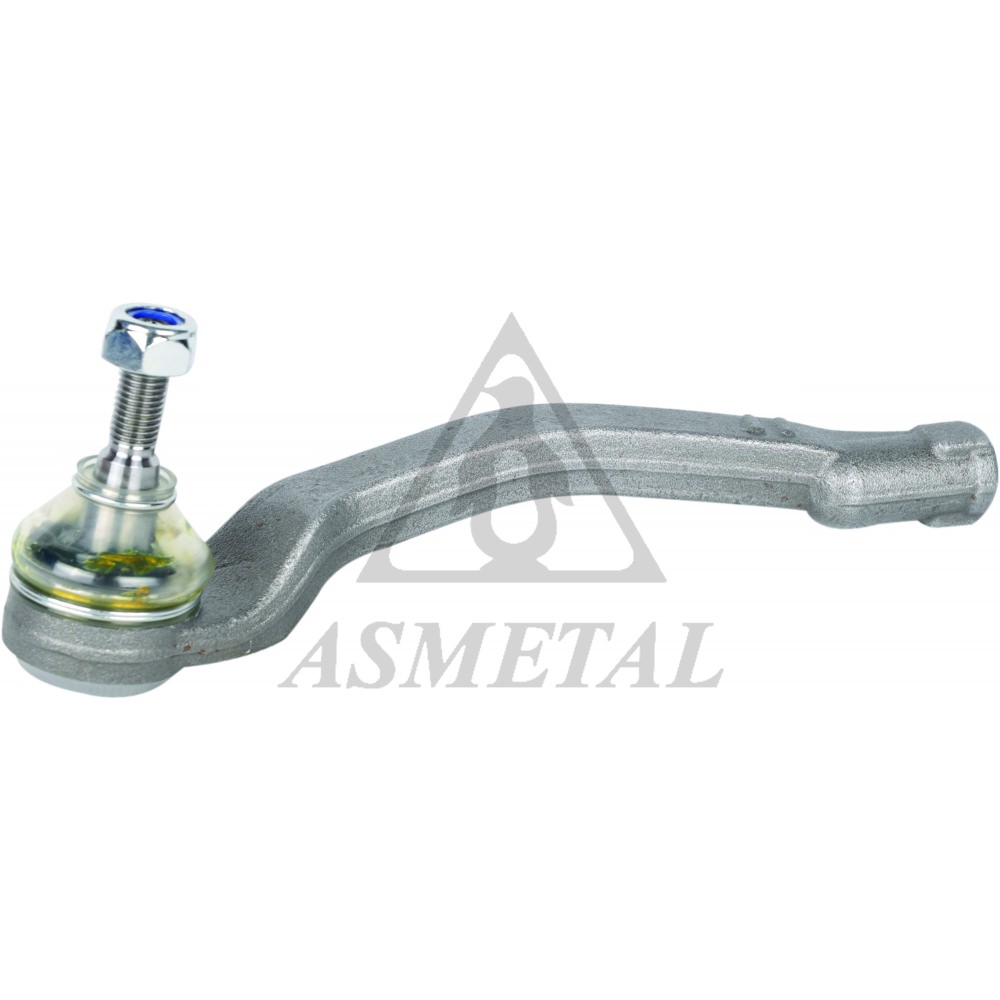

17RN5540
|
Tie Rod End Left |
c:Ø11,8 th:FM14x1,5 RHT / 0,67 kg |
77 01 474 795, 77 01 054 583 (1) OEM |
 |

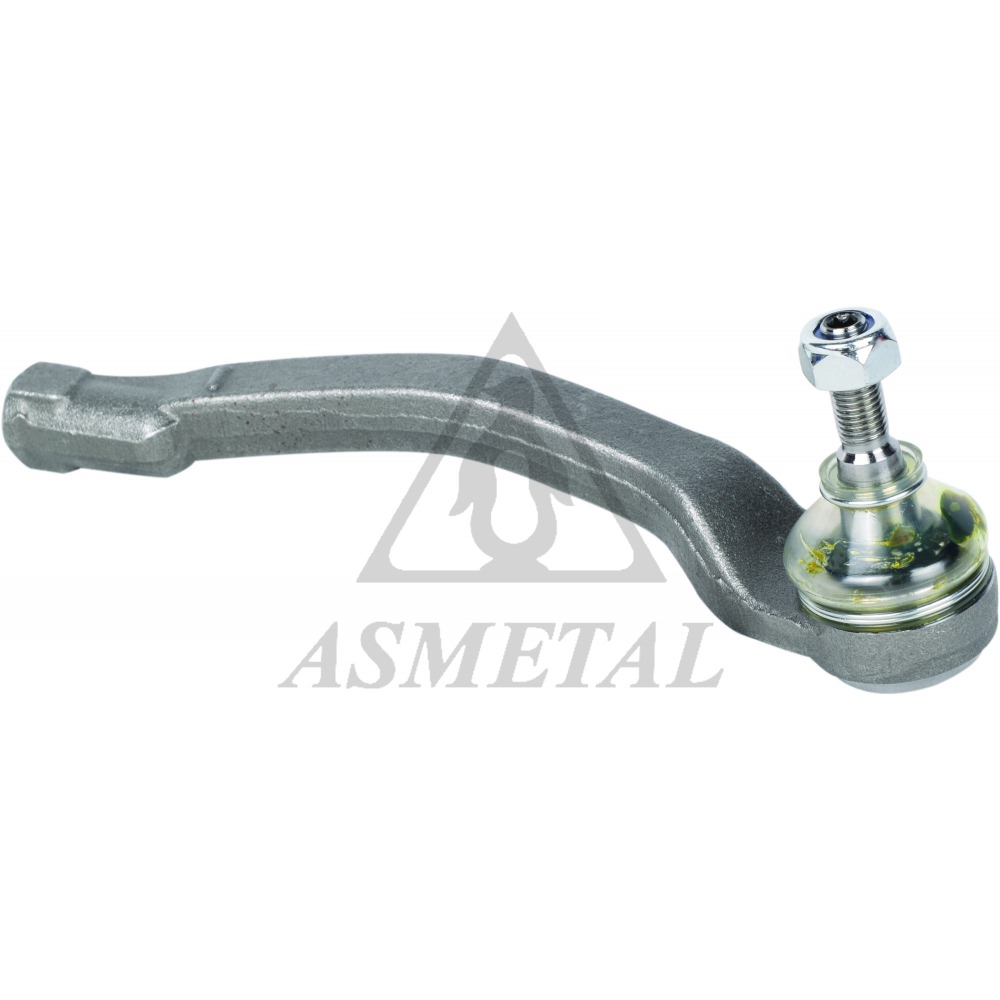

17RN5541
|
Tie Rod End Right |
c:Ø11,8 th:FM14x1,5 RHT / 0,67 kg |
77 01 474 796, 77 01 054 584 |
 |

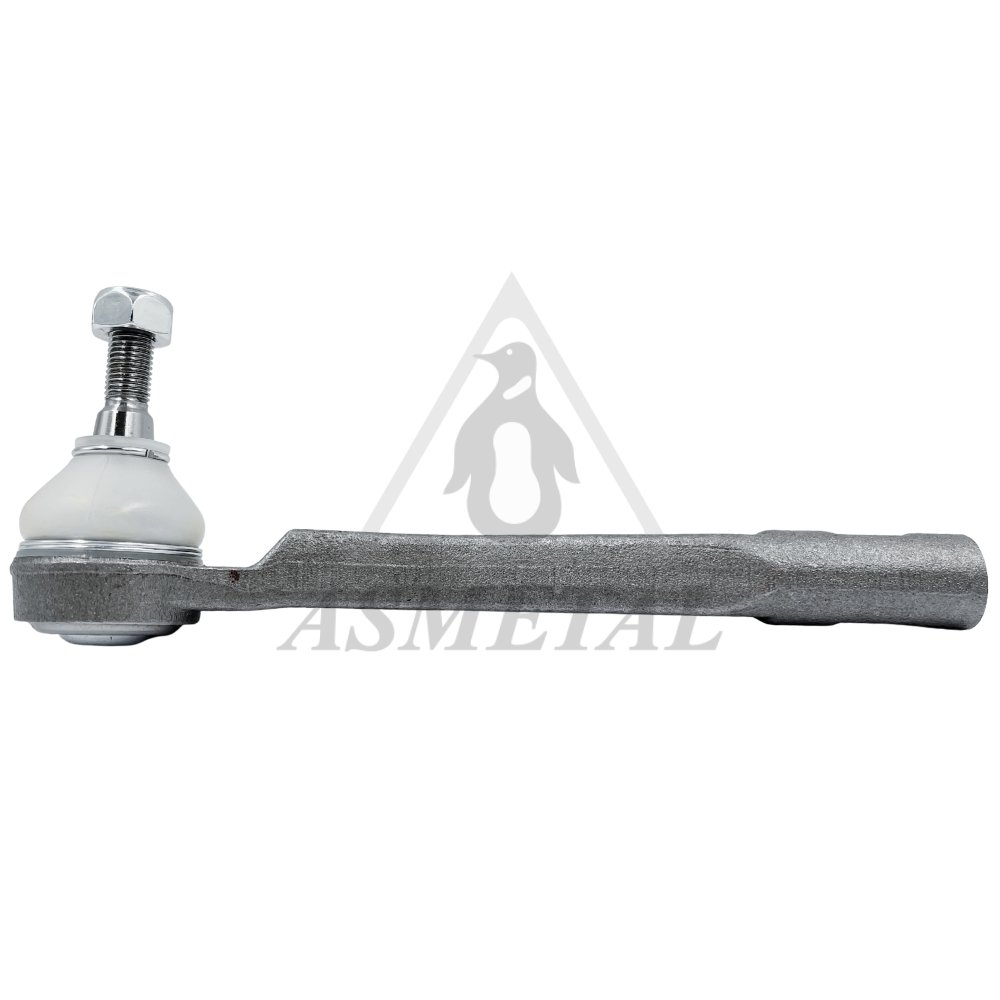

17RN5560
|
Tie Rod End Left |
c:Ø12 th:FM14x1,5 RHT / 0,62 kg |
48520 0368R |
 |
17RN5561
|
Tie Rod End Right |
c:Ø12 th:FM14x1,5 RHT / 0,62 kg |
48520 8355R |
 |
17RN5800
|
Tie Rod End Left |
0,38 kg |
48010 00Q0G*, 48 52 055 94R |
 |
17RN5800S
|
Tie Rod End Left |
0,8 kg |
48010 00Q0G*, 48 52 055 94R |
 |
17RN5801
|
Tie Rod End Right |
0,38 kg |
48010 00Q0G*, 48 52 089 86R |
 |
17RN5801S
|
Tie Rod End Right |
0,8 kg |
48010 00Q0G*, 48 52 089 86R |
 |
20RN3400
|
Axial Joint |
th:MM12x1 RHT L:241mm / 0,59 kg |
77 01 467 272, 77 01 467 271* (2) OEM |
 |
20RN3405
|
Axial Joint |
th:MM12x1 RHT L:244mm / 0,56 kg |
77 01 469 777, 77 01 469 778 (3) OEM |
 |

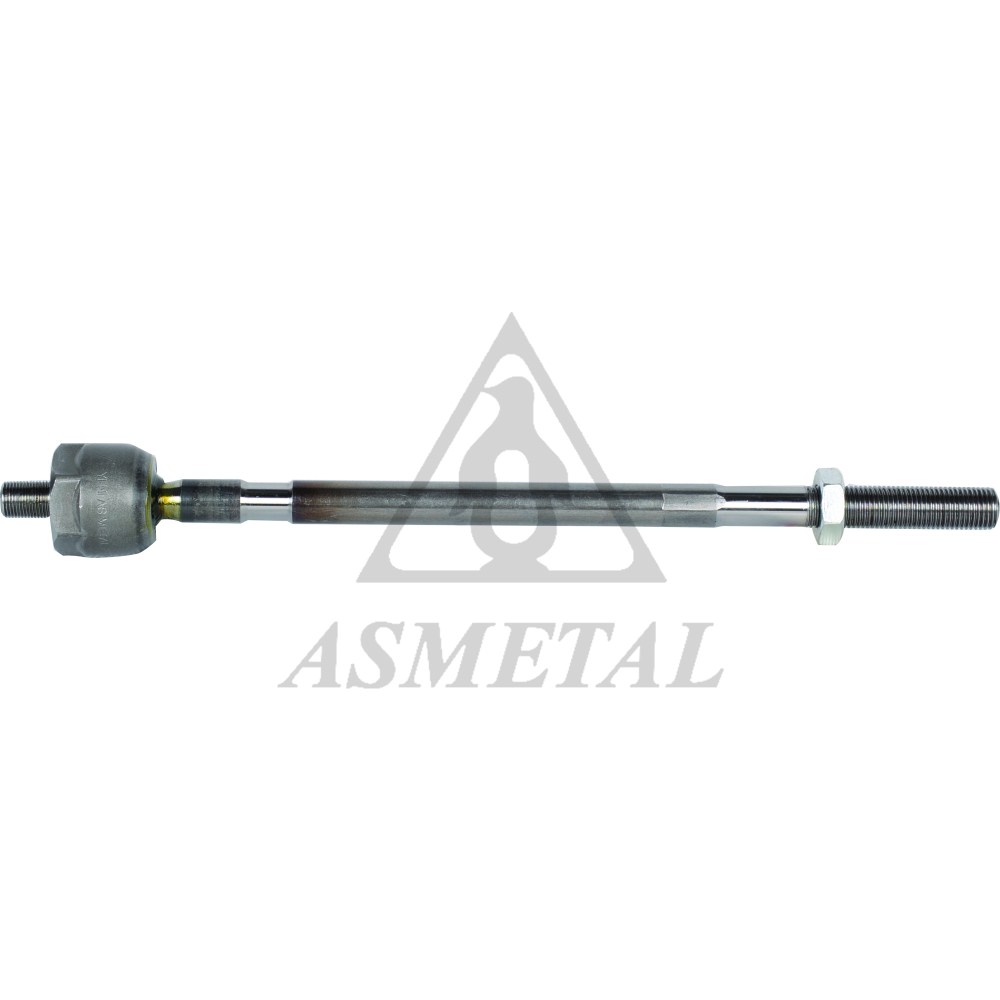

20RN3410
|
Axial Joint |
th:MM12x1.0 RHT L:303,5mm / 0,52 kg |
48521 00QAG, 77 01 473 655 (1) OEM |
 |
20RN3415
|
Axial Joint |
th:MM14x1,5 RHT L:295mm / 0,54 kg |
77 01 472 735, 77 01 472 734 |
 |
20RN3420
|
Axial Joint |
th:MM14x1,5 RHT L:241,5mm / 0,52 kg |
77 01 471 144, 77 01 471 143 |
 |
20RN3430
IN PREPARATION
|
Axial Joint |
0 kg |
77 01 471 125 |
 |

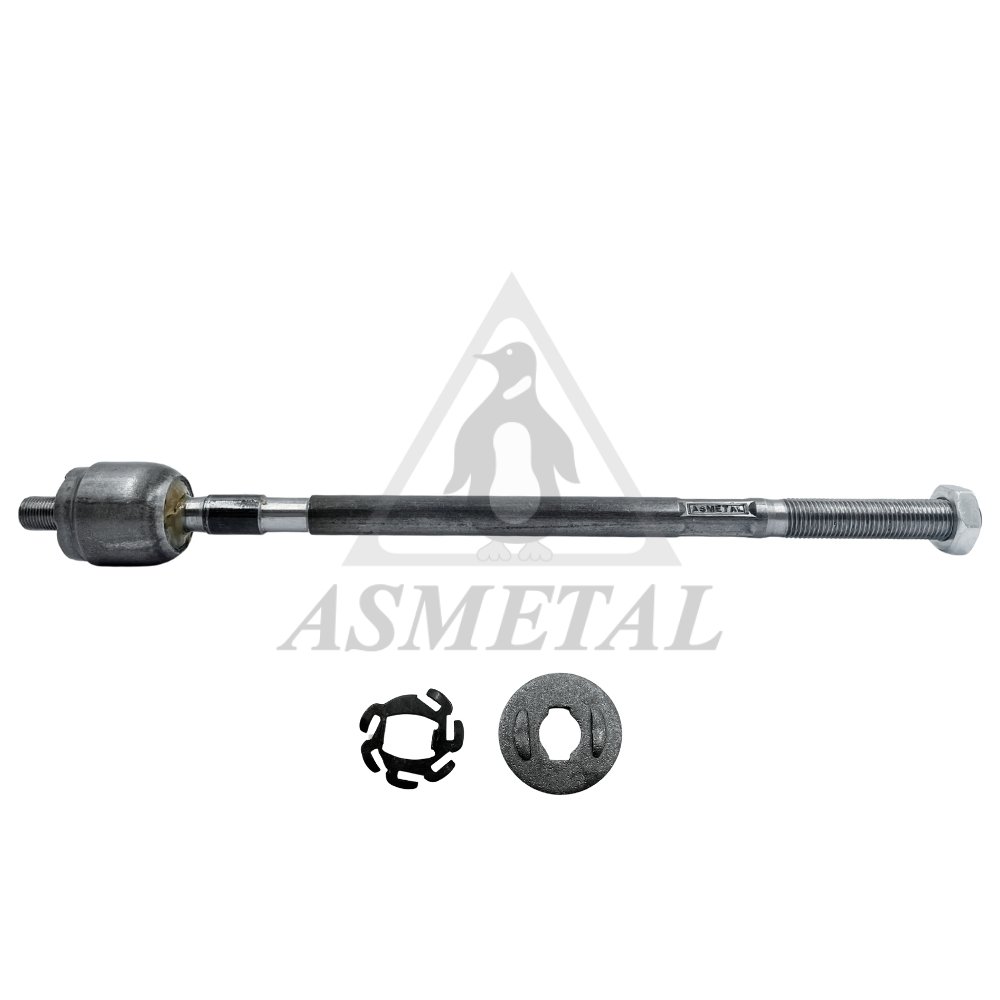

20RN3605
|
Axial Joint |
th:MM12x1.0 RHT L:303,5mm / 0,62 kg |
48521 00QAA, 77 01 472 113 |
 |
20RN5550
|
Axial Joint |
th:MM14x1,5 RHT L:307mm / 0,6 kg |
77 01 475 841 |
 |
20RN5560
|
Axial Joint |
th:MM16x1,5 RHT L:229,5mm / 0,54 kg |
48 52 110 71R, 48 52 113 75R (1) OEM |
 |
20RN5800
|
Axial Joint |
L: 229 TP1: M12x1 TP2: M14x1,5 / 0,48 kg |
48 52 105 57R |
 |
26RN0510
|
Stabiliser Link |
L:280mm / 0,34 kg |
60 00 618 859, 54616 00QAC (11) OEM |
 |

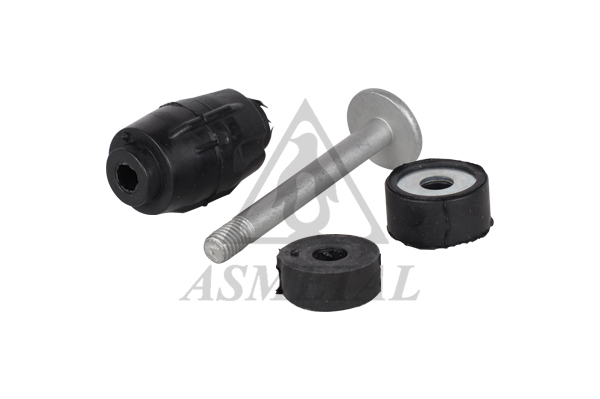

26RN3410
|
Stabiliser Link |
L:68mm Plastic / 0,11 kg |
54616 00QAA, 77 00 799 404 |
 |
26RN5550
|
Stabiliser Link |
L:248mm / 0,3 kg |
54618 AX600, 54611 BH01A (7) OEM |
 |
26RN5800
|
Stabiliser Link |
L: 260 TP: M10X1,25 / 0,32 kg |
54616 00Q0L, 54 61 814 27R |
 |
29RN3500
OUT OF SERVICE
|
Tie Rod Left |
0,9 kg |
77 01 467 271, 77 01 466 158 |
 |
29RN3600
OUT OF SERVICE
|
Tie Rod Right |
0,9 kg |
77 01 466 158, 77 01 467 272 |
 |

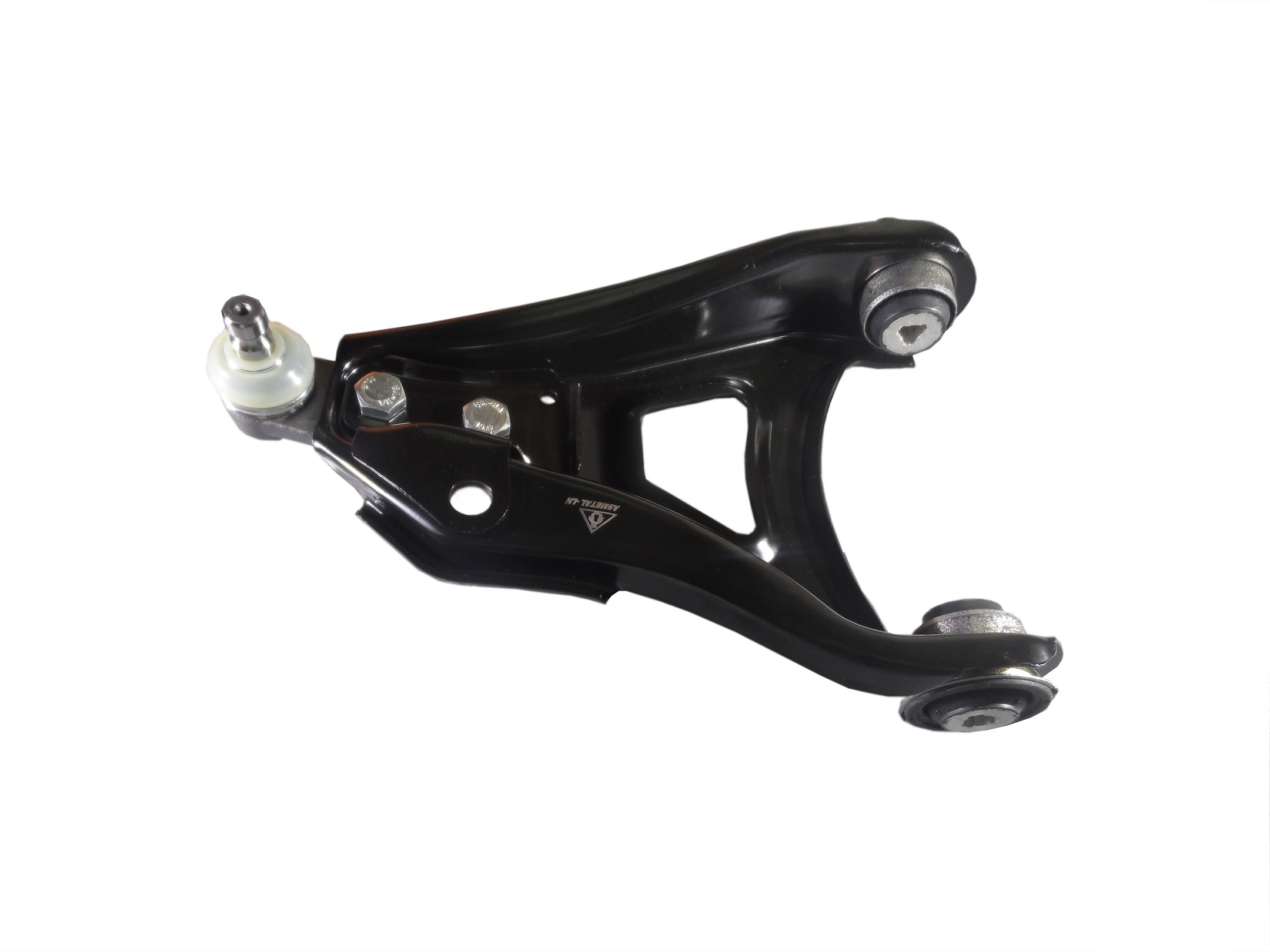

30RN2000
|
Track Control Arm Left |
M10 / 2,1 kg |
54501 00QAH, 54501 00Q0D (9) OEM |
 |

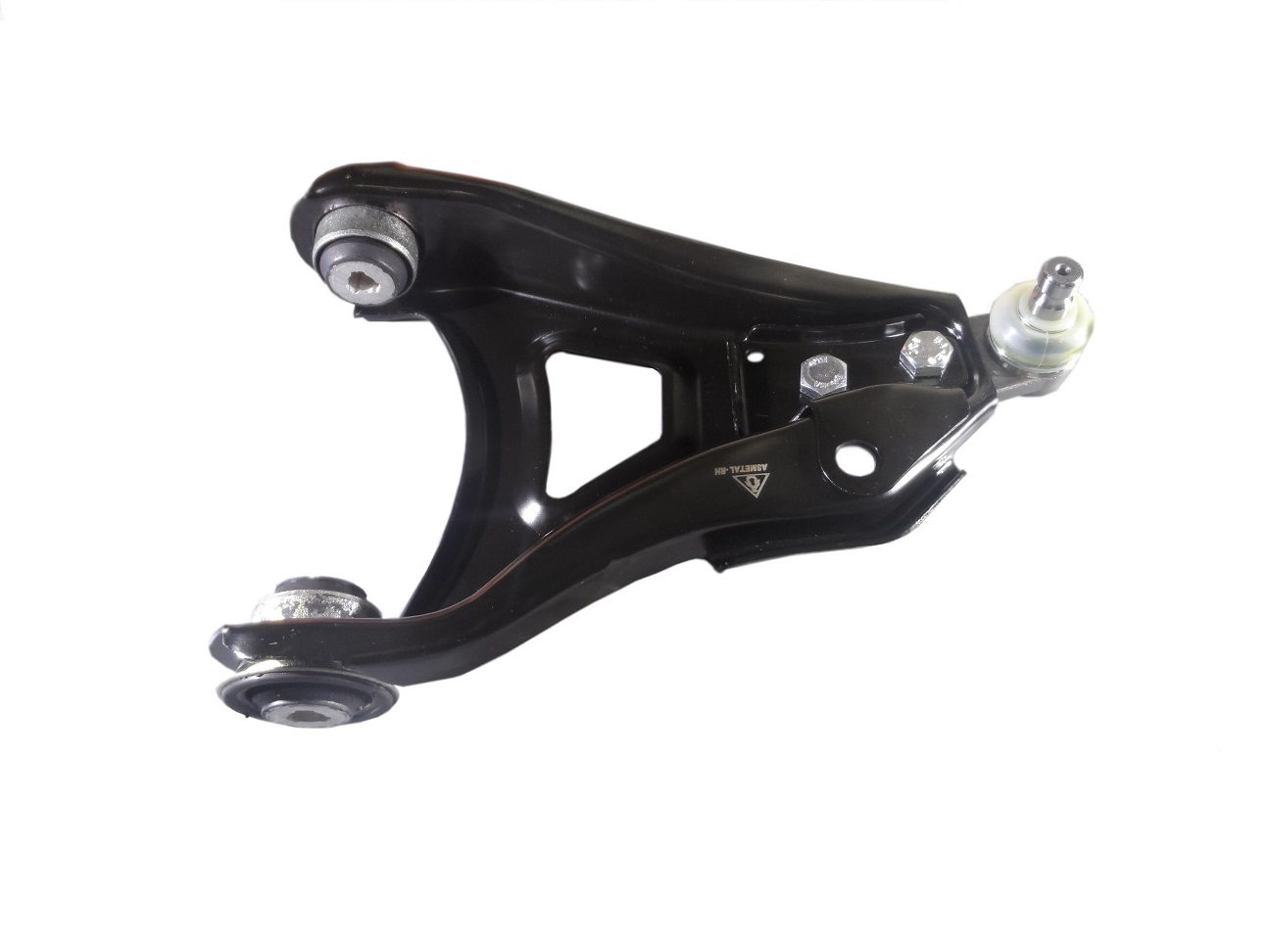

30RN2001
|
Track Control Arm Right |
M10 / 2,1 kg |
54500 00QAH, 54500 00Q0D (11) OEM |
 |
30RN2002
|
Track Control Arm Left |
M12 / 2,2 kg |
54501 00Q0D, 54501 00Q0G (8) OEM |
 |
30RN2003
|
Track Control Arm Right |
M12 / 2,2 kg |
54500 00Q0D, 54500 00Q0J (7) OEM |
 |

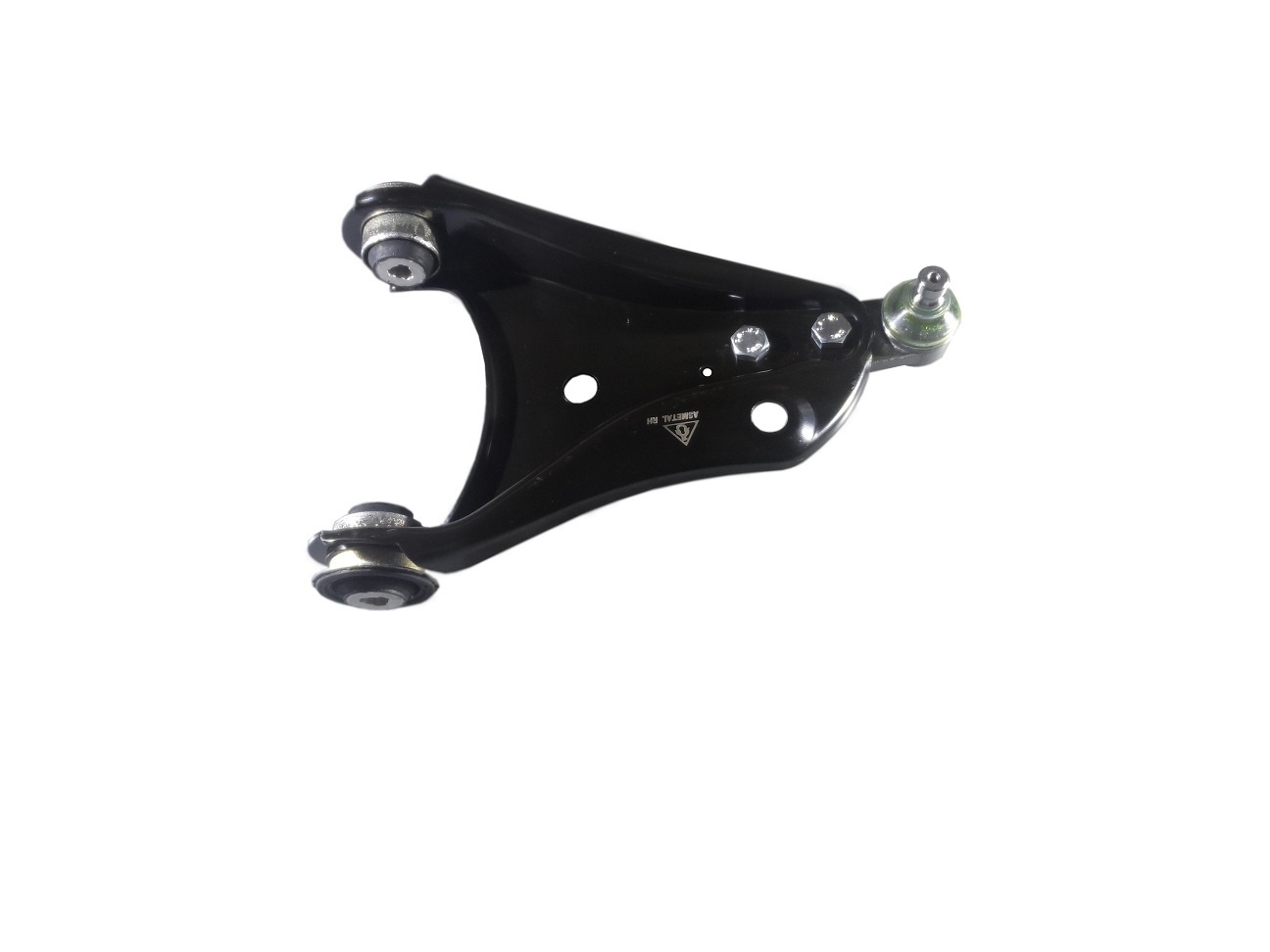

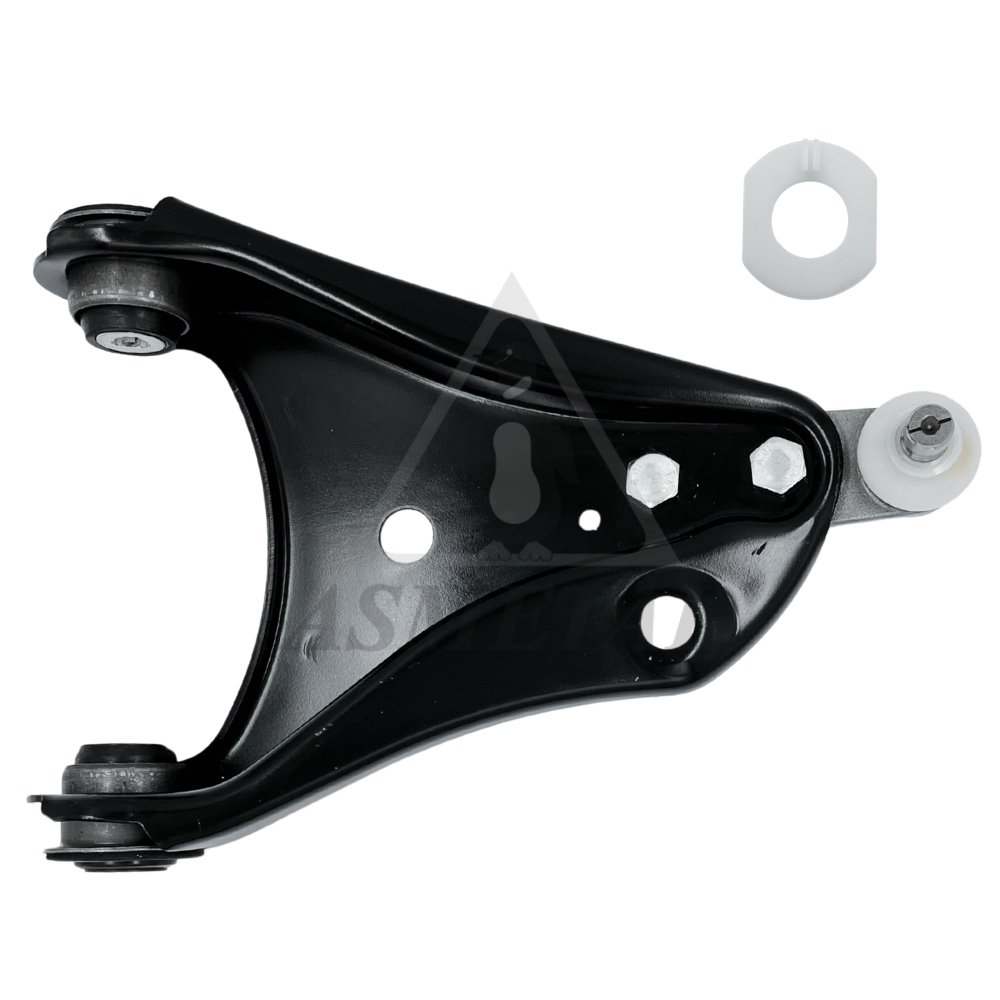

30RN2005
|
Track Control Arm Right |
c: Ø15,95 / 2,3 kg |
82 00 942 408 |
 |

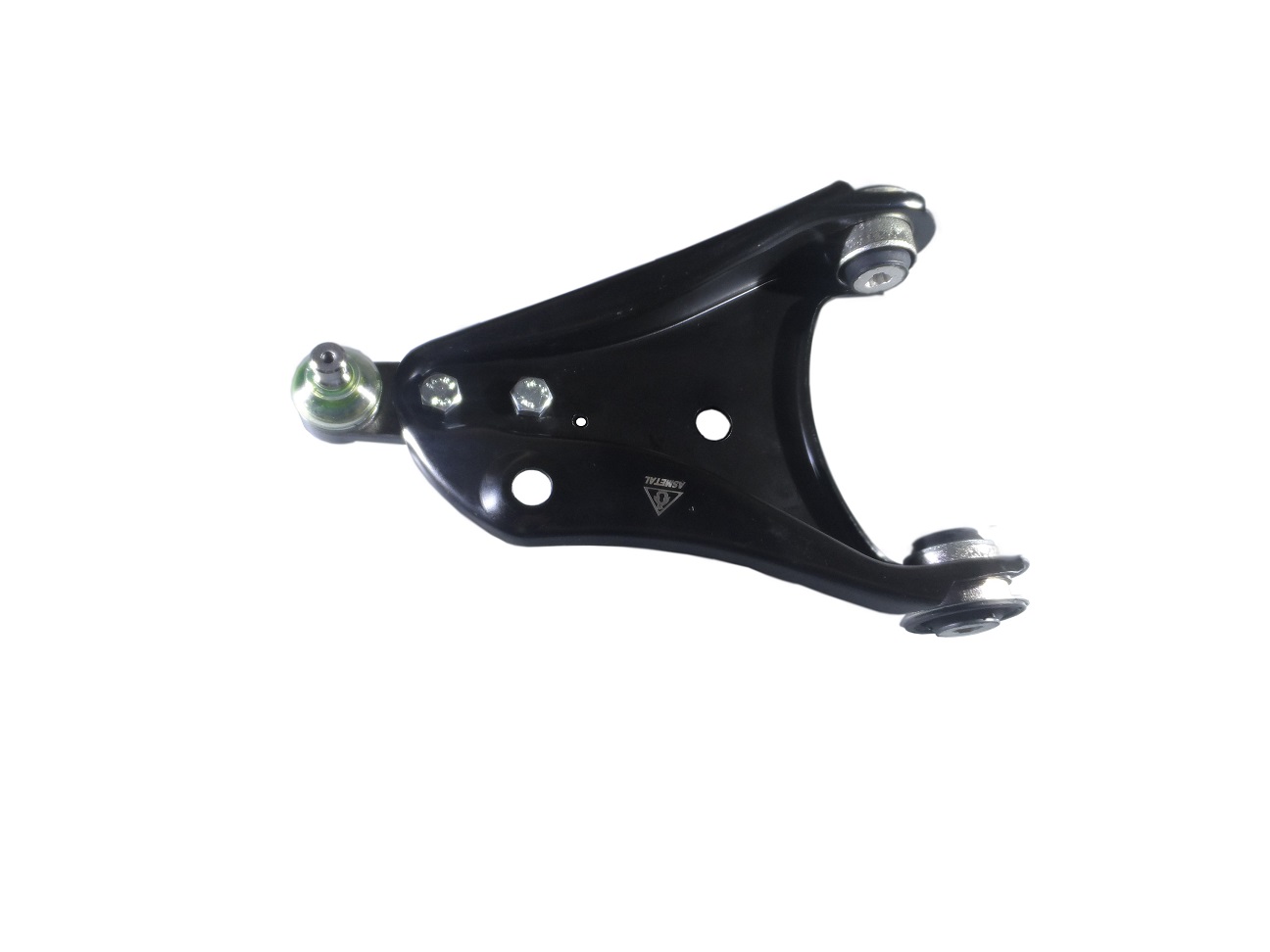

30RN2006
|
Track Control Arm Left |
c: Ø15,95 / 2,3 kg |
82 00 942 407 |
 |

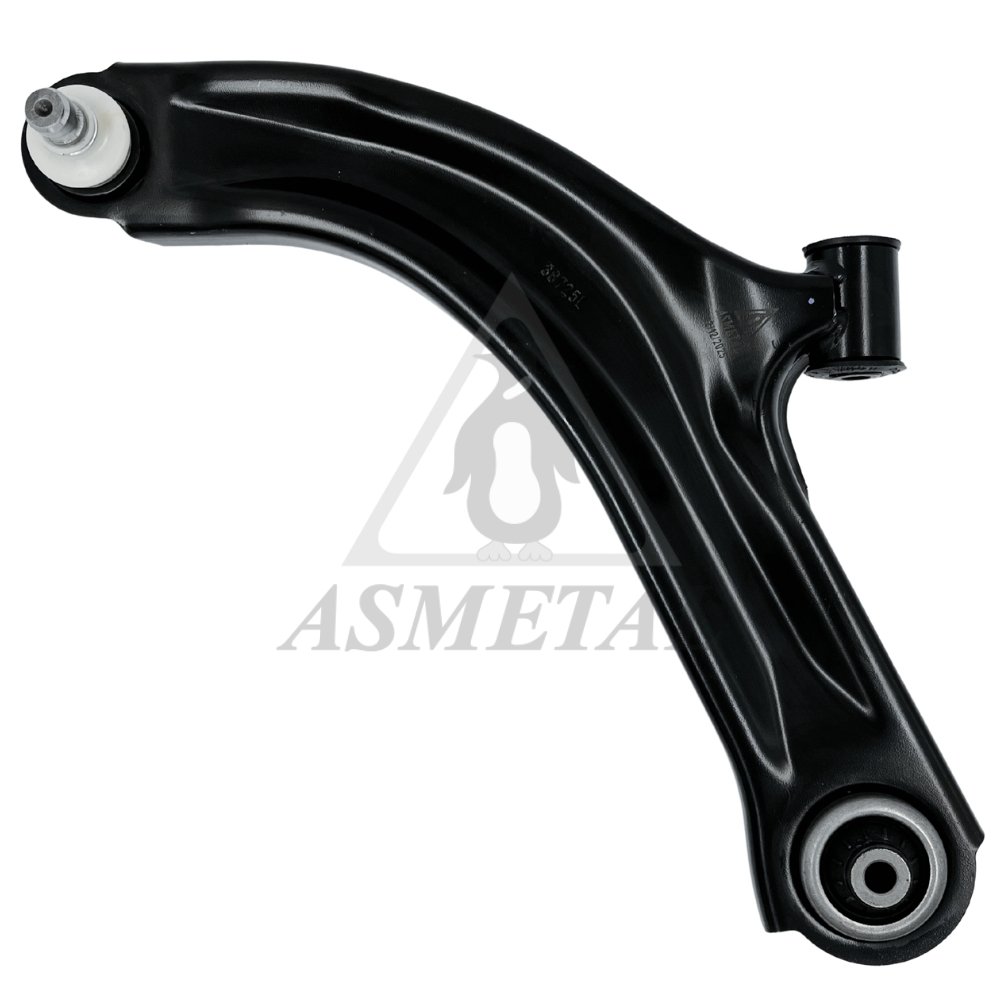

30RN5544
|
Track Control Arm Left |
cs:Ø17.95 / 2,5 kg |
82 00 744 091, 82 00 346 941 (1) OEM |
 |
30RN5545
|
Track Control Arm Right |
cs:Ø17.95 / 2,5 kg |
82 00 744 092, 82 00 346 942 (1) OEM |
 |

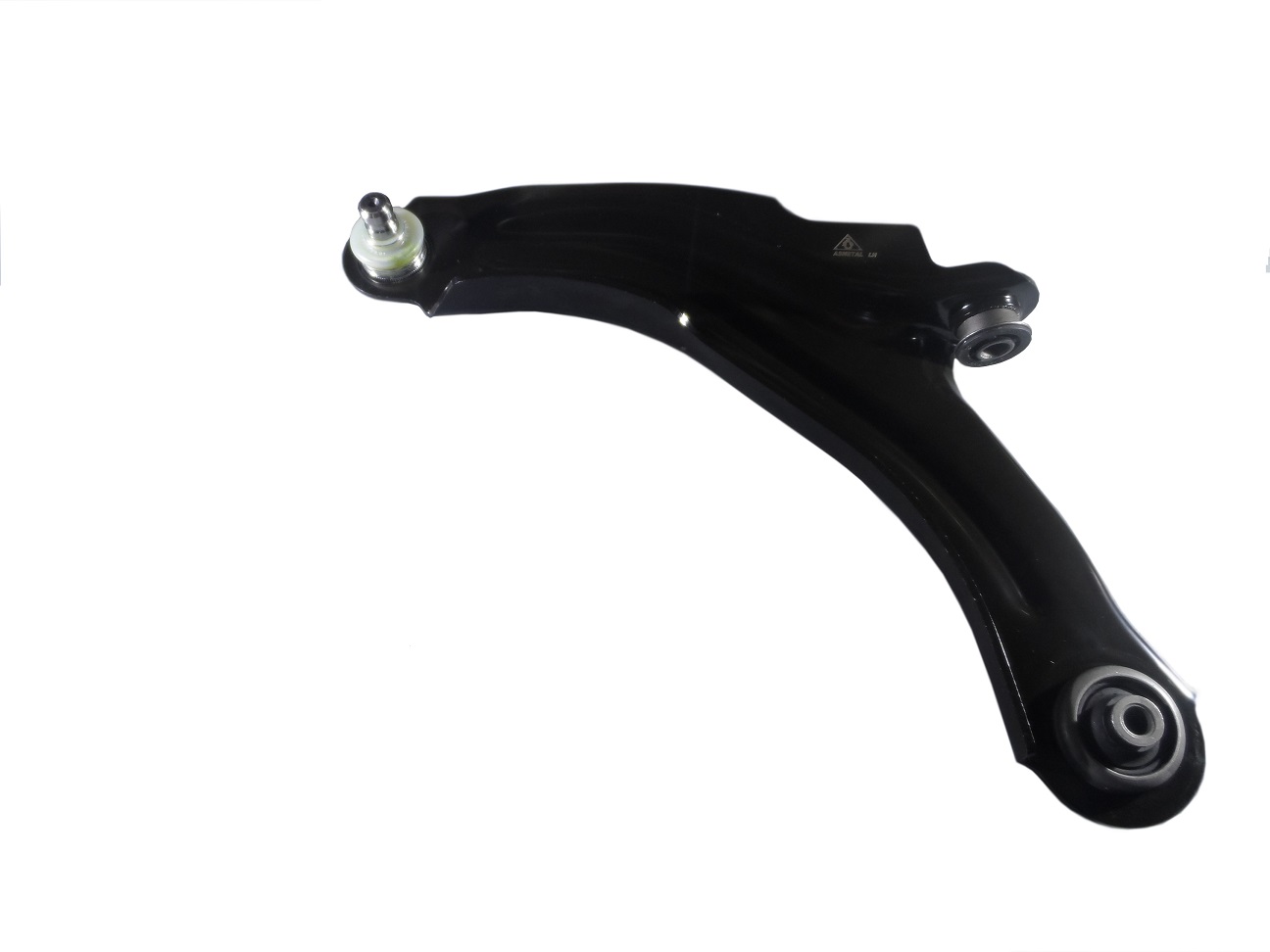

30RN5546
|
Track Control Arm Left |
c: Ø17,95 / 3 kg |
54 50 523 54R, 54 50 503 99R (2) OEM |
 |

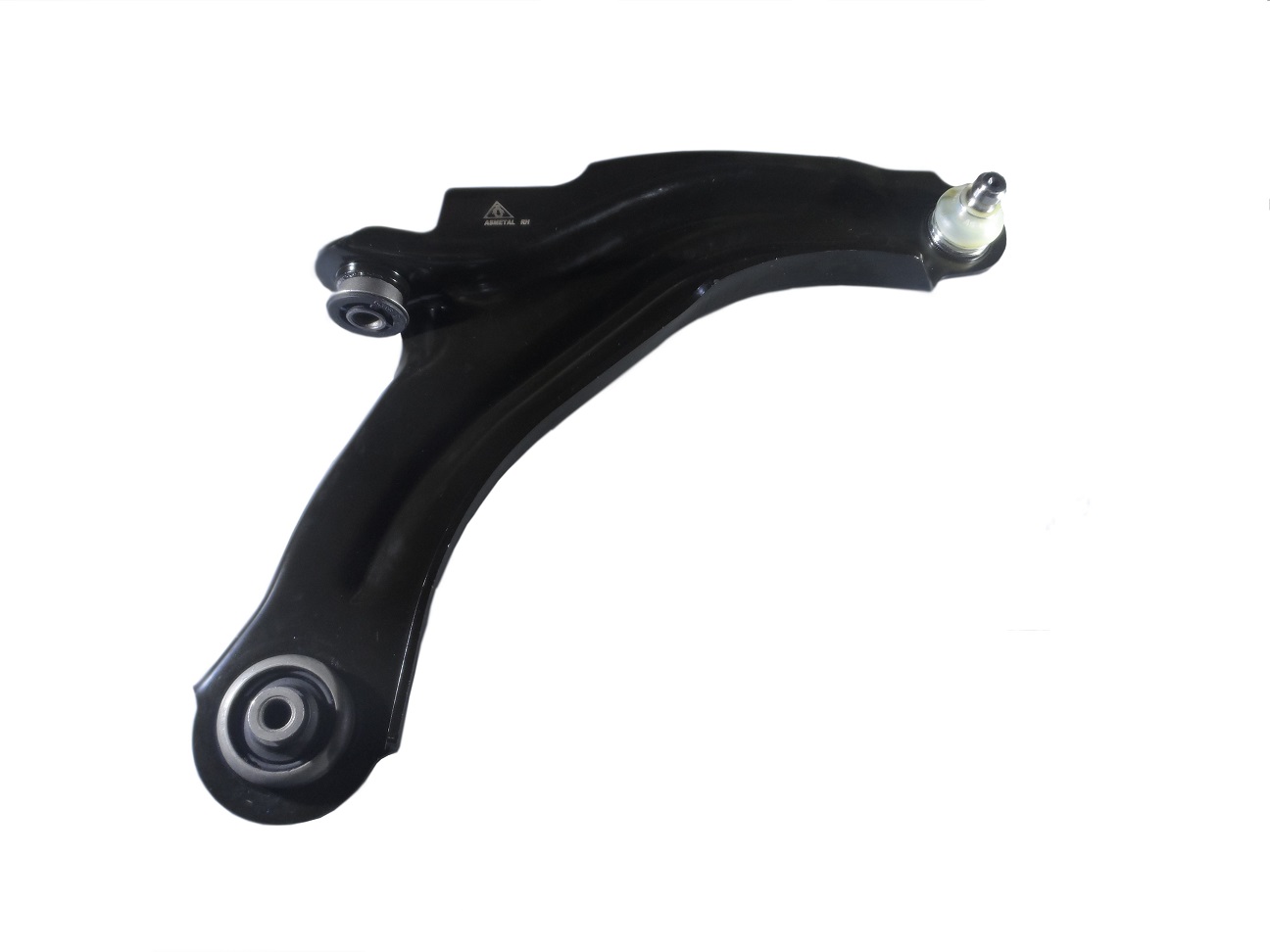

30RN5547
|
Track Control Arm Right |
c: Ø17,95 / 3 kg |
54 50 499 68R, 54 50 485 06R (2) OEM |
 |
30RN5800
IN PREPARATION
|
Track Control Arm Left |
|
54 50 560 28R |
 |
30RN5801
IN PREPARATION
|
Track Control Arm Right |
|
54 50 425 11R |
 |

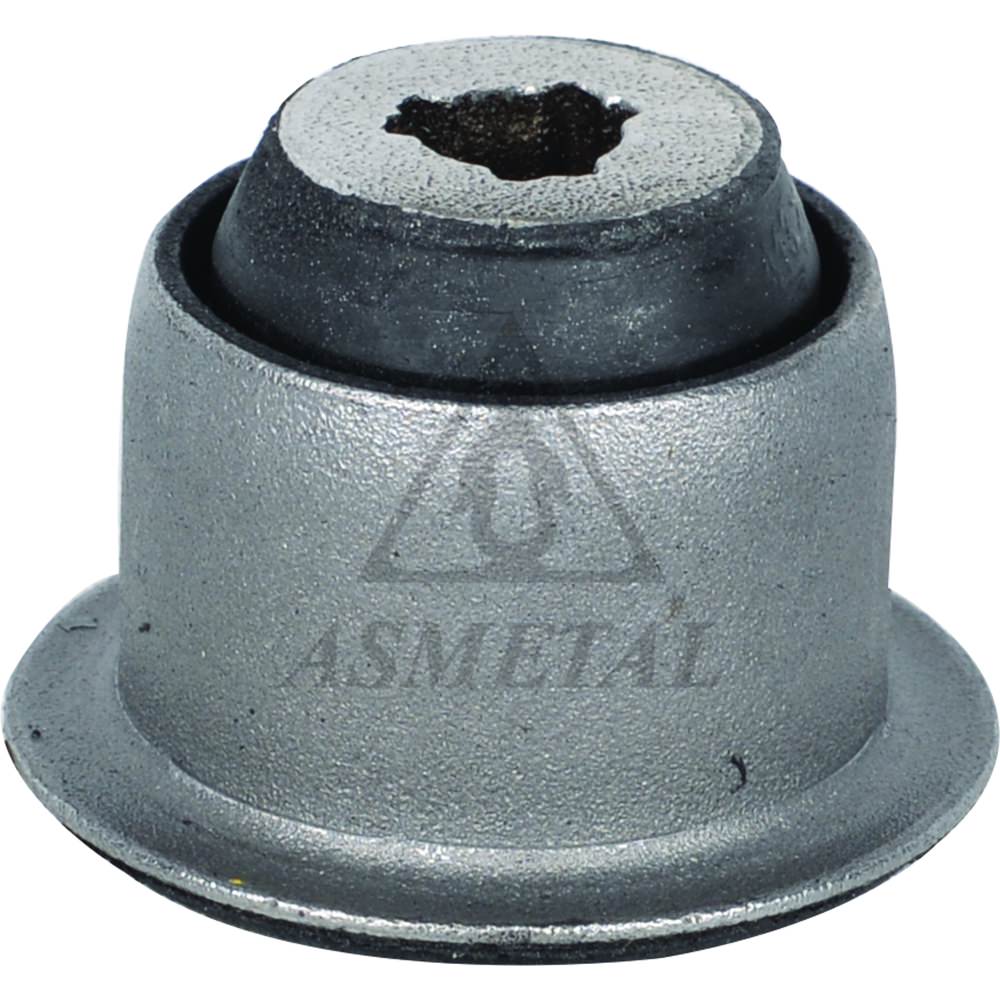

38RN2000
|
Silentblock for TCA |
di:Ø12 do:Ø45,5 / 0,18 kg |
54560 00QAB, 77 00 419 249 (8) OEM |
 |
38RN3490
NEW
|
Bellow Steering |
0,11 kg |
77 01 469 486 |
 |

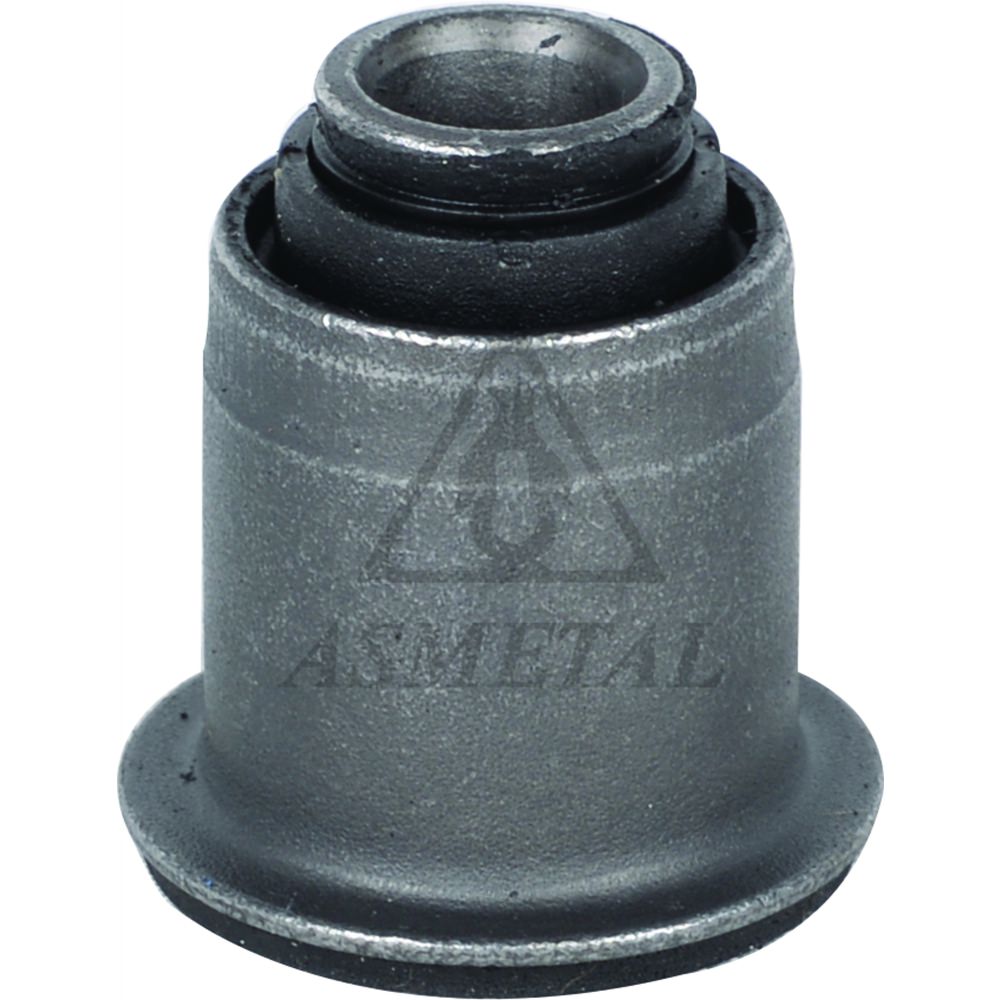

38RN5541
|
Silentblock for TCA |
di:Ø12 do:Ø33,1 / 0,16 kg |
54 50 401 31R*, 54 50 593 35R* (12) OEM |
 |

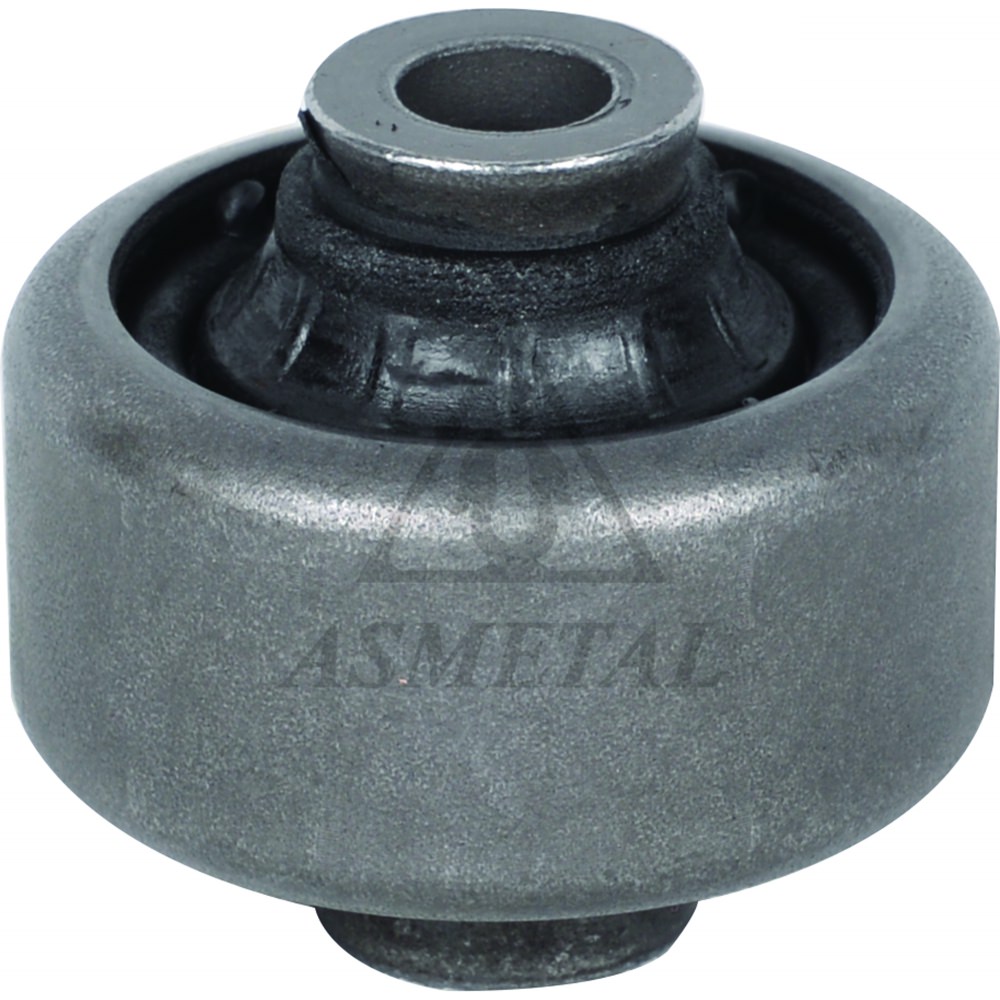

38RN5542
|
Silentblock for TCA |
di:Ø12,2 do:Ø58 / 0,26 kg |
54 50 141 20R*, 82 00 298 455* (14) OEM |
 |

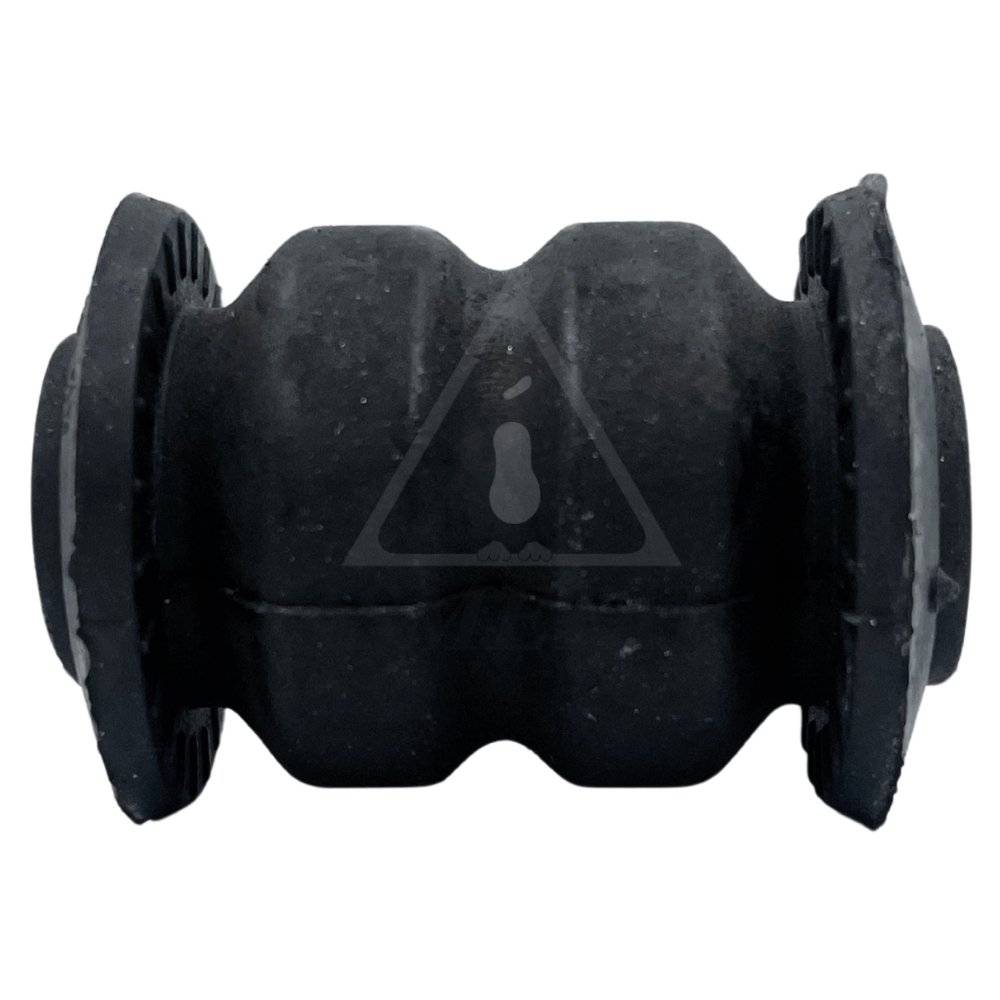

38RN5544
|
Silentblock for TCA |
di:Ø12,1 do:Ø35,8 / 0,12 kg |
54560 AX600, 54560 AX000 (1) OEM |
 |
38RN5545
|
Silentblock for TCA |
di:Ø12 do:Ø58.2 L:53mm / 0,16 kg |
82 00 346 941*, 82 00 346 942* (7) OEM |
 |
38RN5546
|
Stabiliser Mounting |
Ø19.5 / 0,08 kg |
77 01 056 096, 77 01 056 678 |
 |
38RN5800
|
Silentblock for TCA |
di: Ø14.4 / do: Ø58 / L: 53 / 0,16 kg |
54 56 066 79R, 54 50 034 37R (5) OEM |
 |
38RN5801
|
Silentblock for TCA |
di: Ø18.3 / do: Ø55.2 / L: 51.2 / 0,384 kg |
MQ001922, MQ001923 (8) OEM |
 |
45DC1111
|
Bearing |
di: Ø16 / do: Ø56 / L: 10 / 0,06 kg |
86 60 004 283, 77 00 800 107 (3) OEM |
 |
45RN2000
|
Strut Mount |
0,3 kg |
54348 00QAA, 82 00 053 795 (1) OEM |
 |
45RN2000E
OUT OF SERVICE
|
Strut Mount |
0,3 kg |
54348 00QAA, 82 00 053 795 (1) OEM |
 |
45RN2020
|
Strut Mount |
do: Ø170 / L: 43 / 0,3 kg |
77 00 419 475 |
 |
45RN5207
IN PREPARATION
|
Engine Mounting |
|
11320 00QAF, 82 00 038 808 (2) OEM |
 |
45RN5520
|
Suspension Support Buffer Front |
di:Ø19.5 do: Ø55 L:80mm / 0,07 kg |
54 05 037 01R |
 |
45RN5521
|
Suspension Support Buffer Front |
do: Ø54.5 L:73mm / 0,06 kg |
54 05 005 58R |
 |
45RN5530
IN PREPARATION
|
Suspension Support Buffer Rear |
0 kg |
55 24 055 69R |
 |

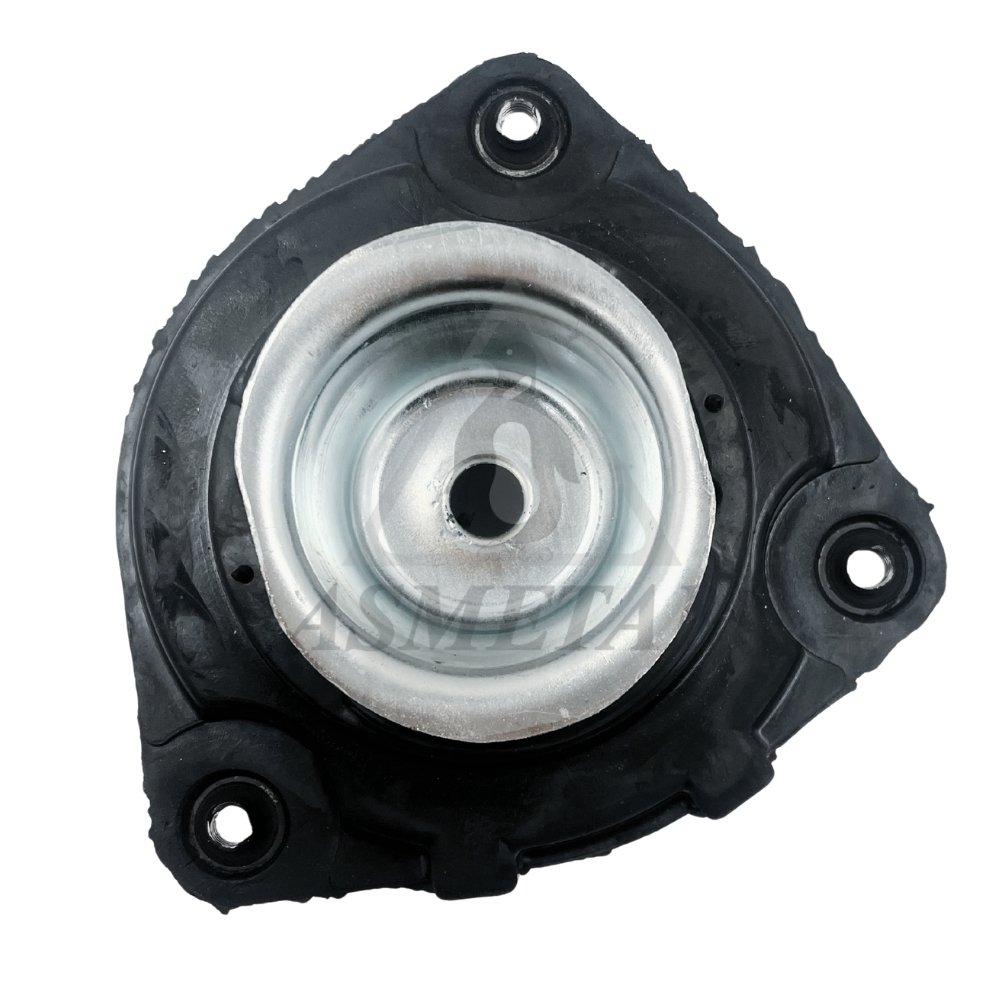

45RN5550
|
Strut Mount Left |
di:Ø13 L:58.5mm / 0,91 kg |
54321-AX600, 54321-BC40A (2) OEM |
 |
45RN5551
|
Strut Mount Right |
di:Ø13 L:58.5mm / 0,91 kg |
54320 BC40A, 54320 AX600 (3) OEM |
 |
45RN5560
|
Strut Mount |
di: Ø13,4 / 0,42 kg |
54 30 246 44R |
 |
45RN5561
NEW
|
Strut Mount With Bearing |
0,59 kg |
54 3A 023 10R, 54 32 595 39R |
 |
45RN5562
NEW
|
Bearing |
0,17 kg |
54 32 595 39R, 54 3A 023 10R |
