ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10RN2000	Ball Joint	c:Ø15.95 & 2xM10 / 0,52 kg	77 01 472 038, 54501 00QAH* (3) OEM
10RN2001	Ball Joint	c:Ø15.95 & 2xM12 / 0,56 kg	82 00 254 109, 60 40 002 292 (30) OEM
10RN5540	Ball Joint Lower	c:Ø15.95 do:Ø38.35 / 0,25 kg	82 00 739 484, 82 00 739 482 (6) OEM
10RN5605	Ball Joint Lower Right	c:Ø20 / 0,56 kg	A 415 330 02 00, 415 330 02 00 (1) OEM
10RN5606	Ball Joint Lower Left	c:Ø20 / 0,56 kg	415 330 03 00, A 415 330 03 00 (1) OEM
10RN5700	Ball Joint Lower	tp:M12x1.5 cr:1/5 c:Ø15.85 / 0,76 kg	54 50 472 75R, 54 50 496 71R (2) OEM
17RN5500	Tie Rod End Right	L:131 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,49 kg	77 01 470 766, 60 00 022 721 (4) OEM
17RN5501	Tie Rod End Left	L:131 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,49 kg	77 01 834 570, 77 01 476 760 (4) OEM
17RN5520	Tie Rod End Left	L:90 cr:1/5 c:Ø12 tp:M10x1.25 th:FM14x1.5 RHT / 0,34 kg	48640 AX602, 48520 00QAN (8) OEM
17RN5521	Tie Rod End Right	L:90 cr:1/5 c:Ø12 tp:M10x1.25 th:FM14x1.5 RHT / 0,34 kg	48520 AX602, 48520 00QAP (7) OEM
17RN5605	Tie Rod End Right	L:199 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,64 kg	415 460 01 05, 77 01 478 408
17RN5606	Tie Rod End Left	L:199 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,64 kg	415 460 00 05, 77 01 478 407
17RN5700	Tie Rod End Left	L:210 cr:1/5 c:Ø11.9 tp:M10x1.5 th:FM14x1.5 RHT / 0,4 kg	420 460 19 00, 420 460 17 00 (4) OEM
17RN5700S	Tie Rod End Left	L:210 cr:1/5 c:Ø11.9 tp:M10x1.5 th:FM14x1.5 RHT / 0,86 kg	420 460 19 00, 420 460 17 00 (4) OEM
17RN5701	Tie Rod End Right	L:210 cr:1/5 c:Ø11.9 tp:M10x1.5 th:FM14x1.5 RHT / 0,4 kg	420 460 18 00, 420 460 20 00 (4) OEM
17RN5701S	Tie Rod End Right	L:210 cr:1/5 c:Ø11.9 tp:M10x1.5 th:FM14x1.5 RHT / 0,86 kg	420 460 18 00, 420 460 20 00 (4) OEM
20RN3410	Axial Joint	L:303.5 tp:M14x1.5 th:MM12x1 RHT / 0,52 kg	48521 00QAG, 77 01 473 655 (1) OEM
20RN3505	Axial Joint	L:257.5 tp:M12x1 th:MM14x1.5 RHT / 0,54 kg	77 01 469 502
20RN3601	Axial Joint	th:MM12x1 RHT L:266,5mm / 0,55 kg	77 01 470 763
20RN3605	Axial Joint	0,62 kg	48521 00QAA, 77 01 472 113
20RN5605	Axial Joint	L:213.5 tp:M14x1.5 th:MM14x1.5 RHT / 0,49 kg	415 320 00 89, 48 52 156 12R (1) OEM
26RN3410	Stabiliser Link	L:70 tp:M18x1.25 RHT / 0,11 kg	54616 00QAA, 77 00 799 404
26RN5600	Stabiliser Link	L:257 tp:M10x1.5 RHT / 0,33 kg	77 00 437 136
26RN5605	Stabiliser Link	L:282 tp:M10x1.5 RHT / 0,36 kg	A 415 320 00 00, 415 320 00 00 (5) OEM
26RN5700	Stabiliser Link	L:275 tp:M10x1.5 RHT / 0,41 kg	54 61 888 97R, 54 61 870 05R (1) OEM
30RN2000	Track Control Arm Left	c:Ø15.95 / 2,1 kg	54501 00QAH, 54501 00Q0D (9) OEM
30RN2001	Track Control Arm Right	c:Ø15.95 / 2,1 kg	54500 00QAH, 54500 00Q0D (11) OEM

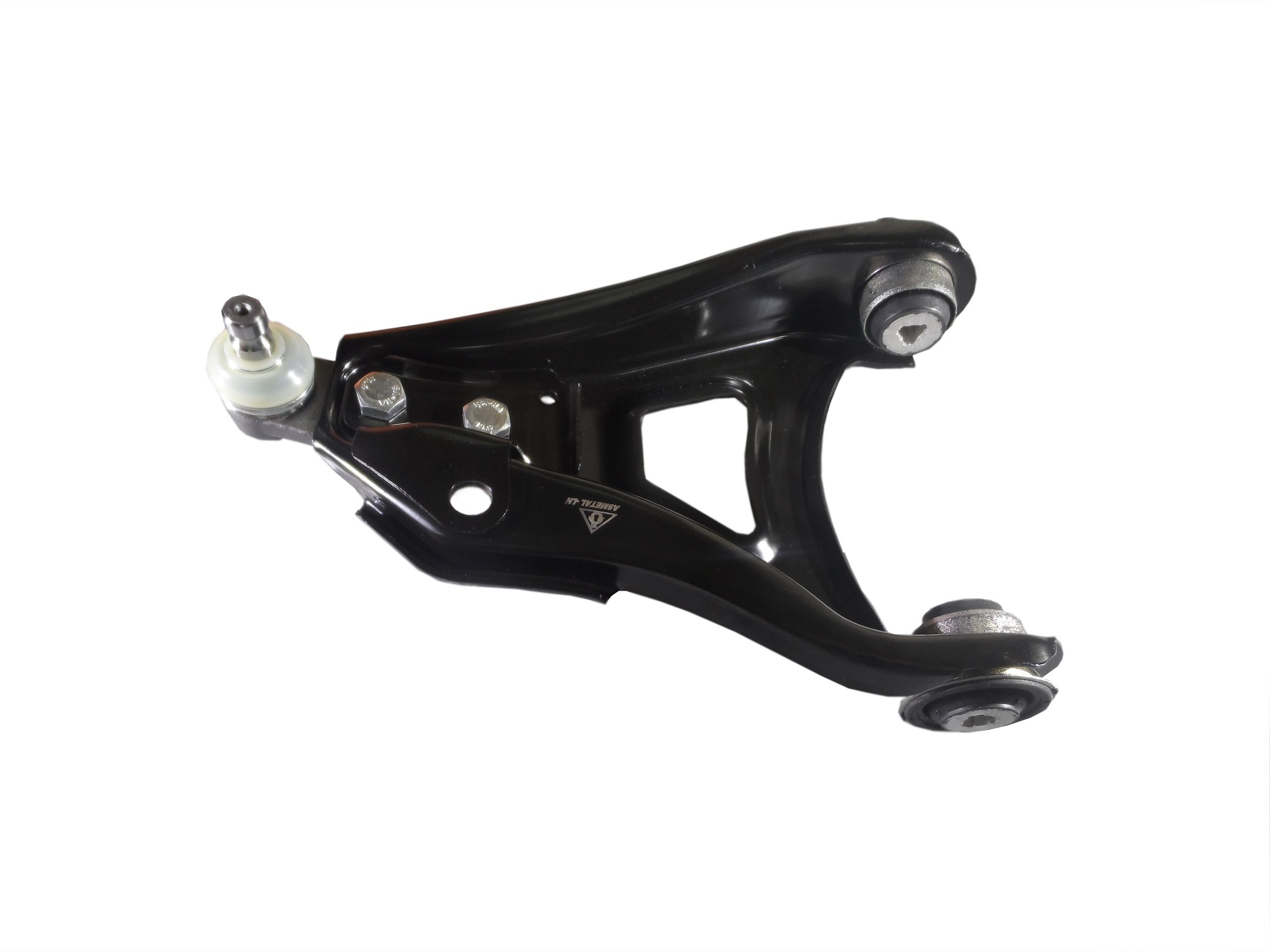

30RN2002	Track Control Arm Left	c:Ø15.95 / 2,2 kg	54501 00Q0D, 54501 00Q0G (8) OEM

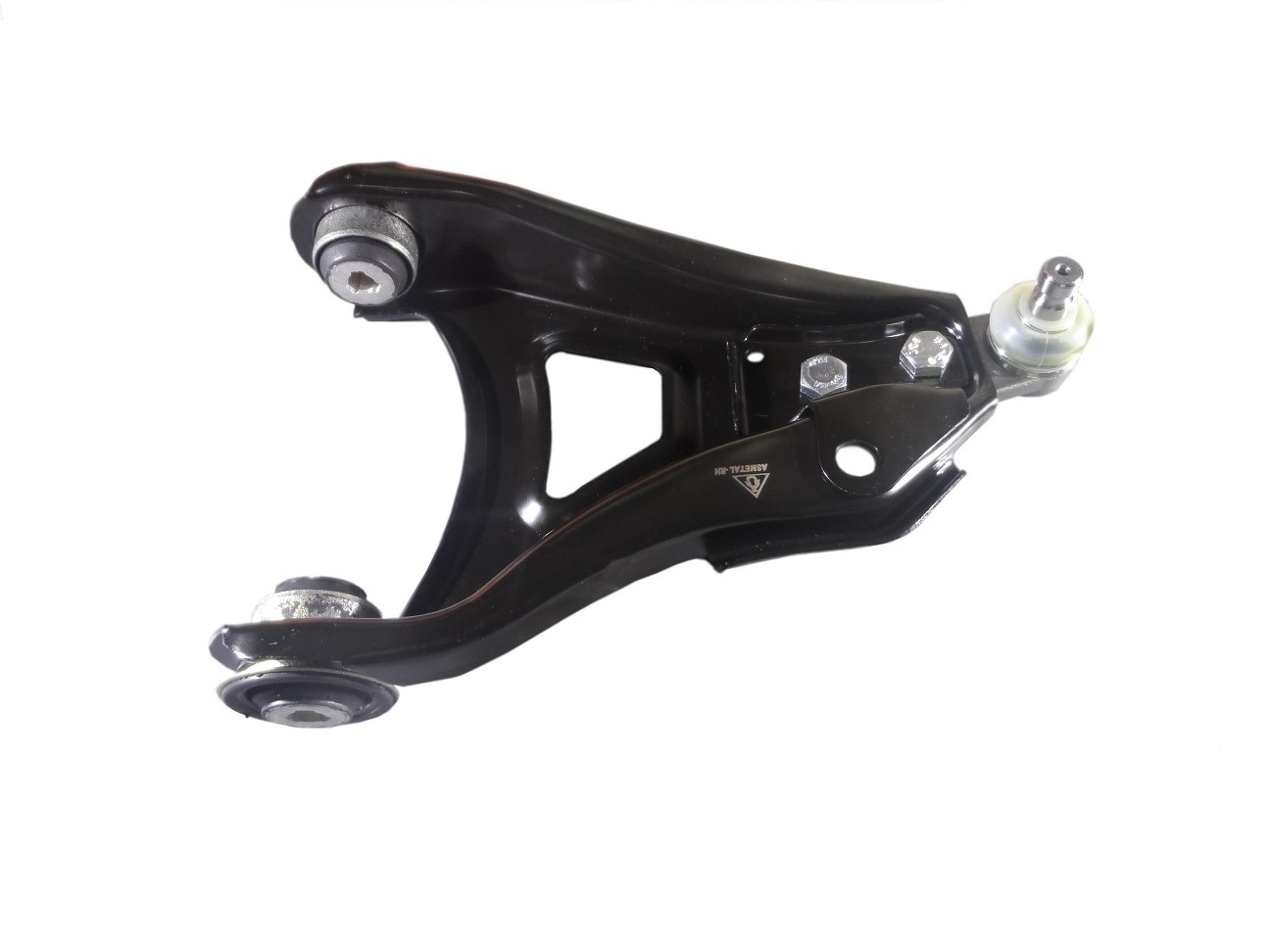

30RN2003	Track Control Arm Right	c:Ø15.95 / 2,2 kg	54500 00Q0D, 54500 00Q0J (7) OEM
30RN5606	Track Control Arm Left	c:Ø20 / 3,4 kg	A 415 330 03 00, 415 330 03 00 (1) OEM
30RN5607	Track Control Arm Right	c:Ø20 / 3,4 kg	415 330 02 00, A 415 330 02 00 (1) OEM
30RN5702 NEW	Track Control Arm Left	3,9 kg	420 330 01 00, A 420 330 01 00 (1) OEM
30RN5703 NEW	Track Control Arm Right	3,9 kg	420 330 00 00, A 420 330 00 00 (1) OEM
38RN2000	Silentblock for TCA	L:46 di:Ø12 do:Ø45.5 / 0,18 kg	54560 00QAB, 77 00 419 249 (8) OEM
38RN5523 NEW	Stabiliser Mounting	di:Ø21 / 0,06 kg	54613 00QAD, 77 00 436 014 (2) OEM
38RN5541	Silentblock for TCA	L:48 di:Ø12.1 do:Ø33.1 / 0,16 kg	54 50 401 31R, 54 50 593 35R (12) OEM
38RN5542	Silentblock for TCA	L:53 di:Ø12.2 do:Ø58 / 0,26 kg	54 50 141 20R, 82 00 298 455 (14) OEM
38RN5620 NEW	Stabiliser Mounting	di:Ø18,2-20 / 0,08 kg	A 415 326 01 81, 415 326 01 81 (1) OEM
38RN5623 NEW	Stabiliser Mounting	di:Ø21,5 / 0,08 kg	A 415 326 00 81, 415 326 00 81 (1) OEM
38RN5710	Silentblock for TCA	L:50.5 di:Ø18.5 do:Ø55 / 0,24 kg	54 50 567 11R, 54 50 547 33R (5) OEM
45DC1032	Suspension Support Buffer Rear	L:144.5 di:Ø9 do:Ø72 / 0,3 kg	55 24 019 99R
45DC1111	Bearing	L:10 di:Ø16 do:Ø56 / 0,06 kg	86 60 004 283, 77 00 800 107 (3) OEM
45RN2000	Strut Mount	L:43.2 di:Ø28 do:Ø103 / 0,3 kg	54348 00QAA, 82 00 053 795 (1) OEM
45RN2001 IN PREPARATION	Spring Seat		54330-00Q0B, 54330-00QAA (4) OEM
45RN2002 IN PREPARATION	Strut Mount With Bearing		54348 00QAA, 54325 00Q0A (3) OEM
45RN2003 IN PREPARATION	Strut Mount KIT		543A0-0300R, 54310-00QAA (10) OEM
45RN2020	Strut Mount	L:43 di:Ø100 do:Ø170 / 0,3 kg	77 00 419 475
45RN5207 IN PREPARATION	Engine Mounting		11320 00QAF, 82 00 038 808 (2) OEM
45RN5555 IN PREPARATION	Bearing		415 322 01 84, A 415 322 01 84 (17) OEM
45RN5605 IN PREPARATION	Strut Mount	0 kg	415 323 00 20, 82 00 591 283
45RN5620	Suspension Support Buffer Front	di:Ø23 do: Ø57 L:135mm / 0,09 kg	82 00 591 288, 82 00 591 288 SK (2) OEM
45RN5621	Suspension Support Buffer Kit Front	L:129.5 di:Ø21 / 0,19 kg	82 00 839 707, 82 00 591 288
