ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10RN0500	Ball Joint	th:M12x1.25 RHT cr:1/5 c:Ø14.6 do:Ø38.35 / 0,31 kg	77 00 829 322, 77 00 807 194 (2) OEM
10RN0510	Ball Joint	tp:M16x1.5 cr:1/5 c:Ø17.9 / 0,68 kg	54503 00QAA, 54502 00QAA (20) OEM
10RN0515	Ball Joint	th:M12x1.25 RHT cr:1/5 c:Ø15.7 / 0,64 kg	40 16 000 04R, 54 50 000 02R* (1) OEM
17RN0500	Tie Rod End Left	L:176 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,63 kg	60 00 022 737, 60 20 022 737
17RN0501	Tie Rod End Right	L:176 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,63 kg	60 20 022 736, 60 00 022 736
17RN0510	Tie Rod End Left	L:210 cr:1/5 c:Ø11.9 tp:M10x1.25 th:FM14x1.5 RHT / 0,64 kg	6000 617 476, 48520 00QAK (9) OEM
17RN0511	Tie Rod End Right	L:210 cr:1/5 c:Ø11.9 tp:M10x1.25 th:FM14x1.5 RHT / 0,64 kg	60 006 174 75, 48520 00Q0K (8) OEM
17RN0515	Tie Rod End Left	L:240 cr:1/6 c:Ø13.85 tp:M12x1.25 th:FM14x1.5 RHT / 0,92 kg	48 52 015 02R, 48 52 000 01R
17RN0516	Tie Rod End Right	L:240 cr:1/6 c:Ø13.85 tp:M12x1.25 th:FM14x1.5 RHT / 0,92 kg	48 52 000 02R, 48 52 027 33R
20RN0500	Axial Joint	L:266.5 tp:M12x1 th:MM14x1.5 RHT / 0,52 kg	77 01 469 251, 60 00 022 819 (1) OEM
20RN0510	Axial Joint	L:214 tp:M14x1.5 th:MM12x1 RHT / 0,44 kg	77 01 478 551, 77 01 472 766
20RN0515	Axial Joint	L:186.5 tp:M14x1.5 th:MM14x1.5 RHT / 0,5 kg	48 52 100 01R
26RN0100	Stabiliser Link	L:364.5 tp:M10x1.5 RHT tp:M10x1.5 RHT / 0,53 kg	77 00 805 494
26RN0510	Stabiliser Link	L:280 tp:M10x1.5 RHT / 0,34 kg	6000 618 859, 54616 00QAC (12) OEM

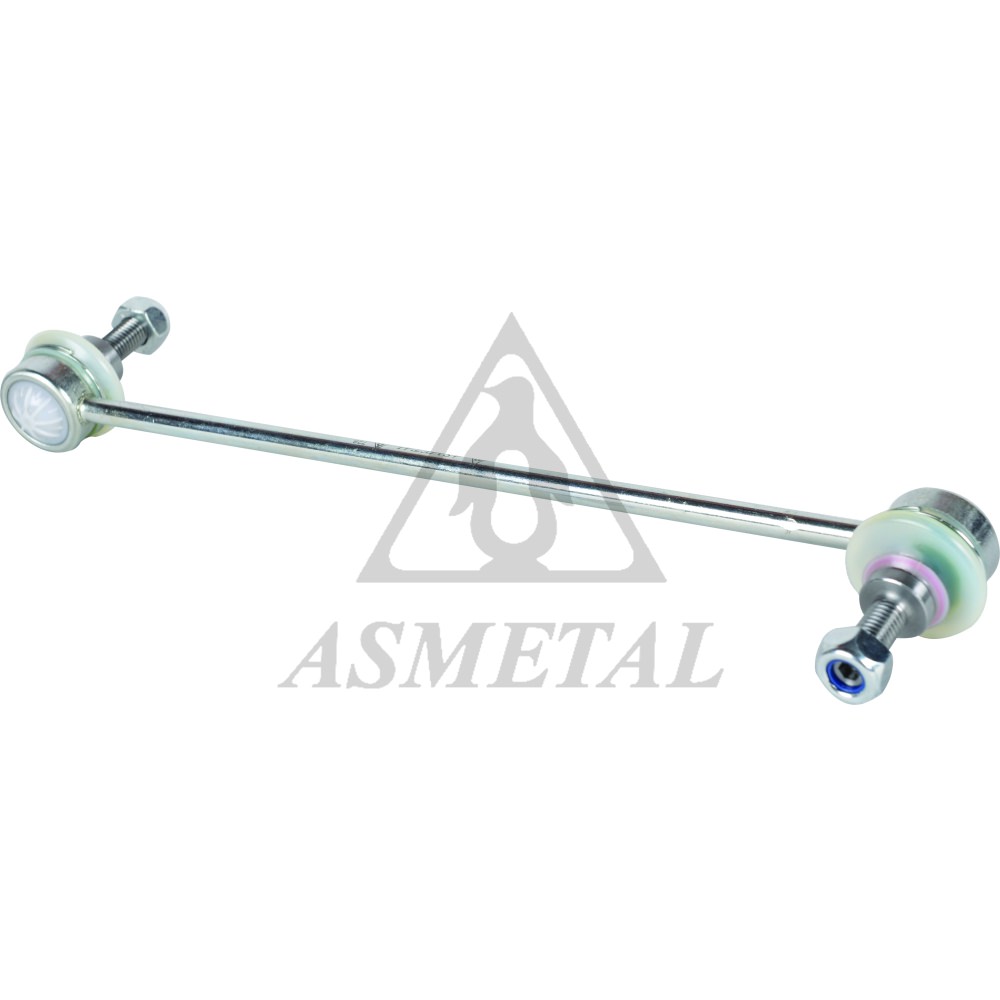

26RN0515	Stabiliser Link	L:295 tp:M10x1.5 RHT / 0,36 kg	55 11 030 22R, 55 11 034 28R (4) OEM

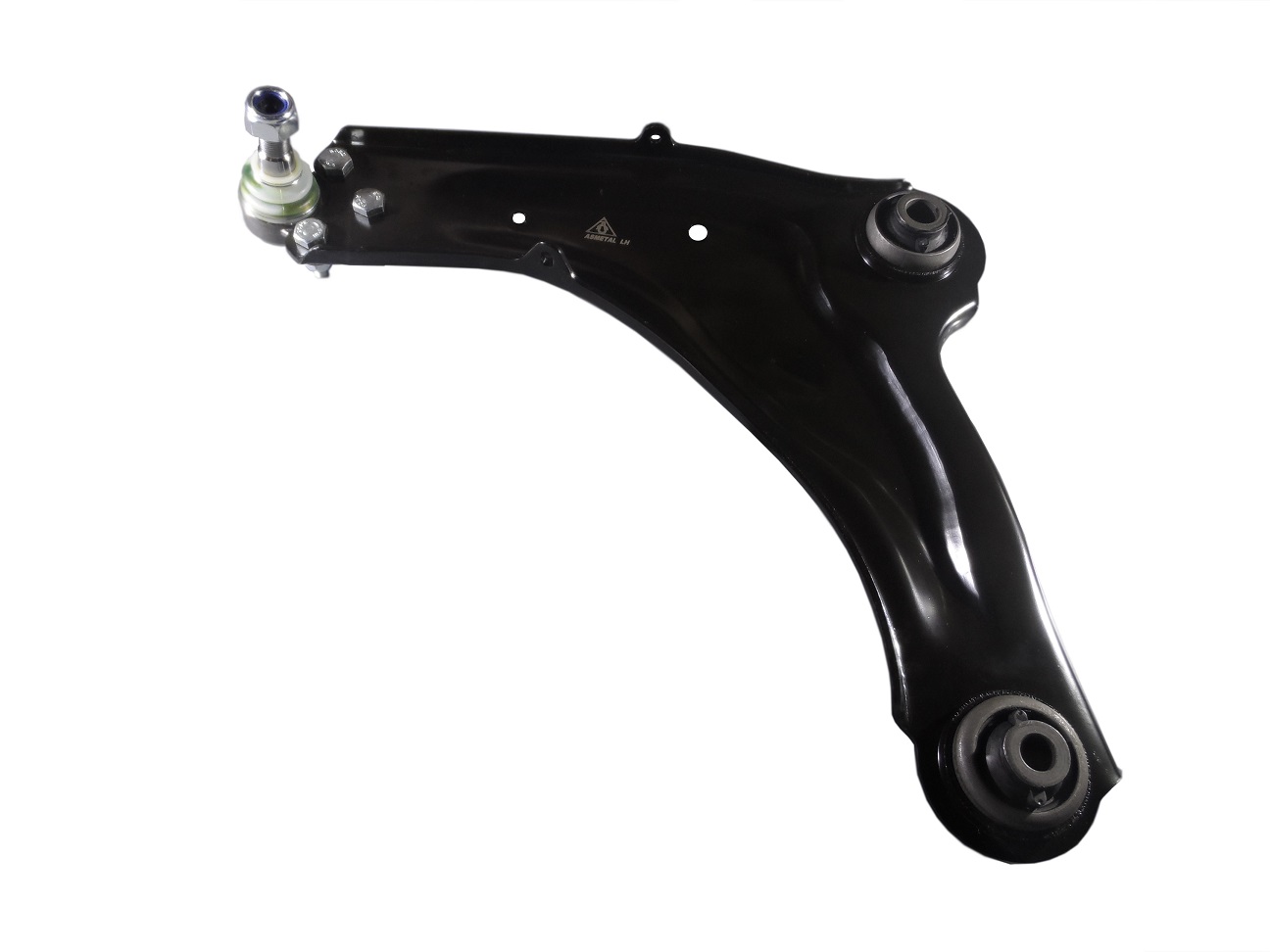

30RN0510	Track Control Arm Left	cr:1/5 c:Ø17.9 th:M16x1.5 RHT / 3,8 kg	82 00 232 030, 82 00 602 612 (6) OEM

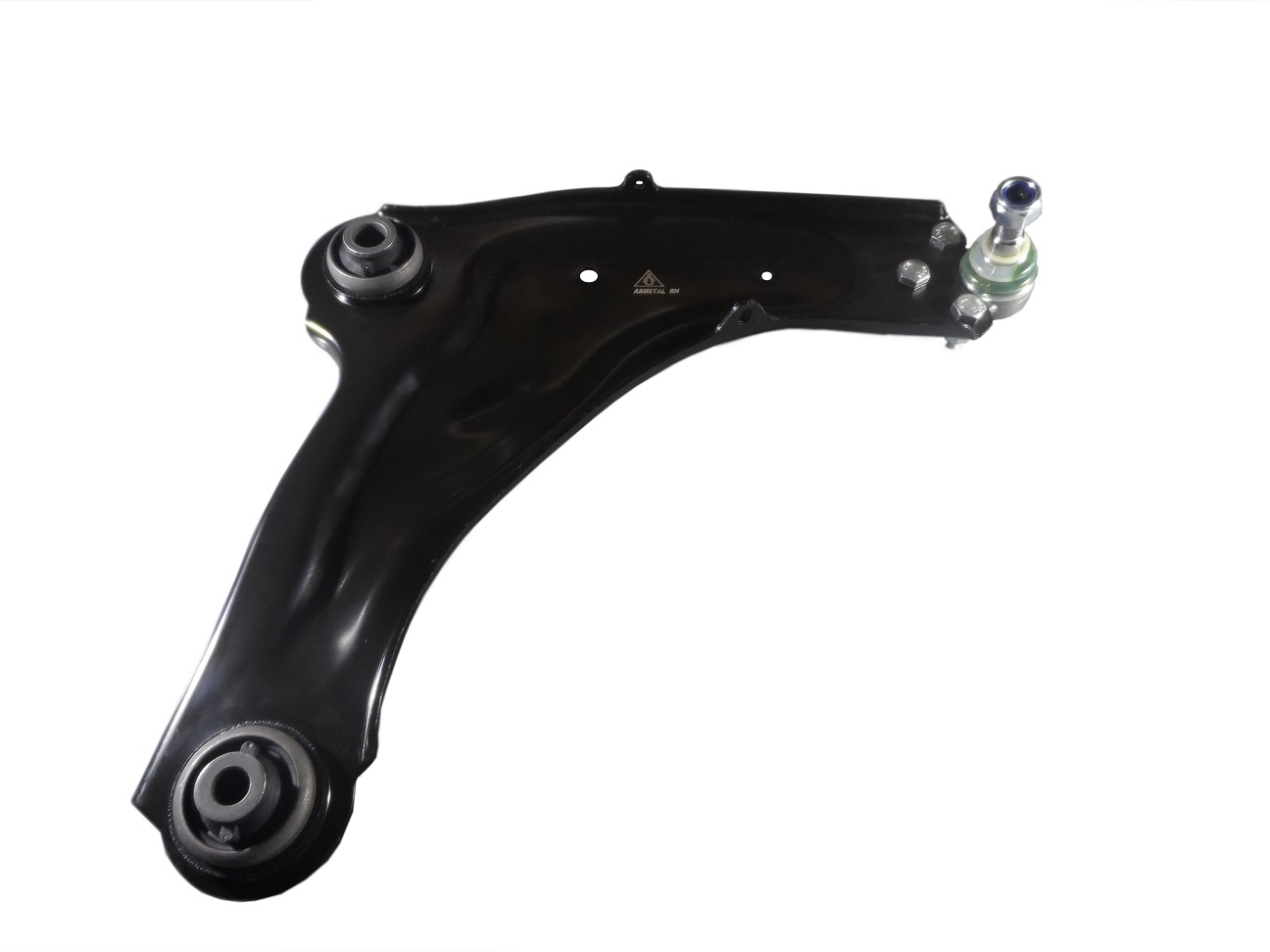

30RN0511	Track Control Arm Right	cr:1/5 c:Ø17.9 th:M16x1.5 RHT / 3,8 kg	82 00 232 032, 82 00 602 613 (5) OEM

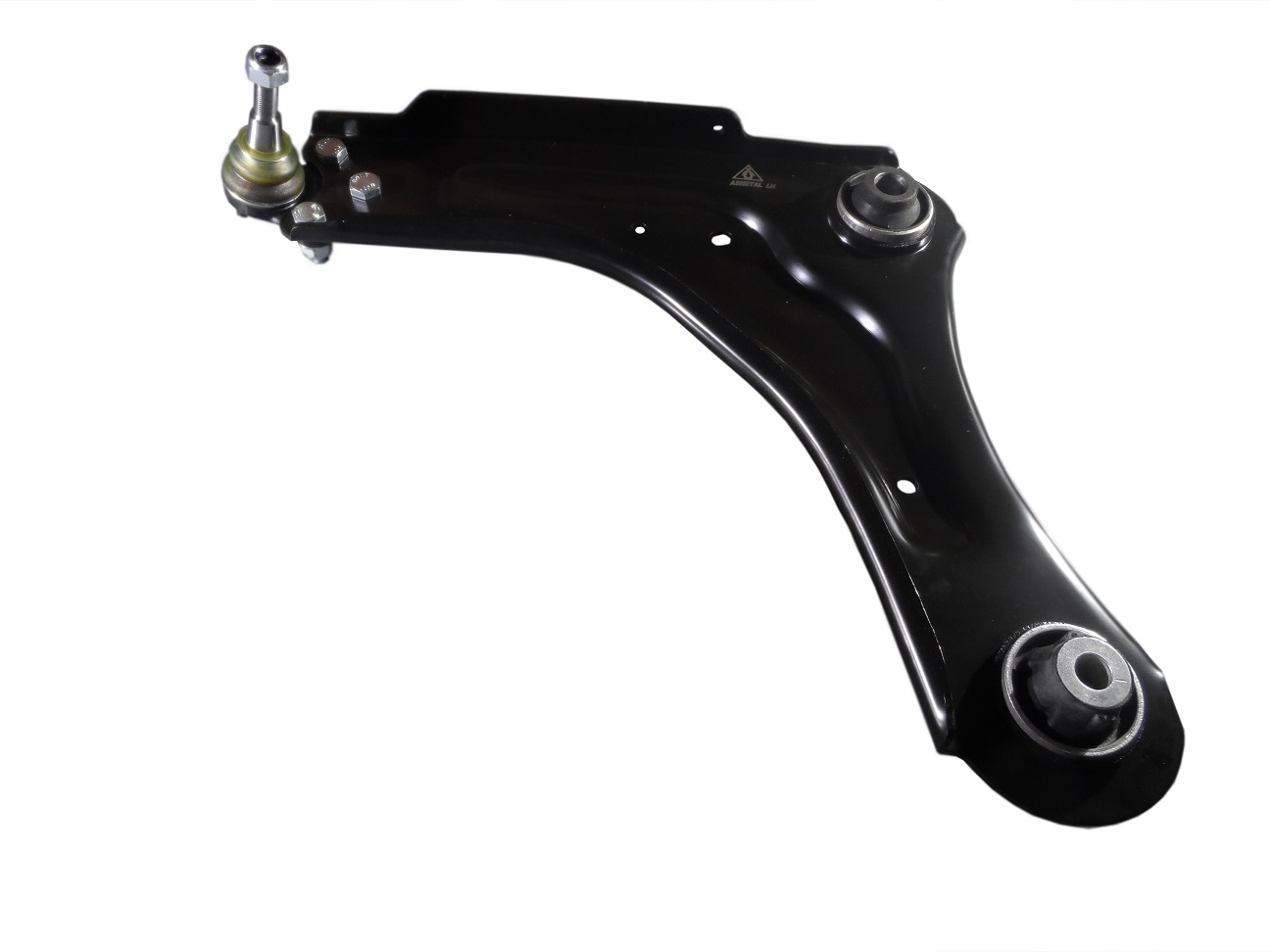

30RN0514	Track Control Arm Left	cr:1/5 c:Ø15.7 th:M12x1.25 RHT / 3,8 kg	54 50 100 08R

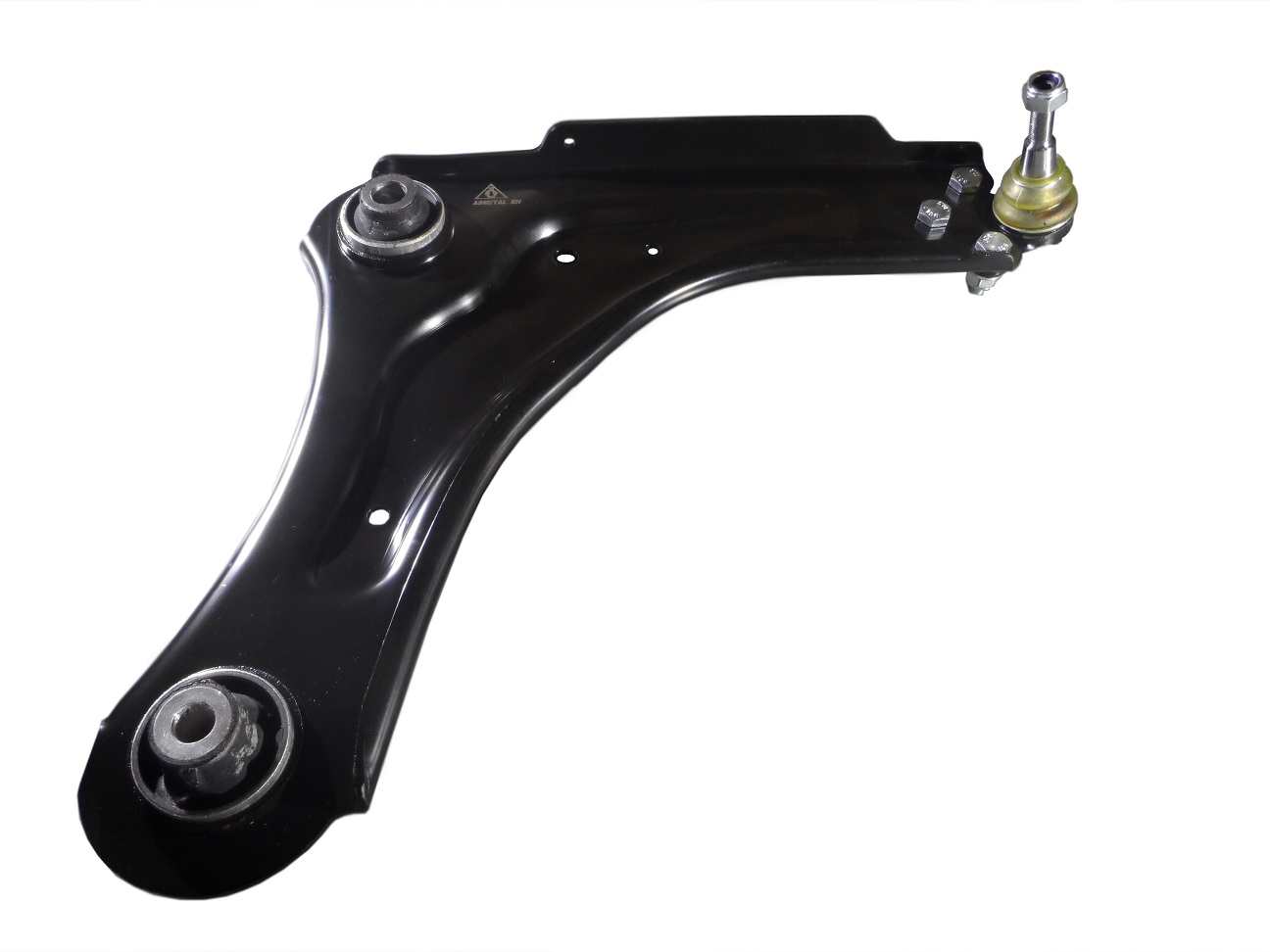

30RN0515	Track Control Arm Right	cr:1/5 c:Ø15.7 th:M12x1.25 RHT / 3,8 kg	54 50 000 01R

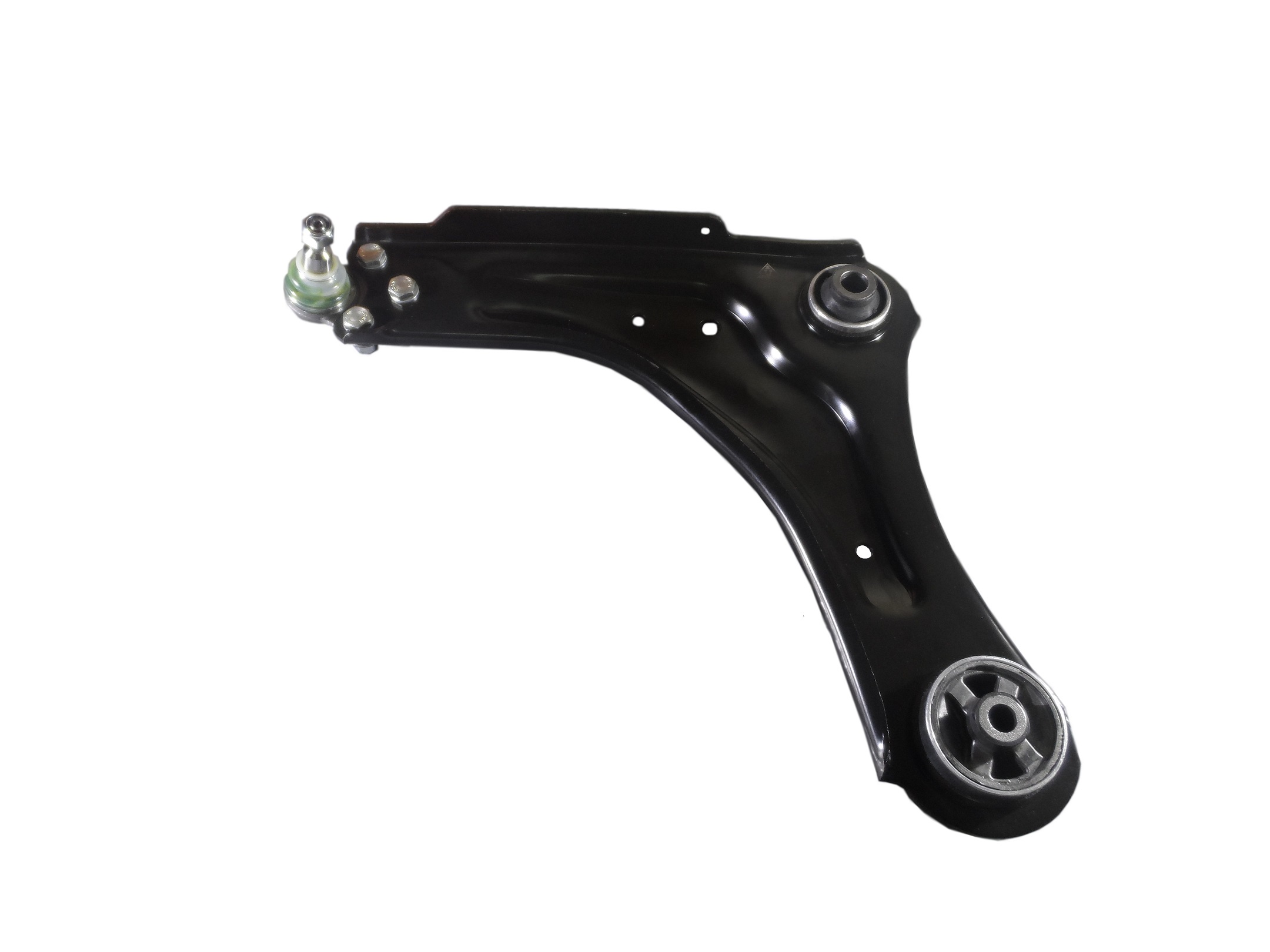

30RN5614	Track Control Arm Left	cr:1/5 c:Ø15.7 th:M12x1.25 RHT / 4,2 kg	54 50 100 09R, 54 50 100 12R

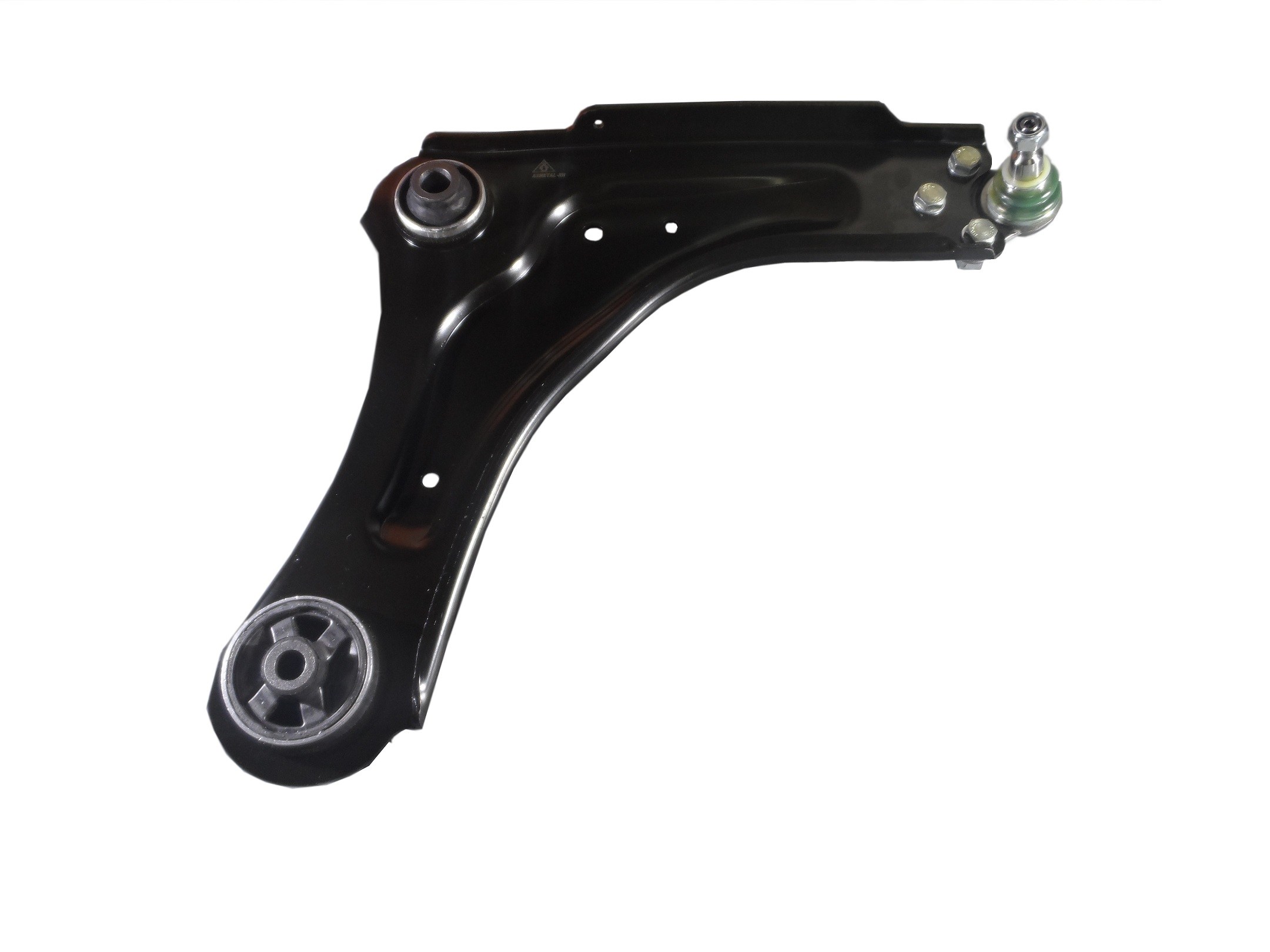

30RN5615	Track Control Arm Right	cr:1/5 c:Ø15.7 th:M12x1.25 RHT / 4,2 kg	54 50 000 02R, 54 50 000 11R
38RN0510	Silentblock for TCA	L:50 di:Ø18 do:Ø55 / 0,3 kg	82 00 452 715, 82 00 002 868 (13) OEM*
38RN0511	Silentblock for TCA	L:54 di:Ø15.2 do:Ø58 / 0,31 kg	6000 618 836, 6000 618 835 (42) OEM
38RN0514	Silentblock for TCA	L:65 di:Ø14.5 do:Ø58 / 0,2 kg	54 56 000 02R, 54 50 100 08R* (1) OEM
38RN0521 NEW	Stabiliser Mounting	di:Ø21 / 0,08 kg	82 00 455 604
38RN5200	Silentblock for TCA	L:55 di:Ø18.1 do:Ø55.3 / 0,31 kg	60 25 307 746, 77 00 822 503
38RN5614	Silentblock for TCA	L:53.5 di:Ø18.2 do:Ø55 / 0,29 kg	54 50 000 01R, 54 50 000 02R (5) OEM
38RN5615	Silentblock for TCA	L:65 di:Ø14.2 do:Ø72.6 / 0,49 kg	54 56 000 01R, 54 50 100 12R* (3) OEM
45PE9999 NEW	Bearing	0,17 kg	5035 19, 5035 27 (7) OEM
45RN0510	Strut Mount	L:60.1 di:Ø16 / 0,6 kg	82 00 002 876, 82 00 201 714 (1) OEM
