ASMETAL Catalogue

RENAULT > MODUS (16 Quantity)

ASMETAL No	Product Description	Dimensions	Oem No

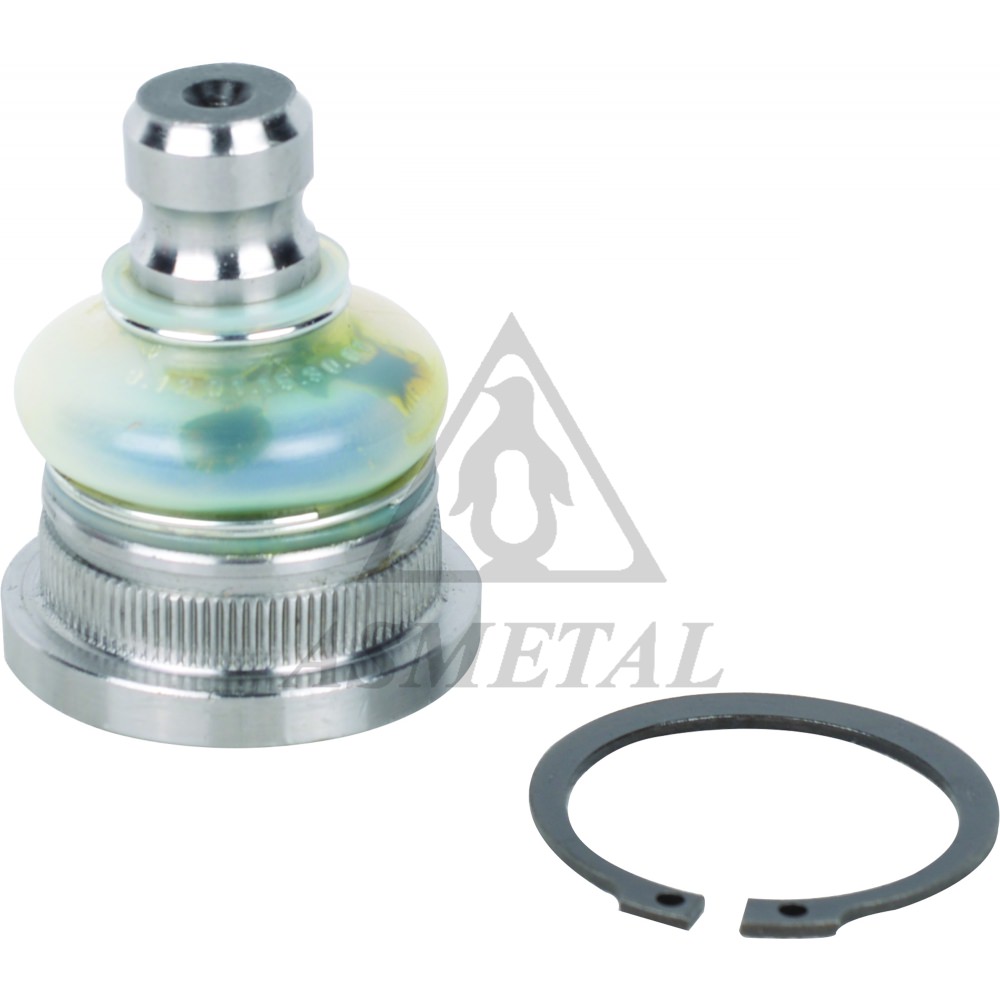

10RN5541	Ball Joint Lower	c:Ø18 do:Ø38,35 / 0,27 kg	54 50 042 69R, 60 01 549 181 (25) OEM
17RN5520	Tie Rod End Left	c:Ø12 th:FM14x1,5 RHT / 0,34 kg	48640 AX602, 48520 00QAN (8) OEM
17RN5521	Tie Rod End Right	c:Ø12 th:FM14x1,5 RHT / 0,34 kg	48520 AX602, 48520 00QAP (7) OEM
20RN5550	Axial Joint	th:MM14x1,5 RHT L:307mm / 0,6 kg	77 01 475 841
26RN5550	Stabiliser Link	L:248mm / 0,3 kg	54618 AX600, 54611 BH01A (7) OEM
30RN5544	Track Control Arm Left	cs:Ø17.95 / 2,5 kg	82 00 744 091, 82 00 346 941 (1) OEM
30RN5545	Track Control Arm Right	cs:Ø17.95 / 2,5 kg	82 00 744 092, 82 00 346 942 (1) OEM
38RN5542	Silentblock for TCA	di:Ø12,2 do:Ø58 / 0,26 kg	54 50 141 20R, 82 00 298 455 (14) OEM
38RN5544	Silentblock for TCA	di:Ø12,1 do:Ø35,8 / 0,12 kg	54560 AX600, 54560 AX000 (1) OEM
38RN5545	Silentblock for TCA	di:Ø12 do:Ø58.2 L:53mm / 0,16 kg	82 00 346 941, 82 00 346 942 (7) OEM
45RN5520	Suspension Support Buffer Front	di:Ø19.5 do: Ø55 L:80mm / 0,07 kg	54 05 037 01R
45RN5550	Strut Mount Left	di:Ø13 L:58.5mm / 0,91 kg	54321-AX600, 54321-BC40A (2) OEM
45RN5551	Strut Mount Right	di:Ø13 L:58.5mm / 0,91 kg	54320 BC40A, 54320 AX600 (3) OEM
45RN5560	Strut Mount	di: Ø13,4 / 0,42 kg	54 30 246 44R
45RN5561 NEW	Strut Mount With Bearing	0,59 kg	54 3A 023 10R, 54 32 595 39R
45RN5562 NEW	Bearing	0,17 kg	54 32 595 39R, 54 3A 023 10R
