ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10RN2000	Ball Joint	c:Ø15.95 & 2xM10 / 0,52 kg	77 01 472 038, 54501 00QAH* (3) OEM
10RN2001	Ball Joint	c:Ø15.95 & 2xM12 / 0,56 kg	82 00 254 109, 60 40 002 292 (30) OEM
10RN5540	Ball Joint Lower	c:Ø15.95 do:Ø38.35 / 0,25 kg	82 00 739 484, 82 00 739 482 (6) OEM
10RN5541	Ball Joint Lower	c:Ø18 do:Ø38.35 / 0,27 kg	54 50 042 69R, 60 01 549 181 (25) OEM
10RN5610	Ball Joint	tp:M12x1.25 RHT cr:1/5 c:Ø17.08 / 0,64 kg	40 16 000 05R, 40 16 090 60R (1) OEM
10RN5700	Ball Joint Lower	tp:M12x1.5 cr:1/5 c:Ø15.85 / 0,76 kg	54 50 472 75R, 54 50 496 71R (2) OEM
17RN5520	Tie Rod End Left	L:90 cr:1/5 c:Ø12 tp:M10x1.25 th:FM14x1.5 RHT / 0,34 kg	48640 AX602, 48520 00QAN (8) OEM
17RN5521	Tie Rod End Right	L:90 cr:1/5 c:Ø12 tp:M10x1.25 th:FM14x1.5 RHT / 0,34 kg	48520 AX602, 48520 00QAP (7) OEM
17RN5540	Tie Rod End Left	L:197 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,67 kg	77 01 474 795, 77 01 054 583 (1) OEM
17RN5541	Tie Rod End Right	L:197 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,67 kg	77 01 474 796, 77 01 054 584 (1) OEM

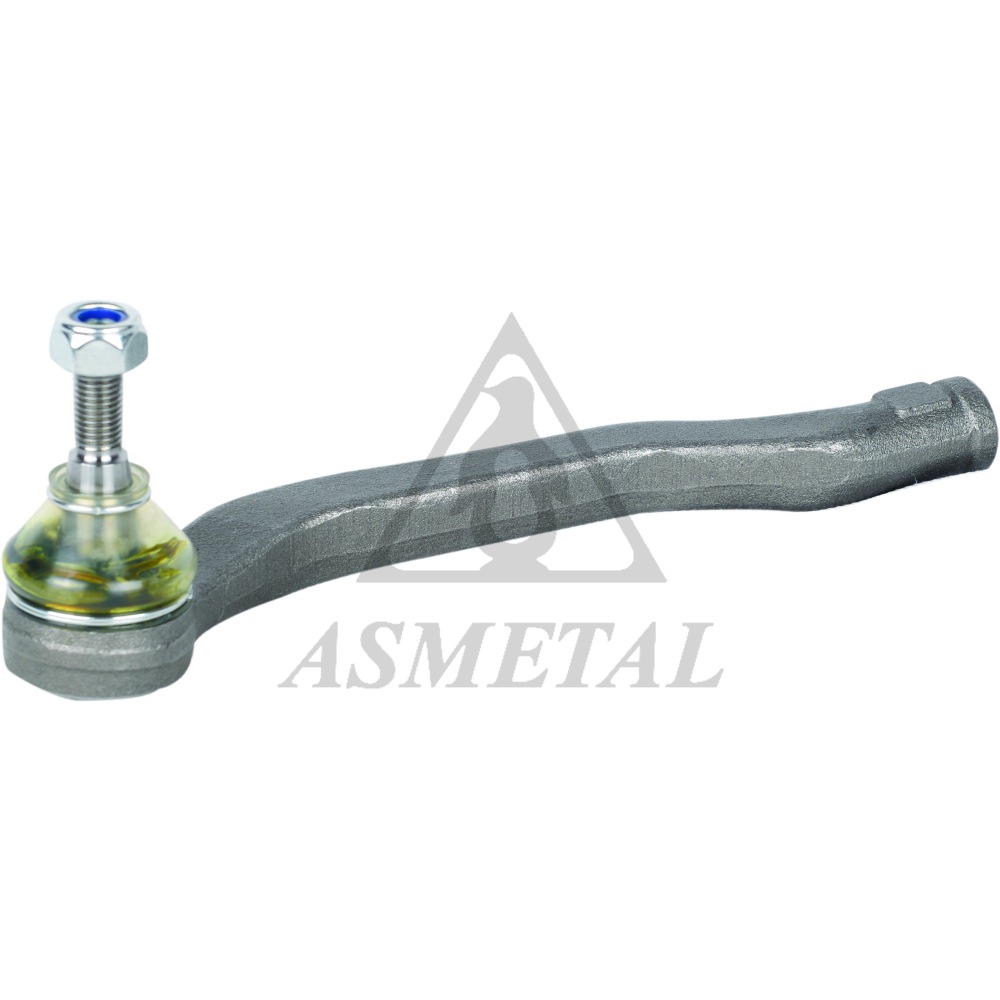

17RN5610	Tie Rod End Left	L:211 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,69 kg	48 52 027 10R, 86 60 003 555 (1) OEM

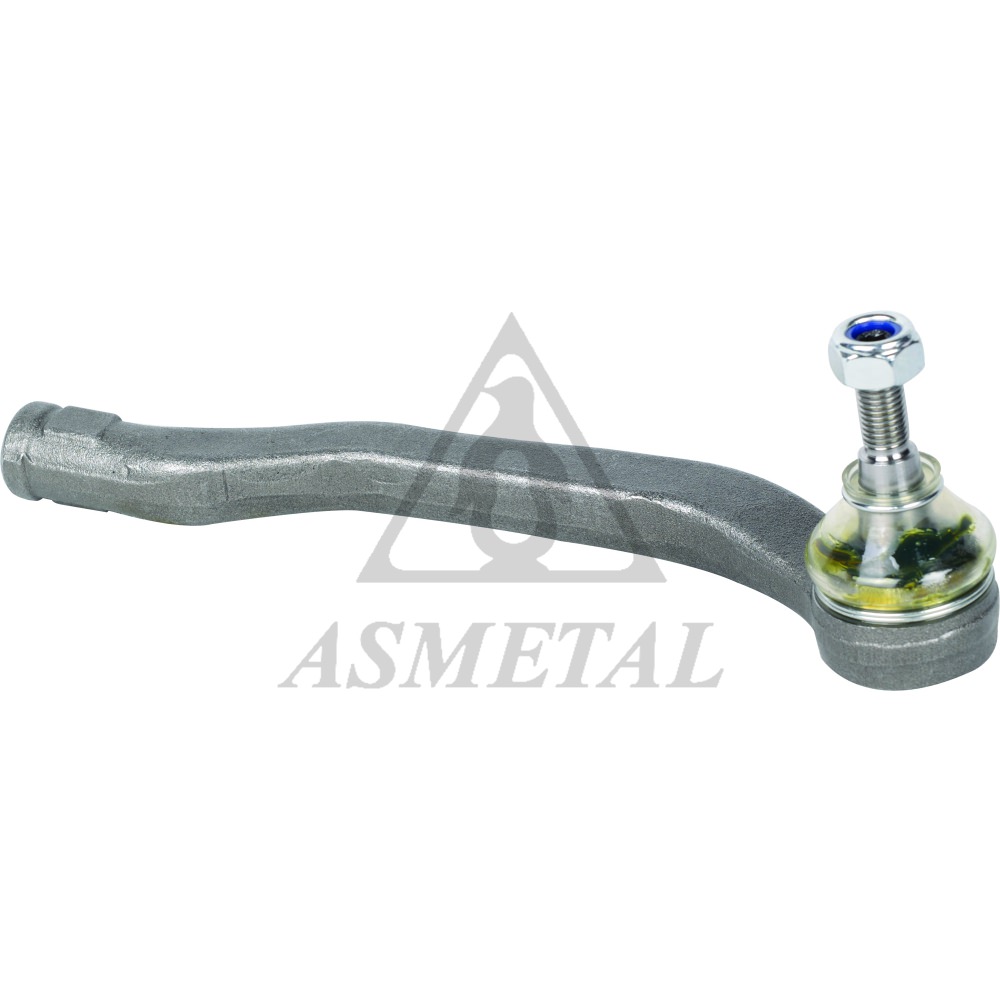

17RN5611	Tie Rod End Right	L:211 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,69 kg	86 60 003 554, 48 52 046 80R (2) OEM
17RN5700	Tie Rod End Left	L:210 cr:1/5 c:Ø11.9 tp:M10x1.5 th:FM14x1.5 RHT / 0,4 kg	420 460 19 00, 420 460 17 00 (4) OEM
17RN5700S	Tie Rod End Left	L:210 cr:1/5 c:Ø11.9 tp:M10x1.5 th:FM14x1.5 RHT / 0,86 kg	420 460 19 00, 420 460 17 00 (4) OEM
17RN5701	Tie Rod End Right	L:210 cr:1/5 c:Ø11.9 tp:M10x1.5 th:FM14x1.5 RHT / 0,4 kg	420 460 18 00, 420 460 20 00 (4) OEM
17RN5701S	Tie Rod End Right	L:210 cr:1/5 c:Ø11.9 tp:M10x1.5 th:FM14x1.5 RHT / 0,86 kg	420 460 18 00, 420 460 20 00 (4) OEM
20RN5520	Axial Joint	L:286 tp:M14x1.5 th:MM14x1.5 RHT / 0,54 kg	77 01 472 089, 77 01 472 088 (2) OEM
20RN5525	Axial Joint	L:293.5 tp:M12x1 th:MM14x1.5 RHT / 0,56 kg	77 01 471 844
20RN5540	Axial Joint	L:216 tp:M14x1.5 th:MM14x1.5 RHT / 0,46 kg	77 01 474 448
20RN5600	Axial Joint	L:327 tp:M12x1 th:MM14x1.5 RHT / 0,58 kg	77 01 473 443

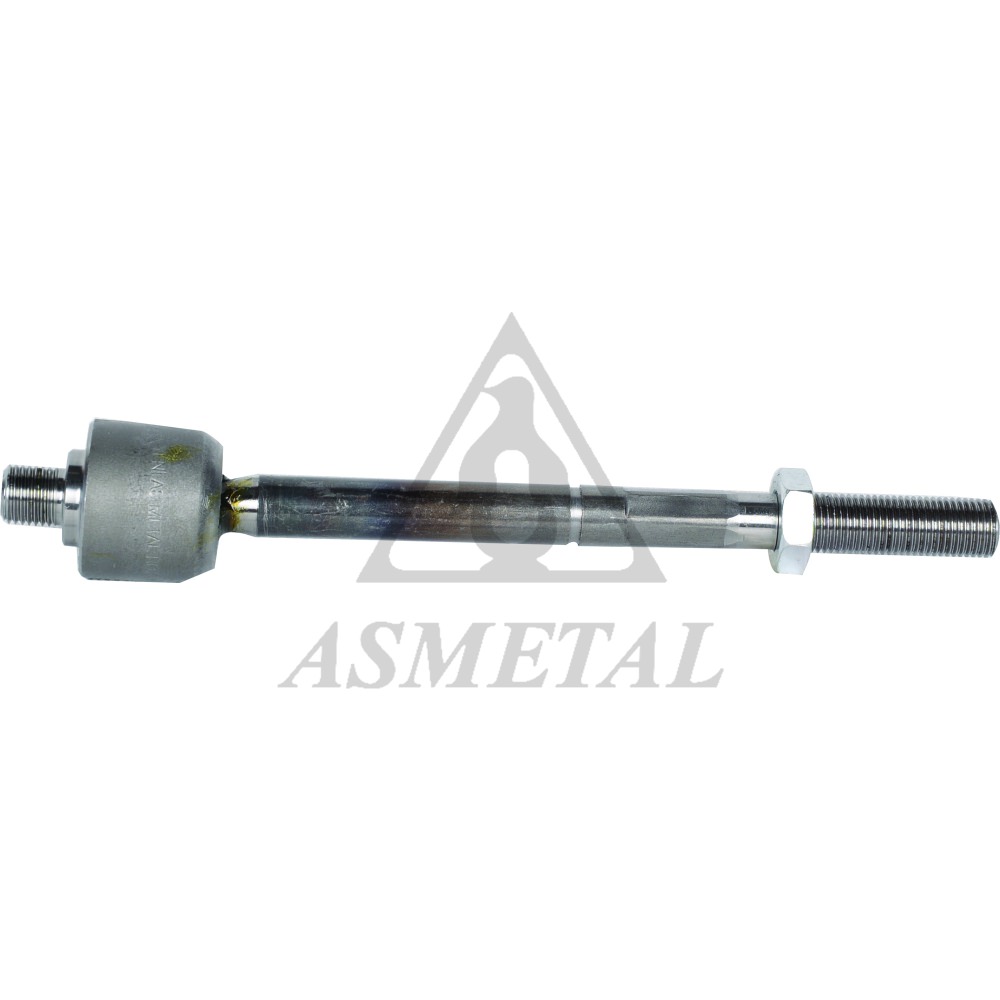

20RN5605	Axial Joint	L:213.5 tp:M14x1.5 th:MM14x1.5 RHT / 0,49 kg	415 320 00 89, 48 52 156 12R (1) OEM

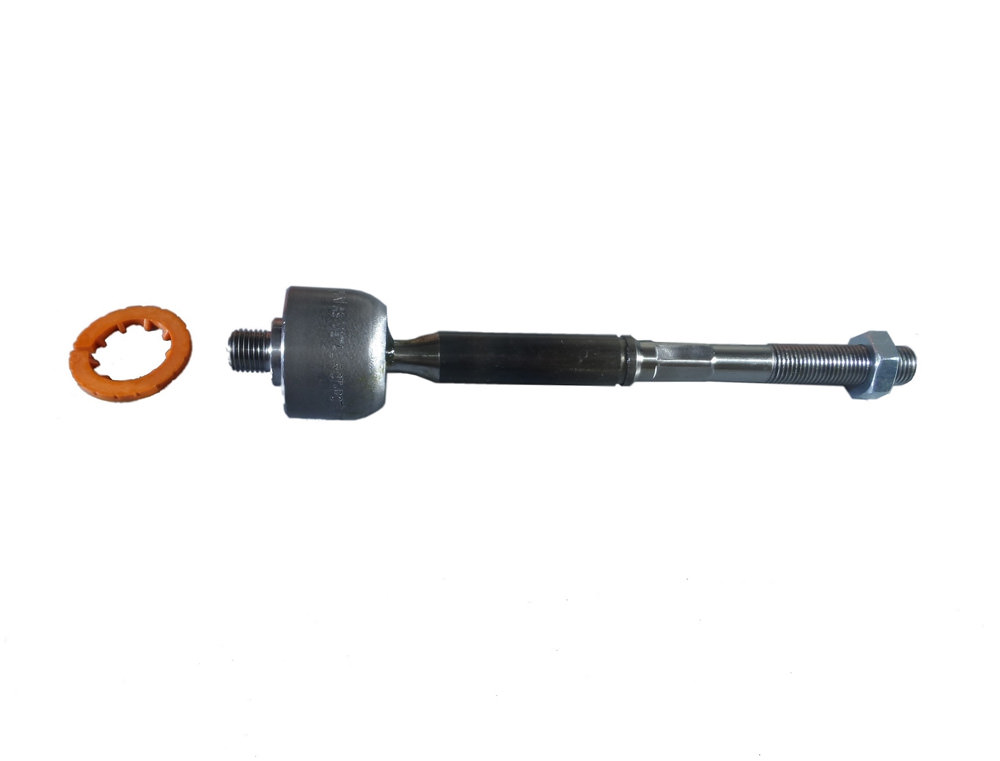

20RN5700	Axial Joint	L:215 tp:M14x1.5 th:MM14x1.5 RHT / 0,58 kg	49 00 174 41R, 48 52 165 64R

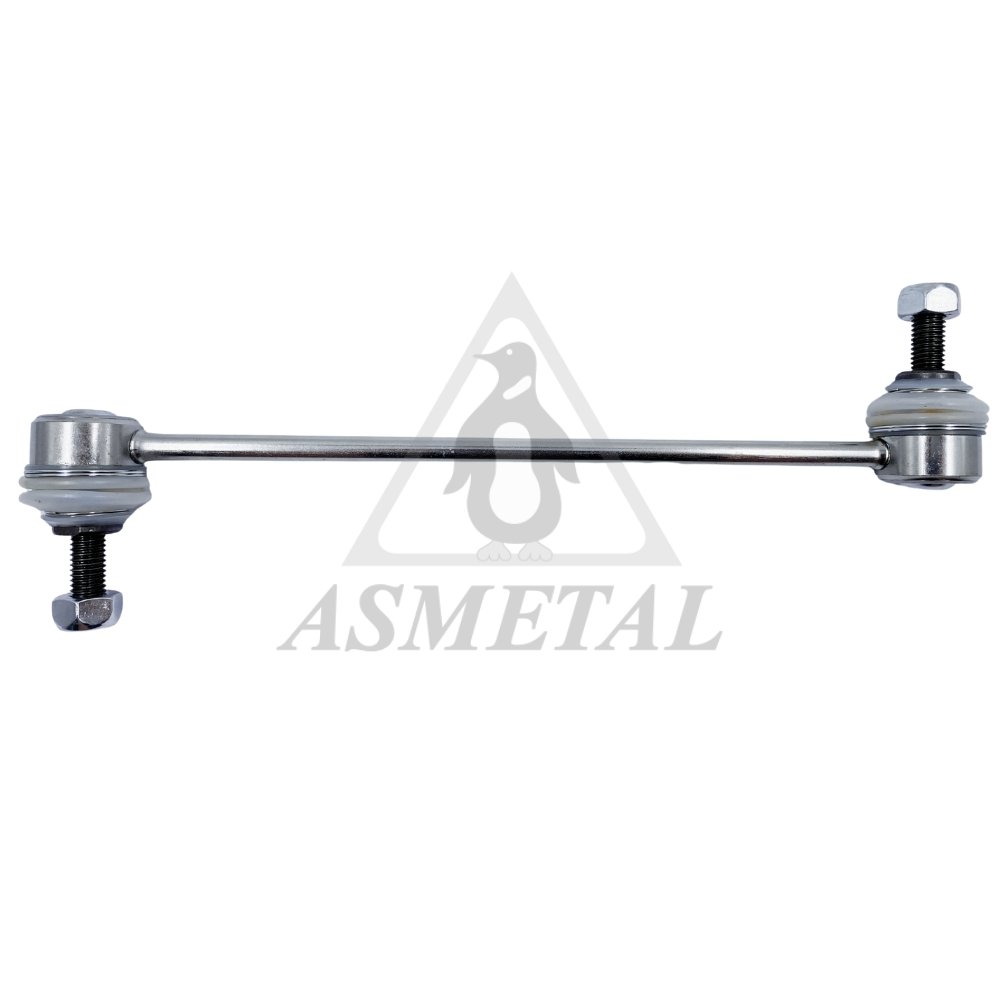

26RN5600	Stabiliser Link	L:257 tp:M10x1.5 RHT / 0,33 kg	77 00 437 136

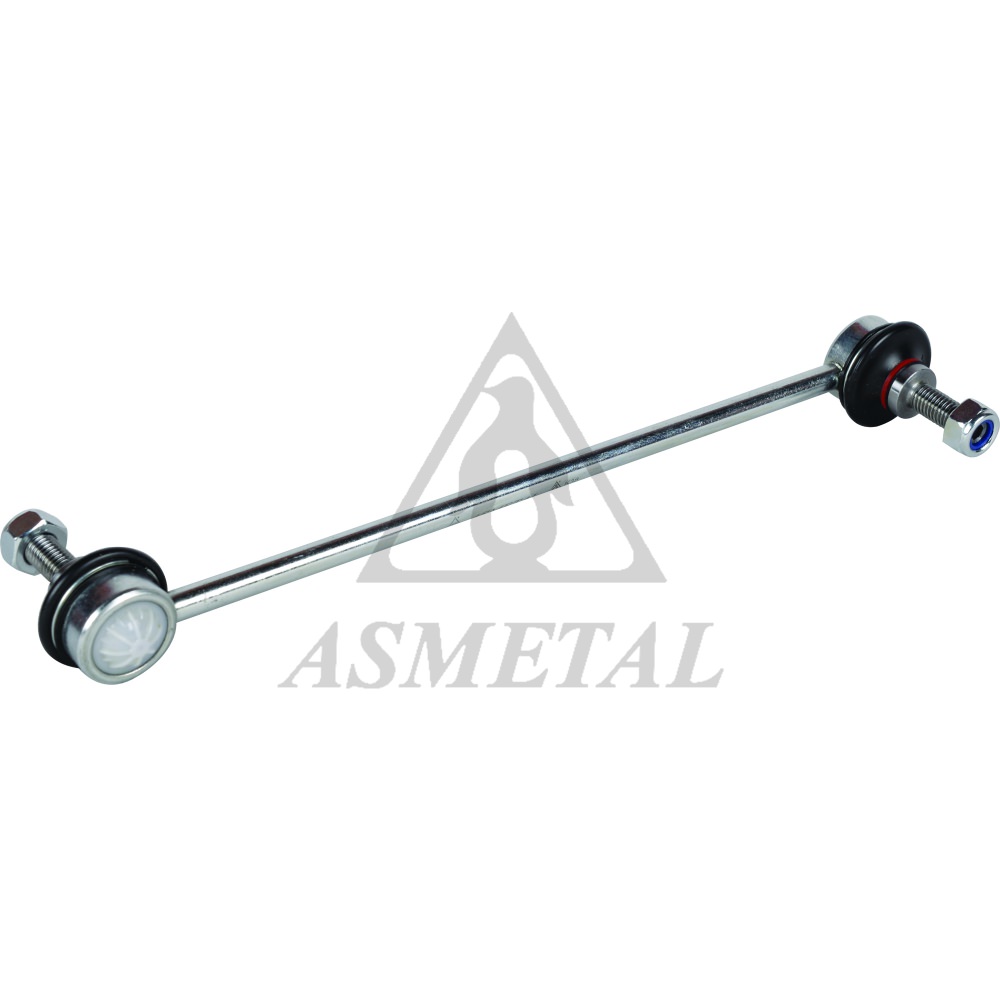

26RN5605	Stabiliser Link	L:282 tp:M10x1.5 RHT / 0,36 kg	A 415 320 00 00, 415 320 00 00 (5) OEM

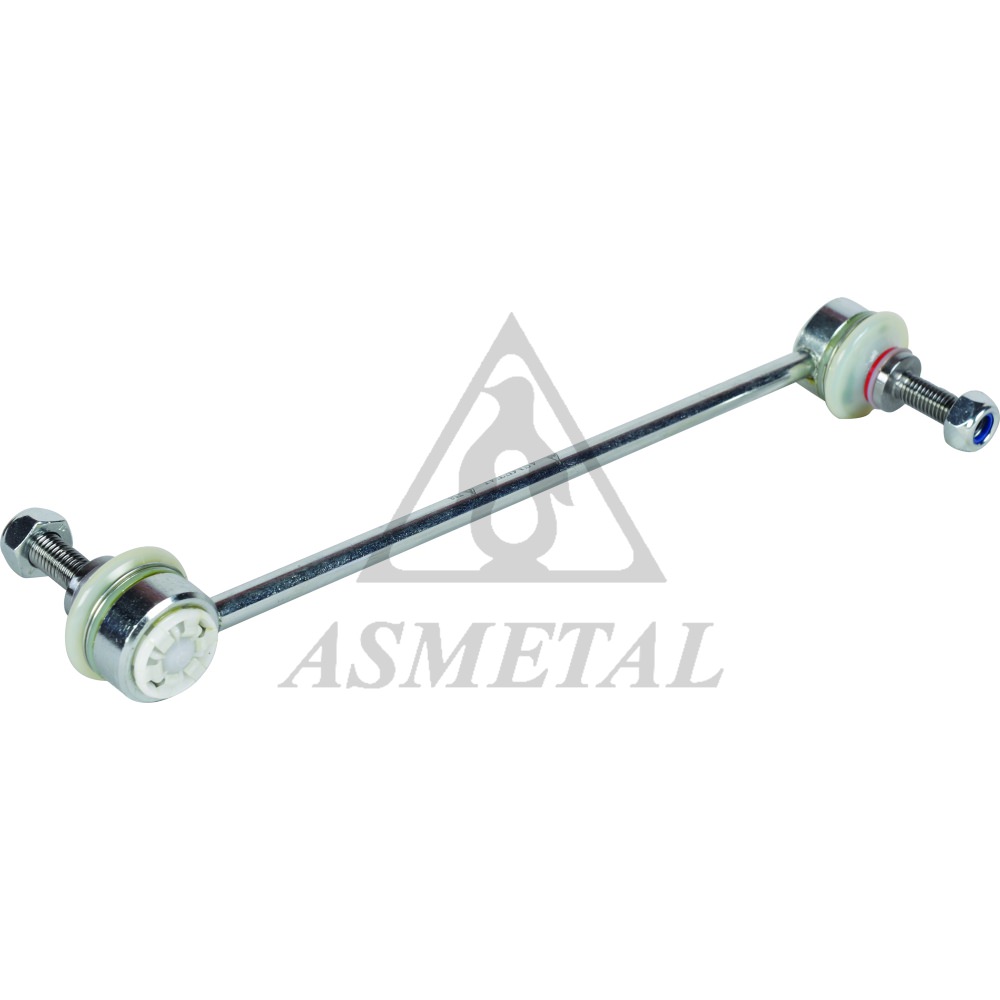

26RN5615	Stabiliser Link	L:274 tp:M10x1.5 RHT / 0,36 kg	54 61 888 79R, 54 61 800 02R (1) OEM
26RN5630 NEW	Stabiliser Link	0,36 kg	54 61 800 07R
26RN5640 NEW	Stabiliser Link	0,36 kg	82 00 669 066, 82 00 166 160 (2) OEM
26RN5700	Stabiliser Link	L:275 tp:M10x1.5 RHT / 0,41 kg	54 61 888 97R, 54 61 870 05R (1) OEM

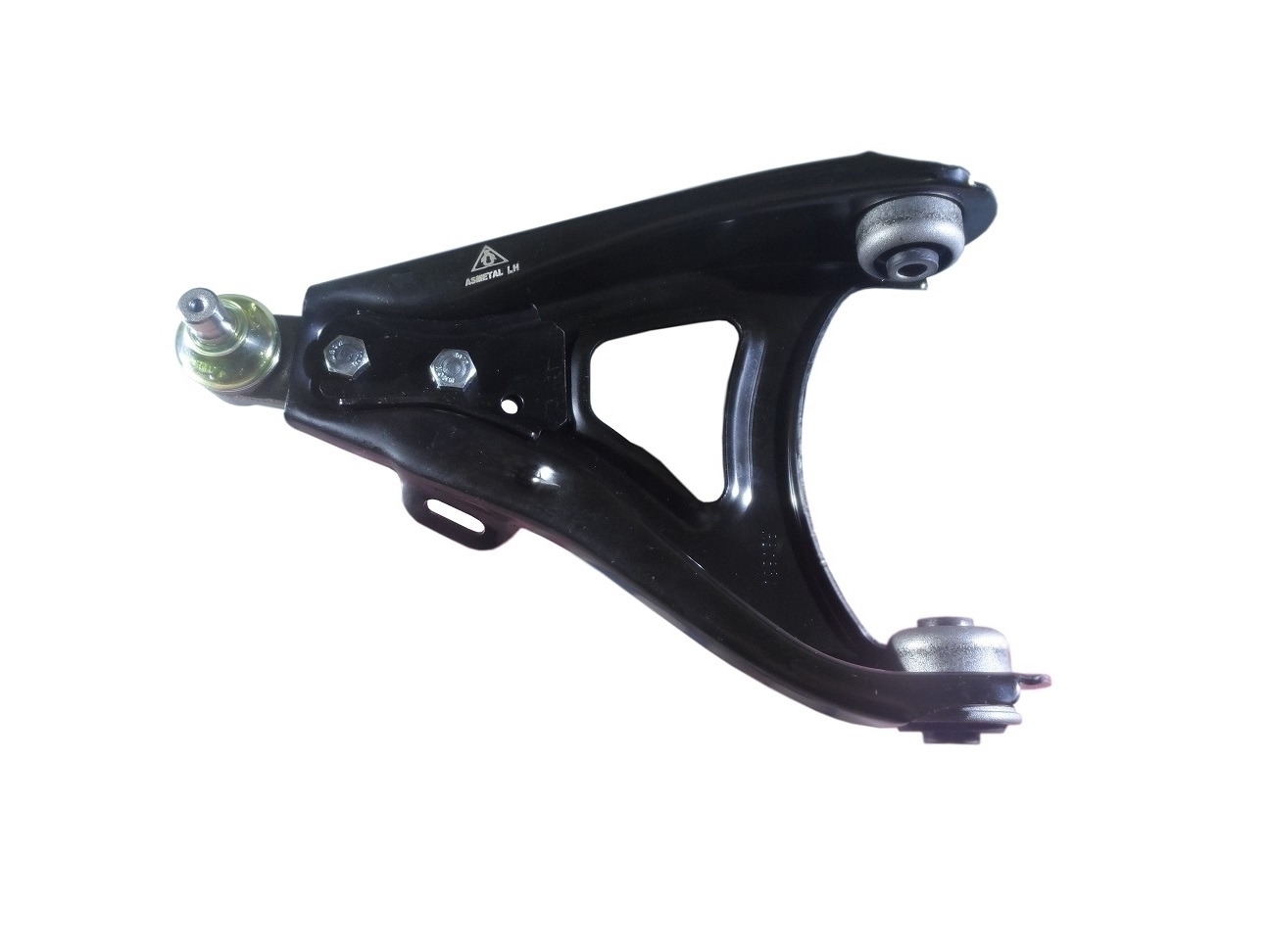

30RN2012	Track Control Arm Left	c:Ø15.95 / 2,3 kg	77 00 834 916, 77 00 430 765 (2) OEM

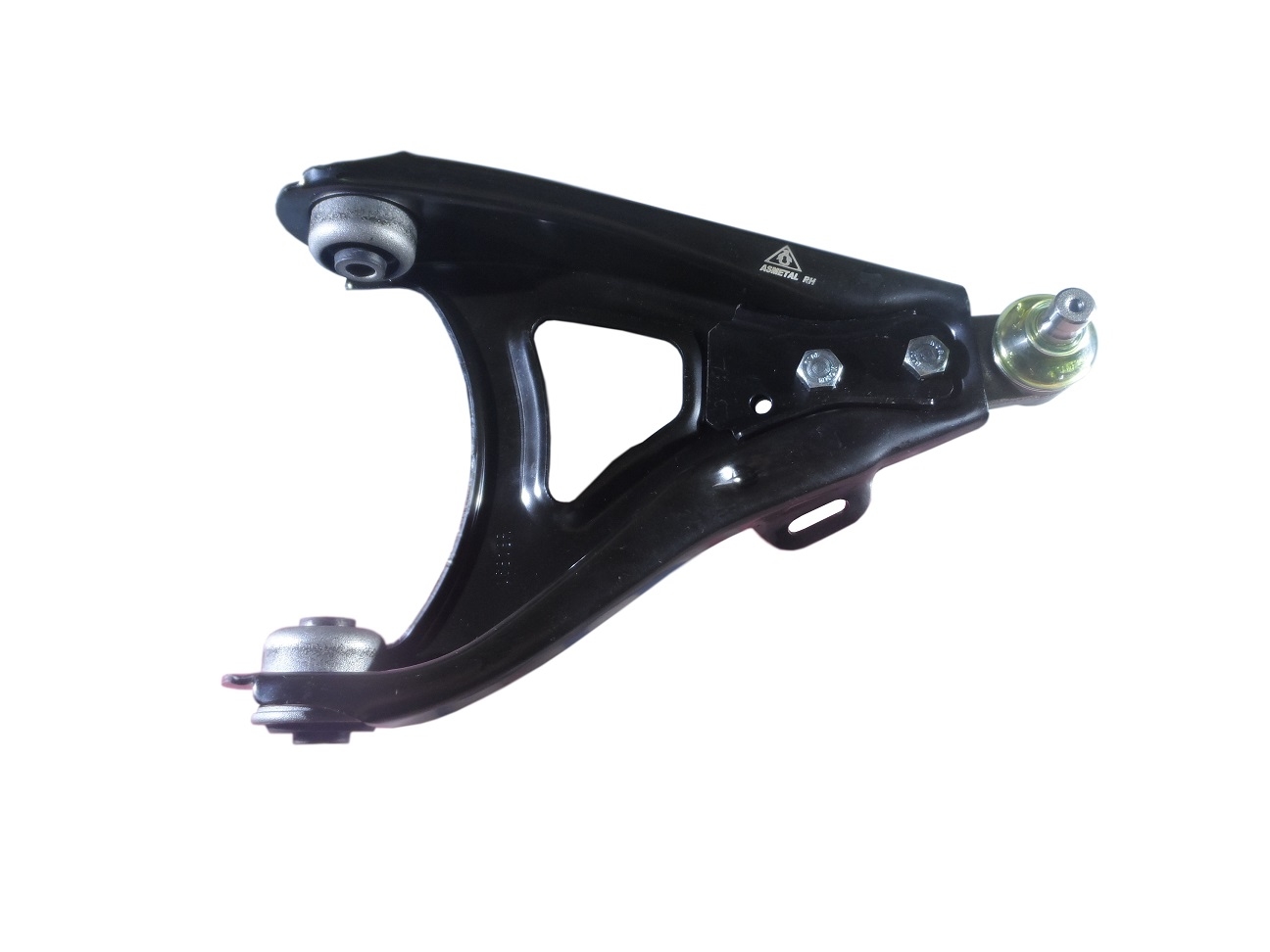

30RN2013	Track Control Arm Right	c:Ø15.95 / 2,3 kg	77 00 834 917, 77 00 430 766 (2) OEM
30RN5542	Track Control Arm Right	c:Ø18 / 2,86 kg	82 00 457 209, 54 50 457 43R (4) OEM
30RN5543	Track Control Arm Left	c:Ø18 / 2,86 kg	54 50 531 70R, 54 50 593 35R (4) OEM
30RN5610	Track Control Arm Left	tp:M12x1.25 RHT cr:1/5 c:Ø17.08 / 3,6 kg	54 50 181 94R, 5450 140 55R (2) OEM
30RN5611	Track Control Arm Right	tp:M12x1.25 RHT cr:1/5 c:Ø17.08 / 3,6 kg	5450 092 07R, 54 50 086 82R (2) OEM

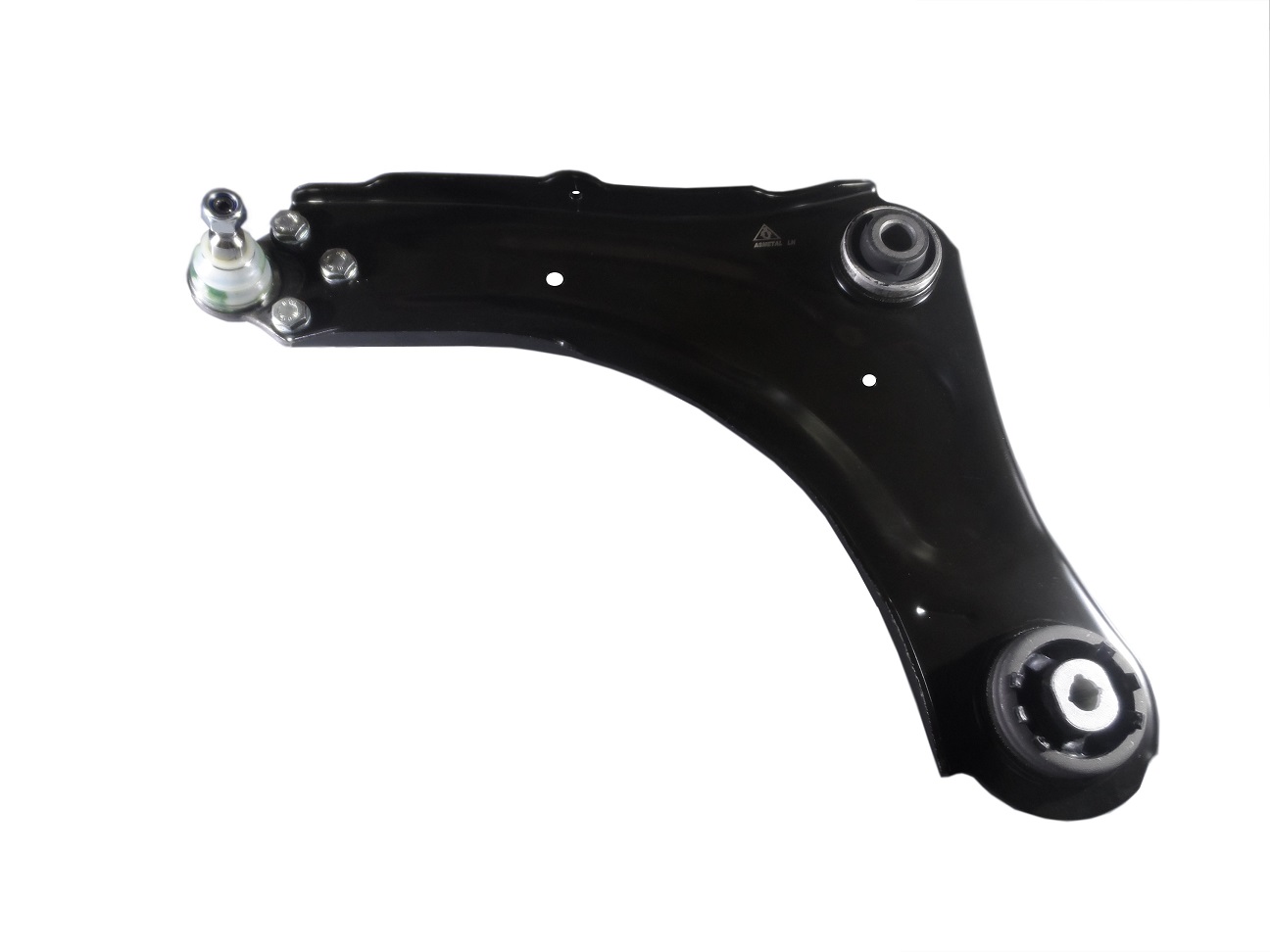

30RN5612	Track Control Arm Left	cr:1/5 c:Ø17.08 th:M12x1.25 RHT / 3,8 kg	54 50 161 01R, 54 50 168 38R

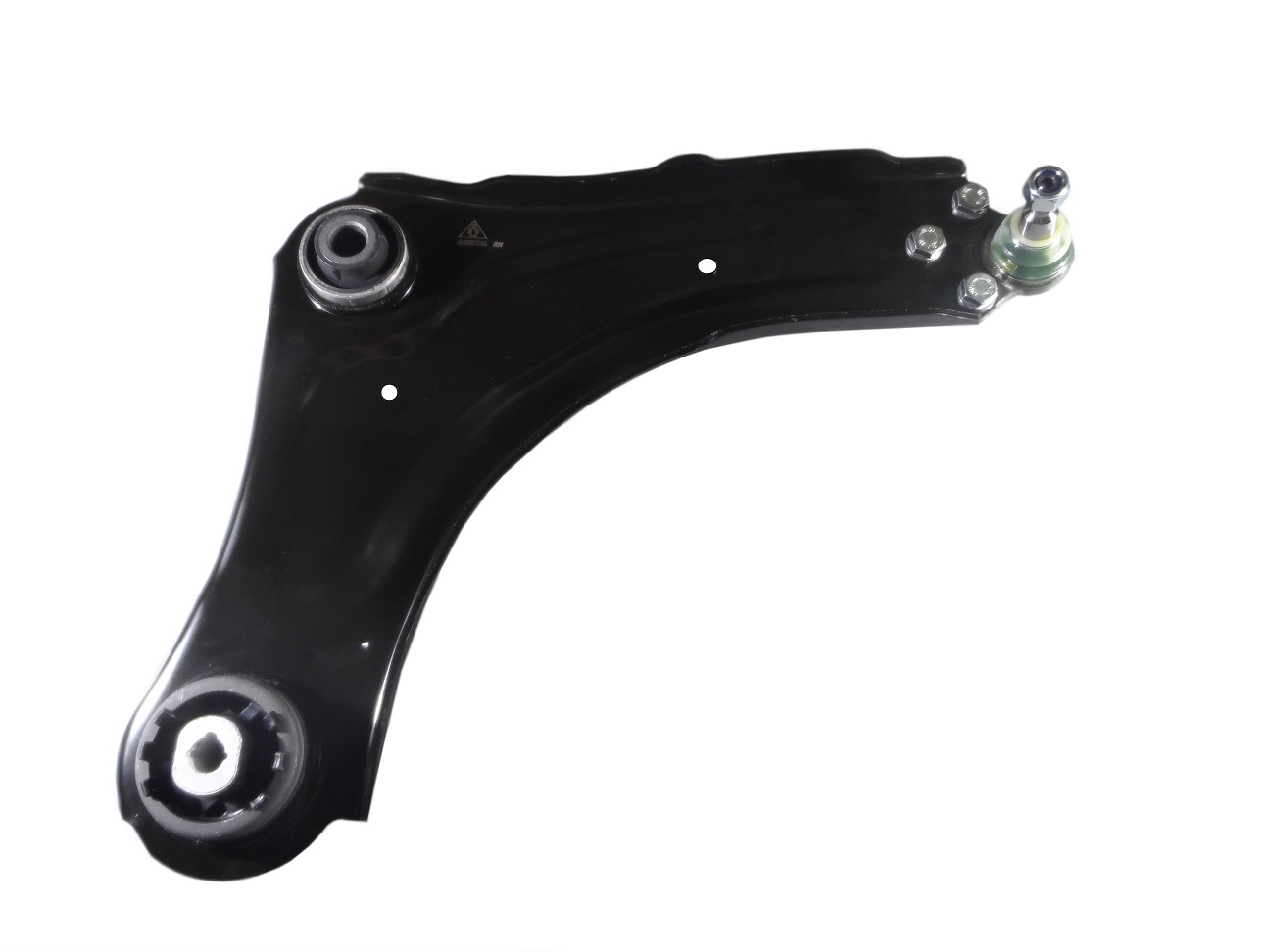

30RN5613	Track Control Arm Right	cr:1/5 c:Ø17.08 th:M12x1.25 RHT / 3,8 kg	54 50 003 99R, 54 50 065 60R
38RN5523 NEW	Stabiliser Mounting	di:Ø21 / 0,06 kg	54613 00QAD, 77 00 436 014 (2) OEM
38RN5540	Axle Beam Bushing	L:80 di:Ø17.1 do:Ø41.1 / 0,34 kg	8200 742 906
38RN5541	Silentblock for TCA	L:48 di:Ø12.1 do:Ø33.1 / 0,16 kg	54 50 401 31R, 54 50 593 35R (12) OEM
38RN5542	Silentblock for TCA	L:53 di:Ø12.2 do:Ø58 / 0,26 kg	54 50 141 20R, 82 00 298 455 (14) OEM

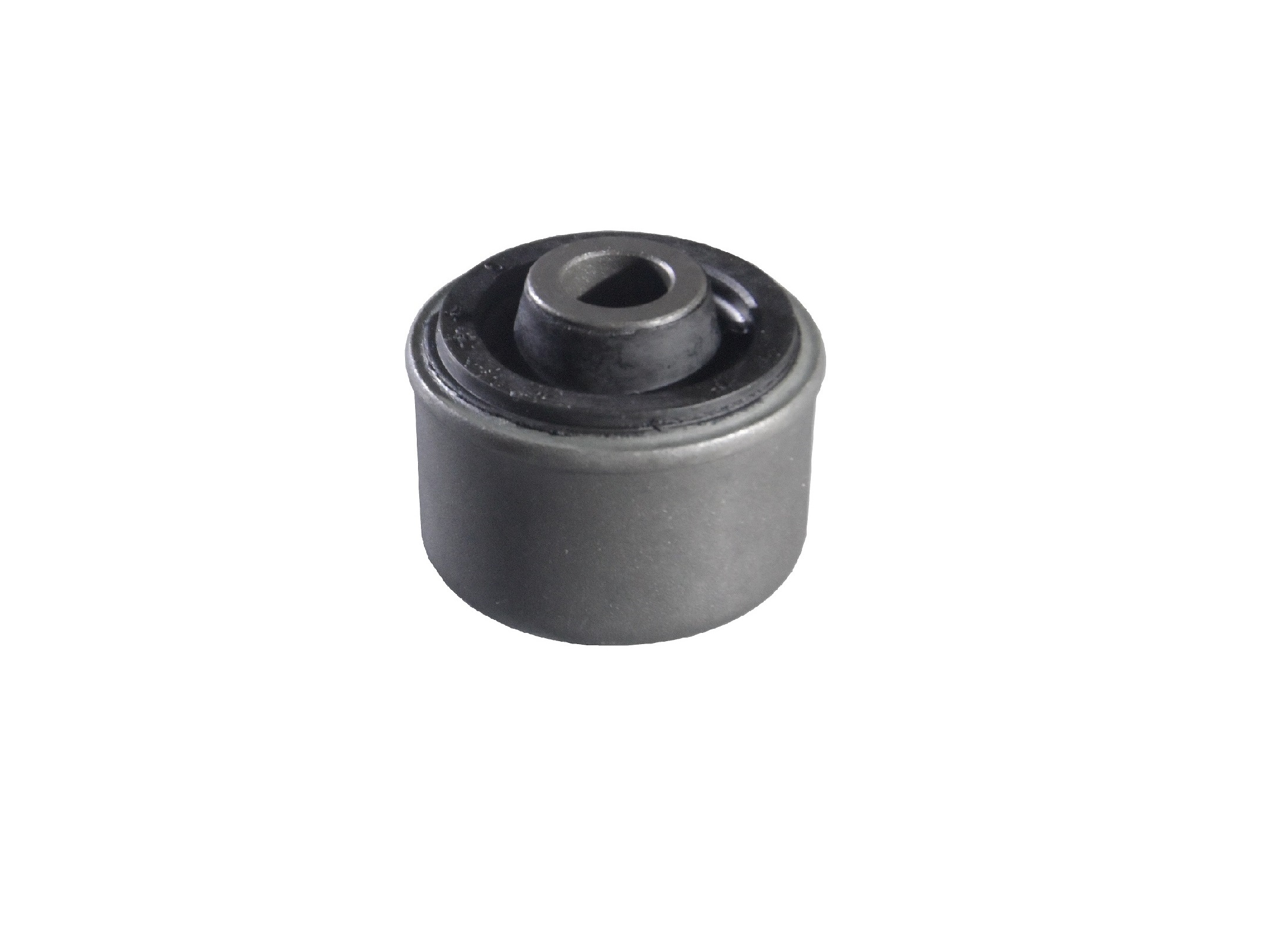

38RN5543	Silentblock for TCA	L:46 di:Ø12.1 do:Ø45.3 / 0,2 kg	82 00 651 169, 77 00 789 478 (4) OEM
38RN5610	Silentblock for TCA	L:50.8 di:Ø18.2 do:Ø55.5 / 0,31 kg	MQ001922, MQ001923 (4) OEM

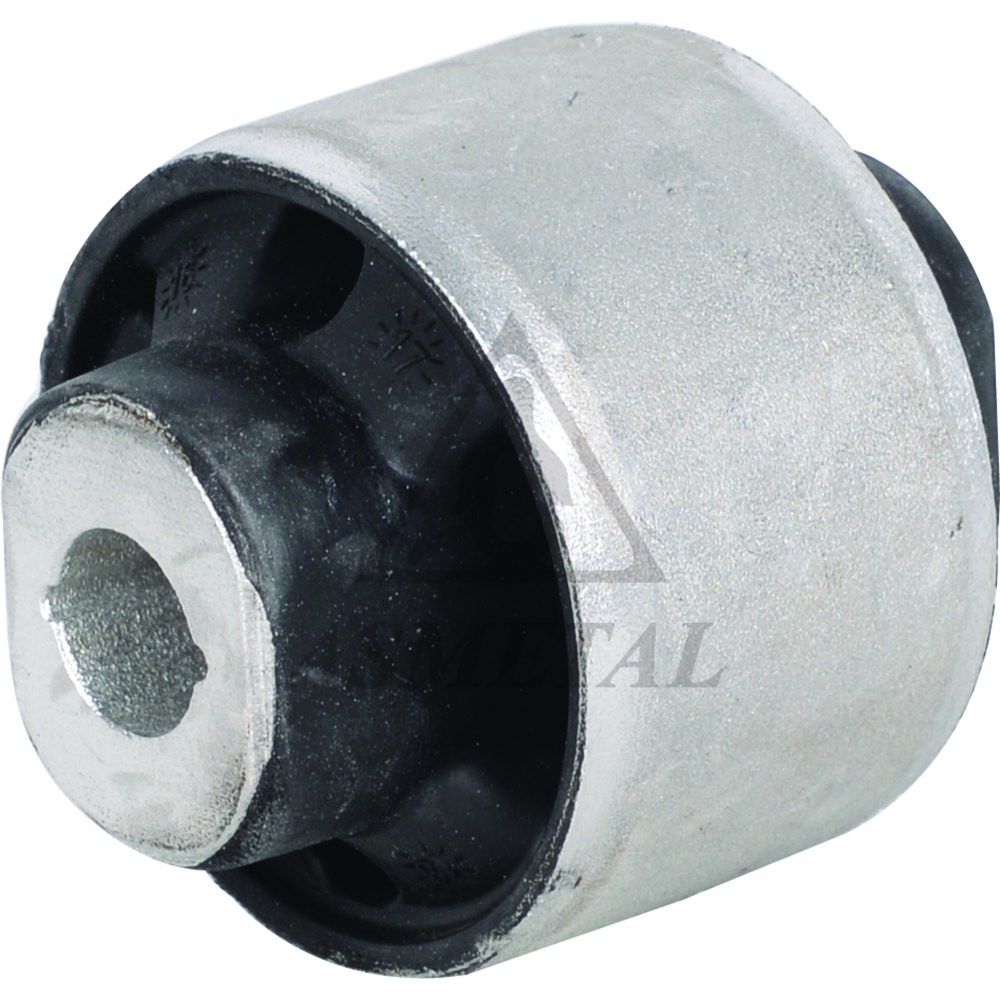

38RN5611	Silentblock for TCA	L:65 di:Ø14 do:Ø58 / 0,19 kg	54 50 140 55R, 54 50 161 01R (8) OEM*
38RN5612	Silentblock for TCA	L:65 di:Ø14.5 do:Ø70.5 / 0,41 kg	60 40 205 623, 54 56 016 84R (2) OEM
38RN5710	Silentblock for TCA	L:50.5 di:Ø18.5 do:Ø55 / 0,24 kg	54 50 567 11R, 54 50 547 33R (5) OEM
45DC4500	Engine Mounting	L:104.5 di:Ø14 / 1,93 kg	82 00 042 456, 82 00 592 642 (1) OEM
45DC4550 NEW	Engine Mounting	0.81 kg	82 00 575 641, 112387053R (7) OEM
45NS1011 NEW	Bearing	0,21 kg	54325-00Q0B, 54325-8271R (1) OEM
45RN5540	Strut Mount	L:57 di:Ø14 / 0,75 kg	82 00 222 463
45RN5541	Strut Mount With Bearing	L:57 di:Ø14 / 1,04 kg	82 00 222 463
45RN5542 NEW	Bearing	0,35 kg	82 00 106 131, 82 00 485 734 (2) OEM
45RN5720	Suspension Support Buffer Front	L:85 di:Ø25.5 do:Ø58 / 0,08 kg	54 05 051 77R
