ASMETAL Catalogue

RENAULT > ZOE (17 Quantity)

	ASMETAL No	Product Description	Dimensions	Oem No
	10RN5541	Ball Joint Lower	c:Ø18 do:Ø38.35 / 0,27 kg	54 50 042 69R, 60 01 549 181 (25) OEM
	10RN5560	Ball Joint Lower	c:Ø18 do:Ø38.35 / 0,28 kg	82 01 093 259, 40 16 040 02R (6) OEM
	17RN5560	Tie Rod End Left	L:188 cr:1/5 c:Ø12 tp:M10x1.25 th:FM14x1.5 RHT / 0,62 kg	48520 0368R
	17RN5561	Tie Rod End Right	L:188 cr:1/5 c:Ø12 tp:M10x1.25 th:FM14x1.5 RHT / 0,62 kg	48520 8355R
	20RN5560	Axial Joint	L:230 tp:M16x1.5 th:MM14x1.5 RHT / 0,54 kg	48 52 110 71R, 48 52 113 75R (1) OEM
	26RN5550	Stabiliser Link	0,3 kg	54618 AX600, 54611 BH01A (7) OEM
	30RN5546	Track Control Arm Left	c:Ø17.95 / 3 kg	54 50 523 54R, 54 50 503 99R (2) OEM
	30RN5547	Track Control Arm Right	c:Ø17.95 / 3 kg	54 50 499 68R, 54 50 485 06R (2) OEM
	30RN5548 IN PREPARATION	Track Control Arm Left	3,1 kg	54 50 141 20R, 54 50 551 65R
	30RN5549 IN PREPARATION	Track Control Arm Right	3,1 kg	54 50 426 44R, 54 504786 58R
	38RN5541	Silentblock for TCA	L:48 di:Ø12.1 do:Ø33.1 / 0,16 kg	54 50 401 31R, 54 50 593 35R (12) OEM
	38RN5542	Silentblock for TCA	L:53 di:Ø12.2 do:Ø58 / 0,26 kg	54 50 141 20R, 82 00 298 455 (14) OEM
	45DC4560 NEW	Engine Mounting	0,34 kg	11 23 810 35R, 11 23 839 05R (1) OEM
	45RN5520	Suspension Support Buffer Front	L:80 di:Ø19.5 do:Ø55 / 0,07 kg	54 05 037 01R
	45RN5560	Strut Mount	L:29.5 di:Ø13.4 do:Ø78 / 0,42 kg	54 30 246 44R

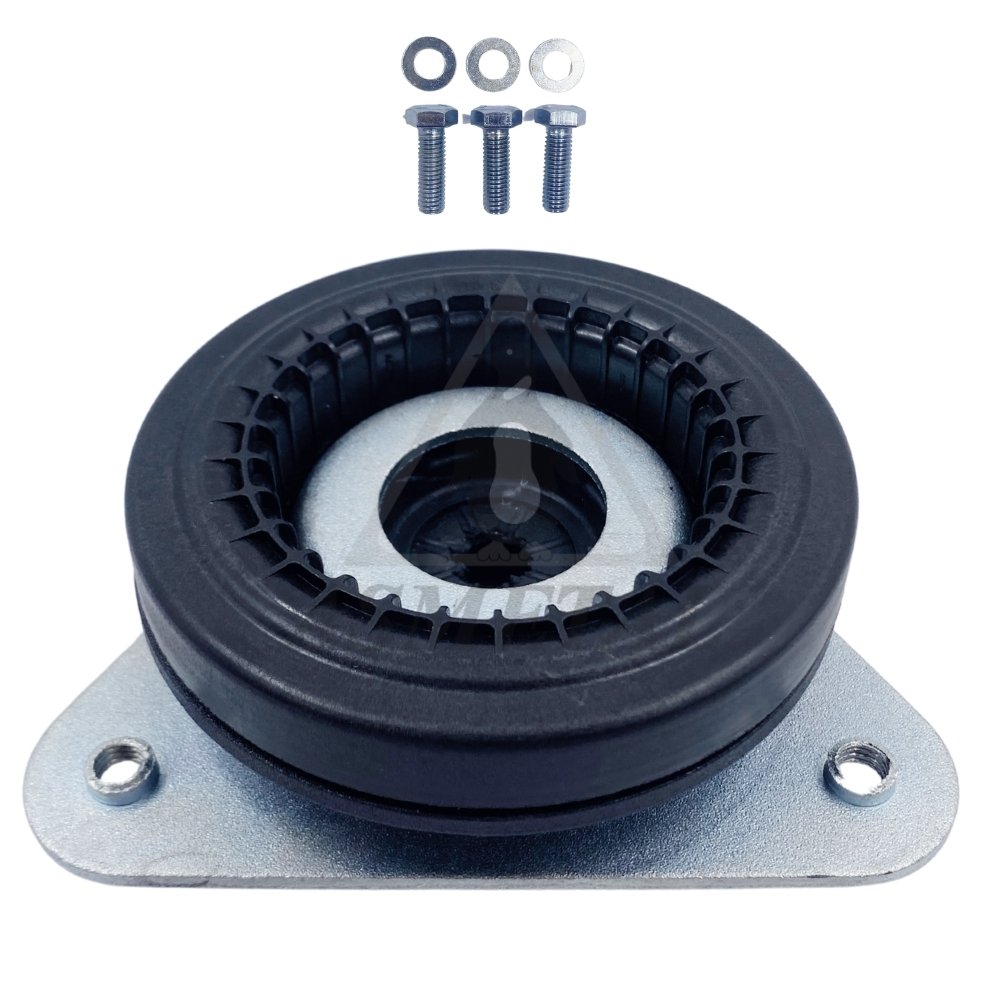

	45RN5561	Strut Mount With Bearing	0,6 kg	54 3A 023 10R, 54 32 595 39R

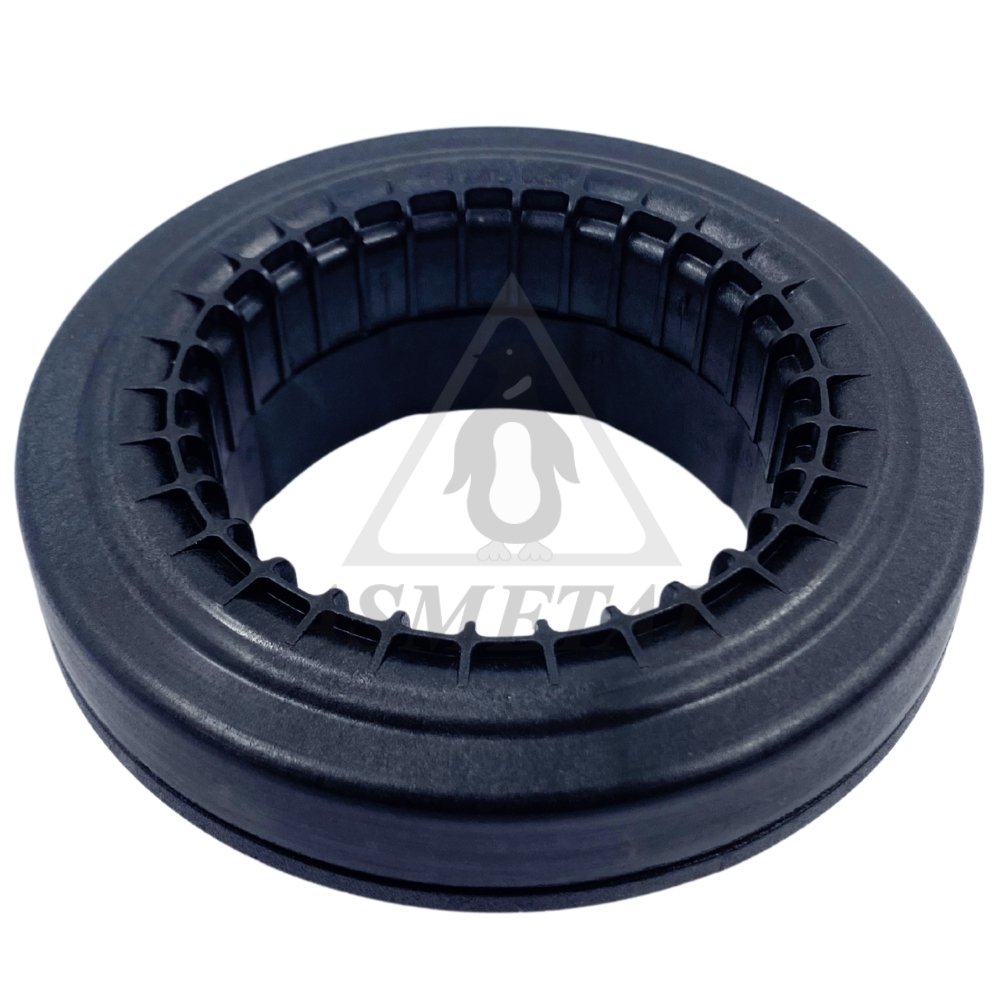

	45RN5562	Bearing	0,18 kg	54 32 595 39R, 54 3A 023 10R
