ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10VW0500	Ball Joint Lower	tp:M14x1.5 RHT cr:1/10 c:Ø18.45 / 0,5 kg	7 200 946, 1 111 156 (5) OEM
10VW1605	Ball Joint Lower Right	th:M12x1.5 RHT cr:1/5 c:Ø15.2 / 0,64 kg	35D 407 366, 5QD 407 366 (3) OEM
10VW1606	Ball Joint Lower Left	th:M12x1.5 RHT cr:1/5 c:Ø15.2 / 0,64 kg	5QD 407 365, 3C0 407 365 A (3) OEM
17AU1202	Tie Rod End Left	L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0,45 kg	1K0 423 811 K, 1K0 423 811 J (8) OEM
17AU1203	Tie Rod End Right	L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0,45 kg	1K0 423 812 K, 1K0 423 812 G (7) OEM
17VW0500	Tie Rod End Left	L:219 cr:1/8 c:Ø14.3 tp:M12x1.5 th:FM14x1.5 RHT / 0,85 kg	1 001 398, 1 058 380 (10) OEM
17VW0501	Tie Rod End Right	L:219 cr:1/8 c:Ø14.3 tp:M12x1.5 th:FM14x1.5 RHT / 0,85 kg	95VW 3280 BC, 95VW 3280 BB (11) OEM
20AU1200	Axial Joint	L:311.5 tp:M16x1.5 th:MM16x1.5 RHT / 0,72 kg	1K0 423 810 A, 1K1 423 070 AX (16) OEM
20VW0600	Axial Joint	L:185.5 tp:M14x1.5 th:MM14x1.5 RHT / 0,46 kg	1 020 496, 1 121 508 (9) OEM
26VW0500	Stabiliser Link	L:205 tp:M12x1.5 RHT / 0,4 kg	1M21 5489 AA, 1 009 591 (14) OEM
26VW1600	Stabiliser Link	L:335 tp:M12x1.5 RHT / 0,5 kg	1K0 411 315 P, 1K0 411 315 K (14) OEM
26VW1605	Stabiliser Link Rear	L:95.3 tp:M10x1.5 RHT / 0,38 kg	1K0 505 465 K, 1K0 505 465 J (7) OEM
29AU1202 NEW	Tie Rod Left		1K0 423 810 A, 1K0 423 811 J (1) OEM
29AU1203 NEW	Tie Rod Right		1K0 423 812 K, 1K0 423 810 A (1) OEM
30AU1220 NEW	Track Control Arm Left	1,05 kg	1K0 501 529 F
30AU1221 NEW	Track Control Arm Right	1,05 kg	1K0 501 530 C
30VW1614 NEW	Track Control Arm Left	3,78 kg	3C0 407 151 H, 3C0 407 151 G (4) OEM*
30VW1614P NEW	Track Control Arm (Without Ball Joint)	3,15 kg	3C0 407 151 H, 3C0 407 151G (5) OEM
30VW1615 NEW	Track Control Arm Right	3,78 kg	3C0 407 151 A, 3C0 407 151 B (3) OEM
30VW1702 NEW	Track Rod Rear	1,34 kg	5Q0 505 323 C, 5Q0 505 323 D (1) OEM
38AU1220	Silentblock for TCA	L:45 di:Ø14.2 do:Ø38.7 / 0,13 kg	1K0 505 203 A, 1K0 505 323 N* (1) OEM
38AU1221	Silentblock for TCA	L:45 di:Ø14.1 do:Ø40.5 / 0,18 kg	1K0 501 541 C, 1K0 501 530 C (5) OEM
38AU1290 NEW	Bellow Steering	0,12 kg	1K0 423 831 A, 1K0 423 831 B (1) OEM
38AU3030	Silentblock for TCA	L:54 di:Ø12.1 do:Ø39.5 / 0,19 kg	1K0 407 182, 1K0 407 182 F (4) OEM
38VW0500	Stabiliser Mounting	L:31.6 di:Ø16 / 0,05 kg	7 200 957, 95VW 5484 AB (1) OEM
38VW0501	Silentblock for TCA	L:50 di:Ø18.6 do:Ø60.3 / 0,16 kg	7 396 830, 1044571 (4) OEM
38VW0502	Silentblock for TCA	L:60 di:Ø14.2 do:Ø34.7 / 0,11 kg	7 201 717, 95VW 5A638 CA (1) OEM
38VW1273	Bearing	L:13.8 di:Ø14 do:Ø45 / 0,07 kg	357 412 249 A, 1J0 412 249 (10) OEM
38VW1607	Silentblock for TCA	L:50.5 di:Ø32 do:Ø64 / 0,14 kg	3C0 199 231 F SK, 1K0 199 232 K SK (5) OEM
38VW1608	Axle Beam Bushing	L:92 di:Ø18.1 do:Ø70 / 0,52 kg	1K0 505 145 K, 1K0 505 145 H
38VW1609	Silentblock for TCA	L:60 di:Ø12.1 do:Ø42.4 / 0,1 kg	1K0 505 311 S, 1K0 505 311 AH (8) OEM
38VW1616 NEW	Stabiliser Mounting	di:Ø17 / 0,08 kg	1K0 511 327 AQ
38VW1700	Silentblock for TCA	L:49.8 di:Ø12.1 do:Ø37.8 / 0,13 kg	1K0 505 553, 1K0 505 553 A
45VW1235	Strut Mount	L:50 di:Ø26 do:Ø96 / 0,33 kg	7M0 412 331, 357 412 331 A (2) OEM

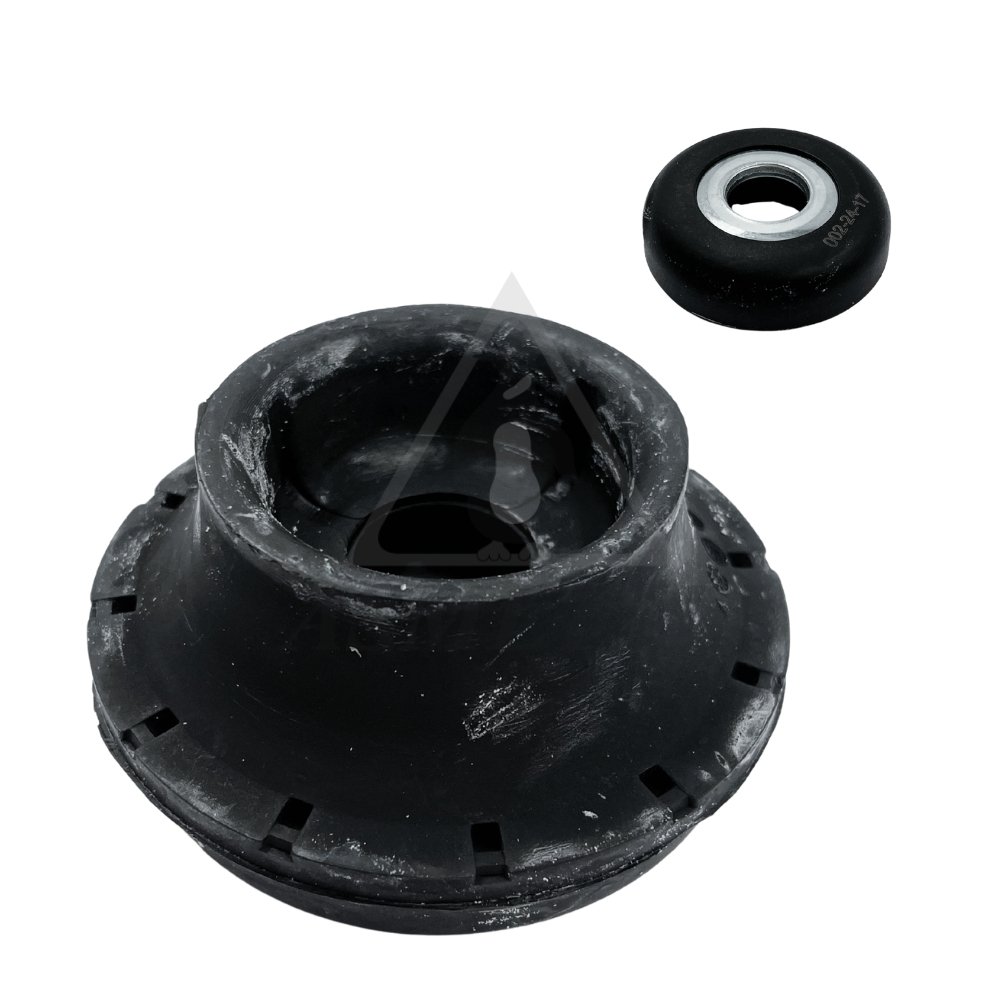

45VW1236	Strut Mount With Bearing	L:51 di:Ø26 do:Ø97 / 0,4 kg	357 412 331 A, 7M0 412 331 (2) OEM
45VW1600	Engine Mounting	L:35.5 di:Ø15.2 do:Ø91.5 / 0,24 kg	1K0 199 867 P, 1K0 199 867 Q (4) OEM
45VW1603	Strut Mount	L:62.5 di:Ø10 do:Ø68 / 0,31 kg	3C0 513 353, 3C0 513 353 C (1) OEM
45VW1610	Engine Mounting	L:33.7 th:FM14x1.5 RHT do:Ø91.5 / 0,22 kg	3C0 199 868 B, 3C0 199 868 C (1) OEM
