ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10VW1600	Ball Joint Lower Left	tp:M12x1.5 RHT cr:1/5 c:Ø15.4 / 0,62 kg	1K0 407 365 C, 5Q0 407 365 A (6) OEM
10VW1601	Ball Joint Lower Right	tp:M12x1.5 RHT cr:1/5 c:Ø15.4 / 0,62 kg	1KD 407 366, 1K0 407 366 E (6) OEM
17AU1200	Tie Rod End Right	L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0,42 kg	1K0 423 812 F, 1K0 423 812 J (10) OEM
17AU1201	Tie Rod End Left	L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0,42 kg	3C0 423 811 B, 1K1 423 070 X (9) OEM
20AU1200	Axial Joint	L:311.5 tp:M16x1.5 th:MM16x1.5 RHT / 0,72 kg	1K0 423 810 A, 1K1 423 070 AX (16) OEM
26VW1600	Stabiliser Link	L:335 tp:M12x1.5 RHT / 0,5 kg	1K0 411 315 P, 1K0 411 315 K (14) OEM

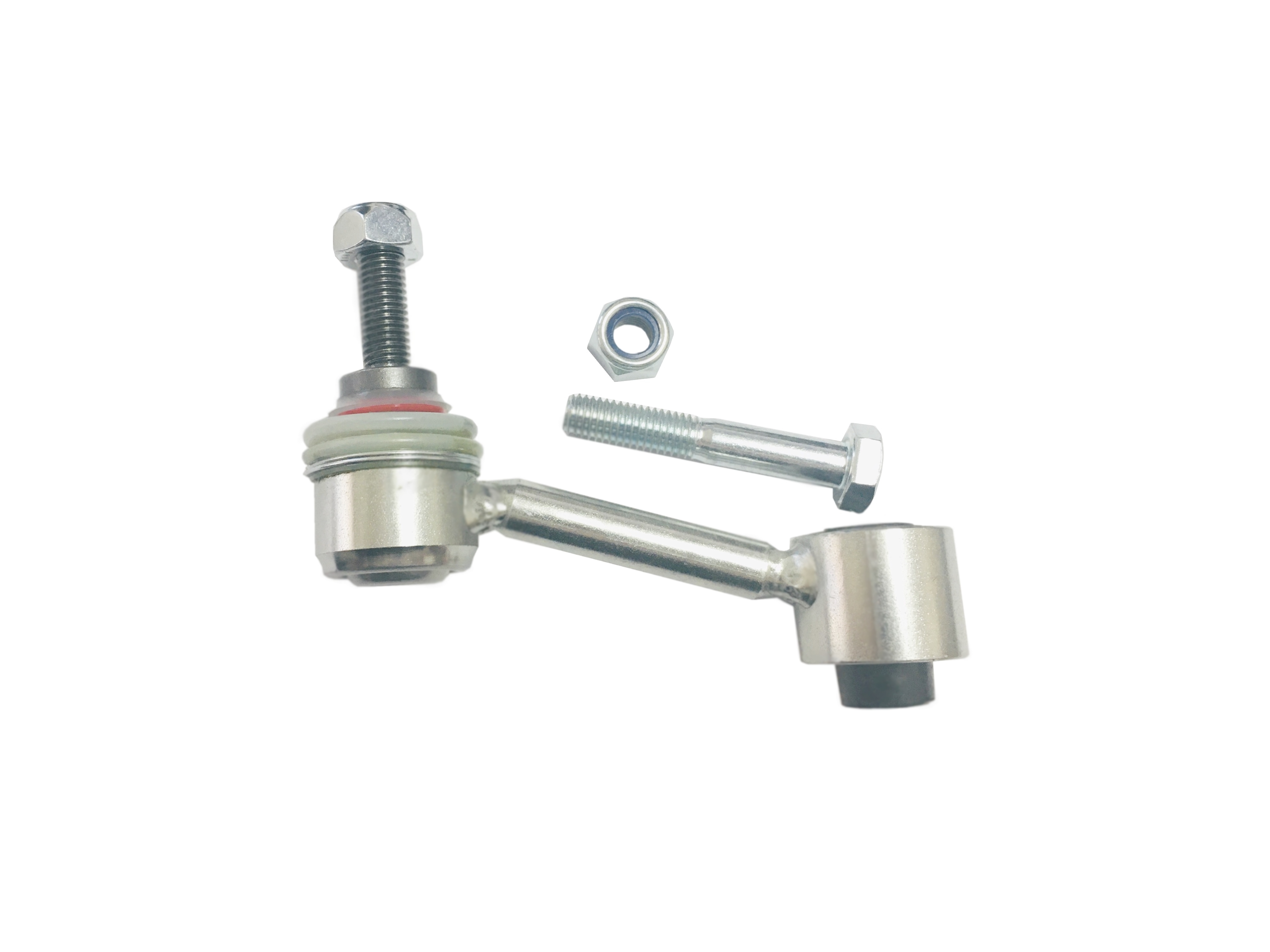

26VW1605	Stabiliser Link Rear	L:95.3 tp:M10x1.5 RHT / 0,38 kg	1K0 505 465 K, 1K0 505 465 J (7) OEM
29AU1200 NEW	Tie Rod Right	1,1 kg	1K0 423 810 A, 1K0 423 812 A (1) OEM
29AU1201 NEW	Tie Rod Left	1,1 kg	1K0 423 810 A, 1K0 423 811 A (1) OEM
30AU1220 NEW	Track Control Arm Left	1,05 kg	1K0 501 529 F
30AU1221 NEW	Track Control Arm Right	1,05 kg	1K0 501 530 C
30SK1600 NEW	Track Control Arm Rear		1K0 505 311 AA, 1K0 505 311 AB (6) OEM
30SK1600K IN PREPARATION	Track Control Arm Rear		1K0 505 311 AA, 1K0 505 311 AB (6) OEM
30VW1600	Track Control Arm Left	cr:1/5 c:Ø15.4 th:M12x1.5 RHT / 4,3 kg	1K0 407 151 AB, 1K0 407 151 AH (9) OEM
30VW1601	Track Control Arm Right	cr:1/5 c:Ø15.4 th:M12x1.5 RHT / 4,3 kg	1K0 407 152 AH, 1K0 407 152 AB (9) OEM
30VW1610 NEW	Track Control Arm Left	5,50 kg	1K0 407 151 R, 1K0 407 151 M (4) OEM
30VW1610P NEW	Track Control Arm Left (Without Ball Joint)	4,75 kg	1K0 407 151 AC, 1K0 407 151 AD (4) OEM
30VW1611 NEW	Track Control Arm Right	5,50 kg	1K0 407 152 AC, 1K0 407 152 AD (3) OEM
30VW1611P NEW	Track Control Arm Right (Without Ball Joint)	4,75 kg	1K0 407 152 AC, 1K0 407 152 AD (4) OEM
30VW1670	Track Control Arm Rear Left	di:Ø12.25 / 1,79 kg	1K0 505 223 E, 1K0 505 223 H (2) OEM
30VW1671	Track Control Arm Rear Right	di:Ø12.25 / 1,77 kg	1K0 505 224 H, 1K0 505 224 K (2) OEM
38AU1220	Silentblock for TCA	L:45 di:Ø14.2 do:Ø38.7 / 0,13 kg	1K0 505 203 A, 1K0 505 323 N* (1) OEM
38AU1221	Silentblock for TCA	L:45 di:Ø14.1 do:Ø40.5 / 0,18 kg	1K0 501 541 C, 1K0 501 530 C (5) OEM
38AU1235	Silentblock for TCA	L:45.2 di:Ø12.25 do:Ø60.2 / 0,19 kg	1K0 505 541 B, 5Q0 505 541 A (4) OEM
38AU1290 NEW	Bellow Steering	0,12 kg	1K0 423 831 A, 1K0 423 831 B (1) OEM
38AU3030	Silentblock for TCA	L:54 di:Ø12.1 do:Ø39.5 / 0,19 kg	1K0 407 182, 1K0 407 182 F (4) OEM
38VW1261	Silentblock for TCA Right	L:171 / 0,7 kg	1K0 199 232 P, 1K0 199 232 J (2) OEM
38VW1262	Silentblock for TCA Left	L:171 / 0,7 kg	1K0 199 231 J, 1K0 199 231 P (3) OEM
38VW1607	Silentblock for TCA	L:50.5 di:Ø32 do:Ø64 / 0,14 kg	3C0 199 231 F SK, 1K0 199 232 K SK (5) OEM
38VW1608	Axle Beam Bushing	L:92 di:Ø18.1 do:Ø70 / 0,52 kg	1K0 505 145 K, 1K0 505 145 H
38VW1609	Silentblock for TCA	L:60 di:Ø12.1 do:Ø42.4 / 0,1 kg	1K0 505 311 S, 1K0 505 311 AH (8) OEM
38VW1615	Stabiliser Mounting	L:40 di:Ø15.5 / 0,07 kg	1K0 511 327 AE, 1K0 511 327 AP
38VW1616 NEW	Stabiliser Mounting	di:Ø17 / 0,08 kg	1K0 511 327 AQ
38VW1617 NEW	Stabiliser Mounting	di:Ø18,5 / 0,08 kg	1K0 511 327 AR
38VW1618 NEW	Stabiliser Mounting	di:Ø19 / 0,08 kg	1K0 511 327 AS
38VW1623 NEW	Stabiliser Mounting	di:Ø21-23 / 0,09 kg	1K0 411 303 AL, 1K0 411 303 BK (8) OEM
38VW1700	Silentblock for TCA	L:49.8 di:Ø12.1 do:Ø37.8 / 0,13 kg	1K0 505 553, 1K0 505 553 A
38VW2090	Bellow Driveshaft (KIT)	L:122 di:Ø26 / 0,3 kg	6C0 498 203, 1K0 498 203 (1) OEM

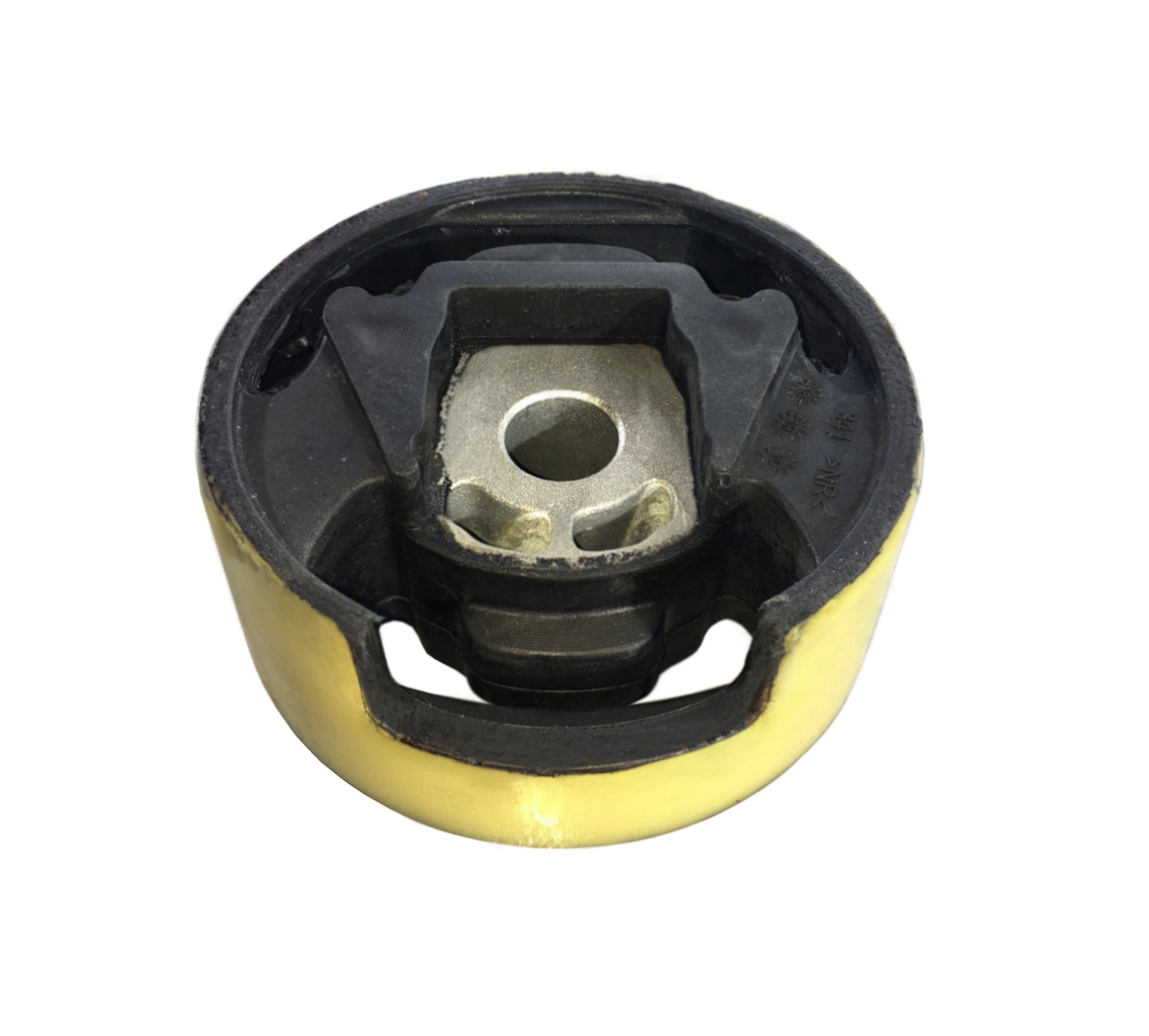

45VW1600	Engine Mounting	L:35.5 di:Ø15.2 do:Ø91.5 / 0,24 kg	1K0 199 867 P, 1K0 199 867 Q (4) OEM
45VW1605	Strut Mount	L:48.2 di:Ø14.2 do:Ø65.5 / 0,77 kg	1K0 412 331 B, 1K0 412 331 C
45VW1606	Strut Mount With Bearing	L:52 di:Ø14.2 do:Ø68.5 / 1 kg	1K0 412 331 B, 6N0 412 249 C (4) OEM
45VW1607 NEW	Bearing	0,25 kg	1K0 412 249 B, 6N0 412 249 C (3) OEM
45VW1610	Engine Mounting	L:33.7 th:FM14x1.5 RHT do:Ø91.5 / 0,22 kg	3C0 199 868 B, 3C0 199 868 C (1) OEM
45VW1611 IN PREPARATION	Transmission Mount		1K0 199 855 AE, 1K0 199 855 AN (6) OEM
45VW1612 IN PREPARATION	Transmission Mount		1K0 199 855 AG, 1K0 199 855 BD (1) OEM
45VW1613 IN PREPARATION	Transmission Mount		1K0 199 855 AD, 1K0 199 855 BA (1) OEM
45VW1626	Suspension Support Buffer Front	L:90.4 di:Ø27 do:Ø64.1 / 0,1 kg	1K0 412 303 H
