ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10AU1200	Ball Joint Left	tp:M12x1.5 RHT cr:1/5 c:Ø14.8 / 0,54 kg	6R0 407 365 B, 6R0 407 365 A (3) OEM
10AU1201	Ball Joint Right	tp:M12x1.5 RHT cr:1/5 c:Ø14.8 / 0,54 kg	6R0 407 366 B, 6R0 407 366 (3) OEM
10VW1100	Ball Joint	c:Ø19 / 0,45 kg	357 407 365 A, 357 407 365
10VW2010	Ball Joint Left	th:M12x1.5 RHT cr:1/5 c:Ø14.9 / 0,45 kg	6Q0 407 365 A, 8Z0 407 365 A (3) OEM
10VW2011	Ball Joint Right	th:M12x1.5 RHT cr:1/5 c:Ø14.9 / 0,45 kg	5Z0 407 366 B, 8Z0 407 366 A (7) OEM
17SK2010 NEW	Tie Rod End Left	0,4 kg	6C0 423 811 A
17SK2011 NEW	Tie Rod End Right	0,4 kg	6C0 423 812 A
17VW1230	Tie Rod End Right	L:76 cr:1/10 c:Ø12.7 tp:M12x1.5 th:FM14x1.5 RHT / 0,35 kg	6N0 422 812, 6N0 419 812 (2) OEM
17VW1250	Tie Rod End Left	L:76 cr:1/10 c:Ø12.7 tp:M12x1.5 th:FM14x1.5 RHT / 0,35 kg	3A0 422 811, 6N0 419 811 (2) OEM
17VW2010	Tie Rod End Left	L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM14x1.5 RHT / 0,4 kg	6Q0 419 811 C, 6Q0 423 811 A (6) OEM
17VW2011	Tie Rod End Right	L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM14x1.5 RHT / 0,4 kg	6Q0 423 812 A, 6Q0 423 812 D (17) OEM
17VW2020	Tie Rod End Left	L:94 cr:1/10 c:Ø12.65 tp:M12x1.5 th:FM14x1.5 RHT / 0,4 kg	6K0 422 811, 6X0 422 811 (1) OEM
17VW2021	Tie Rod End Right	L:94 cr:1/10 c:Ø12.65 tp:M12x1.5 th:FM14x1.5 RHT / 0,4 kg	6X0 422 812, 6K0 422 812 (1) OEM
20VW1011	Axial Joint	L:370 tp:M14x1.5 th:MM22x1.5 RHT / 0,76 kg	191 419 803 A, 191 419 804 (7) OEM
20VW1013	Axial Joint	L:342 tp:M14x1.5 th:MM14x1.5 RHT / 0,68 kg	191 422 803 A, 191 422 804 A (4) OEM
20VW2010	Axial Joint	L:298 tp:M14x1.5 th:MM16x1.5 RHT / 0,55 kg	6Q0 423 810 G, 6Q0 423 803 G (7) OEM
20VW2015	Axial Joint	L:296 tp:M14x1.5 th:MM14x1.5 RHT / 0,62 kg	6Q0 423 803 E, 6Q0 423 804 E (5) OEM
26VW1210	Stabiliser Link	L:77 tp:M8x1.25 RHT / 0,18 kg	191 411 315 BS, 191 411 315 B (1) OEM
26VW2010	Stabiliser Link	L:269.5 tp:M10x1.5 RHT / 0,43 kg	606 14 514, 893 407 465 (27) OEM
29VW1220	Tie Rod Right	cr:1/5 c:Ø14.65 tp:M12x1.25 RHT / 1,07 kg	191 419 804, 191 419 804 A
29VW1221	Tie Rod Left	cr:1/5 c:Ø14.65 tp:M12x1.25 RHT / 1,07 kg	191 419 803 A, 191 419 803
29VW1230	Tie Rod Right	cr:1/10 c:Ø12.7 tp:M12x1.5 RHT / 1 kg	191 422 804 A, 191 422 804
29VW1250	Tie Rod Left	cr:1/8 c:Ø12.41 tp:M12x1.5 RHT / 1 kg	191 422 803, 191 422 803 A
29VW2010	Tie Rod Left	cr:1/5 c:Ø13.2 tp:M12x1.5 RHT / 0,95 kg	6Q0 423 803 G, 6Q0 423 803 C
29VW2011	Tie Rod Right	cr:1/5 c:Ø13.2 tp:M12x1.5 RHT / 0,95 kg	6Q0 423 804 G, 6Q0 423 804 C
29VW2015	Tie Rod Left	cr:1/5 c:Ø13.2 tp:M12x1.5 RHT / 1 kg	6Q0 423 803 E, 6Q0 423 803 B (1) OEM
29VW2016	Tie Rod Right	cr:1/5 c:Ø13.2 tp:M12x1.5 RHT / 1 kg	6Q0 423 804 P, 6Q0 423 804 E (1) OEM
30VW1200 NEW	Track Control Arm Left	3,34 kg	6R0 407 151, 6R0 407 151 E
30VW1201 NEW	Track Control Arm Right	3,34 kg	6R0 407 152, 6R0 407 152 E
30VW2010 NEW	Track Control Arm Left	3,4 kg	6Q0 407 151 E, 6Q0 407 151 D (1) OEM
30VW2010P NEW	Track Control Arm (Without Ball Joint)	2,9 kg	6Q0 407 151 E, 6Q0 407 151 D (1) OEM
30VW2011 NEW	Track Control Arm Right	3,4 kg	6Q0 407 151 E, 6Q0 407 151 D (1) OEM
38AU1200	Silentblock for TCA	L:54.1 di:Ø12.2 do:Ø32.4 / 0,1 kg	191 407 182, 357 407 182 (2) OEM
38AU1205	Silentblock for TCA	L:41 di:Ø13.2 do:Ø60 / 0,12 kg	1J0 407 181 A, 1J0 407 181 (1) OEM
38AU1215	Stabiliser Mounting	L:24.7 di:Ø17 do:Ø32.5 / 0,03 kg	6Q0 411 303 AD, 6Q0 411 314 Q (3) OEM
38AU1216	Stabiliser Mounting	L:34.7 di:Ø18 do:Ø32.5 / 0,03 kg	6Q0 411 314 R, 6Q0 411 314 N (3) OEM
38AU2000	Stabiliser Mounting	L:34.7 di:Ø16 do:Ø32.5 / 0,04 kg	6Q0 411 303 H, 6Q0 411 305 F (5) OEM
38VW1010	Silentblock for TCA	L:41 di:Ø17 do:Ø60 / 0,12 kg	191 407 181 D, 191 407 181 E (3) OEM

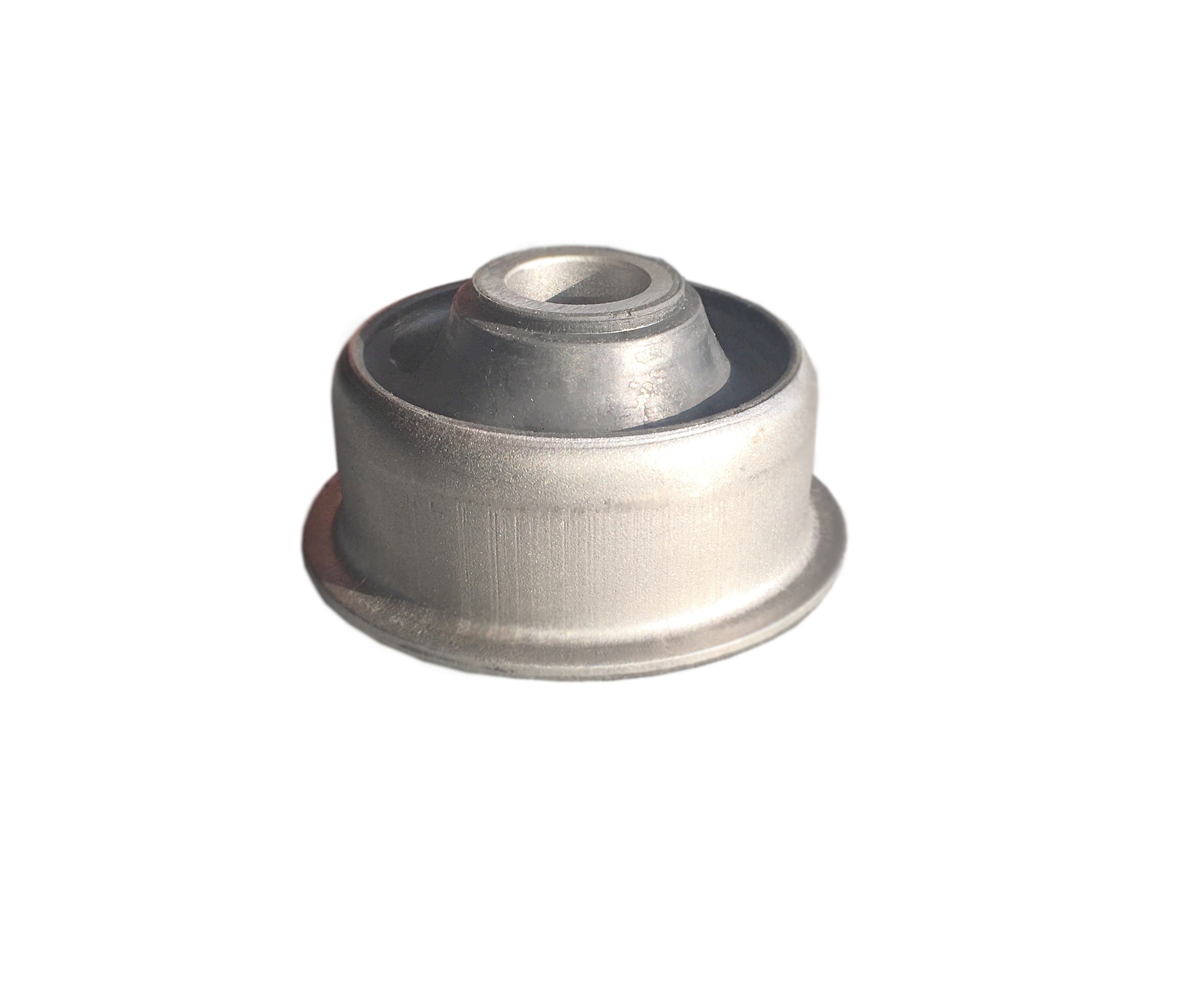

38VW1011	Silentblock for TCA	L:41 di:Ø17.2 do:Ø60 / 0,21 kg	191 407 181 A, 191 407 181 B
38VW1020	Stabiliser Mounting	L:28 di:Ø19 / 0,03 kg	1H0 411 314, 1H0 411 309 (1) OEM
38VW1021	Stabiliser Mounting	L:28 di:Ø17 / 0,03 kg	191 411 314
38VW1200	Silentblock for TCA	L:54 di:Ø12.5 do:Ø32.6 / 0,13 kg	6Q0 407 182 A
38VW1260	Silentblock for TCA	L:53 di:Ø26 do:Ø63.5 / 0,16 kg	6Q0 407 183 B, 6Q0 407 183 A (2) OEM
38VW1273	Bearing	L:13.8 di:Ø14 do:Ø45 / 0,07 kg	357 412 249 A, 1J0 412 249 (10) OEM
38VW1502	Axle Beam Bushing	L:64 di:Ø13.2 do:Ø69.2 / 0,64 kg	1J0 501 541 D
38VW2090	Bellow Driveshaft (KIT)	L:122 di:Ø26 / 0,3 kg	6C0 498 203, 1K0 498 203 (1) OEM
45SE1230 IN PREPARATION	Suspension Support Buffer Rear	0 kg	6Q0 512 131 D
45VW1000 OUT OF SERVICE	Strut Mount	di:Ø14.2 do: Ø125 L:49mm / 0 kg	176 412 329, 191 412 331 (2) OEM
45VW1230	Suspension Support Buffer Rear	L:111.5 di:Ø10 do:Ø49 / 0,08 kg	6K0 512 131 A
45VW1235	Strut Mount	L:50 di:Ø26 do:Ø96 / 0,33 kg	7M0 412 331, 357 412 331 A (2) OEM
45VW1236	Strut Mount With Bearing	L:51 di:Ø26 do:Ø97 / 0,4 kg	357 412 331 A, 7M0 412 331 (2) OEM
45VW1505	Strut Mount	L:58 di:Ø11.1 / 0,35 kg	1J0 513 353 D, 1J0 513 353 C (6) OEM
45VW1607 NEW	Bearing	0,25 kg	1K0 412 249 B, 6N0 412 249 C (3) OEM
45VW1620	Suspension Support Buffer Front	L:48.2 di:Ø14.2 do:Ø65.5 / 0,05 kg	6Q0 412 301 A, 6N0 413 175 A
45VW1621	Suspension Support Buffer Front	L:70 di:Ø19.5 do:Ø61 / 0,05 kg	6K0 413 031 B, 357 412 303 F (4) OEM
45VW2020	Suspension Support Buffer Rear	di:Ø10 do:Ø51 L:123mm / 0,08 kg	6N0 512 131 A
45VW2021	Suspension Support Buffer Front	L:66.5 di:Ø24 do:Ø57.56 / 0,05 kg	6N0 412 303 A
45VW2022	Suspension Support Buffer Front	L:76.5 di:Ø24 do:Ø64 / 0,07 kg	6Q0 412 301
45VW2023	Suspension Support Buffer Front	L:56 di:Ø22 do:Ø64 / 0,06 kg	6Q0 412 301 A
45VW2030	Suspension Support Buffer Rear	L:124 di:Ø15.5 do:Ø52 / 0,07 kg	6Q0 512 131 B
