10AU1200
|
Ball Joint Left |
tp:M12x1.5 RHT cr:1/5 c:Ø14.8 / 0,54 kg |
6R0 407 365 B, 6R0 407 365 A (3) OEM |
 |
10AU1201
|
Ball Joint Right |
tp:M12x1.5 RHT cr:1/5 c:Ø14.8 / 0,54 kg |
6R0 407 366 B, 6R0 407 366 (3) OEM |
 |
10VW1100
|
Ball Joint |
c:Ø19 / 0,45 kg |
357 407 365 A, 357 407 365 |
 |
10VW1600
|
Ball Joint Lower Left |
tp:M12x1.5 RHT cr:1/5 c:Ø15.4 / 0,62 kg |
1K0 407 365 C, 5Q0 407 365 A (6) OEM |
 |
10VW1601
|
Ball Joint Lower Right |
tp:M12x1.5 RHT cr:1/5 c:Ø15.4 / 0,62 kg |
1KD 407 366, 1K0 407 366 E (6) OEM |
 |
10VW2010
|
Ball Joint Left |
th:M12x1.5 RHT cr:1/5 c:Ø14.9 / 0,45 kg |
6Q0 407 365 A, 8Z0 407 365 A (3) OEM |
 |
10VW2011
|
Ball Joint Right |
th:M12x1.5 RHT cr:1/5 c:Ø14.9 / 0,45 kg |
5Z0 407 366 B, 8Z0 407 366 A (7) OEM |
 |
17AU1200
|
Tie Rod End Right |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0,42 kg |
1K0 423 812 F, 1K0 423 812 J (10) OEM |
 |
17AU1201
|
Tie Rod End Left |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0,42 kg |
3C0 423 811 B, 1K1 423 070 X (9) OEM |
 |
17FI2000
OUT OF SERVICE
|
Tie Rod End |
c:Ø12 th:FM12x1,5 RHT / 0,39 kg |
766 97 56, 596 00 36 (2) OEM |
 |
17FI2500
OUT OF SERVICE
|
Tie Rod End |
c:Ø12 th:FM14x1,5 RHT / 0,38 kg |
4 410 415 |
 |
17SK2010
NEW
|
Tie Rod End Left |
0,4 kg |
6C0 423 811 A |
 |
17SK2011
NEW
|
Tie Rod End Right |
0,4 kg |
6C0 423 812 A |
 |
17VW1230
|
Tie Rod End Right |
L:76 cr:1/10 c:Ø12.7 tp:M12x1.5 th:FM14x1.5 RHT / 0,35 kg |
191 419 812, 6N0 419 812 (2) OEM |
 |
17VW1250
|
Tie Rod End Left |
L:76 cr:1/10 c:Ø12.7 tp:M12x1.5 th:FM14x1.5 RHT / 0,35 kg |
3A0 422 811, 6N0 419 811 (2) OEM |
 |
17VW2010
|
Tie Rod End Left |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM14x1.5 RHT / 0,4 kg |
6Q0 419 811 C, 6Q0 423 811 A (6) OEM |
 |
17VW2011
|
Tie Rod End Right |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM14x1.5 RHT / 0,4 kg |
6Q0 423 812 A, 6Q0 423 812 D (17) OEM |
 |
17VW2020
|
Tie Rod End Left |
L:94 cr:1/10 c:Ø12.65 tp:M12x1.5 th:FM14x1.5 RHT / 0,4 kg |
6K0 422 811, 6X0 422 811 (1) OEM |
 |
17VW2021
|
Tie Rod End Right |
L:94 cr:1/10 c:Ø12.65 tp:M12x1.5 th:FM14x1.5 RHT / 0,4 kg |
6X0 422 812, 6K0 422 812 (1) OEM |
 |
20AU1000
|
Axial Joint |
L:315 tp:M14x1.5 th:MM16x1.5 RHT / 0,7 kg |
2Q0 423 810 D |
 |
20AU1100
|
Axial Joint |
L:313 tp:M14x1.5 th:MM14x1.5 RHT / 0,62 kg |
6R0 423 810, 8Z0 423 810 C (1) OEM |
 |
20FI3110
|
Axial Joint |
L:266.5 tp:M14x1.5 th:MM14x1.5 RHT / 0,53 kg |
4 322 913, 4 379 269 (1) OEM |
 |
20FI4502
|
Axial Joint |
L:272 tp:M14x1.5 th:MM12x1.5 RHT / 0,47 kg |
441 01 45, 595 82 44 (2) OEM |
 |

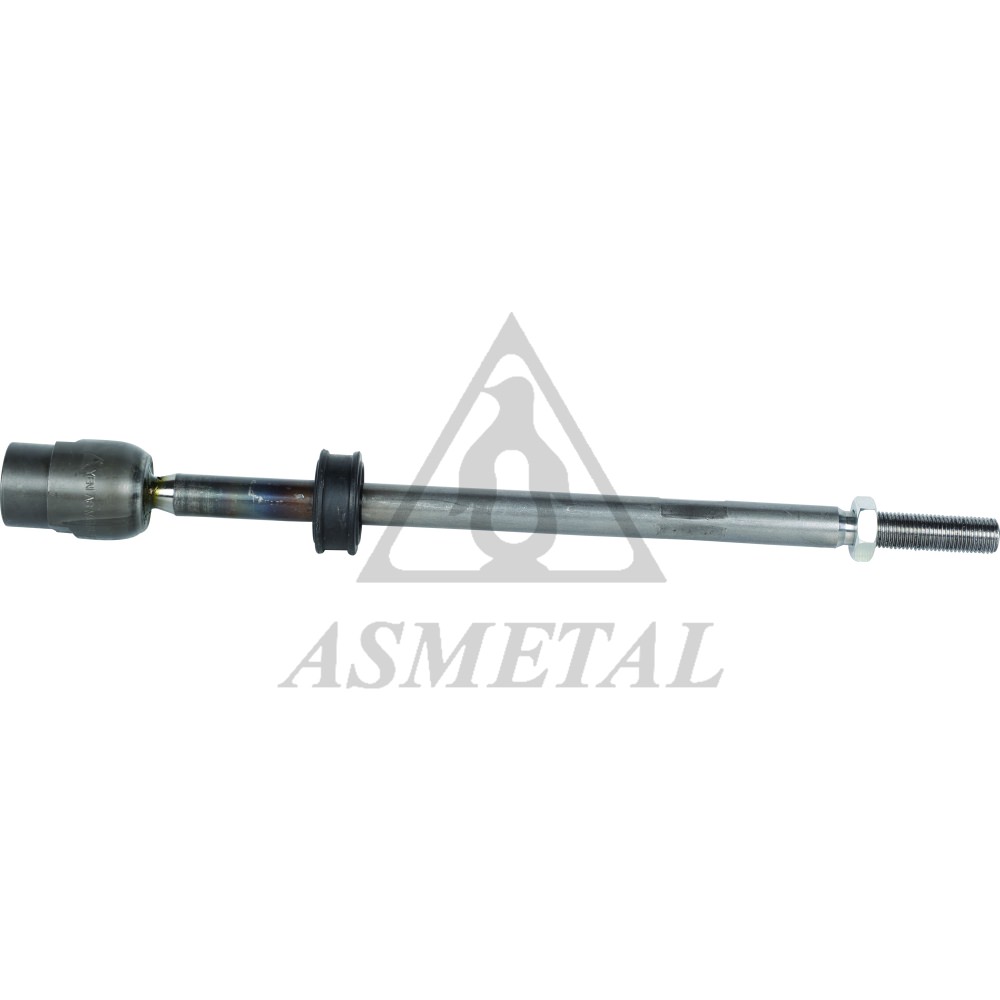

20VW1011
|
Axial Joint |
L:370 tp:M14x1.5 th:MM22x1.5 RHT / 0,76 kg |
191 419 803 A, 191 419 804 (7) OEM |
 |
20VW1013
|
Axial Joint |
L:342 tp:M14x1.5 th:MM14x1.5 RHT / 0,68 kg |
191 422 803 A, 191 422 804 A (4) OEM |
 |
20VW2010
|
Axial Joint |
L:298 tp:M14x1.5 th:MM16x1.5 RHT / 0,55 kg |
6Q0 423 810 G, 6Q0 423 803 G (7) OEM |
 |
20VW2015
|
Axial Joint |
L:296 tp:M14x1.5 th:MM14x1.5 RHT / 0,62 kg |
6Q0 423 803 E, 6Q0 423 804 E (5) OEM |
 |
20VW2020
|
Axial Joint |
L:312.5 tp:M14x1.5 th:MM14x1.5 RHT / 0,62 kg |
6R0 423 803, 6R0 423 803 A (1) OEM |
 |

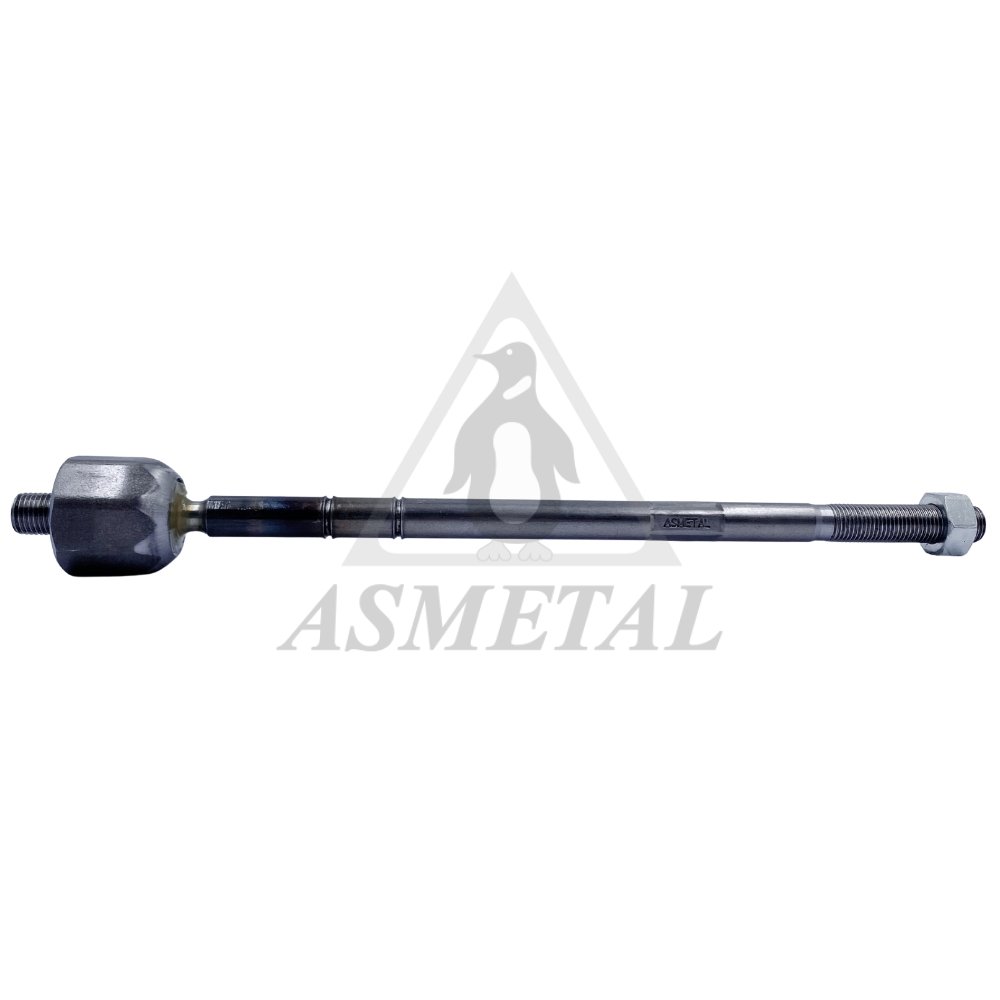

20VW2030
|
Axial Joint |
L:312 tp:M14x1.5 th:MM14x1.5 RHT / 0,66 kg |
6C0 423 810 C, 6C0 423 810 B (3) OEM |
 |
26VW1210
|
Stabiliser Link |
L:77 tp:M8x1.25 RHT / 0,18 kg |
191 411 315 BS, 191 411 315 B (1) OEM |
 |
26VW2010
|
Stabiliser Link |
L:269.5 tp:M10x1.5 RHT / 0,43 kg |
606 14 514, 893 407 465 (27) OEM |
 |
29VW1220
|
Tie Rod Right |
cr:1/5 c:Ø14.65 tp:M12x1.25 RHT / 1,07 kg |
191 419 804, 191 419 804 A |
 |
29VW1221
|
Tie Rod Left |
cr:1/5 c:Ø14.65 tp:M12x1.25 RHT / 1,07 kg |
191 419 803 A, 191 419 803 |
 |
29VW1230
|
Tie Rod Right |
cr:1/10 c:Ø12.7 tp:M12x1.5 RHT / 1 kg |
191 422 804 A, 191 422 804 |
 |
29VW1250
|
Tie Rod Left |
cr:1/8 c:Ø12.41 tp:M12x1.5 RHT / 1 kg |
191 422 803, 191 422 803 A |
 |
29VW2010
|
Tie Rod Left |
cr:1/5 c:Ø13.2 tp:M12x1.5 RHT / 0,95 kg |
6Q0 423 803 G, 6Q0 423 803 C |
 |
29VW2011
|
Tie Rod Right |
cr:1/5 c:Ø13.2 tp:M12x1.5 RHT / 0,95 kg |
6Q0 423 804 G, 6Q0 423 804 C |
 |
29VW2015
|
Tie Rod Left |
cr:1/5 c:Ø13.2 tp:M12x1.5 RHT / 1 kg |
6Q0 423 803 E, 6Q0 423 803 B (1) OEM |
 |
29VW2016
|
Tie Rod Right |
cr:1/5 c:Ø13.2 tp:M12x1.5 RHT / 1 kg |
6Q0 423 804 P, 6Q0 423 804 E (1) OEM |
 |
30AU1200
|
Track Control Arm Left |
tp:M12x1.5 RHT cr:1/5 c:Ø14.8 / 3,3 kg |
6R0 407 151 F, 6R0 407 151 A |
 |
30AU1201
|
Track Control Arm Right |
tp:M12x1.5 RHT cr:1/5 c:Ø14.8 / 3,3 kg |
6R0 407 152 F, 6R0 407 152 A |
 |
30VW1200
NEW
|
Track Control Arm Left |
3,34 kg |
6R0 407 151, 6R0 407 151 E |
 |
30VW1201
NEW
|
Track Control Arm Right |
3,34 kg |
6R0 407 152, 6R0 407 152 E |
 |
30VW2010
NEW
|
Track Control Arm Left |
3,4 kg |
6Q0 407 151 E, 6Q0 407 151 D (1) OEM |
 |
30VW2010P
NEW
|
Track Control Arm (Without Ball Joint) |
2,9 kg |
6Q0 407 151 E, 6Q0 407 151 D (1) OEM |
 |
30VW2011
NEW
|
Track Control Arm Right |
3,4 kg |
6Q0 407 151 E, 6Q0 407 151 D (1) OEM |
 |
38AU1001
|
Silentblock for TCA |
L:50 di:Ø13.1 do:Ø60 / 0,12 kg |
2Q0 407 183 B, 2Q0 407 183 |
 |
38AU1200
|
Silentblock for TCA |
L:54.1 di:Ø12.2 do:Ø32.4 / 0,1 kg |
191 407 182, 357 407 182 (2) OEM |
 |
38AU1205
|
Silentblock for TCA |
L:41 di:Ø13.2 do:Ø60 / 0,12 kg |
1J0 407 181 A, 1J0 407 181 (1) OEM |
 |
38AU1210
|
Silentblock for TCA |
L:41 di:Ø13.5 do:Ø60 / 0,13 kg |
8N0 407 181 B, 6R0 407 181 B |
 |

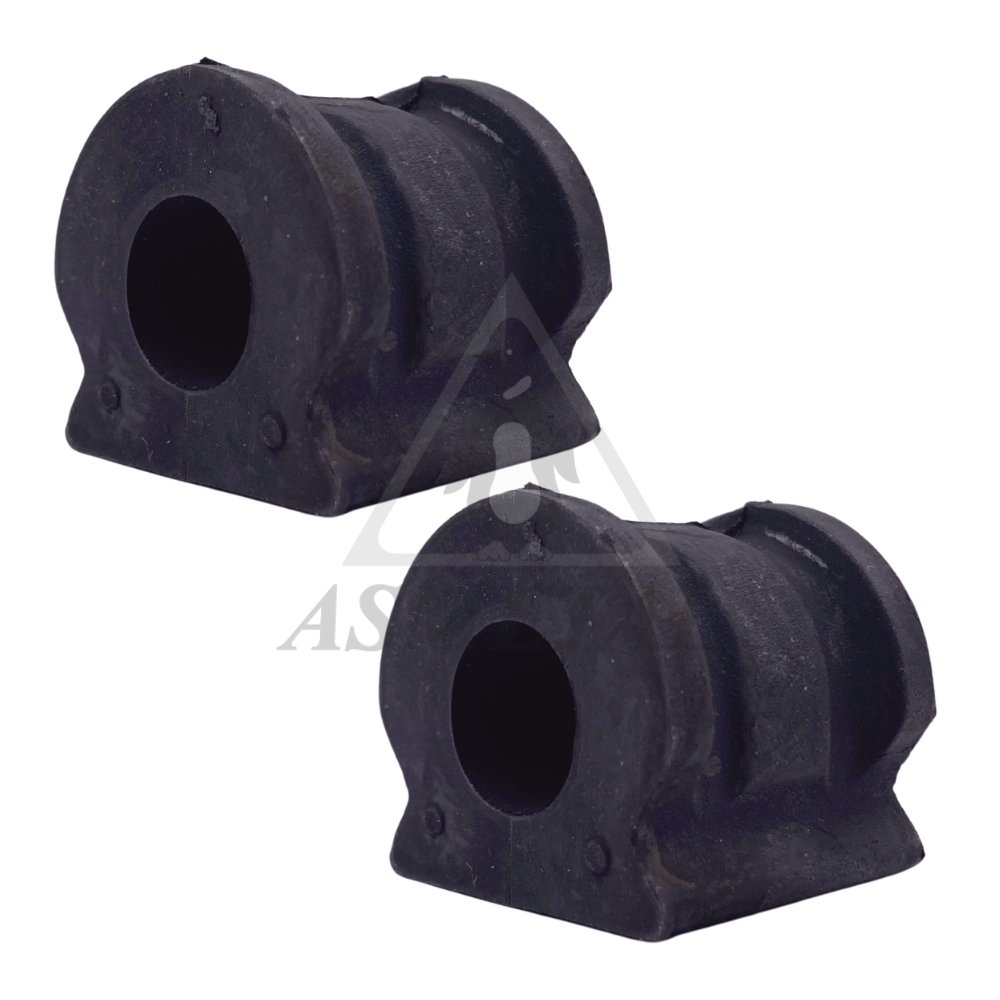

38AU1215
|
Stabiliser Mounting |
L:24.7 di:Ø17 do:Ø32.5 / 0,03 kg |
6Q0 411 303 AD, 6Q0 411 314 Q (3) OEM |
 |
38AU1216
|
Stabiliser Mounting |
L:34.7 di:Ø18 do:Ø32.5 / 0,03 kg |
6Q0 411 314 R, 6Q0 411 314 N (3) OEM |
 |
38AU2000
|
Stabiliser Mounting |
L:34.7 di:Ø16 do:Ø32.5 / 0,04 kg |
6Q0 411 303 H, 6Q0 411 305 F (5) OEM |
 |
38AU3021
|
Silentblock for TCA |
L:50 di:Ø13 do:Ø64.7 / 0,35 kg |
5Q0 407 183 D, 5Q0 407 183 G (7) OEM |
 |
38SK1605
IN PREPARATION
|
Axle Beam Bushing |
|
5Q0 501 541 C, 5Q0 501 541 F |
 |
38VW1010
|
Silentblock for TCA |
L:41 di:Ø17 do:Ø60 / 0,12 kg |
191 407 181 D, 191 407 181 E (3) OEM |
 |
38VW1011
|
Silentblock for TCA |
L:41 di:Ø17.2 do:Ø60 / 0,21 kg |
191 407 181 A, 191 407 181 B |
 |
38VW1020
|
Stabiliser Mounting |
L:28 di:Ø19 / 0,03 kg |
1H0 411 314, 1H0 411 309 (1) OEM |
 |
38VW1021
|
Stabiliser Mounting |
L:28 di:Ø17 / 0,03 kg |
191 411 314 |
 |
38VW1200
|
Silentblock for TCA |
L:54 di:Ø12.5 do:Ø32.6 / 0,13 kg |
6Q0 407 182 A |
 |
38VW1260
|
Silentblock for TCA |
L:53 di:Ø26 do:Ø63.5 / 0,16 kg |
6Q0 407 183 B, 6Q0 407 183 A (2) OEM |
 |
38VW1270
|
Strut Mount |
L:53 di:Ø27.5 do:Ø82 / 0,21 kg |
1J0 412 331, 1J0 412 331 C (1) OEM |
 |
38VW1271
|
Strut Mount With Bearing |
L:53 di:Ø27.5 do:Ø82 / 0,27 kg |
1J0 412 331 BS, 1J0 412 331 CS (4) OEM |
 |
38VW1273
|
Bearing |
L:13.8 di:Ø14 do:Ø45 / 0,07 kg |
357 412 249 A, 1J0 412 249 (10) OEM |
 |
38VW1500
|
Axle Beam Bushing |
L:89.2 di:Ø12.1 do:Ø71.5 / 0,36 kg |
6R0 501 541 A, 6R0 501 541 B |
 |

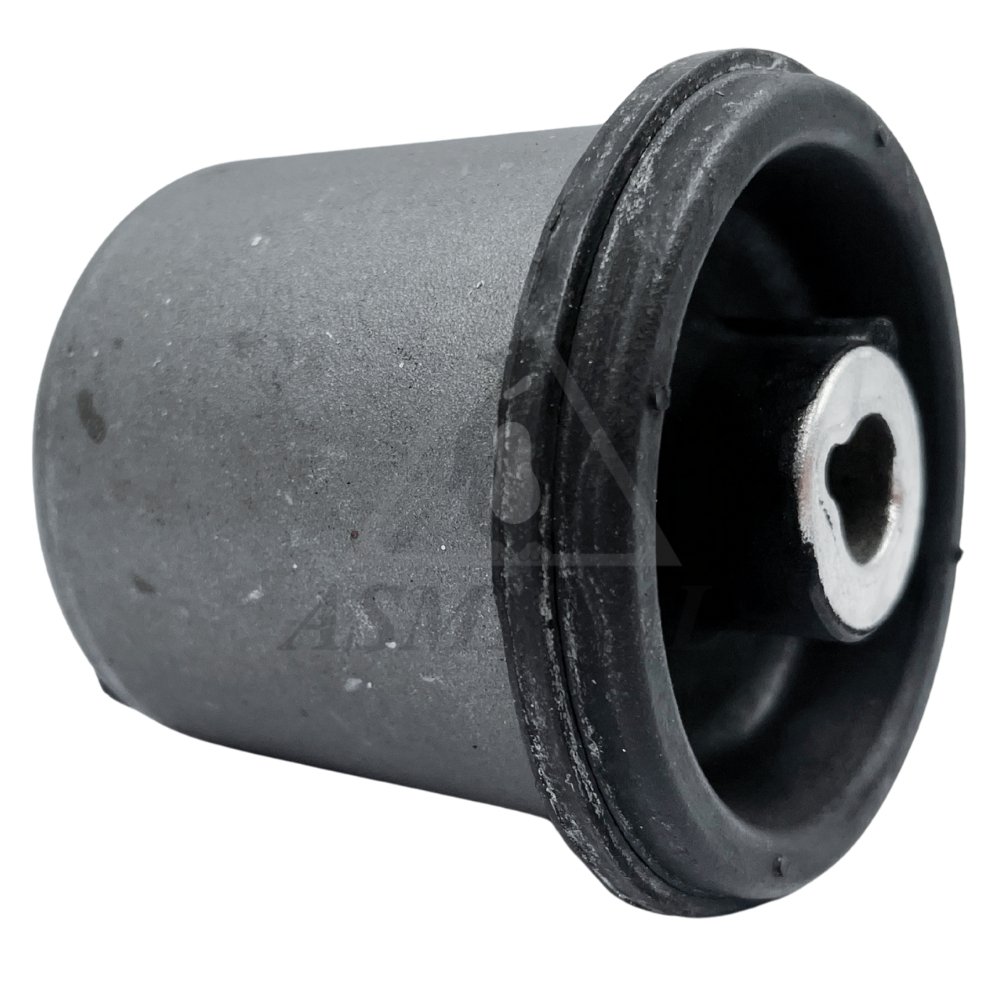

38VW1502
|
Axle Beam Bushing |
L:64 di:Ø13.2 do:Ø69.2 / 0,64 kg |
1J0 501 541 D |
 |
38VW2090
|
Bellow Driveshaft (KIT) |
L:122 di:Ø26 / 0,3 kg |
6C0 498 203, 1K0 498 203 (1) OEM |
 |
45SE1230
IN PREPARATION
|
Suspension Support Buffer Rear |
0 kg |
6Q0 512 131 D |
 |
45VW1000
OUT OF SERVICE
|
Strut Mount |
di:Ø14.2 do: Ø125 L:49mm / 0 kg |
176 412 329, 191 412 331 (2) OEM |
 |
45VW1230
|
Suspension Support Buffer Rear |
L:111.5 di:Ø10 do:Ø49 / 0,08 kg |
6K0 512 131 A |
 |
45VW1235
|
Strut Mount |
L:50 di:Ø26 do:Ø96 / 0,33 kg |
7M0 412 331, 357 412 331 A (2) OEM |
 |
45VW1236
|
Strut Mount With Bearing |
L:51 di:Ø26 do:Ø97 / 0,4 kg |
357 412 331 A, 7M0 412 331 (2) OEM |
 |
45VW1505
|
Strut Mount |
L:58 di:Ø11.1 / 0,35 kg |
1J0 513 353 D, 1J0 513 353 C (6) OEM |
 |
45VW1601
|
Strut Mount |
L:62 di:Ø11 do:Ø61.5 / 0,34 kg |
5Q0 513 353 H |
 |
45VW1607
NEW
|
Bearing |
0,25 kg |
1K0 412 249 B, 6N0 412 249 C (3) OEM |
 |
45VW1608
NEW
|
Strut Mount |
0,69 kg |
5Q0 412 331 E, 5Q0 412 331 F (7) OEM |
 |
45VW1620
|
Suspension Support Buffer Front |
L:48.2 di:Ø14.2 do:Ø65.5 / 0,05 kg |
6Q0 412 301 A, 6N0 413 175 A |
 |
45VW1621
|
Suspension Support Buffer Front |
L:70 di:Ø19.5 do:Ø61 / 0,05 kg |
6K0 413 031 B, 357 412 303 F (4) OEM |
 |
45VW1624
|
Suspension Support Buffer Front |
L:53.5 di:Ø18.2 do:Ø58 / 0,04 kg |
1J0 412 303 |
 |
45VW1625
|
Suspension Support Buffer Front |
L:86 di:Ø24 do:Ø56.5 / 0,1 kg |
5Q0 412 303 |
 |
45VW2020
|
Suspension Support Buffer Rear |
di:Ø10 do:Ø51 L:123mm / 0,08 kg |
6N0 512 131 A |
 |
45VW2021
|
Suspension Support Buffer Front |
L:66.5 di:Ø24 do:Ø57.56 / 0,05 kg |
6N0 412 303 A |
 |
45VW2022
|
Suspension Support Buffer Front |
L:76.5 di:Ø24 do:Ø64 / 0,07 kg |
6Q0 412 301 |
 |
45VW2023
|
Suspension Support Buffer Front |
L:56 di:Ø22 do:Ø64 / 0,06 kg |
6Q0 412 301 A |
 |
45VW2030
|
Suspension Support Buffer Rear |
L:124 di:Ø15.5 do:Ø52 / 0,07 kg |
6Q0 512 131 B |
