10VW1501
|
Ball Joint Lower Right |
th:M12x1.5 RHT cp:1/5 cs:Ø15 / 0,46 kg |
1J0 407 366 A, 1J0 407 366 J (4) OEM |
 |
10VW1502
|
Ball Joint Lower Left |
th:M12x1.5 RHT cp:1/5 cs:Ø15 / 0,46 kg |
1J0 407 365 D, 1J0 407 365 H (4) OEM |
 |
10VW1600
|
Ball Joint Lower Left |
th:M12x1.5 RHT cp:1/5 cs:Ø15,4 / 0,62 kg |
1K0 407 365 C, 5Q0 407 365 A (6) OEM |
 |
10VW1601
|
Ball Joint Lower Right |
th:M12x1.5 RHT cp:1/5 cs:Ø15,4 / 0,62 kg |
1KD 407 366, 1K0 407 366 E (6) OEM |
 |
10VW1605
|
Ball Joint Lower Right |
th:M12x1.5 RHT cp:1/5 cs:Ø15,2 / 0,64 kg |
35D 407 366, 5QD 407 366 (3) OEM |
 |
10VW1606
|
Ball Joint Lower Left |
th:M12x1.5 RHT cp:1/5 cs:Ø15,2 / 0,64 kg |
5QD 407 365, 3C0 407 365 A (3) OEM |
 |
17AU1200
|
Tie Rod End Right |
c:Ø13,2 th:FM16x1,5 RHT / 0,42 kg |
1K0 423 812 F, 1K0 423 812 J (10) OEM |
 |
17AU1201
|
Tie Rod End Left |
c:Ø13,2 th:FM16x1,5 RHT / 0,42 kg |
3C0 423 811 B, 1K1 423 070 X (9) OEM |
 |
17AU1202
|
Tie Rod End Left |
L: 94 cr: 1:5 c: Ø13.22 tp: M12x1.5 th: FM16x1.5 / 0,45 kg |
1K0 423 811 K, 1K0 423 811 J (8) OEM |
 |
17AU1203
|
Tie Rod End Right |
L: 94 cr: 1:5 c: Ø13.22 tp: M12x1.5 th: FM16x1.5 / 0,45 kg |
1K0 423 812 K, 1K0 423 812 G (7) OEM |
 |
17AU1210
IN PREPARATION
|
Tie Rod End Left |
|
5WA 423 811 E, 2 560 576 (2) OEM |
 |
17AU1211
IN PREPARATION
|
Tie Rod End Right |
|
5WA 423 812 E, 2 560 578 (2) OEM |
 |
17AU3000
IN PREPARATION
|
Tie Rod End Left |
0 kg |
8N0 422 811, 8N0 422 811 A |
 |
17AU3001
IN PREPARATION
|
Tie Rod End Right |
0 kg |
8N0 422 812 A, 8N0 422 812 |
 |
17VW1260
|
Tie Rod End Left |
c:Ø13,2 th:FM14x1,5 RHT / 0,38 kg |
1J0 422 811 D, 1J0 422 811 B (1) OEM |
 |
17VW1261
|
Tie Rod End Right |
c:Ø13,2 th:FM14x1,5 RHT / 0,38 kg |
1J0 422 812 D, 1J0 422 812 B (1) OEM |
 |
20AU1200
|
Axial Joint |
th:MM16x1,5 RHT L:312mm / 0,72 kg |
1K0 423 810 A, 1K1 423 070 AX (16) OEM |
 |
20AU3000
|
Axial Joint |
th1: M16X1.5R th2: M16X1.5R L: 333,5 / 0,74 kg |
8N0 422 803 D, 8N0 422 804 D (3) OEM |
 |
20VW0501
|
Axial Joint |
th:MM16x1,5 RHT L:335,5mm / 0,7 kg |
1J0 422 821 B, 1J0 422 803 B (8) OEM |
 |
20VW1210
NEW
|
Axial Joint |
0,74 kg |
5WA 423 810 C |
 |
26AU1200
|
Stabiliser Link Rear |
L:175mm / 0,3 kg |
1J0 505 466 B |
 |
26VW1500
|
Stabiliser Link |
L: 105mm TP: MM8x1,25 / 0,26 kg |
8K0 411 317 C, 1J0 411 315 E (1) OEM |
 |

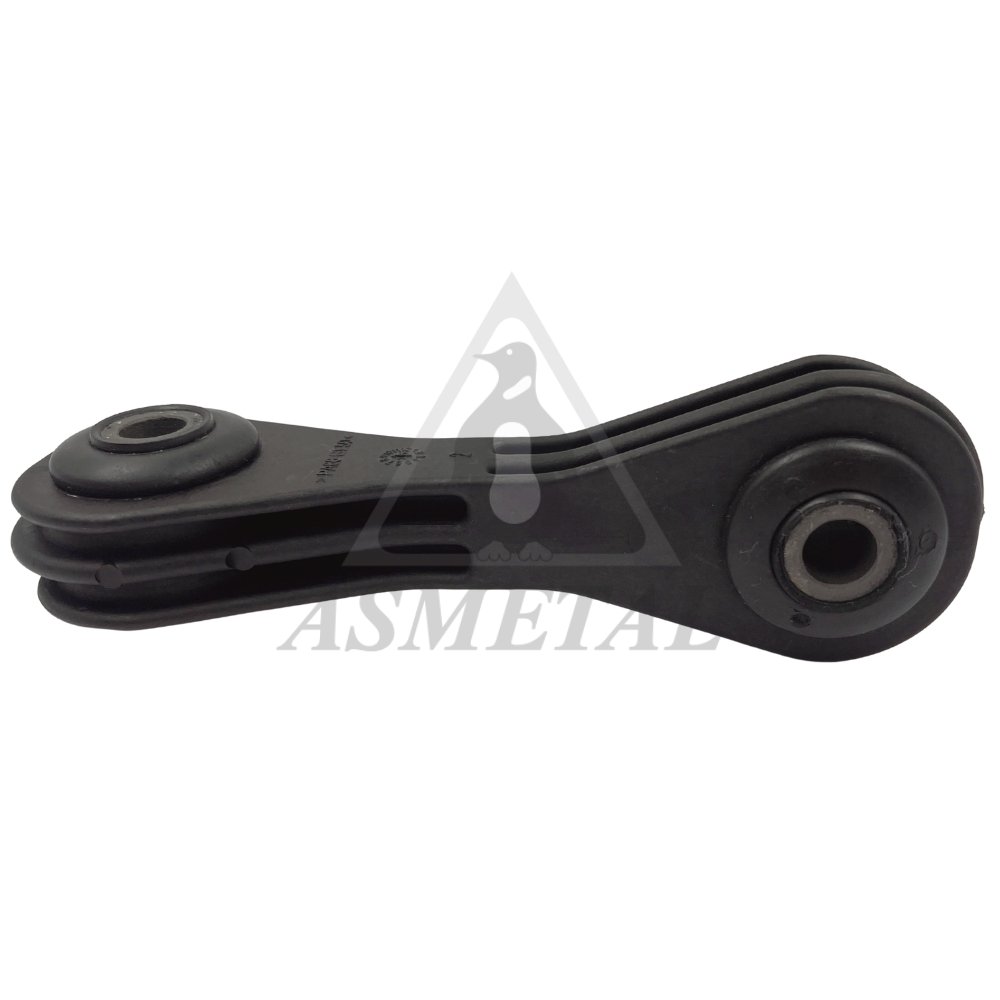

26VW1502
|
Stabiliser Link |
L:105mm Plastic / 0,16 kg |
1J0 411 315 H, 1J0 411 315 K |
 |
26VW1510
|
Stabiliser Link Left |
L:335,5mm / 0,47 kg |
1J0 411 315 D |
 |
26VW1511
|
Stabiliser Link Right |
L:335,5mm / 0,47 kg |
1J0 411 316 D |
 |
26VW1600
|
Stabiliser Link |
L:335mm / 0,5 kg |
1K0 411 315 P, 1K0 411 315 K (14) OEM |
 |
26VW1605
|
Stabiliser Link Rear |
L:95,3mm / 0,38 kg |
1K0 505 465 K, 1K0 505 465 J (7) OEM |
 |
26VW1700
|
Stabiliser Link Rear |
L:70mm Plastic / 0,16 kg |
5Q0 505 465 C, 5Q0 505 465 A (4) OEM |
 |
29AU1200
IN PREPARATION
|
Tie Rod Right |
|
1K0 423 810 A, 1K0 423 812 A (1) OEM |
 |
29AU1201
IN PREPARATION
|
Tie Rod Left |
|
1K0 423 810 A, 1K0 423 811 A (1) OEM |
 |
29AU1202
IN PREPARATION
|
Tie Rod Left |
|
1K0 423 810 A, 1K0 423 811 J (1) OEM |
 |
29AU1203
IN PREPARATION
|
Tie Rod Right |
|
1K0 423 812 K, 1K0 423 810 A (1) OEM |
 |
29AU3000
IN PREPARATION
|
Tie Rod Left |
0 kg |
8N0 422 803 D |
 |
29AU3001
IN PREPARATION
|
Tie Rod Right |
0 kg |
8N0 422 804 D |
 |
29VW0560
|
Tie Rod Left |
TP1: M16x1,5 TP2: M12x1,5 / 1,1045 kg |
1J0 422 803 B, 1J0 422 803 H |
 |
29VW0561
|
Tie Rod Right |
TP: M16x1,5 T2: M12x1,5 / 1,1045 kg |
1J0 422 804 B, 1J0 422 804 H |
 |
29VW1260
|
Tie Rod Left |
0,97 kg |
1J0 422 803 H, 1J0 422 803 B (2) OEM |
 |
29VW1261
|
Tie Rod Right |
0,97 kg |
1J0 422 804 H, 1J0 422 804 B (2) OEM |
 |
30AU1220
NEW
|
Track Control Arm Left |
1,05 kg |
1K0 501 529 F |
 |
30AU1221
NEW
|
Track Control Arm Right |
1,05 kg |
1K0 501 530 C |
 |
30VW1500P
NEW
|
Track Control Arm (Without Ball Joint) |
3,1 kg |
1J0 407 151 A, 1J0 407 151 B (1) OEM |
 |
30VW1501
|
Track Control Arm Right |
tp: M12x1,5 cr: 1:5 c: Ø15,02 / 3,5 kg |
1J0 407 151 C, 1J0 407 151 B (1) OEM |
 |
30VW1502
|
Track Control Arm Left |
tp: M12x1,5 cr: 1:5 c: Ø15,02 / 3,5 kg |
1J0 407 151 C, 1J0 407 151 B (1) OEM |
 |
30VW1602
|
Track Control Arm Left |
tp: M12x1,5 cr: 1:5 c: Ø15,4 / 3,8 kg |
5Q0 407 151 J, 5QM 407 151 A (3) OEM |
 |
30VW1603
|
Track Control Arm Right |
tp: M12x1,5 cr: 1:5 c: Ø15,4 / 3,8 kg |
5Q0 407 152 J, 5QM 407 152 A (3) OEM |
 |
30VW1610
IN PREPARATION
|
Track Control Arm Left |
0 kg |
1K0 407 151 R, 1K0 407 151 M (4) OEM |
 |
30VW1611
IN PREPARATION
|
Track Control Arm Right |
0 kg |
1K0 407 152 AC, 1K0 407 152 AD (3) OEM |
 |
30VW1612
|
Track Control Arm Left |
tp: M12x1,5 cr: 1:5 c: Ø15,2 / 3,75 kg |
5Q0 407 151 J, 5QM 407 151 A (3) OEM |
 |
30VW1613
|
Track Control Arm Right |
tp: M12x1,5 cr: 1:5 c: Ø15,2 / 3,75 kg |
5Q0 407 152 J, 5QM 407 152 A (3) OEM |
 |
30VW1670
|
Track Control Arm Rear Left |
c: Ø12,25 / 1,79 kg |
1K0 505 223 E, 1K0 505 223 H (2) OEM |
 |
30VW1671
|
Track Control Arm Rear Right |
c: Ø12,25 / 1,77 kg |
1K0 505 224 H, 1K0 505 224 K (2) OEM |
 |
30VW1672
|
Track Control Arm Rear Left |
c: Ø12,25 / 1,58 kg |
5Q0 505 223 D, 5Q0 505 223 (1) OEM |
 |
30VW1673
|
Track Control Arm Rear Right |
c: Ø12,25 / 1,59 kg |
5QM 505 224, 5Q0 505 224 D |
 |
30VW1700
NEW
|
Track Control Arm Rear |
2,22 kg |
5QM 505 311, 5Q0 505 311 C (3) OEM |
 |
30VW1702
NEW
|
Track Rod Rear |
1,34 kg |
5Q0 505 323 C, 5Q0 505 323 D (1) OEM |
 |
30VW1704
NEW
|
Track Rod Rear |
0,58 kg |
5Q0 501 529 F, 5Q0 501 529 D (2) OEM |
 |
38AU0100
|
Stabiliser Mounting |
di:Ø10,8 / 0,03 kg |
8A0 511 327 D, 8A0 511 327 B (3) OEM |
 |
38AU1200
|
Silentblock for TCA |
di:Ø12 do:Ø32,6 / 0,1 kg |
191 407 182, 357 407 182 (2) OEM |
 |
38AU1205
|
Silentblock for TCA |
di:Ø13 do:Ø60 / 0,12 kg |
1J0 407 181 A, 1J0 407 181 (1) OEM |
 |
38AU1210
|
Silentblock for TCA |
di:Ø13,5 do:Ø60,5 / 0,13 kg |
8N0 407 181 B, 6R0 407 181 B |
 |
38AU1220
|
Silentblock for TCA |
di:Ø14,2 do:Ø38,7 / 0,13 kg |
1K0 505 203 A, 1K0 505 323 N* (1) OEM |
 |
38AU1221
|
Silentblock for TCA |
di:Ø14.1 do:Ø40.5 L:45mm / 0,18 kg |
1K0 501 541 C, 1K0 501 530 C (5) OEM |
 |
38AU1231
|
Silentblock for TCA |
di:Ø12.1 do:Ø44.4 L:59.8 / 0,12 kg |
3Q0 505 311 D*, 3Q0 505 311 E* (5) OEM |
 |
38AU1235
|
Silentblock for TCA |
di:Ø12.25 do:Ø60.2 L:63.8mm / 0,19 kg |
1K0 505 541 B, 5Q0 505 541 A (4) OEM |
 |
38AU1290
NEW
|
Bellow Steering |
0,11 kg |
1K0 423 831 A, 1K0 423 831 B (1) OEM |
 |
38AU3000
|
Stabiliser Mounting |
di:Ø20,8 / 0,04 kg |
8N0 411 303 G, 8N0 411 303 H (2) OEM |
 |
38AU3003
|
Stabiliser Mounting |
di:Ø20,8 / 0,03 kg |
8N0 411 314 B, 1J0 411 314 N (5) OEM |
 |

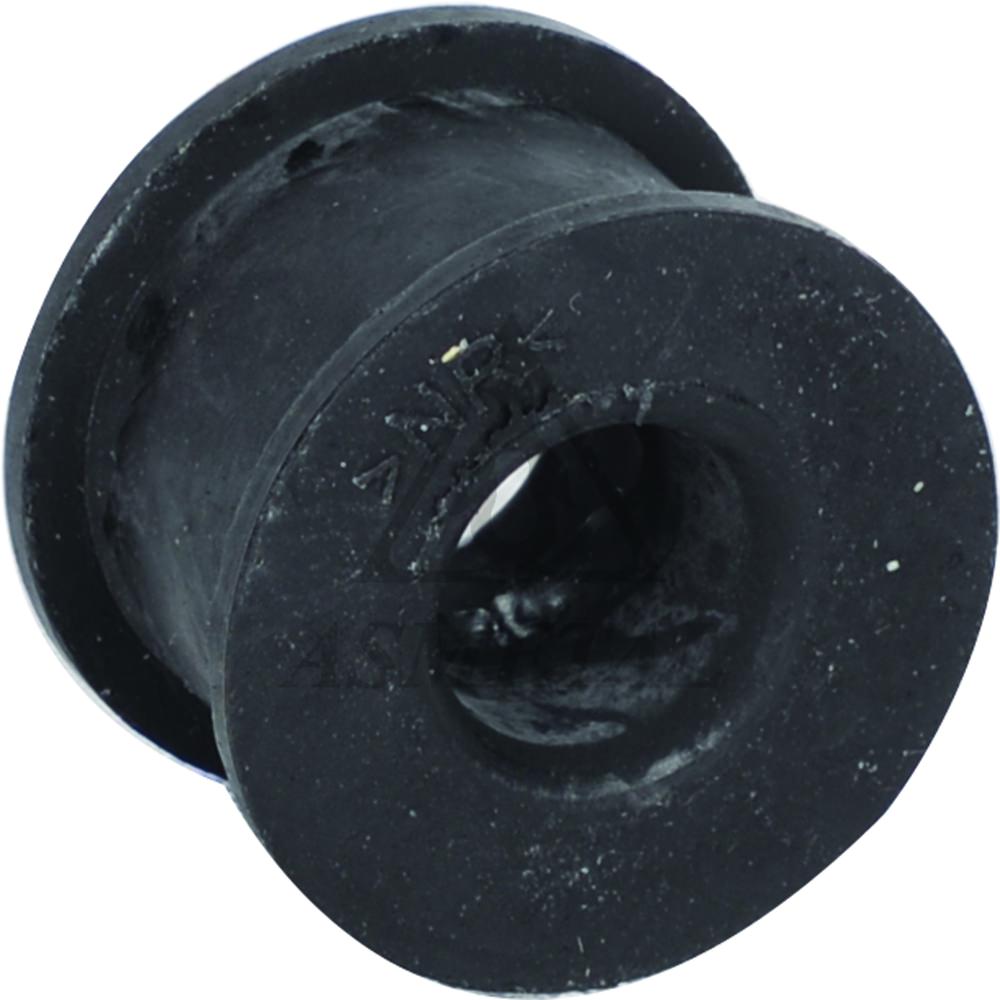

38AU3010
|
Stabiliser Mounting |
di:Ø14,5 do:Ø29 / 0,02 kg |
1J0 411 327 |
 |
38AU3020
|
Silentblock for TCA |
di:Ø12,2 do:Ø39,5 / 0,19 kg |
5Q0 407 182 A, 5Q0 407 182 (4) OEM |
 |
38AU3021
|
Silentblock for TCA |
di:Ø13,2 do:Ø65 / 0,35 kg |
5Q0 407 183 D, 5Q0 407 183 G (7) OEM |
 |
38AU3030
|
Silentblock for TCA |
di:Ø12,2 do:Ø39,5 / 0,19 kg |
1K0 407 182, 1K0 407 182 F (4) OEM |
 |
38AU4001
|
Silentblock for TCA |
di:Ø12,1 do:Ø64 / 0,44 kg |
4D0 407 183 AB, 4D0 407 183 AC (5) OEM |
 |
38AU5000
|
Silentblock for TCA |
di:Ø12,2 do:Ø45,2 / 0,15 kg |
8N0 407 182 A, 1ML 407 182 |
 |
38SK1605
IN PREPARATION
|
Axle Beam Bushing |
|
5Q0 501 541 C, 5Q0 501 541 F |
 |
38VW1230
|
Silentblock for TCA |
0,11 kg |
5Q0 505 311 D*, 5Q0 505 171 |
 |
38VW1261
|
Silentblock for TCA Right |
0,7 kg |
1K0 199 232 P, 1K0 199 232 J (2) OEM |
 |
38VW1262
|
Silentblock for TCA Left |
0,7 kg |
1K0 199 231 J, 1K0 199 231 P (4) OEM |
 |
38VW1270
|
Strut Mount |
di:Ø32 do:Ø65,5 / 0,21 kg |
1J0 412 331, 1J0 412 331 C (1) OEM |
 |
38VW1271
|
Strut Mount With Bearing |
di:Ø32 do:Ø65,5 / 0,27 kg |
1J0 412 331 BS, 1J0 412 331 CS (4) OEM |
 |
38VW1273
|
Bearing |
di:Ø14.2 do:Ø45.5 L:13.8mm / 0,07 kg |
357 412 249 A, 1J0 412 249 (10) OEM |
 |
38VW1502
|
Axle Beam Bushing |
di:Ø12,5 do:Ø69,2 / 0,64 kg |
1J0 501 541 D |
 |
38VW1503
|
Axle Beam Bushing |
di:Ø18 do:Ø51 L:30.9mm / 0,13 kg |
1J0 199 429 |
 |
38VW1504
|
Silentblock for TCA |
0,2165 kg |
1J0 505 203, 1J0 505 365 N |
 |

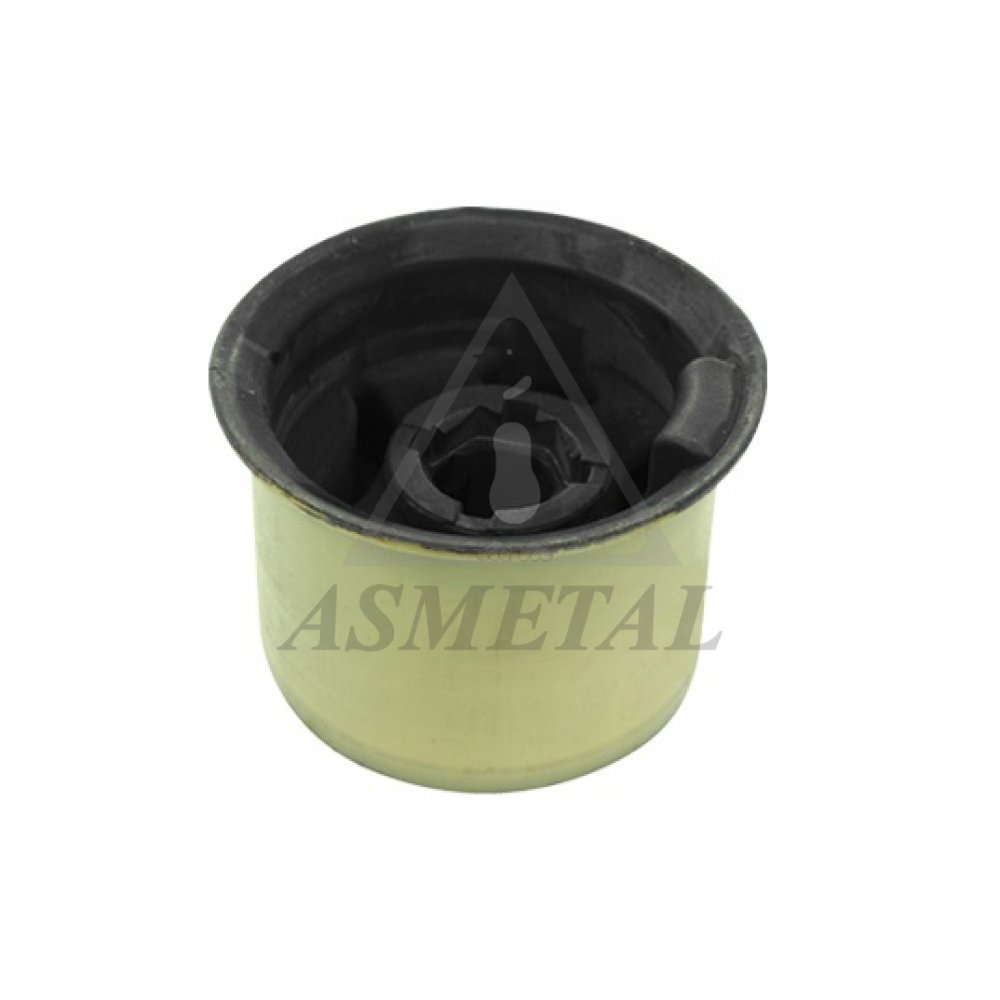

38VW1607
|
Silentblock for TCA |
do: Ø64 / L:50.5 / 0,14 kg |
3C0 199 231 F SK, 1K0 199 232 K SK (5) OEM |
 |
38VW1609
|
Silentblock for TCA |
di: Ø12.1 / do: Ø42.4 / L: 60 / 0,1 kg |
1K0 505 311 S, 1K0 505 311 AH (8) OEM |
 |
38VW1617
IN PREPARATION
|
Stabiliser Mounting |
Ø18,5 |
1K0 511 327 AR |
 |

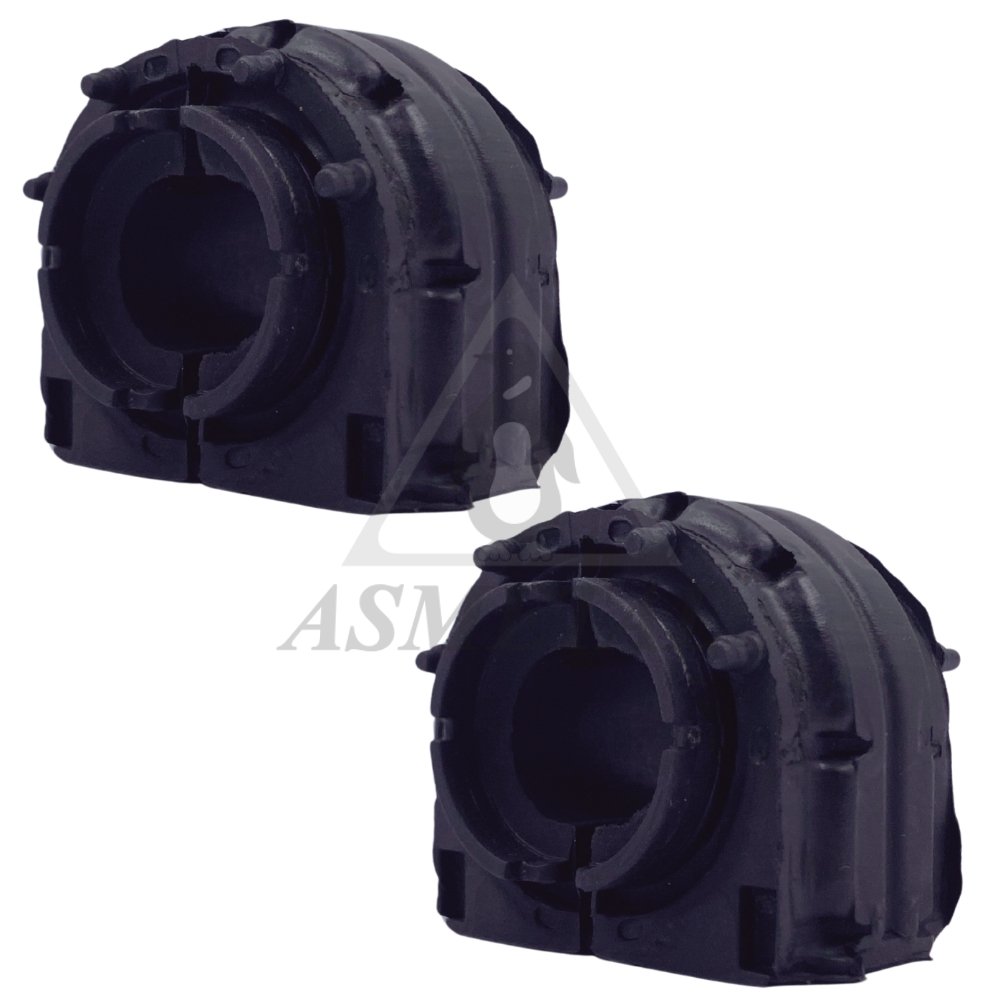

38VW1618
IN PREPARATION
|
Stabiliser Mounting |
Ø19 |
1K0 511 327 AS |
 |
38VW1623
IN PREPARATION
|
Stabiliser Mounting |
Ø21-23 |
1K0411303L, 3C0411303AA* (7) OEM |
 |
38VW1700
|
Silentblock for TCA |
0,13 kg |
1K0 505 553, 1K0 505 553 A |
 |

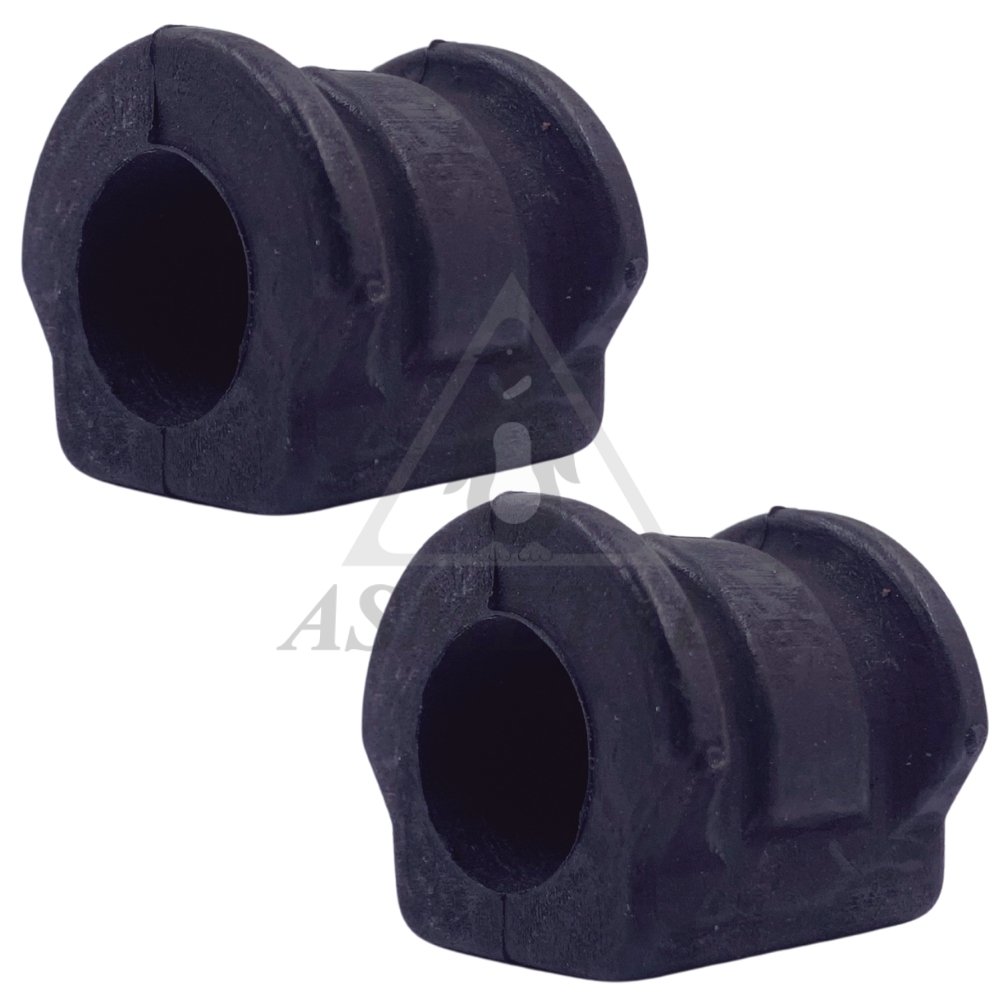

38VW2000
|
Stabiliser Mounting |
di:Ø20,8 / 0,03 kg |
8Z0 411 314 B |
 |
38VW2090
|
Bellow Driveshaft (KIT) |
di: Ø26 / do: Ø91 / L: 122 / 0,3 kg |
6C0 498 203, 1K0 498 203 (1) OEM |
 |
45SE1230
IN PREPARATION
|
Suspension Support Buffer Rear |
0 kg |
6Q0 512 131 D |
 |
45VW1505
|
Strut Mount |
0,35 kg |
1J0 513 353 D, 1J0 513 353 C (6) OEM |
 |
45VW1520
|
Suspension Support Buffer Rear |
di:Ø13 do: Ø59 L:145.5mm / 0,1 kg |
1J0 512 131 |
 |
45VW1600
|
Engine Mounting |
di:Ø15.2 do: Ø91.5 L:35.5mm / 0,24 kg |
1K0 199 867 P, 1K0 199 867 Q (4) OEM |
 |
45VW1601
|
Strut Mount |
di: Ø11 L: 62 / 0,34 kg |
5Q0 513 353 H |
 |
45VW1602
NEW
|
Strut Mount |
0,34 kg |
5Q0 513 353 G, 5Q0 513 353 K (2) OEM |
 |
45VW1605
|
Strut Mount |
di: Ø14.2 / L: 52 / 0,77 kg |
1K0 412 331 B, 1K0 412 331 C |
 |
45VW1606
|
Strut Mount With Bearing |
di: Ø14.2 / 1 kg |
1K0 412 331 B, 6N0 412 249 C (4) OEM |
 |
45VW1607
NEW
|
Bearing |
0,25 kg |
1K0 412 249 B, 6N0 412 249 C (3) OEM |
 |
45VW1608
NEW
|
Strut Mount |
0,69 kg |
5Q0 412 331 E, 5Q0 412 331 F (7) OEM |
 |
45VW1609
NEW
|
Engine Mounting |
0,60 kg |
5Q0 199 855 AB, 5Q0 199 855 AF (1) OEM |
 |
45VW1621
|
Suspension Support Buffer Front |
di:Ø25 do: Ø49 L:87.5mm / 0,05 kg |
6K0 413 031 B, 357 412 303 F (4) OEM |
 |
45VW1622
|
Suspension Support Buffer Front |
di:Ø24.5 do: Ø55 L:56.5mm / 0,08 kg |
5Q0 412 303 B, 1K0 412 303 AE |
 |
45VW1624
|
Suspension Support Buffer Front |
di:Ø23 do: Ø57 L:50mm / 0,04 kg |
1J0 412 303 |
 |
45VW1625
|
Suspension Support Buffer Front |
di:Ø24 do: Ø55 L:86mm / 0,1 kg |
5Q0 412 303 |
 |
45VW1626
|
Suspension Support Buffer Front |
di:Ø27 do: Ø50 L:90.4mm / 0,1 kg |
1K0 412 303 H |
 |
45VW1636
|
Suspension Support Buffer Rear |
di:Ø22.5 do: Ø59.6 L:113mm / 0,11 kg |
5Q0 511 357 J, 5Q0 511 357 N |
 |
45VW1637
|
Suspension Support Buffer Rear |
di:Ø22 do: Ø59 L:134mm / 0,13 kg |
5Q0 511 357 F |
 |

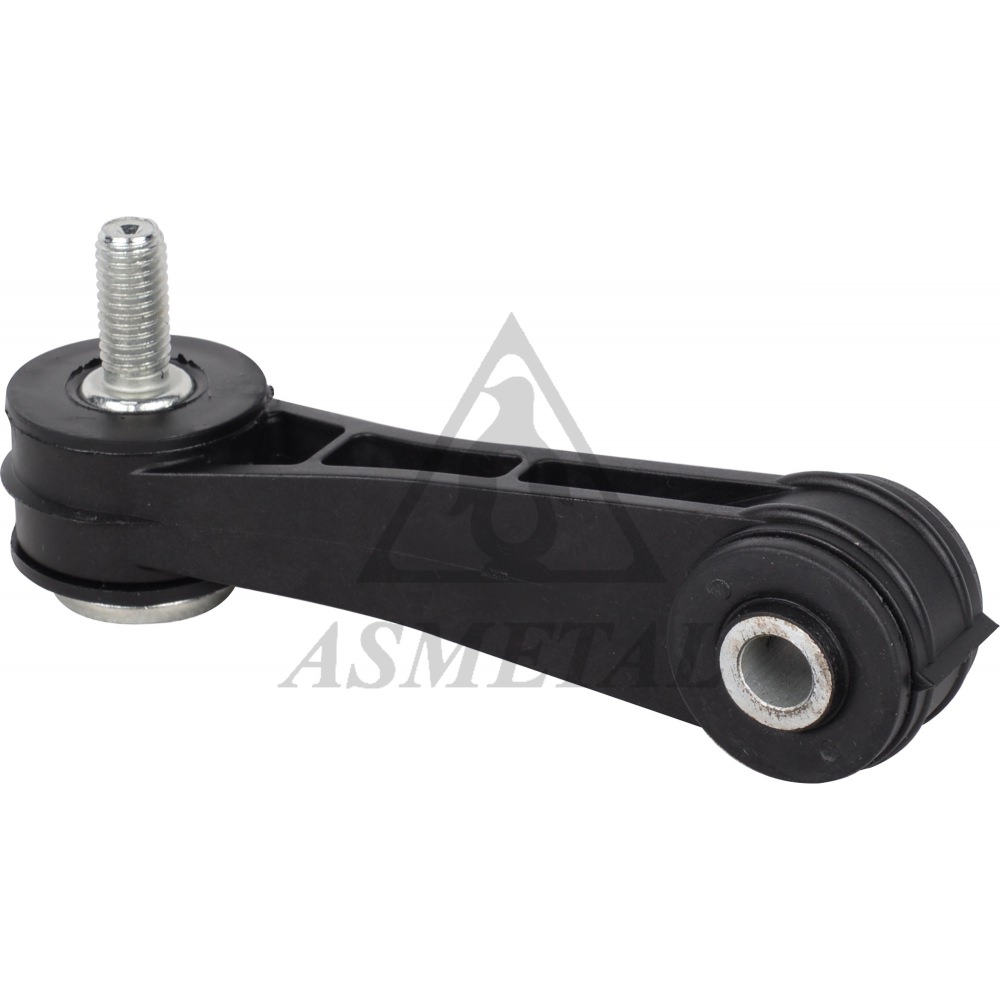

526VW1500
|
Stabiliser Link |
L: 105 tp: MM8x1,25 / 0,18 kg |
1J0 411 315, 1J0 411 315 B (5) OEM |
