ASMETAL Catalogue

TOYOTA > AURIS (14 Quantity)

ASMETAL No	Product Description	Dimensions	Oem No
10TY2000	Ball Joint	th:M14x1.5 RHT cr:1/6 c:Ø17.7 / 0,84 kg	43330-19275, 43330-49095 (8) OEM
11TY2000 IN PREPARATION	Silentblock Bushing		42304-05140, 42304-05141 (4) OEM

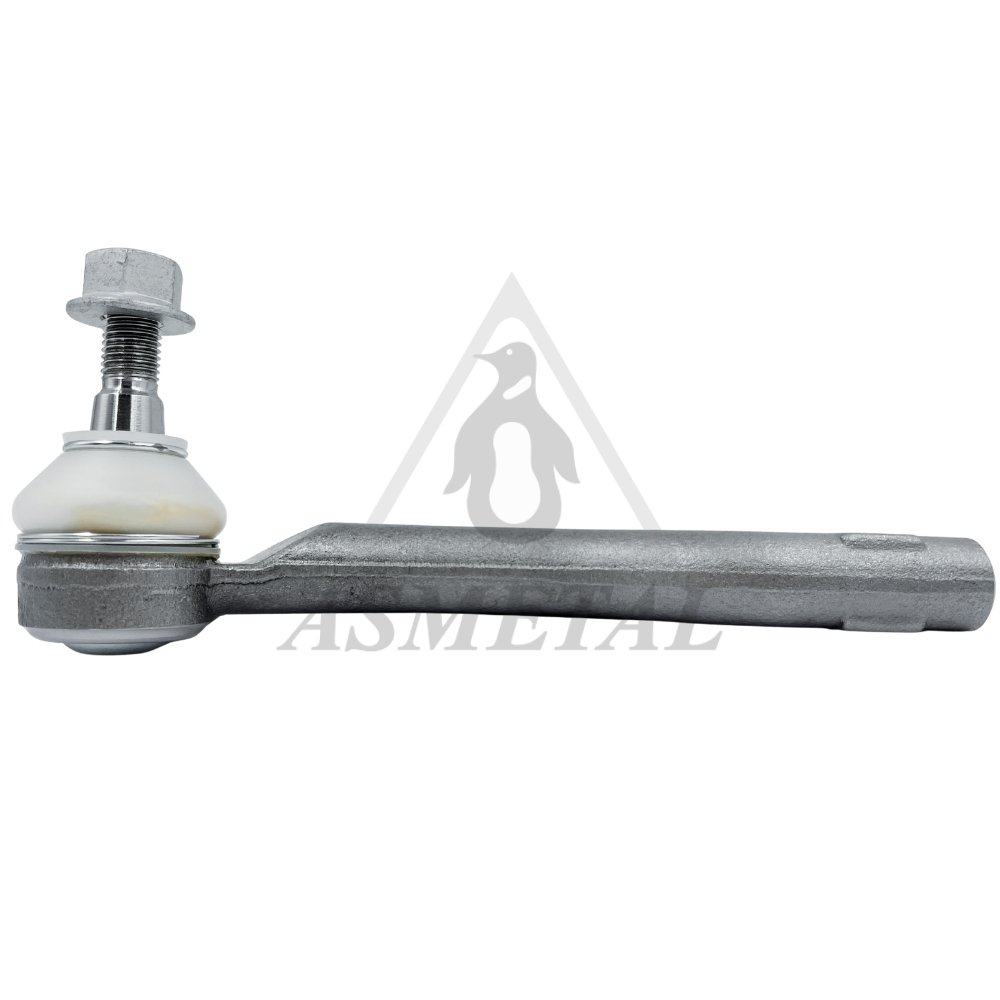

17TY2000	Tie Rod End Left	L:186 cr:1/6 c:Ø13.6 tp:M12x1.5 th:FM15x1.5 RHT / 0,72 kg	45047 19215, 45047 19205 (2) OEM

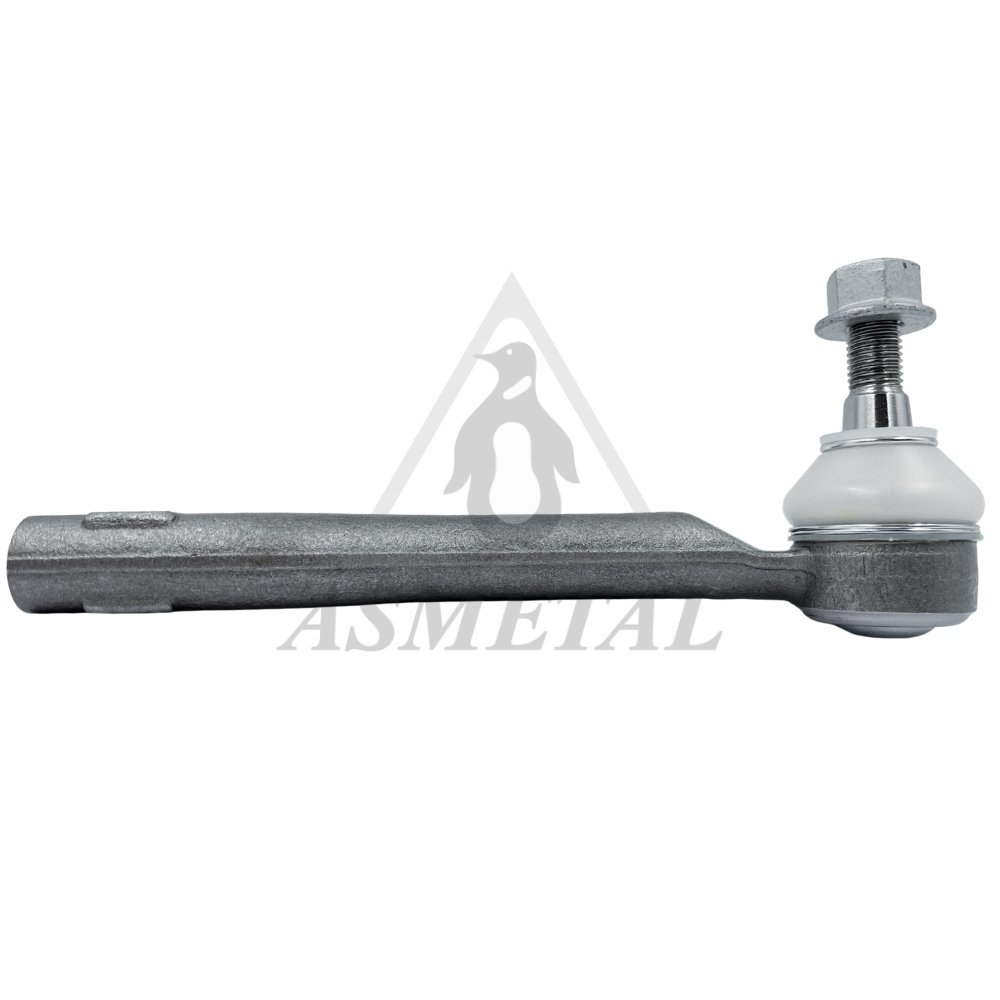

17TY2001	Tie Rod End Right	L:186 cr:1/6 c:Ø13.6 tp:M12x1.5 th:FM15x1.5 RHT / 0,72 kg	45046 19415, 45046 19405 (1) OEM
20TY2000	Axial Joint	L:233 tp:M15x1.5 th:MM14x1.5 RHT / 0,58 kg	45510 12391, 45510 12390
23TY0210	Track Rod Rear	tp:M12x1.25 RHT cr:1/6 c:Ø15.5 / 1,1 kg	48710 05090, 48710 72010
26TY2000	Stabiliser Link	L:360 tp:M12x1.25 RHT / 0,62 kg	48820 02070, 48820 0R010 (3) OEM
26TY2020 IN PREPARATION	Stabiliser Link Rear		48830 12070, 48830 05030
30TY2000 NEW	Track Control Arm Left	5,00 kg	48069 0F030, 48069 12300 (1) OEM
30TY2001 NEW	Track Control Arm Right	5,00 kg	48068 02130, 48068 0F030 (1) OEM
38TY2000	Silentblock for TCA	L:59.5 di:Ø16.2 do:Ø68.2 / 0,38 kg	48069 42060, 48068 47050 (8) OEM
38TY2001	Silentblock for TCA	L:65.5 di:Ø16.2 do:Ø40.5 / 0,23 kg	48068 47050, 48068 42060 (22) OEM
38TY2020	Stabiliser Mounting	L:48 di:Ø21.5 / 0,065 kg	48818 05120, 48818 05130 (1) OEM
45TY2000 NEW	Strut Mount	1,04 kg	48609 12500, 48609 12570 (4) OEM
