ASMETAL Catalogue

TOYOTA > YARIS (17 Quantity)

	ASMETAL No	Product Description	Dimensions	Oem No
	10TY0206	Ball Joint Lower	th:M14x1.5 RHT cp:1/6 cs:Ø15 / 0,8 kg	T43330 09A50 00, 43330 19115 (2) OEM
	10TY1600	Ball Joint Lower	th:MM12x1.5RHT cp:1/6 cs:Ø13.5 / 0,3 kg	3521 L3, 3520 Q2 (11) OEM
	17TY0101	Tie Rod End	c:Ø12,45 th:FM14x1,5 RHT / 0,36 kg	45046 09700, 45046 19175 (1) OEM

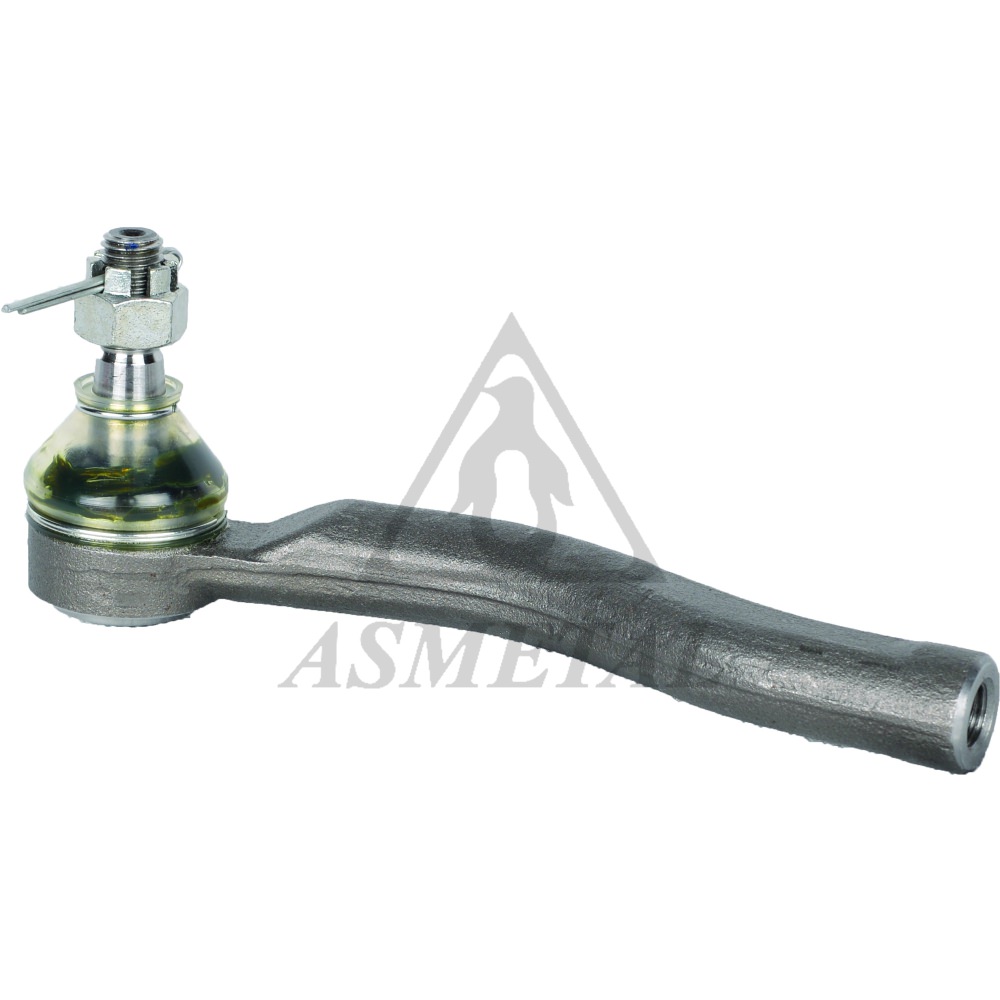

	17TY1000	Tie Rod End Left	c:Ø12,6 th:FM12x1,25 RHT / 0,67 kg	45047 59025, 45047-59026

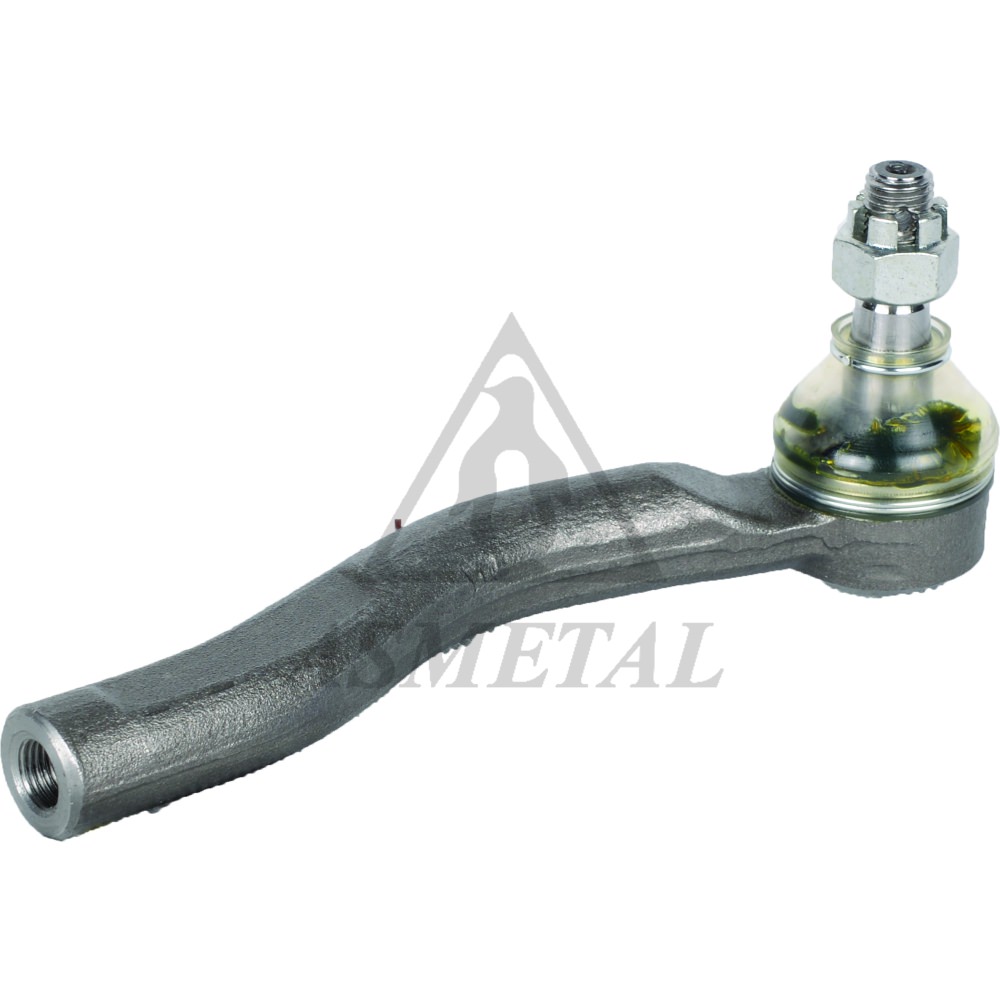

	17TY1001	Tie Rod End Right	c:Ø12,6 th:FM12x1,25 RHT / 0,67 kg	45046 59025, 45046 59026
	17TY1602 IN PREPARATION	Tie Rod End Left		45047 09220, 45047 59135 (1) OEM
	17TY1603 IN PREPARATION	Tie Rod End Right		45046 09480, 45046 59195 (1) OEM
	20TY1005 IN PREPARATION	Axial Joint		45503 52010, 45503 59045
	20TY1600 IN PREPARATION	Axial Joint		45500 0D111, 45503 52070 (1) OEM*
	20TY6000 NEW	Axial Joint	0,68 kg	45510-47140, 45510-47150 (16) OEM
	26TY1050 IN PREPARATION	Stabiliser Link	0 kg	48819 52010, 48817 52010 (4) OEM
	26TY1600	Stabiliser Link	th:MM12x1.5 RHT L: 360mm / 0,52 kg	48820 0D020, 48820 0D080 (3) OEM
	38TY1022 IN PREPARATION	Stabiliser Mounting	Ø22	48815-52010
	38TY1600	Silentblock for TCA	di:Ø12.2 do:Ø55.2 L:58mm / 0,29 kg	48655 0D080, 48069 59055S (7) OEM
	38TY1601	Silentblock for TCA	di: Ø12.1 / do: Ø33 / L: 53 / 0,112 kg	B0 007 701 80, B0 007 702 80 (7) OEM
	38TY1610	Silentblock for TCA	di:Ø21.2 do: Ø60.2 L:62mm / 0,27 kg	48068 09040, 48069 09040 (4) OEM
	38TY1701	Silentblock for TCA	0,2500 kg	48068 K0020, 48069 K0020 (1) OEM
