10OP1300
|
Ball Joint Lower |
tp: M12x1.75 cr: 1:6 c: Ø12.5 do: Ø36 / 0,32 kg |
39 021 472*, 39 021 473* |
 |
10OP1400
IN PREPARATION
|
Ball Joint Upper |
0 kg |
3 24 000, 13 258 056 |
 |
10OP2000
|
Ball Joint Lower |
c:Ø18 / 0,53 kg |
3 52 800, 3 52 829 (7) OEM |
 |
10OP9115
|
Ball Joint Lower |
th:M12x1.25 RHT cp:1/8 cs:Ø14,1 / 0,56 kg |
16 03 115, 90 094 792 |
 |
10OP9120
|
Ball Joint Lower |
th:M12x1.25 RHT cp:1/6 cs:Ø13,3 / 0,59 kg |
94 786 917, 96 216 354 (7) OEM |
 |
10OP9167
|
Ball Joint Lower |
th:M12x1.25 RHT cp:1/6 cs:Ø13,3 / 0,54 kg |
16 03 167, 16 03 163 (4) OEM |
 |
10PE1200
|
Ball Joint Lower |
th:MM14x1.5 RHT cs:Ø16.5 cp: 1/5 / 0,91 kg |
98 310 882 80, 96 721 924 80 |
 |
17OP1000
|
Tie Rod End |
L: 135.5 cr: 1:6 c: Ø13.4 tp: M12x1.5 th: FM14x1.5 / 0,44 kg |
16 03 214, 16 03 542 (4) OEM |
 |
17OP1010
|
Tie Rod End Left |
c:Ø13,35 th:FM14x1,5 RHT / 0,48 kg |
16 03 268, 16 03 359 (8) OEM |
 |
17OP1011
|
Tie Rod End Right |
c:Ø13,35 th:FM14x1,5 RHT / 0,48 kg |
93 181 229, 16 03 267 (6) OEM |
 |
17OP1300
|
Tie Rod End Left |
c:Ø13.5 L:143 FM14x1.5RHT MM12x1.75RHT / 0,5 kg |
39 008 084 |
 |
17OP1301
|
Tie Rod End Right |
c:Ø13.5 L:143 FM14x1.5RHT MM12x1.75RHT / 0,5 kg |
39 008 083 |
 |
17OP1400
|
Tie Rod End |
c:Ø13,1 th:FM16x1,5 RHT / 0,6 kg |
13 272 000, 13 278 359 (3) OEM |
 |
17OP4036
|
Tie Rod End Left |
c:Ø13 th:FM16x1,5 RHT / 0,4 kg |
90 094 762, 3 24 036 |
 |
17OP4037
|
Tie Rod End Right |
c:Ø13 th:FM16x1,5 LHT / 0,4 kg |
3 24 037, 90 094 763 |
 |
17OP4038
|
Tie Rod End Right |
c:Ø13 th:FM16x1,5 LHT / 0,46 kg |
260 01 806, 96 275 019 (3) OEM |
 |
17OP4039
|
Tie Rod End Left |
c:Ø13 th:FM16x1,5 RHT / 0,46 kg |
26 001 807, 7 846 495 (3) OEM |
 |
17OP4040
|
Tie Rod End Left |
c:Ø13 th:FM16x1,5 RHT / 0,4 kg |
3 24 040, 90 140 432 |
 |
17OP4041
|
Tie Rod End Right |
c:Ø13 th:FM16x1,5 RHT / 0,4 kg |
3 24 041, 90 140 433 |
 |
17OP4055
|
Tie Rod End Left |
c:Ø13 th:FM16x2 RHT / 0,46 kg |
3 24 053, 3 24 055 (3) OEM |
 |

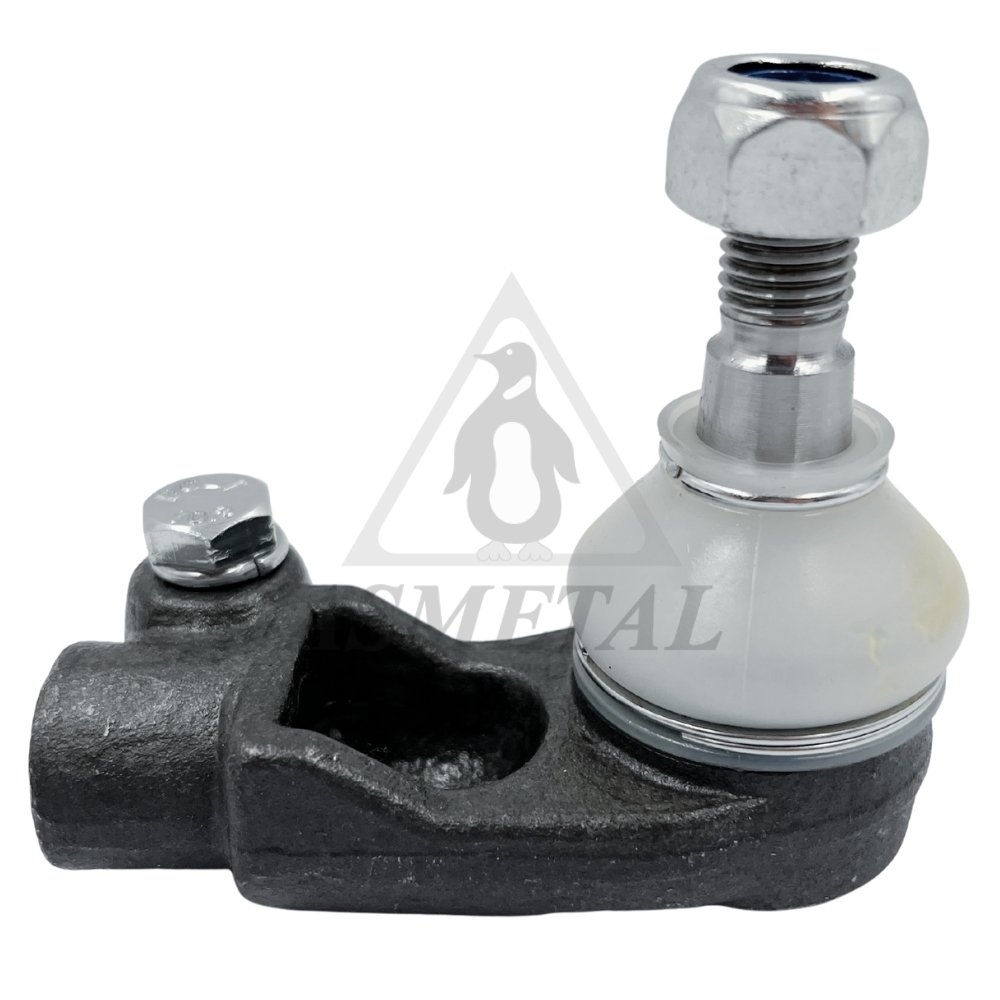

17OP4056
|
Tie Rod End Right |
c:Ø13 th:FM16x2 LHT / 0,46 kg |
3 24 054, 3 24 056 (3) OEM |
 |

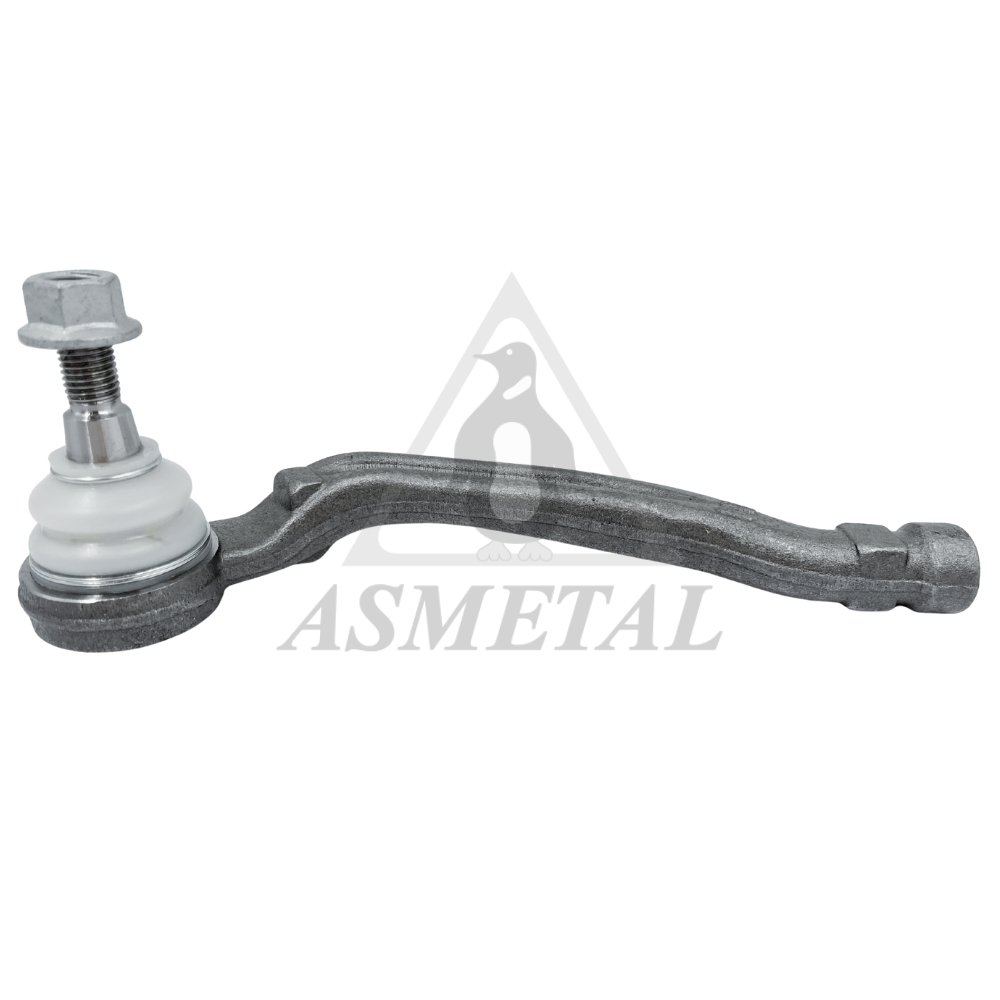

17PE1200
|
Tie Rod End Left |
th1: FM14x1.5RHT th2: MM12X1.5R cs: Ø14.5 cp: 1/5 L: 215mm / 0,8 kg |
16 108 177 80, 39 176 185* (2) OEM |
 |
20OP0500
|
Axial Joint |
th:MM18x1.5 RHT L:282,5mm / 0,61 kg |
16 03 216, 9 118 128 (12) OEM |
 |
20OP1020
|
Axial Joint |
th:MM16x1,5 RHT L:278mm / 0,55 kg |
1 603 357, 1 603 264 (2) OEM |
 |
20OP1100
|
Axial Joint |
th:MM16x1,5 RHT L:293mm / 0,7 kg |
13 278 358, 9 20 005 (1) OEM |
 |
20OP1110
IN PREPARATION
|
Axial Joint |
0 kg |
13 286 687, 13 398 593 (1) OEM |
 |
20OP1300
IN PREPARATION
|
Axial Joint |
0 kg |
13 464 344* |
 |
20OP4055
|
Bolt, Wheel Alignment |
th: MM16x2 LHT th: MM16x2 RHT L: 106 mm / 0,16 kg / 0,16 kg |
3 22 576, 3 22 577 (3) OEM |
 |
26OP03
|
Stabiliser Link |
L:85mm / 0,25 kg |
3 50 263, 45 44 599 (1) OEM |
 |

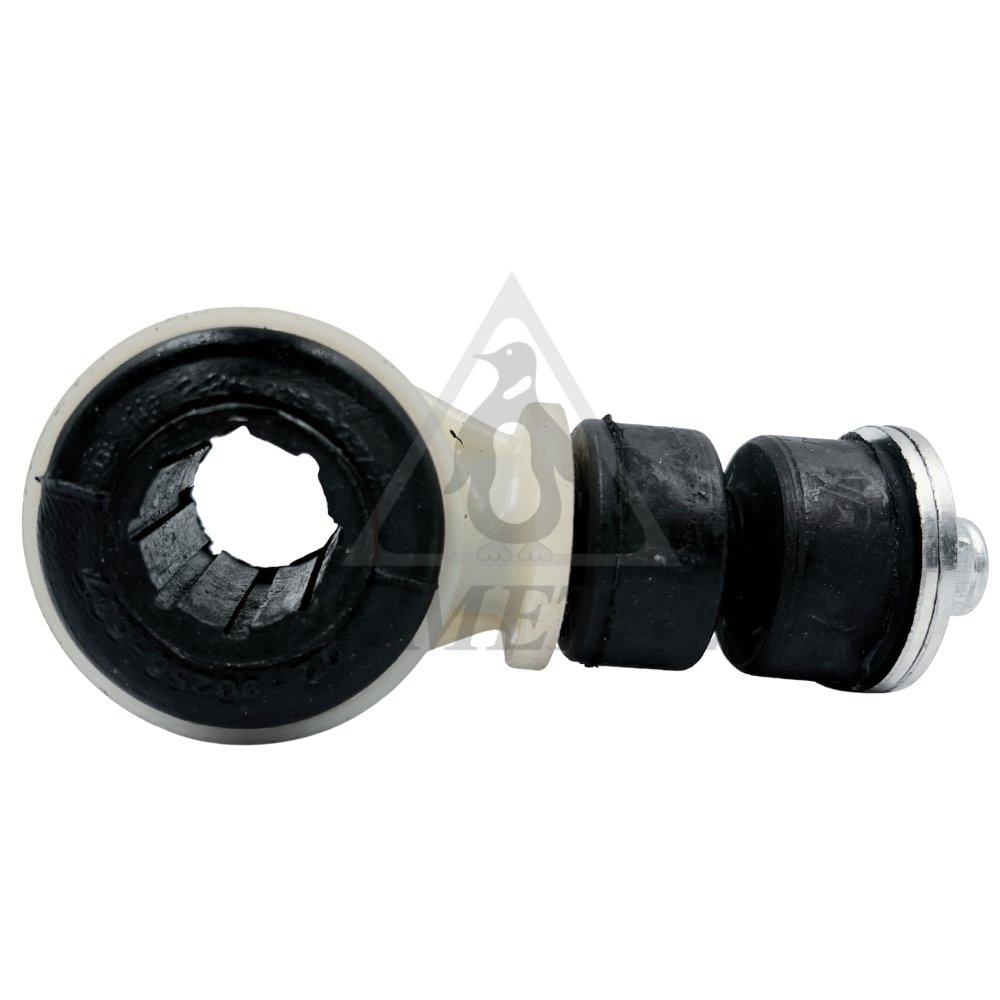

26OP0300
|
Stabiliser Link |
L:110mm Plastic / 0,17 kg |
3 50 260, 30 540 743 (1) OEM |
 |
26OP0301
|
Stabiliser Link |
L:104,8mm Plastic / 0,15 kg |
03 50 261, 3 50 261 (1) OEM |
 |
26OP1000
|
Stabiliser Link |
L:300mm Plastic / 0,35 kg |
3 50 614, 3 50 611 (2) OEM |
 |
26OP1005
|
Stabiliser Link |
L:300mm / 0,43 kg |
3 50 614, 3 50 611 (2) OEM |
 |

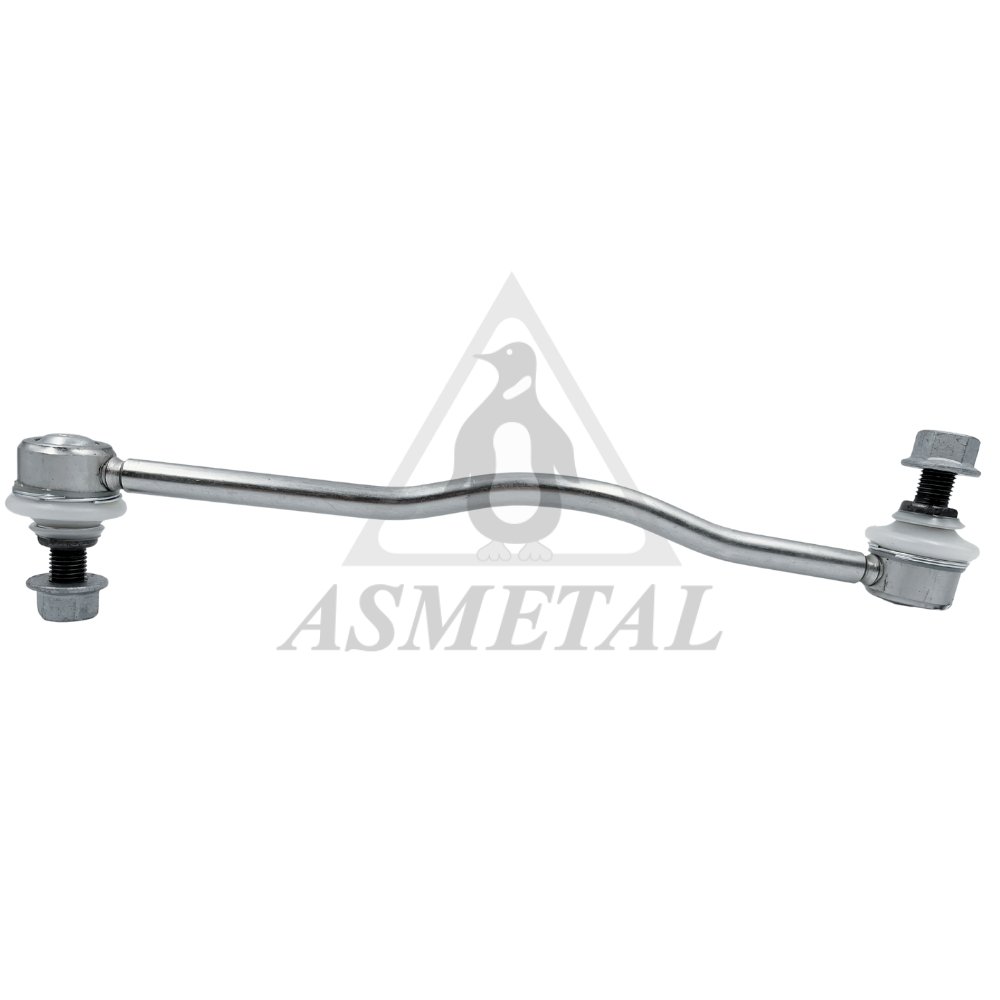

26OP1010
|
Stabiliser Link |
L: 300 / tp: MM12x1.5 / 0,56 kg |
3 50 613, 24 461 353 |
 |
26OP1300
|
Stabiliser Link Left |
th:MM12x1.5 RHT L:306mm / 0,5 kg |
39 064 480, 39 001 003 |
 |
26OP1301
|
Stabiliser Link Right |
th:MM12x1.5 RHT L:306mm / 0,5 kg |
39 001 004, 39 064 481 |
 |

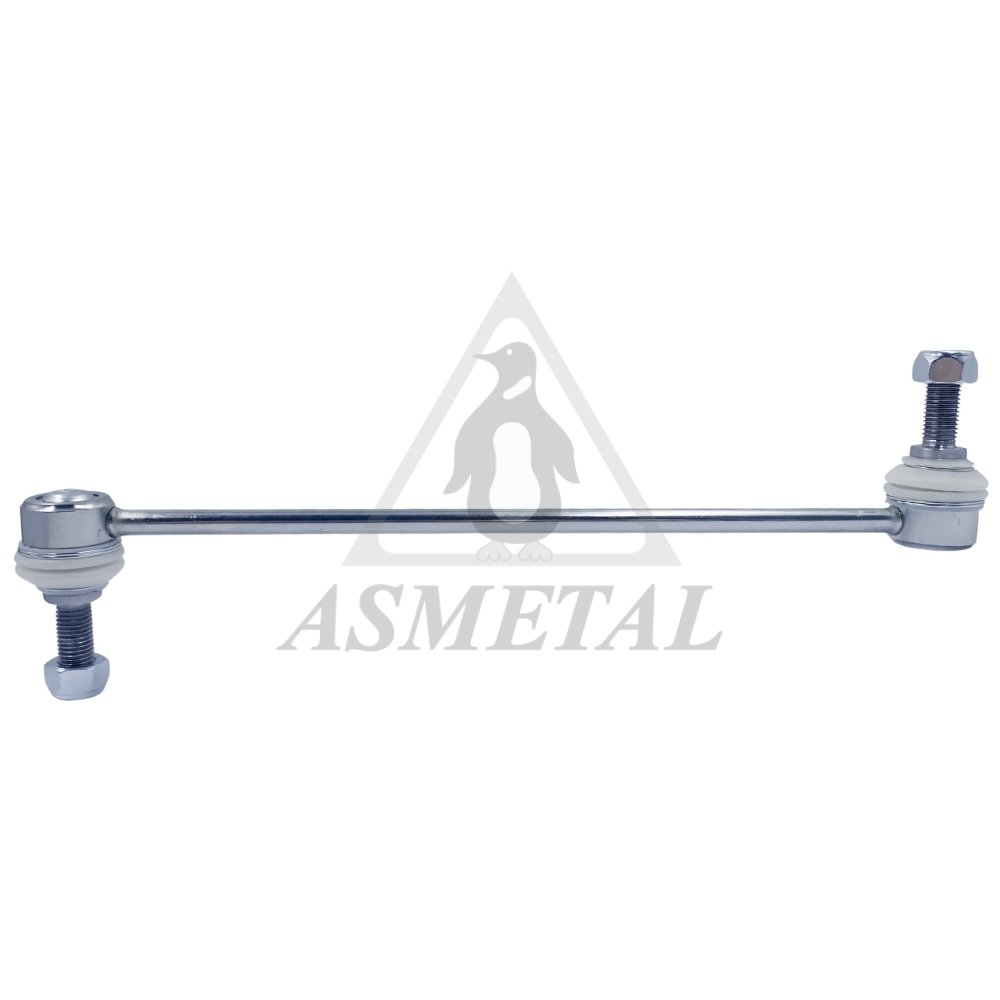

26OP1400
|
Stabiliser Link |
L:303mm / 0,44 kg |
3 50 618, 13 258 052 |
 |
26OP1405
|
Stabiliser Link |
L:304,5mm Plastic / 0,34 kg |
3 50 617, 13 219 141 |
 |
26PE0800
|
Stabiliser Link |
L:335mm / 0,42 kg |
98 049 474 80, 96 347 856 (16) OEM |
 |
30OP1300
IN PREPARATION
|
Track Control Arm Left |
3,1 kg |
39 010 110, 39 021 472 (1) OEM |
 |

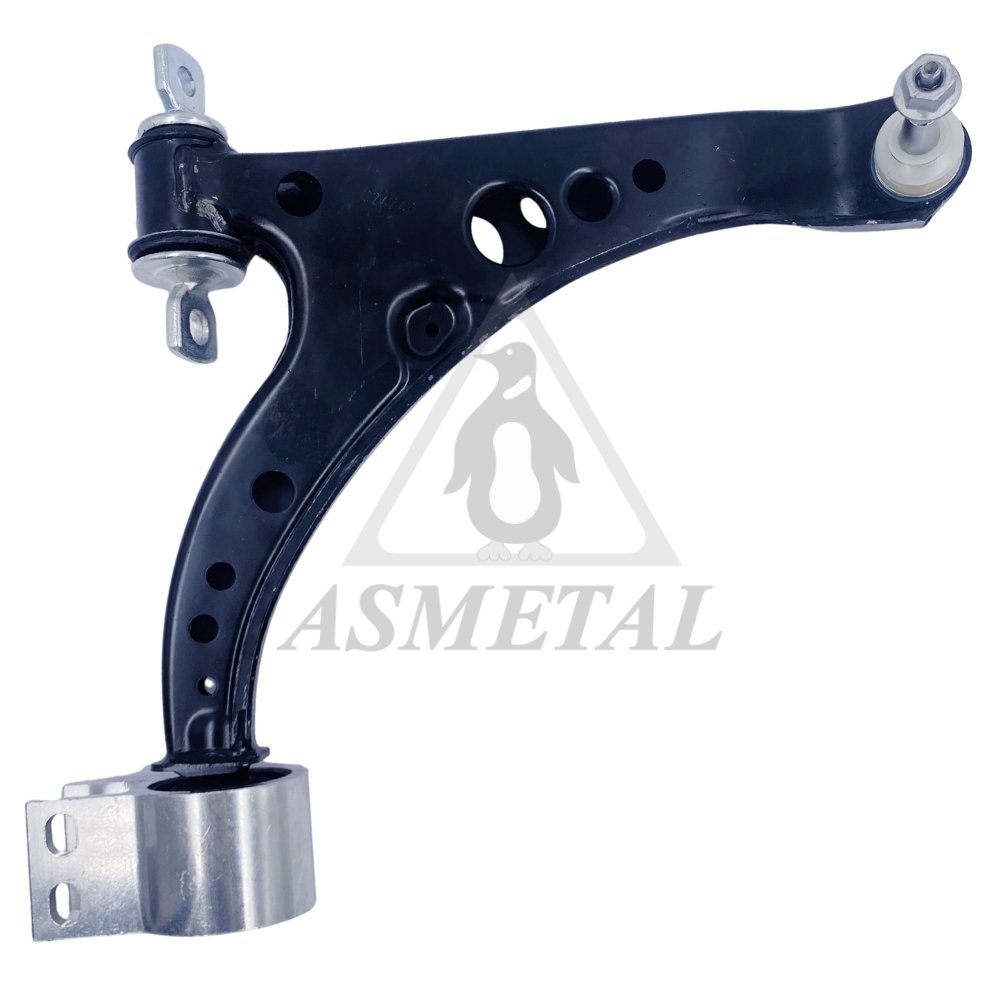

30OP1301
IN PREPARATION
|
Track Control Arm Right |
3,1 kg |
39 021 473, 39 001 026 (1) OEM |
 |
30OP2020
IN PREPARATION
|
Track Control Arm Left |
|
53 52 029, 53 52 016 (2) OEM |
 |

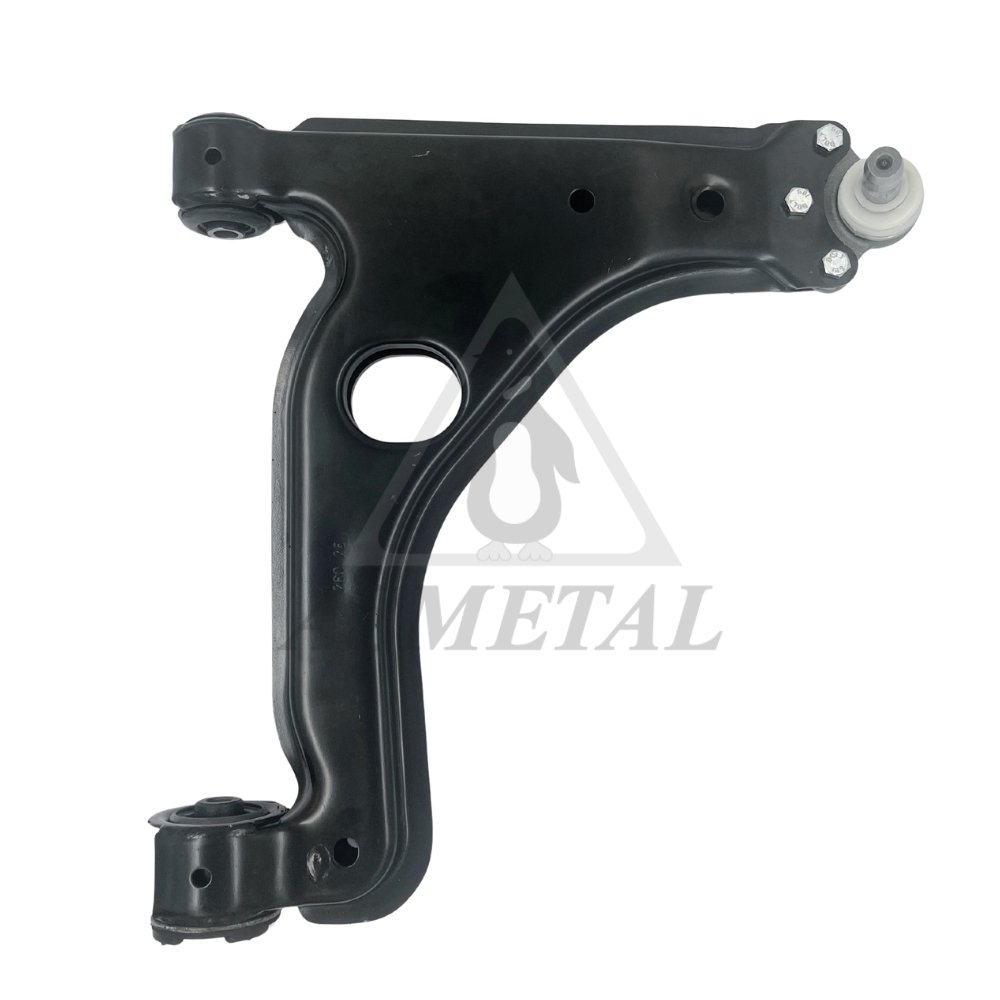

30OP2021
IN PREPARATION
|
Track Control Arm Right |
|
53 52 030, 53 52 017 (2) OEM |
 |
38OP0093
|
Stabiliser Mounting |
di: Ø 21 / do: Ø40 / L: 39 / 0,045 kg |
009 223 176, 090 581 043 (9) OEM |
 |

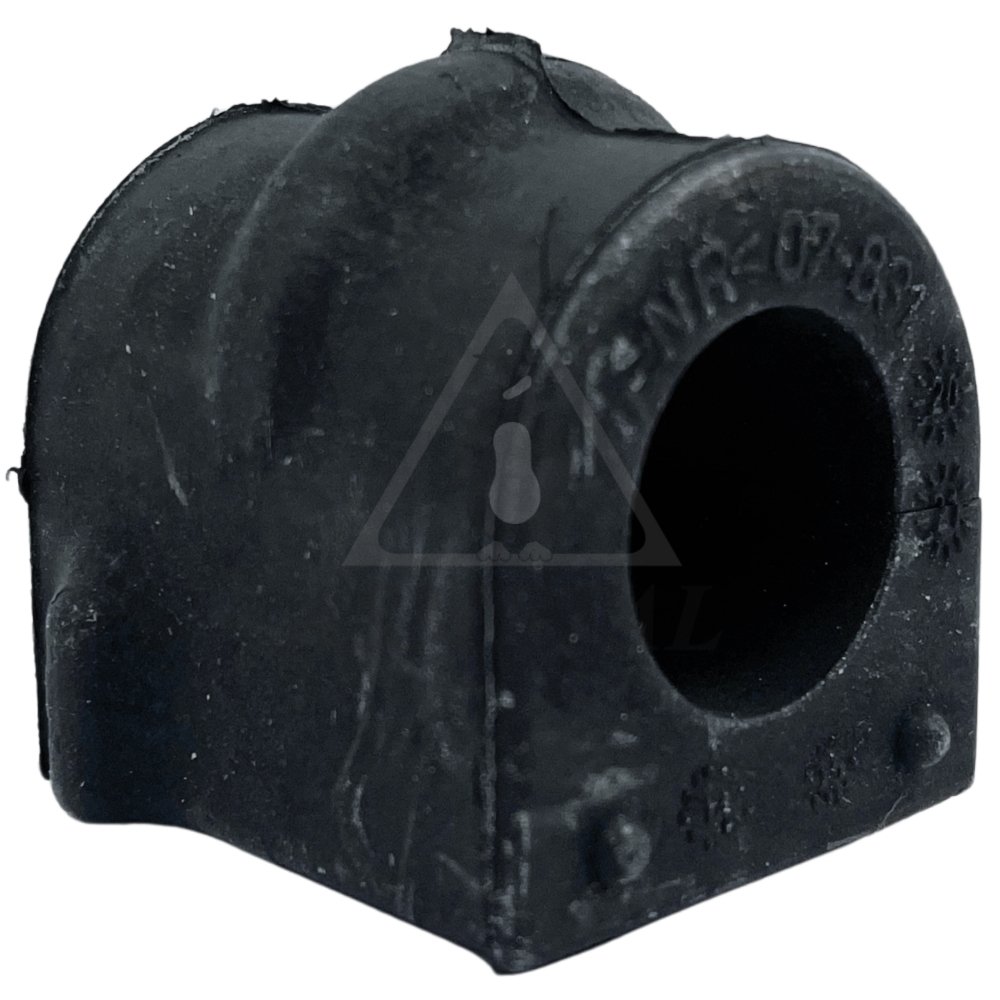

38OP0117
|
Stabiliser Mounting |
di: Ø20 / L: 39 / 0,04 kg |
3 50 117, 24 421 958 |
 |
38OP0140
|
Stabiliser Mounting |
di: Ø22 / L: 39 / 0,04 kg |
3 50 140, 90 581 398 |
 |
38OP1000
|
Stabiliser Mounting |
di:Ø8,5 do:Ø29,8 / 0,02 kg |
2 875 013, 3 50 153 (1) OEM |
 |
38OP1010
|
Mounting Axle Body |
di:Ø12,1 do:Ø59 / 0,29 kg |
4 02 645, 90 305 431 (1) OEM |
 |
38OP2000
|
Silentblock for TCA |
di:Ø12,1 do:Ø46 / 0,26 kg |
24 439 582, 3 52 324 |
 |
38OP2010
|
Mounting Axle Body |
di:Ø70 do:Ø13,2 L:90mm / 0,48 kg |
54 02 637, 4 02 952 (2) OEM |
 |
38OP2040
|
Silentblock for TCA |
di:Ø12,2 do:Ø38,5 / 0,13 kg |
3 52 300, 90 288 232 (4) OEM |
 |
38OP2041
|
Silentblock for TCA |
di:Ø16,1 do:Ø60,2 / 0,24 kg |
3 52 347, 3 52 348 (4) OEM |
 |
38OP2044
|
Stabiliser Mounting |
di:Ø19 / 0,04 kg |
03 50 123, 03 50 078 (2) OEM |
 |
38OP2050
|
Silentblock for TCA |
di:Ø12,2 do:Ø35,7 / 0,15 kg |
517 48 653*, 517 48 652* (9) OEM |
 |
38OP2051
|
Silentblock for TCA |
di:Ø12,1 do:Ø47,3 / 0,13 kg |
90 498 740, 3 52 365 |
 |
38OP2052
|
Mounting Axle Body |
di:Ø14 do:Ø38.2 L:35mm / 0,15 kg |
13 107 328, 3 02 067 (3) OEM |
 |

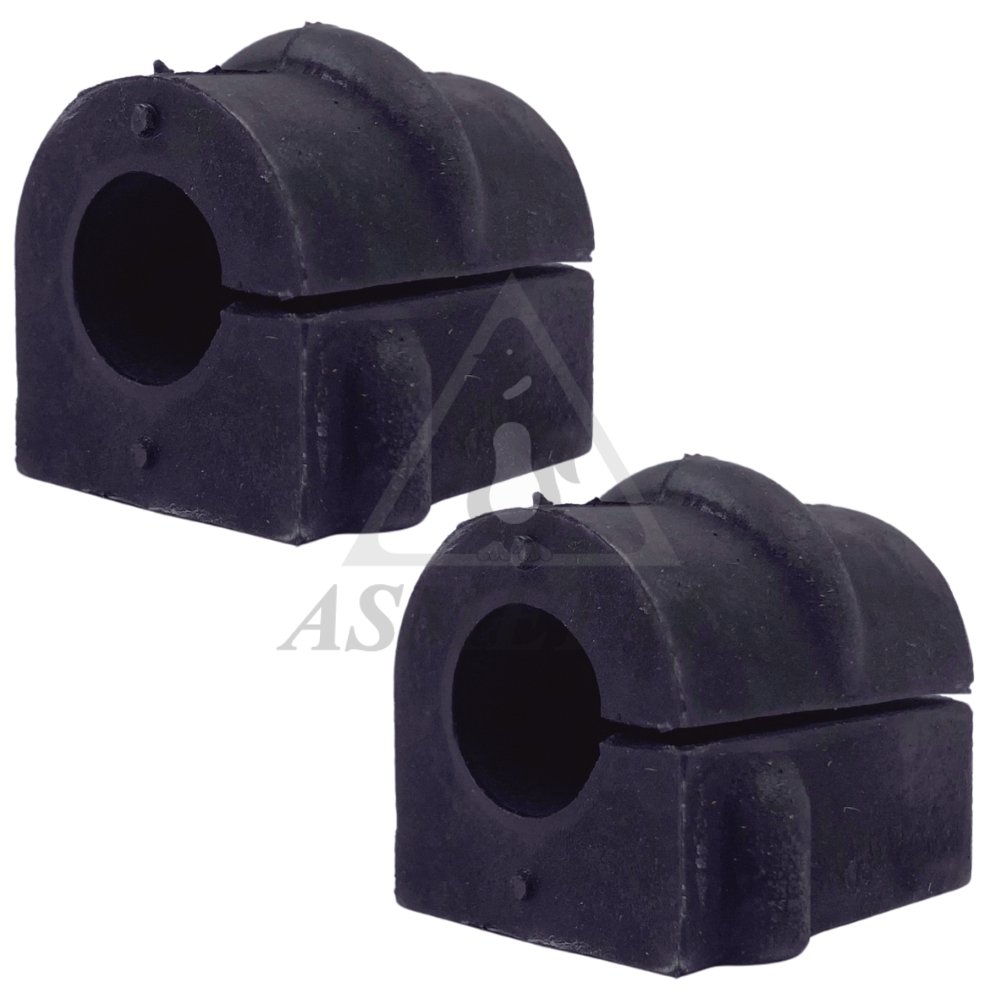

38OP2053
|
Stabiliser Mounting |
di:Ø17 / 0,04 kg |
3 50 130, 46 86 820 (1) OEM |
 |

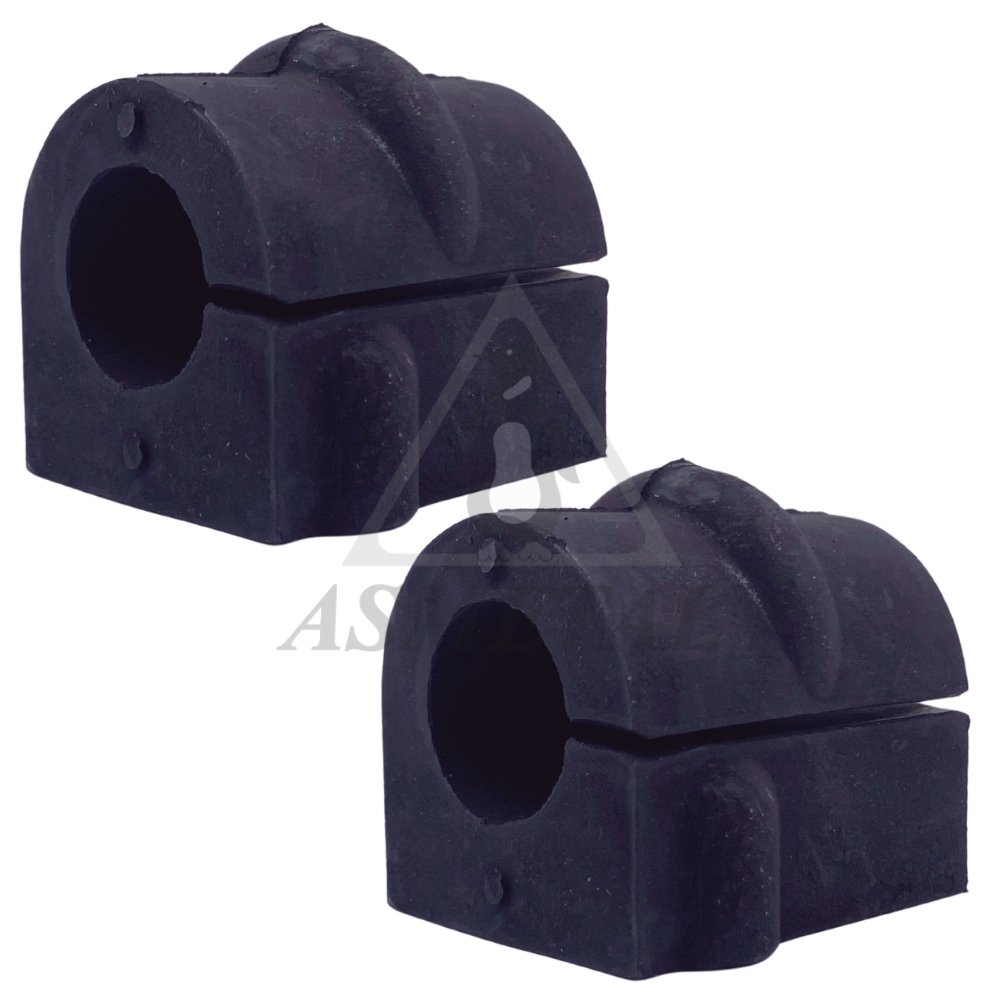

38OP2054
|
Stabiliser Mounting |
di:Ø17.2 L:39mm / 0,04 kg |
90 538 865, 3 50 138 (1) OEM |
 |
38OP2055
|
Mounting Axle Body |
di:Ø12,5 / 0,4 kg |
9 156 735, 9 156 379 (4) OEM |
 |
38OP2057
|
Mounting Axle Body |
di:Ø14 do:Ø38,5 / 0,12 kg |
3 02 275, 3 02 290 (2) OEM |
 |
38OP2060
|
Silentblock for TCA |
di:Ø22,5 do:Ø80,2 / 0,89 kg |
13 230 774, 13 334 021 (6) OEM |
 |
38OP2061
|
Silentblock for TCA |
di:Ø12,1 do:Ø40,6 / 0,21 kg |
13 321 342, 13 318 894* (8) OEM |
 |
38OP2062
|
Stabiliser Mounting |
di:Ø26 L:46.5mm / 0,08 kg |
13 346 848*, 13 281 782 (4) OEM |
 |
38OP2070
|
Stabiliser Mounting |
di:Ø19,7 do:Ø44 / 0,05 kg |
3 50 390, 3 50 391 (2) OEM |
 |
38OP2071
|
Stabiliser Mounting |
di:Ø19 / 0,04 kg |
13 204 071, 3 50 391 |
 |

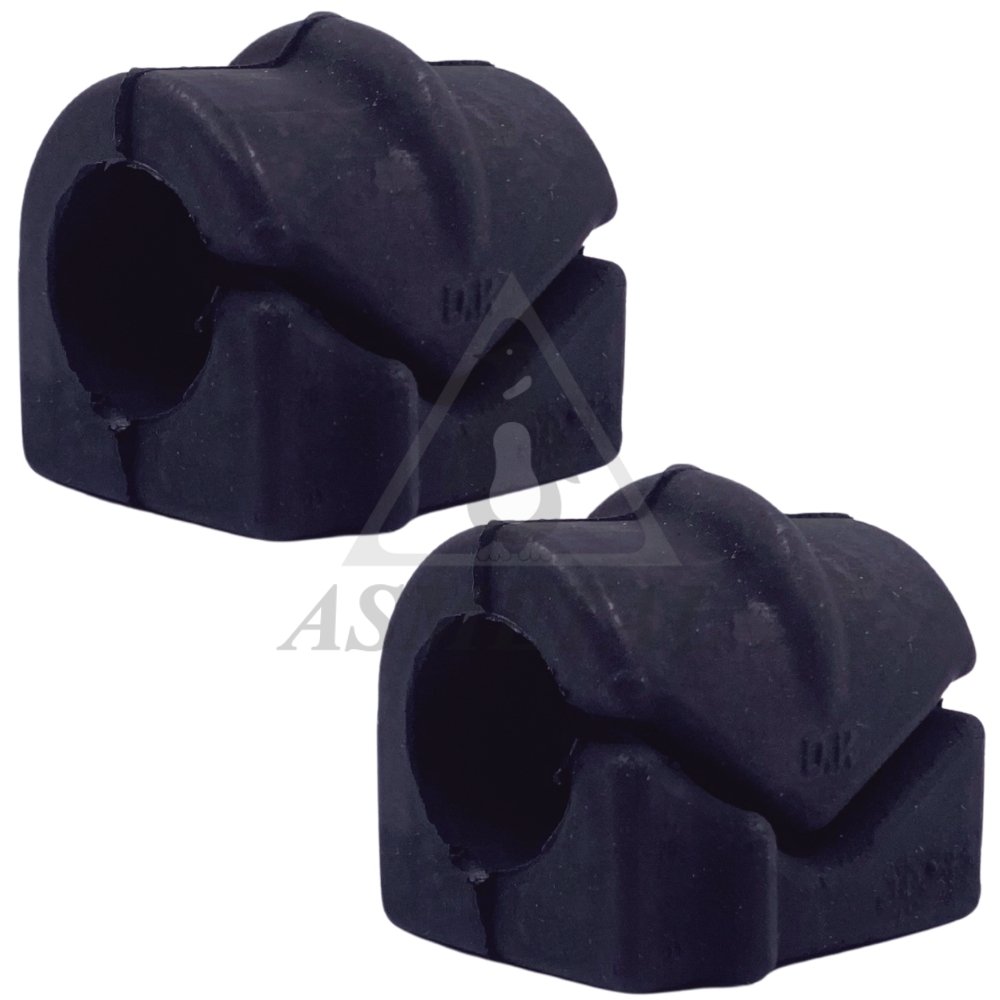

38OP2073
|
Stabiliser Mounting |
di:Ø19,5 / 0,03 kg |
03 50 161, 3 50 161 (2) OEM |
 |
38OP2644
|
Mounting Axle Body |
di: Ø12.6 / do: Ø60.5 / L: 90 / 0,43 kg |
4 02 644, 91 56 735 (3) OEM |
 |
38OP7100
|
Strut Mount |
di: Ø12,2 / do: Ø103 / L: 40 / 0,44 kg |
3 44 523, 90 468 554 (2) OEM |
 |
38OP9000
|
Bellow Steering |
di:Ø13,5 do:Ø52,5 L:189mm / 0,1 kg |
16 09 109, 26 059 295 (1) OEM |
 |
38PE1200
|
Silentblock for TCA |
di: Ø14.1 / do: Ø50.3 / L: 65 / 0,26 kg |
98 163 803 80, 3 644 790 (1) OEM |
 |
38PE1201
|
Silentblock for TCA |
di: Ø14,1 / do:Ø43,2 / L: 59,5 / 0,23 kg |
96 760 321 80, 3 637 432 |
 |
45OP1440
|
Strut Mount |
di: Ø14.2 / do: Ø113.5 / L: 47 / 0,78 kg |
13 505 131, 95 212 727 (8) OEM |
 |
45OP2000
|
Strut Mount |
0,62 kg |
3 44 517, 90 496 637 (2) OEM |
 |
45OP2003
OUT OF SERVICE
|
Strut Mount |
|
3 12 510, 90 468 618 |
 |
45OP2004
IN PREPARATION
|
Bearing |
|
90 236 985, 90 425 479 (2) OEM |
 |
45OP2015
|
Strut Mount |
di: Ø15 / do: Ø120 / L: 49.5 / 0,8 kg |
3 44 543, 13 186 959 (3) OEM |
 |
45OP4525
|
Strut Mount |
di: Ø12.2 / do: Ø113 / L: 42.5 / 0,46 kg |
3 44 525, 90 538 936 (2) OEM |
