ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10FI3505	Ball Joint Lower	c:Ø16 / 0,52 kg	518 95 367, 518 95 366 (16) OEM
10OP1500	Ball Joint Lower	c:Ø16 / 0,49 kg	3 52 803, 9 196 394
10OP9128	Ball Joint	c:Ø15 / 0,42 kg	90 442 294, 90 295 324 (5) OEM
10OP9130	Ball Joint	c:Ø15 / 0,6 kg	16 03 202, 90 542 574 (1) OEM
10PE1380 IN PREPARATION	Ball Joint		98 246 263 80
10PE1385 IN PREPARATION	Ball Joint		98 246 267 80
17FI3505	Tie Rod End Left	L:110 cr:1/6 c:Ø11.7 tp:M10x1.5 th:FM14x1.5 RHT / 0,39 kg	773 63 829, 3817 86 (5) OEM
17FI3506	Tie Rod End Right	L:110 cr:1/6 c:Ø11.7 tp:M10x1.5 th:FM14x1.5 RHT / 0,39 kg	773 63 830, 3817 87 (5) OEM
17OP1500	Tie Rod End	L:70 cr:1/6 c:Ø10.6 tp:M10x1.25 th:FM12x1.5 RHT / 0,28 kg	93 192 419, 3 24 050 (7) OEM
17OP4044	Tie Rod End	L:77 cr:1/6 c:Ø10.6 tp:M10x1.25 th:FM12x1.5 RHT / 0,32 kg	3 24 066, 16 03 455 (2) OEM
17OP4045 OUT OF SERVICE	Tie Rod End	0 kg	324042, 1603009 (7) OEM
20OP1500	Axial Joint	L:301.5 tp:M14x1.5 th:12x1.5 RHT / 0,53 kg	18 50 947, 16 03 845 (4) OEM
20OP1505	Axial Joint	0,56 kg	518 61 102, 519 09 749 (8) OEM
20OP1510	Axial Joint	L:307.5 tp:M14x1.5 th:MM12x1.5 RHT / 0,58 kg	16 03 017, 16 03 844 (2) OEM
20OP2000	Axial Joint	L:310 tp:M14x1.5 th:MM12x1.5 RHT / 0,61 kg	26 030 411, 16 03 453 (3) OEM
20OP2100	Axial Joint	L:281 tp:M14x1.5 th:MM12x1.5 RHT / 0,42 kg	26 032 284, 3 22 158
20PE1300 NEW	Axial Joint	0,6 kg	16 483 222 80
26OP05	Stabiliser Link	L:242 tp:M12x1.5 RHT / 0,4 kg	3 50 610, 52 36 823 (2) OEM
26OP1505	Stabiliser Link	L:300 tp:M10x1.5 RHT / 0,4 kg	518 05 870, 505 15 276 (5) OEM
26OP1510	Stabiliser Link	L:310 tp:M10x1.5 RHT / 0,41 kg	13 391 512, 3 50 233 (2) OEM
26PE1300 IN PREPARATION	Stabiliser Link		98 246 525 80
30OP1500 NEW	Track Control Arm Left	3,50 kg	3 52 061, 3 52 064 (6) OEM
30OP1501 NEW	Track Control Arm Right	3,50 kg	3 52 063, 3 52 065 (6) OEM
30OP3504 NEW	Track Control Arm Lower Left	2,82 kg	3 52 542, 53 52 039 (2) OEM
30OP3505 NEW	Track Control Arm Lower Right	2,82 kg	3 52 038, 53 52 038 (2) OEM
38FI5506	Silentblock for TCA	L:67.5 di:Ø12.2 do:Ø41.3 / 0,3 kg	3520 W3, 3521 S6 (28) OEM
38OP2053	Stabiliser Mounting	L:39 di:Ø17 / 0,04 kg	3 50 130, 46 86 820 (1) OEM
38OP3010	Silentblock for TCA	di:Ø10,1 do:Ø38 / 0,12 kg	90 445 097, 3 52 301
38OP3012	Axle Beam Bushing	L:65 di:Ø10.2 do:Ø59 / 0,25 kg	54 02 636, 24 443 815
38OP3014	Stabiliser Mounting	L:39 di:Ø21.5 / 0,03 kg	3 50 127, 90 447 946
38OP3015	Stabiliser Mounting Right	L:45 di:Ø14.1 / 0,78 kg	3 53 280, 90 445 101
38OP3016	Stabiliser Mounting Left	L:45 di:Ø14.1 / 0,78 kg	3 53 281, 90 445 100
38OP3017	Silentblock for Stabiliser Link	L:38 di:Ø14.2 do:Ø37 / 0,1 kg	90 445 098, 3 53 561
38OP3020	Silentblock for TCA	L:69.5 di:Ø12.2 do:Ø60.2 / 0,65 kg	24 428 980, 3 52 366 (5) OEM
38OP3021	Silentblock for TCA	L:45.5 di:Ø12.8 do:Ø60.2 / 0,21 kg	13 138 151, 24 430 103 (2) OEM

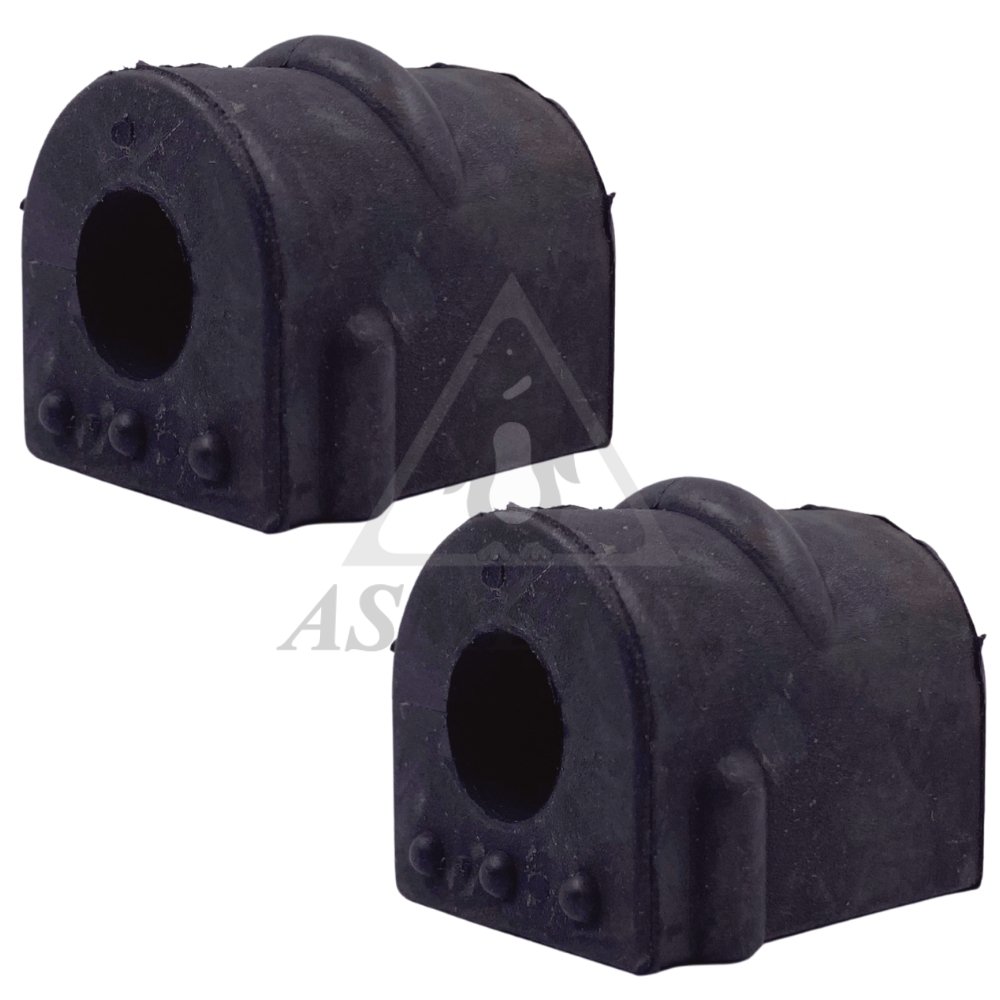

38OP3023	Stabiliser Mounting	L:40.5 di:Ø14.8 / 0,04 kg	3 50 104, 24 403 523
38OP3040	Silentblock for TCA	L:66 di:Ø12.2 do:Ø72.5 / 0,27 kg	3 52 864, 13 167 940
38PE1300	Silentblock for TCA	L:55.8 di:Ø12.2 do:Ø56.4 / 0,156 kg	98 299 304 80, 98 136 264 80* (3) OEM
38PE1301	Silentblock for TCA	L:65 di:Ø12.1 do:Ø38.1 / 0,22 kg	98 299 209 80
45FI3515	Strut Mount With Bearing	L:63.5 di:Ø12.7 do:Ø107 / 0,54 kg	520 27 765, 518 92 267 (8) OEM
45OP4525	Strut Mount	L:42.5 di:Ø12.2 do:Ø113 / 0,46 kg	3 44 525, 90 538 936 (2) OEM
