ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10OP1500	Ball Joint Lower	c:Ø16 / 0,49 kg	3 52 803, 9 196 394
10OP9128	Ball Joint	c:Ø15 / 0,42 kg	90 442 294, 90 295 324 (5) OEM
10OP9130	Ball Joint	c:Ø15 / 0,6 kg	16 03 202, 90 542 574 (1) OEM
17OP1500	Tie Rod End	L:70 cr:1/6 c:Ø10.6 tp:M10x1.25 th:FM12x1.5 RHT / 0,28 kg	93 192 419, 3 24 050 (7) OEM
17OP4044	Tie Rod End	L:77 cr:1/6 c:Ø10.6 tp:M10x1.25 th:FM12x1.5 RHT / 0,32 kg	3 24 066, 16 03 455 (2) OEM
17OP4045 OUT OF SERVICE	Tie Rod End	0 kg	324042, 1603009 (7) OEM
20OP2000	Axial Joint	L:310 tp:M14x1.5 th:MM12x1.5 RHT / 0,61 kg	26 030 411, 16 03 453 (3) OEM
20OP2100	Axial Joint	L:281 tp:M14x1.5 th:MM12x1.5 RHT / 0,42 kg	26 032 284, 3 22 158
26OP05	Stabiliser Link	L:242 tp:M12x1.5 RHT / 0,4 kg	3 50 610, 52 36 823 (2) OEM
30OP1500 NEW	Track Control Arm Left	3,50 kg	3 52 061, 3 52 064 (6) OEM
30OP1501 NEW	Track Control Arm Right	3,50 kg	3 52 063, 3 52 065 (6) OEM

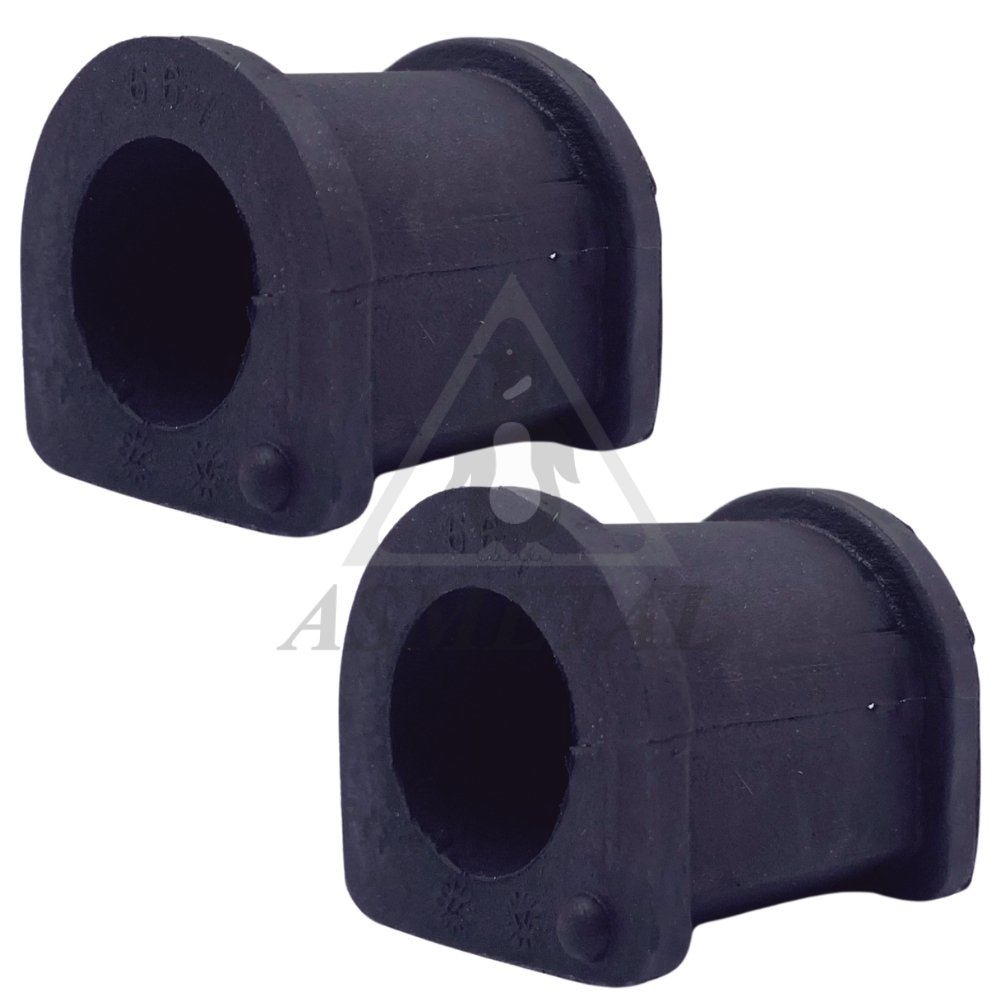

38OP2053	Stabiliser Mounting	L:39 di:Ø17 / 0,04 kg	3 50 130, 46 86 820 (1) OEM
38OP2054	Stabiliser Mounting	L:39 di:Ø17.2 / 0,04 kg	90 538 865, 3 50 138 (1) OEM
38OP3010	Silentblock for TCA	di:Ø10,1 do:Ø38 / 0,12 kg	90 445 097, 3 52 301
38OP3012	Axle Beam Bushing	L:65 di:Ø10.2 do:Ø59 / 0,25 kg	54 02 636, 24 443 815
38OP3014	Stabiliser Mounting	L:39 di:Ø21.5 / 0,03 kg	3 50 127, 90 447 946
38OP3015	Stabiliser Mounting Right	L:45 di:Ø14.1 / 0,78 kg	3 53 280, 90 445 101
38OP3016	Stabiliser Mounting Left	L:45 di:Ø14.1 / 0,78 kg	3 53 281, 90 445 100
38OP3017	Silentblock for Stabiliser Link	L:38 di:Ø14.2 do:Ø37 / 0,1 kg	90 445 098, 3 53 561
38OP3020	Silentblock for TCA	L:69.5 di:Ø12.2 do:Ø60.2 / 0,65 kg	24 428 980, 3 52 366 (5) OEM
38OP3021	Silentblock for TCA	L:45.5 di:Ø12.8 do:Ø60.2 / 0,21 kg	13 138 151, 24 430 103 (2) OEM
38OP7100	Strut Mount	H:41 di:Ø12.2 do:Ø112.5 / 0,44 kg	3 44 523, 90 468 554 (2) OEM
45OP2002 OUT OF SERVICE	Strut Mount With Bearing		3 12 510, 90 468 618
45OP2003 OUT OF SERVICE	Strut Mount		3 12 510, 90 468 618
45OP4525	Strut Mount	L:42.5 di:Ø12.2 do:Ø113 / 0,46 kg	3 44 525, 90 538 936 (2) OEM
