ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10SK1000	Ball Joint	c:Ø16.95 / 0.41	115 420 240, 115 420 241 (2) OEM
10VW1001	Ball Joint	c:Ø17 / 0.38	171 407 365 G, 171 407 365 F (3) OEM
10VW1100	Ball Joint	c:Ø19 / 0.45	357 407 365 A, 357 407 365
10VW1600	Ball Joint Lower Left	tp:M12x1.5 RHT cr:1/5 c:Ø15.4 / 0.62	1K0 407 365 C, 5Q0 407 365 A (6) OEM
10VW1601	Ball Joint Lower Right	tp:M12x1.5 RHT cr:1/5 c:Ø15.4 / 0.62	1KD 407 366, 1K0 407 366 E (6) OEM
10VW1602	Ball Joint Left	0.62	2 553 416, VWN3CA 3395 AA (2) OEM
10VW1603	Ball Joint Right	0.62	2 553 418, VWN3CA 3395 BA (2) OEM
17AU1200	Tie Rod End Right	L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0.42	1K0 423 812 F, 1K0 423 812 J (10) OEM
17AU1201	Tie Rod End Left	L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0.42	3C0 423 811 B, 1K1 423 070 X (9) OEM
17FR1210 NEW	Tie Rod End Left	0.5	2 560 576, VWN3CA 3290 AA (2) OEM
17FR1211 NEW	Tie Rod End Right	0.5	2 560 578, VWN3CA 3289 AA (2) OEM
17SK1000	Tie Rod End	L:78 cr:1/10 c:Ø12.6 tp:M10x1.5 th:FM12x1 RHT / 0.36	115 500 440, 6U0 422 811 (1) OEM
17VW1005	Tie Rod End	L:77 cr:1/10 c:Ø12.5 tp:M10x1.25 th:FM14x1.5 RHT / 0.35	477 419 811, 477 419 815 (7) OEM
17VW1230	Tie Rod End Right	L:76 cr:1/10 c:Ø12.7 tp:M12x1.5 th:FM14x1.5 RHT / 0.35	6N0 422 812, 6N0 419 812 (2) OEM
17VW1250	Tie Rod End Left	L:76 cr:1/10 c:Ø12.7 tp:M12x1.5 th:FM14x1.5 RHT / 0.35	3A0 422 811, 6N0 419 811 (2) OEM
17VW2020	Tie Rod End Left	L:94 cr:1/10 c:Ø12.65 tp:M12x1.5 th:FM14x1.5 RHT / 0.4	6K0 422 811, 6X0 422 811 (1) OEM
17VW2021	Tie Rod End Right	L:94 cr:1/10 c:Ø12.65 tp:M12x1.5 th:FM14x1.5 RHT / 0.4	6X0 422 812, 6K0 422 812 (1) OEM
20AU1200	Axial Joint	L:311.5 tp:M16x1.5 th:MM16x1.5 RHT / 0.72	1K0 423 810 A, 1K1 423 070 AX (16) OEM
20SK1501	Axial Joint	L:347.5 tp:M14x1.5 th:MM12x1 RHT / 0.61	6U0 422 807, 073 502 78N (1) OEM
20VW1010	Axial Joint	0.76	171 419 810, 171 419 807 A (2) OEM
20VW1205	Axial Joint	0.72	5WA 423 810 D, 2 560 580 (1) OEM
26VW1210	Stabiliser Link	L:77 tp:M8x1.25 RHT / 0.18	191 411 315 BS, 191 411 315 B (1) OEM
26VW1600	Stabiliser Link	L:335 tp:M12x1.5 RHT / 0.5	1K0 411 315 P, 1K0 411 315 K (14) OEM

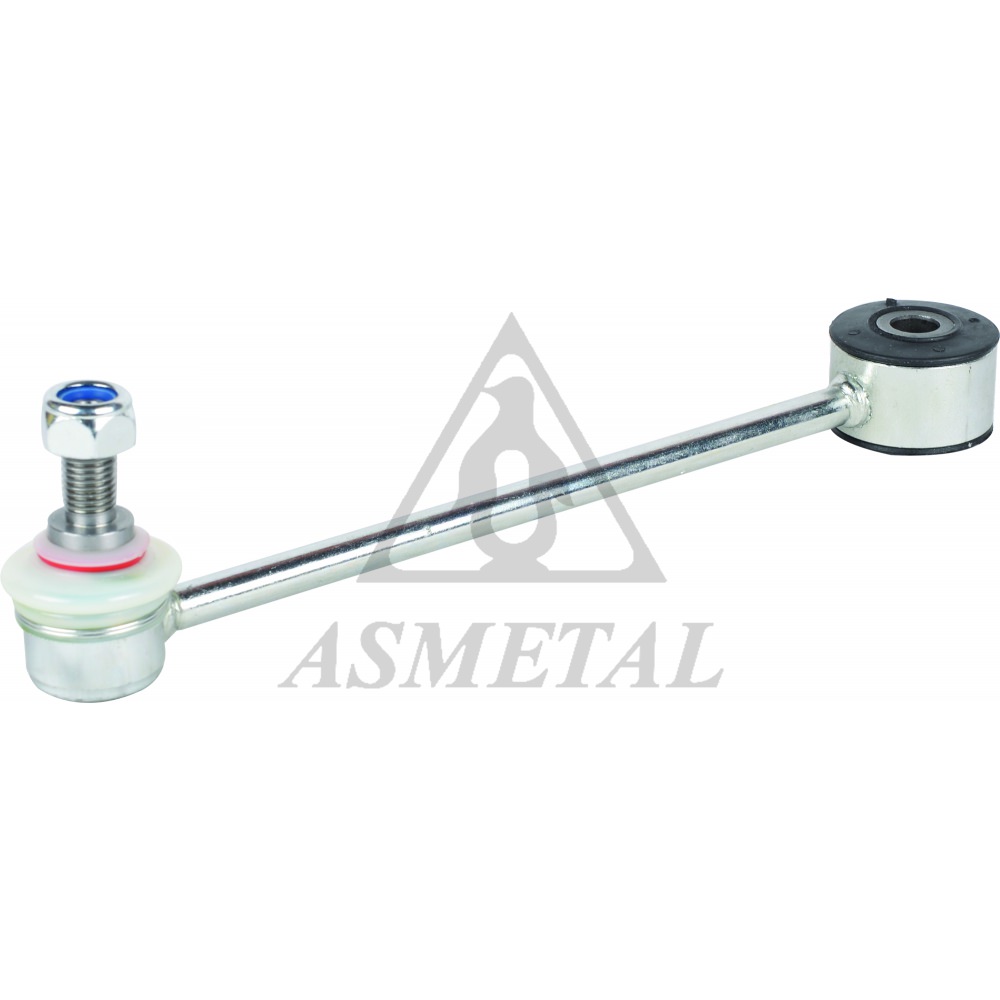

26VW1610	Stabiliser Link Rear	L:240.5 tp:M12x1.5 RHT / 0.46	2K0 505 465 B, 2K0 505 465 C (2) OEM
26VW1620 COMING SOON	Stabiliser Link Rear		2 630 510, VWN3CA 5C486 CA (3) OEM
29AU1200 NEW	Tie Rod Right	1.1	1K0 423 810 A, 1K0 423 812 A (1) OEM
29AU1201 NEW	Tie Rod Left	1.1	1K0 423 810 A, 1K0 423 811 A (1) OEM
29VW1020	Tie Rod	1.07	171 419 804, 171 419 804 A (1) OEM
30VW1600	Track Control Arm Left	cr:1/5 c:Ø15.4 th:M12x1.5 RHT / 4.3	1K0 407 151 AB, 1K0 407 151 AH (9) OEM
30VW1601	Track Control Arm Right	cr:1/5 c:Ø15.4 th:M12x1.5 RHT / 4.3	1K0 407 152 AH, 1K0 407 152 AB (9) OEM
30VW1608	Track Control Arm Left	cr:1/5 c:Ø15.4 th:M12x1.5 RHT / 3.6	1K0 407 151 BG, 1K0 407 151 BB (2) OEM
30VW1609	Track Control Arm Right	cr:1/5 c:Ø15.4 th:M12x1.5 RHT / 3.6	1K0 407 152 BG, 1K0 407 152 BE (2) OEM
30VW1610 NEW	Track Control Arm Left	5.5	1K0 407 151 R, 1K0 407 151 M (4) OEM
30VW1610P NEW	Track Control Arm Left (Without Ball Joint)	4.74	1K0 407 151 AC, 1K0 407 151 AD (4) OEM
30VW1611 NEW	Track Control Arm Right	5.52	1K0 407 152 AC, 1K0 407 152 AD (3) OEM
30VW1611P NEW	Track Control Arm Right (Without Ball Joint)	4.76	1K0 407 152 AC, 1K0 407 152 AD (4) OEM
38AU1200	Silentblock for TCA	L:54.1 di:Ø12.2 do:Ø32.4 / 0.1	191 407 182, 357 407 182 (2) OEM
38AU1290	Bellow Steering	0.115	1K0 423 831 A, 1K0 423 831 B (1) OEM
38AU3021	Silentblock for TCA	L:50 di:Ø13 do:Ø64.7 / 0.35	5Q0 407 183 D, 5Q0 407 183 G (7) OEM
38AU3030	Silentblock for TCA	L:54 di:Ø12.1 do:Ø39.5 / 0.19	1K0 407 182, 1K0 407 182 F (4) OEM
38VW1000 SERVIS DIŞI*	Silentblock for TCA	0 kg	171 407 182 D, 171 407 182 E
38VW1005 SERVIS DIŞI*	Silentblock for TCA	di:Ø15 / 0 kg	171 407 181 A, 171 407 181
38VW1010	Silentblock for TCA	L:41 di:Ø17 do:Ø60 / 0.12	191 407 181 D, 191 407 181 E (3) OEM
38VW1011	Silentblock for TCA	L:41 di:Ø17.2 do:Ø60 / 0.21	191 407 181 A, 191 407 181 B

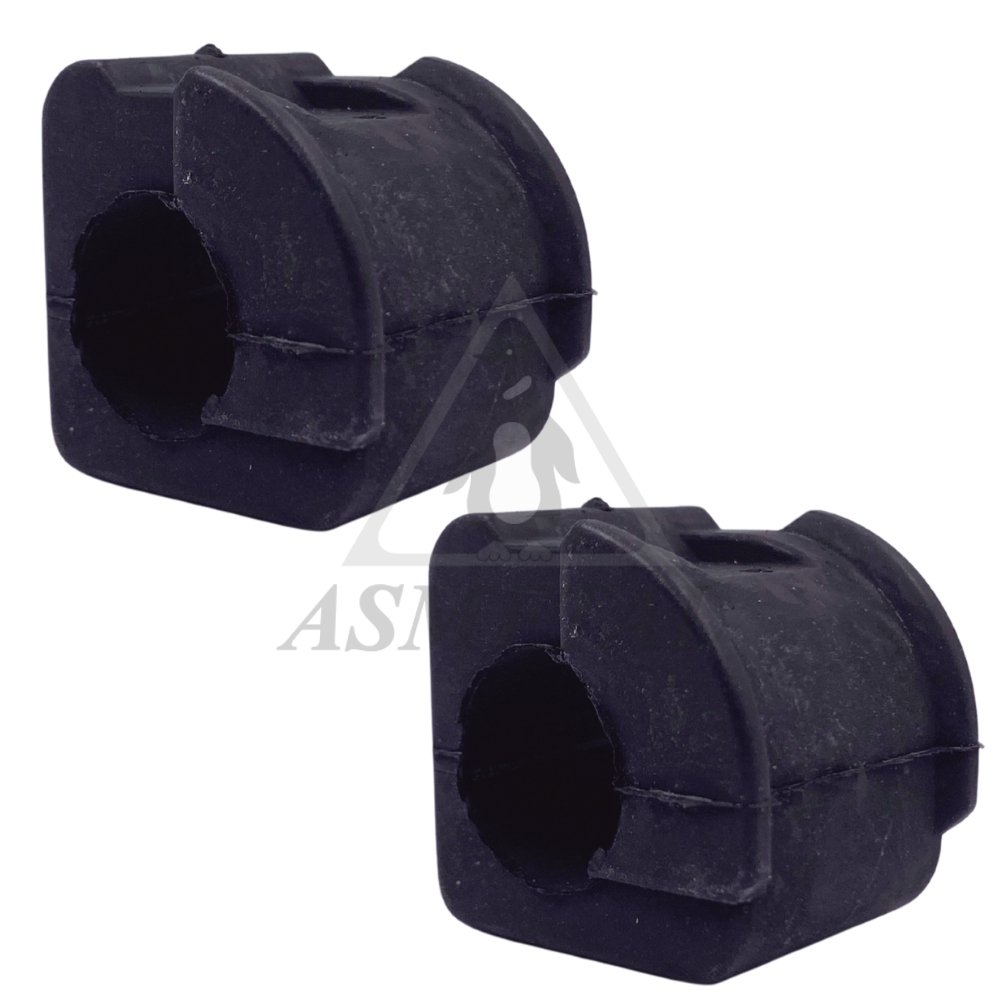

38VW1020	Stabiliser Mounting	L:28 di:Ø19 / 0.03	1H0 411 314, 1H0 411 309 (1) OEM

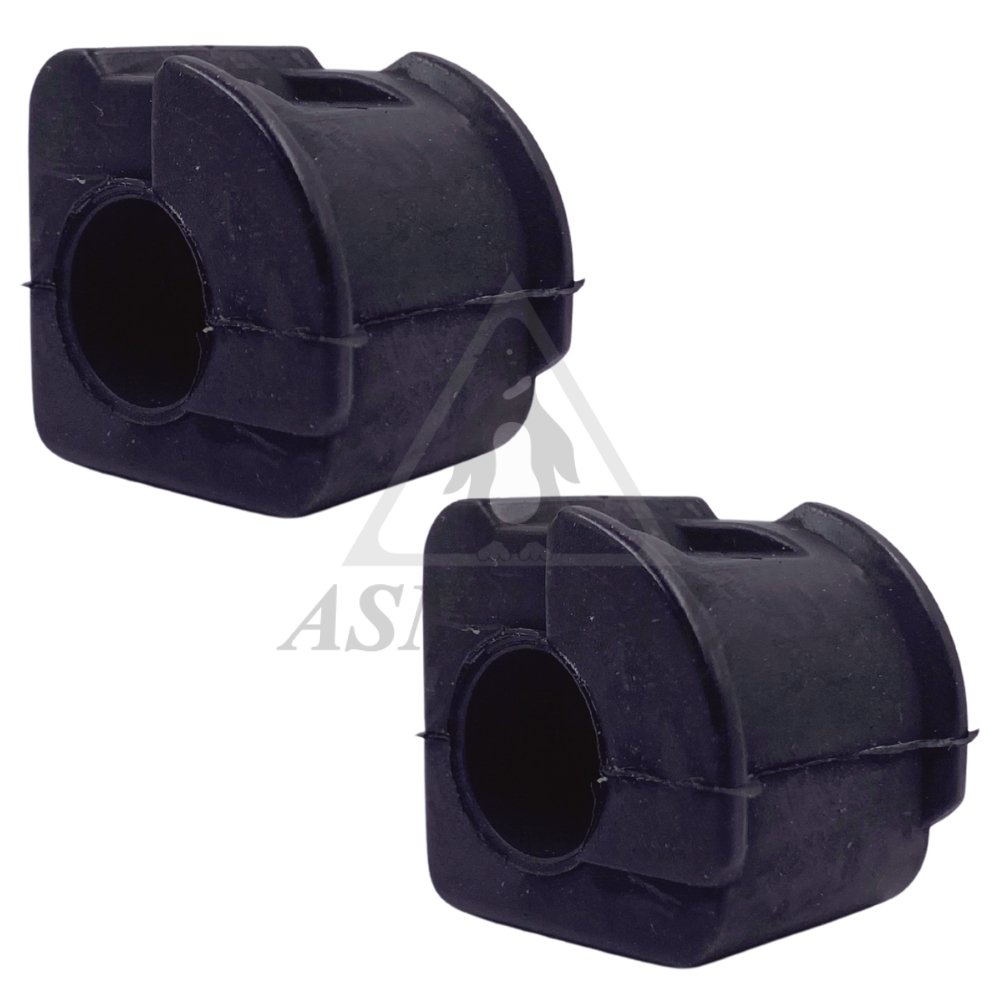

38VW1021	Stabiliser Mounting	L:28 di:Ø17 / 0.03	191 411 314
38VW1261	Silentblock for TCA Right	L:171 / 0.7	1K0 199 232 P, 1K0 199 232 J (2) OEM
38VW1262	Silentblock for TCA Left	L:171 / 0.7	1K0 199 231 J, 1K0 199 231 P (3) OEM
38VW1273	Bearing	L:13.8 di:Ø14 do:Ø45 / 0.07	357 412 249 A, 1J0 412 249 (10) OEM
38VW1623	Stabiliser Mounting	di:Ø21-23 / 0.0865	1K0 411 303 AL, 1K0 411 303 BK (8) OEM
38VW2090	Bellow Driveshaft (KIT)	L:122 di:Ø26 / 0.3	6C0 498 203, 1K0 498 203 (1) OEM

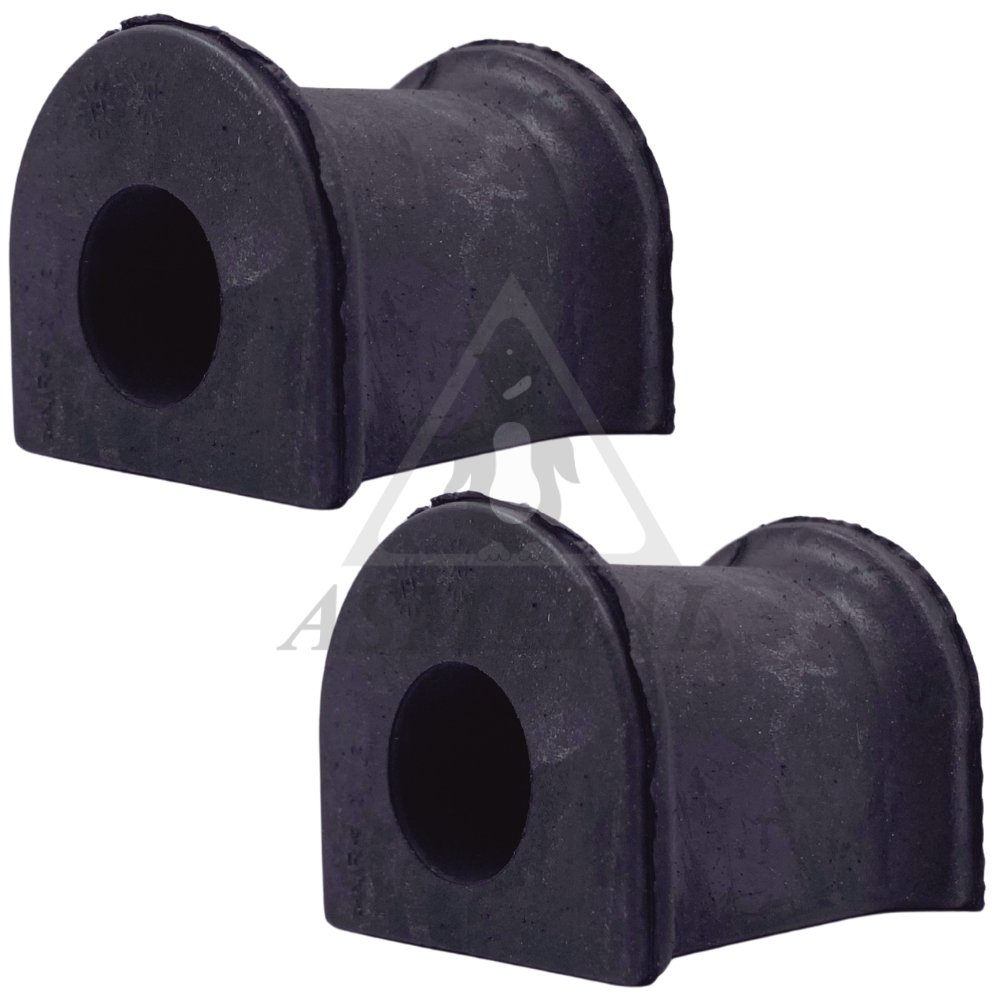

38VW3000	Stabiliser Mounting	L:49.5 di:Ø19 / 0.06	2K0 511 413 D, 2K0 511 413 A (1) OEM

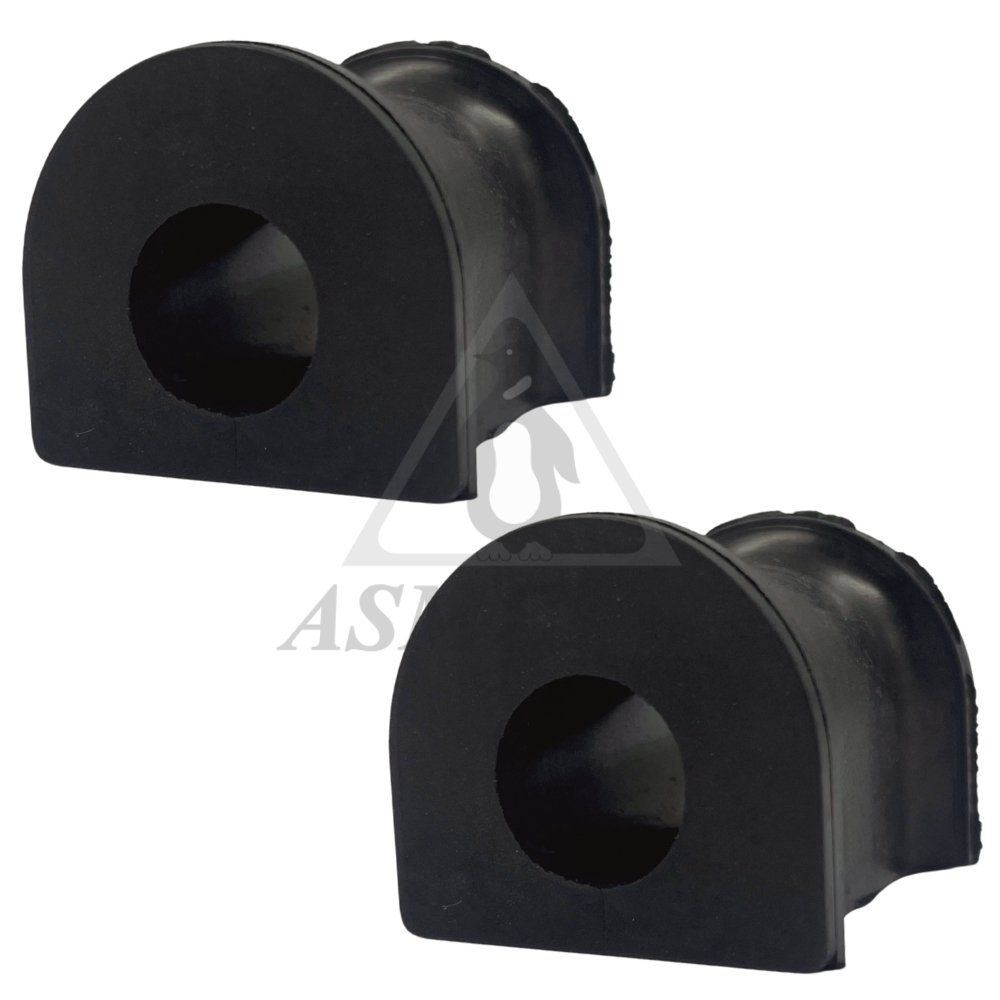

38VW3001 NEW	Stabiliser Mounting	di:Ø20 / 0.06	2K3 511 413
38VW7000	Silentblock for TCA	L:50 di:Ø13.5 do:Ø64.8 / 0.23	1K0 407 183 M, 5C0 407 183 A (1) OEM
45VW1130	Suspension Support Buffer Rear	L:155 di:Ø9 do:Ø56 / 0.12	005 443 148, 05 443 148 (3) OEM
45VW1235	Strut Mount	L:50 di:Ø26 do:Ø96 / 0.33	7M0 412 331, 357 412 331 A (2) OEM
45VW1236	Strut Mount With Bearing	L:51 di:Ø26 do:Ø97 / 0.4	357 412 331 A, 7M0 412 331 (2) OEM
45VW1600	Engine Mounting	L:35.5 di:Ø15.2 do:Ø91.5 / 0.24	1K0 199 867 P, 1K0 199 867 Q (4) OEM
45VW1605	Strut Mount	L:48.2 di:Ø14.2 do:Ø65.5 / 0.771	1K0 412 331 B, 1K0 412 331 C
45VW1606	Strut Mount With Bearing	L:52 di:Ø14.2 do:Ø68.5 / 1	1K0 412 331 B, 6N0 412 249 C (4) OEM
45VW1607	Bearing	0.25	1K0 412 249 B, 6N0 412 249 C (3) OEM
45VW1608	Strut Mount	0.69	5Q0 412 331 E, 5Q0 412 331 F (7) OEM
45VW1609	Engine Mounting	0.603	5Q0 199 855 AB, 5Q0 199 855 AF (1) OEM
45VW1611 COMING SOON	Transmission Mount		1K0 199 855 AE, 1K0 199 855 AN (6) OEM
45VW1613 COMING SOON	Transmission Mount		1K0 199 855 AD, 1K0 199 855 BA (1) OEM
45VW1621	Suspension Support Buffer Front	L:70 di:Ø19.5 do:Ø61 / 0.05	6K0 413 031 B, 357 412 303 F (4) OEM
45VW1626	Suspension Support Buffer Front	L:90.4 di:Ø27 do:Ø64.1 / 0.1	1K0 412 303 H
45VW1634	Suspension Support Buffer Rear	L:106.5 di:Ø20.1 do:Ø102.5 / 0.39	2K0 511 153 E, 2K0 511 153 D
