ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10VW1605	Ball Joint Lower Right	th:M12x1.5 RHT cp:1/5 cs:Ø15,2 / 0,64 kg	35D 407 366, 5QD 407 366 (3) OEM
10VW1606	Ball Joint Lower Left	th:M12x1.5 RHT cp:1/5 cs:Ø15,2 / 0,64 kg	5QD 407 365, 3C0 407 365 A (3) OEM
17AU1202	Tie Rod End Left	L: 94 cr: 1:5 c: Ø13.22 tp: M12x1.5 th: FM16x1.5 / 0,45 kg	1K0 423 811 K, 1K0 423 811 J (8) OEM
17AU1203	Tie Rod End Right	L: 94 cr: 1:5 c: Ø13.22 tp: M12x1.5 th: FM16x1.5 / 0,45 kg	1K0 423 812 K, 1K0 423 812 G (7) OEM
20AU1200	Axial Joint	th:MM16x1,5 RHT L:312mm / 0,72 kg	1K0 423 810 A, 1K1 423 070 AX (16) OEM
26VW1600	Stabiliser Link	L:335mm / 0,5 kg	5Q0 411 315, 1KD 411 315 A (14) OEM
26VW1605	Stabiliser Link Rear	L:95,3mm / 0,38 kg	1K0 505 465 K, 1K0 505 465 J (7) OEM
29AU1202 IN PREPARATION	Tie Rod Left		1K0 423 810 A, 1K0 423 811 J (1) OEM
29AU1203 IN PREPARATION	Tie Rod Right		1K0 423 812 K, 1K0 423 810 A (1) OEM
30AU1220 IN PREPARATION	Track Control Arm Left	1,5 kg	1K0 501 529 F
30AU1221 IN PREPARATION	Track Control Arm Right	1,5 kg	1K0 501 530 C
30VW1614 IN PREPARATION	Track Control Arm Left	0 kg	3C0 407 151 H, 3C0 407 151 G (4) OEM*
30VW1615 IN PREPARATION	Track Control Arm Right	0 kg	3C0 407 151 A, 3C0 407 151 B (3) OEM
30VW1702 NEW	Track Rod Rear	1,34 kg	5Q0 505 323 C, 5Q0 505 323 D (1) OEM
38AU1220	Silentblock for TCA	di:Ø14,2 do:Ø38,7 / 0,13 kg	1K0 505 203 A, 1K0 505 323 N* (1) OEM
38AU1221	Silentblock for TCA	di:Ø14.1 do:Ø40.5 L:45mm / 0,18 kg	1K0 501 541 C, 1K0 501 530 C (5) OEM
38AU1290 NEW	Bellow Steering	0,11 kg	1K0 423 831 A, 1K0 423 831 B (1) OEM
38AU3030	Silentblock for TCA	di:Ø12,2 do:Ø39,5 / 0,19 kg	1K0 407 182, 1K0 407 182 F (4) OEM

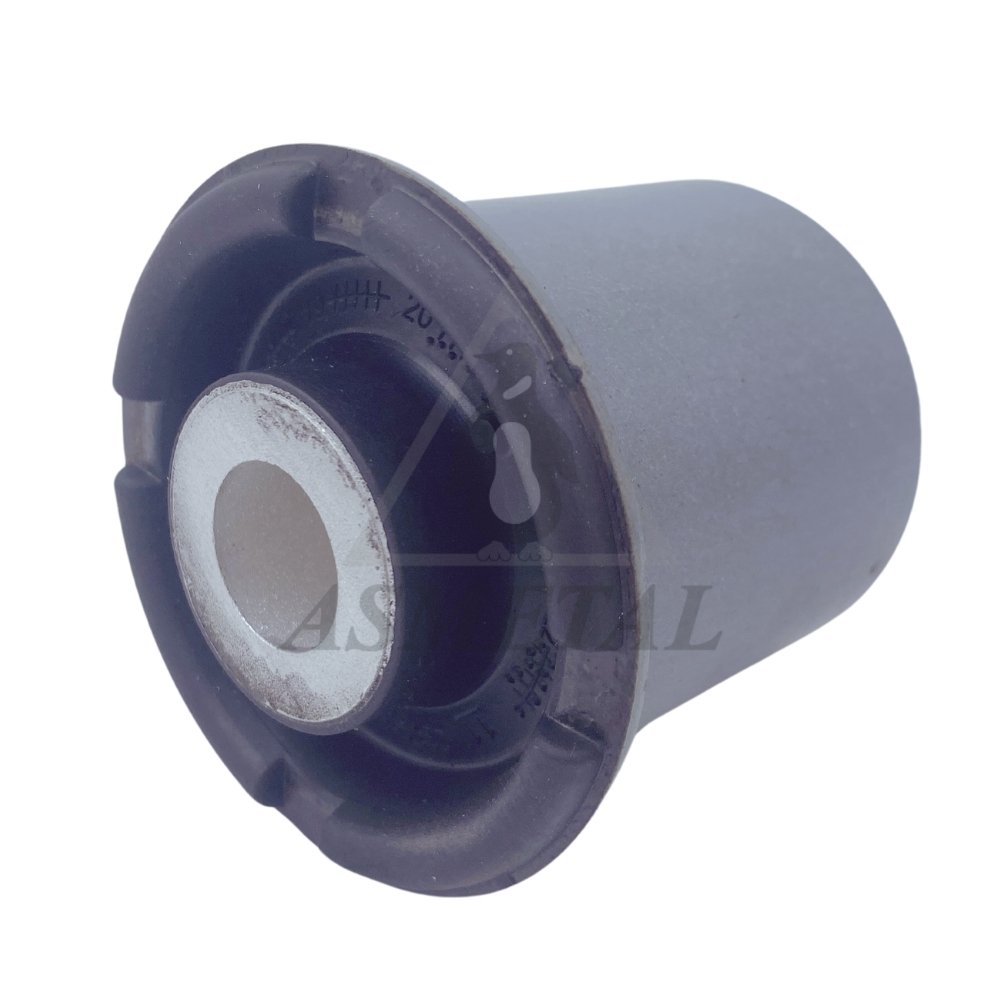

38VW1601	Mounting Axle Body	0,27 kg	3C0 505 45, 72 503 492 (1) OEM

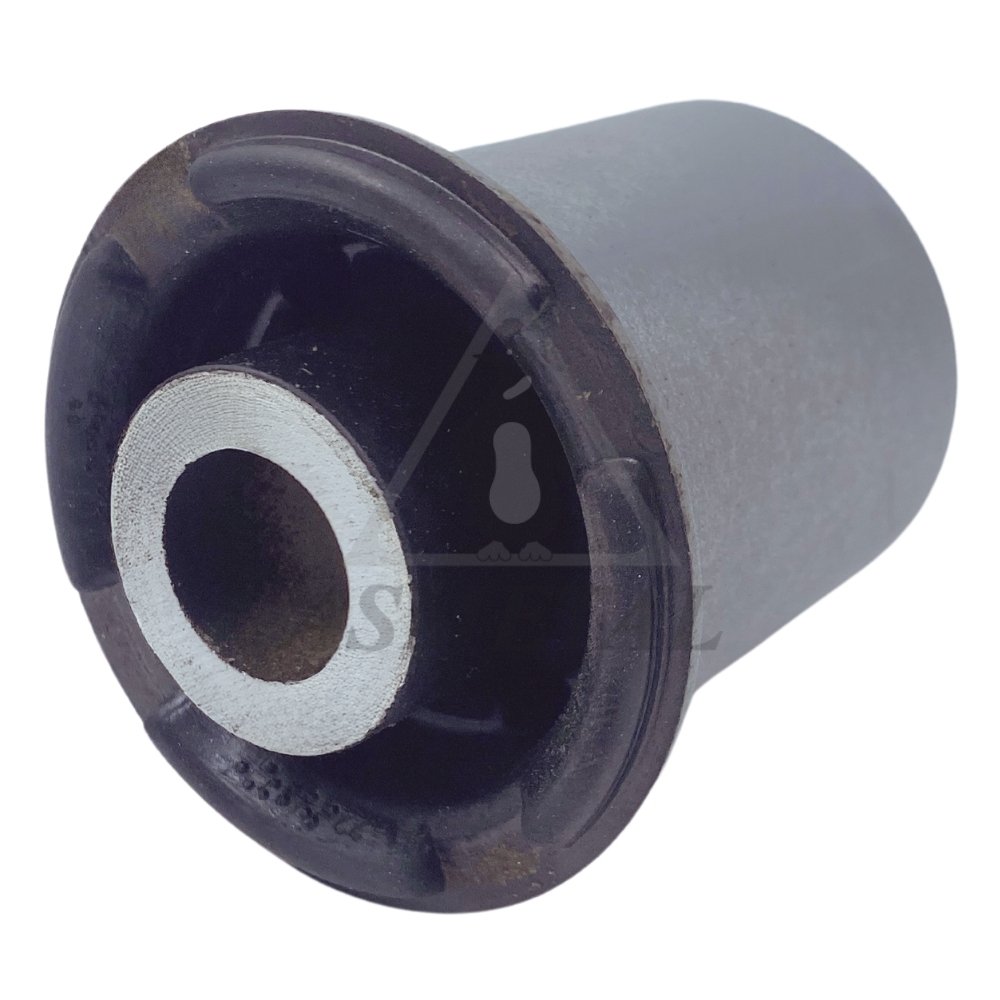

38VW1604	Mounting Axle Body	0,2 kg	3C0 505 145 A
38VW1606	Silentblock for TCA	0,72 kg	3C0 199 231 A, 3C0 199 231 B (2) OEM
38VW1608	Mounting Axle Body	di: Ø18.1 / do: Ø70 / L: 92 / 0,52 kg	1K0 505 145 K, 1K0 505 145 H
38VW1609	Silentblock for TCA	di: Ø12.1 / do: Ø42.4 / L: 60 / 0,1 kg	1K0 505 311 S, 1K0 505 311 AH (8) OEM
38VW1700	Silentblock for TCA	0,13 kg	1K0 505 553, 1K0 505 553 A
45VW1600	Engine Mounting	di:Ø15.2 do: Ø91.5 L:35.5mm / 0,24 kg	1K0 199 867 P, 1K0 199 867 Q (4) OEM
45VW1603	Strut Mount	0,31 kg	3C0 513 353, 3C0 513 353 C (1) OEM
45VW1605	Strut Mount	di: Ø14.2 / L: 52 / 0,84 kg	1K0 412 331 B, 1K0 412 331 C
45VW1606	Strut Mount With Bearing	di: Ø14.2 / 1,112 kg	1K0 412 331 B, 6N0 412 249 C (4) OEM
