ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10MR0101	Ball Joint Lower	th:M20x1.5 RHT cp:1/6 cs:Ø21,8 do:Ø45,3 / 0,73 kg	68012 165 AA, 68012 164 AA (17) OEM
10VW1800	Ball Joint	c:Ø21.2 & M14x1.5 / 0,76 kg	2N0 407 361 A
13MR0101 IN PREPARATION	Suspension Kit (TCA Kit)	0 kg	6801 2165 AA, 6801 2164 AA (35) OEM
17MR0105	Tie Rod End	c:Ø16,7 th:FM16x1,5 RHT / 0,48 kg	6804 7089AA, 906 460 00 48 (8) OEM
17VW1800	Tie Rod End Left	L: 203 cr: 1:5 c: Ø16.1 tp: M14x1.5 th: FM20x1.5 / 1,18 kg	2N0 423 811
17VW1801	Tie Rod End Right	L: 203 cr: 1:5 c: Ø16.1 tp: M14x1.5 th: FM20x1.5 / 1,18 kg	2N0 423 812
20MR0101	Axial Joint	th:MM18x1.5 RHT L:397,5mm / 0,95 kg	6802 0843AA, A 906 460 00 55 (5) OEM
20VW1800	Axial Joint	th:MM18x1.5 RHT L:224mm / 0,86 kg	654 671 000 00, 2N0 423 810
26MR0105	Stabiliser Link Left	L:138mm / 0,38 kg	6801 3721 AA, 906 320 17 89 (6) OEM
26MR0106	Stabiliser Link Right	L:138mm / 0,38 kg	6801 3720 AA, 907 320 05 01 (6) OEM
26MR0110	Stabiliser Link Rear	L = 213 Ø12.1 / 0,4 kg	A 906 320 13 89, 906 320 13 89 (1) OEM
26MR0115	Stabiliser Link Rear	L: 139,5 di: 12,2 / 0,68 kg	906 320 14 89, A 906 320 14 89 (1) OEM
26VW1800	Stabiliser Link Left	L:380mm / 0,92 kg	65 43718 0009, 65 43718 0001 (3) OEM
26VW1801	Stabiliser Link Right	L:380mm / 0,92 kg	65 43718 0008, 65 43718 0007 (5) OEM
26VW1810 IN PREPARATION	Stabiliser Link Rear	0 kg	65 43718 0005, 2N0 505 465 B
30MR0102	Track Control Arm Left	tp: M20x1,5 cr: 1:6 c: Ø21,82 / 8 kg	906 330 46 07, A 906 330 46 07 (4) OEM
30MR0103	Track Control Arm Right	tp: M20x1,5 cr: 1:6 c: Ø21,82 / 8 kg	A 906 330 47 07, 906 330 41 07 (4) OEM
38MR0123	Stabiliser Mounting	di:Ø27 / 0,09 kg	904 326 08 81, A 904 326 08 81 (1) OEM
38MR0124	Stabiliser Mounting	di:Ø30 / 0,08 kg	904 326 09 81, A 904 326 09 81 (1) OEM
38MR0128	Strut Mount	di:Ø16,75 / 0,66 kg	906 323 05 20, A 906 323 05 20 (2) OEM
38MR0131	Mounting Leaf Spring	0,21 kg	6801 2190 AA, 906 322 06 19 (2) OEM
38MR0133	Stabiliser Mounting	di:Ø22,5 / 0,09 kg	A 906 323 36 85, A 906 323 16 85 (4) OEM
38MR0134	Stabiliser Mounting	di:Ø20 / 0,15 kg	906 323 37 85, 906 323 36 85 (6) OEM
38MR0503	Silentblock for Stabiliser Link	di:Ø12,1 do:Ø32,5 / 0,1 kg	A 667 320 00 73, 667 320 00 73 (3) OEM
38MR0710	Silentblock for Stabiliser Link	di:Ø12,1 do:Ø25,7 / 0,04 kg	5103 955AB, A 601 321 03 50 (3) OEM
38MR0820	Stabiliser Mounting	di:Ø24 L:53mm / 0,08 kg	A 638 323 02 85, A 906 326 09 81 (3) OEM
38VW1800	Silentblock for TCA	di: Ø16.1 / do: Ø57.5 / L: 70 / 0,2345 kg	65 43316 0005, 65 43316 0009 (2) OEM
38VW4510	Stabiliser Mounting	di:Ø22 L:42mm / 0,06 kg	7H0 411 313
38VW5001	Stabiliser Mounting	di:Ø20 / 0,1 kg	A 906 323 14 85, 906 323 35 85 (4) OEM

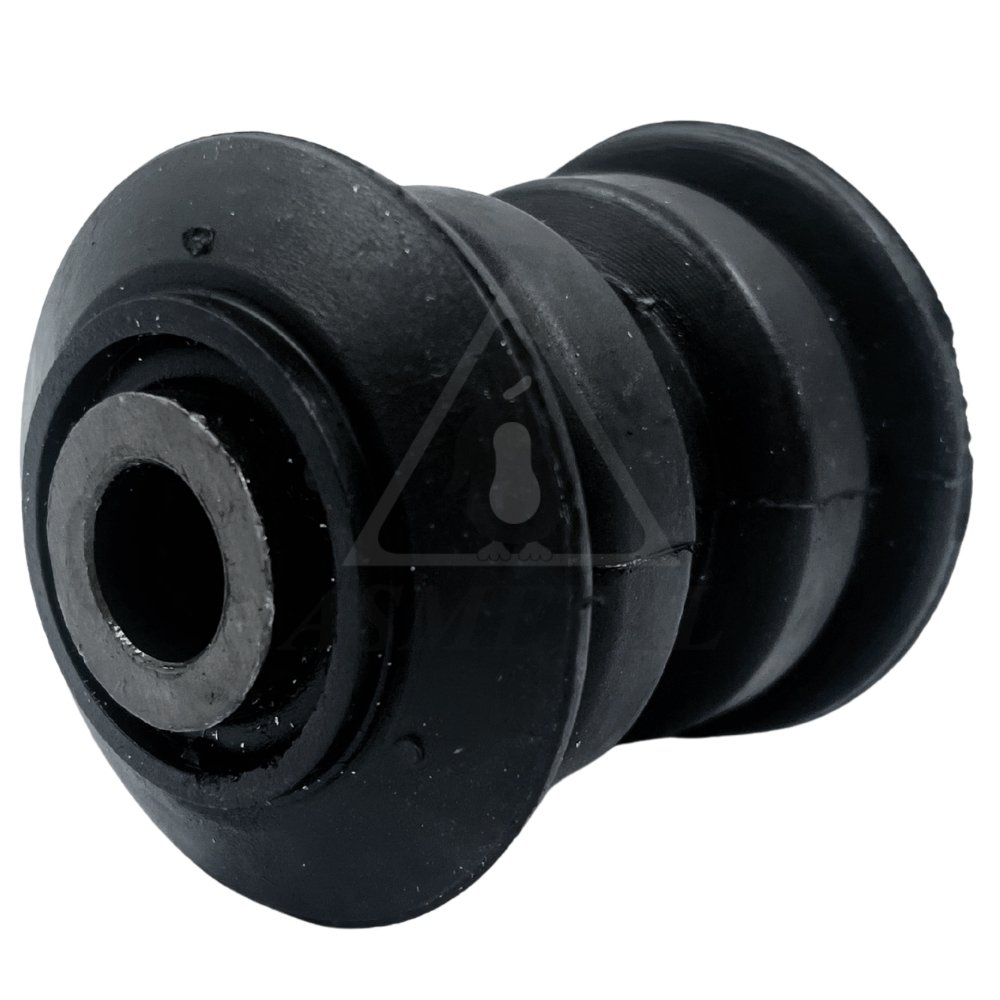

38VW5010	Silentblock for TCA	di:Ø14,2 do:Ø50,5 / 0,37 kg	6 801 216 9AA, 906 333 00 14 (3) OEM
38VW5020	Silentblock for TCA	di:Ø14,2 do:Ø50,5 / 0,36 kg	A 906 333 01 14, 906 333 01 14 (2) OEM
38VW5030 OUT OF SERVICE	Mounting Axle Body	0,36 kg	611 324 04 50, A 611 324 03 50 (3) OEM
40MR0200	Bearing Drive Shaft	di:Ø47 h:138mm thi:45mm / 0,98 kg	906 410 03 81, 906 410 12 81 (9) OEM
40MR0202	Driveshaft Kit	di:Ø47 L:21mm / 1,09 kg	A515 410 72 82, A515 410 68 82 (10) OEM
40MR0210	Bearing Drive Shaft (FAG)	di:Ø47 h:138mm thi:45mm FAG / 0,98 kg	6803 1836 AA, 6800 6650 AA (23) OEM
40MR0212	Driveshaft Kit [FAG]	di:Ø47 L:21mm / 1,08 kg	906 410 15 81, 906 410 12 81 (9) OEM

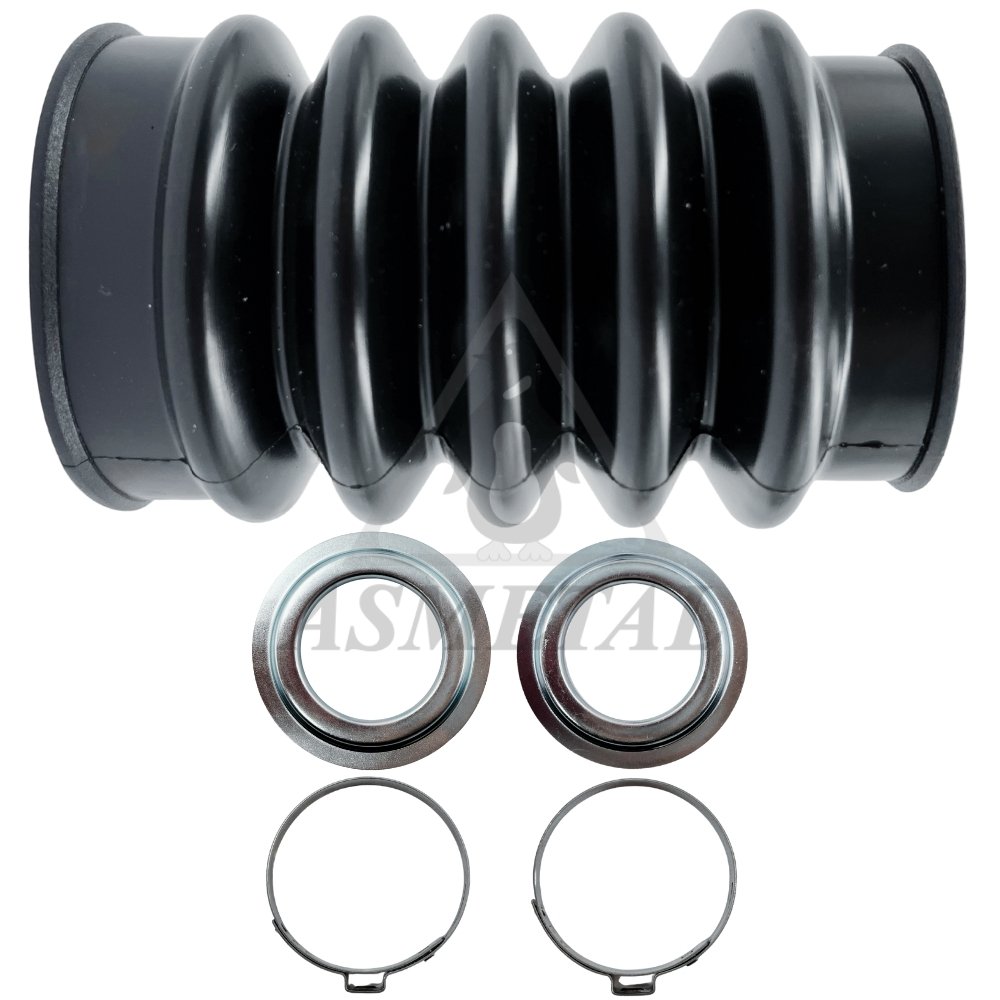

40MR02RK	Repair Kit	di: Ø46.5 / 0,12 kg	906 410 17 81, 906 410 03 81 (8) OEM
45MR0600	Engine Mounting	h:134mm thi:74,7mm thi:64,5mm / 0,52 kg	639 242 00 13, A 639 242 00 13 (1) OEM
45VW1800	Strut Mount	di: Ø16.5 / do: Ø89.2 / L: 67.5 / 0,91 kg	65 43431 0002, 65 43431 0004 (2) OEM
