ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10VW4500	Ball Joint Lower	tp: M14x1.5 cr: 1:6 c: Ø18.2 / 0,61 kg	7E0 407 361, 7H0 407 361 A (2) OEM
10VW4510	Ball Joint Lower	tp: M14x1.5 cr: 1:6 c: Ø18.2 / 0,64 kg	7H8 407 361, 7H8 407 361 A (1) OEM
17VW4500	Tie Rod End Left	c:Ø16,7 th:FM16x1,5 RHT / 1,07 kg	7H0 422 817 A, 7H0 422 817 D (3) OEM
17VW4501	Tie Rod End Right	c:Ø16,7 th:FM16x1,5 RHT / 1,07 kg	7H0 422 818 B, 7H0 422 818 A (3) OEM
17VW4600 IN PREPARATION	Tie Rod End Left		7T0 423 811
17VW4601 IN PREPARATION	Tie Rod End Right		7T0 423 812
20VW4500	Axial Joint	th:MM16x1,5 RHT L:179mm / 0,5 kg	7E0 419 803, 7E0 419 804 (8) OEM
26VW4500	Stabiliser Link	L:260mm / 0,61 kg	7H0 411 317 A, 7H5 411 317 D (5) OEM
29VW4500	Tie Rod Left	1,55 kg	7H0 419 803 E, 7H0 419 803 F (2) OEM
29VW4501	Tie Rod Right	1,55 kg	7H0 419 804 E, 7H0 419 804 F (2) OEM
30VW4500	Track Control Arm Left (Without Ball Joint)	cr: 1:6 c: Ø17,5 / 8,94 kg	7E0 407 151 B, 7E0 407 151 C (2) OEM
30VW4501	Track Control Arm Right (Without Ball Joint)	cr: 1:6 c: Ø17,5 / 8,94 kg	7E0 407 152 B, 7E8 407 152 A (1) OEM
30VW4502 IN PREPARATION	Track Control Arm Left (Without Ball Joint)	0 kg	7H0 407 151 E, 7H0 407 151 F (1) OEM
30VW4503 IN PREPARATION	Track Control Arm Right (Without Ball Joint)	0 kg	7H0 407 152 E, 7H0 407 152 F (1) OEM
38VW4020	Silentblock for TCA	di:Ø14.3 do:Ø60 L:64mm / 0,3 kg	7H0 407 182 A
38VW4500	Silentblock for TCA	0,18 kg	2H0 407 152 A, 7H0 407 183 (2) OEM
38VW4509	Stabiliser Mounting	di: Ø22 / do: Ø41,5 / L: 52 / 0,635 kg	7H5 411 313 A
38VW4515	Stabiliser Mounting	di:Ø24 L:41mm / 0,05 kg	7H5 411 313 B
45VW1609 NEW	Engine Mounting	0,60 kg	5Q0 199 855 AB, 5Q0 199 855 AF (1) OEM

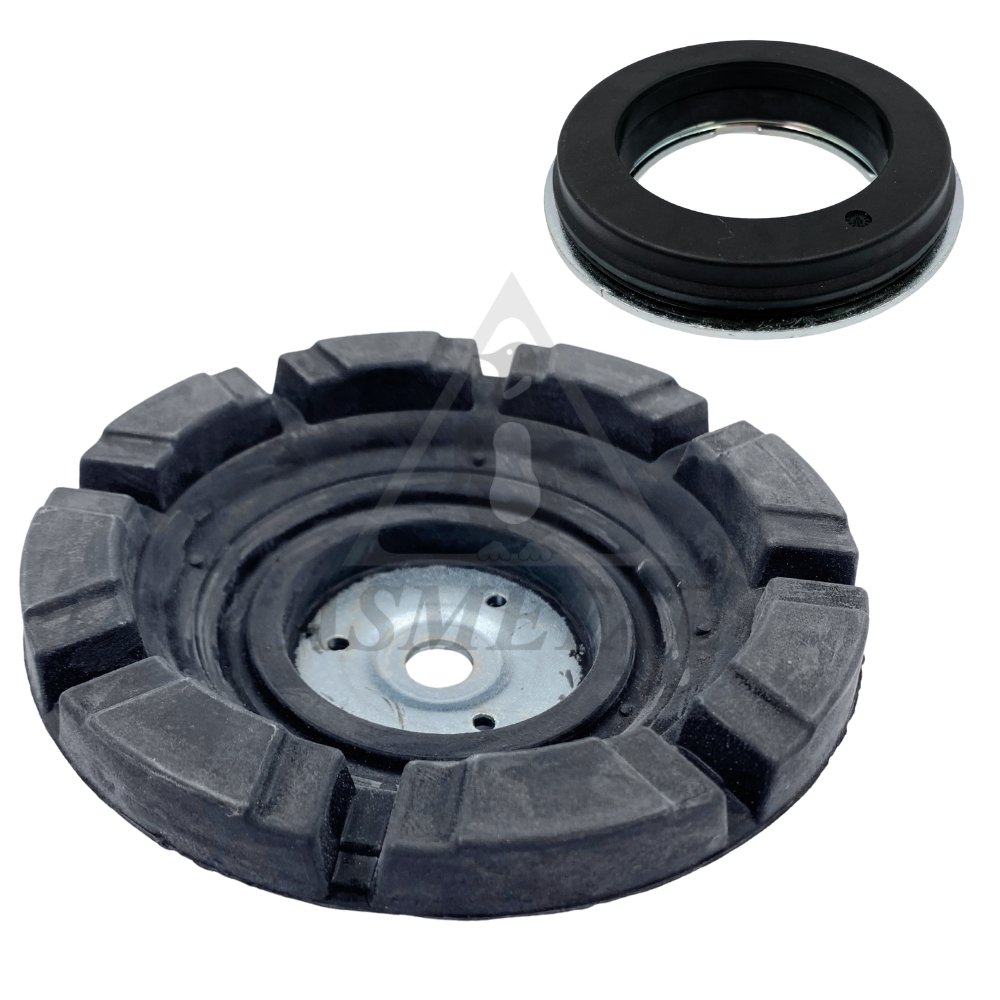

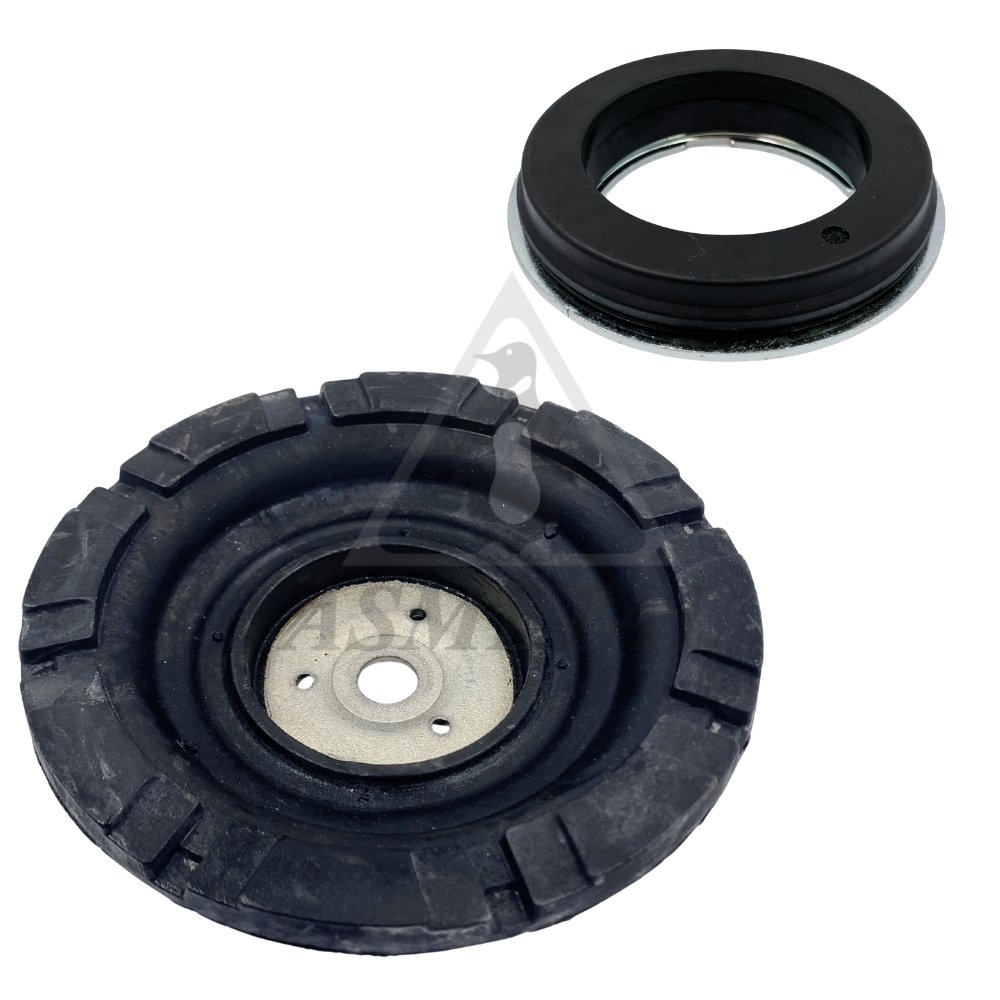

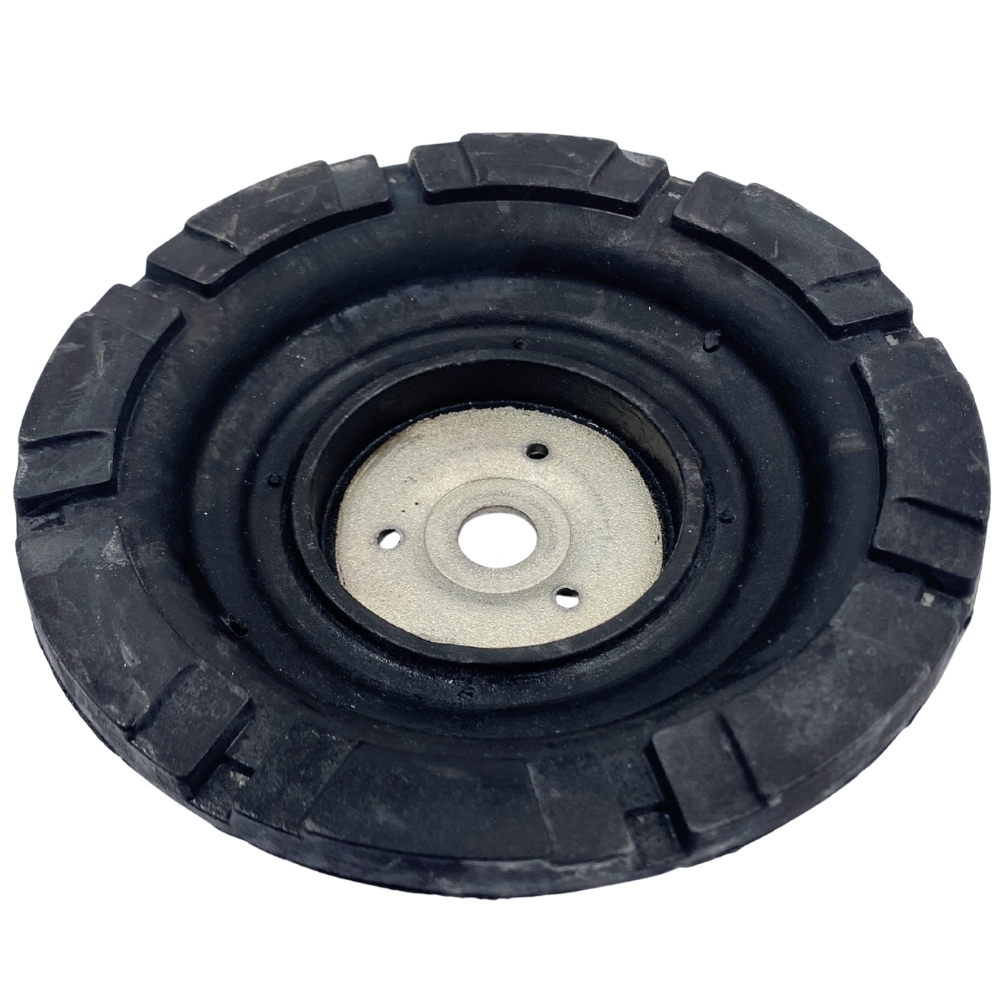

45VW4500	Strut Mount	0,5 kg	7E0 412 331 A
45VW4510	Strut Mount	di:Ø14.3 do: Ø153 L:49.5mm / 0,54 kg	7E0 412 331
45VW4545 NEW	Engine Mounting	0,62 kg	7H0 199 848 G, 7H0 199 848 E (1) OEM
45VW4546 NEW	Engine Mounting	0,64 kg	7H0 199 848 D
45VW4547 NEW	Engine Mounting	0,69 kg	7E0 199 848
