VOLKSWAGEN > NEW BEETLE

ASMETAL NO PRODUCT TYPE DIMENSIONS OEM NO

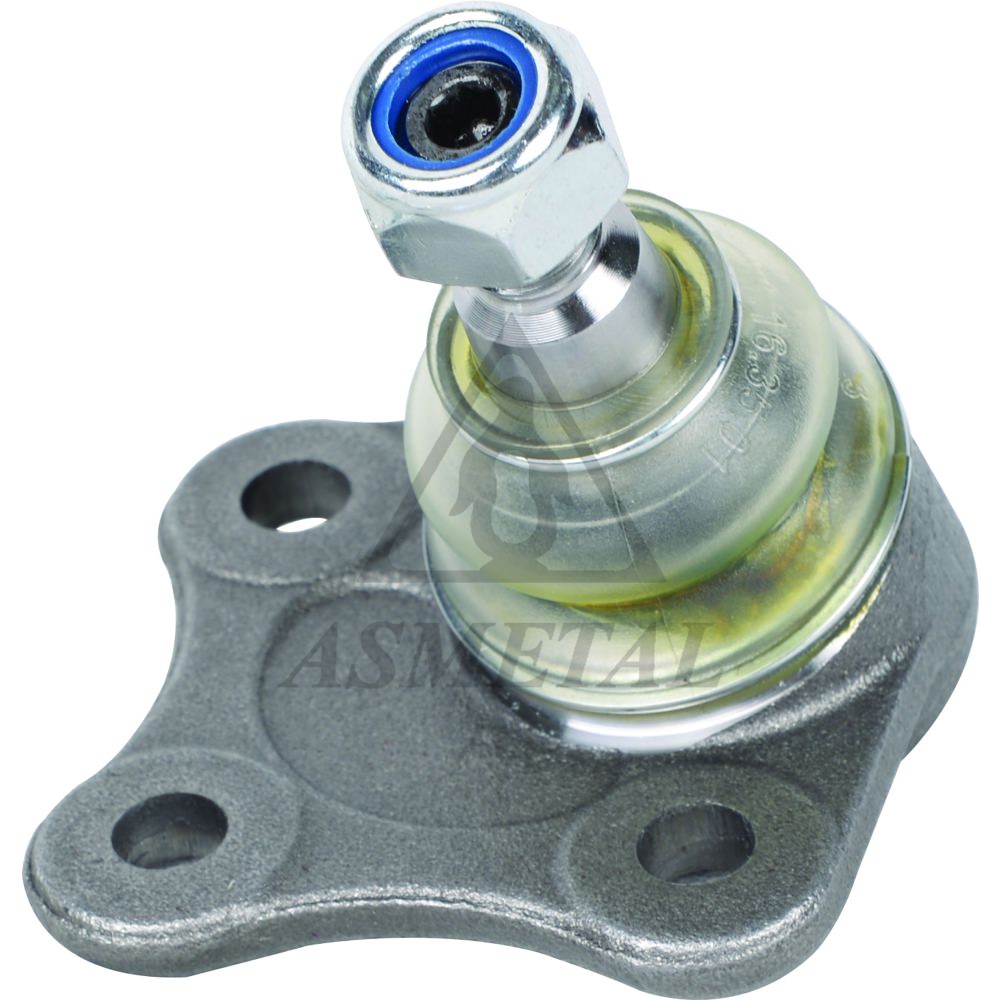

10VW1501
Ball Joint Right th:M12x1.5 RHT cp:1/5 cs:Ø15 / 0,46 kg 1J0 407 366 J, 1J0 407 366 H +4 OEM DETAILS

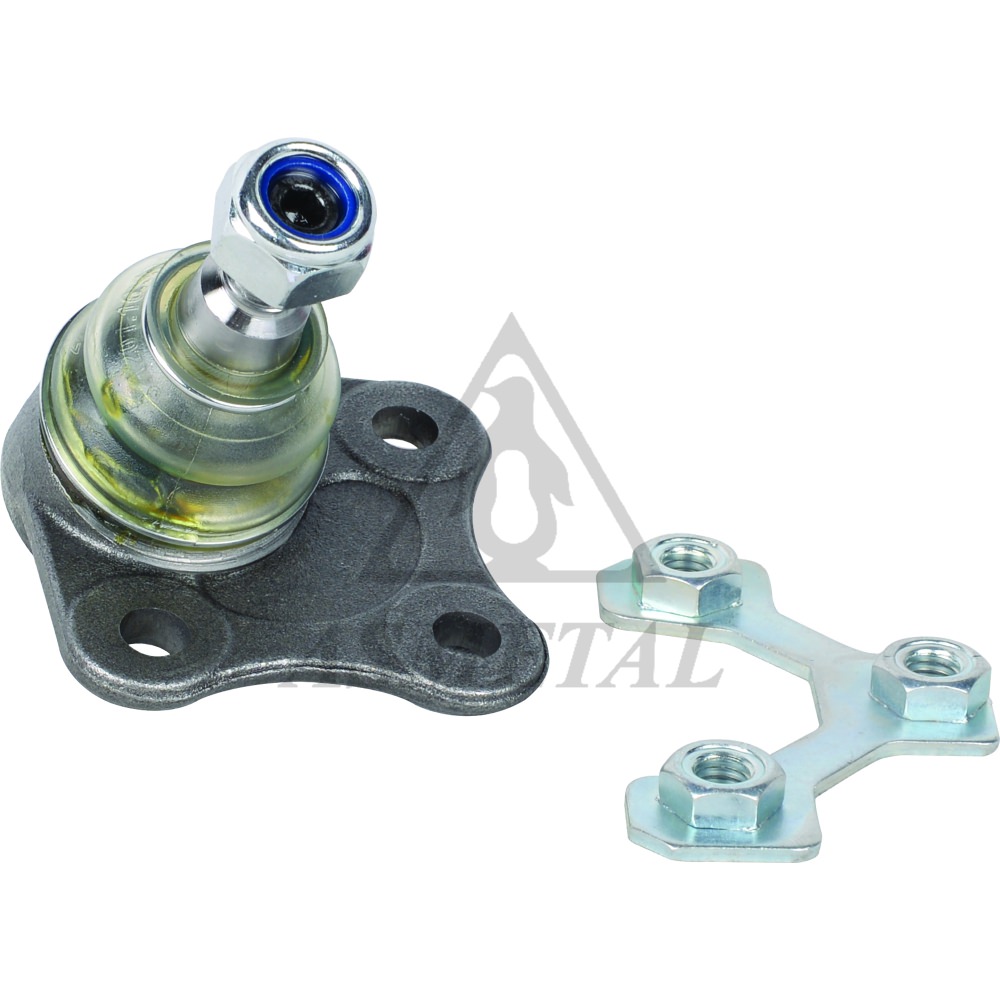

10VW1502
Ball Joint Left th:M12x1.5 RHT cp:1/5 cs:Ø15 / 0,46 kg 1J0 407 365 J, 1J0 407 365 H +4 OEM DETAILS
17VW1235
Tie Rod End Right c:Ø13,3 th:FM14x1,5 RHT / 0,35 kg 1J0 422 812A DETAILS
17VW1255
Tie Rod End Left c:Ø13,3 th:FM14x1,5 RHT / 0,35 kg 1J0 422 811, 1J0 422 811A DETAILS

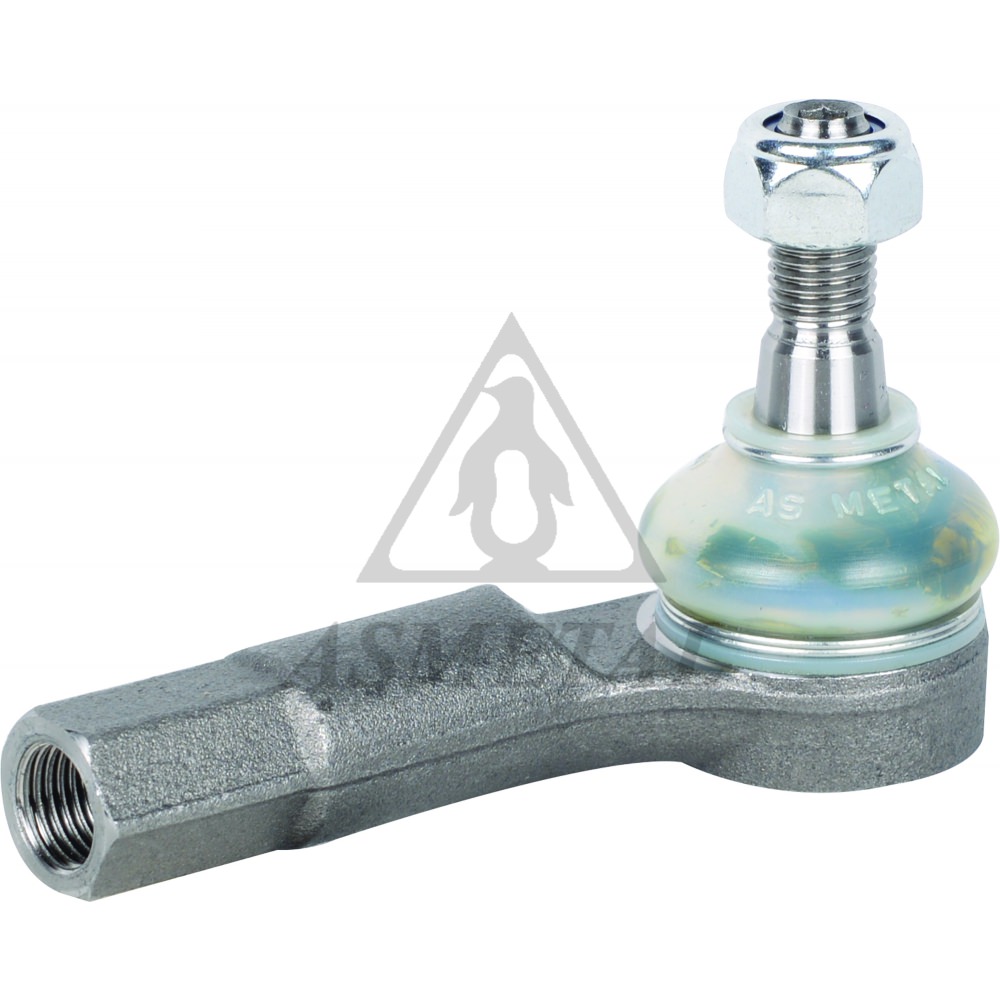

17VW1260
Tie Rod End Left c:Ø13,2 th:FM14x1,5 RHT / 0,38 kg 1J0 422 811 B, 1J0 422 811 E DETAILS
17VW1261
Tie Rod End Right c:Ø13,2 th:FM14x1,5 RHT / 0,38 kg 1J0 422 812 B DETAILS

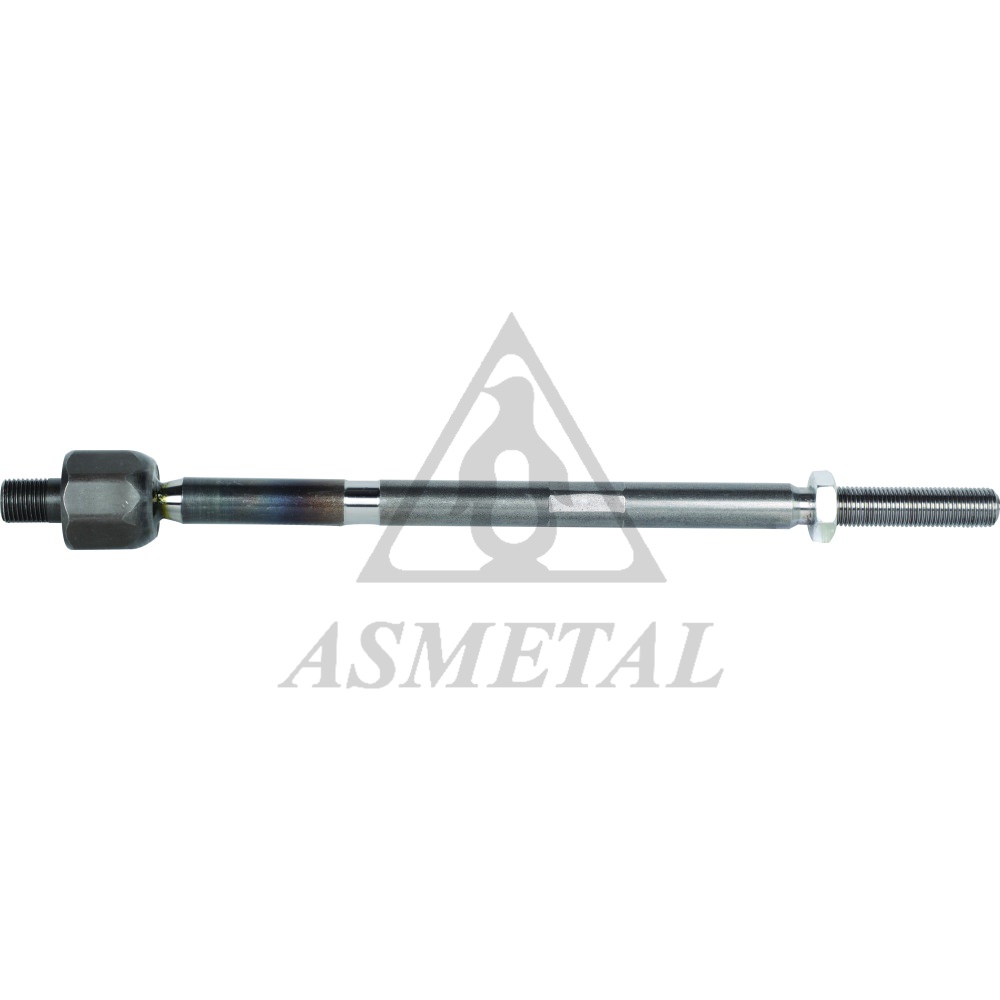

20VW0500
Axial Joint th:MM16x1,5 RHT L:318,5mm / 0,59 kg 1J0 422 804 A, 1J0 422 803 A +3 OEM DETAILS

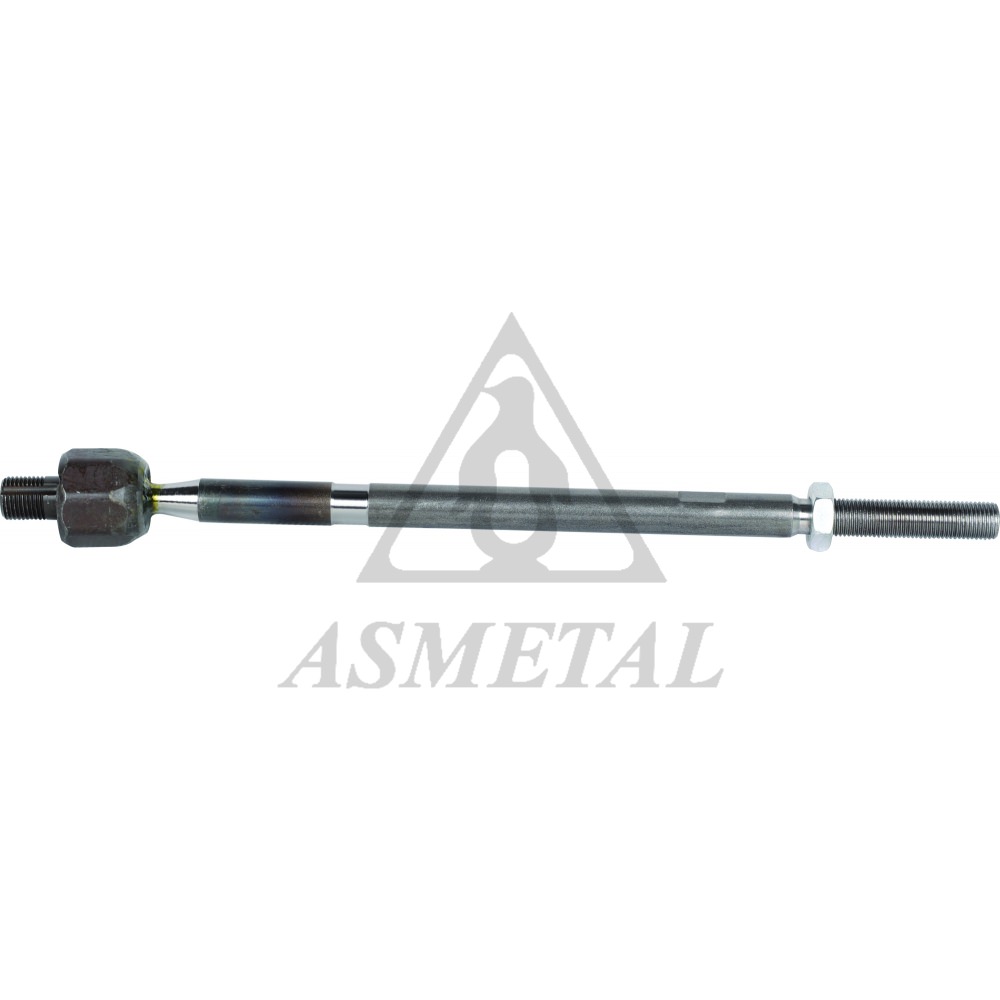

20VW0501
Axial Joint th:MM16x1,5 RHT L:335,5mm / 0,7 kg 1J0 422 807 E, 1J0 422 807 B +6 OEM DETAILS
26AU1200
Stabiliser Link Rear L:175mm / 0,3 kg 1J0 505 466 B DETAILS

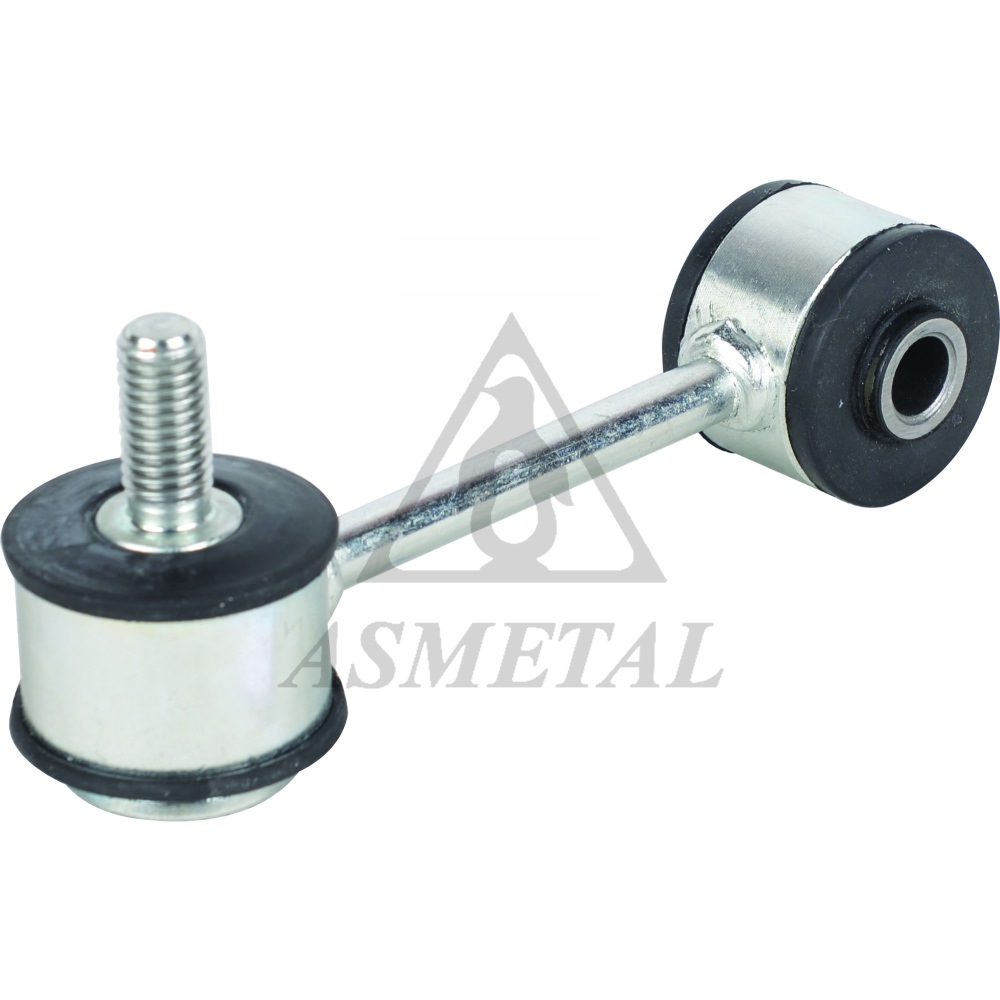

26VW1500
Stabiliser Link L:105mm / 0,26 kg 1J0 411 315 E, 1J0 411 315 G DETAILS
26VW1502
Stabiliser Link L:105mm Plastic / 0,16 kg 1J0 411 315 K DETAILS
26VW1510
Stabiliser Link Left L:335,5mm / 0,47 kg 1J0411315D DETAILS
26VW1511
Stabiliser Link Right L:335,5mm / 0,47 kg 1J0411316D DETAILS
29VW1260
Tie Rod Left No Information 1J0 422 803 B, 1J0 422 803 H +1 OEM DETAILS
29VW1261
Tie Rod Right No Information 1J0 422 804 B, 1J0 422 804 H +1 OEM DETAILS

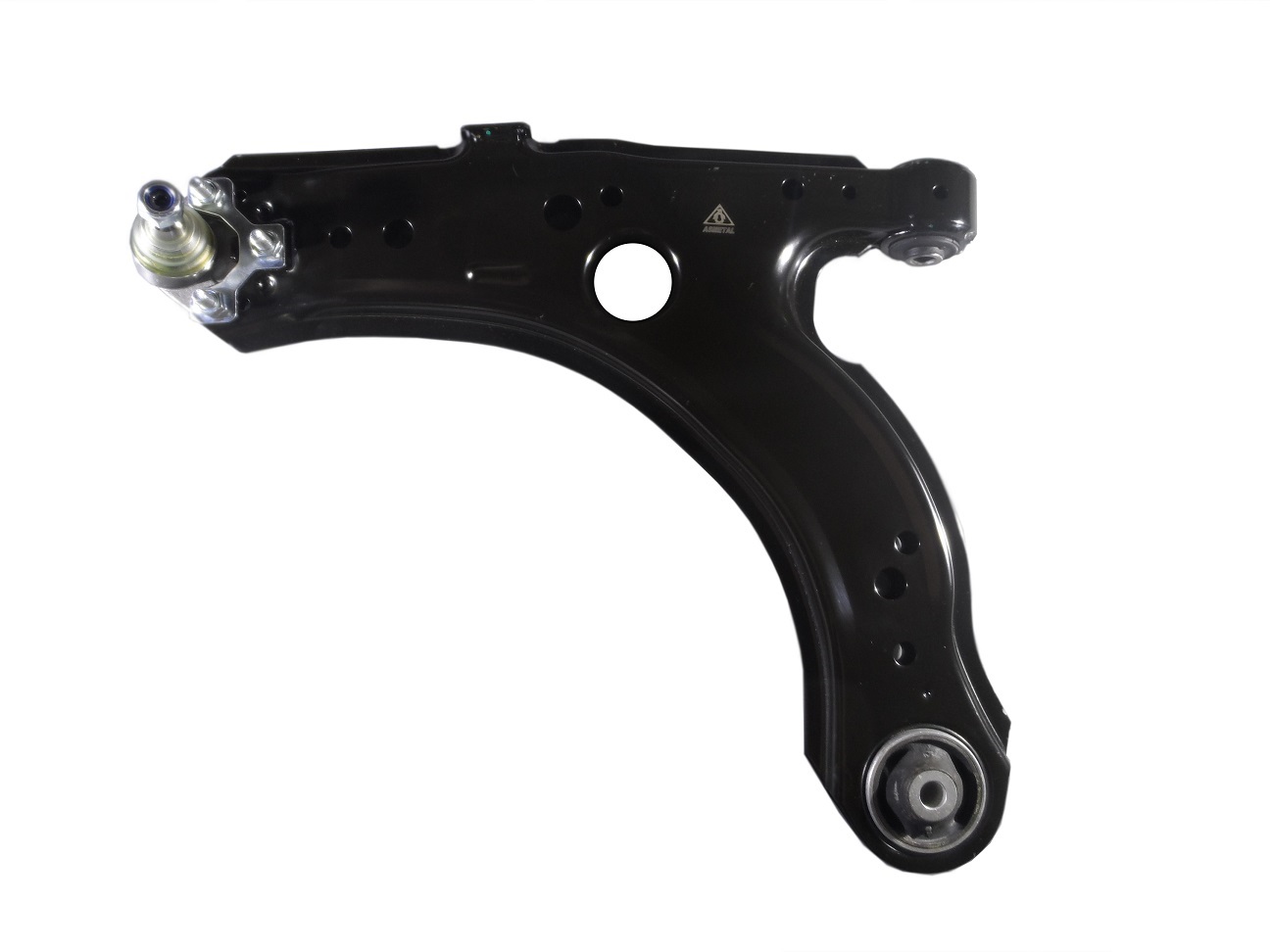

30VW1501
NEW
Track Control Arm Right No Information 1J0 407 151 A, 1J0 407 151 B +1 OEM DETAILS

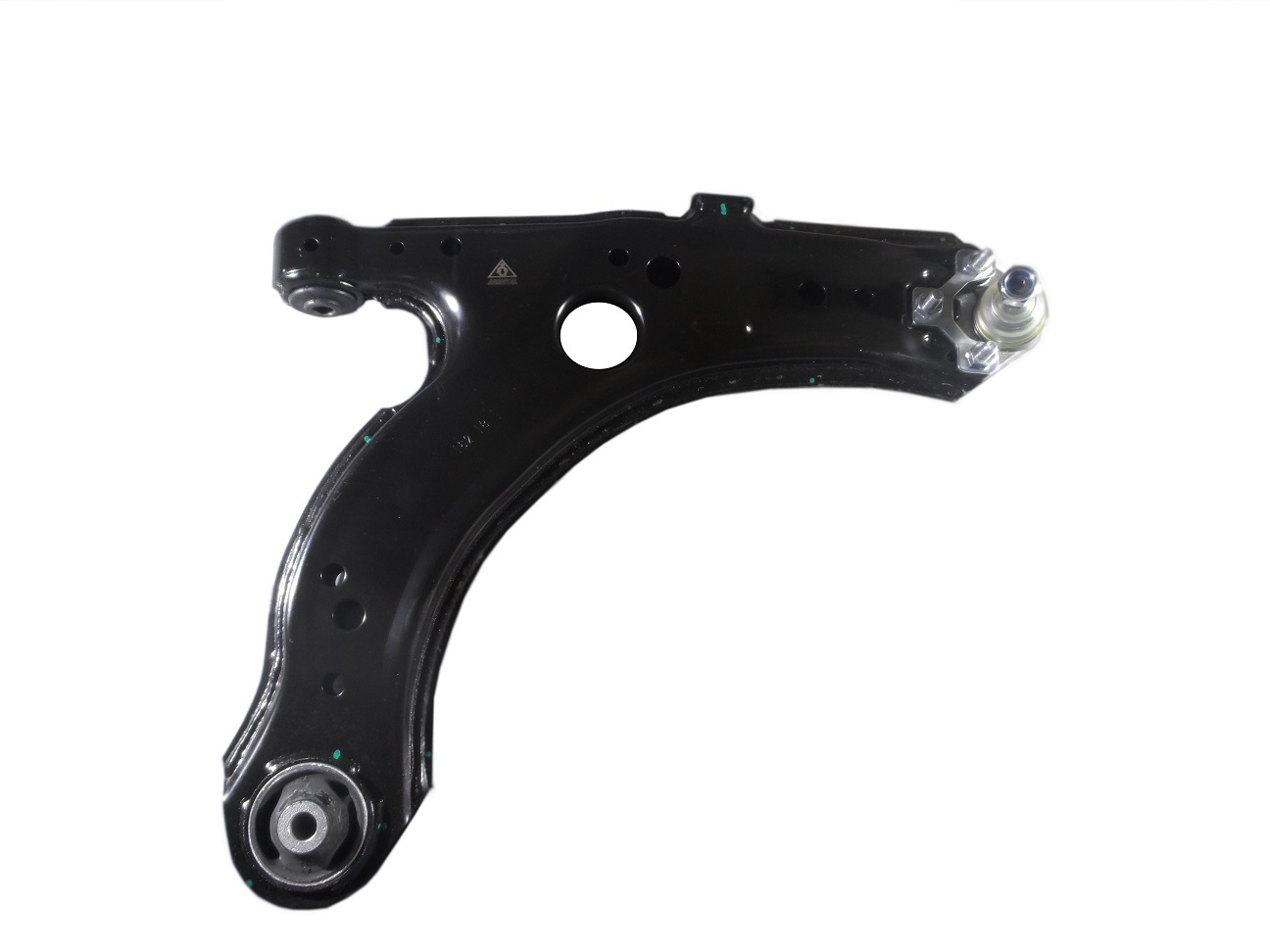

30VW1502
NEW
Track Control Arm Left No Information 1J0 407 151 A, 1J0 407 151 B +1 OEM DETAILS
38AU0100
Stabiliser Mounting di:Ø10,8 / 0,03 kg 8D0 511 327 C DETAILS
38AU1200
Silentblock for TCA di:Ø12 do:Ø32,6 / 0,1 kg 357 407 182, 191 407 182 +1 OEM DETAILS
38AU1205
Silentblock for TCA di:Ø13 do:Ø60 / 0,12 kg 1J0 407 181 DETAILS
38AU1210
Silentblock for TCA di:Ø13,5 do:Ø60,5 / 0,13 kg 8N0 407 181 B, 6R0 407 181 B DETAILS
38AU3000
Stabiliser Mounting di:Ø20,8 / 0,04 kg 1J0 411 314 G, 1J0 411 314 T DETAILS
38AU3003
Stabiliser Mounting di:Ø20,8 / 0,03 kg 1J0 411 314 C, 1J0 411 314 R DETAILS
38VW1270
Strut Mount di:Ø32 do:Ø65,5 / 0,21 kg 1J0 412 331 B, 1J0 412 331 +1 OEM DETAILS
38VW1271
Strut Mount Kit di:Ø32 do:Ø65,5 / 0,27 kg 1J0 412 331 B, 1J0 412 331 +1 OEM DETAILS
38VW1500
Mounting Axle Body di:Ø12,1 do:Ø71,5 / 0,36 kg 1J0 501 541 C, 6R0 501 541 A +1 OEM DETAILS
38VW1502
Mounting Axle Body di:Ø12,5 do:Ø69,2 / 0,64 kg 1J0 501 541 D DETAILS
