ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10VW1600	Ball Joint Lower Left	th:M12x1.5 RHT cp:1/5 cs:Ø15,4 / 0,62 kg	1K0 407 365 C, 5Q0 407 365 A (6) OEM
10VW1601	Ball Joint Lower Right	th:M12x1.5 RHT cp:1/5 cs:Ø15,4 / 0,62 kg	1KD 407 366, 1K0 407 366 E (6) OEM
10VW1605	Ball Joint Lower Right	th:M12x1.5 RHT cp:1/5 cs:Ø15,2 / 0,64 kg	35D 407 366, 5QD 407 366 (3) OEM
10VW1606	Ball Joint Lower Left	th:M12x1.5 RHT cp:1/5 cs:Ø15,2 / 0,64 kg	5QD 407 365, 3C0 407 365 A (3) OEM
17AU1200	Tie Rod End Right	c:Ø13,2 th:FM16x1,5 RHT / 0,42 kg	1K0 423 812 F, 1K0 423 812 J (10) OEM
17AU1201	Tie Rod End Left	c:Ø13,2 th:FM16x1,5 RHT / 0,42 kg	3C0 423 811 B, 1K1 423 070 X (9) OEM
17AU1202	Tie Rod End Left	L: 94 cr: 1:5 c: Ø13.22 tp: M12x1.5 th: FM16x1.5 / 0,45 kg	1K0 423 811 K, 1K0 423 811 J (8) OEM
17AU1203	Tie Rod End Right	L: 94 cr: 1:5 c: Ø13.22 tp: M12x1.5 th: FM16x1.5 / 0,45 kg	1K0 423 812 K, 1K0 423 812 G (7) OEM
17AU1210 IN PREPARATION	Tie Rod End Left		5WA 423 811 E, 2 560 576 (2) OEM
17AU1211 IN PREPARATION	Tie Rod End Right		5WA 423 812 E, 2 560 578 (2) OEM
20AU1200	Axial Joint	th:MM16x1,5 RHT L:312mm / 0,72 kg	1K0 423 810 A, 1K1 423 070 AX (16) OEM
20AU1230 NEW	Axial Joint	0,75 kg	5WA 423 810 F
20VW1200	Axial Joint	tp: MM16x1.5 tp: MM16x1.5 L: 330 / 0,75 kg	1KD 423 810, 5Q0 423 810 (1) OEM
26VW1600	Stabiliser Link	L:335mm / 0,5 kg	1K0 411 315 P, 1K0 411 315 K (14) OEM
26VW1605	Stabiliser Link Rear	L:95,3mm / 0,38 kg	1K0 505 465 K, 1K0 505 465 J (7) OEM
26VW1700	Stabiliser Link Rear	L:70mm Plastic / 0,16 kg	5Q0 505 465 C, 5Q0 505 465 A (4) OEM
29AU1200 IN PREPARATION	Tie Rod Right		1K0 423 810 A, 1K0 423 812 A (1) OEM
30AU1220 IN PREPARATION	Track Control Arm Left	1,05 kg	1K0 501 529 F
30AU1221 IN PREPARATION	Track Control Arm Right	1,05 kg	1K0 501 530 C
30VW1606	Track Control Arm Left	tp: M12x1,5 cr: 1:5 c: Ø15,4 / 3,7 kg	3Q0 407 151 E, 3Q0 407 151 J (9) OEM
30VW1607	Track Control Arm Right	tp: M12x1,5 cr: 1:5 c: Ø15,4 / 3,7 kg	3Q0 407 152 E, 3Q0 407 152 J (9) OEM
30VW1702 NEW	Track Rod Rear	1,34 kg	5Q0 505 323 C, 5Q0 505 323 D (1) OEM
30VW1704 NEW	Track Rod Rear	0,58 kg	5Q0 501 529 F, 5Q0 501 529 D (2) OEM
38AU1220	Silentblock for TCA	di:Ø14,2 do:Ø38,7 / 0,13 kg	1K0 505 203 A, 1K0 505 323 N* (1) OEM
38AU1221	Silentblock for TCA	di:Ø14.1 do:Ø40.5 L:45mm / 0,18 kg	1K0 501 541 C, 1K0 501 530 C (5) OEM
38AU1231	Silentblock for TCA	di:Ø12.1 do:Ø44.4 L:59.8 / 0,12 kg	3Q0 505 311 D, 3Q0 505 311 E (5) OEM
38AU1235	Silentblock for TCA	di:Ø12.25 do:Ø60.2 L:63.8mm / 0,19 kg	1K0 505 541 B, 5Q0 505 541 A (4) OEM
38AU1290 NEW	Bellow Steering	0,11 kg	1K0 423 831 A, 1K0 423 831 B (1) OEM
38AU3020	Silentblock for TCA	di:Ø12,2 do:Ø39,5 / 0,19 kg	5Q0 407 182 A, 5Q0 407 182 (4) OEM
38AU3021	Silentblock for TCA	di:Ø13,2 do:Ø65 / 0,35 kg	5Q0 407 183 D, 5Q0 407 183 G (7) OEM
38AU3030	Silentblock for TCA	di:Ø12,2 do:Ø39,5 / 0,19 kg	1K0 407 182, 1K0 407 182 F (4) OEM

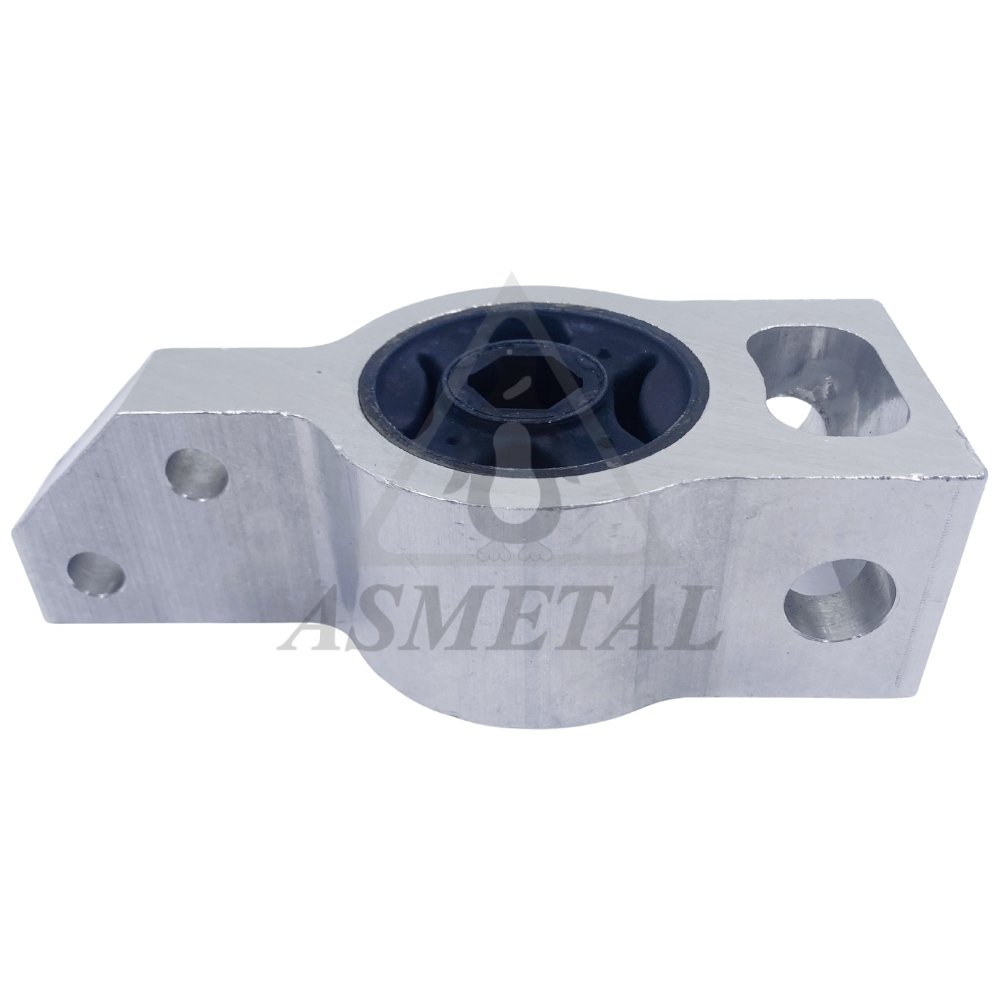

38VW1606	Silentblock for TCA	0,72 kg	3C0 199 231 A, 3C0 199 231 B (2) OEM
38VW1608	Axle Beam Bushing	di: Ø18.1 / do: Ø70 / L: 92 / 0,52 kg	1K0 505 145 K, 1K0 505 145 H
38VW1609	Silentblock for TCA	di: Ø12.1 / do: Ø42.4 / L: 60 / 0,1 kg	1K0 505 311 S, 1K0 505 311 AH (8) OEM
38VW1615	Stabiliser Mounting	di:Ø16 L:43mm / 0,07 kg	1K0 511 327 AE, 1K0 511 327 AP
38VW1616 IN PREPARATION	Stabiliser Mounting	Ø17	1K0 511 327 AQ
38VW1617 IN PREPARATION	Stabiliser Mounting	Ø18,5	1K0 511 327 AR
38VW1618 IN PREPARATION	Stabiliser Mounting	Ø19	1K0 511 327 AS
38VW1700	Silentblock for TCA	0,13 kg	1K0 505 553, 1K0 505 553 A
45VW1600	Engine Mounting	di:Ø15.2 do: Ø91.5 L:35.5mm / 0,24 kg	1K0 199 867 P, 1K0 199 867 Q (4) OEM
45VW1602 NEW	Strut Mount	0,34 kg	5Q0 513 353 G, 5Q0 513 353 K (2) OEM
45VW1603	Strut Mount	0,31 kg	3C0 513 353, 3C0 513 353 C (1) OEM
45VW1605	Strut Mount	di: Ø14.2 / L: 52 / 0,77 kg	1K0 412 331 B, 1K0 412 331 C
45VW1606	Strut Mount With Bearing	di: Ø14.2 / 1 kg	1K0 412 331 B, 6N0 412 249 C (4) OEM
45VW1607 NEW	Bearing	0,25 kg	1K0 412 249 B, 6N0 412 249 C (3) OEM
45VW1608 NEW	Strut Mount	0,69 kg	5Q0 412 331 E, 5Q0 412 331 F (7) OEM
45VW1609 NEW	Engine Mounting	0,60 kg	5Q0 199 855 AB, 5Q0 199 855 AF (1) OEM
45VW1639	Suspension Support Buffer Rear	di:Ø15 do: Ø52.5 L:132.5mm / 0,09 kg	3C0 511 359
