ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10AU1200	Ball Joint Left	th:M12x1.5 RHT cp:1/5 cs:Ø14,8 / 0,54 kg	6R0 407 365 B, 6R0 407 365 A (3) OEM
10AU1201	Ball Joint Right	th:M12x1.5 RHT cp:1/5 cs:Ø14,8 / 0,54 kg	6R0 407 366 B, 6R0 407 366 (3) OEM

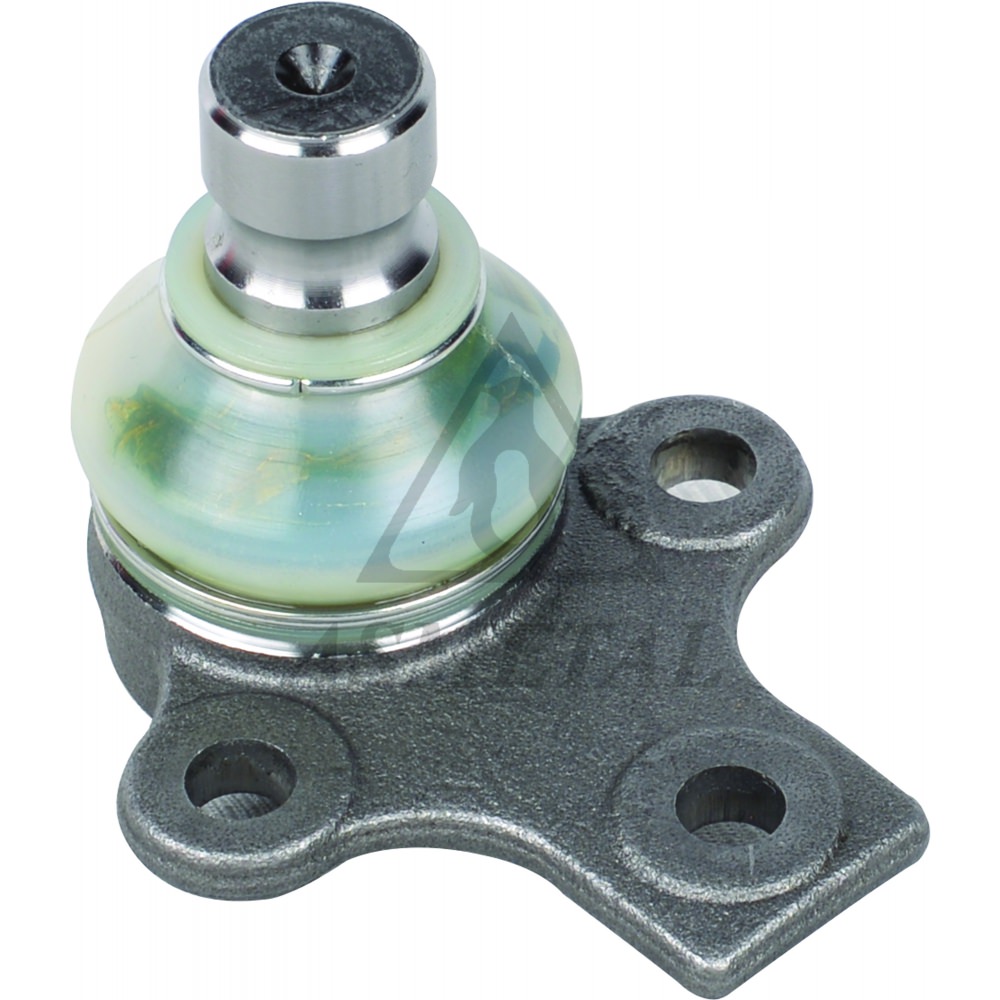

10VW1100	Ball Joint	c:Ø19 / 0,45 kg	357 407 365 A, 357 407 365
10VW1105	Ball Joint	th:M12x1.5 RHT cp:1/10 cs:Ø16,4 / 0,41 kg	1H0 407 365 A, 1H0 407 365
17SK2010 IN PREPARATION	Tie Rod End Left		6C0 423 811 A
17SK2011 IN PREPARATION	Tie Rod End Right		6C0 423 812 A

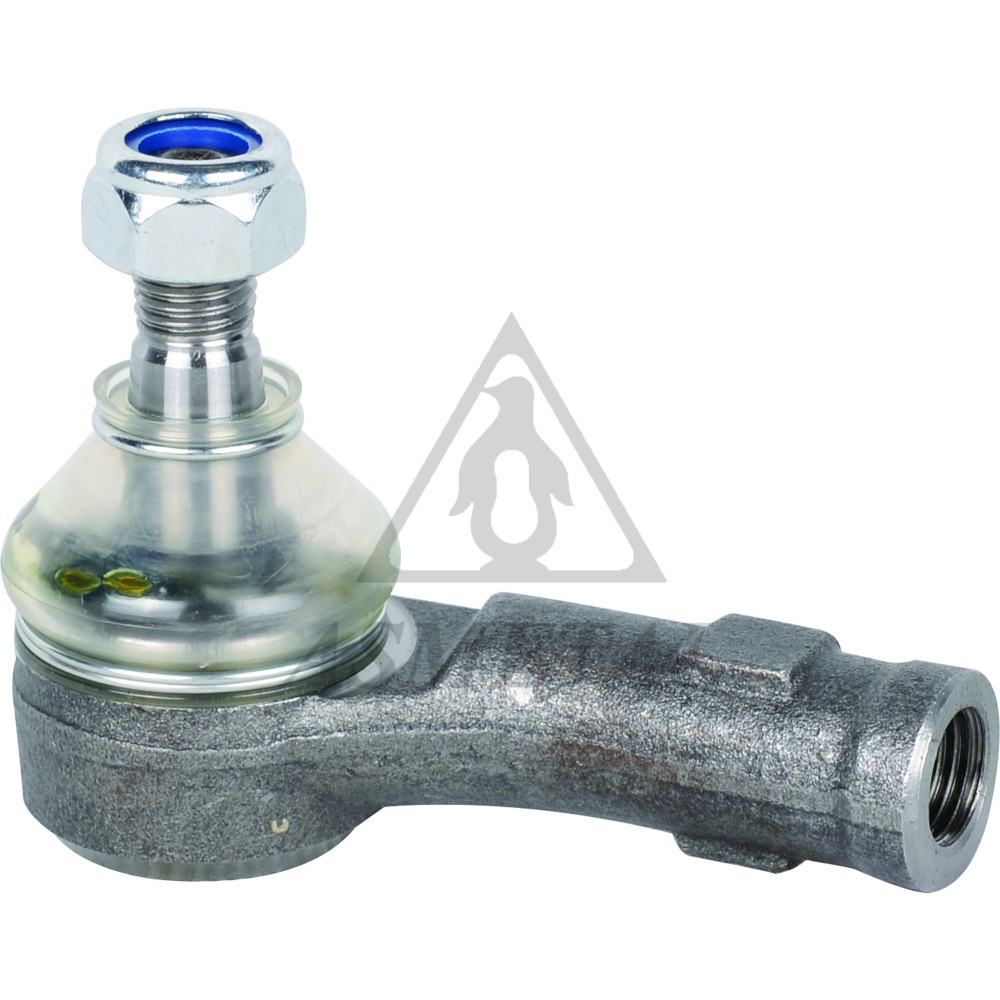

17VW1230	Tie Rod End Right	c:Ø12,4 th:FM14x1,5 RHT / 0,35 kg	191 419 812, 6N0 419 812 (2) OEM

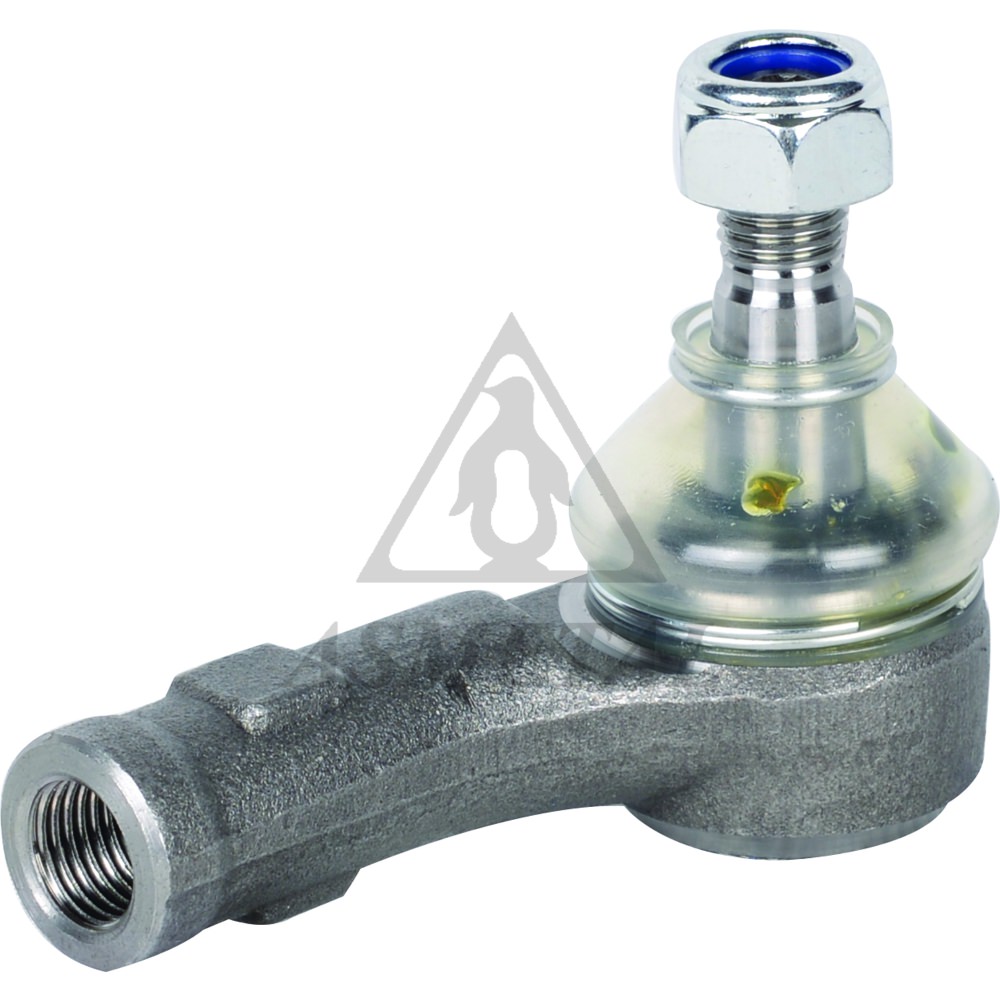

17VW1250	Tie Rod End Left	c:Ø12,4 th:FM14x1,5 RHT / 0,35 kg	3A0 422 811, 6N0 419 811 (2) OEM
17VW2010	Tie Rod End Left	c:Ø13,2 th:FM14x1,5 RHT / 0,4 kg	6Q0 419 811 C, 6Q0 423 811 A (6) OEM
17VW2011	Tie Rod End Right	c:Ø13,2 th:FM14x1,5 RHT / 0,4 kg	6Q0 423 812 A, 6Q0 423 812 D (17) OEM
20AU1100	Axial Joint	th:MM14x1.5 RHT L:315mm / 0,62 kg	6R0 423 810, 8Z0 423 810 C (1) OEM

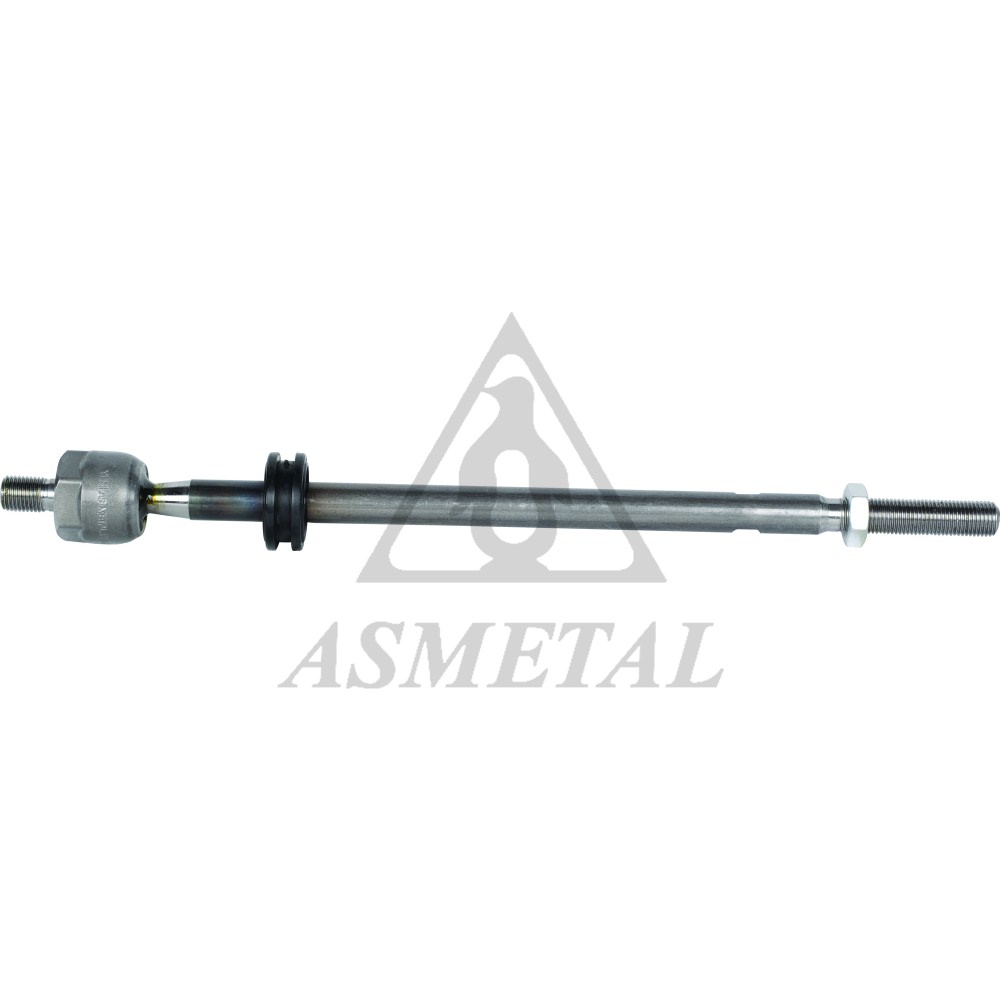

20VW1015	Axial Joint	th:MM14x1.5 RHT L:363mm / 0,76 kg	1H0422821, 1H0 422 810 A (8) OEM
20VW2020	Axial Joint	th:MM14x1.5 RHT L:312,5mm / 0,62 kg	6R0 423 803, 6R0 423 803 A (1) OEM

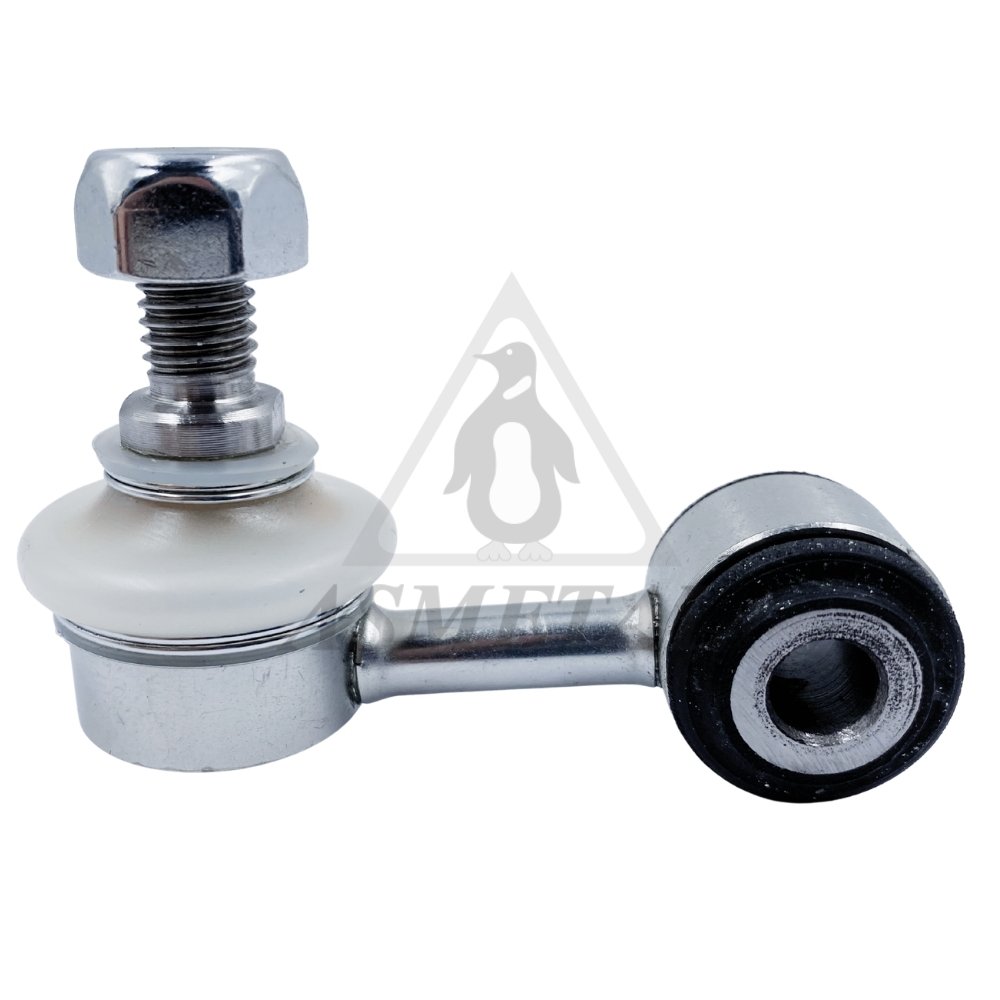

26VW0100	Stabiliser Link	L:51,5mm / 0,17 kg	1H0 411 316, 1H0 411 315 (1) OEM

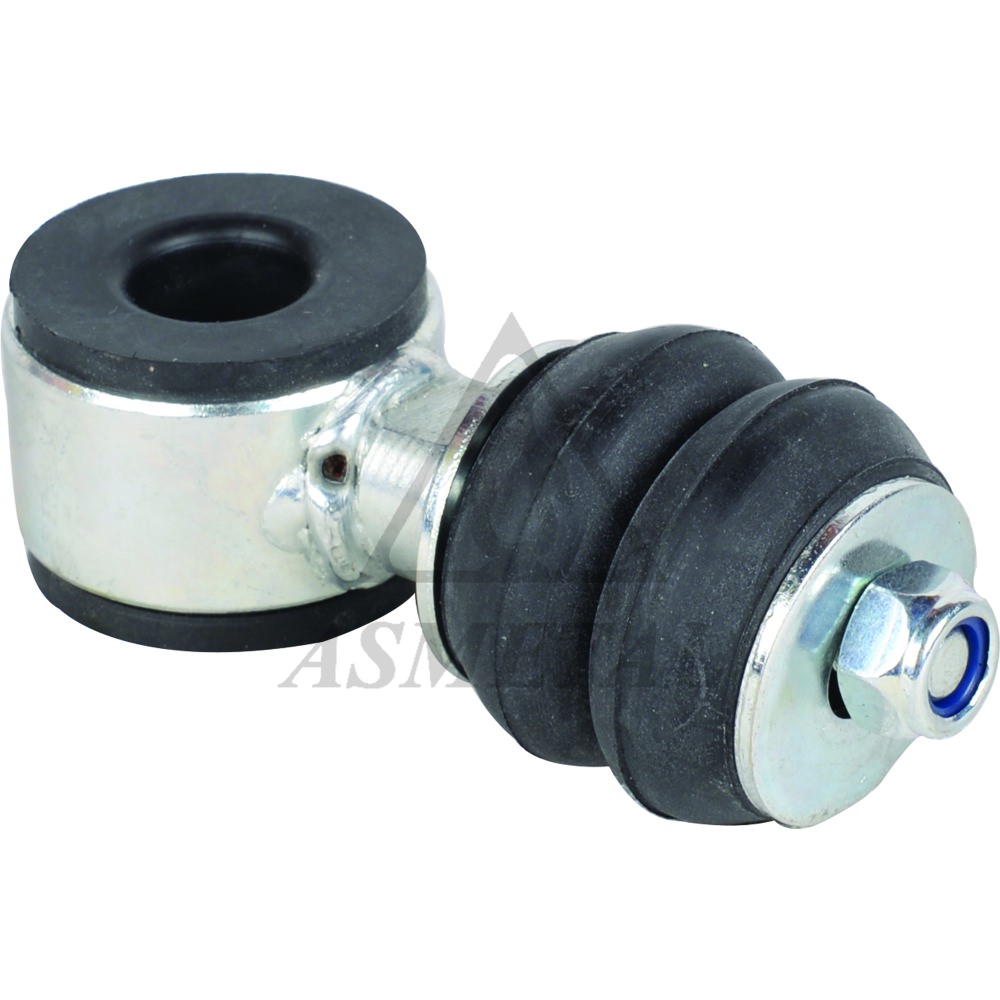

26VW1210	Stabiliser Link	L:77mm / 0,18 kg	191 411 315 BS, 191 411 315 B (1) OEM
26VW2010	Stabiliser Link	L:269,5mm / 0,43 kg	893 407 465 A, 8A0 407 465 B (25) OEM
38AU1200	Silentblock for TCA	di:Ø12 do:Ø32,6 / 0,1 kg	191 407 182, 357 407 182 (2) OEM
38AU1205	Silentblock for TCA	di:Ø13 do:Ø60 / 0,12 kg	1J0 407 181 A, 1J0 407 181 (1) OEM

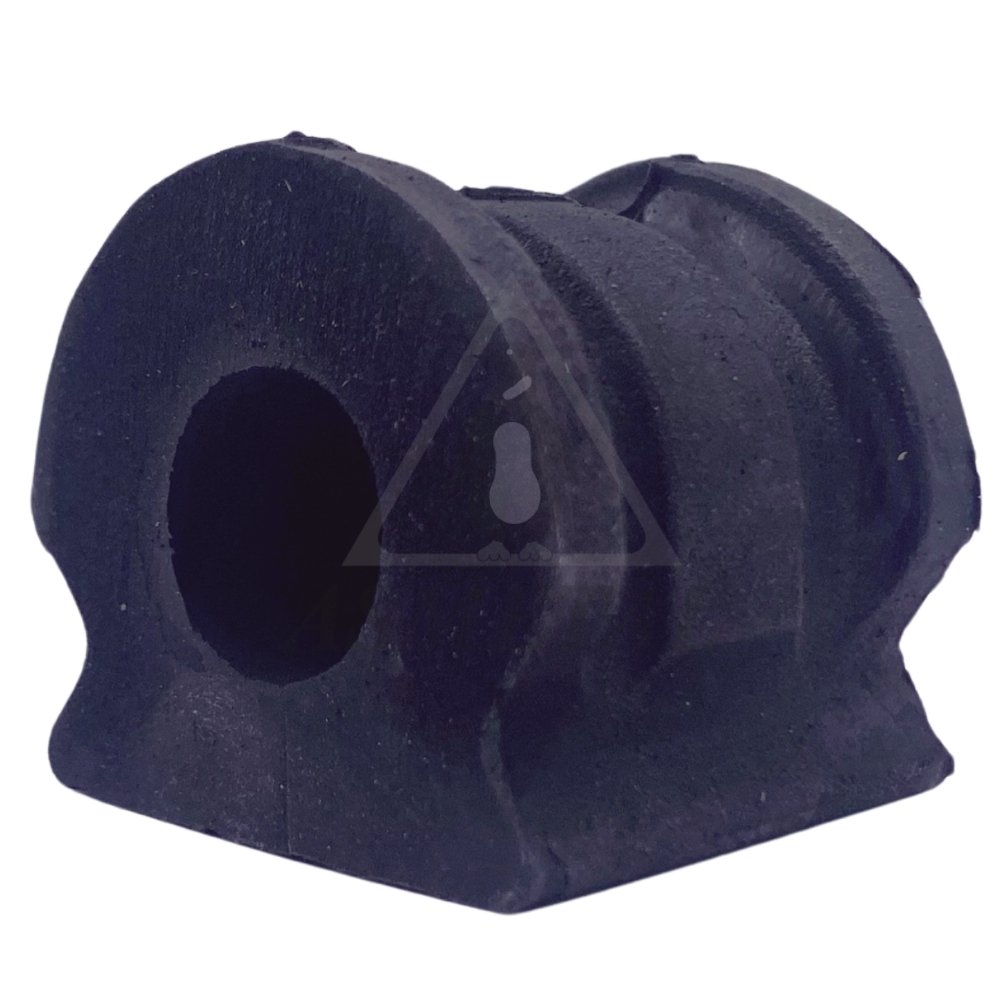

38AU2000	Stabiliser Mounting	di:Ø16 / 0,04 kg	6Q0 411 303 H, 6Q0 411 305 F (5) OEM
38VW1010	Silentblock for TCA	di:Ø17 do:Ø60 / 0,12 kg	191 407 181 D, 191 407 181 E (3) OEM
38VW1020	Stabiliser Mounting	di:Ø19 / 0,03 kg	1H0 411 314, 1H0 411 309 (1) OEM
38VW1021	Stabiliser Mounting	di:Ø17 L:35.5mm / 0,03 kg	191 411 314
38VW1025	Mounting Axle Body	di:Ø12,1 / 0,6 kg	1H0 501 541 A, 1H0 501 541
38VW1273	Bearing	di:Ø14.2 do:Ø45.5 L:13.8mm / 0,07 kg	357 412 249 A, 1J0 412 249 (10) OEM
38VW1500	Mounting Axle Body	di:Ø12,1 do:Ø71,5 / 0,36 kg	1J0 501 541 D, 6R0 501 541 B (6) OEM

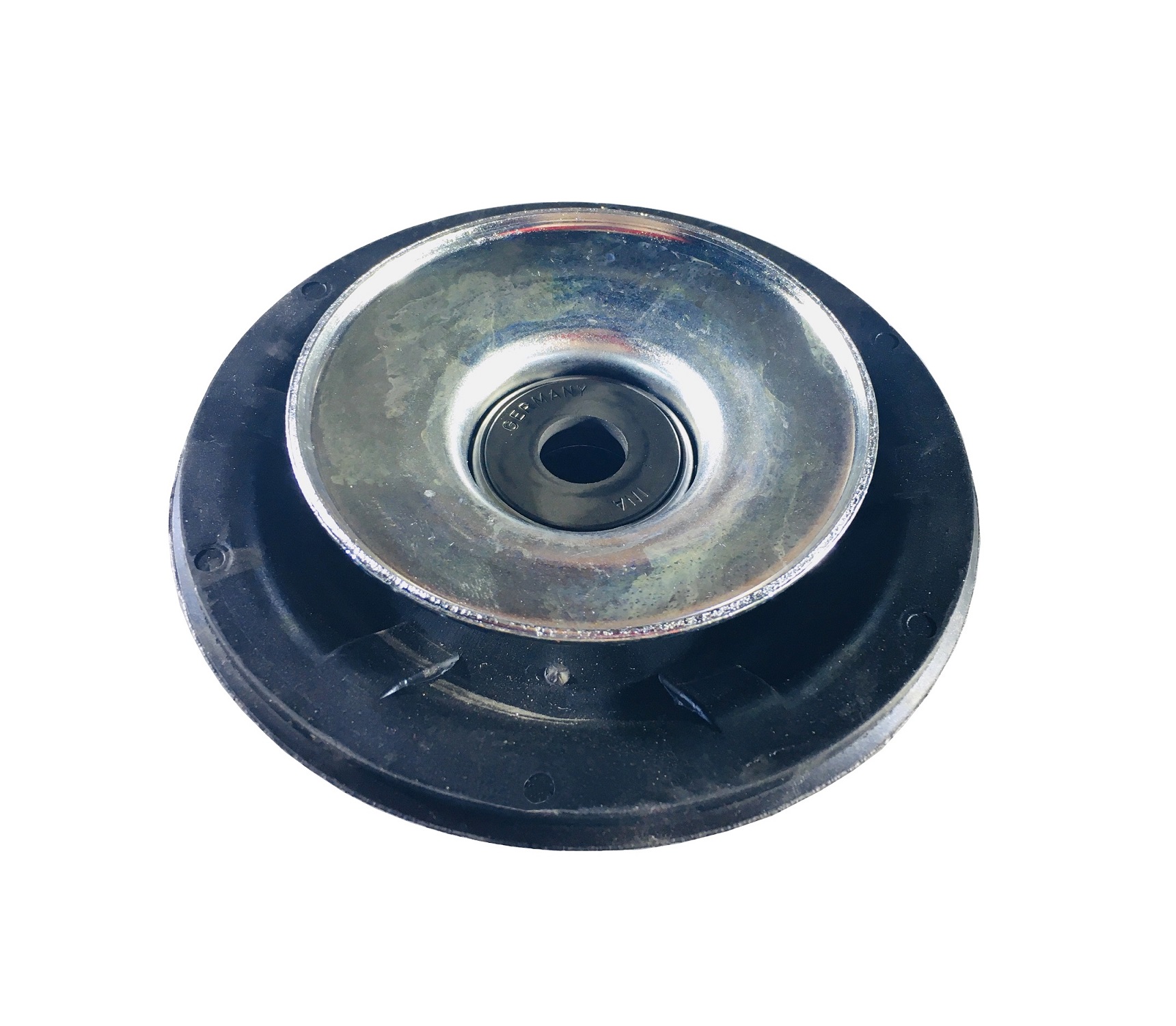

45VW1000 OUT OF SERVICE	Strut Mount	di:Ø14.2 do: Ø125 L:49mm / 0 kg	176 412 329, 191 412 331 (2) OEM
45VW1235	Strut Mount	di:Ø26 do:Ø96 L:50mm / 0,33 kg	7M0 412 331, 357 412 331 A (2) OEM
45VW1236	Strut Mount Kit	di:Ø26 do: Ø96 L:50mm / 0,4 kg	357 412 331 A, 7M0 412 331 (2) OEM
45VW1621 NEW	Suspension Support Buffer Front	di:Ø25 do: Ø49 L:87.5mm / 0,05 kg	6K0 413 031 B, 357 412 303 F (4) OEM
