ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10HY0500	Ball Joint Lower	tp:M12x1.25 RHT cr:1/8 c:Ø15 do:Ø40 / 0,35 kg	54503 25A00, 54503 38A00 (10) OEM
10VL0400 NEW	Ball Joint Left	0,76 kg	31 340 232*
10VL0401 NEW	Ball Joint Right	0,76 kg	31 340 231*
17MT1500	Tie Rod End	L:78 cr:1/8 c:Ø13.4 tp:M10x1.25 th:FM12x1.25 RHT / 0,3 kg	3817 A6, 56820 02500 (13) OEM

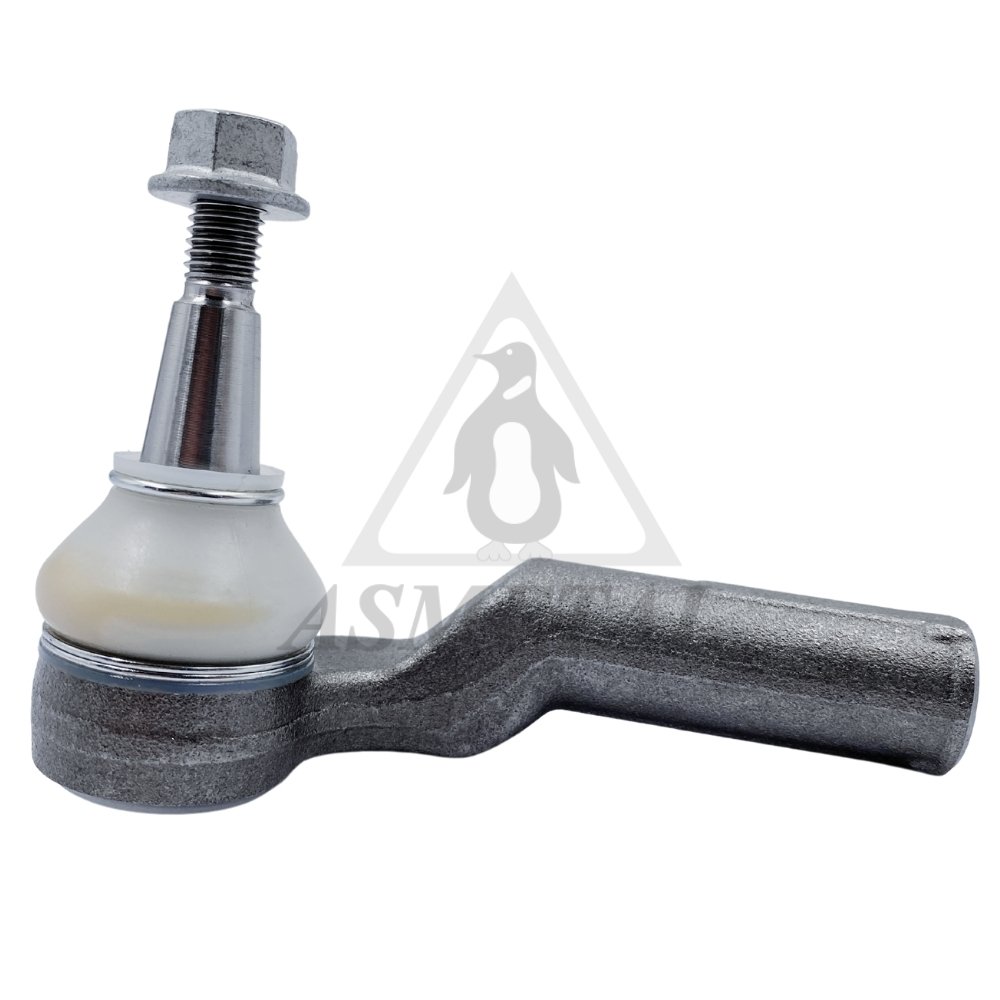

17VL0400 NEW	Tie Rod End Left	0,48 kg	31 317 781

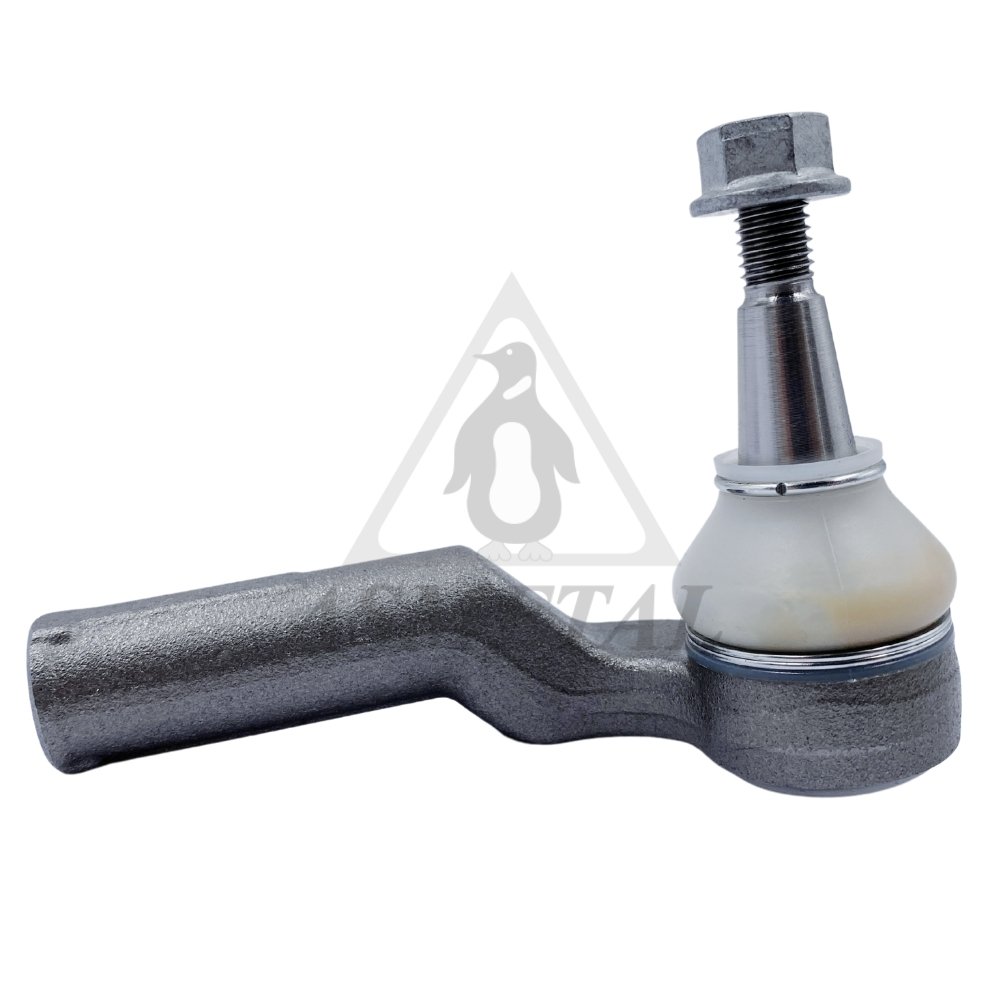

17VL0401 NEW	Tie Rod End Right	0,48 kg	31 317 819
17VL1100	Tie Rod End Left	L:90 cr:1/8 c:Ø13.4 tp:M10x1.25 th:FM14x1.5 RHT / 0,36 kg	274 225
17VL1101	Tie Rod End Right	L:90 cr:1/8 c:Ø13.4 tp:M10x1.25 th:FM14x1.5 RHT / 0,36 kg	274 226
20FR1705	Axial Joint	L:293 tp:M16x1.5 th:MM14x1.5 RHT / 0,64 kg	3M51 3L519 AA, 1 251 937 (10) OEM
26FR1705	Stabiliser Link	L:298 tp:M10x1.5 RHT / 0,34 kg	1 223 792, 1 230 909 (16) OEM
26FR1708	Stabiliser Link Rear	L:87.5 tp:M12x1.25 RHT tp:M10x1.5 RHT / 0,4 kg	BV61 5C486 BAB, 1 767 896 (11) OEM

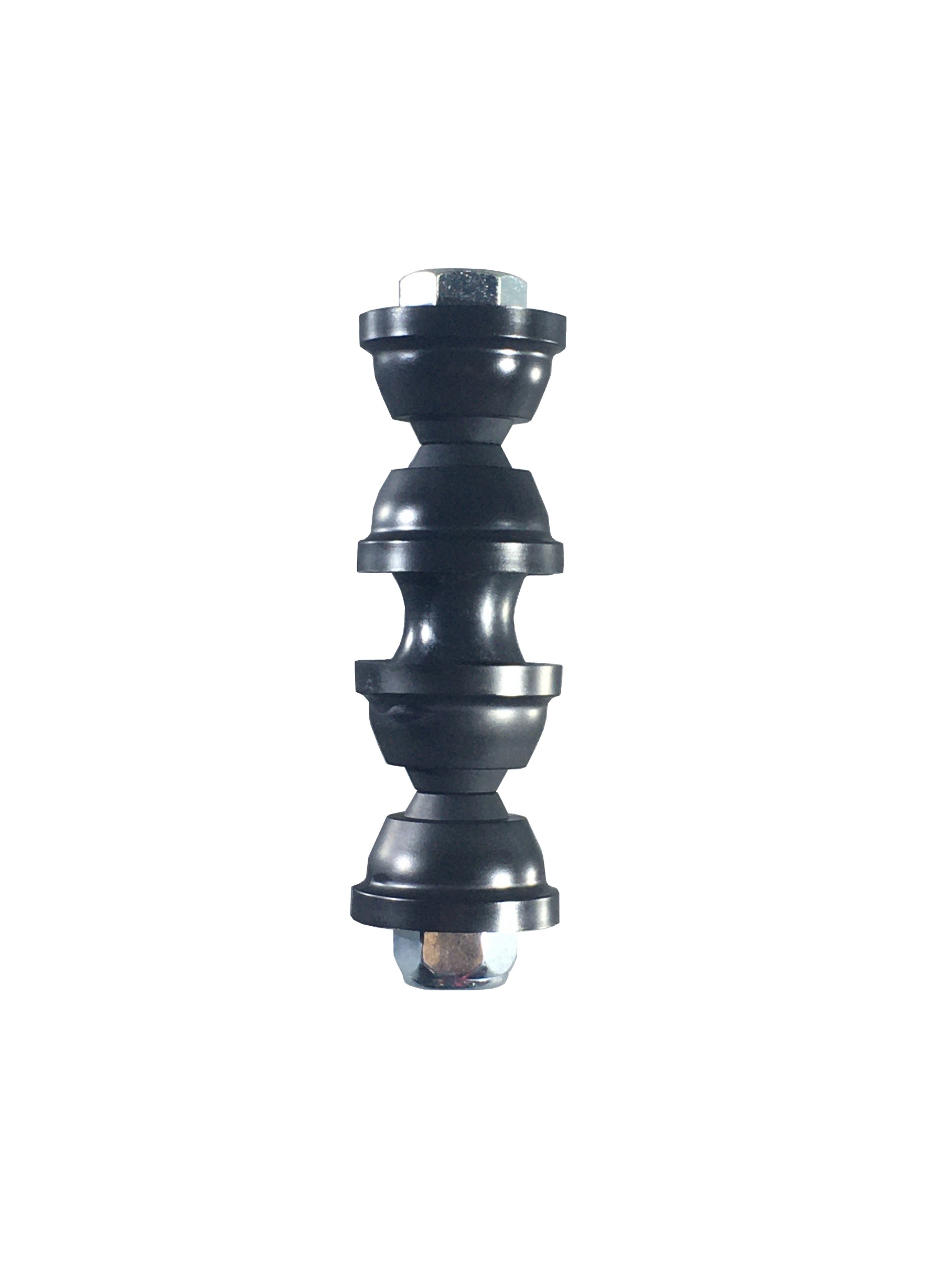

26FR1709	Stabiliser Link Rear	L:106.5 tp:M10x1.5 RHT / 0,15 kg	1 500 682, 1 719 542 (15) OEM
26MT1500 NEW	Stabiliser Link	0,38 kg	MME272116, MR272116 (6) OEM
26MT1520 IN PREPARATION	Stabiliser Link Rear	0 kg	MME272118, MR272118 (4) OEM
26VL1100	Stabiliser Link	L:268 tp:M10x1.5 RHT / 0,41 kg	30 811 958, 30 884 179
38FR1701 NEW	Silentblock for TCA	0,267	1 702 970, 1 702 983 (21) OEM
38FR1702 NEW	Silentblock for TCA Left	1,46 kg	1 709 468, 1 749 992 (1) OEM
38FR1703 NEW	Silentblock for TCA Right	1,46 kg	1 709 423, 1 709 424 (1) OEM
38FR1704 NEW	Silentblock for TCA	1,39 kg	1 866 073, 1 702 970 (14) OEM
38FR1707	Axle Beam Bushing	L:114 do:Ø60.2 / 0,49 kg	1 692 849, BV61 5K896 AB (3) OEM
38FR1724 NEW	Stabiliser Mounting	di:Ø23 / 0,10 kg	1 683 481, 1 810 326 (5) OEM
38FR1760	Silentblock for TCA	L:55 di:Ø12.1 do:Ø32.4 / 0,16 kg	1 064 128, 1 150 353 (8) OEM
38FR1761 NEW	Silentblock for TCA	0,16 kg	1 064 128, 1 150 353 (3) OEM
38VL1116 NEW	Stabiliser Mounting	di:Ø17 / 0,04 kg	30 884 518
45FR1707	Bearing	L:44.5 di:Ø35.68 do:Ø69.5 / 0,17 kg	1 223 835, 1 250 820 (27) OEM
45VL1100	Strut Mount	L:32.7 di:Ø12.2 do:Ø75.4 / 1,11 kg	30 616 824, 30 889 584
