ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10FR2205	Ball Joint Lower	th:M14x1.5 RHT cp:1/6 cs:Ø18 / 0,8 kg	6G9N 3A053 DH, 6G9N 3A053 DG (41) OEM
10VL0502	Ball Joint Lower	th:M12x1.75 RHT do:Ø38,35 / 0,5 kg	9 492 639, 9 173 613 (7) OEM

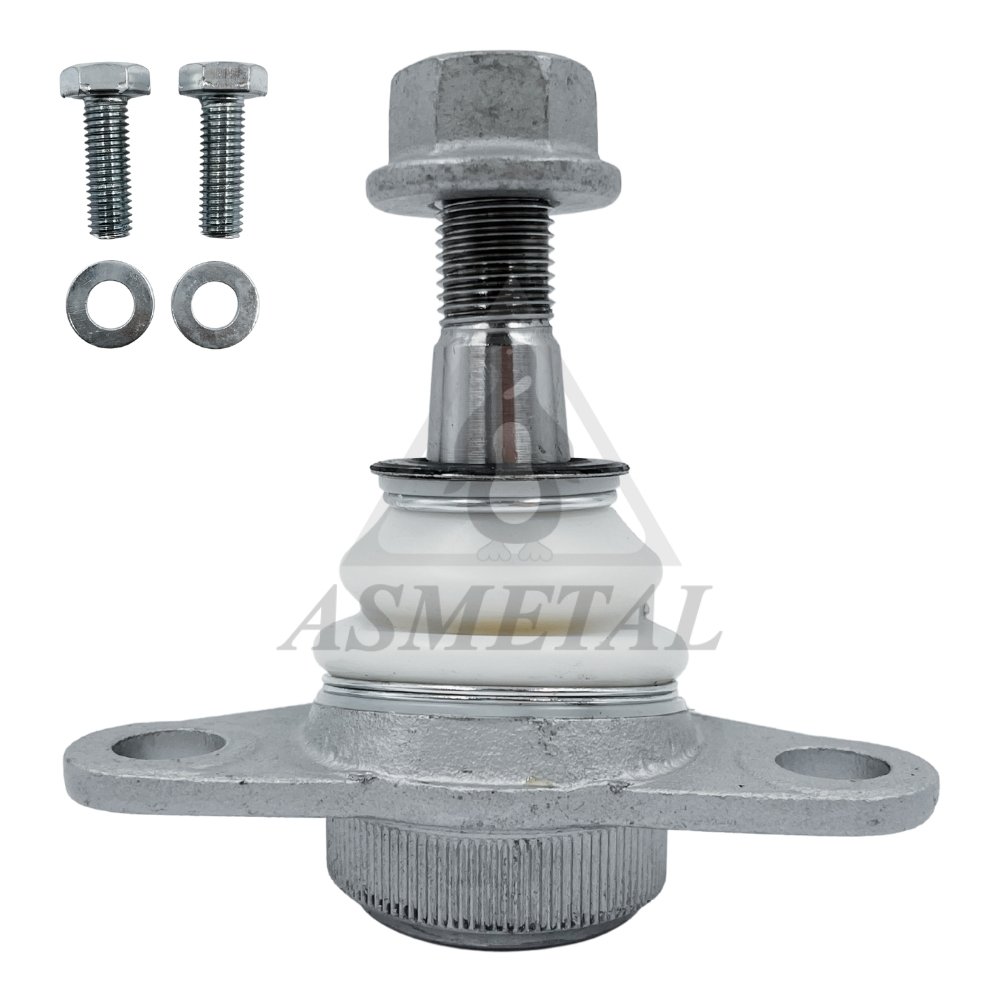

10VL0510	Ball Joint	tp: M14x1.5 / do: Ø58 / cr: 1:6 / c: Ø14.8 / 0,54 kg	30 760 868, 274 573 (3) OEM
17FR2205	Tie Rod End Right	c:Ø16,7 th:FM18x1,5 RHT / 0,58 kg	6G91 3289 AA, 1 433 273 (4) OEM
17FR2206	Tie Rod End Left	c:Ø16,7 th:FM18x1,5 RHT / 0,58 kg	6G91 3290 AA, 1 433 274 (4) OEM
17VL0500	Tie Rod End Left	c:Ø13,2 th:FM14x2 RHT / 0,66 kg	271 598, 3 546 267
17VL0501	Tie Rod End Right	c:Ø13,2 th:FM14x2 RHT / 0,66 kg	271 599, 3 546 268
17VL0502	Tie Rod End Left	th:FM14x1,5 RHT / 0,96 kg	274 175, 274 496 (1) OEM
17VL0503	Tie Rod End Right	th:FM14x1,5 RHT / 0,96 kg	274 176, 274 497 (1) OEM
20FR2205	Axial Joint	th:MM16x1,5 RHT L:313mm / 0,83 kg	1 433 271, 1 596 574 (7) OEM
20VL0500	Axial Joint	th:MM14x1.5 RHT L:176,3mm / 0,42 kg	35 462 662, 3 546 266 (1) OEM
20VL0502	Axial Joint	th:MM16x1,5 RHT L:125mm / 0,35 kg	9 173 612, 9 173 611 (2) OEM
20VL0505	Axial Joint	tp: MM16x1.5 / tp: MM14x1.5 / L: 126 / 0,36 kg	274 353
20VL0550 IN PREPARATION	Axial Joint	0 kg	9 191 410
26FR2205	Stabiliser Link	L:300mm / 0,38 kg	1 377 849, 6G9N 3B438 BA (2) OEM
26FR2210	Stabiliser Link Rear	L:179mm / 0,3 kg	1 425 853, 1 377 416 (4) OEM
26VL0502	Stabiliser Link Rear	L:140mm / 0,38 kg	30 647 920, 8 672 446 (4) OEM
26VL0503	Stabiliser Link	L:332mm / 0,48 kg	274 303, 274 456 (6) OEM
26VL06	Stabiliser Link	L:303,5mm / 0,44 kg	9 492 804, 9 140 767 (8) OEM
30FR2204	Track Control Arm Left	tp: M14x1,5 cr: 1:6 c: Ø18 / 6,64 kg	1 507 182, 1 469 026 (4) OEM
30FR2205	Track Control Arm Right	tp: M14x1,5 cr: 1:6 c: Ø18 / 6,54 kg	1 507 181, 1 469 024 (4) OEM
38FR2204	Silentblock for TCA Left	di:Ø24 L:78mm / 2 kg	1 507 182, 1 469 026 (17) OEM
38FR2205	Silentblock for TCA Right	di:Ø24 L:78mm / 2,03 kg	1 883 048, 1 469 024* (17) OEM
38FR2206	Mounting Axle Body Left	do:Ø90,2 L:40.5 / 0,85 kg	1 566 838, TKA 181351 (10) OEM
38FR2207	Mounting Axle Body Right	do:Ø90,2 L:40.5 / 0,84 kg	6G91 5A968 FCJ, 1 566 841 (12) OEM
38FR2232	Stabiliser Mounting	di: Ø22 / L: 48 / 0,1 kg	1 469 020, 1 453 257 (10) OEM
38FR4000	Silentblock for TCA	di:Ø14,2 do:Ø60,4 / 0,44 kg	6G9N 3A052 DG, 1 507 181* (37) OEM
38VL0503	Silentblock for TCA	tp: MM12x1.75 / do: Ø48.3 / L: 98.5 / 0,49 kg	9 443 882, 9 173 618 (1) OEM
38VL0504	Silentblock for TCA	di: Ø12.1 / do: Ø34.1 / L: 34 / 0,1 kg	9 127 363
38VL0505	Silentblock for TCA	di: Ø12.1 / do: Ø32.1 / L: 46 / 0,1 kg	6 800 251
38VL0506	Silentblock for TCA	di: Ø14.2 / do: Ø53.3 / L: 50 / 0,15 kg	30 760 590, 8 630 604 (1) OEM
38VL0507	Silentblock for TCA	di: Ø14.2 / do: Ø53.3 / L: 50 / 0,2 kg	9 461 626, 8 630 604 (1) OEM
38VL2206	Mounting Axle Body Left	do: Ø88.9 / L: 55 / 1,1395 kg	31 406 349, 31 476 223 (1) OEM
45VL0502	Strut Mount	di: Ø16,6 / 0,56 kg	30 683 637, 9 461 728 (5) OEM
45VL0520 NEW	Suspension Support Buffer and Dust Cover	0,13 kg	8 672 087, 9 140 068
45VL0530	Suspension Support Buffer Rear	do: Ø47 L:71mm / 0,05 kg	9 157 115
